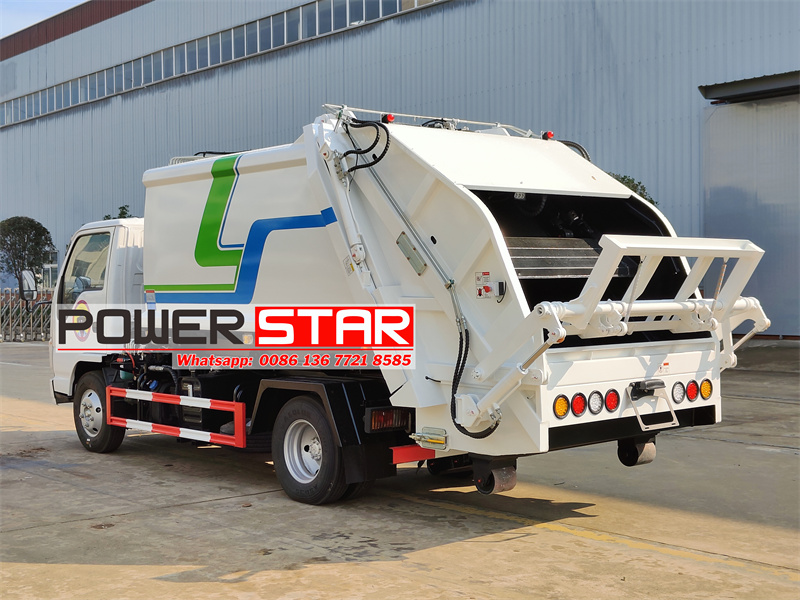

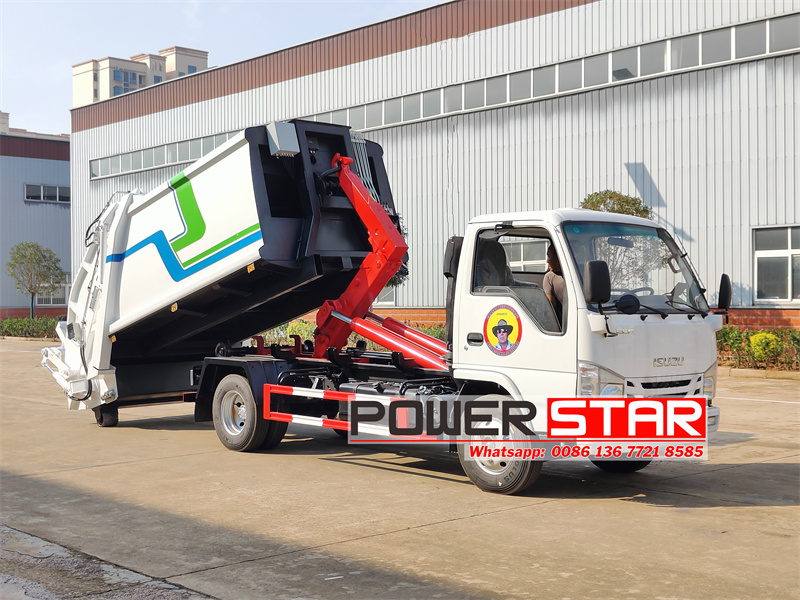

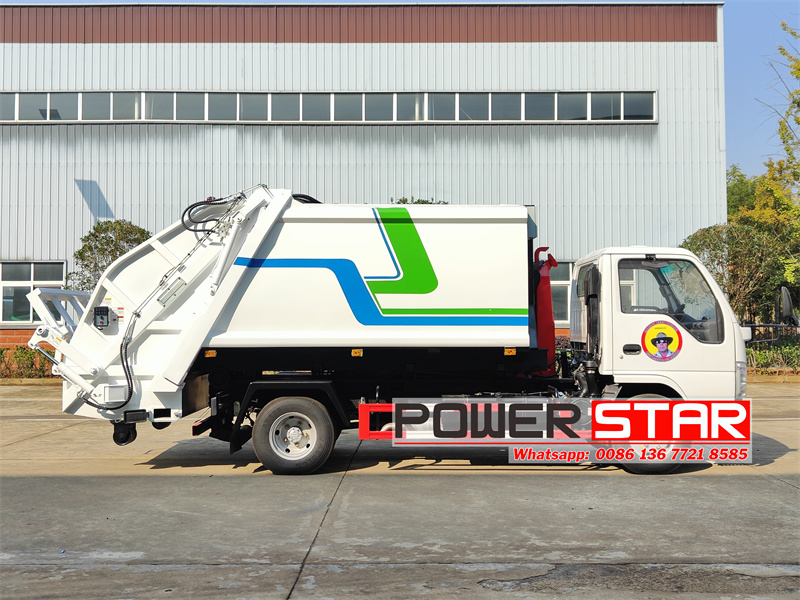

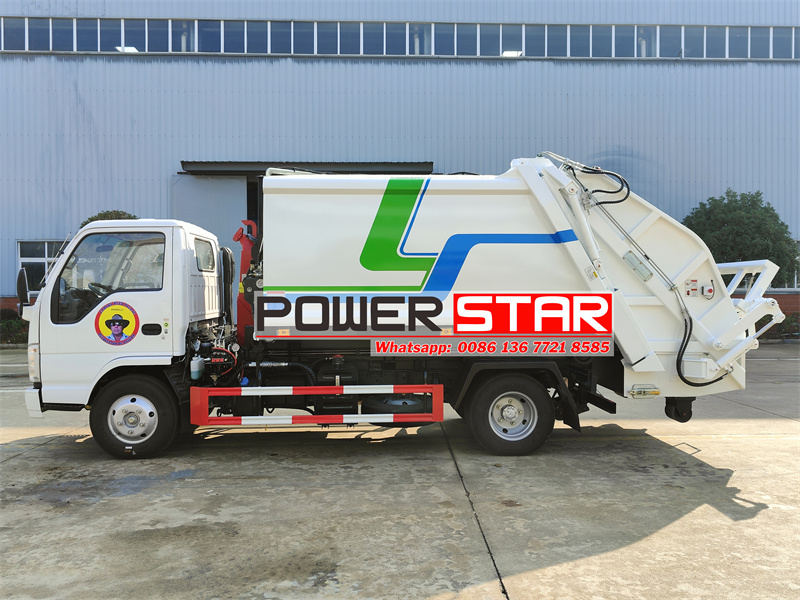

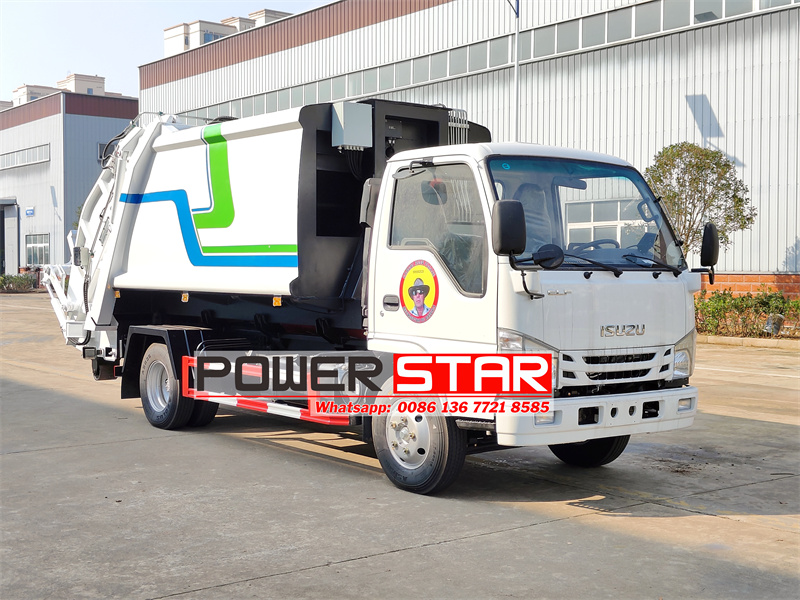

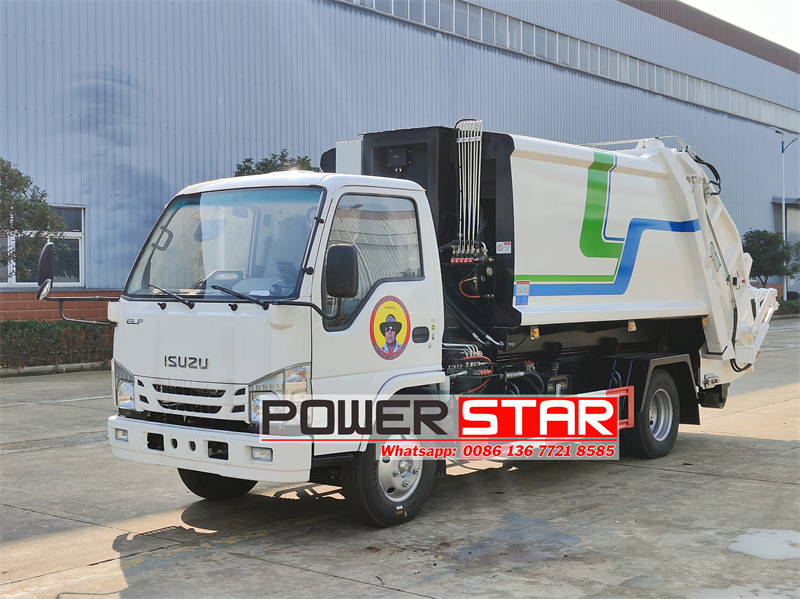

The Isuzu 100P 7cbm hook loader garbage compactor truck is modified based on the Isuzu 100P chassis, featuring a wheelbase of 3360mm and equipped with a 4KH1CN6LB engine. It comes with an Isuzu MSB 5-speed transmission, complying with EURO 6 emission standards, and has a displacement of 2999ml. The upper part of the vehicle consists of an hook loader device and a garbage container. A pulley is installed at the rear of the container to facilitate the grasping and placement of the garbage bin by the hook loader system.
Work capacity:
7cbmEngine power:
120HPEngine type:
Isuzu 4KH1CN6LBAxle drive:
4X4,LHDGear box:
Isuzu MSB 5-speed,manualRemarks:

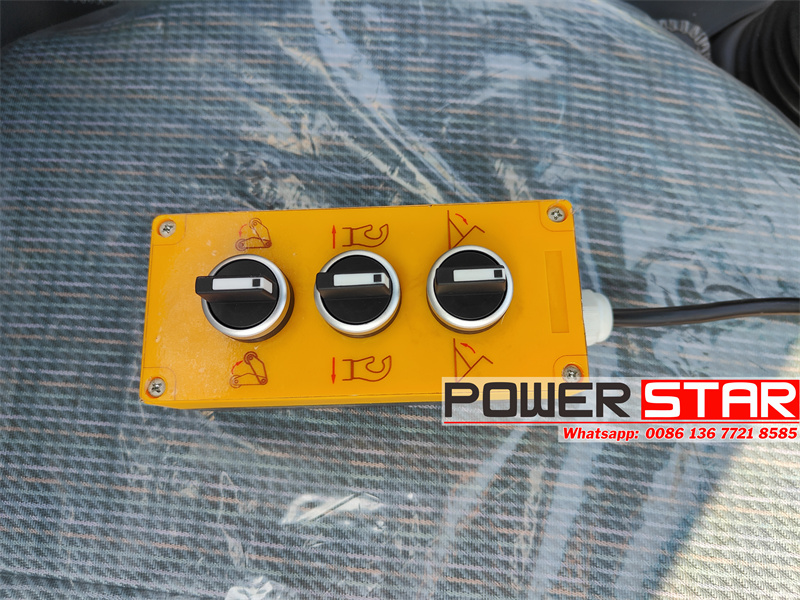

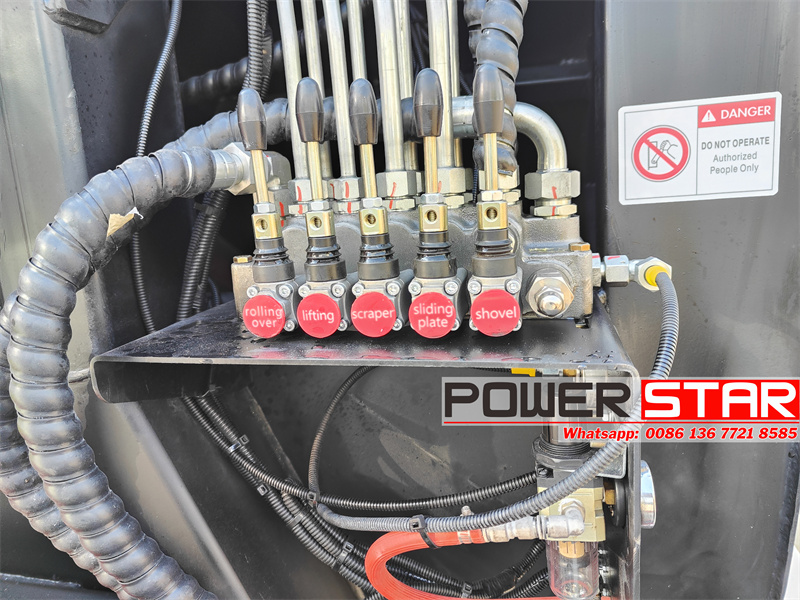

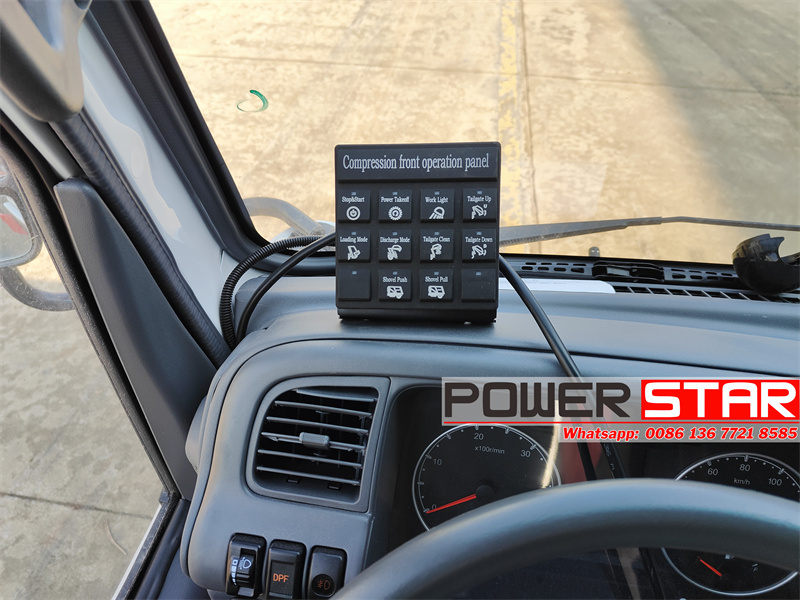

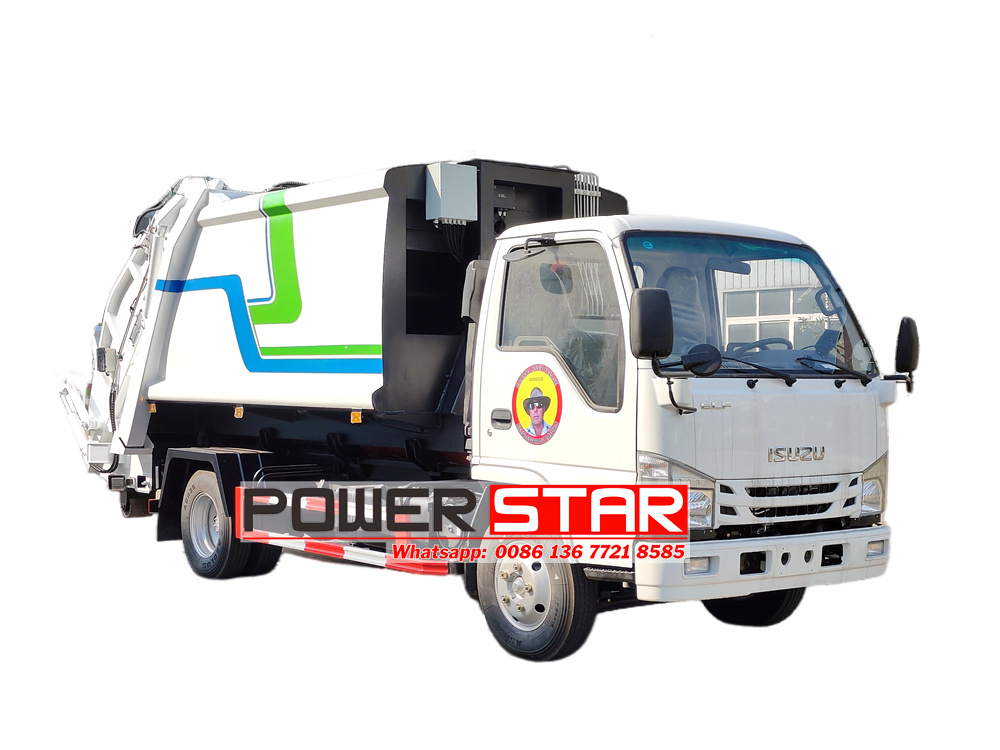

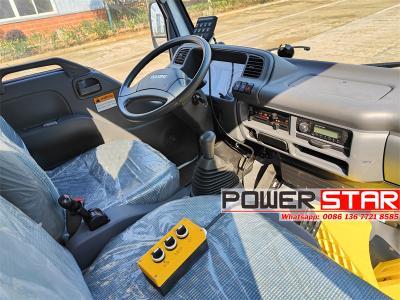

Isuzu hook loader truck mounted garbage compactorThis Isuzu 7 cbm hook lift compactor truck is based on the Isuzu 100P chassis, with a moderate wheelbase, a powerful power system, and environmentally friendly emissions. The upper part is cleverly designed, the arm pulling device works in conjunction with the garbage box, and the pulley at the tail of the box improves operational flexibility. The control system is integrated in the cab and on the driver's side. Two sets of electronic control boxes and hydraulic operating levers manage the compression and arm pulling functions respectively, ensuring efficient and convenient operation. The overall structure is compact and fully functional, suitable for urban sanitation needs.
● China the best Isuzu refuse compactor factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
● Promptly delivery, 100% customer made.
|
Isuzu hook loader garbage compactor truck |
||
|
Vehicle parameters: |
||
|
Overall dimensions (l * w * h) |
6540*2250*2950mm |
|
|
GVW |
7300Kg |
|
|
Curb weight |
4850Kg |
|
|
Wheelbase |
3360mm |
|
|
Front overhang / rear overhang |
1110/2070mm |
|
|
Max speed |
110 km/h |
|
|
Chassis parameters |
||
|
Drive form |
4*2,LHD |
|
|
Engine model |
Model |
Isuzu 4KH1CN6LB |
|
Type |
Inline 4-cylinder 4-stroke, supercharged, intercooled, water-cooled,diesel |
|
|
Power |
120HP/88Kw |
|
|
Max torque |
290N.m |
|
|
Displacement |
2999ml |
|
|
Emission standard |
Euro 6 |
|
|
Gearbox |
Isuzu MSB 5-speed,manual |
|
|
Top loading parameters: |
||
|
Effective volume of the box |
7cbm |
|
|
Box material |
Carbon steel,Bottom 5 sides 4 |
|
|
Compression ratio |
1:3.4 |
|
|
Loading cycle once |
≤25 s |
|
|
control method |
automatic / manual |
|
|
Hydraulic system pressure |
16MPa |
|
|
Multiple way reversing valve |
Yangzhou Zhongmei |
|
|
Hydraulic oil pump |
Hefei Changyuan |
|
|
PLC control system |
Siemens, Germany |
|
|
Engine power control |
Fully automatic control |
|
|
Tumbler mechanism |

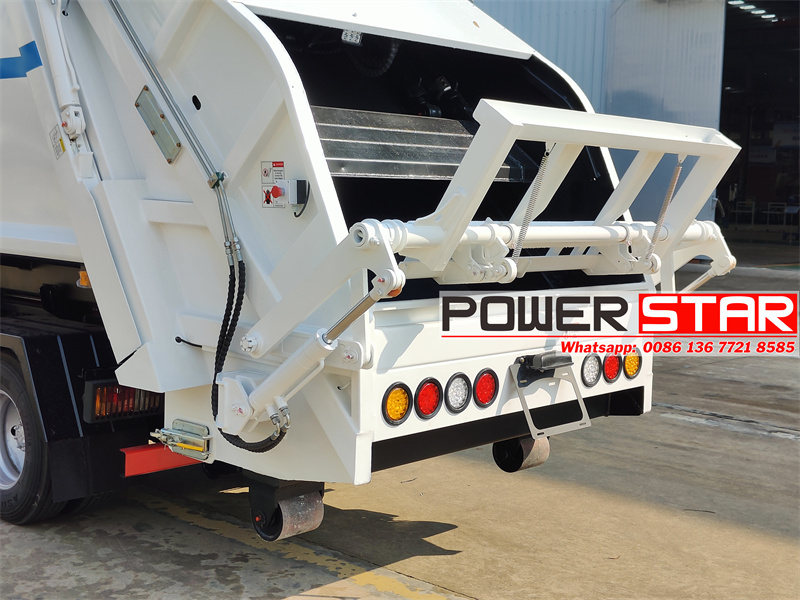

240L trash can (Optional other types of flip frame) |
|
|
Hook loader system |
Standard hook arm with roll on roll off fuction |
|

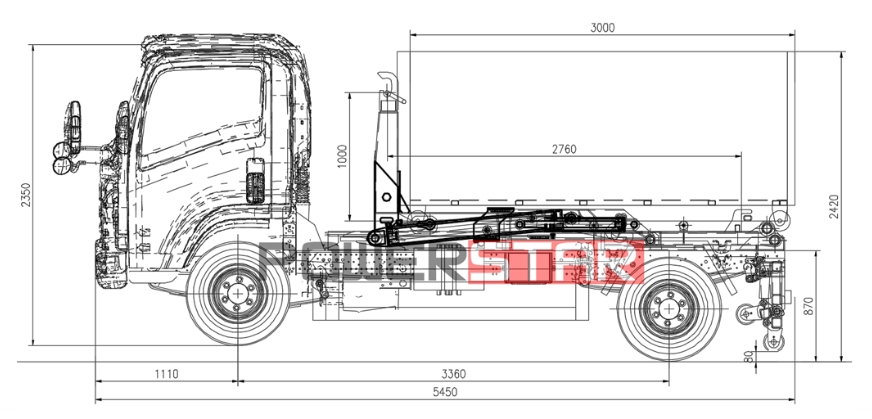

Technical drawing of Isuzu 100P 7cbm hook loader rear loader compactor
Isuzu 100P hook arm garbage compactor truck is an efficient and multifunctional garbage collection and transfer vehicle designed for urban sanitation work. It combines the reliability and durability of Isuzu 100P chassis with advanced hook arm rear loader garbage collection technology to provide efficient and environmentally friendly solutions for urban garbage disposal.
1. Basic configuration of the vehicle
• Chassis: It adopts Isuzu 100P high-quality chassis with a solid structure and strong carrying capacity. The chassis has been specially designed to adapt to various complex road conditions and ensure the stability and safety of the garbage truck during driving.

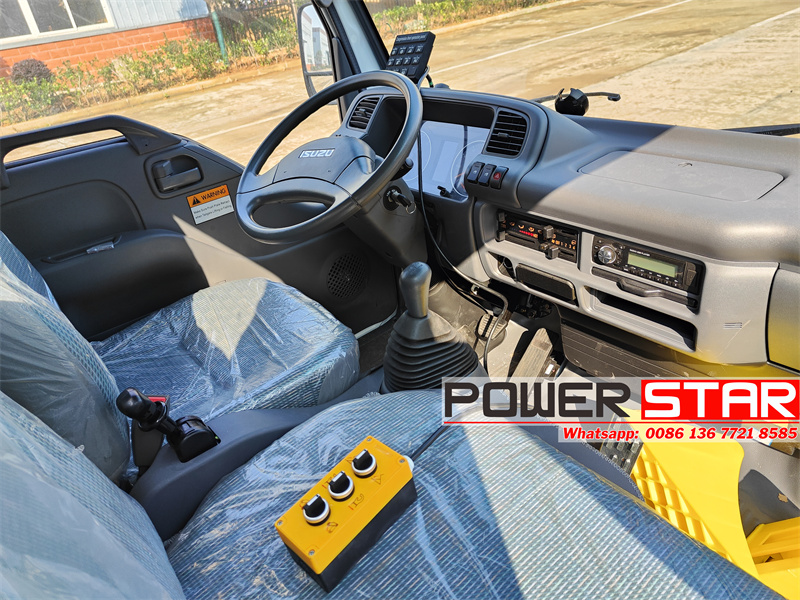

• Cab: Isuzu single-row cab, fully equipped and easy to operate. The cab is equipped with original air conditioning, power steering, clutch power steering, ABS anti-lock braking system and other configurations, which improves the driver's driving comfort and safety.
• Engine: Equipped with Isuzu high-performance 4KH1 engine, it is powerful, energy-saving and environmentally friendly. The engine has the advantages of low fuel consumption and easy maintenance, and can meet the power requirements of garbage trucks under different working conditions.
• Transmission: Isuzu MSB five-speed transmission, smooth shifting, improving driving comfort and vehicle fuel economy.
2. Hook loader and compression system

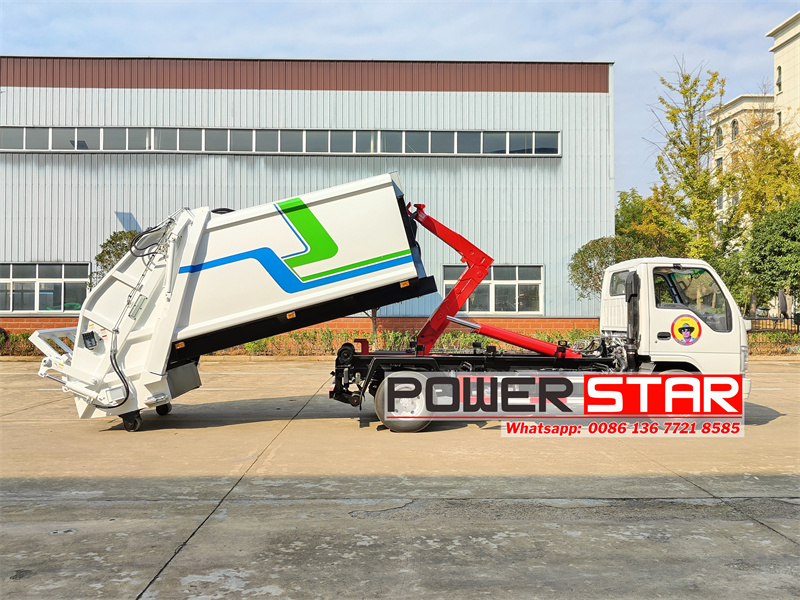

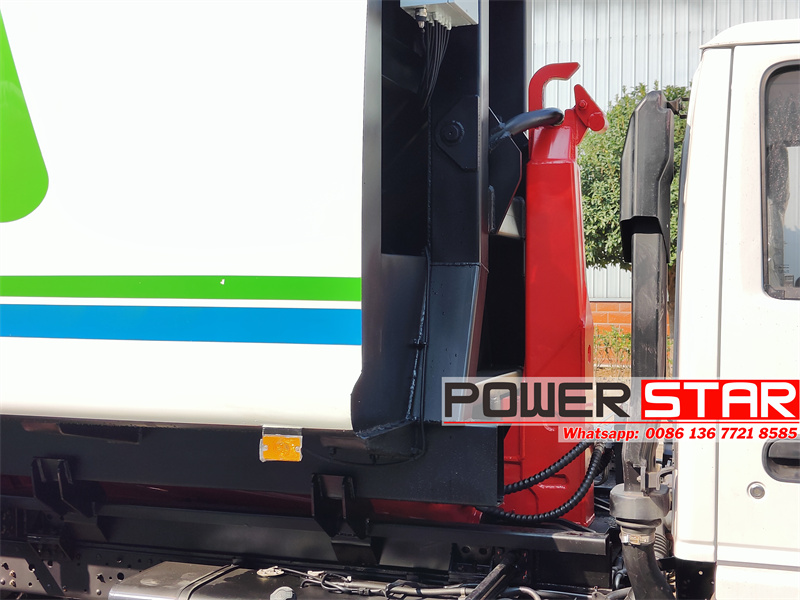

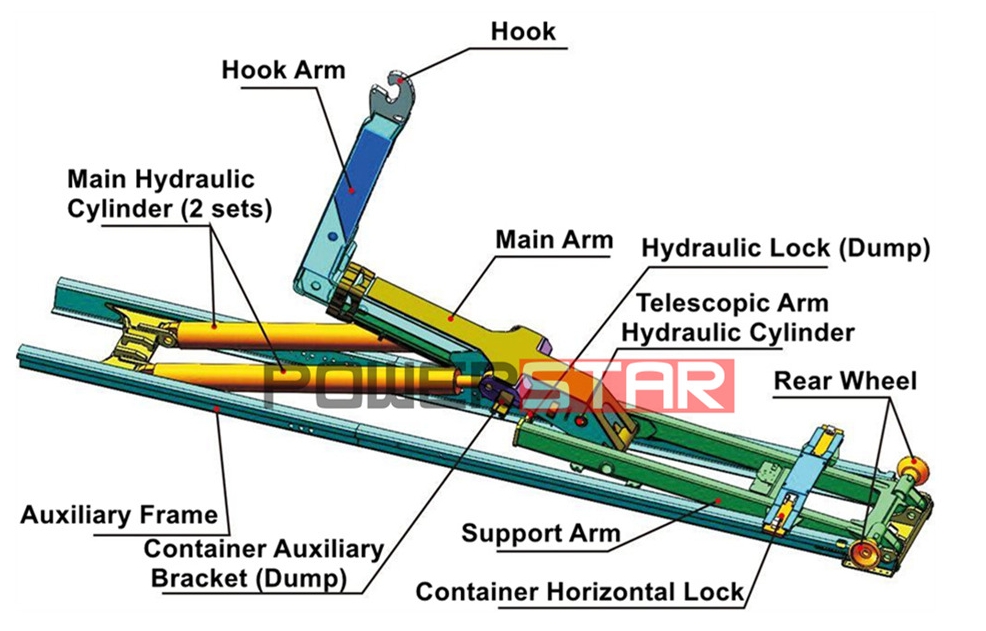

■. Hook loader mechanism: Made of high-strength alloy steel, the structure is sturdy and corrosion-resistant, and can withstand the weight of heavy-loaded garbage containers. The hook loader moves smoothly and is flexible to operate, making it easy to grab, lift and place the compressed garbage box.

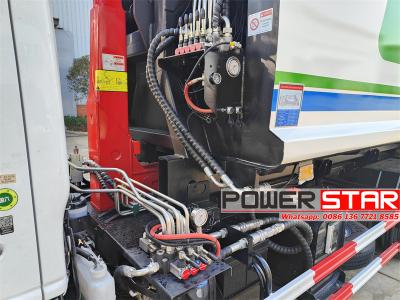

■. Compression device: Equipped with advanced garbage compression mechanism, it is hydraulically driven to efficiently compress the garbage to reduce the volume of garbage and increase the loading capacity. Low noise and small vibration during compression ensure the comfort of the operator.

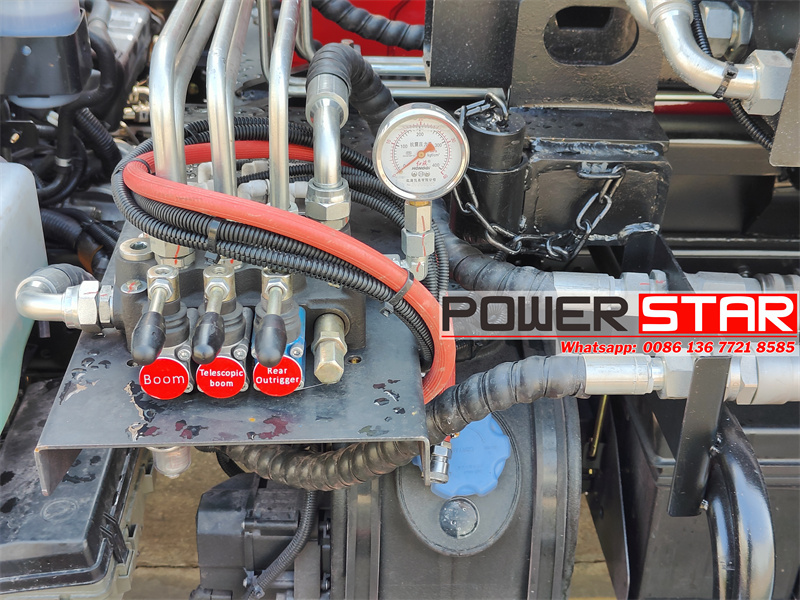

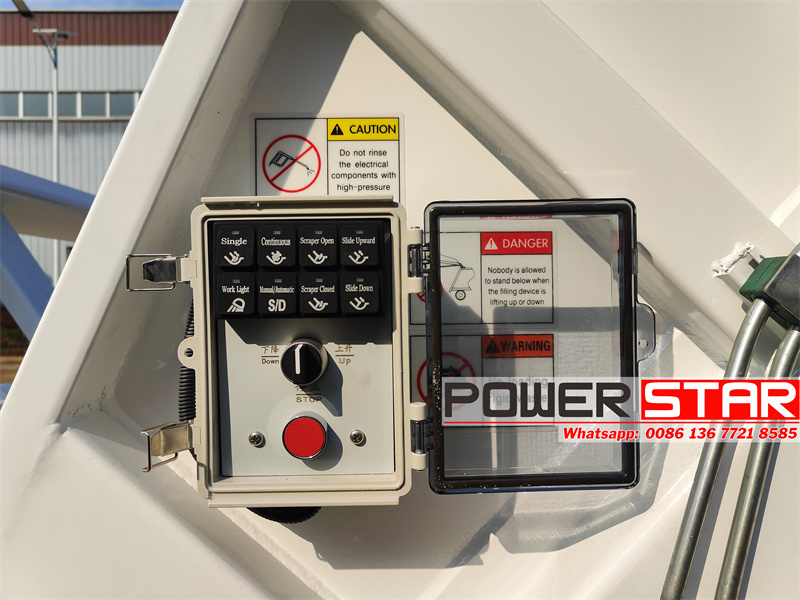

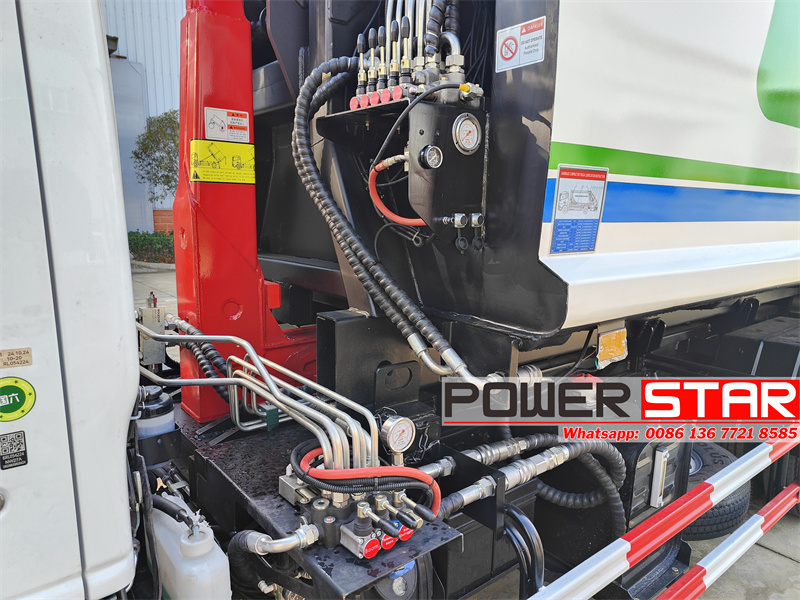

■. Automatic control: The vehicle is equipped with an intelligent control system, which can achieve precise control of actions such as hook arm system and compression system. The operator can complete the entire garbage collection and compression process with simple button operations to improve work efficiency.
3. Garbage compactor container

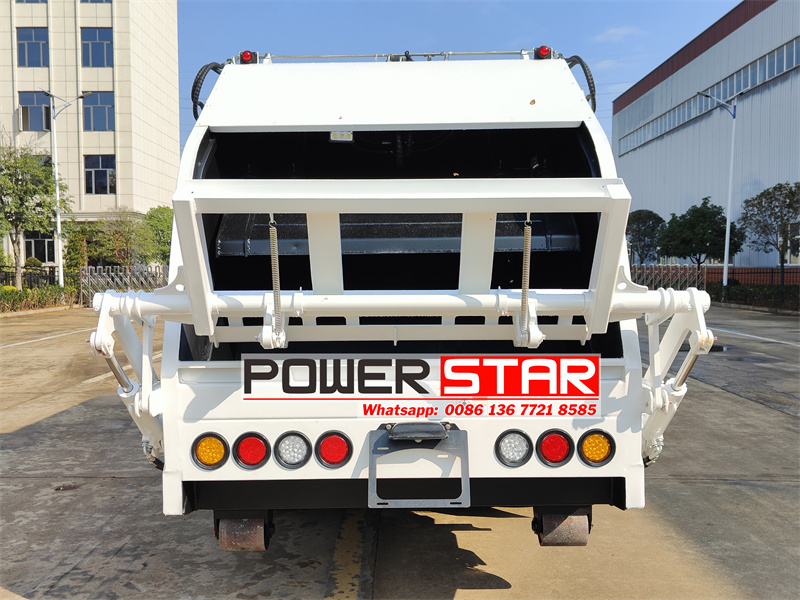

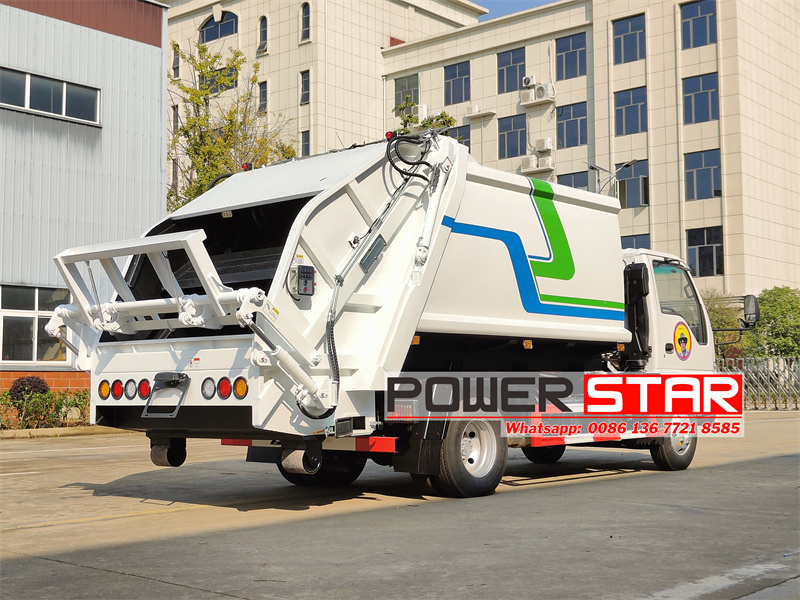

★ The garbage container is made of high-quality steel, with a sturdy structure and corrosion resistance. The interior of the container is smooth and easy to clean to avoid garbage residue. A sealed door is provided at the rear of the car to ensure that the garbage will not leak during transportation.

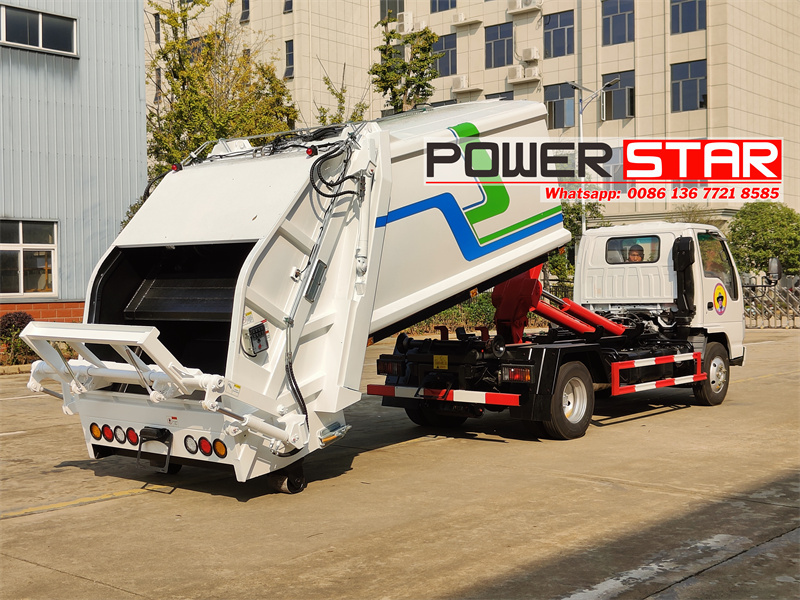

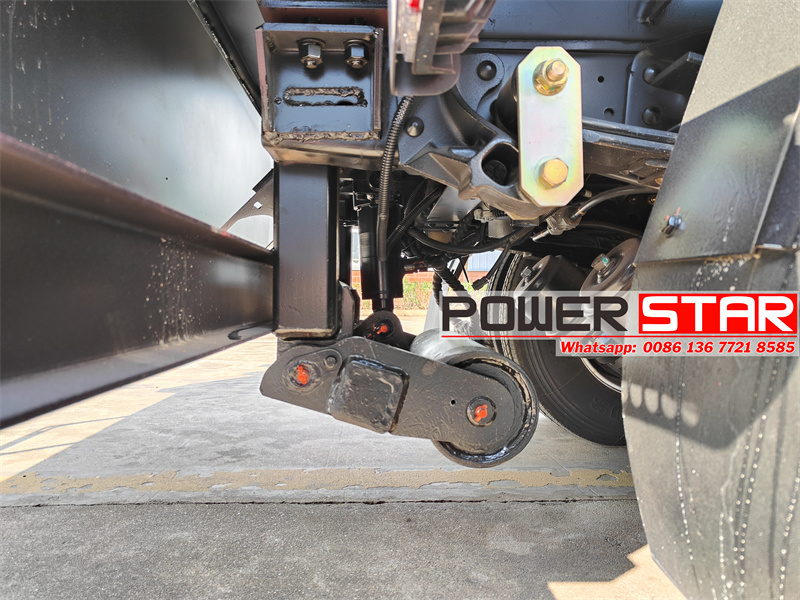

★ There is a pulley at the bottom of the garbage bin, which is convenient for cooperating with the arm mechanism to achieve fast and smooth grabbing and placement. The garbage bin has a volume capacity of 7 cubic meters, which is convenient for collecting and compressing garbage to the maximum extent.
4. Performance characteristics
◆. High efficiency and energy saving: It adopts a high-performance engine and advanced hydraulic transmission system to improve the working efficiency of the vehicle and reduce energy consumption.
◆. Environmental protection and emission reduction: The exhaust emissions of the vehicle meet the national environmental protection standards and reduce environmental pollution. At the same time, compressed garbage reduces the number of transportation and reduces carbon emissions.
◆. Safe and reliable: Equipped with multiple safety protection devices, such as emergency braking and overload protection, to ensure the safety of operators and vehicles.
◆. Easy maintenance: The vehicle has a compact structure and is easy to maintain and maintain. Key components adopt standardized design for easy replacement and repair.
5. Application scenarios
Isuzu 100P hook arm rear loader compactor truck is suitable for garbage collection and transportation in urban streets, communities, schools, hospitals, commercial areas and other places. It can not only improve the efficiency of garbage collection and reduce the number of garbage transfers, but also reduce the cost of garbage disposal, providing strong support for urban sanitation work.
