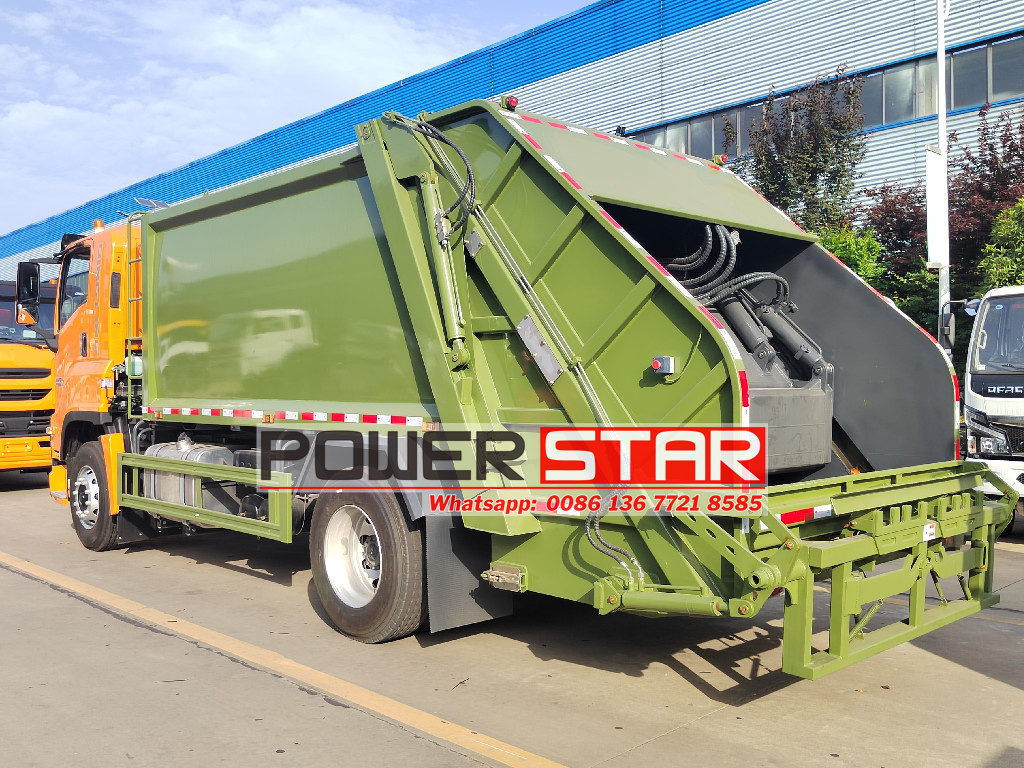

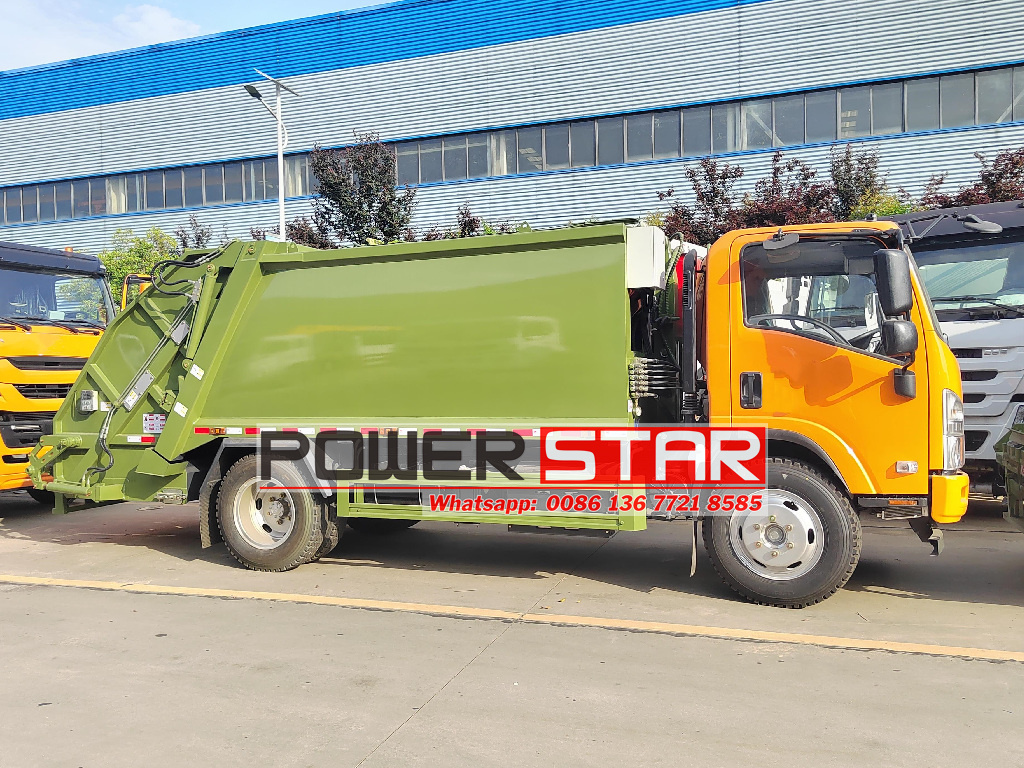

ISUZU NPR rear loader garbage truck is a special vehicle designed for garbage disposal. which aim to make an efficient and environmentally friendly garbage collection and transportation solution. ISUZU NPR 190HP 8CBM Refuse Compactor Truck, with overall dimensions of 7200×2200×2500mm, based on QL1110ANKWY series truck chassis and Gross Vehicle Weight is 10550kg, providing ample allowance for garbage loading 8 cubic meters. CAN BUS electric and Hydraulic System making it an ideal choice for garbage truck modifications.
Manufacturer:
Powerstar TrucksWork capacity:
10cbmDimension:
7200 x 2260 x 2550mmCabin type:
Isuzu 700P single row,2 seatsWheelbase:
3815mmEngine power:
190HPEngine type:
Isuzu 4HK1-TCG61Axle drive:
4X2Gear box:
Isuzu MLD 6-speed,manualRemarks:
Designed for Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan and TurkmenistanYear 2025 new ISUZU NPR 8CBM Garbage Compactor export to Middle East countries, including Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan and Turkmenistan

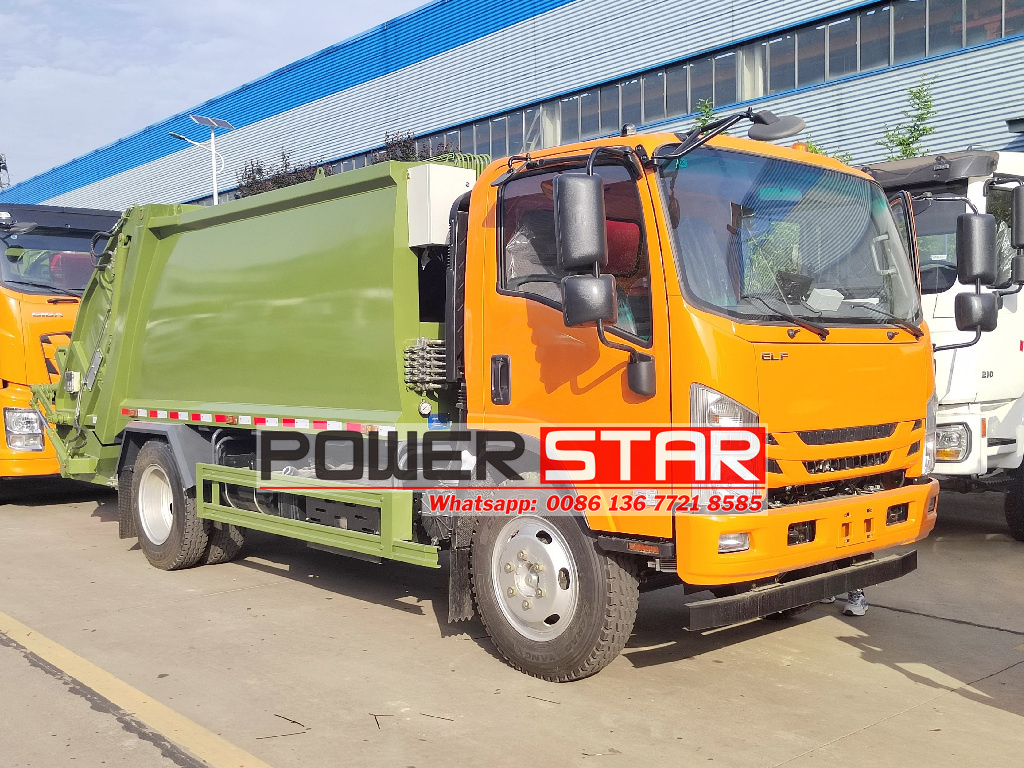

ISUZU ELF Refuse Garbage Compactor Truck is a type of municipal refuse vehicle that is specially designed based on Japanese ISUZU technology NPR ELF truck chassis, mounted with Japanese Isuzu 4HK1-TCG61 model diesel engine with 190HP. Isuzu trash compactor truck is to compress or compact trash into a more manageable size. They can be equipped with a crusher and screens, which help them ensure the garbage is the right size before being compacted. These Isuzu rear loader trucks is a carrier truck consisting of a Refuse Body on its ISUZU chassis. The main function of a Refuse Truck is to do the collection of all kinds of waste: garbage, solid waste, and recycling objects and having them transported to bigger facilities for waste treatments. Garbage trucks are mostly used by municipal duties and widely export to all over the world.
● 30 years experience on rear loader truck designing
● 50 units Isuzu garbage compactor truck in stock, 5 cbm, 8 cbm, 12 cbm
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
Features for ISUZU rear loader refuse compactor truck:
U-shaped integrally formed truss troughs with high strength from Japanese technology are used as movable guide rails for garbage push plates, which have strong compression capacity and good resistance to deformation；
Equipped with a large-capacity sewage tank, combined with a diversion sewage collection device, the sewage leaked between the filler and the garbage box due to the failure of the sealant strip can be drained to a dedicated sewage collection tank, which can effectively prevent the leakage caused by sewage. Secondary pollution；
The intelligent control system of the controller can be used for centralized control in the cab. Equipped with two sets of automatic and manual control modes, it can control the operation of the garbage truck in the driver’s cab, the middle of the carriage, and the rear of the carriage. It is convenient and efficient；
Equipped with night work lights to facilitate sanitation workers at night；
Equipped with two-way compression function, high compression efficiency and large garbage load. When unloading, when the filler is lifted into place, the scraper and slide plate automatically realize a cycle to remove the garbage remaining in the filler；
Technical Parameters for ISUZU NPR single axle rear loader garbage truck:
Isuzu rear loader garbage compactor truck is composed of Isuzu NPR single axle truck chassis, hermitical garbage box, hydraulic system and CAN BUS operating system, which could apply pressure to the waste to break down bulky items, to load, compress and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing second pollution during transportation. When the ISUZU 10cbm refuse compactor truck arriving at destination, the garbage can be discharged by Push Plate completely. It is ideal solution for solid waste treatment, and widely used in city, downtown, factory, community, etc.
|
Vehicle Description |
|
|||||
|
Overall dimensions |
7200X2260X2550mm |
|
||||
|
GVW |
10550kg |
|
||||
|
Curb weight |
6800kg |
|
||||
|
Loading weight |
10CBM / 6Tons |
|
||||
|
Chassis brand |
ISUZU |
|
||||
|
Traction type |
4*2; Left hand drive |
|
||||
|
Up-parts Specification |
|
|||||
|
Dustbin volume |
8-10cbm |
|
||||
|
Material & thickness |
Side |
4mm T420 |
|
|||
|
Bottom |
5mm T420 |
|
||||
|
Type of Rear garbage filler |
1.Hanging trash bin |
|
||||
|
2.Swing arm |
|
|||||
|
3.Dustpan |
|
|||||
|
Control system |
Electrically Controlled Hydraulic + Manual Hydraulic |
|
||||
|
Type of compactor |
Fill, push and compression |
|
||||
|
Garbage compact density |
0.9±0.05 T/m³ |
|
||||
|
Sewage water tank |
Rear |
About 300L, on the bottom of rear filler |
|
|||
|
Front |
About 200L, on the front of garbage van |
|
||||
|
Max compact |
≥141 KN |
|
||||
|
Max push |
≥189 KN |
|
||||
|
Tailgate ascending Angle |
~95° |
|
||||
|
Cycle of loading |
≤40s |
|
||||
|
Cycle of discharge |
≤45s |
|
||||
|
Hydraulic pressure system working pressure |
16 Mpa |
|
||||
|
PLC |
Importation PLC (Programmable controller) |
|
||||
|
Gear pump |
Made in China |
|
||||
|
Multi-way valve |
Air controlled, Made in China |
|
||||
|
Hydraulic oil cylinder |
Made in China |
|
||||
|
Hydraulic rubber hose |
Made in China |
|
||||
|
Chassis Description |
||||||
|
Chassis model |
QL1110ANKWY |
|||||
|
Cab |
700P, single row, with A/C |
|||||
|
Wheelbase |
3815mm |
|||||
|
Tire specification |
8.25R20 |
|||||
|
Tire quantity |
6+1 units |
|||||
|
Engine |
Engine model |
4HK1-TCG61 |
||||
|
Emission level |
Euro 6 |
|||||
|
Displacement/output |
5193ml/140kw |
|||||
|
Horse power |
190HP |
|||||
|
Gear box |
Model |
ISUZU MLD |
||||
|
Number of gears |
6 forward gears& 1 reverse |
|||||
|
Brake system |
Full air brake |
|||||
|
Axle |
Front |
4T |
||||
|
Rear |
7T |
|||||
|
Suspension |
Front |
Leaf springs |
||||
|
Rear |
Leaf springs |
|||||
|
Fuel tanker |
Type |
Stainless steel tanker, with lockable cap |
||||
|
Capacity |
100L |
|||||
Why choose ISUZU NPR single axle truck chassis for 10cbm rear loader truck:
ISUZU NPR truck chassis is a light commercial vehicle chassis produced by ISUZU of Japan. It is known for its reliability, durability and economy, and is favored by users all over the world. Originaly equipped with ISUZU high-performance diesel engine 4HK1-TC with engine power 140KW / 190HP and emission 5.2L, which have super power and high fuel economy, meet environmental protection requirements. Isuzu ELF truck chassis frame is made of high-strength steel, with a solid structure and strong load-bearing capacity, suitable for modification into various special vehicles. Moreover, the front suspension is independent type, providing good handling and comfort. And rear suspension is leaf spring type, enhanced load-bearing capacity. Isuzu NPR truck chassis equipped with hydraulic braking system, some models can be equipped with ABS anti-lock braking system to improve safety. Below 3D drawing showing advanced features of the Japanese ISUZU NPR truck chassis.
How ISUZU 10cbm rear loader compactor truck work:
The ISUZU trash compactor has a compression chamber that runs along the length of the truck and has a discharge opening at one end and a feed opening at the other. In the compression chamber, there is a ram that is driven by hydraulics. Its job is to pack the trash to a certain density and pressure by moving back and forth. At the chamber’s discharge opening, there is a door that can be moved manually between an open and a closed position. When the door is closed, the trash is pressed against it.
A hydraulic compactor is a machine that uses hydraulic pressure to compress materials. The force of a standard ISUZU garbage compactor truck compressor pressure is approximately 2,750 psi (pounds per square inch).

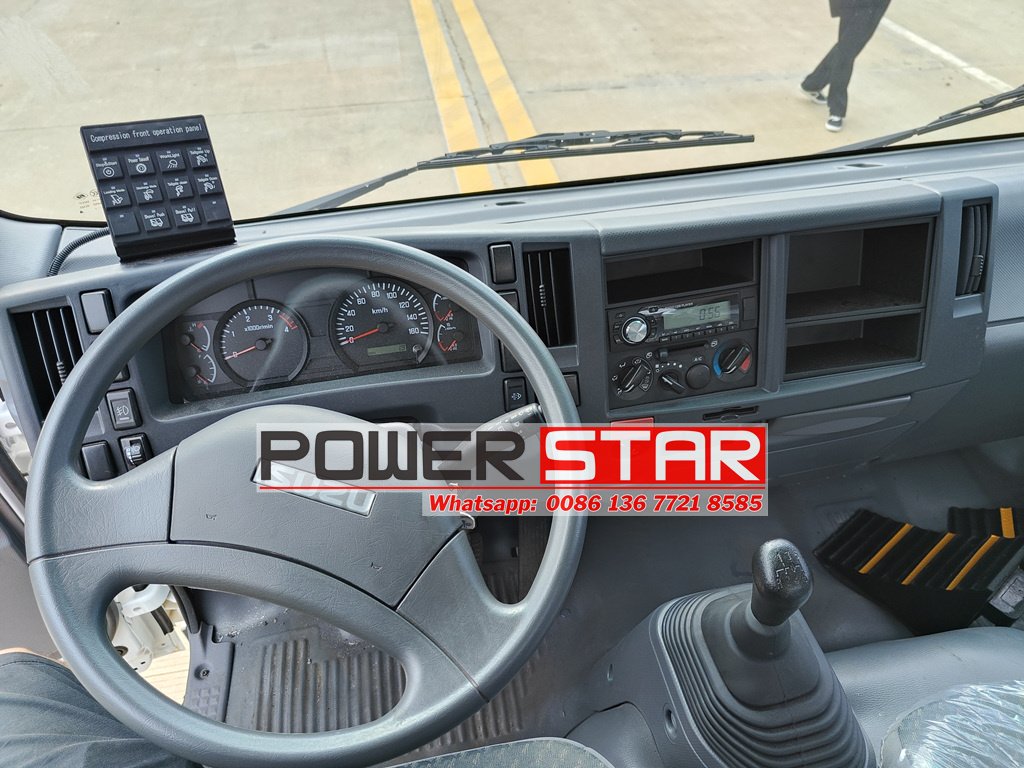

Japanese ISUZU NPR truck cabin
The cab of the ISUZU NPR, with its spacious space, intelligent configuration, low wind resistance design and durability, is a leader among light commercial vehicles suitable for a variety of commercial and municipal uses. The headlight group may uses full LED light source, including near and far light and turn signal, excellent lighting effect, improve the safety of night driving. The control panel layout in the cab is reasonable, the dashboard display is clear, and the operation is simple, which improves the driver's control body. The cab design of the ISUZU NPR continues the classic elements of the Isuzu ELF series, such as the vertical combination headlights and the square box molding, which is both beautiful and practical

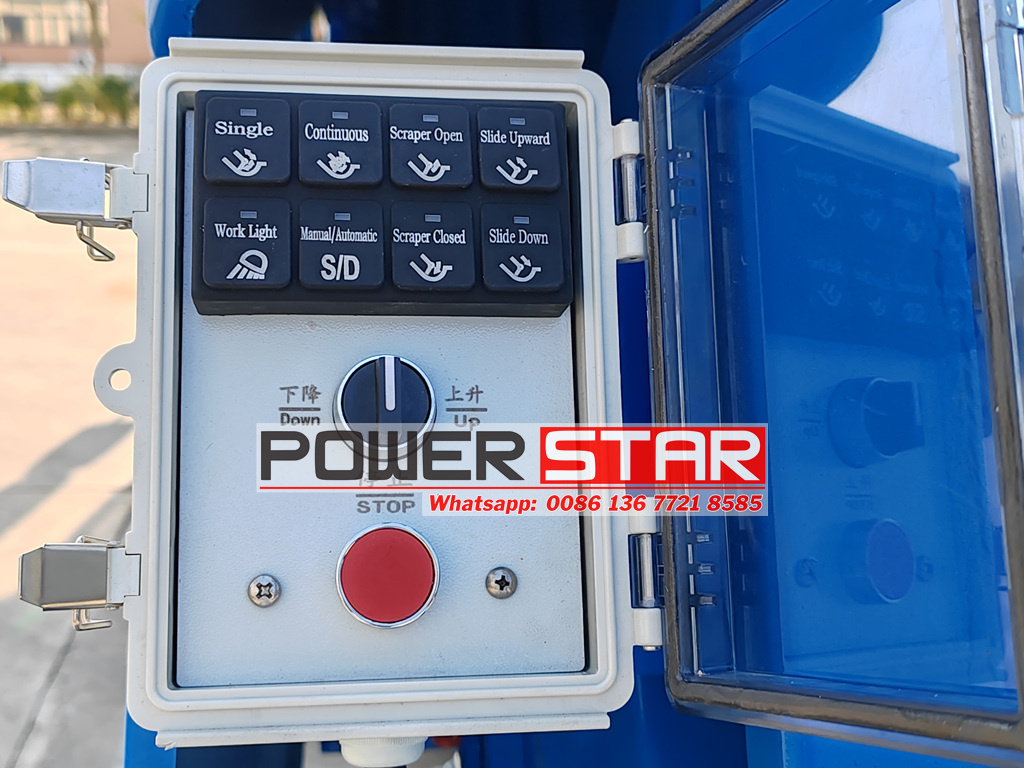

CAN BUS electric system for convenient working
ISUZU rear loader garbage truck equipped CAN-BUS control system of compressed garbage truck is an advanced communication technology, which is based on the controller CAN BUS technology to realize the fast and reliable data communication between the electronic control units inside the vehicle. The system adopts multi-master competitive bus structure, has the characteristics of multi-master station operation and decentralized arbitration, and can ensure the free and efficient transmission of data between nodes. The application of CAN-BUS control system not only improves the operation convenience and stability of garbage trucks, but also realizes intelligent control and reduces maintenance costs.

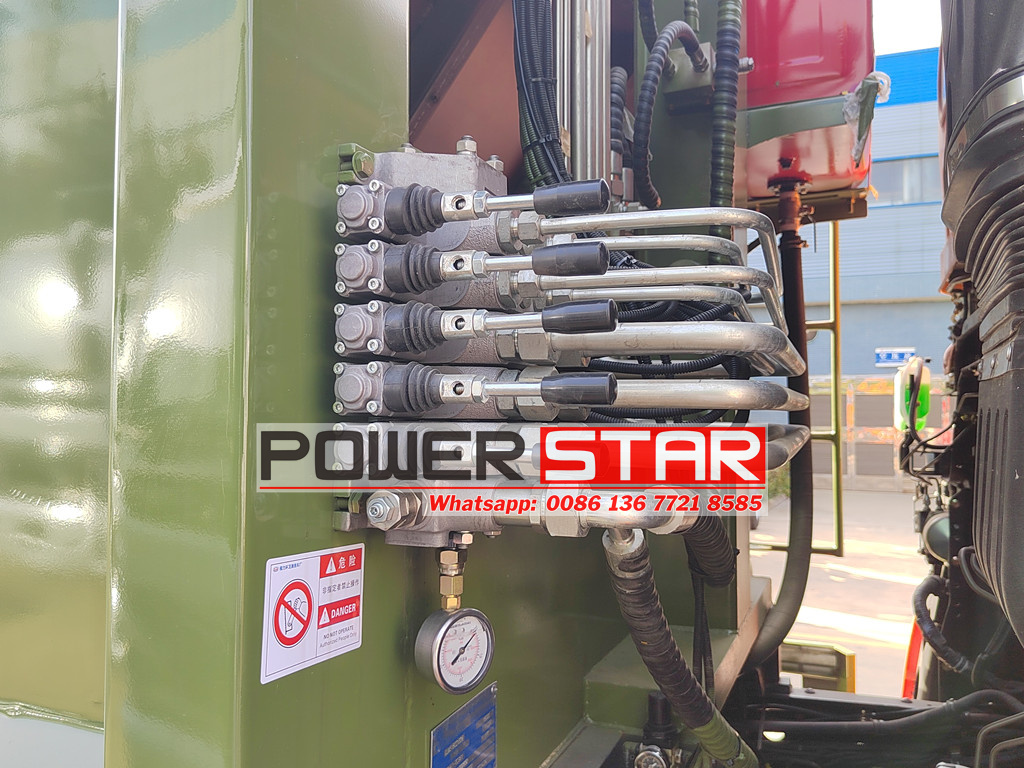

Hydraulic control valve for ISUZU refuse compactor truck
The hydraulic control system of the Isuzu new NPR compressed garbage truck uses hydraulic oil as the working medium, and uses the hydraulic pump to drive the hydraulic cylinder to work, so as to realize the compression of garbage, the lifting of the loading chamber and the opening and closing of the rear door. The system has the characteristics of compact structure, easy operation, high pressure, good sealing, etc., which can ensure the garbage truck to complete the garbage collection and transportation tasks efficiently and stably
ISUZU NPR trash compactor garbage truck is mainly composed of sealed garbage bin, hydraulic system, operating system and ISUZU NPR chassis. The whole vehicle adopts a fully sealed design to ensure that no secondary pollution will be caused during garbage collection and transportation. The Isuzu rear loader truck use compression mechanism in the garbage bin is driven by the hydraulic system to compress the garbage and increase the loading capacity. And when discharge garbage, the sewage in the compression process will be collected in a special sewage tank to avoid secondary pollution caused by sewage spilling.

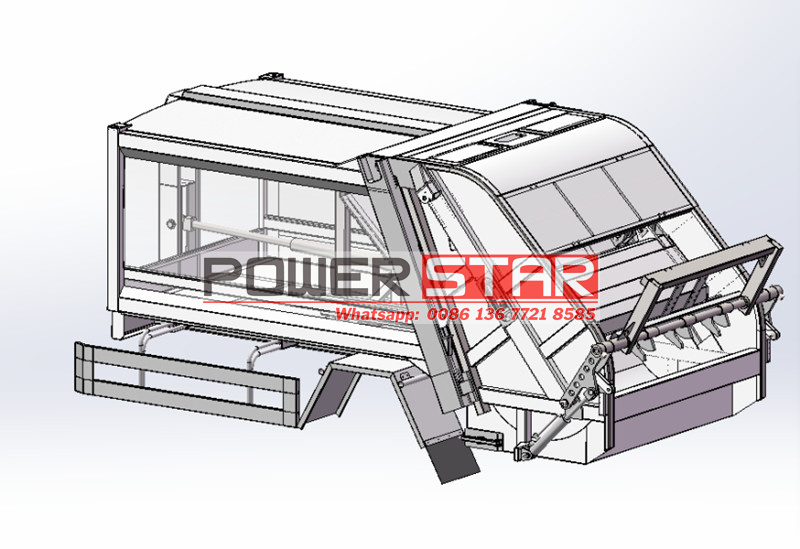

Isuzu rear loader truck compactor body
ISUZU NPR garbage truck has the characteristics of high compression ratio and large loading capacity, and the maximum crushing pressure can reach a high level, and the loading capacity is equivalent to more than two and a half times the same ton of waste compression garbage, which greatly improves the garbage collection efficiency. The whole truck adopts a fully sealed design and is equipped with a sewage collection system, which effectively solves the problem of secondary pollution during garbage transportation. With the use of advanced computer control system CAN-BUS, all filling and unloading operations can be operated by the driver alone. The system supports both fully automatic and semi-automatic operation modes, which reduces the labor intensity of sanitation workers.

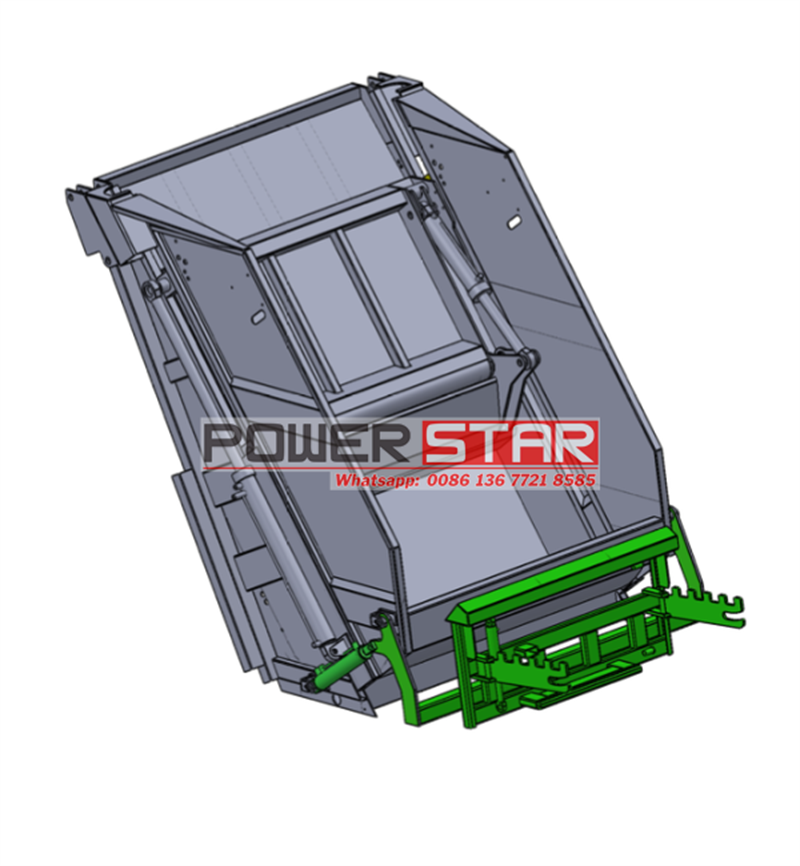

ISUZU refuse compactor truck rear hopper system
