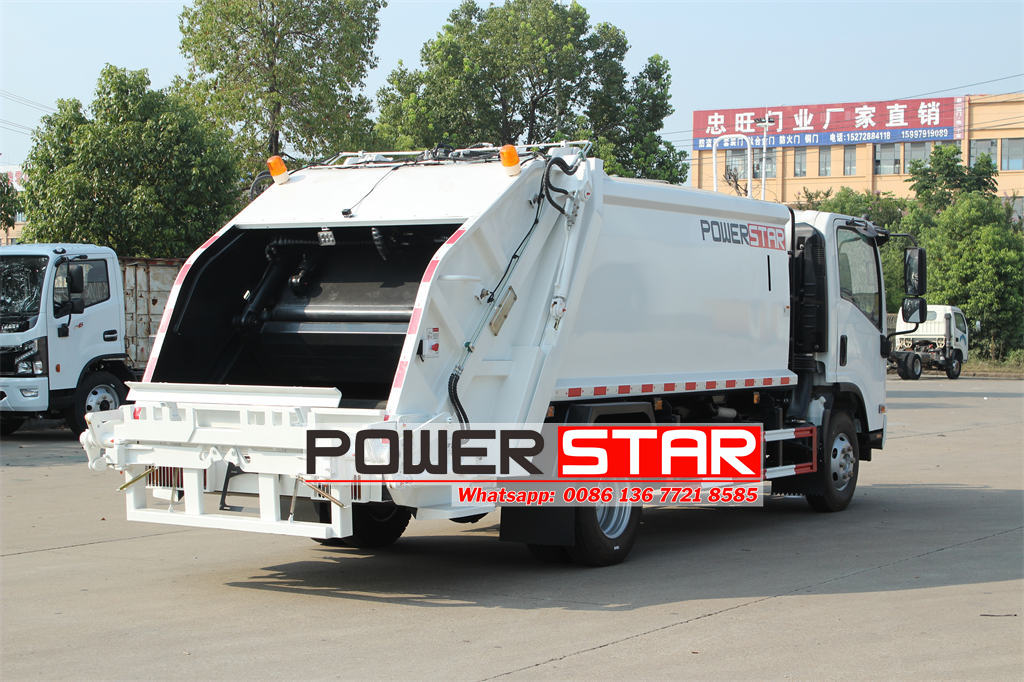

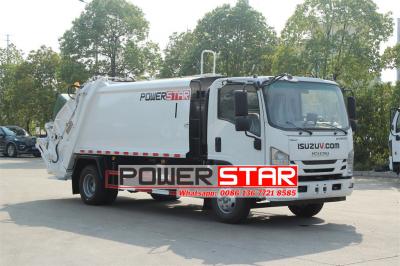

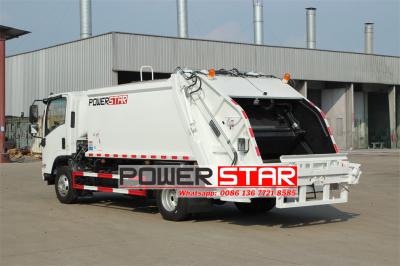

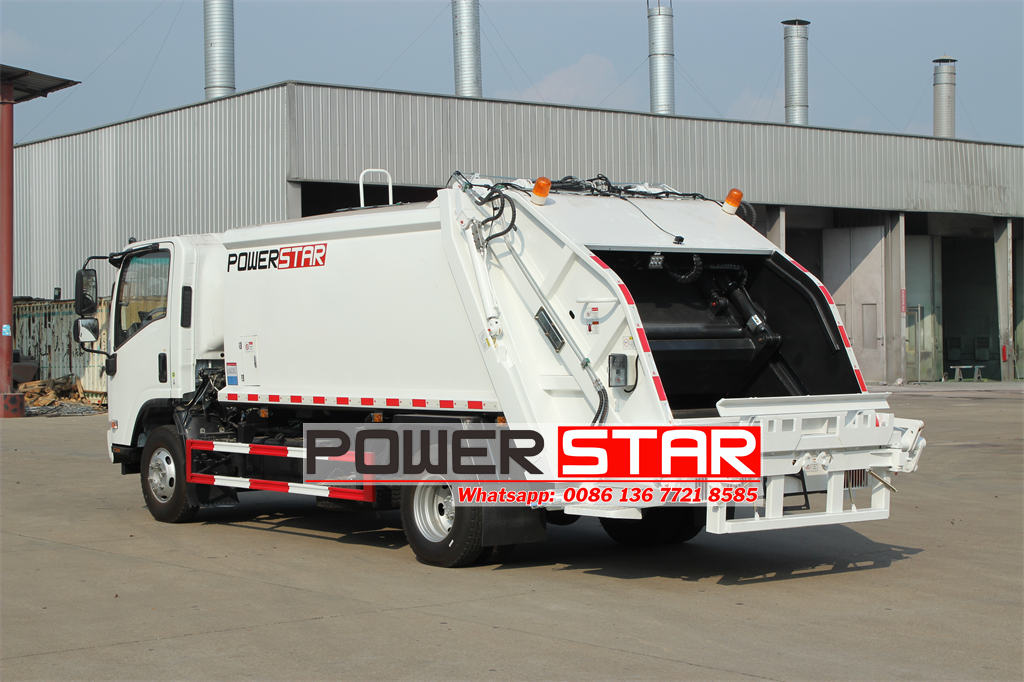

ISUZU 8CBM waste management garbage compactor

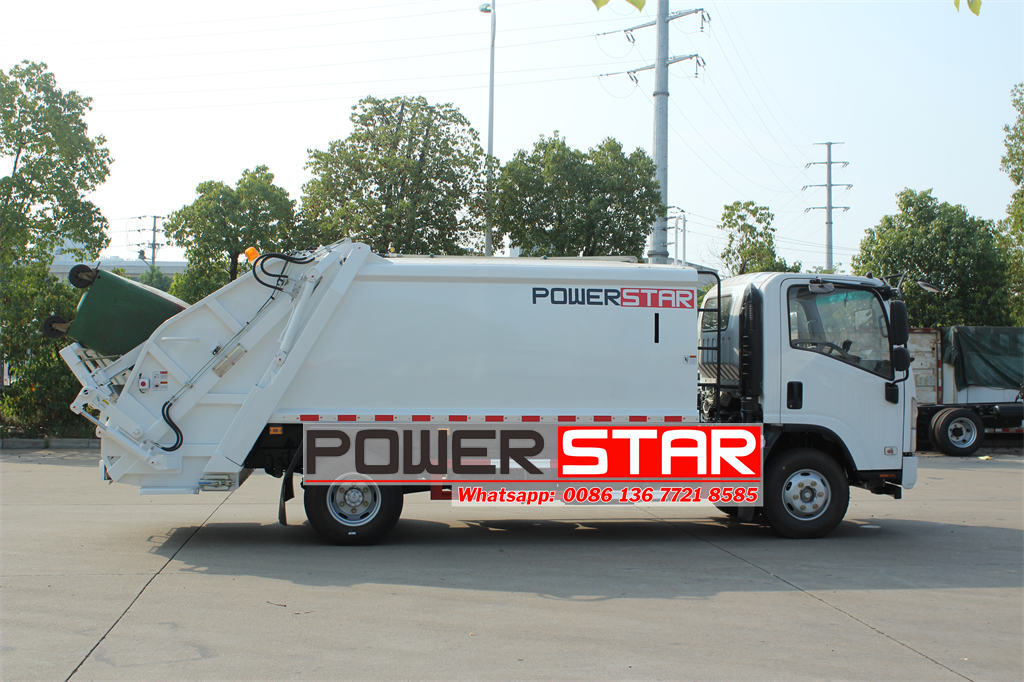

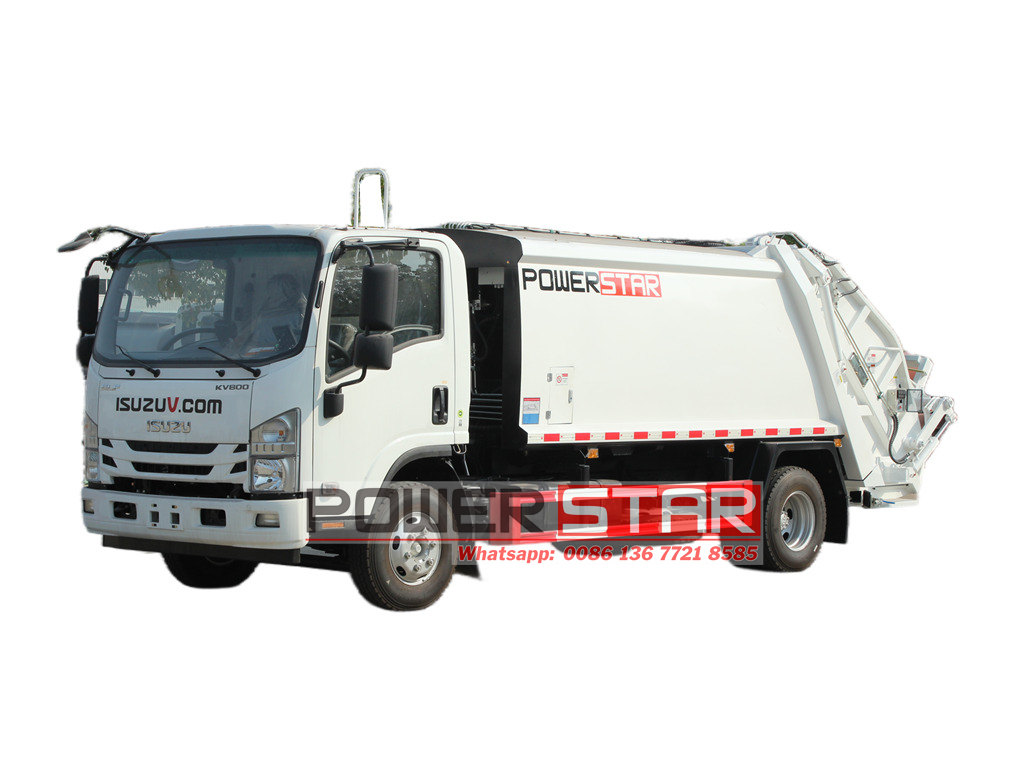

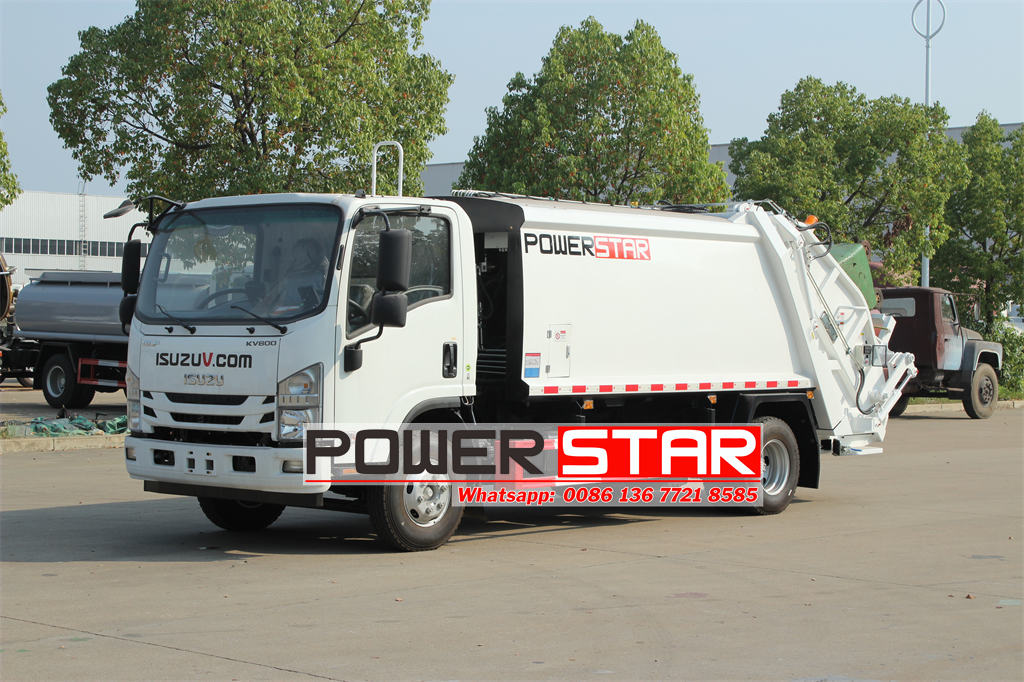

The ISUZU 8CBM rear compactor truck is built on the ISUZU 4×2 chassis, equipped with a 4JZ1-TCG61 engine that boasts a power of 110kW and complies with the Euro 6 emission standard. The vehicle dimensions are 6900x2250x2650mm, with a wheelbase of 3815mm, a gross vehicle weight of 9500kg, and a payload capacity of 4200kg. It is equipped with an 8-cubic-meter curved compactor body, featuring a compression ratio of ≥2.5, a loading cycle time of ≤40 seconds, and a hydraulic system pressure of 18MPa. It supports both automatic and manual control, is compatible with 240L garbage bins, and is highly efficient and environmentally friendly, making it ideal for urban waste management.
Work capacity:
8CBMEngine power:
150 HPEngine type:
4JZ1-TCG61Axle drive:
4x2, left hand driveGear box:
6-speedRemarks:
High qualiy compression systemThe ISUZU 8CBM back loader garbage truck is a high-performance vehicle specially designed for modern urban waste management. With its excellent loading capacity, efficient compression technology, and environmental features, it has become the ideal choice for garbage collection and transportation. Built on the ISUZU 4×2 chassis, the truck is equipped with an ISUZU 4JZ1-TCG61 engine, boasting a rated power of 110kW for strong performance. The front and rear axle load capacities are 3500kg and 6000kg, respectively, ensuring stability and safety under full load conditions.
The ISUZU 8CBM rear compactor truck is equipped with an 8-cubic-meter curved compactor made of T420 special steel, with both the bottom and sides having a thickness of 4mm for durability. The compression ratio is 2.5 or higher, significantly improving garbage loading efficiency. The effective volume of the tailgate is no less than 0.8 cubic meters, with a garbage loading cycle of no more than 40 seconds and an unloading time of no more than 45 seconds, fully demonstrating the vehicle's high-efficiency operational capabilities. The hydraulic system has a maximum pressure of 18MPa, ensuring stability and reliability during the compression process. The truck is also equipped with both automatic and manual dual control systems, allowing operators to flexibly choose the control mode according to their needs. The application of the CAN-bus control system makes operation more intelligent and precise, while also reducing operational difficulty. In addition, the vehicle is equipped with a garbage bin lifting device suitable for 240L garbage bins, with other sizes available as options based on customer requirements, further enhancing operational convenience and adaptability. The ISUZU 8CBM waste compactor truck is not only efficient and reliable but also environmentally friendly and economical, making it an ideal solution for urban waste management.
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best Isuzu trash compactor truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● We have strong professional design team
Product Specifications
|
ISUZU 8CBM Trash Compactor Truck Specifications |
|
|
Product Name |
ISUZU Compactor Garbage Truck |
|
Model |
PT5090ZYSB8 |
|
Chassis No. |
QL1090 |
|
Driving Type |
4*2 |
|
Gross Weight |
9500kg |
|
Related Loading Mass |
4200kg |
|
Curb Weight |
5300kg |
|
Dimensions |
6900*2250*2650mm |
|
Wheelbase |
3815 (mm) |
|
Front Axle Loading Capacity |
3500kg |
|
Rear Axle Loading Capacity |
6000kg |
|
Approach angle |
18° |
|
Departure angle |
9° |
|
Front overhang |
1160mm |
|
Rear overhang |
2130mm |
|
Tire |
7.50R16,6+1 PCS |
|
Max Speed |
105 (Km/h) |
|
Engine parameters: |
|
|
Brand |
ISUZU |
|
Model |
4JZ1-TCG61 |
|
Rated power (kw(ps)/rpm) |
110kW(150HP)/2900 |
|
Displacement |
2999cc |
|
Emission Standard |
Euro 6 |
|
Type |
4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling) |
|
Gear Box |
|
|
Gear Box |
6 forward and 1 reverse |
|
Superstructure Parameters: |
|
|
Compactor Body Volume |
8 CBM |
|
Compactor Body Shape |
Arc-shape |
|
Body Material Thickness |
Bottom:4mm Side:4mm |
|
Tank Material |
T420 (Special Steel) |
|
Compression Ratio |
≥2.5 |
|
The effective volume of the tailgate |
≥0.8m³ |
|
Loading cycle time |
≤40 s |
|
unload garbage time |
≤45s |
|

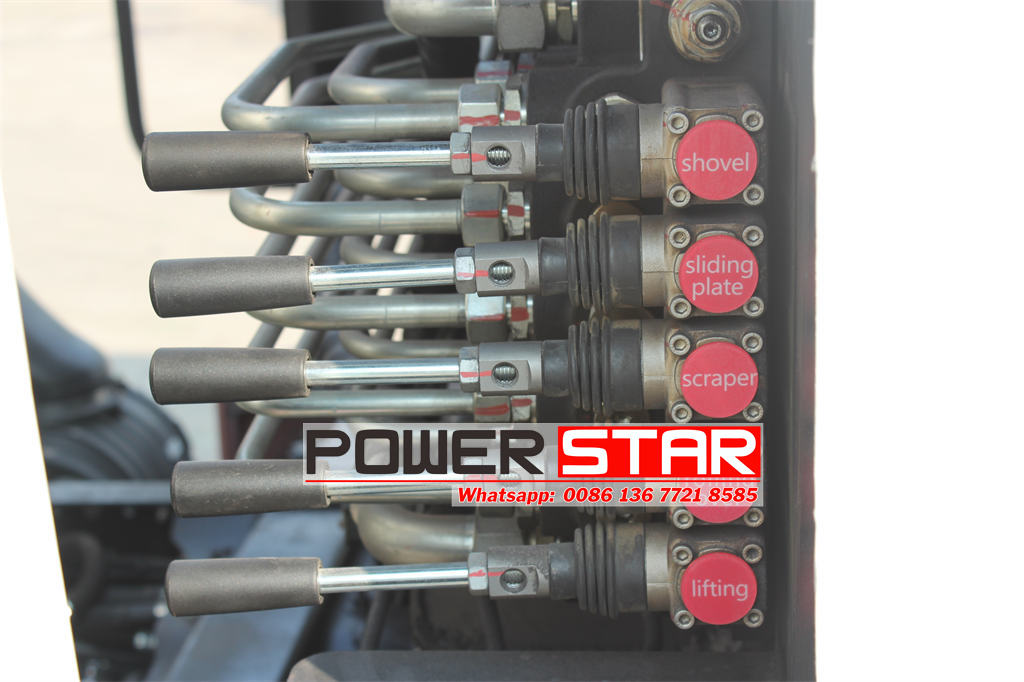

control method |
Automatic+Manual |
|
Maximum pressure of hydraulic system |
18 MPa |
|
Control System |
CAN-bus |
|
Engine power control |
Fully automatic control |
|
Garbage bin lifting device |
Suitable for 240L garbage bin (Others Optional) |
Main structure of ISUZU 8CBM rear loader
Compactor body
The compactor body of the ISUZU rear loader truck is constructed with reinforced beams and steel plates welded into a sturdy frame structure. The sides and top are curved surfaces with an aesthetic appearance, lightweight design, good stress distribution, and resistance to deformation.

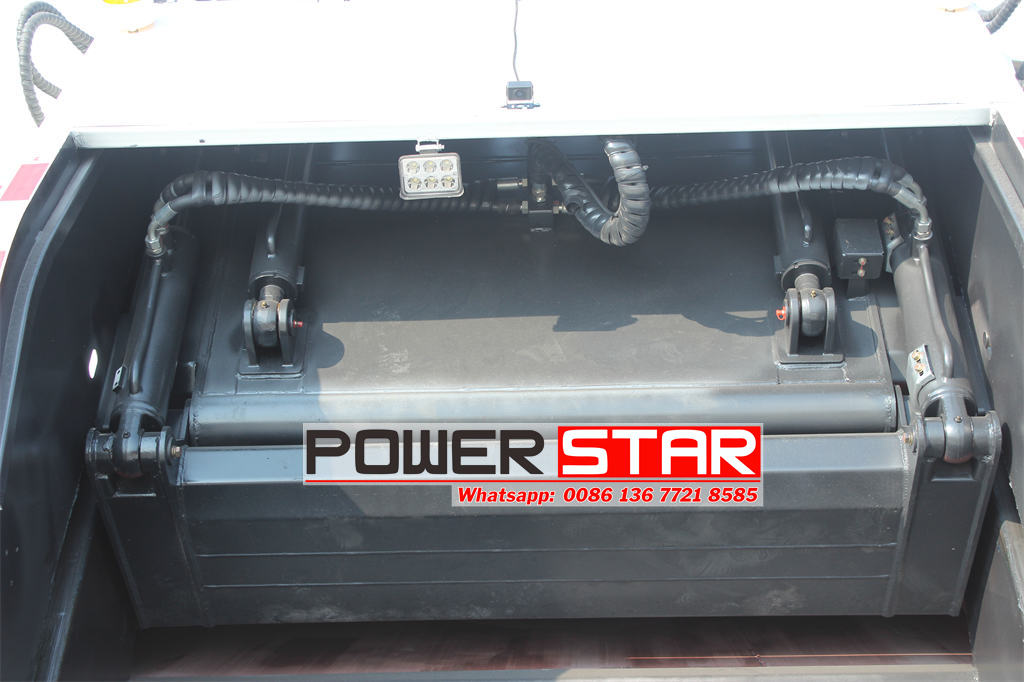

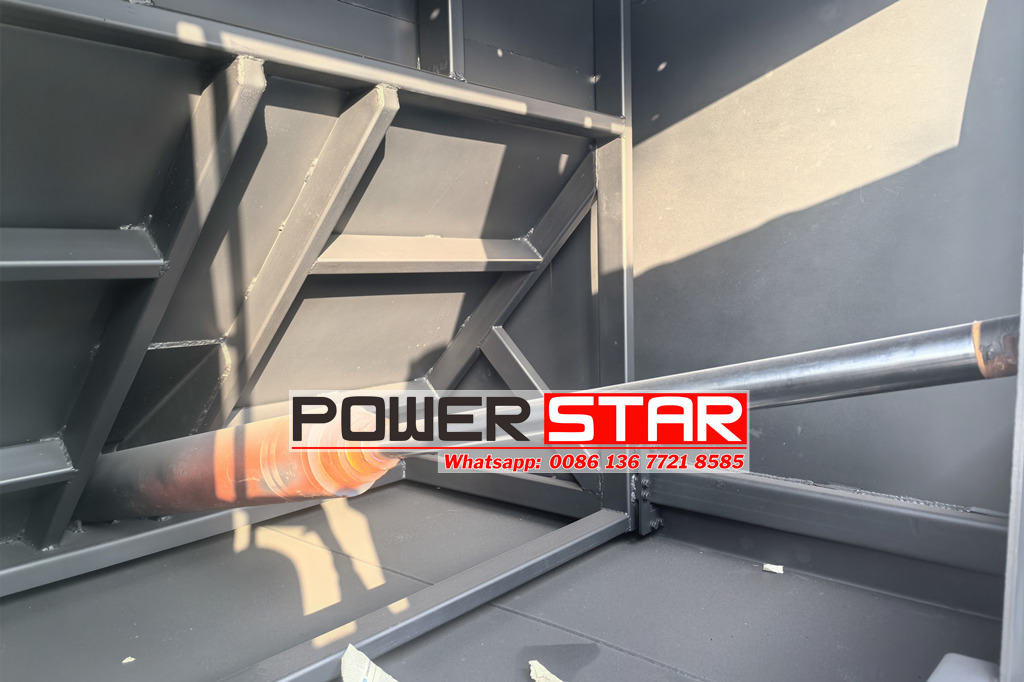

Push plate
The push plate is welded from a rectangular steel tube frame and bent plates, with adjustable sealing strips installed on both sides and the top to ensure proper clearance between the push plate and the compactor body. This design not only makes the structure lightweight but also ensures even distribution of garbage and thorough unloading.

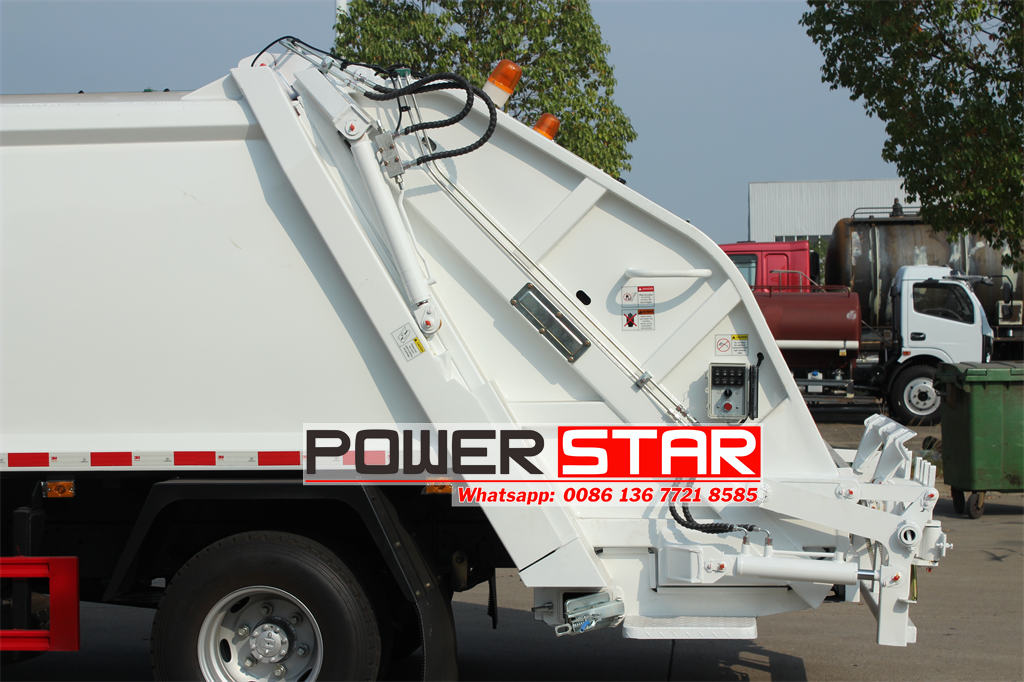

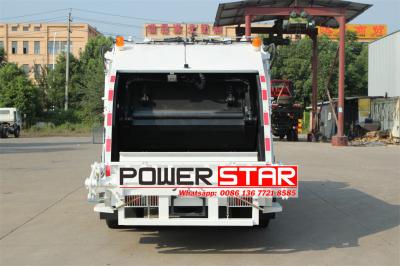

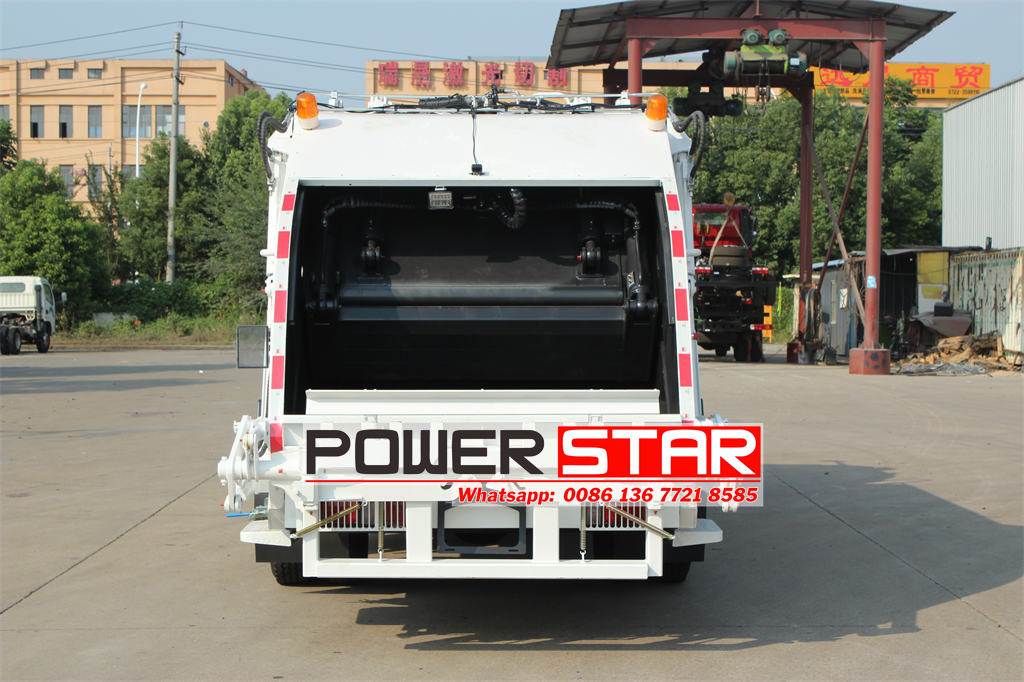

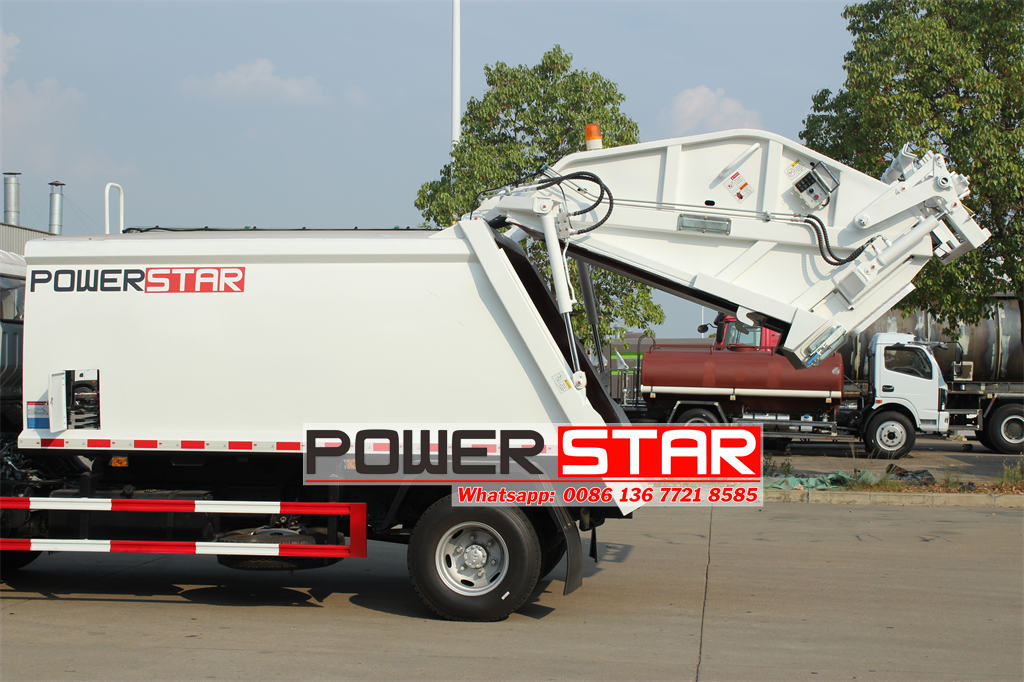

Tailgate assembly
It mainly consists of components such as the tailgate body, slide plate, and scraper. The guide rails in the tailgate is cold-bent and formed from high-strength, wear-resistant material, and the lower curved plate is also made from high-strength, wear-resistant material. The sides of the slide plate are equipped with integrated nylon sliders, which offer self-lubrication, high stability, and enhanced wear resistance. The stress-bearing areas of the scraper are locally reinforced, resulting in a sturdy structure with a lightweight design.

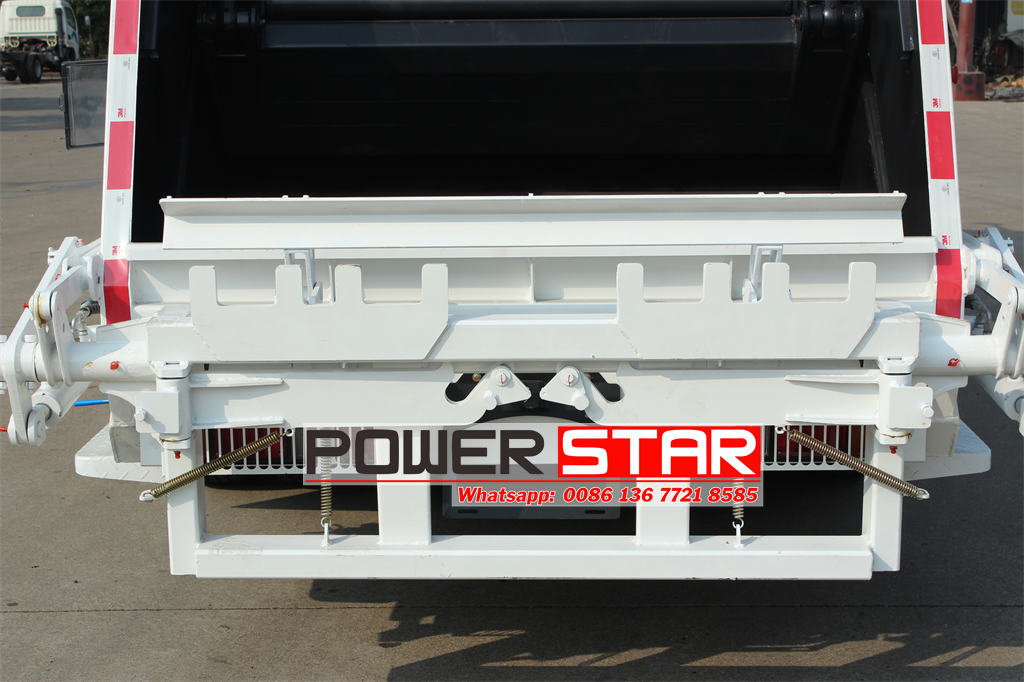

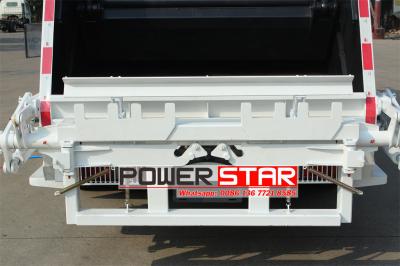

Garbage bin lifting device
The bin lifting device is constructed by welding bent materials and profiles together, resulting in a sturdy structure with an aesthetic appearance. It is suitable for lifting 240-liter, 660-liter, and 1100-liter plastic garbage bins.
