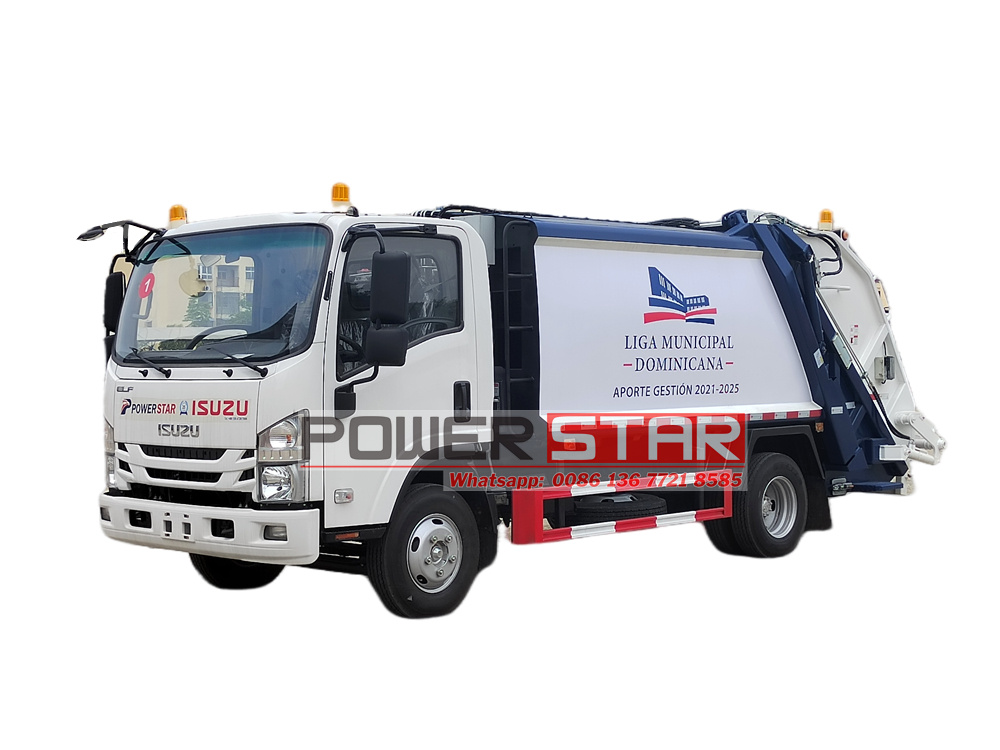

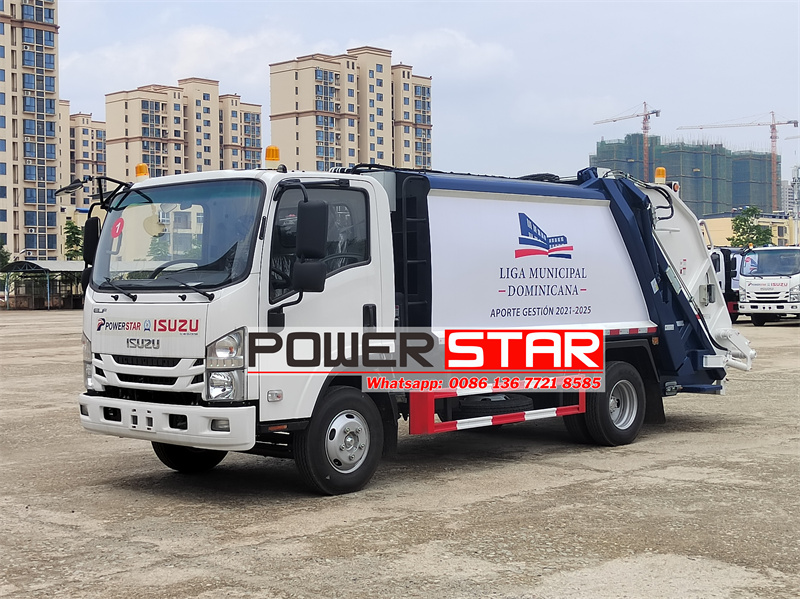

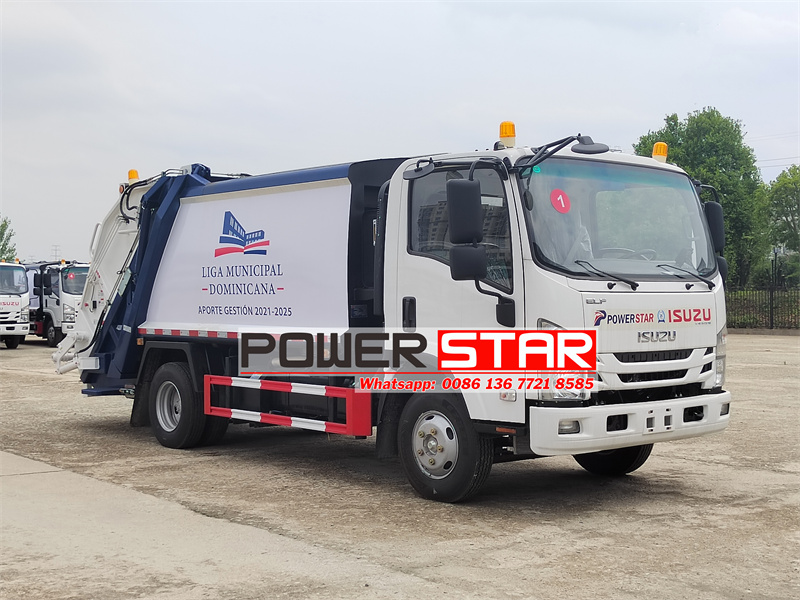

Isuzu 10 cbm garbage compactor truck, its chassis is Isuzu ELF 700P, 4HK1-TCG61 190HP engine, Isuzu MLD 6-speed gearbox. The upper part is a 10-cubic-meter garbage bin, with arc design, side 4mm and bottom 5mm thickness, and anti-rust treatment. The whole compactor garbage truck is controlled by CAN-BUS electronic control system and hydraulic valve control system, and the specific operation is reflected in four operation modes: the electric control box in the cab, the manual hydraulic operating lever on the driver's side, the electric control box on the left side of the tailgate, and the manual operating lever on the right side of the tailgate.
Manufacturer:
Powerstar TrucksWork capacity:
10cbmDimension:
7650 x 2250 x 2500mmCabin type:
Isuzu NPR cabin,2 seatsWheelbase:
4175mmEngine power:
190HPEngine type:
Isuzu 4HK1-TCG61Axle drive:
4X2,LHDGear box:
Isuzu MLD 6-speed,manualRemarks:
4x4/RHD availableThe 2025 year Isuzu 10 cbm mobile compactor truck is built on the Isuzu ELF 700P chassis, equipped with a 190HP 4HK1-TCG61 diesel engine and an Isuzu MLD 6-speed gearbox, providing strong power and smooth control. The vehicle is equipped with a 10cbm large-capacity curved garbage bin, and the edges and bottom are made of high-strength rust-proof steel to ensure durability. Its unique CAN-BUS electronic control system works in conjunction with the hydraulic valve system to achieve efficient garbage compression. At the same time, it provides four operating modes: the electric control box in the cab, the manual hydraulic lever on the driver's side, the electric control box on the left and right sides of the tailgate, and the manual pull rod, to ensure flexible and convenient operation control. This vehicle is an efficient and reliable choice for urban garbage disposal.
● China best Isuzu rear loader compactor truck factory
● Be designed according to your requirements
● Build strict QC team to guarantee the quality
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
Key Features:
★ Various size body from 3cbm to 25cbm,with beautiful appearance
★ ISUZU 4HK1 engine,super powerful;reliable performance. no overhaul,within 1000000km
★ Good sealing, no secondary pollution caused by sewage leakage when dumping garbage
★ Adopting electric, gas and hydraulic centralized control, with automatic and manual operation modes
★ Diffient rear flip systerm are optional
★ Can be put into 20",40"container and ship to worldwide
Product Parameters
|
ISUZU 700P 10cbm rear loader compactor |
|||
|
Vehicle Model |
PT5110GXP |
Vehicle Brand |
POWERSTAR |
|
Overall dimensions(LxWxH) |
7650*2250*2500 |
GVW/Curb weight |
11000/ 4250kg |
|
Loading capacity |
10CBM |
Max speed |
110km/h |
|
Chassis Parameters |
|||
|
Chassis brand |
Isuzu |
Wheelbase |
4175mm |
|
Front/rear wheel track |
1680/1650mm |
Front/rear suspension |
1110/2365mm |
|
Axles loading |
4000/7000kg |
Gearbox |
Isuzu MLD 6-speed,manual |
|

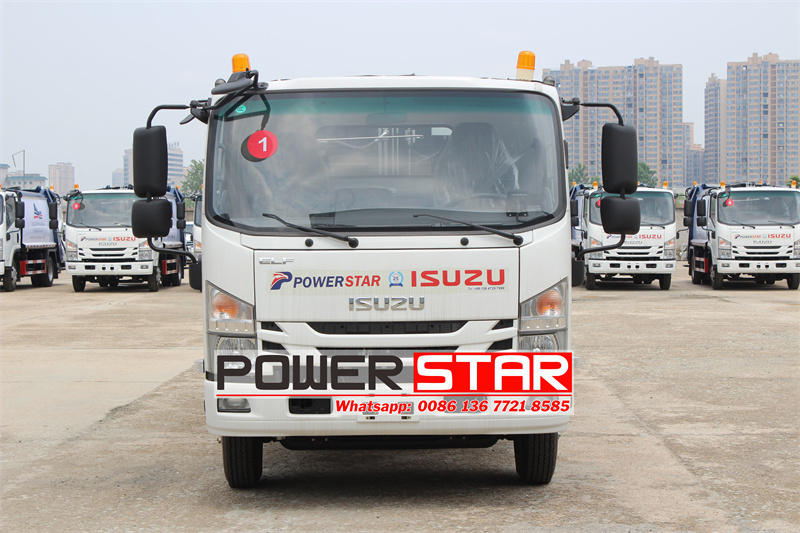

Cab |
Configuration |
Isuzu ELF 700P single row,allow 2 passengers, with air conditioner, central locking, electric windows, USB audio, a cab can be flipped. |
|
|
Color |
White and other colors are optional. |
||
|
Engine |
Model |
Isuzu 4HK1-TCG61 |
|
|
Emission Standard |
Euro 6 |
||
|
Type |
4 cylinder, in-line, 4 stroke, turbocharged, intercooled, water cooled, diesel engine. |
||
|
Rated power |
190HP/139Kw |
||
|
Displacement |
5193ml |
||
|
Rated speed |
2600rpm |
||
|
Max torque |
507N.m |
||
|
Max torque speed |
1600-2600rpm |
||
|
Tire |
Size |
7.00R16 |
|
|
Number |
6+1 nos |
||
|
Drive Type |
4X2 |
||
|
Suspension |
Multi-leaf springs |
||
|
Rated voltage |
24V, DC |
||
|
Steering device |
Power-assisted steering. |
||
|
Steering wheel |
Left-hand drive. |
||
|
Selective configuration |
Tire: 235/75R17.5 |
||
|

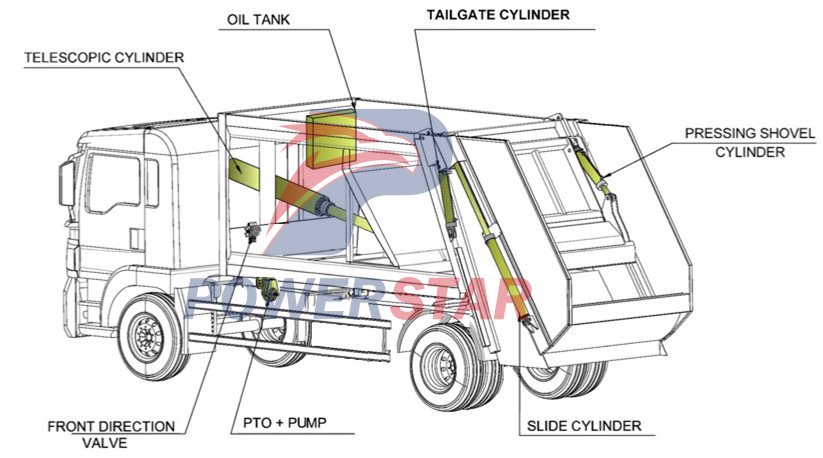

Rear Loader Compactor Structure Parameters |
|||
|
Equipment |
|||
|
Structure |
Body, sub-frame, lifting rear part, the loading device, the pushing-out plate, and hydraulic and electric systems. |
||
|
Loading capacity |
10m³ |
||
|
System of loading |
Mechanized, rear-loading. |
||
|
Modes of the pressing |
Manual, semi-automatic, automatic, lifting rear part operation manual, loading, pushing, pressing, pushing out automatic. |
||
|

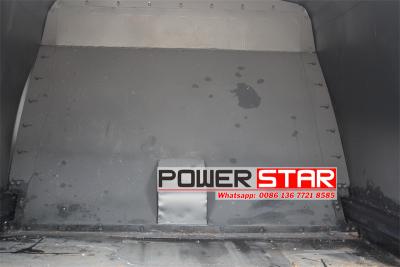

Body |
|||
|
Version |
All-metal |
||
|
Shape |
Arc-shaped |
||
|
Sidewalls |
Sheet carbon steel (thickness: 4 mm) |
||
|
Bottom |
Sheet carbon steel (thickness: 5 mm) |
||
|
Roof |
Sheet carbon steel (thickness: 4 mm) |
||
|
Front frame |
Sheet carbonaceous steel (thickness: 5 mm) |
||
|
Rear frame |
shaped profile from sheet carbon steel (thickness:5 mm) |
||
|

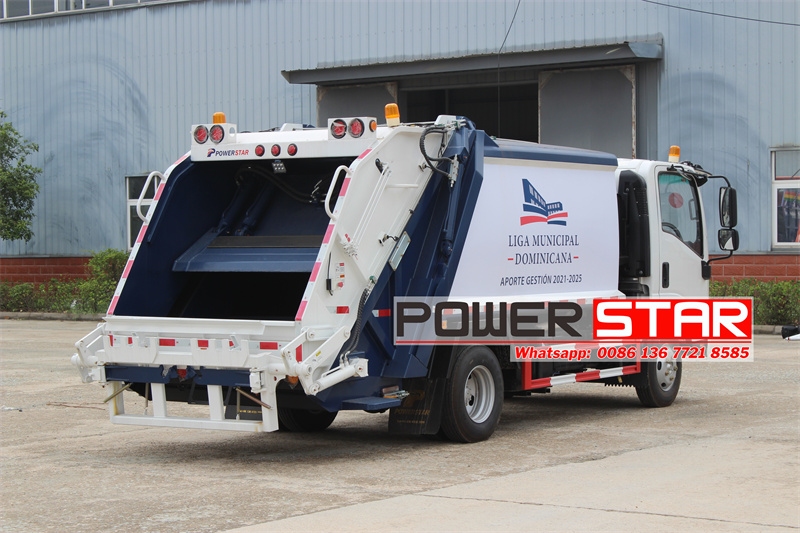

Loading Bunker |
|||
|
Loading bunker |
All metal with sidewalls and a loading ladle. |
||
|
Volume |
1.2m³ |
||
|
Sidewalls |
Sheet carbon steel (thickness: 4 mm) |
||
|
Ladle floor material |
Sheet carbon steel (thickness: 4 mm) |
||
|
Liquid drain |
Drainage channel, sewage tank. |
||
|
Working zone Lighting |
2 lamps |
||
|
Mechanism of raising |
2 hydraulic cylinders. |
||
|
Ensuring tightness |
Between the body and lifting back part in the lower part profile acid-proof rubber is used. |
||
|

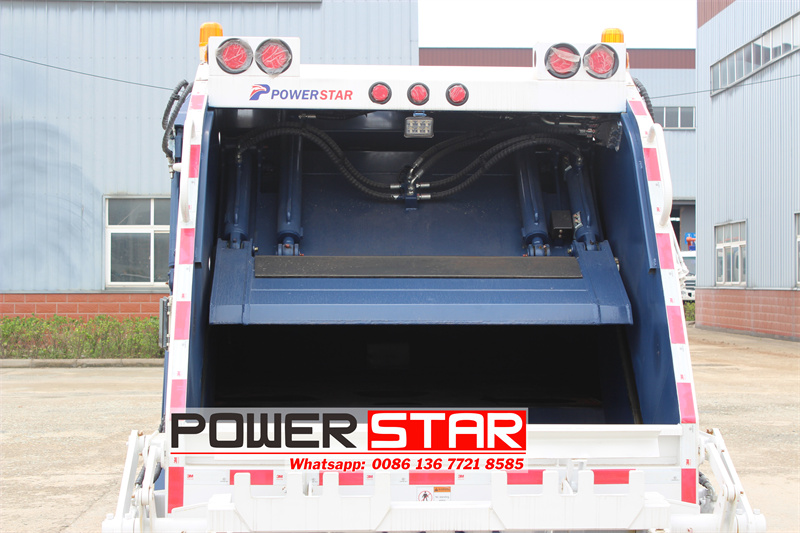

Pressing System |
|||
|
Features |
Control mode diversification, bidirectional compression. |
||
|
Pressure |
16Mpa |
||
|
Compaction ratio |
3.0:1 |
||
|
Loading cycle |
25-30 seconds |
||
|
Unloading cycle |
15-20 seconds |
||
|
pressing mechanism |
The giving plate and hinge-related pressing plate moving on 2 directing bars. |
||
|
Pressing mode |
Automatic pressing. |
||
|
(1 full cycle and continuous pressing) and controlling each cycle of pressing separately. |
|||
|
Control of pressing |
Control from the external panel on the bunker. |
||
|

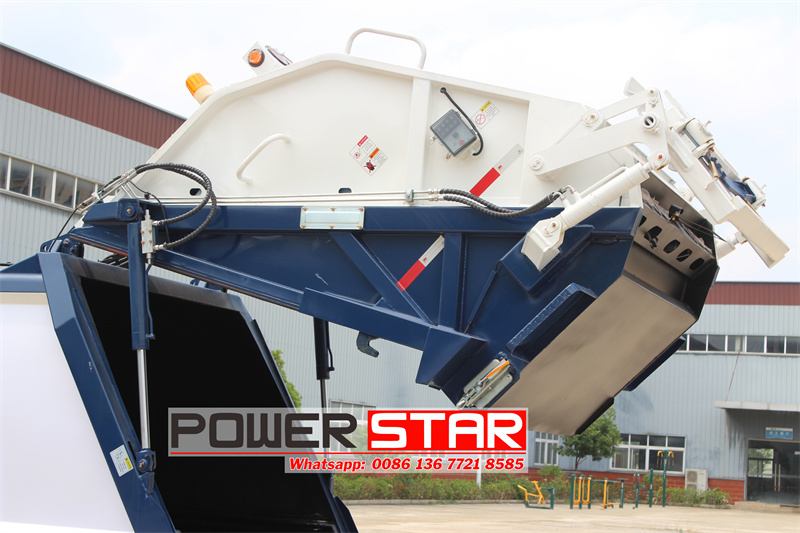

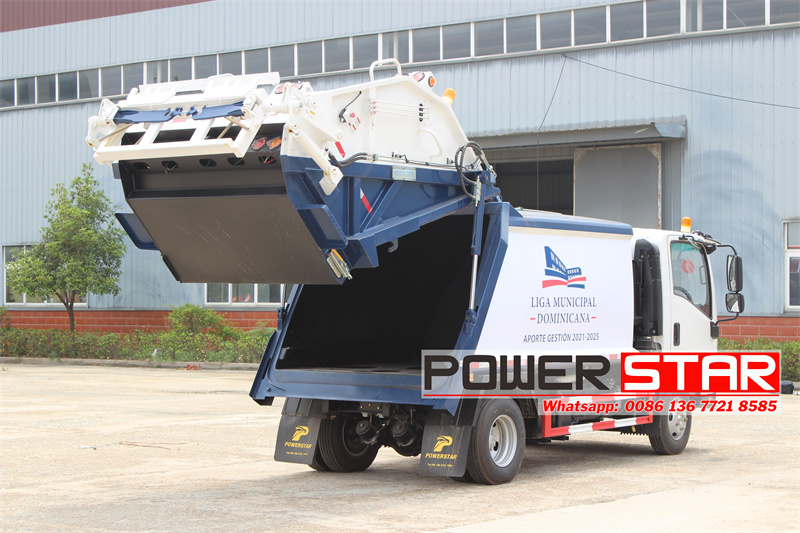

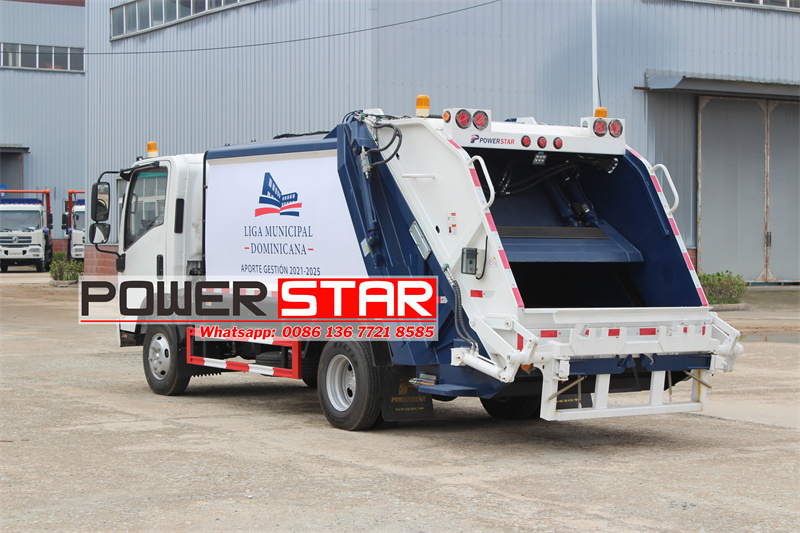

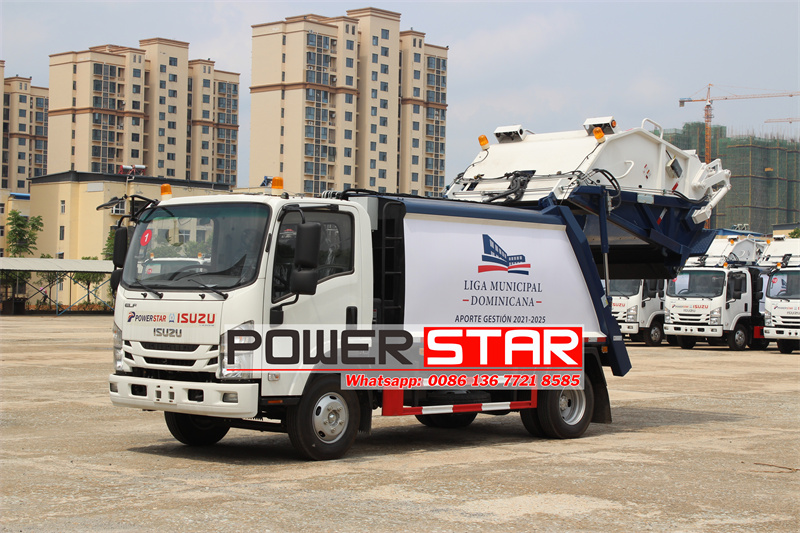

Lifting Rear Part |
|||
|
Mechanism of lifting |
2 hydraulic cylinders. |
||
|
Function description |
Suitable for various rubbish bins. |
||
|
Others |
|||
|
Color and Logo |
Optional |
||
|
Standard configuration |
Chassis,arc-shaped body, subframe, rear lifting part, loading bunker,pushing-out plate, hydraulic system, pressing system, sewage tank, climbing ladder, pneumatic control. |
||
|
Selective configuration |
PLC electric automatic control, multifunctional rear lifting part, rear handrail and footplate, other shapes of body, rear swing arm, etc. |
||
Product Applications
Isuzu 10 cubic meter rear loader compactor truck is a combination of high efficiency, durability and environmental protection, designed for modern urban garbage collection and treatment. Built on the Isuzu ELF 700P chassis, the vehicle combines advanced technology with a user-friendly operating interface, making it an indispensable and efficient tool for urban cleaning.
Chassis configuration
• Chassis model: Isuzu ELF 700P, known for its excellent carrying capacity and stable driving performance.
• Engine: Equipped with a 4HK1-TCG61 engine with an output power of up to 190 horsepower (140 kilowatts), ensuring that the vehicle has strong power performance while maintaining good fuel economy.
• Transmission: Adopts Isuzu MLD 6-speed manual transmission, with smooth shifting and high transmission efficiency, which can meet the needs of operations under various road conditions.
Upper body configuration
• Trash bin capacity: 10 cbm of large-capacity trash bin, with an arc design, which is not only beautiful but also optimizes loading efficiency.
• Box structure: The box edge thickness is 4 mm, the bottom thickness is 5 mm, and it is made of high-strength steel. It has undergone special anti-rust treatment to effectively extend its service life and resist erosion in harsh environments.
• Compression system: Equipped with advanced garbage compression mechanism, it works precisely with the CAN-BUS electronic control system and the hydraulic valve control system to achieve efficient compaction of garbage and increase the single loading volume.
Operation control system

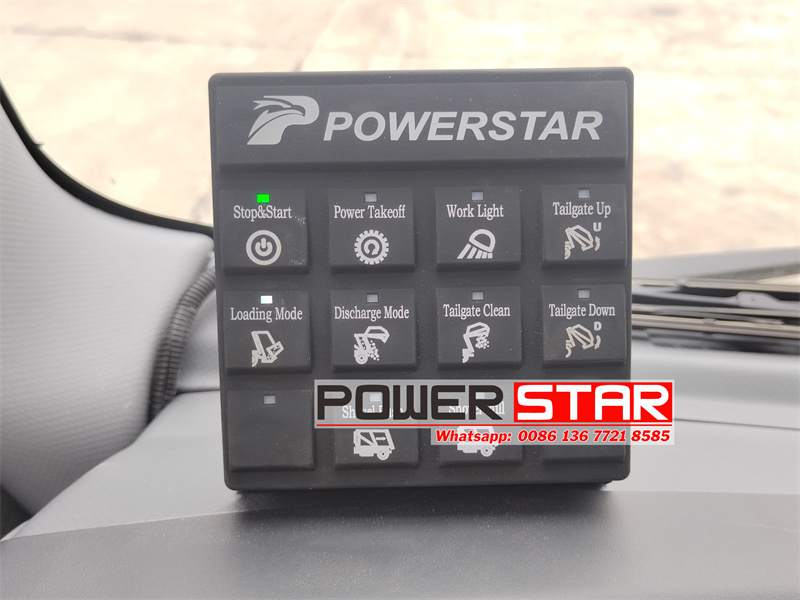

• Electric control box (in the cab): Located in the cab, with an integrated control panel, it is convenient for the driver to directly operate PTO, work light, tailgate up/down, loading mode, discharge mode, shovel push/pull and other functions to improve work efficiency.

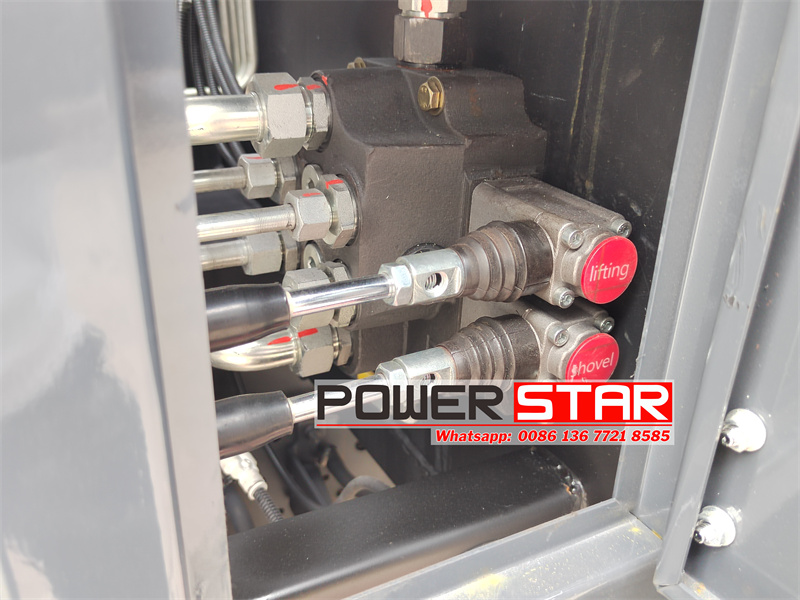

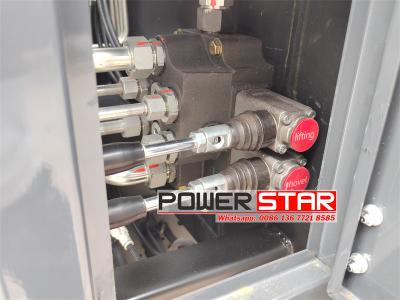

• Manual hydraulic operating lever on the driving side: The operator can operate on the ground, equipped with lifting, shovel and other operating levers, and can cooperate with the electric control box in the cab to load and unload garbage.

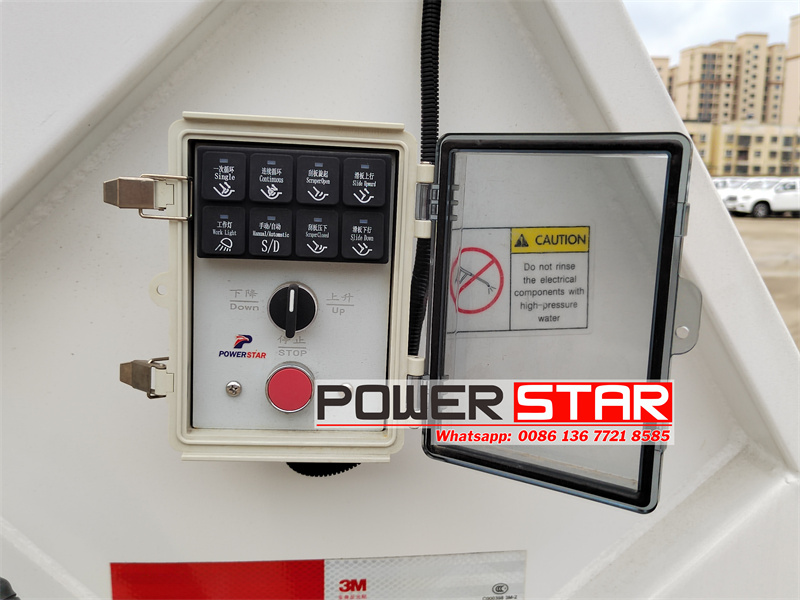

• Electric control box on the left side of the tailgate: The operator can directly control garbage collection including single cycle, continuous cycle, scraper open/closed, slide up/down, manual/automatic at the rear of the vehicle.

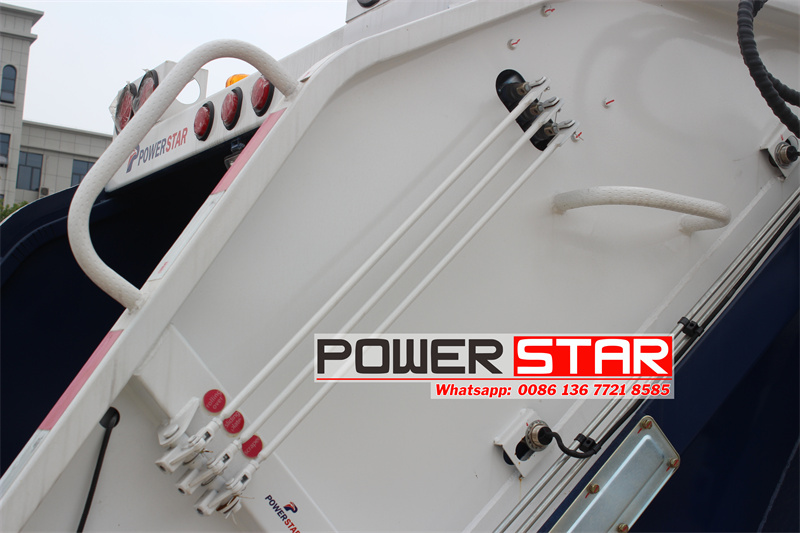

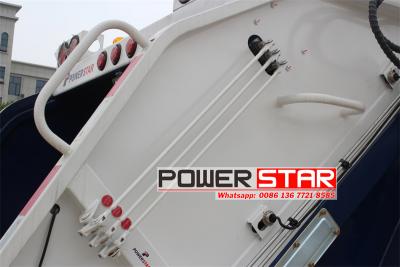

• Manual operation lever on the right side of the tailgate: There are three manual levers on the right side of the tailgate, including rolling over, sliding plate and scraper, which provide another mechanical emergency operation method to ensure that the tailgate movement can be safely and effectively controlled under any circumstances.
