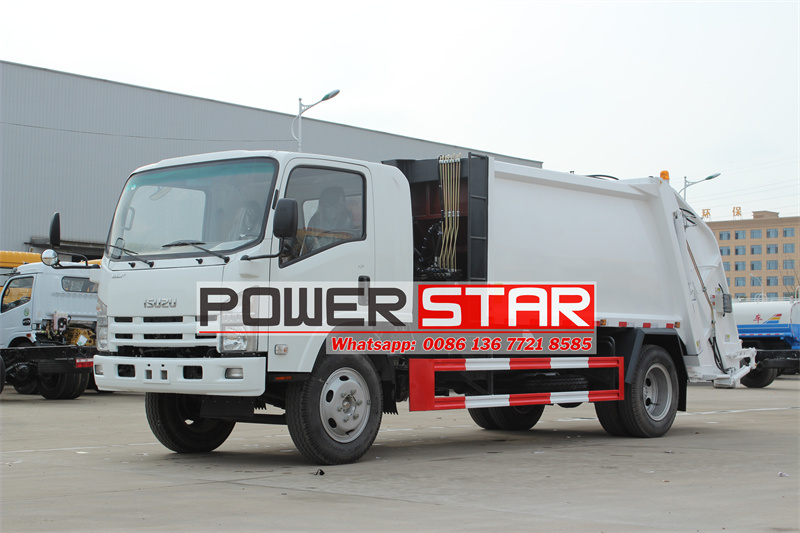

Japanese ISUZU NPR 8CBM Garbage Compactor is a high-efficiency, environmentally friendly waste collection and transportation equipment specifically designed for urban sanitation work. This product utilizes the ISUZU 700P (NPR) chassis, with customized sleeper for rest, which boasts impressive load-bearing capacity and stable driving performance. With a 4x2 drive configuration or 4x4 offroad model, it ensures flexibility and reliability across various road conditions. The total vehicle weight is 10550kg, and the rated payload is over 5000kg, not only meeting the demands of urban waste collection but also ensuring safe driving.
Manufacturer:
Powerstar TrucksWork capacity:
8cbmDimension:
7800 × 2300 × 2650mmCabin type:
ISUZU NPR truck chassis, 3 seatsWheelbase:
3815mmEngine power:
190HPEngine type:
Isuzu 4HK1-TCG61Axle drive:
4X2Gear box:
Isuzu MLD 6-speed,manualRemarks:

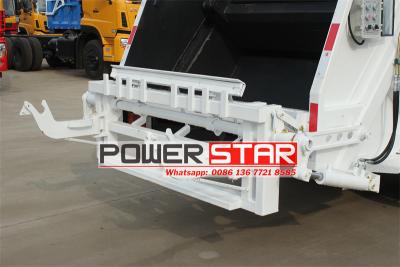

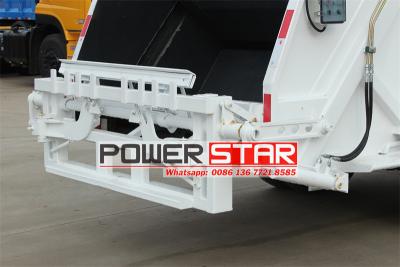

Hanging bucket rear flip mechanismISUZU NPR 8CBM Garbage Compactor Truck export to Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan and Russia market

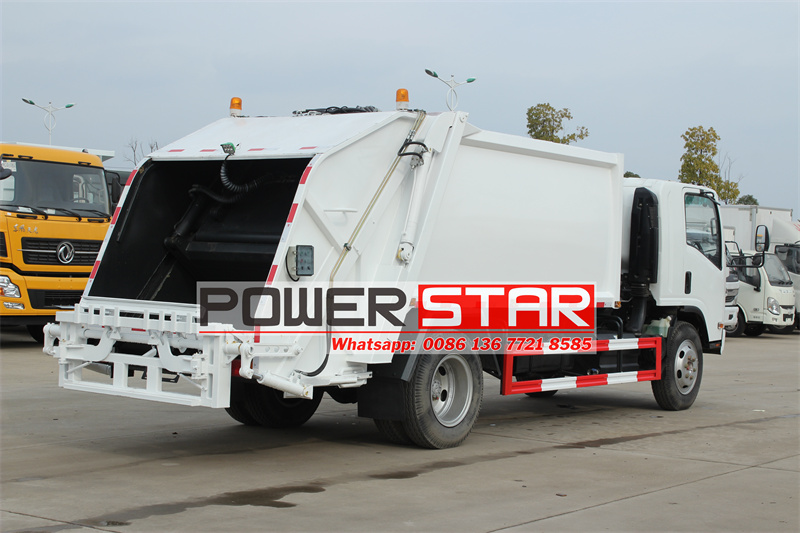

The newly designed ISUZU NPR 8CBM Compactor Garbage Truck is a waste collection and transportation equipment that integrates high efficiency, environmental protection, and intelligence. It adopts the original ISUZU 700P truck chassis, convenient driging cabin with sleeper, equipped with a 190-horsepower 4-cylinder diesel engine and a MLD 6-speed gearbox, boasting powerful dynamic performance and stable driving capabilities. The compact design and easy operation of this model make it suitable for waste collection and transportation in various environments such as cities and townships. The body volume of the ISUZU 8CBM Refuse Compactor Truck is moderate, which facilitates driving on urban roads while ensuring sufficient loading space. With a curb weight of 6,200kg and front/rear axle load capacities of 4,000kg and 7,000kg respectively, the reasonable axle load distribution enhances the vehicle's stability and driving safety. The design of the approach and departure angles allows the vehicle to easily handle complex road conditions.

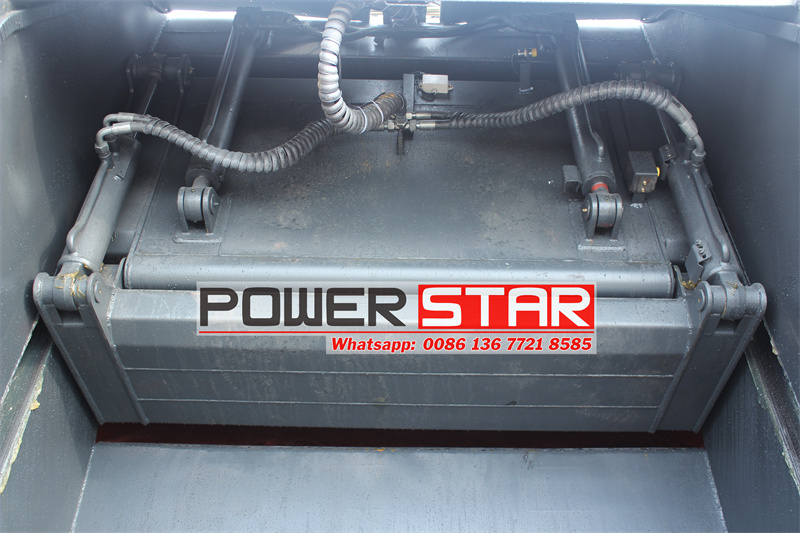

The compactor body is the core component of the ISUZU NPR Rear Loader Trash Compactor Truck. Its 8CBM volume meets the demands of urban waste collection. The body shape can be either arcuate or square, customized according to the specific needs of users. The body is made of T420 special steel, with a bottom thickness of 4mm and side thickness of 5mm, ensuring the strength and durability of the body. Meanwhile, with a compression ratio of ≥2.5, waste can be effectively compressed during transportation, increasing the loading capacity and transportation efficiency. The effective volume of the tailgate is ≥0.8m³, facilitating waste unloading and disposal.
● 30 years experience on rear loader truck designing
● 50 units Isuzu garbage compactor truck in stock, 5 cbm, 8 cbm, 12 cbm, 20CBM
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
Technical Specifications for ISUZU rear loader garbage truck:
The ISUZU 8CBM rear end loader truck is equipped with a 4HK1-TCG61 engine. This engine features a 4-cylinder inline, 4-stroke, water-cooled, intercooled, turbocharged diesel design, delivering excellent power performance and fuel economy. With a rated power of 189 horsepower, a displacement of 5,193 milliliters, and a maximum torque of 507 Nm, it boasts impressive specifications. The bore and stroke are 115mm and 125mm respectively, contributing to smoother and more efficient engine operation.
|
Chassis parameters for ISUZU NPR refuse compactor truck |
|||
|
Chassis model |
QL1110ANKWY |
Chassis brand |
ISUZU |
|

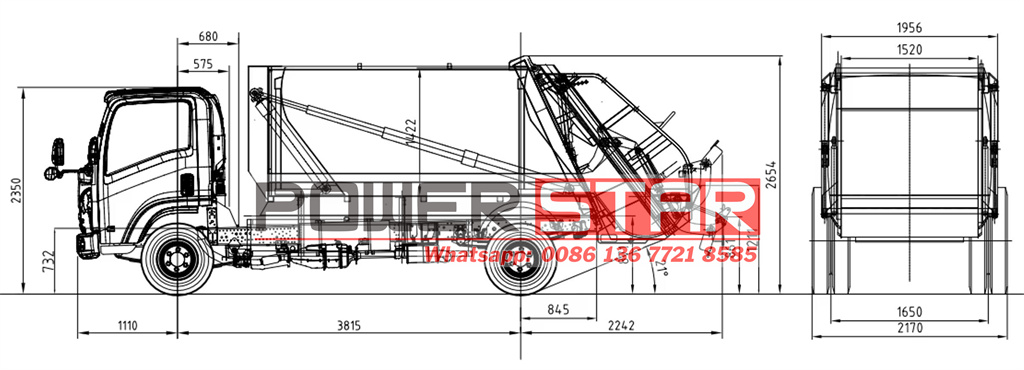

Overall dimensions |
7800×2300×2650mm |
Wheelbase |
3815 |
|
Front/rear wheel track |
1680/1650mm |
Front/rear overhang |
1110/2055mm |
|
Approach/departure angle |
24/14° |
Maximum speed |
110 km/h |
|
Cab |
Configuration |

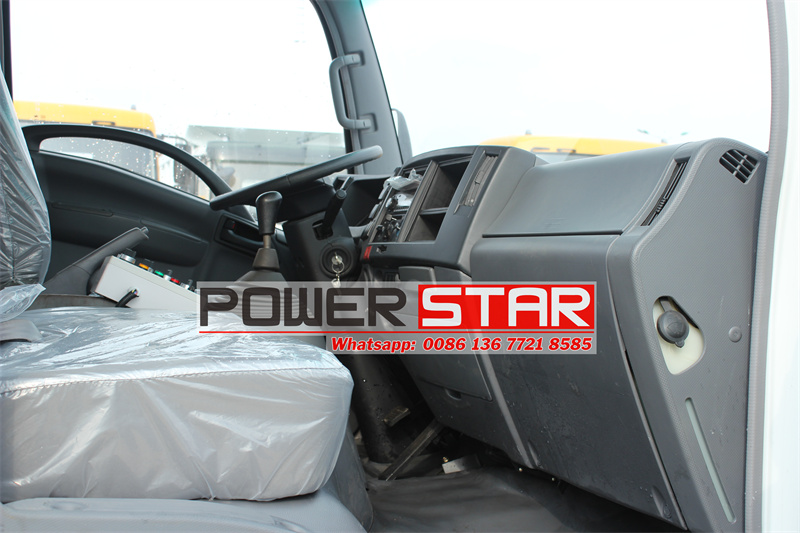

ELF cab with sleeper, hydraulic mechanical flip, channel type instrument panel, air conditioner, allowable 3 passengers |
|
|
Color |
White, other color is optional |
||
|
Engine |
Model |
4HK1-TCG61 |
|
|
Emission |
Euro 6 |
||
|
Type |
4 cylinders, in-line, 4-stroke, water-cooled, inter-cooling, turbocharged, diesel engine |
||
|
Rated power |
190 hp |
||
|
Displacement |
5193 ml |
||
|
Max. torque |
507 N·m |
||
|
Bore x stroke |
115*125mm |
||
|
Tire |
Size |
235/75R17.5 |
|
|
Number |
6+1 nos |
||
|
Front axle |
3500 kg |
||
|
Rear axle |
7050 kg |
||
|
Drive form |
4*2 |
||
|
Rated voltage |
24V, DC |
||
|
Transmissions |
MLD six speed transmission, 6 speed forward 1 reverse. |
||
|
Steering device |
Power assisted steering |
||
|
Steering wheel |
Left hand drive |
||
|
Refuse compactor structure parameters |
|||
|
Compactor body volume |
8 CBM |
||
|
Compactor body shape |
Arc-shaped |
||
|
Compactor body material |
T420 special steel, sidewalls 4mm, bottom 5mm |
||
|
Tailgate capacity |
1 CBM |
||
|

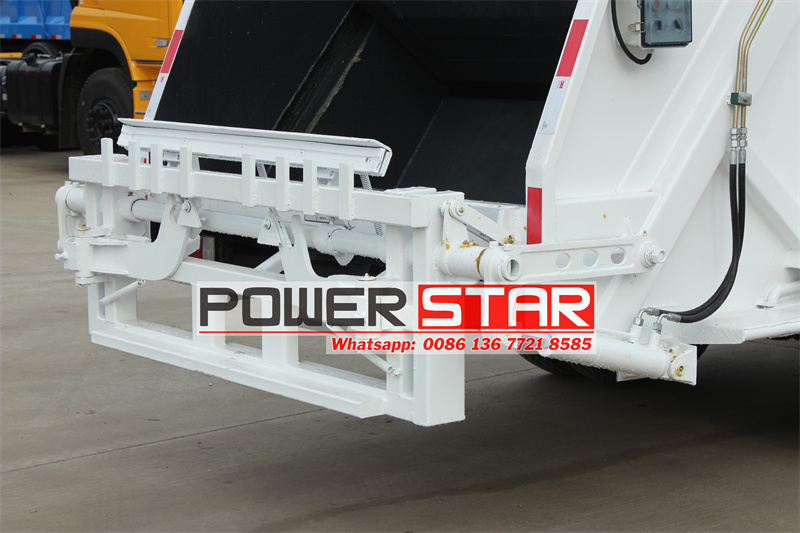

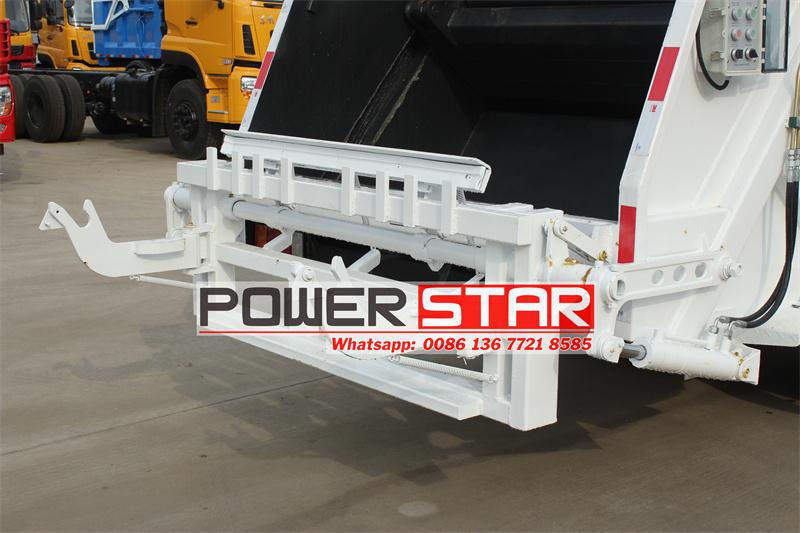

Bin lifter |
Suitable for 120L,240L,480L,660L,1100L waste bins |
||
|
Waste water tank capacity |
200 L |
||
|
Compression ratio |
≥2.5 |
||
|
Compression ratio |
≥2.5 |
||
|
Loading cycle time |
≤25s |
||
|
Garbage unloading time |
≤45s |
||
|
Control method |
Automatic+Manual |
||

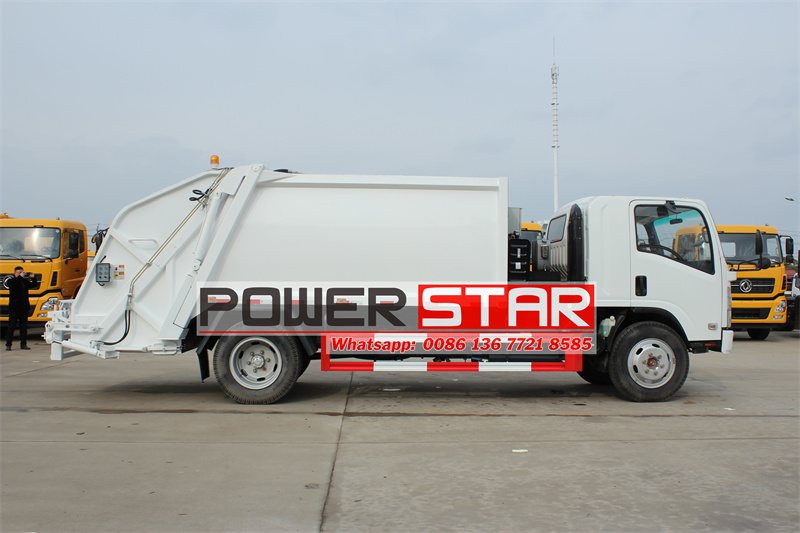

Advanced Features ISUZU garbage compactor truck with NPR half and sleeper cabin:
POWERSTAR TRUCKS Garbage Compactor Truck based on Customized ISUZU 700P ELF 4x2 model LHD chassis, classical NPR cabin with sleeper, Compactor body capacity could up to 6tons / 8CBM, which equipped with CAN Electric Control System and Hydraulic Joystick Control System, mainly used for garbage collection and transportation, and the working aerial can be city street, factory, community and other areas of need.
The vehicle designed to fully rely on the advantages of the original of ISUZU brand chassis, fully consider the product's convenience and reliability, also the chassis technology features. The garbage compactor body material is international standard high strength carbon steel, both internal and external with anti-rust painting, which can effective to avoid rusting. As for compactor body capacity is 6Tons and safety enough to collecting & transporting waste on customer requirement.

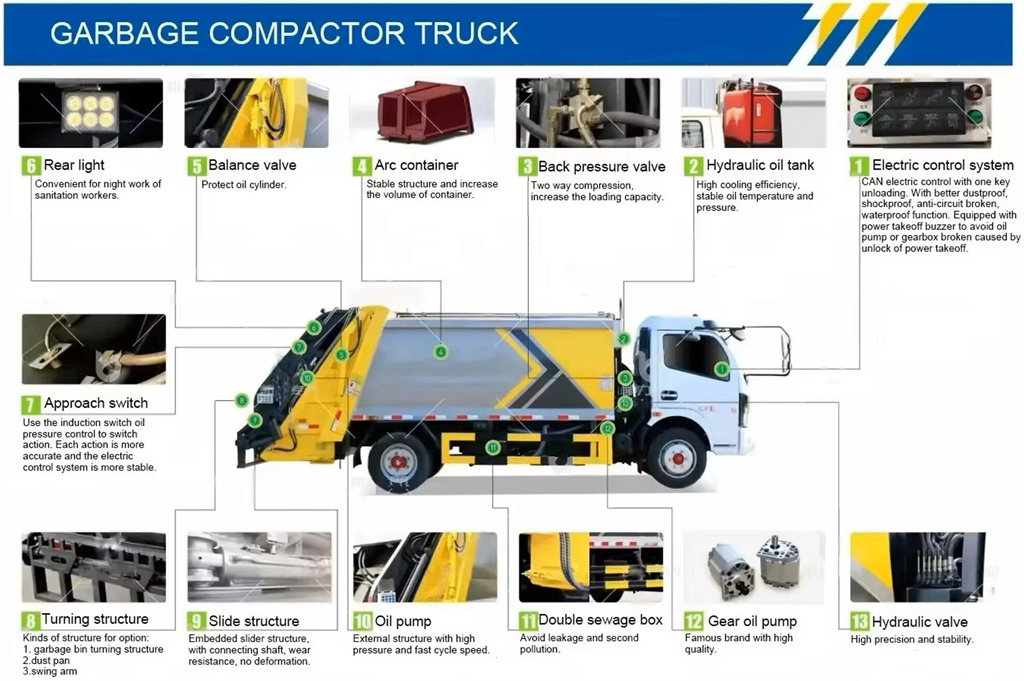

The 4x2 Garbage Compactor Truck equipped with new designed CAN control system, multi-function garbage compression system, side climbing ladder, Electric control boxes in cabin and rear of hopper, rear part installed foot pedal, which is customized to collect garbage from different area, two units waste water collection tank can efficiently prevent second pollution during transportation. Cab for the single-row Comfortable seat, nice driving feeling. Therefore, the vehicle is an ideal Fuel Tanker Truck mainly for oil transportation & refueling function.
High performance of ISUZU NPR 8cbm rear loader garbage truck:
The ISUZU Refuse Compactor Garbage Truck is a new generation of products independently developed and designed by POWERSTAR TRUCK. Based on the similar products features and advantages of in domestic and abroad market, which is beautiful in appearance, excellent in performance and advanced in operation and control. The collection and transportation of urban domestic waste can be achieved by using the back-loaded compaction and bi-axial compression technology. Its comprehensive performance reaches the advanced level of domestic similar products.
a. Elegant appearance, the main components made of high-quality high-strength manganese steel, sound structure, strong rigidity and high strength.
b. Powerful loading capacity, apply the bi-axial compression technology, the volume of domestic waste can be up to 600~800Kg/m3 after compression.

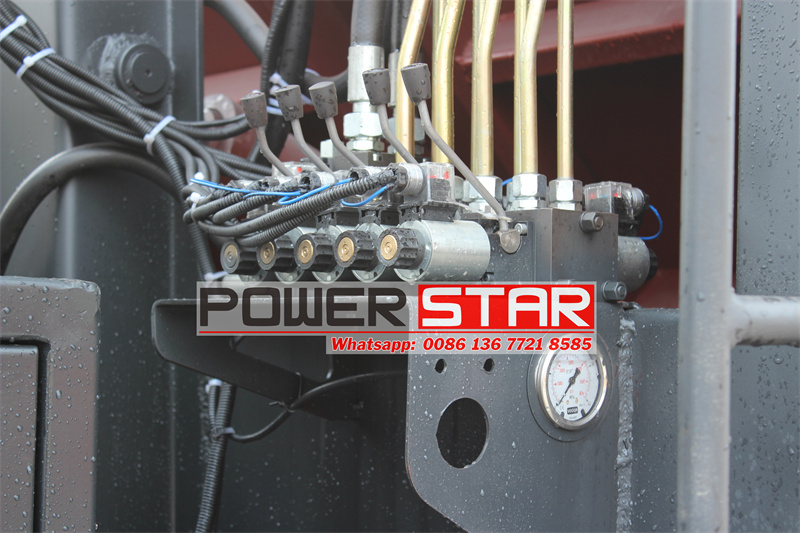

c. Combined electric-air-liquid control, utilize the advantages of electronic control, gas control and hydraulic control to control and convert the energy, thus ensuring the accurate and reliable operation of each mechanism, and improving the reliability and efficiency of operation.
d. The electronic control system adopts the electrical components produced by well-known domestic and foreign manufacturers, and CAN-BUS integrated control is adopted to reduce the failure rate and prevent accidents caused by misoperation.
e. Convenient operation control, the operation control box is respectively installed in the cab and the rear, the operation control box in the cab can be used to control the pushing and unloading and select the operation mode, the operation control box on the right side of the rear can be used to control the operation of the compressing-filling mechanism and the bucket-lifting mechanism, which is quite convenient; especially for working in the landfill, the operator can unload garbage without getting off.
f. Pneumatic control is adopted to open and close the pre-compressor cover, with elegant and simple appearance and friendly operation.
g. During the compression, filling and transportation, the garbage shall be under closed state, and unique technology of "sealing" and "dredging" is adopted to greatly reduce the dripping and spraying of sewage in the process of collection and transportation.
