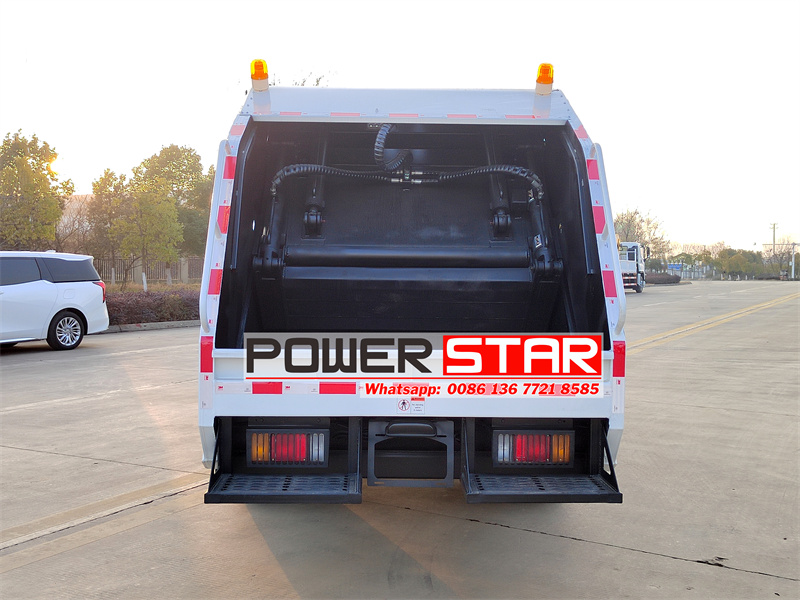

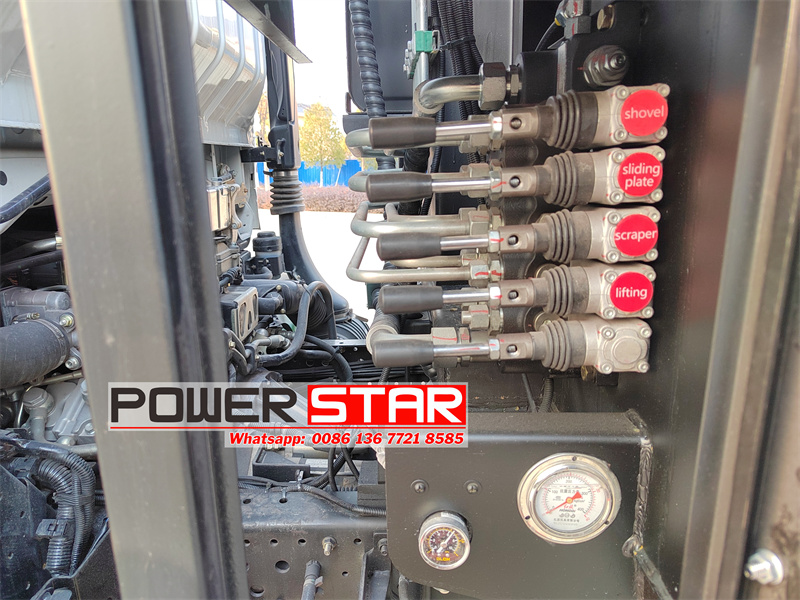

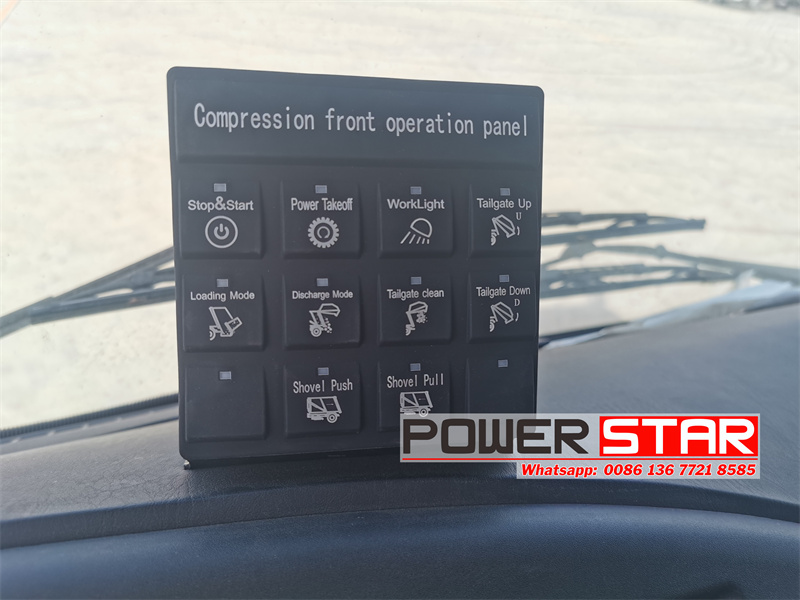

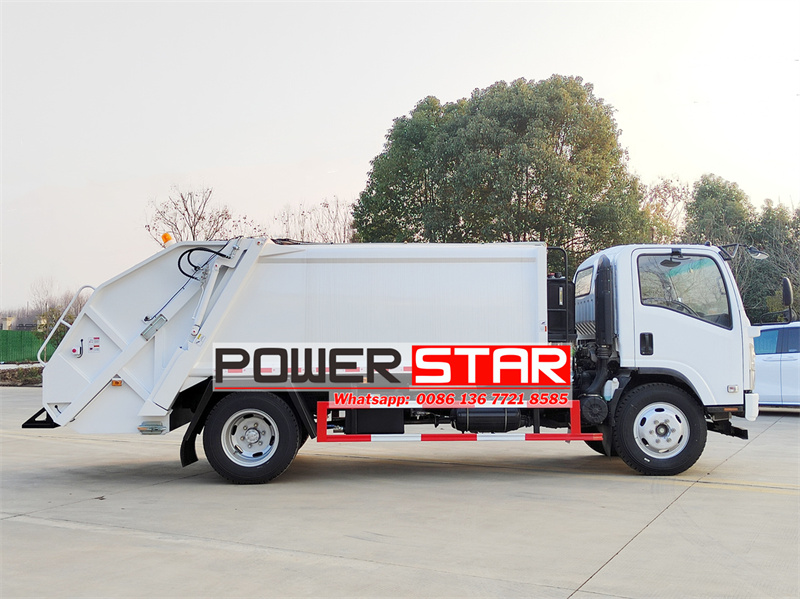

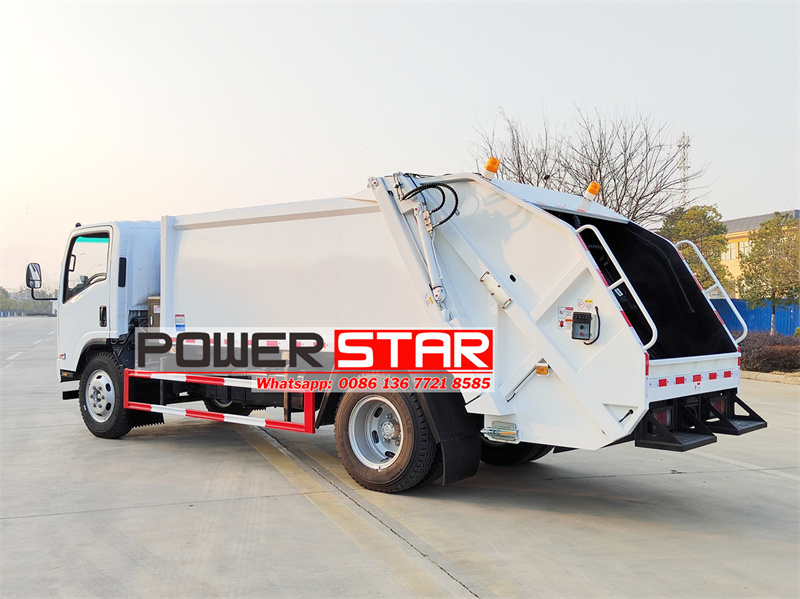

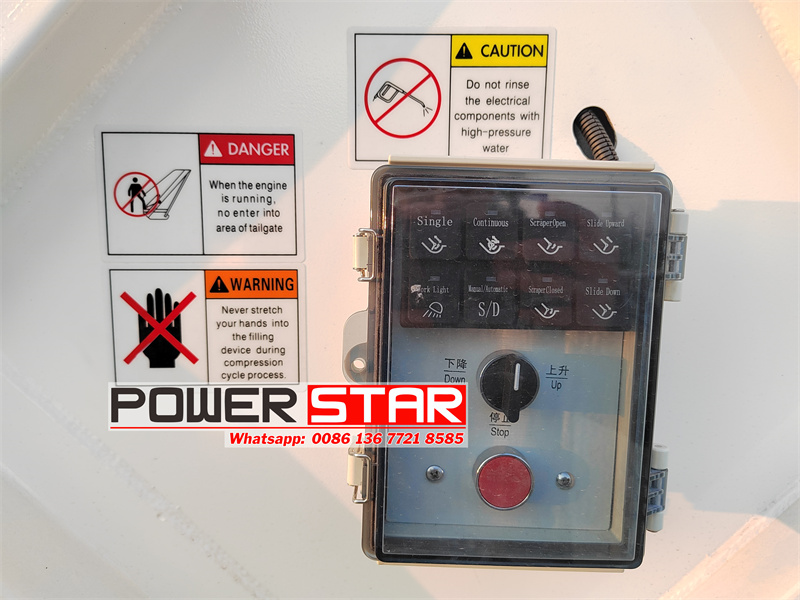

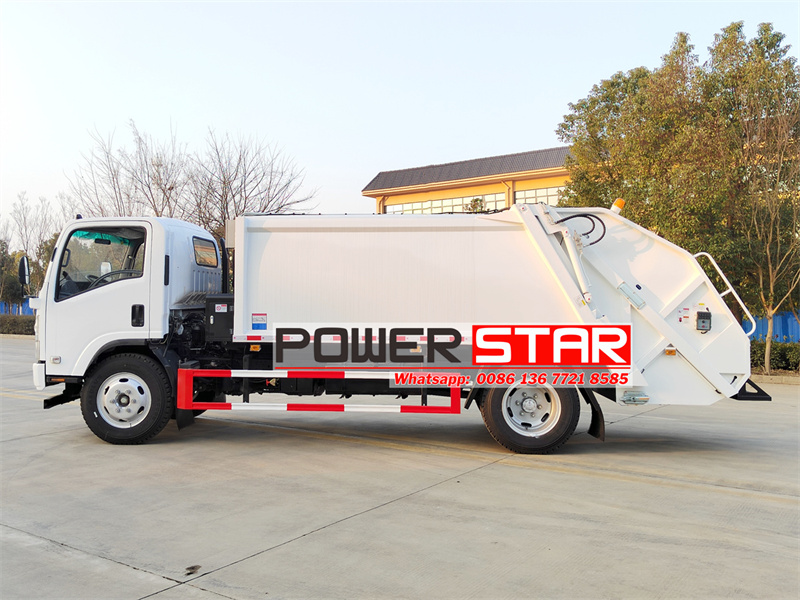

Isuzu 700P garbage compactor truck is a vehicle used for garbage collection and transportation. It is modified based on the Isuzu 700P chassis, with air conditioning, USB, power steering, wheelbase 4175mm, equipped with Isuzu 4HK1 190HP engine, Euro 6 5193ml emission, Isuzu MSB 5-speed gearbox, maximum speed 110Km/h. The upper body is an 8cbm high-strength steel arc box with 4 sides and 5 bottom thickness. The compression system of the vehicle is controlled by Taiwan Yonghong PLC electronic control system, with 3 operation modes including the electronic control box in the cab, the hydraulic manual operating lever on the driver's side, and the electronic control box on the tailgate.
Manufacturer:
Powerstar TrucksWork capacity:
8CBMDimension:

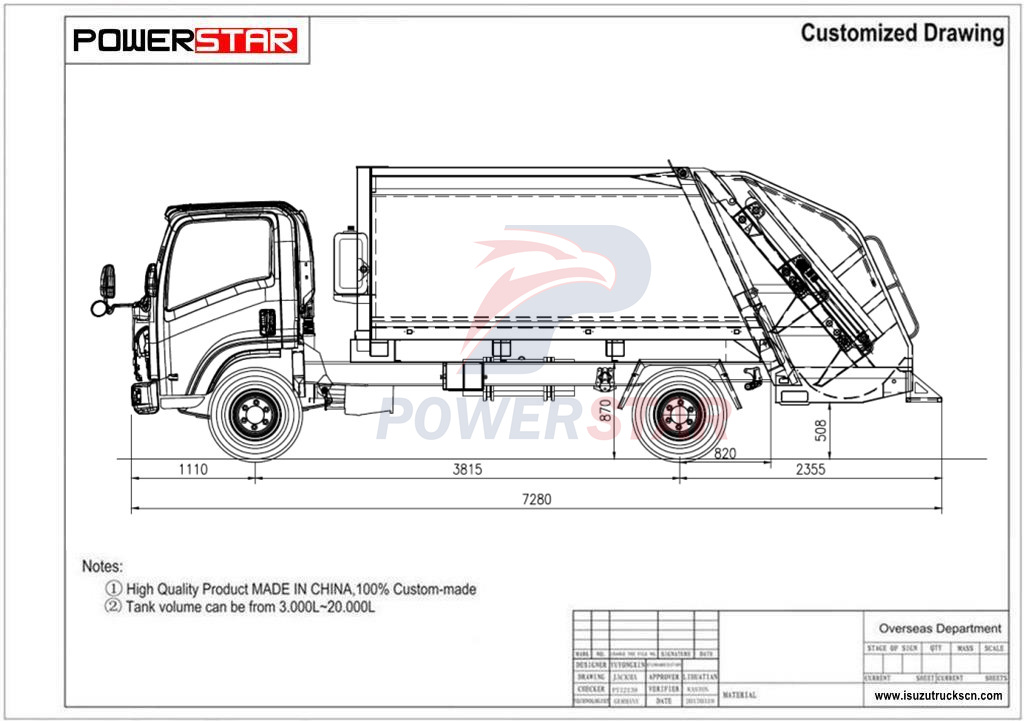

7280 × 2300 × 2580mmCabin type:
Isuzu 700P single row，2 seatsWheelbase:
4175mmEngine power:
190HPEngine type:
ISUZU 4HK1-TCG61Axle drive:
4X2Gear box:
lSUZU MLD 6 forward and 1 reverse,manualRemarks:
Isuzu rear loader with PLC automatic control systemIsuzu Automatic PLC Control Rear Loader Truck is a high-end model designed for urban garbage collection and transfer tasks. With its excellent performance and intelligent design, it has become a powerful assistant for urban cleaning work. The vehicle is equipped with an advanced PLC automatic control system, which realizes accurate and efficient operation of garbage loading and unloading, greatly improving work efficiency. At the same time, the powerful compression system equipped on the vehicle can effectively reduce the volume of garbage, increase the single transportation volume, and further reduce operating costs. In addition, its robust body design and environmentally friendly power system ensure the stable operation and low emissions of the vehicle on urban roads, contributing to the improvement and protection of the urban environment.
● 30 years experience on garbage compactor truck designing
● 50 units Isuzu rear loader compactor trucks in stock, 5 cbm, 8 cbm, 12 cbm
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
Specifications
|
Isuzu ELF 700P 8cbm rear loader compactor |
|
|
Chassis |
|
|
Chassis Brand |
lSUZU |
|
Driving Type |
4*2,LHD |
|
Cab |
Isuzu 700P single row，2 seats，with A/C,USB, direction assistance |
|
Dimension |
7280×2300×2580 (mm) |
|
Gross Weight |
11000kg |
|
Curb Weight |
6200kg |
|
Wheelbase |
4175(mm) |
|
Front/rear Axle Loading Capacity |
4000/7000kg |
|
Front/rear Suspension |
1110/2095(mm) |
|
Max Speed |
110(Km/h) |
|
Tire |
235/75R17.5 16PR, 6+1 PCS |
|
Gear Box |
lSUZU MLD 6 forward and 1 reverse,manual |
|
Engine |
|
|
Type |
4 stroke,4 cylinders, in-line, water cooling, Supercharged intercooling,diesel |
|
Model |
Isuzu 4HK1-TCG61 |
|
Horse Power |
190HP/139Kw |
|
Max. Torque |
507N.m |
|
Rated Speed |
2600 rpm |
|
Max. Torque Speed |
1600-2600rpm |
|
Displacement |
5193cc |
|
Emission Standard |
Euro 6 |
|
Superstructure |
|
|
Tank Volume |
8CBM |
|
Tank Shape |
Arc-shape/Square Optional |
|
Tank Material thickness |
Bottom:5mm Side:4mm |
|
Tank Material |
Q345 high strength manganese steel plate |
|
Compression Ratio |
≥2.5 |
|
The effective volume of the bucket |
≥0.8m³ |
|
Loading cycle time |
≤40 s |
|
unload garbage time |
≤45s |
|
control method |
Automatic, Manual |
|
Maximum pressure of hydraulic system |
20MPa |
|
Control System |
Taiwan Yonghong electric control system |
|
Engine power control |
Fully automatic control |

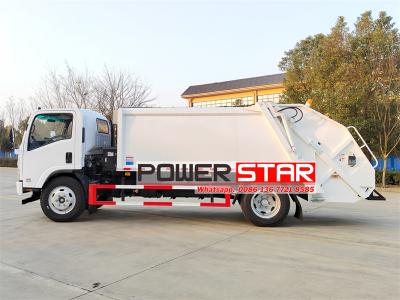

The Isuzu ELF cabin single axle rear loader is modified on the basis of Isuzu 700P chassis, with a wheelbase carefully set to 4175mm. It is equipped with a 4HK1-TCG61 engine that meets the National VI standard, 120HP, 5193ml displacement, and powerful and clean power. The transmission system adopts Isuzu MLD six-speed gearbox, which has smooth shifting and quick response. It is supplemented by air conditioning system and power steering, and the driving experience is elegant and comfortable. The front and rear axles bear 4 tons and 7 tons respectively, which are solid and stable. They are equipped with ABS anti-lock braking system and air brake for double safety protection. The cab has a flexible flip design and convenient maintenance. It is standardly equipped with 235/75R17.5 wear-resistant tires, which are steady at every step.
The upper body adopts a streamlined arc box design, which is not only beautiful but also has a volume of 8 cubic meters. It is all made of Q345 high-strength manganese steel plate. The full welding process ensures impeccable performance. The side four bottom five structure has the characteristics of strong bearing capacity and good sealing. Selected Xingguang oil cylinder and Wanye oil pump, with Zhongmei brand multi-way valve system, precise control; high-density hydraulic oil pipes ensure leak-free transmission, and Jiashan power take-off power transmission is efficient.
The automatic Taiwan PLC control system equipped with this vehicle integrates advanced electronic technology, computer technology and automation technology. Through the preset program logic, the Taiwan Yonghong PLC system is responsible for controlling the whole process of garbage loading, compression, unloading, etc., achieving high automation and precision.
2. Precise control:
Taiwan Yonghong PLC control system can accurately control hydraulic cylinders, motors and other actuators to ensure smooth and efficient garbage loading and compression process. Sensors are used to monitor the position of the garbage bin, compression status and vehicle load in real time to avoid operational errors.
3. Intelligent monitoring:
The Taiwan Yonghong PLC control system can monitor the working status of the vehicle in real time, including key parameters such as engine speed, oil temperature, oil pressure, and loading arm position. Once an abnormal situation is detected, the system will immediately sound an alarm and take corresponding protective measures to ensure the safety of vehicles and personnel.
In terms of environmental performance, Isuzu 700P 8cbm rear loader compactor adopts a multiple sealing design to effectively prevent the leakage of garbage leachate. The exhaust gas treatment system meets the latest emission standards and minimizes secondary pollution to the urban environment.
