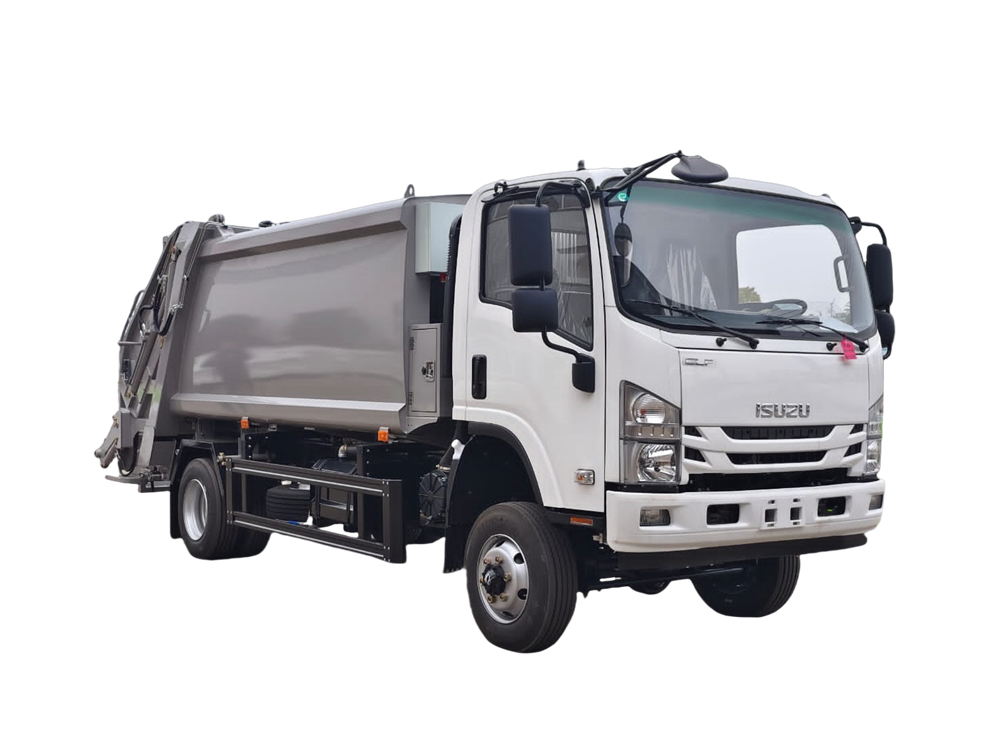

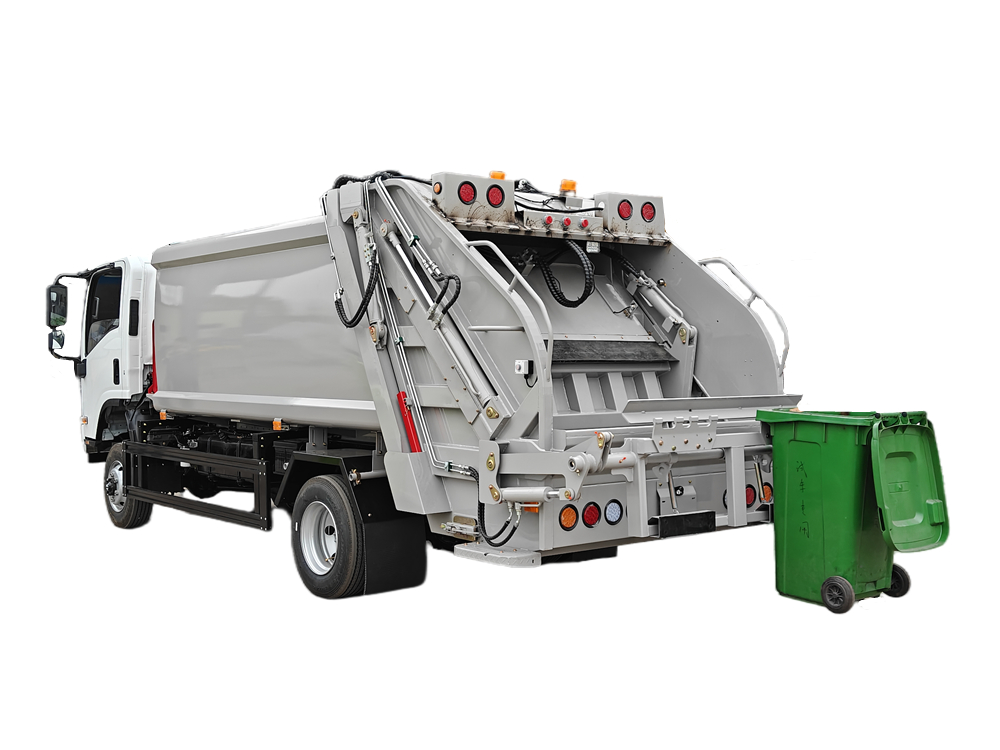

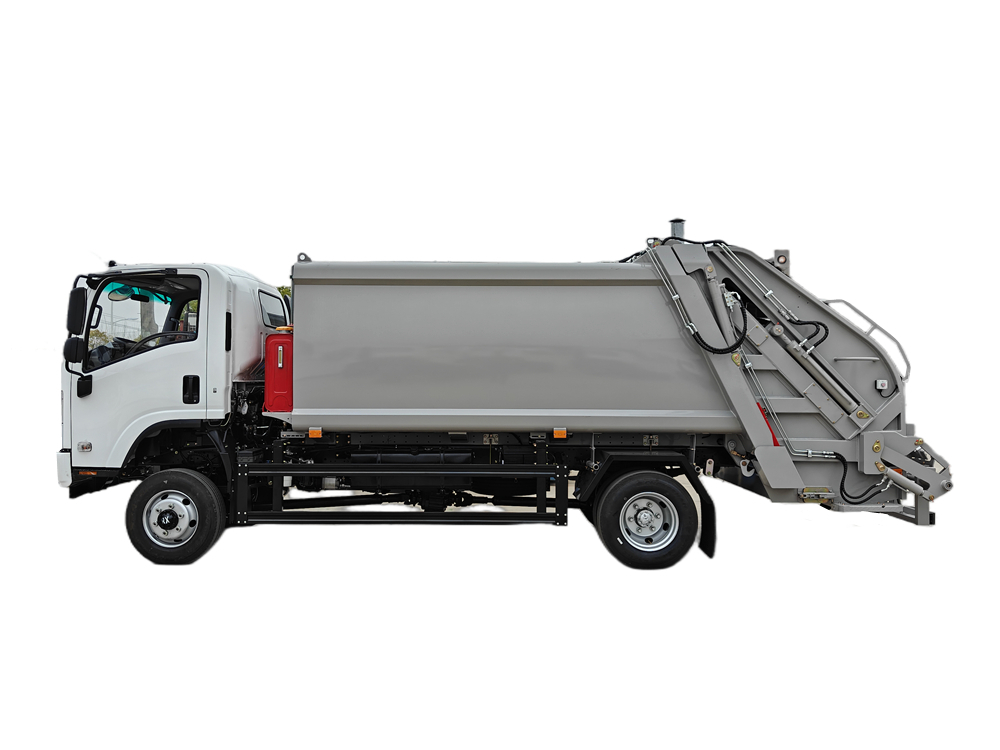

Isuzu 700P 4x4 8 cubic garbage compactor is a professional vehicle for garbage collection and transportation. It is modified on the basis of Isuzu 700P all-wheel drive chassis, with a wheelbase of 4175mm. The vehicle is equipped with Isuzu 4HK1-TCG61 diesel engine, 5193ml Euro 6 emission, and Isuzu MLD 6-speed gearbox; the vehicle is equipped with an 8-cubic arc-shaped carbon steel compactor garbage bin, and the tail is equipped with a bucket flipping mechanism, which can hang such as 240L, 660L, and 1100L garbage bins. The vehicle is controlled by a PLC electronic control system and a manual hydraulic system. The operator can control the loading and unloading of garbage through three operating methods: the electronic control box in the cab, the manual hydraulic operating valve on the driver's side, and the tailgate electronic control box.
Manufacturer:
Powerstar TrucksWork capacity:
8CBMDimension:
7500 x 2260 x 2810mmCabin type:
Isuzu 700P,single row, 2 seatsWheelbase:
4175mmEngine power:
190HPEngine type:
Isuzu 4HK1-TCG61Axle drive:
4X2Gear box:
Isuzu MLD 6-speed,manualRemarks:

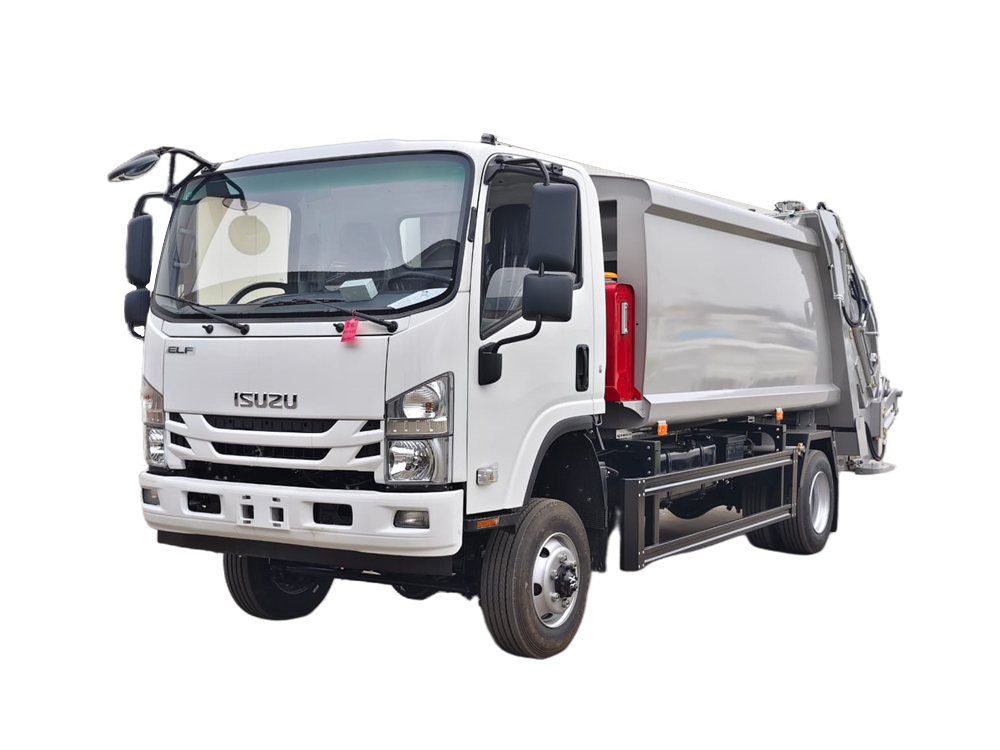

Equipped with PLC electronic control system and a manual hydraulic systemThis Isuzu 4X4 off road garbage rear loader is an efficient and reliable special vehicle for sanitation operations. It adopts advanced hydraulic compression technology, equipped with PLC electronic control system and manual hydraulic control system, to achieve automatic and manual dual control of garbage compression, which is both intelligent and practical. The body structure is sturdy and durable, with a large garbage load capacity and good sealing performance, which effectively prevents garbage leakage. The four-wheel drive system has good off-road performance and passability, and can adapt to various complex road conditions. The cab is spacious and comfortable, equipped with modern facilities to improve the driver's work efficiency. Whether it is a city street, residential area or industrial area, this car can easily cope with garbage collection and transportation work. It is an ideal choice for urban sanitation operations and contributes to the cleanliness of the urban environment.
● China best Isuzu rear loader truck factory
● 30 years experience on garbage compactor truck designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
|
Isuzu 700P 4x4 rear loader compactor truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
7500X2260X2810mm |
|
|
GVW |
11000kg |
|
|
Curb weight |
4850kg |
|
|
Loading weight |
6tons |
|
|
Chassis brand |
ISUZU |
|
|
Traction type |
4*2; Left hand drive |
|
|
Up-parts Specification |
||
|
Dustbin volume |
8cbm |
|
|
Material & thickness |
Side: 4mm Q345; Bottom: 5mm Q235A |
|
|
Sewage water tank |
200L |
|
|
Type of Rear garbage filler(Rear Turnover device) |
Hanging trash bin flip mechanism |
|
|
Control system |
Electrically Controlled Hydraulic + Manual Hydraulic |
|
|
Type of compactor |
Fill, push and compression |
|
|
Garbage compact density |
0.9±0.05 T/m³ |
|
|
Cycle of loading |
≤40s |
|
|
Cycle of discharge |
≤45s |
|
|
Hydraulic pressure system working pressure |
16 MPa |
|
|
PLC |
Importation PLC (Programmable controller) |
|
|
Gear pump |
Made in China |
|
|
Multi-way valve |
Air controlled, Made in China |
|
|
Hydraulic oil cylinder |
Made in China |
|
|
Hydraulic rubber hose |
Made in China |
|
|
Chassis Description |
||
|
Chassis brand |
Isuzu |
|
|
Cab |
Isuzu 700P,single row, 2 seats,with A/C,USB,direction assistance |
|
|
Wheelbase |
4175mm |
|
|
Tire specification |
235/75R17.5 |
|
|
Tire quantity |
6+1 units |
|
|
Engine |
Type |
Inline 4-cylinder 4-stroke, supercharged, intercooled, water-cooled |
|
Model |
4HK1-TCG61 |
|
|
Emission level |
Euro 6 |
|
|
Displacement/output |
5193ml/139kw |
|
|
Horse power |
190HP |
|
|
Gear box |
Model |
ISUZU MLD |
|
Number of gears |
6 forward gears& 1 reverse |
|
|
Brake system |
Full air brake |
|
|
Axle |
Front |
4T |
|
Rear |
7T |
|
|
Suspension |
Front |
Leaf springs |
|
Rear |
Leaf springs |
|
|
Fuel tanker |
Type |
Stainless steel tanker, with lockable cap |
|
Capacity |
100L |
|
Isuzu 4x4 all-wheel drive 8 cubic rear loader truck, which combines the excellent performance of Isuzu cars and the advanced garbage compression technology, provides strong support for urban environmental sanitation work. This garbage truck adopts a 4x4 all-wheel drive system to ensure stable driving under various road conditions. At the same time, the loading capacity of 8 cubic meters greatly improves the efficiency of single garbage collection.
Power and drive system
• Engine: Equipped with Isuzu 4HK1-TCG61 diesel engine, it has strong power, high fuel economy, meets the National V or higher emission standards, and is environmentally friendly and energy-saving.
• Transmission: Equipped with Isuzu MLD 6-speed manual transmission, smooth shifting, easy operation, and adaptable to various complex road conditions.
• Four-wheel drive system: It adopts advanced four-wheel drive technology, has good off-road performance and passability, and can ensure stable driving of the vehicle even in bad weather or complex terrain, meeting the special needs of urban sanitation operations.
Body and cab
• Body structure: Made of high-strength steel, it is durable and corrosion-resistant.
• Garbage bin volume: The garbage bin has a capacity of 8 cubic meters, which meets the needs of large-scale garbage collection tasks, reduces the number of round trips and improves work efficiency.
• Cab: Spacious and comfortable, equipped with modern facilities such as air conditioning and audio, which improves the driver's driving comfort and work efficiency.
• Safety configuration: Equipped with ABS anti-lock braking system, airbags and other safety devices to ensure driving safety.
Garbage compactor system
• Compression mechanism: Adopting advanced hydraulic compression technology, the garbage compression ratio is high, which effectively increases the garbage load, reduces the number of transportation times, and improves work efficiency.
• Loading and unloading method: Rear loading design, convenient and fast loading and unloading of garbage, reducing operation time.
• Sealing performance: The garbage bin adopts a sealing design to effectively prevent garbage leakage and odor emission, and keep the urban environment clean.
As an important equipment for urban environmental sanitation, the efficiency and reliability of the control system of the compression garbage truck are crucial. Modern compression garbage trucks usually adopt advanced PLC electronic control systems and manual hydraulic control systems to meet different operating environments and operating requirements.

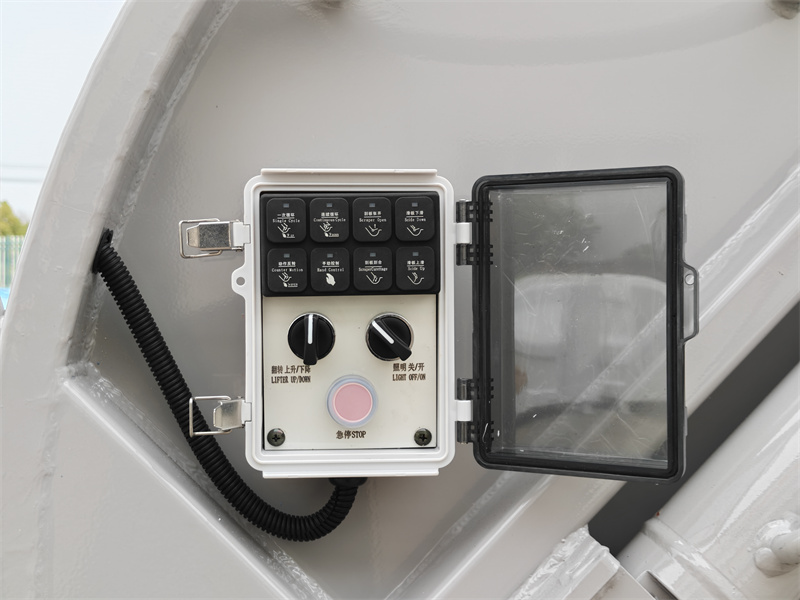

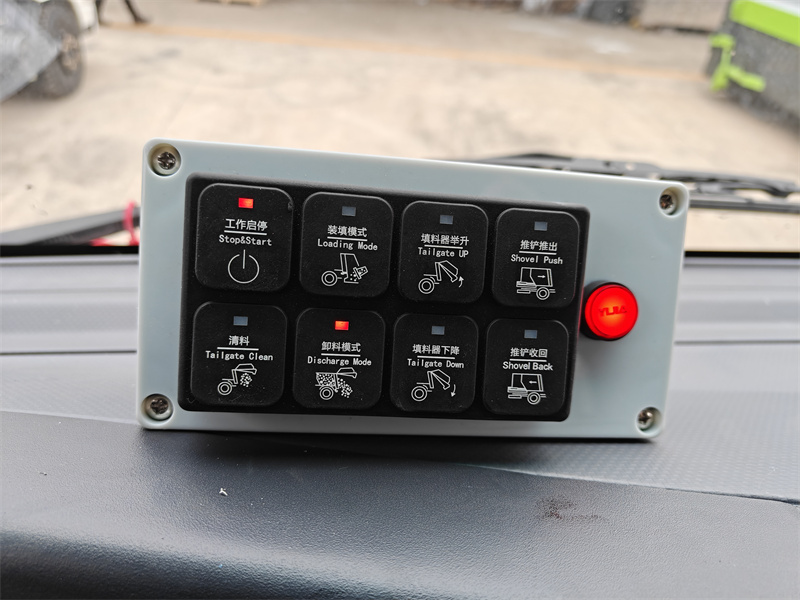

PLC electronic control system
1. System composition
PLC electronic control system is mainly composed of programmable logic controller (PLC), sensor, actuator, human-machine interface(HMI) and power supply. As the core of the system, PLC is responsible for receiving sensor signals, performing logical operations according to preset programs, and controlling garbage compression, loading, unloading and other actions through actuators.
2. Working principle
PLC electronic control system monitors various parameters of garbage trucks in real time through sensors, such as compression chamber pressure, loading volume, etc. When the sensor detects that specific conditions are met, PLC will trigger the corresponding program segment to control the actuators such as hydraulic pumps and solenoid valves to achieve garbage compression, loading and unloading. At the same time, HMI provides an intuitive operation interface for drivers to monitor vehicle status and perform manual intervention.
3. Advantages
High reliability: PLC adopts modular design, which is easy to maintain and troubleshoot.
Flexibility: PLC program can be flexibly modified to meet different operation requirements.
High degree of automation: It can realize automatic compression, loading and unloading of garbage, reduce the labor intensity of drivers,
Remote monitoring: Through HMI and network technology, remote monitoring and fault diagnosis of vehicles can be realized.

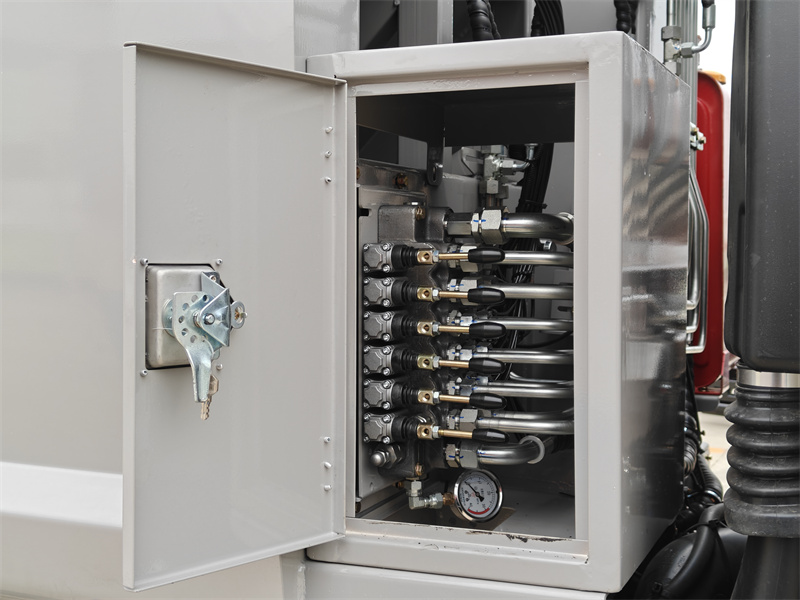

Manual hydraulic control system
1. System composition
The manual hydraulic control system is mainly composed of hydraulic pump, manual control valve, hydraulic cylinder, oil tank and pipeline. The driver controls the flow direction and flow of hydraulic oil by operating the manual control valve, thereby driving the hydraulic cylinder to compress, load and unload the garbage.
2. Working principle
According to the operation requirements, the driver manually operates the control valve to make the hydraulic oil output by the hydraulic pump flow to the specified hydraulic cylinder. The hydraulic cylinder generates thrust or pulling force under the action of hydraulic oil, pushing the compression plate to compress the garbage, or driving the loading pipe to load and unload the garbage.
3. Advantages
Simple structure: The manual hydraulic control system has a relatively simple structure and is easy to maintain and repair.
Intuitive operation: The driver can realize various actions of the garbage truck by directly operating the control valve.
