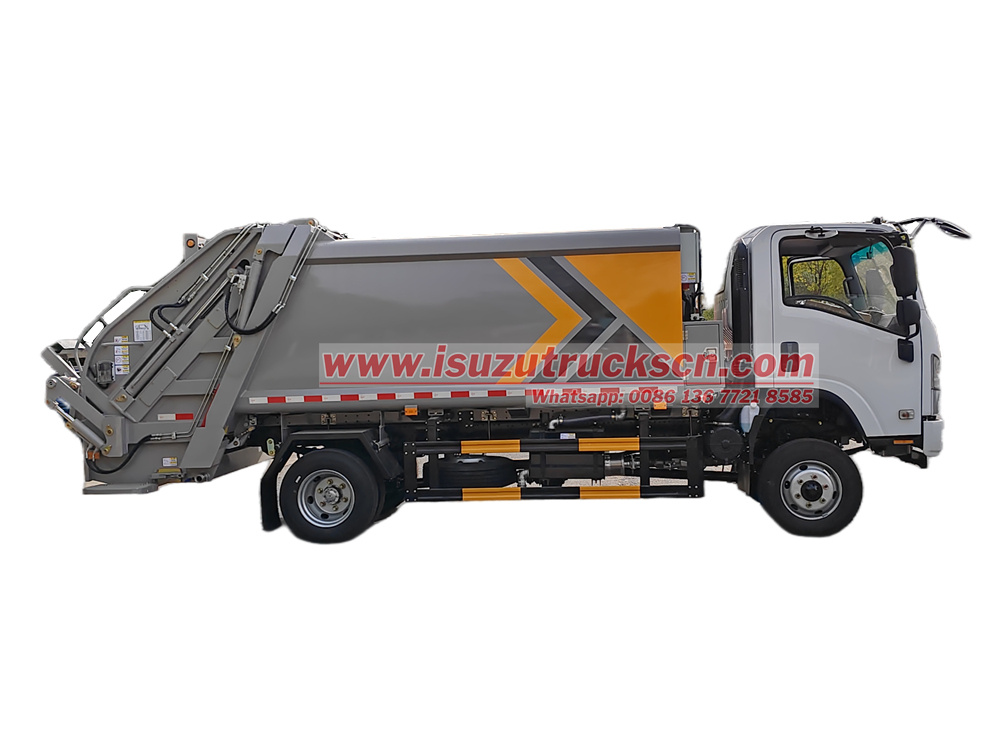

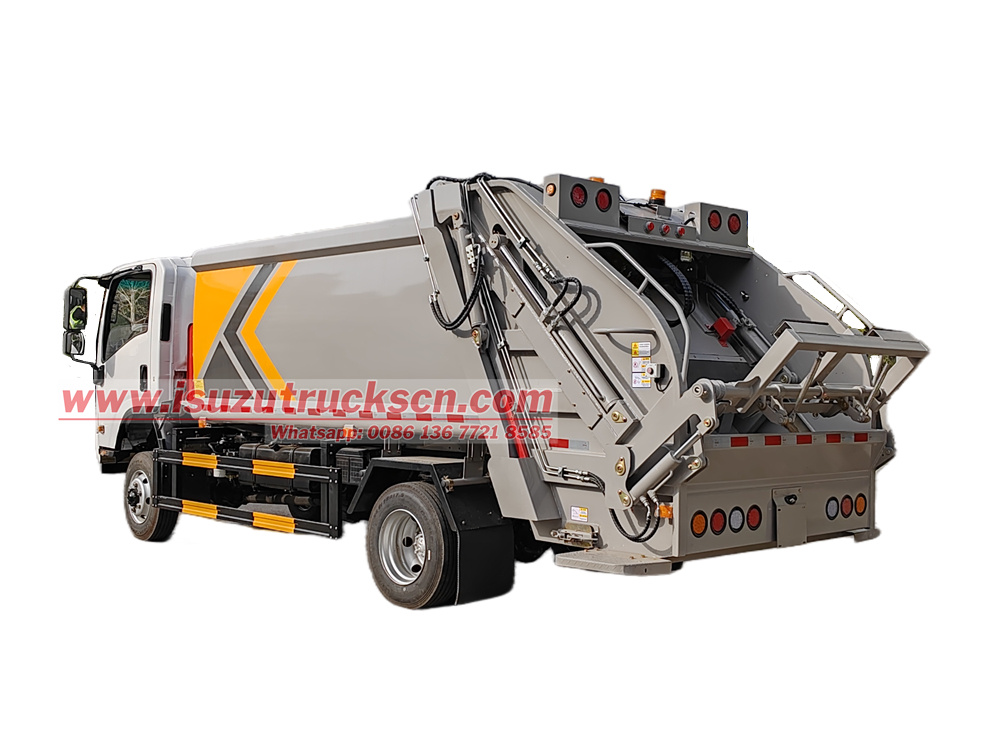

The Isuzu 700P 4WD 8cbm garbage compactor truck is a vehicle designed for the collection and transportation of garbage. It is refitted based on the Isuzu 700P 4WD chassis, featuring a 4175mm wheelbase. Equipped with an Isuzu 4HK1-TCG61 diesel engine, it delivers 190HP of power and has a Euro6-compliant 5193ml displacement. The truck is paired with an Isuzu MLD 6-speed transmission. The upper body is an 8-cubic-meter compression bin, complemented by a rear bucket-tipping mechanism. The vehicle's exterior paint utilizes advanced powder coating technology. The garbage loading and unloading process employs Electrically Controlled Hydraulic + Manual Hydraulic control systems, which can be operated through three methods: the cab's electric control box, the driver-side hydraulic control lever, and the tailgate electric control box.
Manufacturer:
Powerstar TrucksWork capacity:
8cbmDimension:
7570 x 2200 x 2680mmCabin type:
Isuzu 700P,single row, 2 seatsWheelbase:
4175mmEngine power:
190HPEngine type:
Isuzu 4HK1-TCG61Axle drive:
4X4Gear box:
Isuzu MLD 6-speed gearbox,manualRemarks:

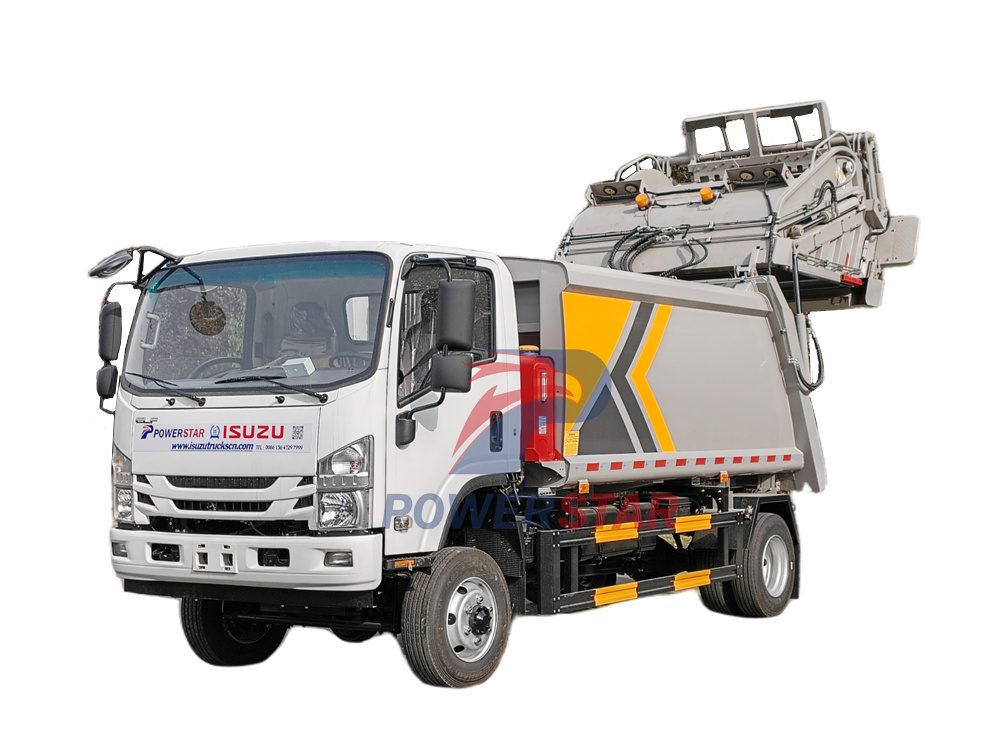

Hanging bucket flip mechanismThe 2025 year Isuzu 190hp rear loader garbage truck can be regarded as a powerful tool for urban sanitation. Built on the Isuzu 700P 4WD chassis, it offers excellent stability and adaptability to complex road conditions, allowing seamless navigation on both urban streets and rugged off-road terrains. Powered by the Isuzu 4HK1-TCG61 diesel engine, it combines robust performance with 190HP output and Euro 6 emission standards, balancing power and environmental friendliness. The upper structure features an 8-cubic-meter compression bin, equipped with a rear bucket-tipping mechanism to enhance garbage collection efficiency. The vehicle's exterior is coated with advanced powder coating technology, providing corrosion resistance and anti-aging properties. Its garbage loading and unloading control system is particularly outstanding, integrating a cab electric control box, a driver-side manual hydraulic control lever, and a rear door electric control box, offering flexible and diverse operation methods to ensure efficient and safe operations, thereby providing reliable support for urban waste management.
● China best Isuzu rear loader truck factory
● 30 years experience on garbage compactor truck designing
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
|

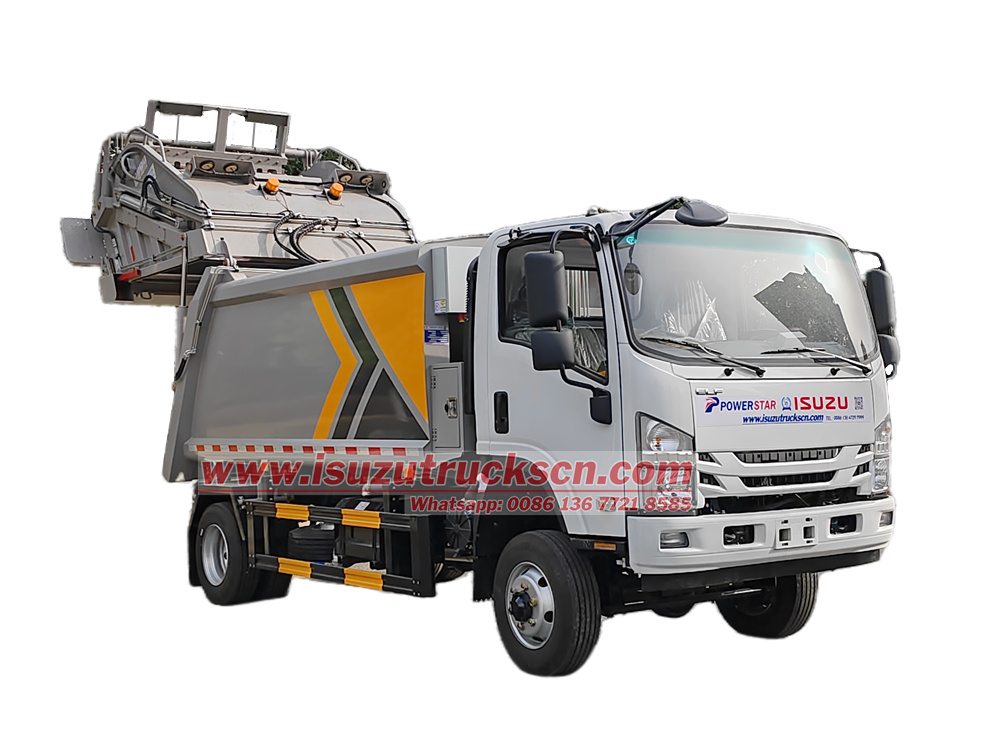

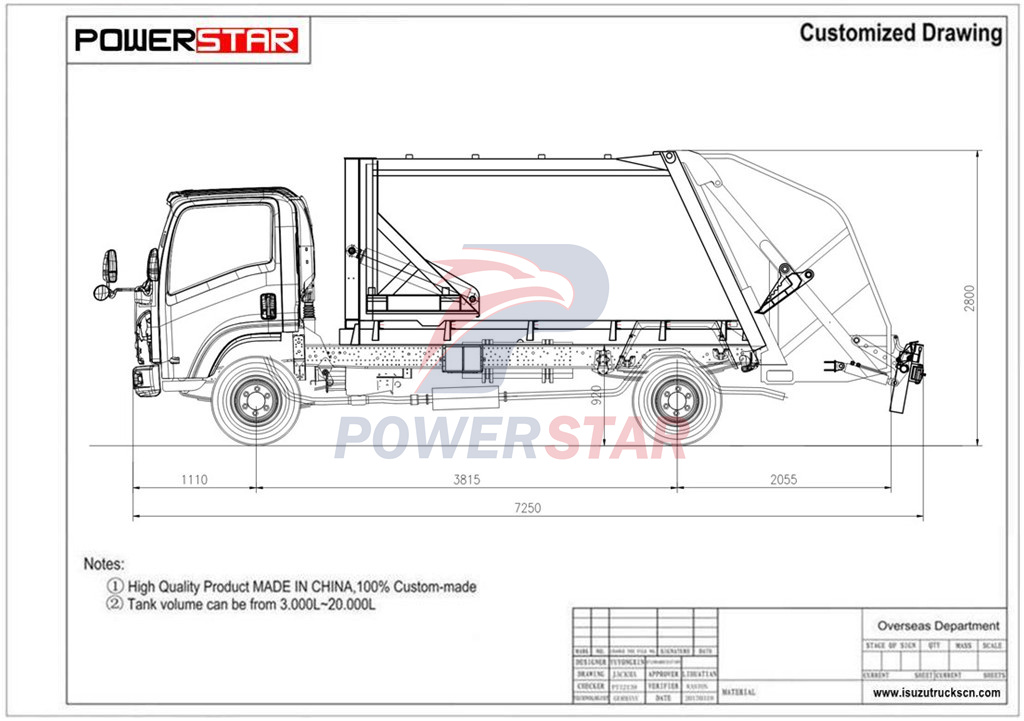

Isuzu 700P 4x4 rear loader compactor truck |
||
|
Vehicle Description |
||
|
Overall dimensions |
7570X2200X2680mm |
|
|
GVW |
10550kg |
|
|
Curb weight |
7440kg |
|
|
Chassis brand |
ISUZU |
|
|
Traction type |
4*2; Left hand drive |
|
|
Up-parts Specification |
||
|
Dustbin volume |
8cbm |
|
|
Material & thickness |
Side: 4mm Q345; Bottom: 5mm Q235A |
|
|

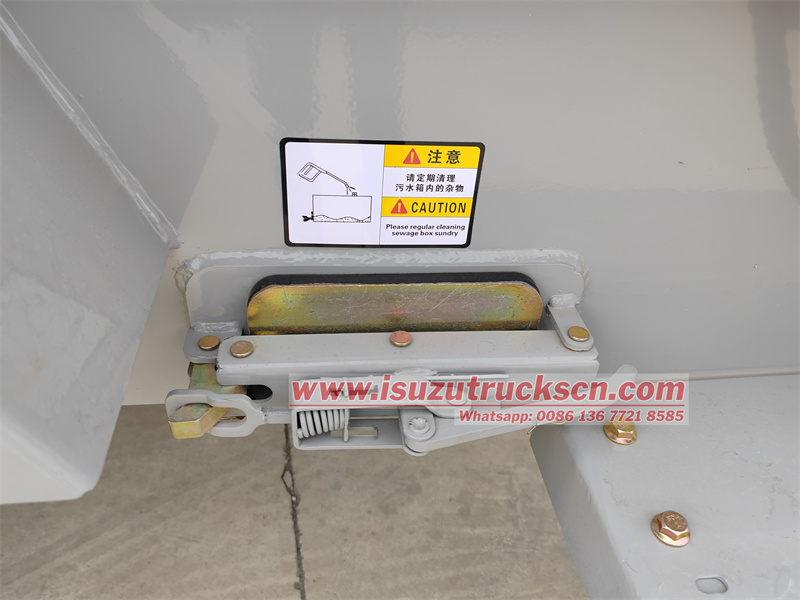

Sewage water tank |
200L |
|
|
Type of Rear garbage filler (Rear Turnover device) |
Hanging trash bin flip mechanism |
|
| Control system | Electrically Controlled Hydraulic + Manual Hydraulic | |
|
Type of compactor |
Fill, push and compression |
|
|
Garbage compact density |
0.9±0.05 T/m³ |
|
|
Cycle of loading |
≤40s |
|
|
Cycle of discharge |
≤45s |
|
|
Hydraulic pressure system working pressure |
16 MPa |
|
|
PLC |
Importation PLC (Programmable controller) |
|
|
Gear pump |
Made in China |
|
|
Hydraulic oil cylinder |
Made in China |
|
|
Hydraulic rubber hose |
Made in China |
|
|
Chassis Description |
||
|
Chassis brand |
Isuzu |
|
|
Cab |
Isuzu 700P,single row, 2 seats,with A/C,USB,direction assistance |
|
|
Wheelbase |
4175mm |
|
|
Tire specification |
235/75R17.5 |
|
|
Tire quantity |
6+1 units |
|
|
Engine |
Type |
Inline 4-cylinder 4-stroke, supercharged, intercooled, water-cooled |
|
Model |
4HK1-TCG61 |
|
|
Emission level |
Euro 6 |
|
|
Displacement/output |
5193ml/139kw |
|
|
Horse power |
190HP |
|
|
Gear box |
Model |
ISUZU MLD |
|
Number of gears |
6 forward gears& 1 reverse |
|
|
Brake system |
Full air brake |
|
|
Axle |
Front |
4T |
|
Rear |
7T |
|
|
Suspension |
Front |
Leaf springs |
|
Rear |
Leaf springs |
|
|
Fuel tanker |
Type |
Stainless steel tanker, with lockable cap |
|
Capacity |
100L |
|
In the current era of accelerating urbanization, waste treatment has become a crucial aspect of urban management. The Isuzu 700P 4WD rear loader garbage truck, with its outstanding performance and reliable quality, has emerged as a shining star in the field of urban sanitation.
This garbage truck is refitted based on the Isuzu 700P chassis, inheriting the brand's consistent exquisite craftsmanship and reliable quality. Its 4175mm wheelbase design provides the vehicle with stable driving performance and flexible maneuverability. The 4WD chassis configuration enables it to navigate complex road conditions effortlessly, whether it's the narrow alleys of urban streets or the rugged mountain roads in the countryside, ensuring the smooth progress of garbage collection work.
In terms of power, it is equipped with the Isuzu 4HK1-TCG61 diesel engine, delivering a robust 190HP power output and a 5193ml displacement, coupled with Euro6 emission standards, ensuring not only ample power but also environmental friendliness and energy efficiency. The pairing with the Isuzu MLD 6-speed transmission results in smoother gear shifts, a more comfortable driving experience, and improved fuel economy.

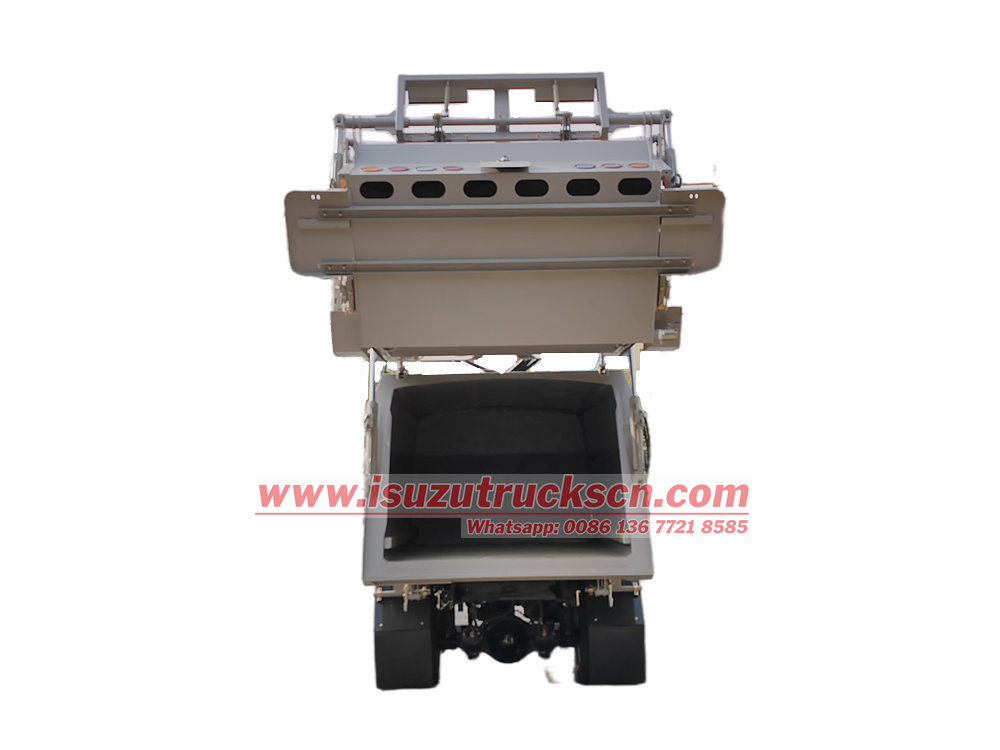

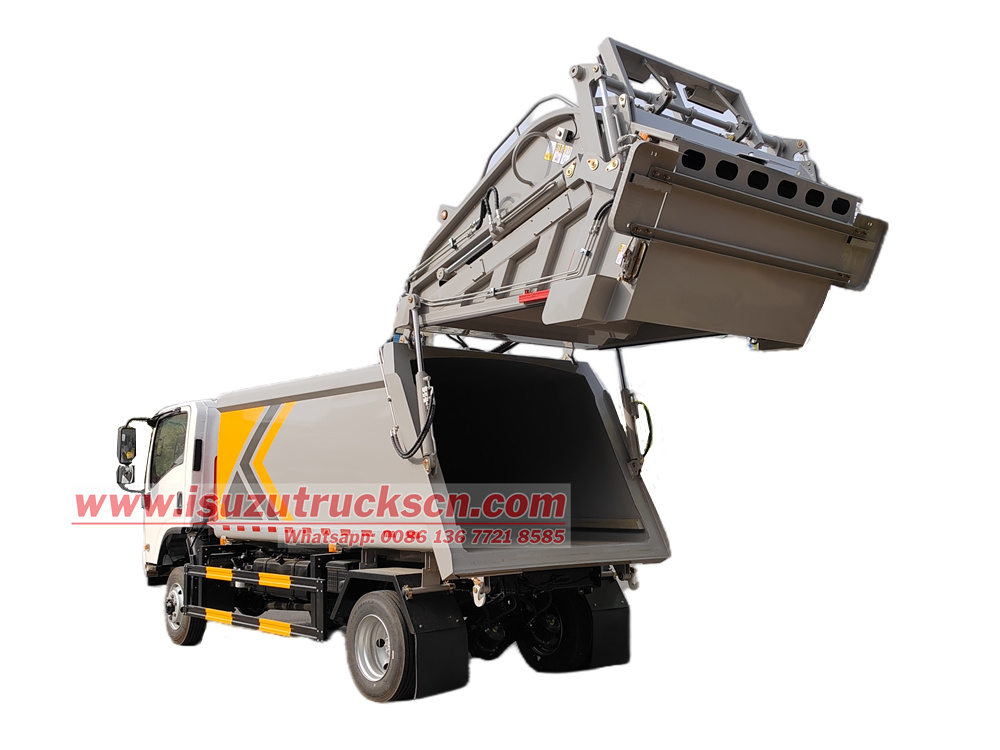

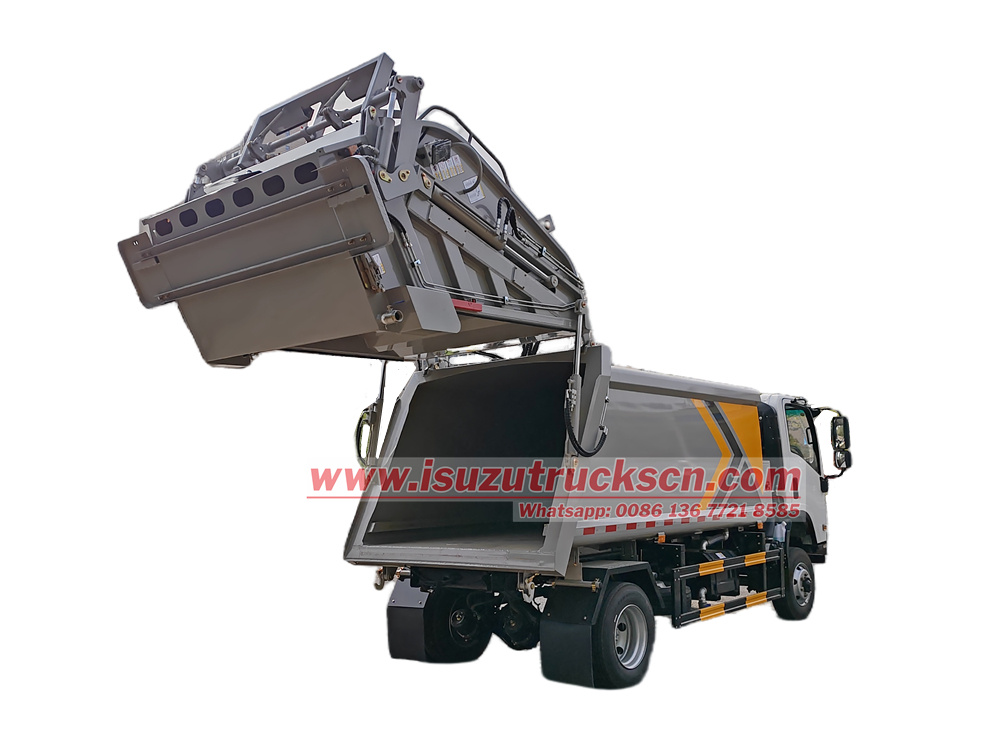

For the upper structure, an 8-cubic-meter compression bin provides ample space for efficient garbage collection and transportation. The inclusion of a rear bucket-tipping mechanism greatly enhances the efficiency of garbage collection, allowing operators to simply press a button for the garbage bin to automatically tip and empty its contents into the compression bin. This design not only reduces manual labor intensity but also prevents garbage from spilling during collection, maintaining environmental cleanliness.

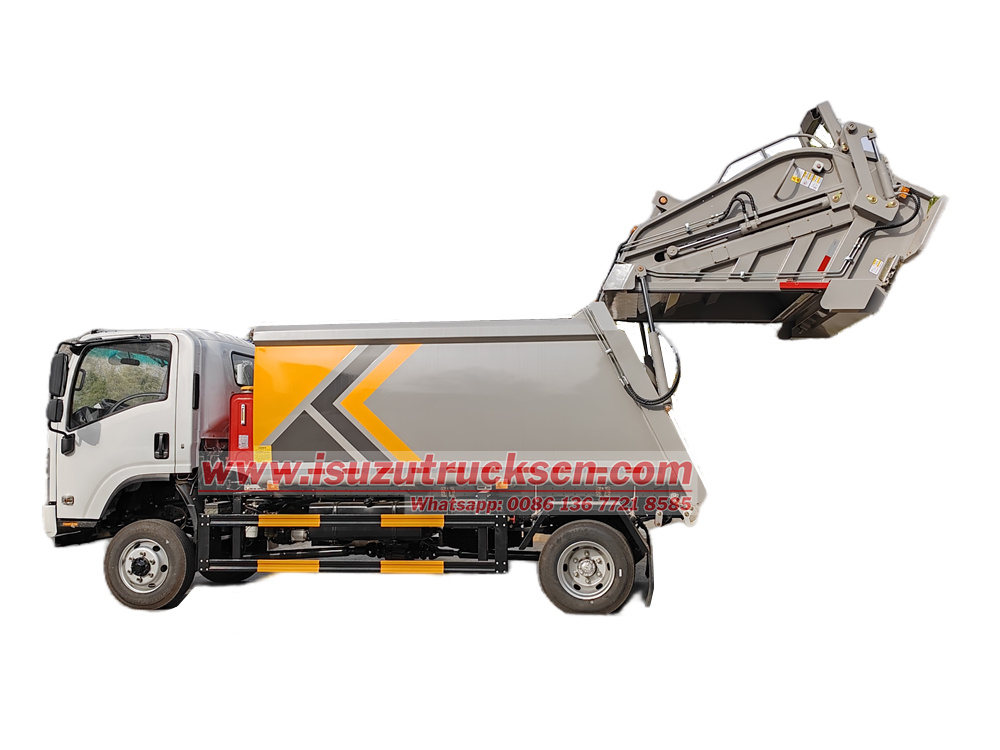

In terms of exterior craftsmanship, the Isuzu NPR 4x4 refuse compactor vehicle is treated with advanced powder coating for its paint, resulting in a smooth and even surface, vibrant and long-lasting color, excellent corrosion resistance, and anti-aging properties. It effectively resists erosion from harsh environments and extends the vehicle's service life.
The garbage loading and unloading process employs Electrically Controlled Hydraulic + Manual Hydraulic control systems, offering operators diverse operation choices. Through the cab electric control box, the driver-side hydraulic control lever, and the rear door electric control box, operators can flexibly choose the most convenient and safe operation mode based on the actual situation, ensuring the smooth progress of the garbage loading and unloading process.
Electric Control System: Precise, Intelligent, Efficient, and Convenient
The electric control system of this vehicle serves as the "intelligent brain" for garbage loading and unloading operations. The cab electric control box and the rear door electric control box, as the core control units, integrate advanced electronic control technology and sensor technology. Operators can achieve precise control over the entire process of garbage loading and unloading by simply pressing the corresponding buttons on the electric control box inside the cab.
During garbage loading, the electric control system can automatically adjust the flipping speed and angle of the bucket-tipping mechanism based on the weight and volume of the garbage in the bin, ensuring that the garbage is smoothly and quickly dumped into the compression bin, preventing spillage and equipment damage. Meanwhile, the system also features real-time monitoring capabilities, allowing operators to keep track of the loading status of the compression bin at any time. When the bin is nearly full, an alarm is promptly triggered to remind operators to stop loading, preventing overloading.
During garbage unloading, the electric control system achieves smooth flipping of the compression bin and uniform dumping of the garbage through precise control of the hydraulic cylinder's actions. Operators can select different unloading modes, such as fast unloading or slow unloading, based on actual needs to meet the requirements of different scenarios.

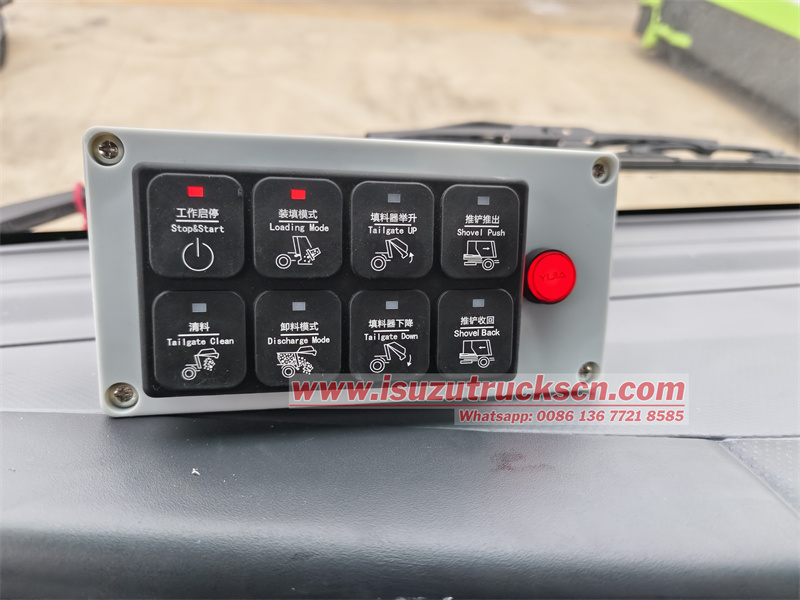

Cab Electric Control Box: Intelligent Hub, Precise Control
The cab electric control box is the core brain of the entire garbage loading and unloading control system, integrating multiple function buttons that enable operators to fully control the garbage truck without getting out of the cab.
• Work Start/Stop Button: One-touch start or stop of the garbage truck's loading and unloading operations, providing quick response for the initiation and conclusion of the work process.
• Filling Mode Button: Offers multiple filling mode options that can be flexibly adjusted based on the type and volume of garbage to ensure efficient and uniform filling of the compression bin.
• Filler Lifting/Lowering Button: Precisely controls the lifting and lowering actions of the filler. During garbage loading, the filler is lifted to the appropriate height for easy connection with the garbage bin; after loading, it is lowered to the initial position.
• Push Shovel Extend/Retract Button: Controls the actions of the push shovel to compress the garbage filled into the bin, increasing the garbage loading capacity. After the operation, the push shovel is retracted to the initial position.
• Unloading Mode Button: Provides different unloading modes, such as fast unloading or uniform unloading, to meet the unloading needs of different scenarios.
• Cleaning Button: After the operation, the cleaning function is activated to remove any residual garbage from the compression bin, keeping it clean.

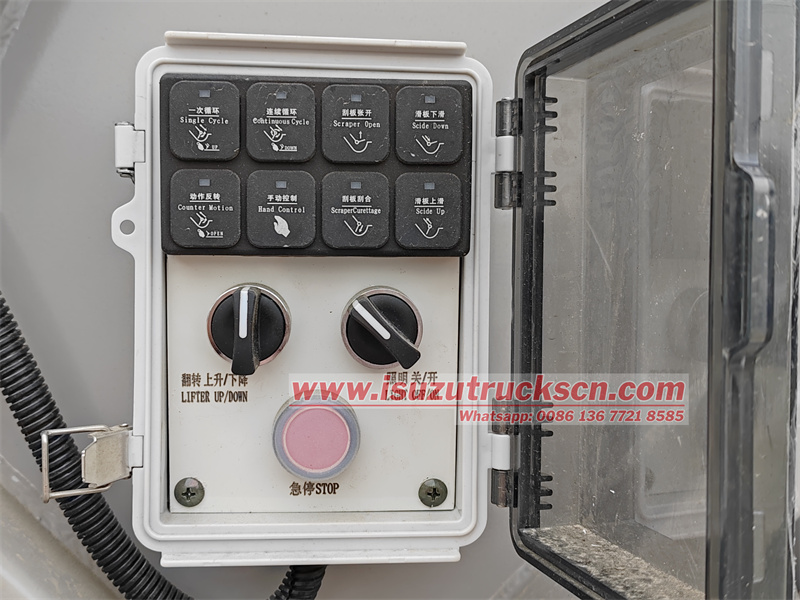

Tailgate Electric Control Box: Convenient Operation, Safety Protection
The tailgate electric control box is installed at the rear of the vehicle, facilitating close-range operation and monitoring by operators at the work site.
• Single Cycle/Continuous Cycle Button: Offers single cycle and continuous cycle operation modes for operators to choose based on actual conditions, improving work efficiency.
• Scraper Open/Close Button: Controls the opening and closing actions of the scraper to achieve garbage compression and cleaning.
• Slide Plate Up/Down Button: Controls the up-and-down sliding of the slide plate, working in conjunction with the bucket-tipping mechanism to complete garbage loading and unloading.
• Action Reverse Button: During operation, if the action direction is found to be incorrect, pressing the action reverse button can promptly correct the direction, preventing equipment damage.
• Flipping Mechanism Lifting/Lowering Button: Controls the lifting and lowering actions of the flipping mechanism for easy connection and separation of the garbage bin.
• Lighting Switch: In nighttime or low-light environments, turning on the lighting switch provides sufficient illumination for the work site.

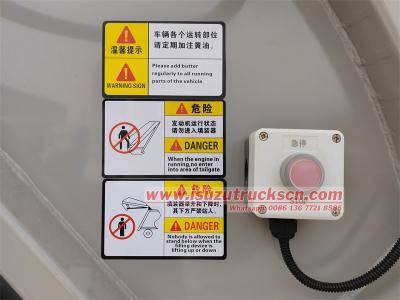

• Emergency Stop Button: In emergency situations, pressing the emergency stop button immediately stops all actions of the garbage truck, ensuring the safety of personnel and equipment.
Manual Hydraulic System: Intuitive and Convenient Operation
The vehicle is also equipped with a manual hydraulic system. The hydraulic control lever on the driver's side serves as the key component for manual control, providing operators with an intuitive and convenient operation method.
Operators can manually operate the hydraulic control lever to achieve actions such as bucket flipping and compression bin flipping. The manual hydraulic system features a simple structure and high reliability, ensuring the normal operation of garbage loading and unloading operations in emergency situations and preventing work interruptions due to equipment failures.

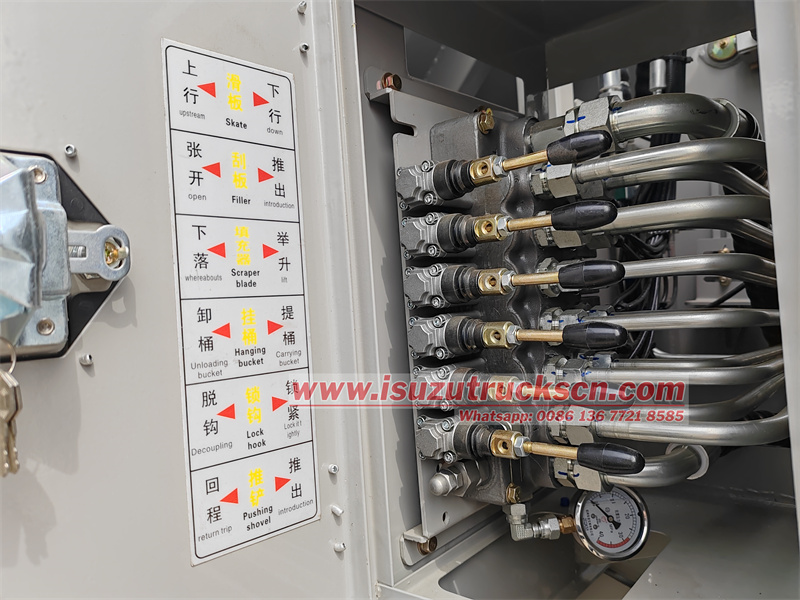

Driver's Side Manual Hydraulic Control Lever: Flexible Operation, Emergency Backup
The driver's side manual hydraulic control lever provides operators with an intuitive and flexible manual operation method, ensuring the normal operation of the garbage truck in the event of electric control system failures or special work environments.
• Skate (Slide Plate) Up/Down Control Lever: Controls the up-and-down movement of the slide plate for easy connection and separation of the garbage bin.
• Filler Open/Extend Control Lever: Manually controls the opening and extending actions of the filler, working in conjunction with the bucket-tipping mechanism to complete garbage loading.
• Scraper Blade Lower/Raise Control Lever: Controls the lifting and lowering of the scraper blade. During garbage compression, the blade is lowered to the appropriate position to squeeze the garbage; after the operation, it is raised to the initial position.
• Hanging Bucket Unload/Lift Control Lever: Enables quick and easy unloading and lifting of the garbage bin.
• Lock Hook Detach/Lock Control Lever: Controls the actions of the lock hook to ensure the stability and safety of the garbage bin during loading.
• Pushing Shovel Return/Extend Control Lever: Manually controls the return and extending actions of the push shovel to complete garbage compression and cleaning.
