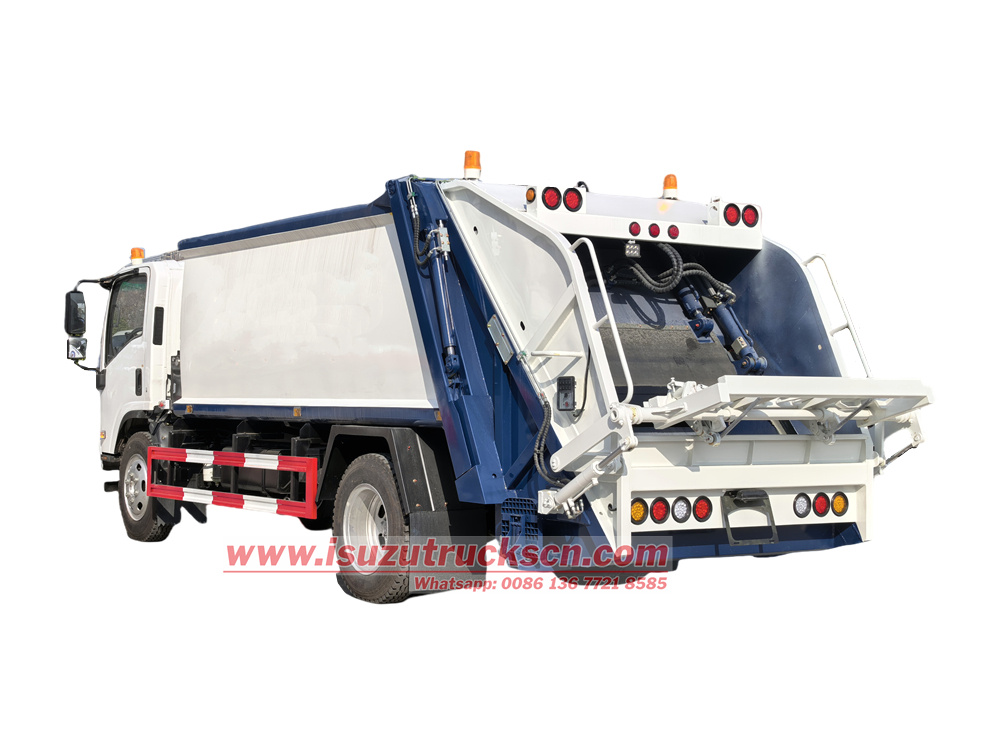

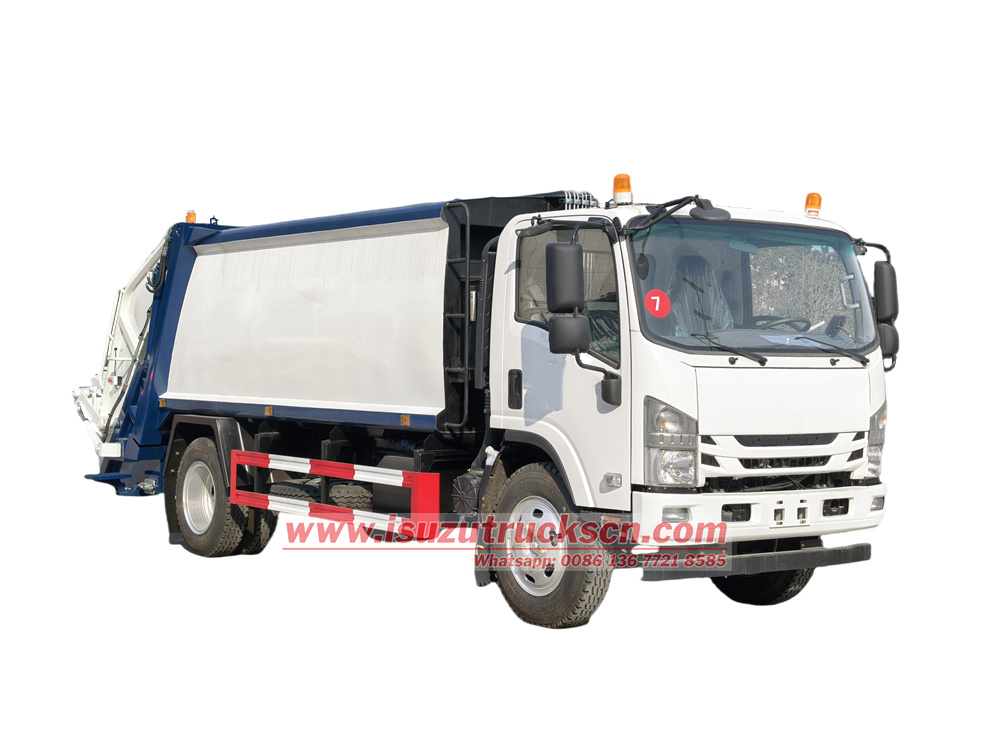

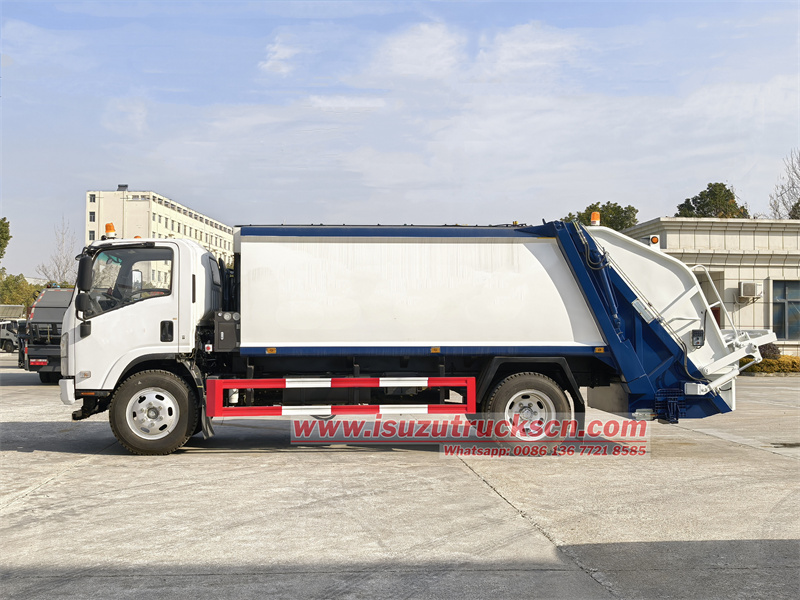

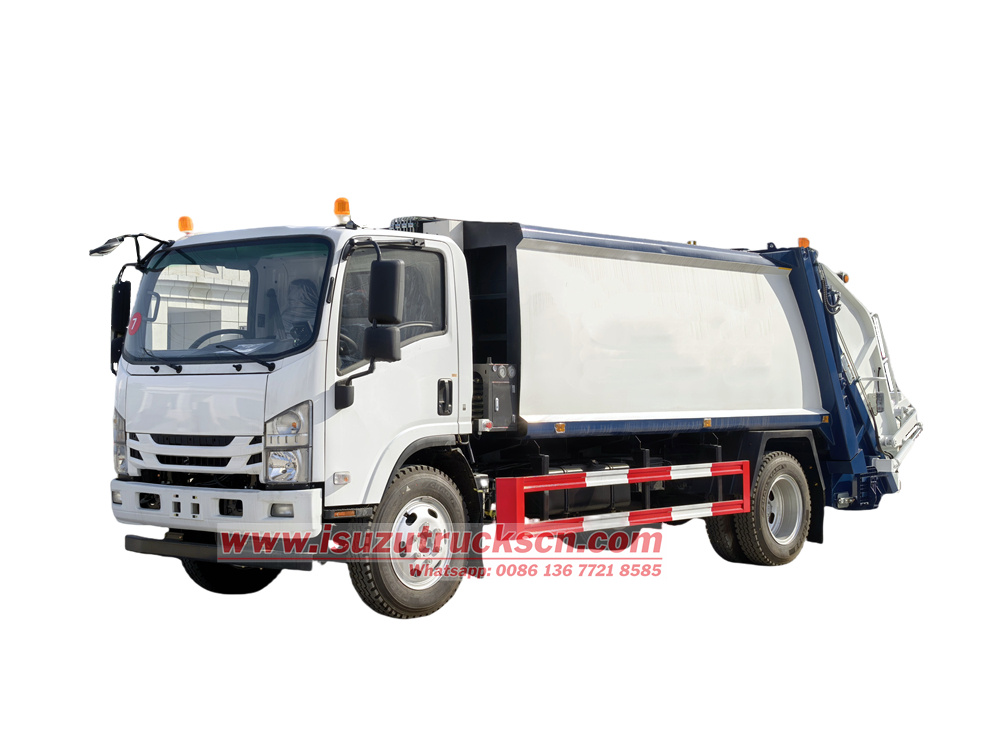

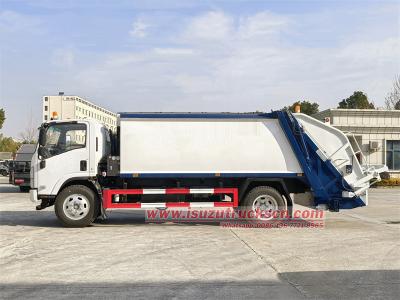

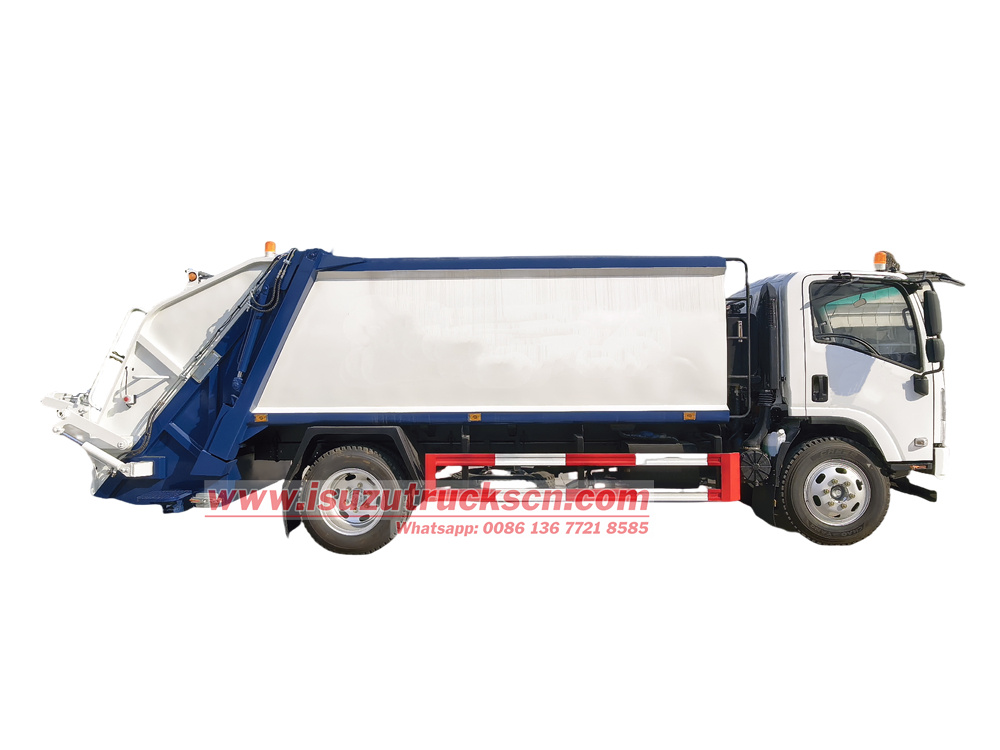

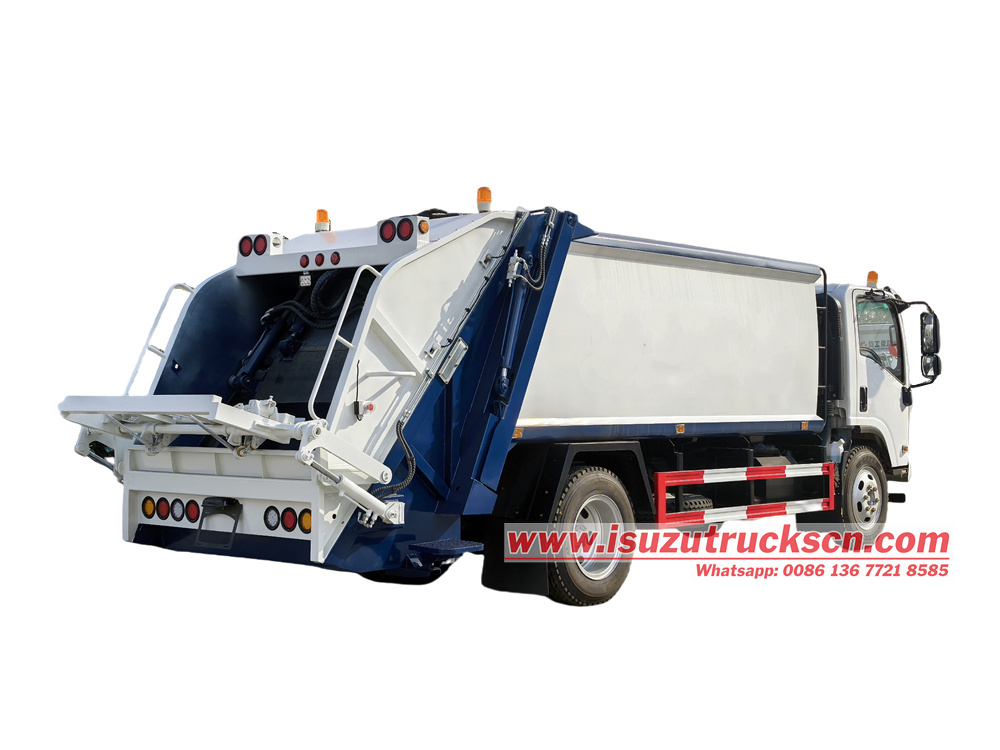

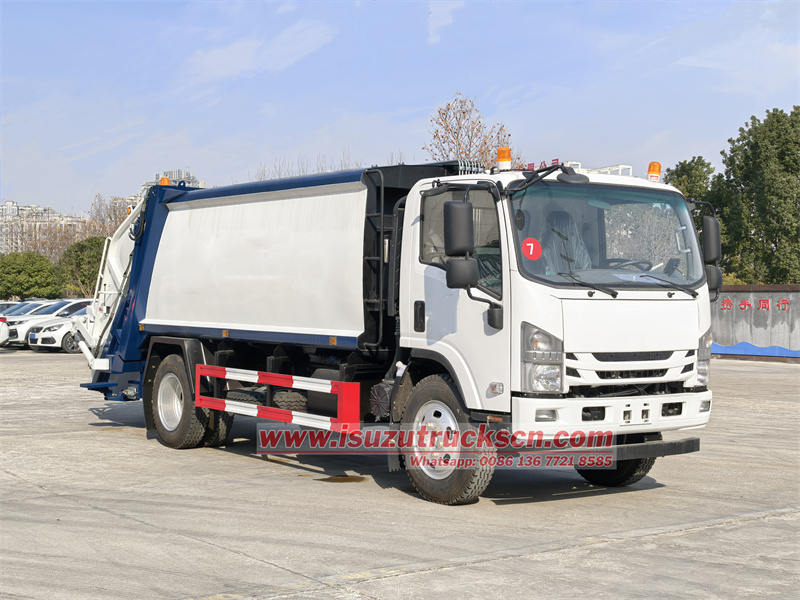

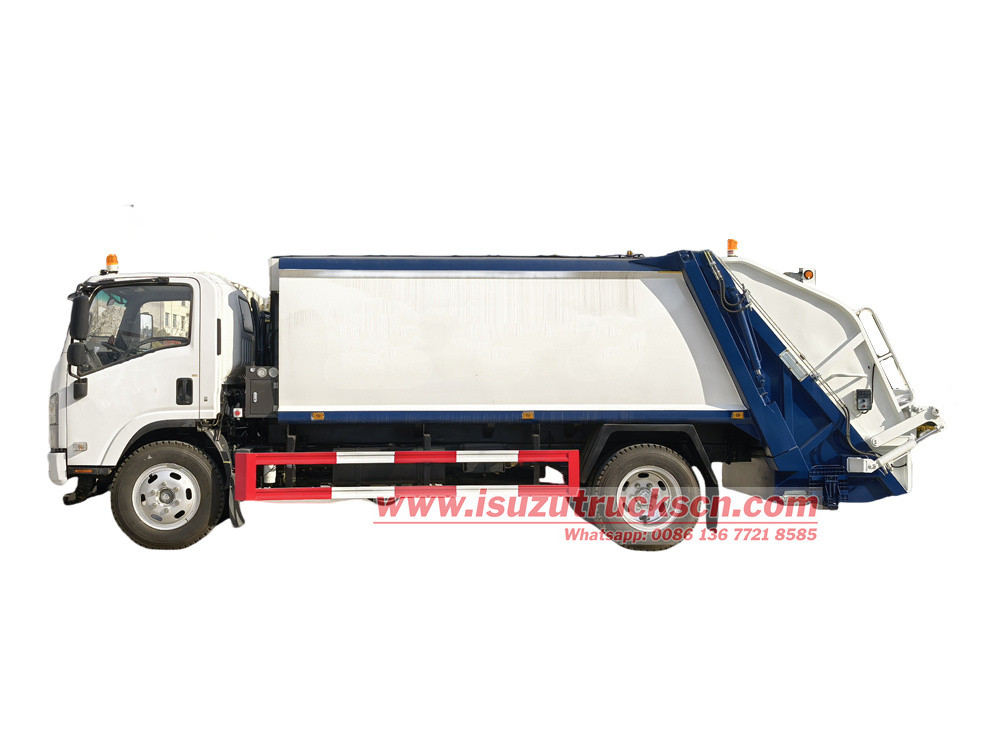

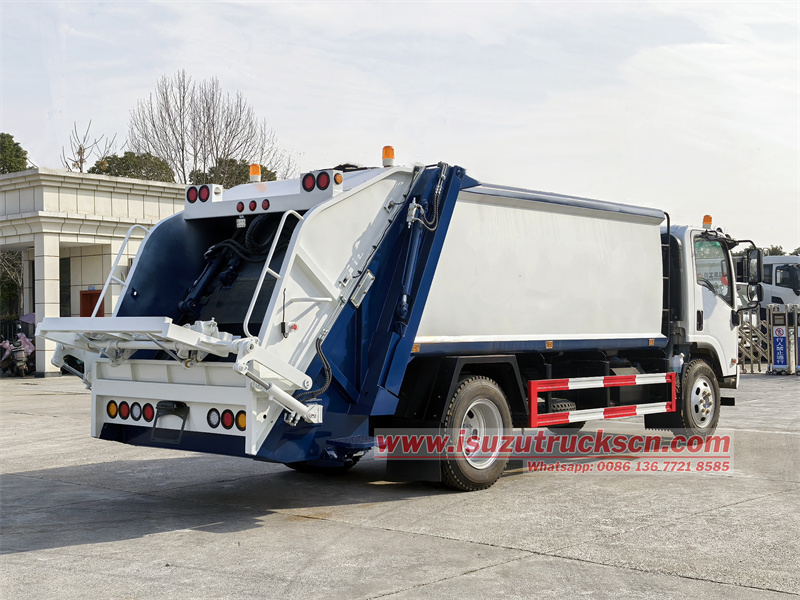

Isuzu republic service 10 CBM rear loader
The Isuzu 700P 10cbm garbage compactor truck features a 3815mm wheelbase and is equipped with an Isuzu 4HK1-TCG61 190hp diesel engine and an Isuzu MLD 6-speed transmission, delivering strong power and low fuel consumption. The superstructure uses a 10-cubic-meter curved carbon steel garbage container, featuring a hook-lift tipping mechanism and bidirectional compression technology to improve loading efficiency and prevent leakage. The vehicle supports three control points: cab-mounted electronic control, rear-mounted electronic control, and a manual control lever on the driver's side, adapting to various operational needs.
Manufacturer:
Powerstar TrucksWork capacity:
10cbmDimension:
7550 x 2400 x 2640 mmCabin type:
Isuzu 700P cab,3 passengersWheelbase:
3815mmEngine power:
190HP/139kWEngine type:
ISUZU 4HK1-TCG61Axle drive:
4x2,LHDGear box:
Isuzu MLD 6-speed,manualRemarks:
Garbage container capacity can be customizedThe Isuzu Republic Service 10 CBM rear loader is a high-efficiency and environmentally friendly sanitation vehicle. It is powered by a 190-horsepower 4HK1 engine and a 6-speed gearbox. Its superstructure uses a 10-cubic-meter arc-shaped T420 high-strength wear-resistant steel garbage bin, which significantly increases loading capacity and effectively prevents leakage through bidirectional compact technology (compact ratio ≥3:1). The vehicle supports hook-and-loop loading and offers both electronic and manual operation options, making operation flexible and convenient. It is suitable for the collection and transfer of daily household waste in urban streets, communities, schools, factories, and other locations.
▶ Features:
---- Isuzu NPR chassis, perfect performance
---- Isuzu 4HK1 190HP engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compact body capacity from 3 to 35 Cubic Meter.
---- Easy operation and easy maintenance.
---- Various types of rear tilting mechanism are available.
▶ Product Parameters:
| Isuzu 700P 10cbm rear loader compactor truck | ||
|
Cabin |
Driving type 4x2, Left Hand Drive. |
|
|

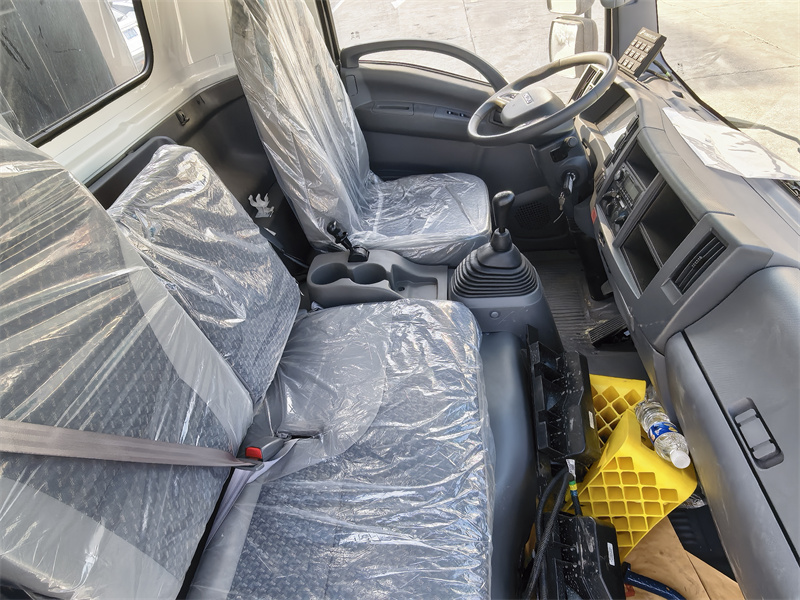

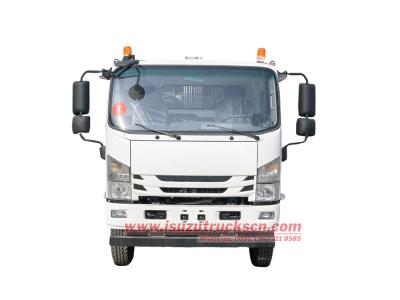

Isuzu 700P single row,3 seats,with A/C,USB,direction assistance. |
||
|
Vehicle Main Dimensions |

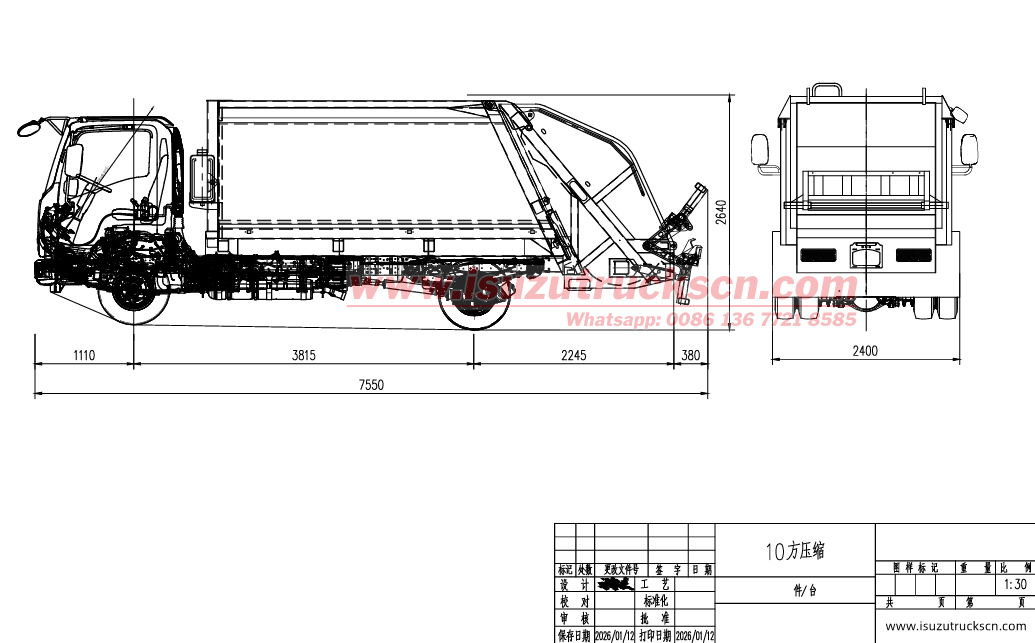

Overall dimensions (L x W x H) |
7550 x 2400 x 2640 mm |
|
Wheel base |
3815mm |
|
|
Weight in KGS |
GVW |
10550kg |
|
Curb weight |
5750kg |
|
|
Front/Rear axles loading |
4/7tons |
|
|
Max. driving speed |
110km/h |
|
|
Engine |
Brand |
ISUZU |
|
Model |
4HK1-TCG61 |
|
|
Type |
4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling,diesel |
|
|
Horse Power |
190HP/139kW |
|
|
Rated speed |
2600rpm |
|
|
Max torque |
507N.m |
|
|
Max torque speed |
1600-2600rpm |
|
|
Displacement |
5193ml |
|
|
Emission standard |
Euro VI |
|
|
Gearbox |

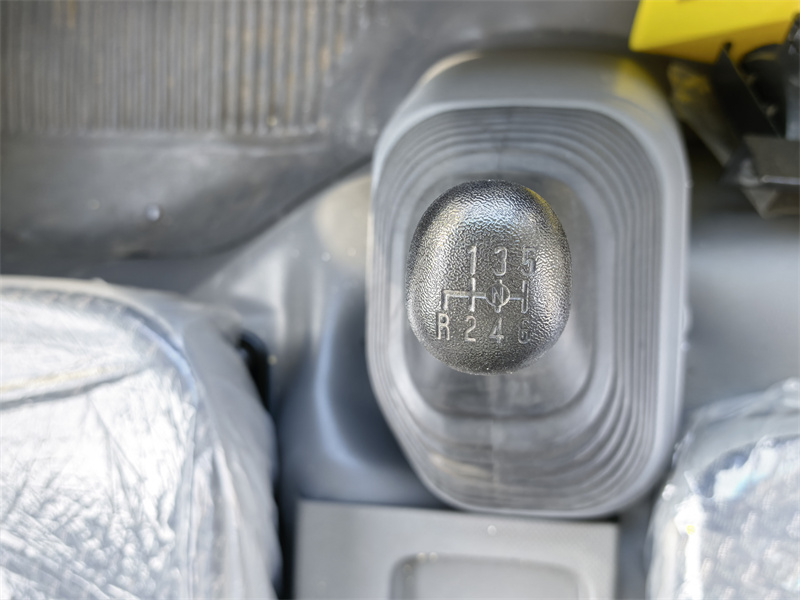

Isuzu MLD-6 speed, 6 forwards &1 reverse,manual |
|
|
Clutch |
Diaphragm spring clutch |
|
|
Steering Gear |
Power steering |
|
|

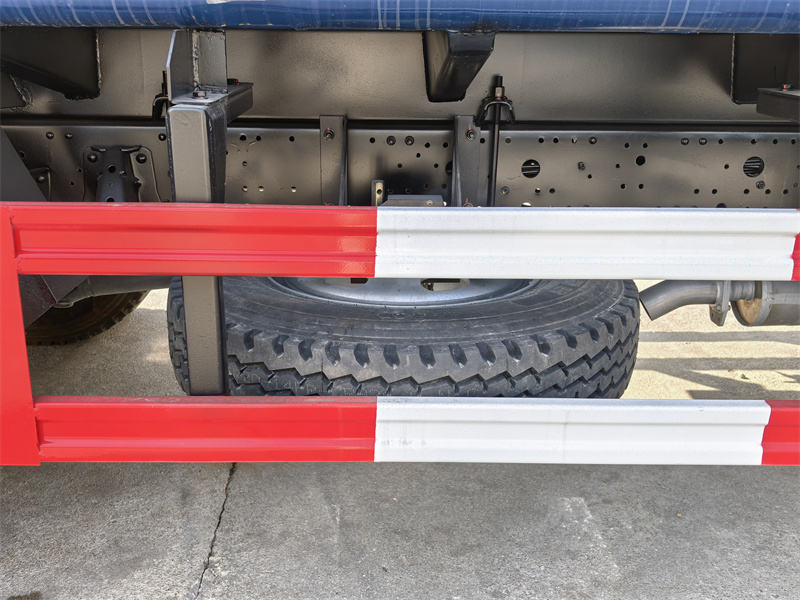

Tire |
235/75R17.5, 7 pieces with one spare, |
|
|
Upper body system |
||
|
Body Volume |
10CBM |
|
|
Material |
T420 high strength wear resistance steel |
|
|
Thickness |
Side 4mm, Bottom 5mm |
|
|

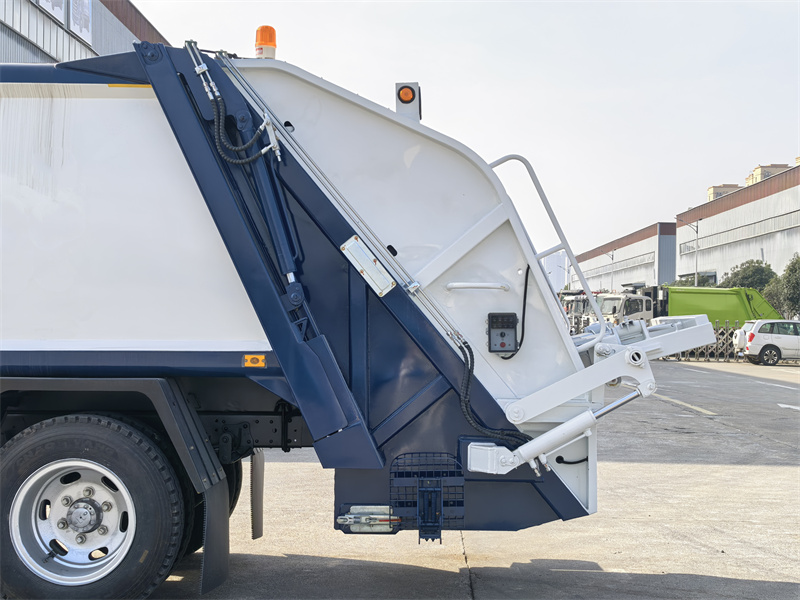

Bin lifter |
Can lift 2 units 240L bin or a 1100L bin |
|
|
Cycle Time of Filling |
25-35s |
|
|
Lifting Time of Filler |
8-10s |
|
|
Time of Discharging |
≤40s |
|
|
Working Pressure |
18 MPa |
|
|

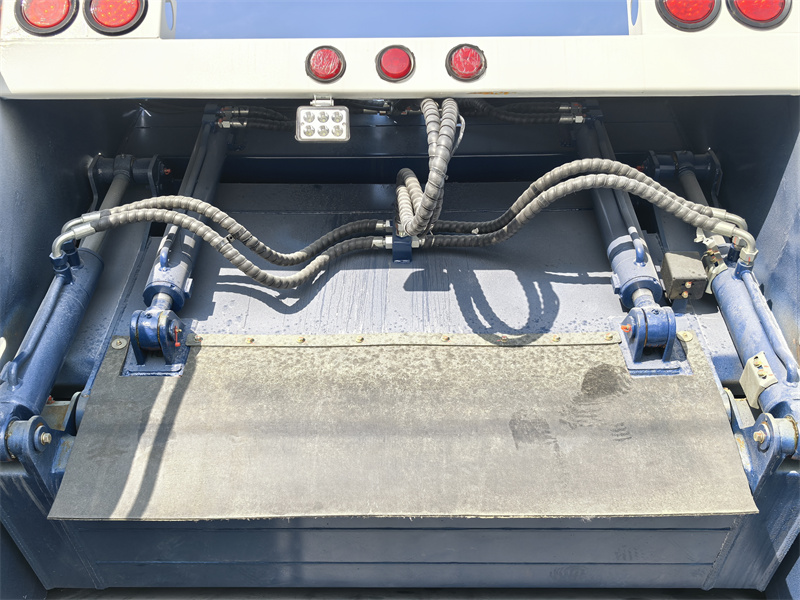

Hydraulic system |
||
|
Shovel cylinder |
1 |
|
|
Scraper cylinder |
2 |
|
|
Slide plate cylinder |
2 |
|
|
Rear flip cylinder |
2 |
|
|
Lifting cylinder |
2 |
|
|

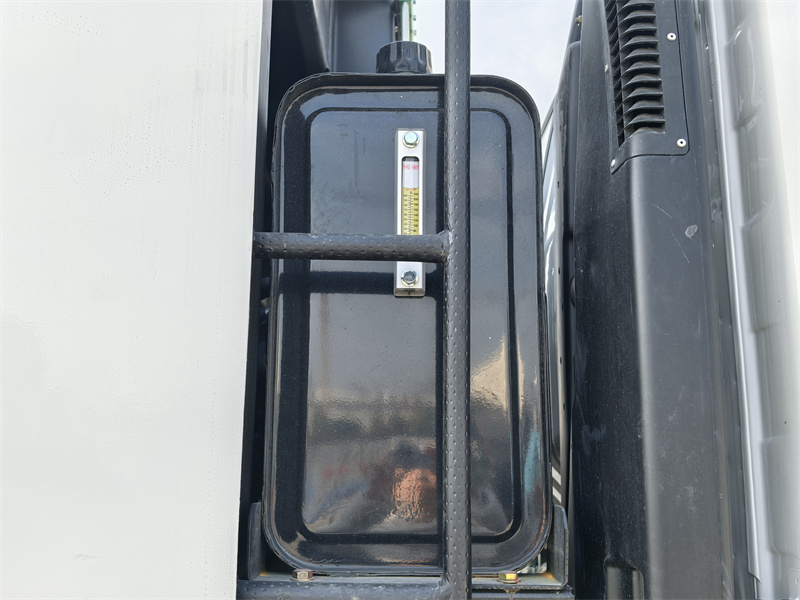

Hydraulic tank |
150L |
|
|

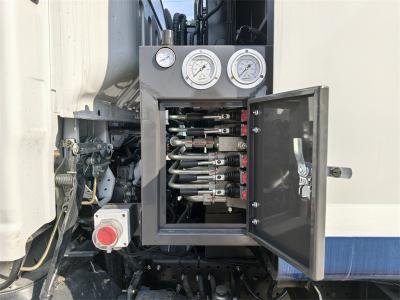

Hydraulic oil pump |
Hefei Wanye Oil Pump |
|
|
Multi-way valve |
Yangzhou Zhongmei multi-way valve |
|
|
Electric control system |
||
|
Operating system |
CAN-BUS electric control system |
|
|

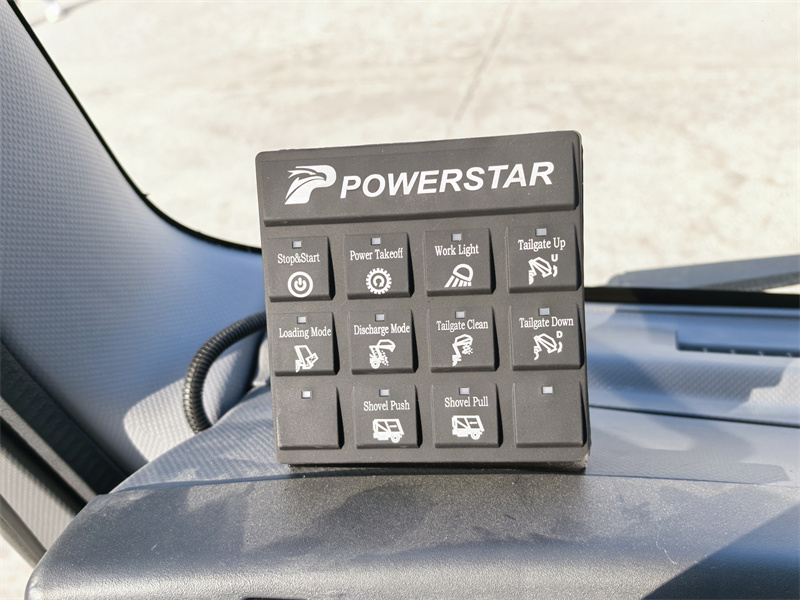

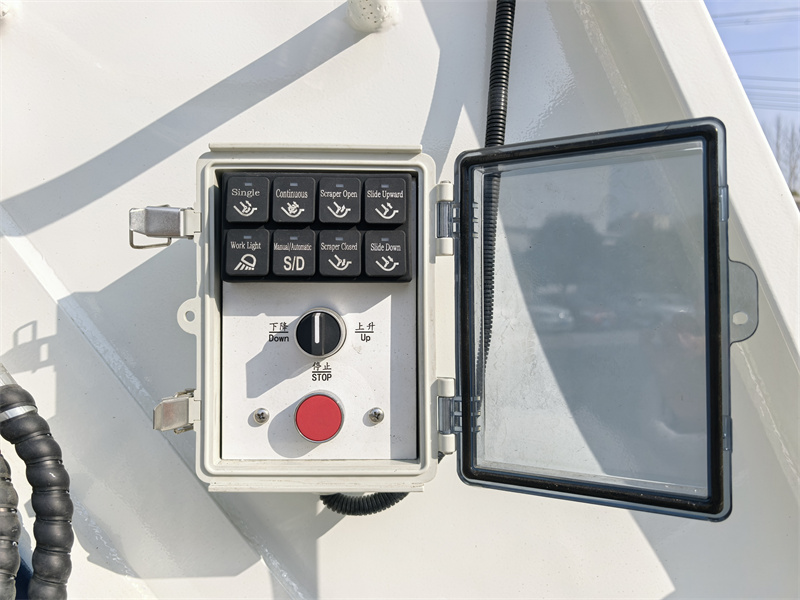

Electronic control operation button |

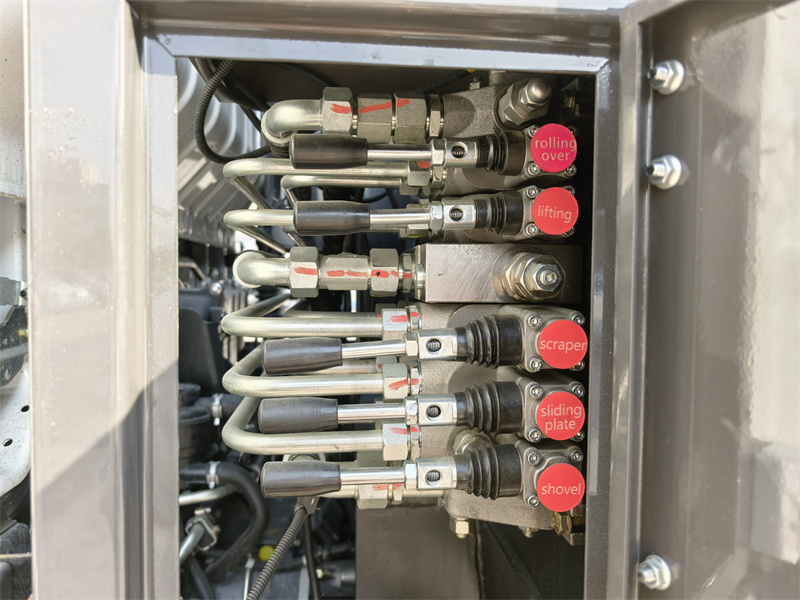

1 set in the cabin, 1 set at the tailgate |
|
|
Manually control system |
||
|
Drive side manually control system |
||
|
Composed by hermetic garbage container, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compaction all go into the sewage tank. |
||
▶ Chassis System:

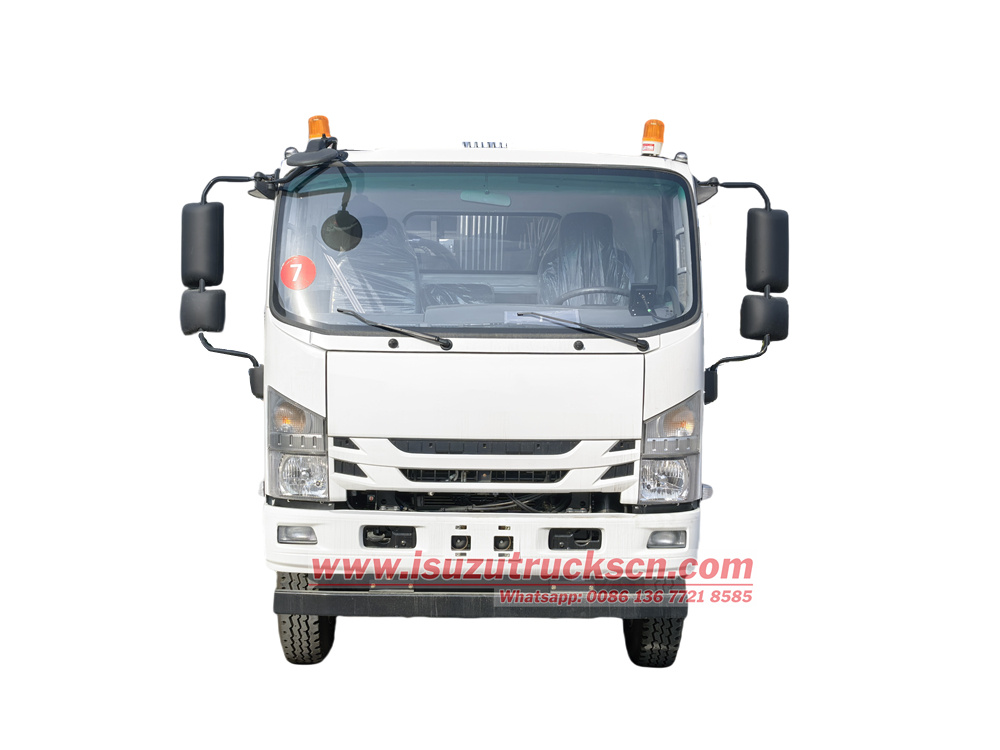

• Brand and Model: Isuzu 700P dedicated chassis, 3815mm wheelbase
• Engine: Original Isuzu 4HK1-TCG61 inline four-cylinder diesel engine
• Power: 140kW/190HP@2600rpm, 507N.m torque, strong performance, excellent low-speed performance
• Transmission: Isuzu MLD 6-speed manual transmission, smooth shifting, efficient transmission
▶ Upper Structure Configuration:
1. Garbage Container:
o 10 cubic meter capacity, made of T420 high-strength wear-resistant steel.
o Innovative curved container design for a more stable structure, cleaner unloading, and reduced residue.
2. Leak-proof Sealing: The bottom and seams of the container feature a double-layer sealing structure, combined with high-strength rubber strips, to prevent sewage leakage during transportation and avoid secondary pollution.
