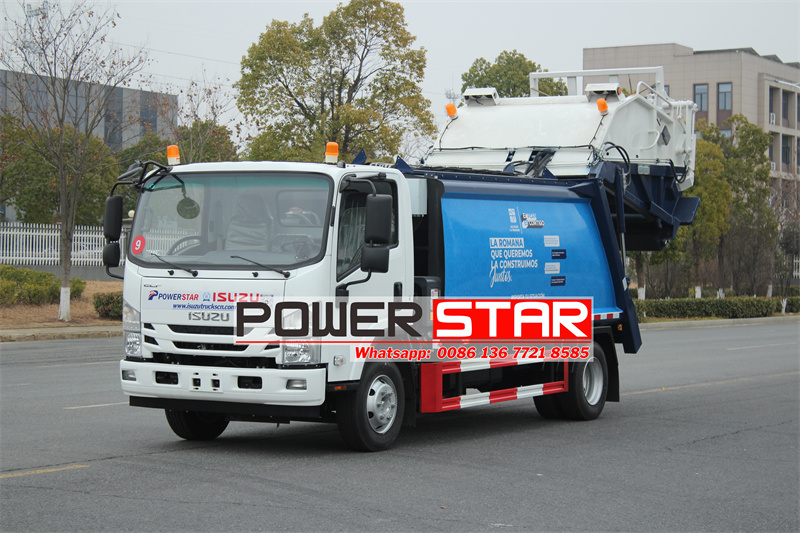

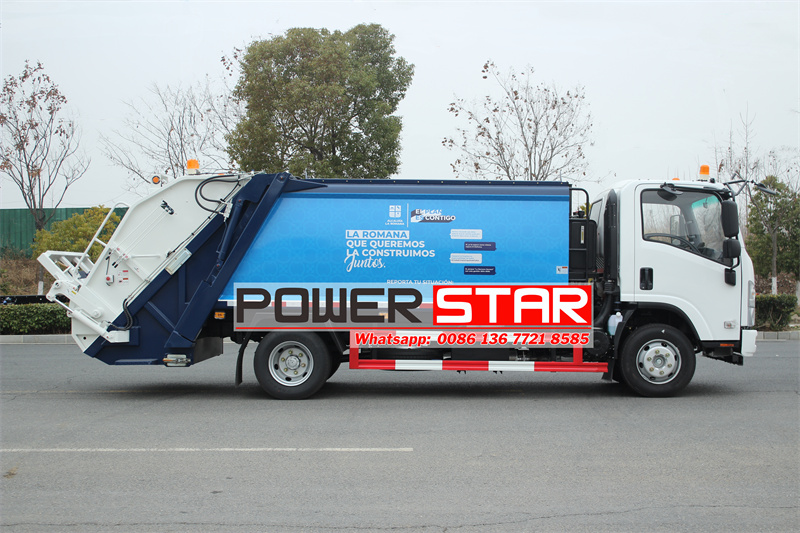

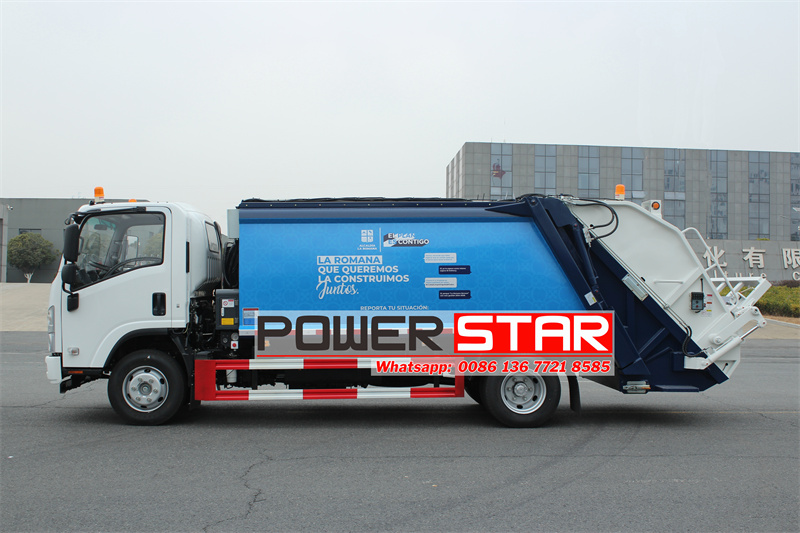

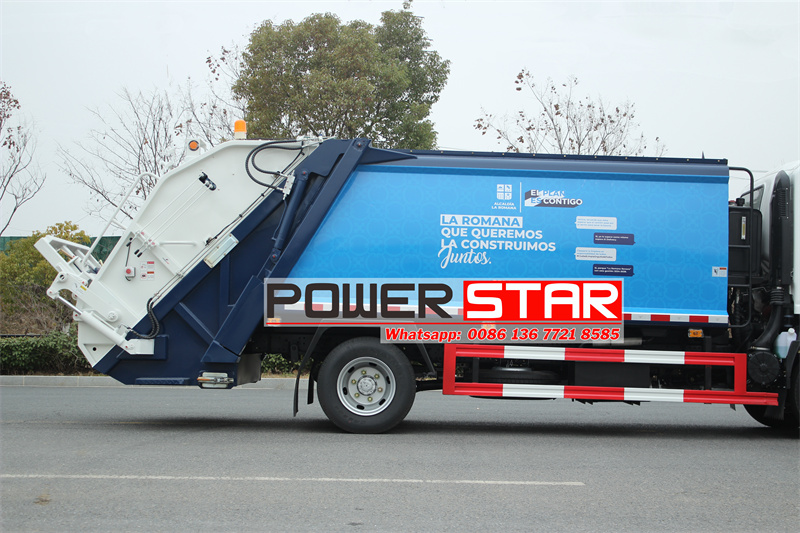

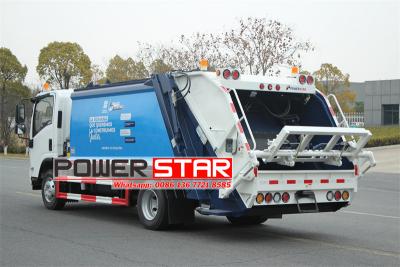

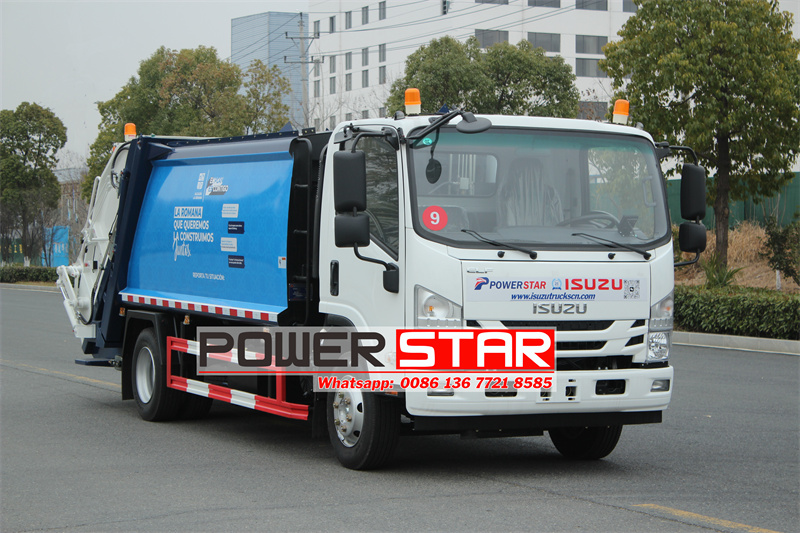

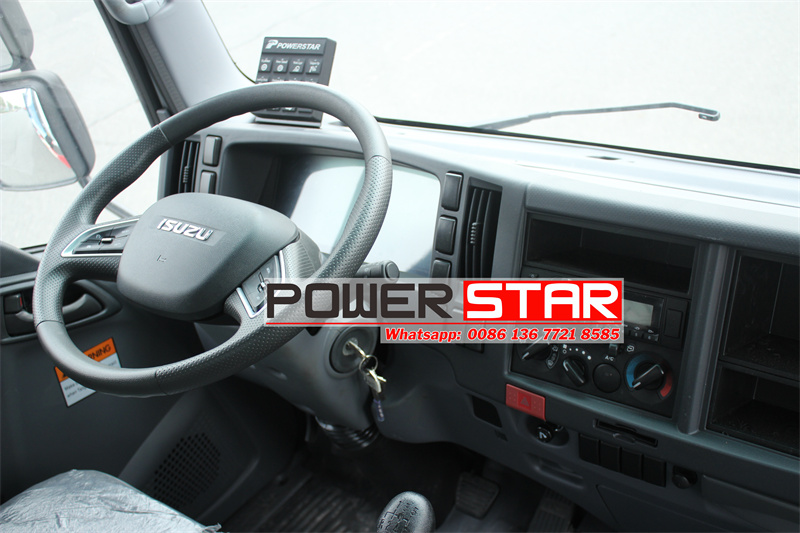

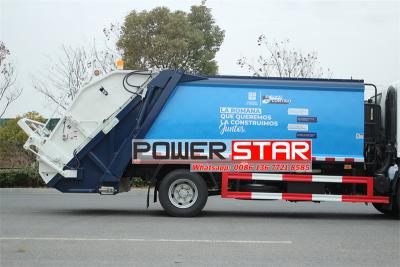

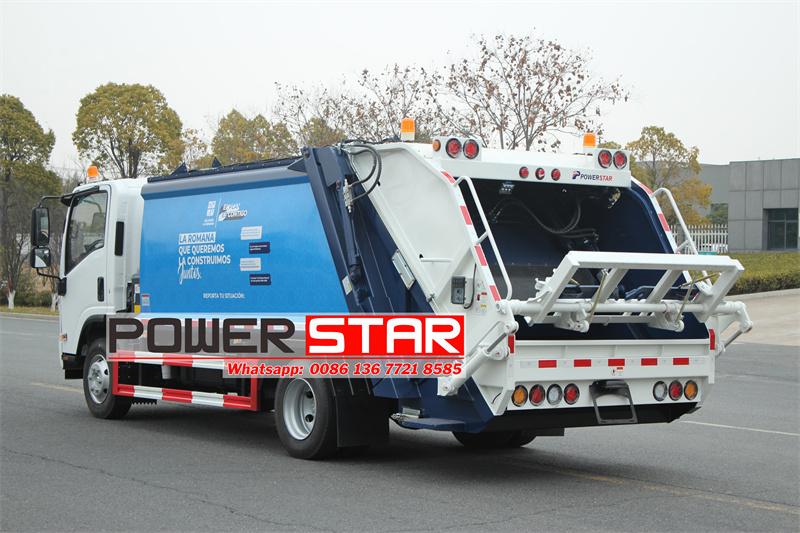

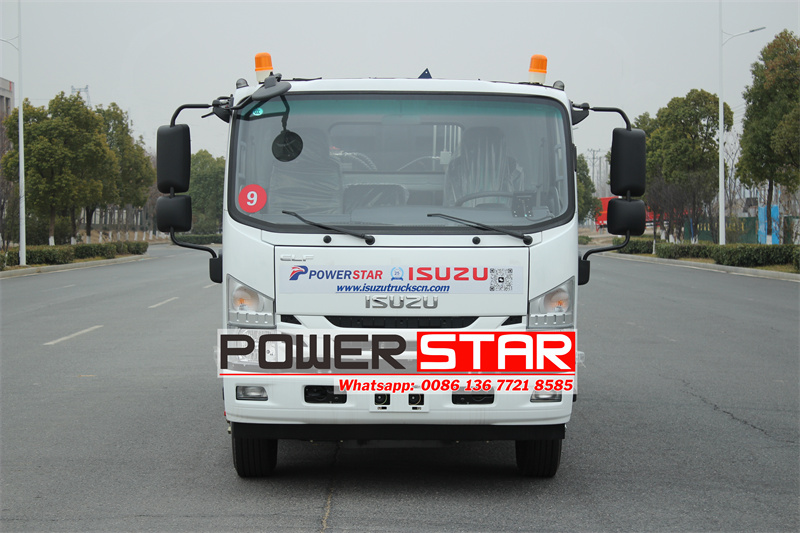

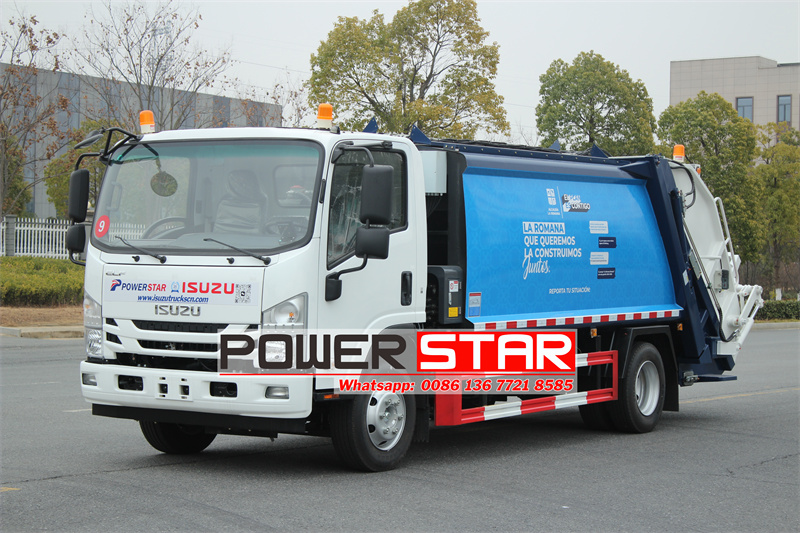

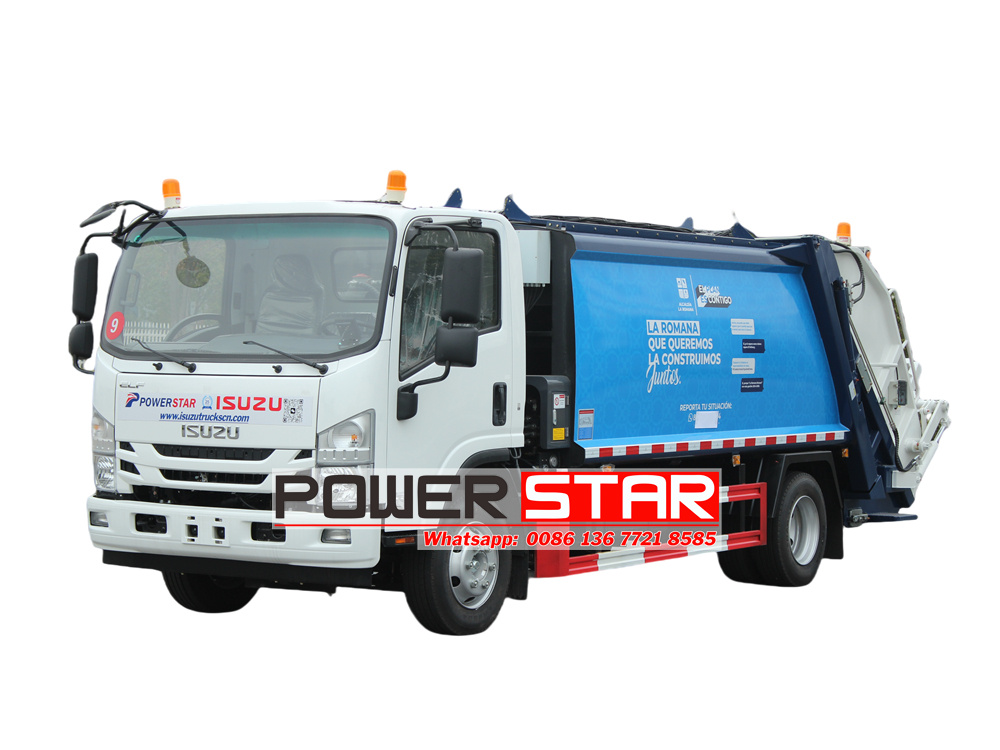

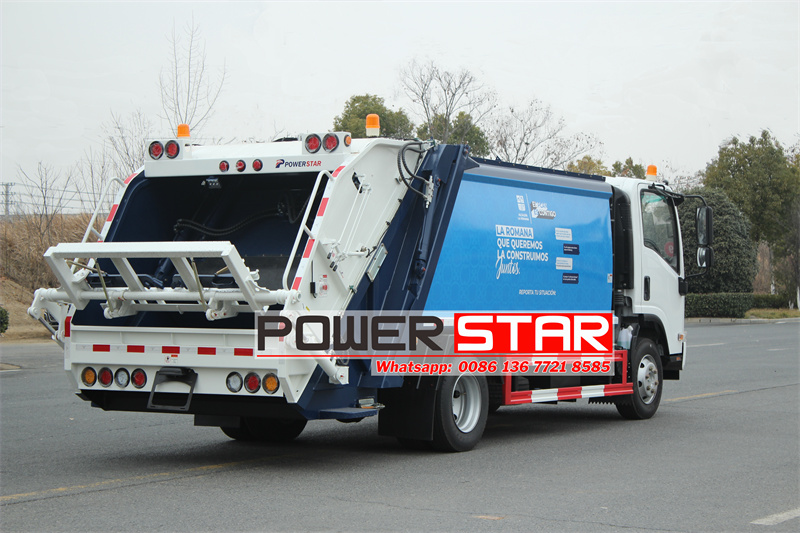

POWERSTAR's Isuzu 700P 10cbm rear loader compactor is used for garbage collection and disposal.With 4175mm wheelbase,4HK1 190HP engine,Euro 6 diesel 5193ml emission,Isuzu MLD 6-shift gearbox,with A/C,USB,direction assistance,3 seats.The upper body is a 10cbm garbage bin,rear is a bucket flip mechanism,there are 4 methods to operation the truck 's loading and unloading.
Work capacity:
10cbmEngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4x2,LHDGear box:
Isuzu MLD 6-shift gearbox,manualRemarks:
10cbm garbage bin，with 4 operation methodsIsuzu 700P 10 cbm compression garbage truck is an efficient and environmentally friendly special vehicle designed for urban environmental sanitation management. It is equipped with an advanced compression mechanism, which can greatly increase the single garbage loading capacity, reduce the transportation frequency, and improve work efficiency.
The Isuzu 10 cbm automatic rear loader garbage truck adopts a sealed garbage bin design to effectively prevent garbage from scattering and leaking, and reduce the risk of secondary pollution. The vehicle is built with high-strength steel and high-quality parts, which is sturdy and durable and can adapt to complex environments. It has a variety of operation modes, flexible and simple operation, can meet the needs of different customers, and provides strong support for urban garbage collection and transportation.
● 30 years experience on rear loader compactor truck designing
● 50 unit Isuzu garbage compactor truck in stock, 5 cbm, 8 cbm, 12 cbm,20cbm
● Fast delivery time, Quick 10 days shipping time
● OEM customized service, print your company logo
● CKD, SKD parts service, Container shipping, Save freight
Key Features:
★ Various size body from 3cbm to 25cbm,with beautiful appearance
★ ISUZU 4HK1 engine,super powerful;reliable performance. no overhaul,within 1000000km
★ Good sealing, no secondary pollution caused by sewage leakage when dumping garbage
★ Adopting electric, gas and hydraulic centralized control, with automatic and manual operation modes
★ Diffient rear flip systerm are optional
★ Can be put into 20",40"container and ship to worldwide
|
Isuzu 700P 10cbm rear loader compactor |
||
|
Vehicle Model: |
PT5110ZYS |
|
|
Chassis Dimensions and Parameters |
Overall Dimension(L x W x H) |
7700x2300x2500mm |
|
Wheelbase: |
4175mm |
|
|
Front/ Rear Wheel Distance: |
1680/1650mm |
|
|
Front/Rear Suspension |
1110/2465mm |
|
|
Rear Axle Ratio: |
4.1 |
|
|
Weights and Capacities |
Curb Weight: |
6750Kg |
|
GVW: |
10550Kg |
|
|
Axle Loads: |
4000/6550kg |
|
|
Engine |
Type: |
4 cylinder inline,4 strokes,water cooling,turbo inter cooling,diesel engine |
|
Engine Model: |
4HK1-TCG61 |
|
|
Max output: |
139Kw |
|
|
Displacement: |
5193ml |
|
|
Horsepower: |
190HP |
|
|
Exhaust Gas Treatment Technology： |
EGR |
|
|
Max Torque |
507N.m |
|
|
Rated speed |
2600rpm |
|
|
Maximum torque speed |
1600-2600rpm |
|
|
Transmission |
Transmission: |
MLD-6Q |
|
Forward Gear: |
6 Speed Gear |
|
|
Backward Gear: |
1 Speed Gear |
|
|
Brake |
Hydraulic Brake |
|
|
Front Drum Back Drum |
||
|
Generator |
24V-80A |
|
|
Cab |
Number of Seats: |
3 |
|
Chassis |
Drive Type: |
4x2 |
|
Tires: |
7(Including Spare Tire) |
|
|
Fuel Tank |
Number: |
1 |
|
Capacity: |
100L |
|
|
Top Parameters |
Garbage Container Capacity |
10cbm |
|
Filler Volume |
1.5m3 |
|
|
Compression ratio |
1:3.4 |
|
|
Cycling time of Filling |
≤25S |
|
|
Lifting time of Filler |
8-10S |
|
|
Time of Discharging |
≤45S |
|
|
Hydraulic System Pressure |
20Mpa |
|
|
Hydraulic system control mode |
Manual/electric integrated control |
|
|
Oil cylinder type |
Double-acting piston type |
|
|
Oil pump |
Dual gear pump |
|
|
Directional control valve |
Multiple way reversing valve |
|
|
Manipulator configuration |
Standard double barrel manipulator |
|
|
Configurations |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
Retro-Reflective Marking |
|
|
4 |
ABS |
|
|
5 |
Tubeless Tire |
|
|
6 |
Free Maintenance Battery |
|
Isuzu 700P 10 cbm rear loader garbage truck is a professional garbage collection and transportation equipment that combines high efficiency, environmental protection and durability.
1. Basic vehicle configuration
• Chassis: Built on the solid chassis of Isuzu, the wheelbase is set to 4175mm, providing good stability and carrying capacity.
• Engine: Equipped with the 4HK1-TCG61 190 horsepower engine of the National VI standard, it is powerful and clean.
• Transmission system: It adopts Isuzu MLD six-speed gearbox, which has smooth shifting and quick response, improving driving comfort and controllability.
2. Body and structure
• Box design: It adopts a streamlined arc box design, which is not only beautiful but also has a volume of 10 cubic meters. The box is made of high-strength carbon steel plates, and the full welding process ensures impeccable performance. The side four bottom five structure has excellent strength.
• Load-bearing capacity: The front and rear axles bear 4 tons and 6.55 tons respectively, which are solid and stable, meeting the load-bearing requirements of various complex road conditions.
• Safety configuration: Equipped with ABS anti-lock braking system and air brake for double safety protection, the cab is flexibly flipped for easy daily maintenance and upkeep.
3. Operating system and functions

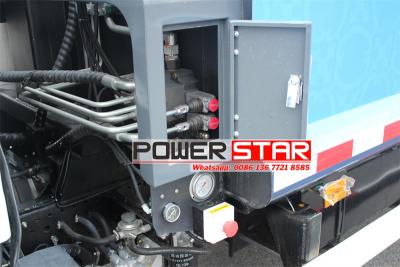

• Upper configuration: Selected Xingguang oil cylinder and Wanye oil pump, with Yangzhou Zhongmei brand multi-way valve system, precise control. High-density hydraulic oil pipes ensure leak-free transmission, and Jiashan power take-off has efficient power transmission.

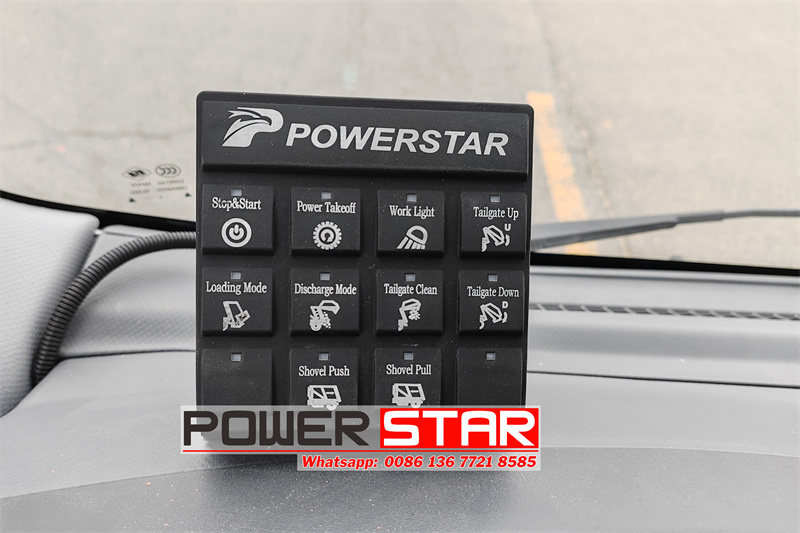

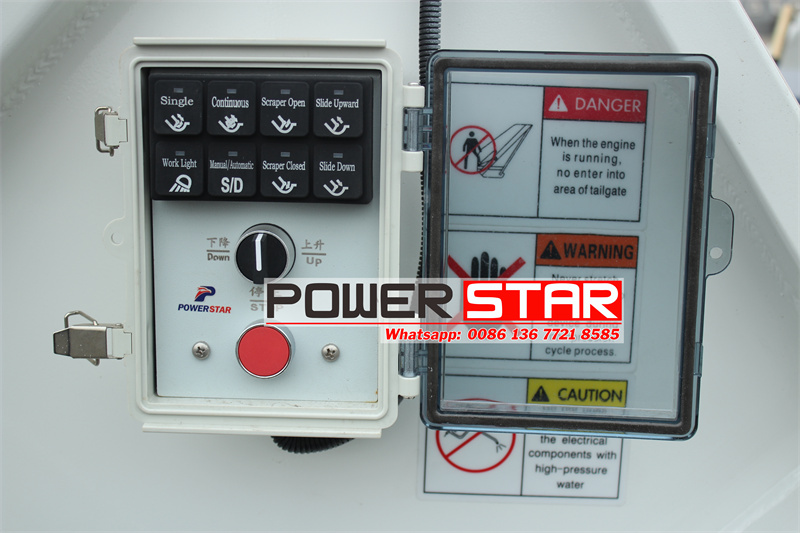

• Electronic control system: Equipped with a single-sided PLC electronic control operating system with integrated hand and light, which is easy and flexible to operate and can be easily controlled.
• Garbage compression function: Equipped with an advanced compression mechanism, it can effectively compress garbage to a smaller volume, thereby greatly increasing the loading capacity of a single garbage load.

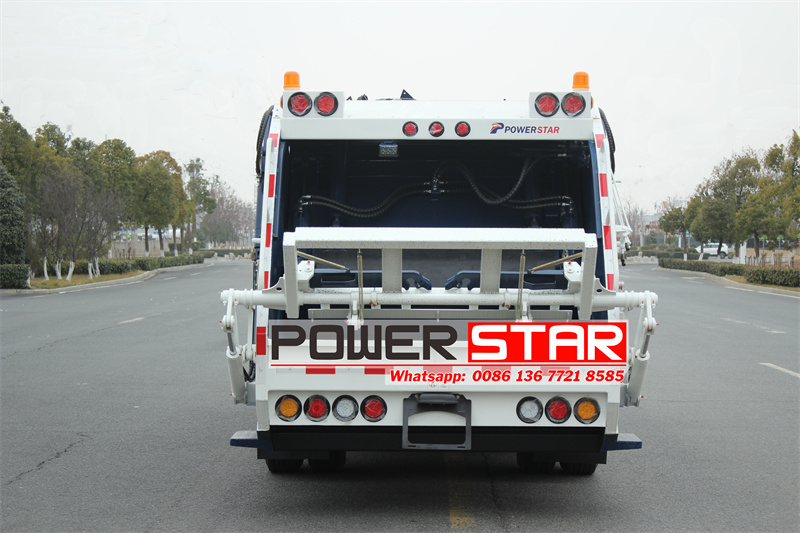

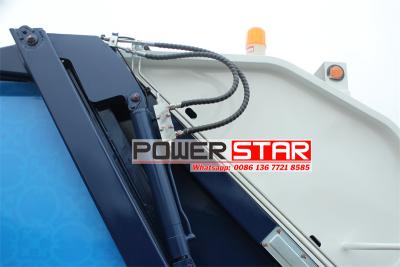

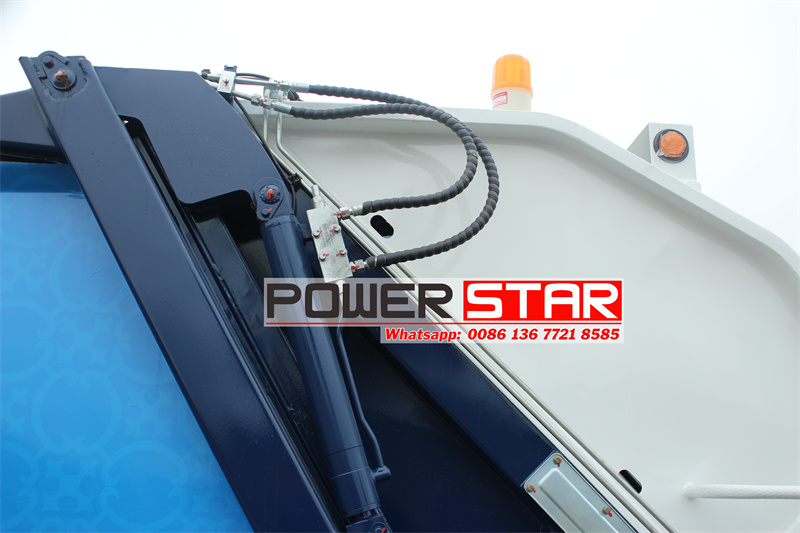

The filler lifting mechanism integrates a hydraulic locking device, which is stable and reliable. A pneumatic sealing cover is provided at the tail to effectively prevent odor leakage and protect the environment.
4. Operation process and operating specifications
• Preparation before operation: Check the safety of the surrounding environment of the vehicle, start the vehicle, and switch to loading mode after the air pressure reaches the specified value.
• Loading garbage: Pour the garbage into the garbage bucket, and complete the garbage loading by operating the scraper to expand, the slide plate to descend, the scraper to close, and the slide plate to ascend.

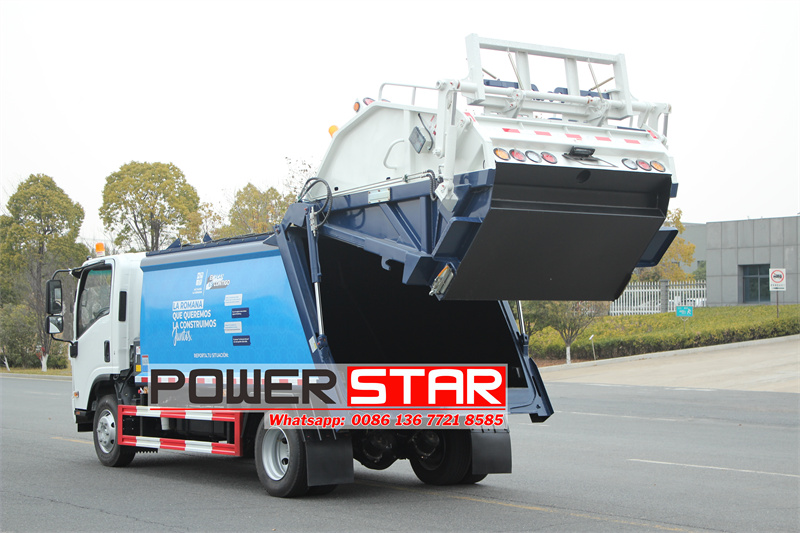

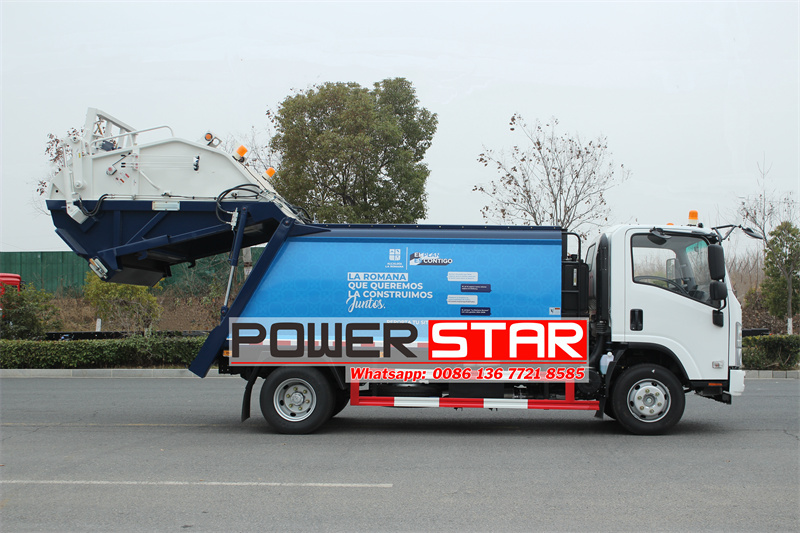

• Unloading garbage: Switch the working mode to the unloading mode, lift the filler through the control system, push out the push shovel, and complete the garbage unloading. After cleaning the garbage in the filler, the filler is lowered and locked.
Isuzu 700P 10 cubic compression garbage truck is mainly used for garbage transfer and unloading at urban garbage compression stations:

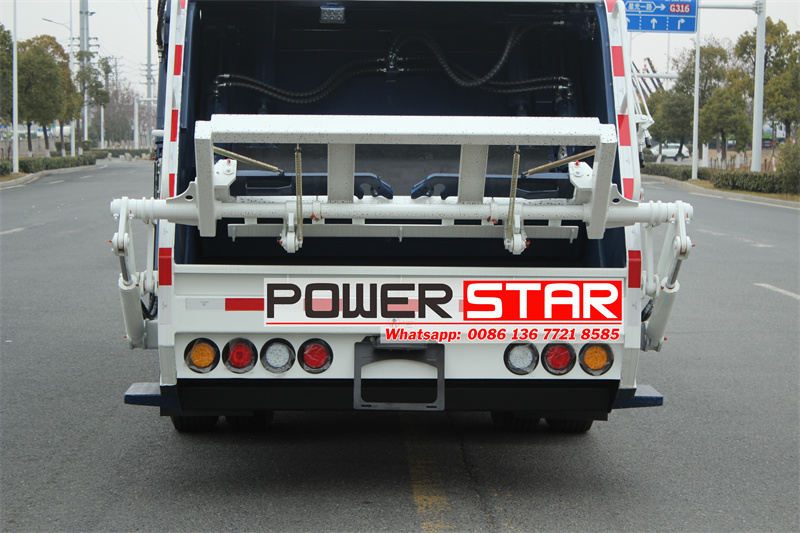

1. Urban garbage collection: This model is suitable for garbage collection in urban streets, communities, commercial areas and other areas. Through the equipped hanging bucket mechanism or flip frame, it is easy to mount or flip 240L and other standard specifications of garbage cans to achieve automatic loading and compression of garbage.
2. Garbage transfer: At the garbage compression station, this model can compress the collected garbage, reduce the volume of garbage, increase the loading capacity, and then transfer the compressed garbage to the garbage treatment site or landfill for further processing.
Factory direct sale ISUZU ELF 700P rear loader garbage truck, high quality ISUZU 190HP 8CBM garbage compression trucks, ISUZU rubbish compactor manufacturer.
Learn More
Custom-made ISUZU ELF 700P hook lift garbage compactor truck, high quality ISUZU 190HP medium duty hook lift waste compactor truck, ISUZU rear loader manufacturer.
Learn More
This ISUZU trash truck rear loader is equipped with an advanced compression device that uses high-pressure air to compress the garbage into small pieces, thereby reducing the volume of the garbage and improving the removal efficiency. At the same time, the vehicle is also equipped with environmental protection equipment, which can effectively reduce exhaust gas and noise pollution, making a positive contribution to urban environmental protection.
Learn More
The ISUZU rear load trash truck is a modern environmentally friendly garbage cleaning equipment produced by POWERSTAR. It integrates mechanical, electrical, hydraulic, control and other technologies into one, and can efficiently and quickly collect, compress and remove garbage. It is an important tool for urban cleaning work.
Learn More

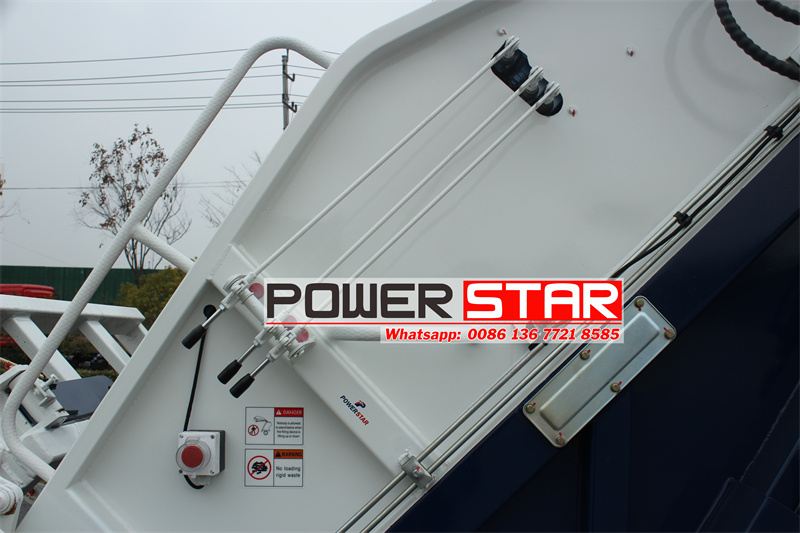

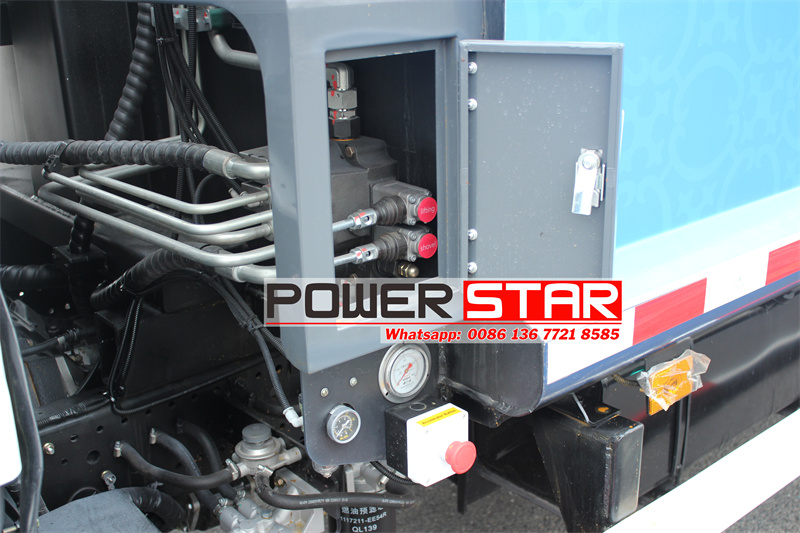

Isuzu 700P 4x4 8 cubic garbage compactor is a professional vehicle for garbage collection and transportation. It is modified on the basis of Isuzu 700P all-wheel drive chassis, with a wheelbase of 4175mm. The vehicle is equipped with Isuzu 4HK1-TCG61 diesel engine, 5193ml Euro 6 emission, and Isuzu MLD 6-speed gearbox; the vehicle is equipped with an 8-cubic arc-shaped carbon steel compactor garbage bin, and the tail is equipped with a bucket flipping mechanism, which can hang such as 240L, 660L, and 1100L garbage bins. The vehicle is controlled by a PLC electronic control system and a manual hydraulic system. The operator can control the loading and unloading of garbage through three operating methods: the electronic control box in the cab, the manual hydraulic operating valve on the driver's side, and the tailgate electronic control box.
