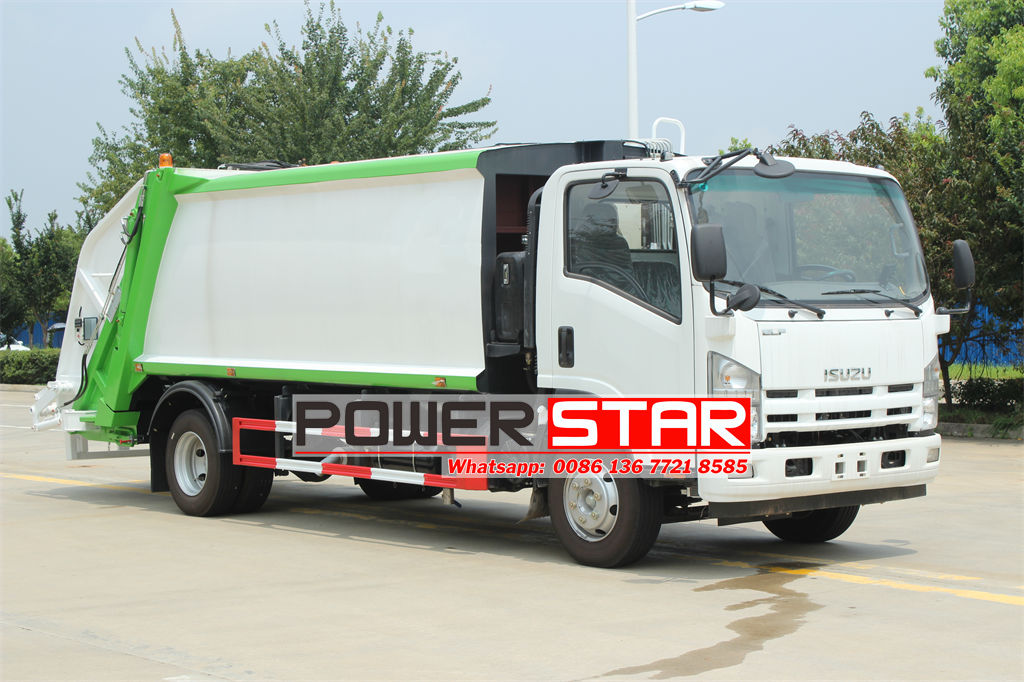

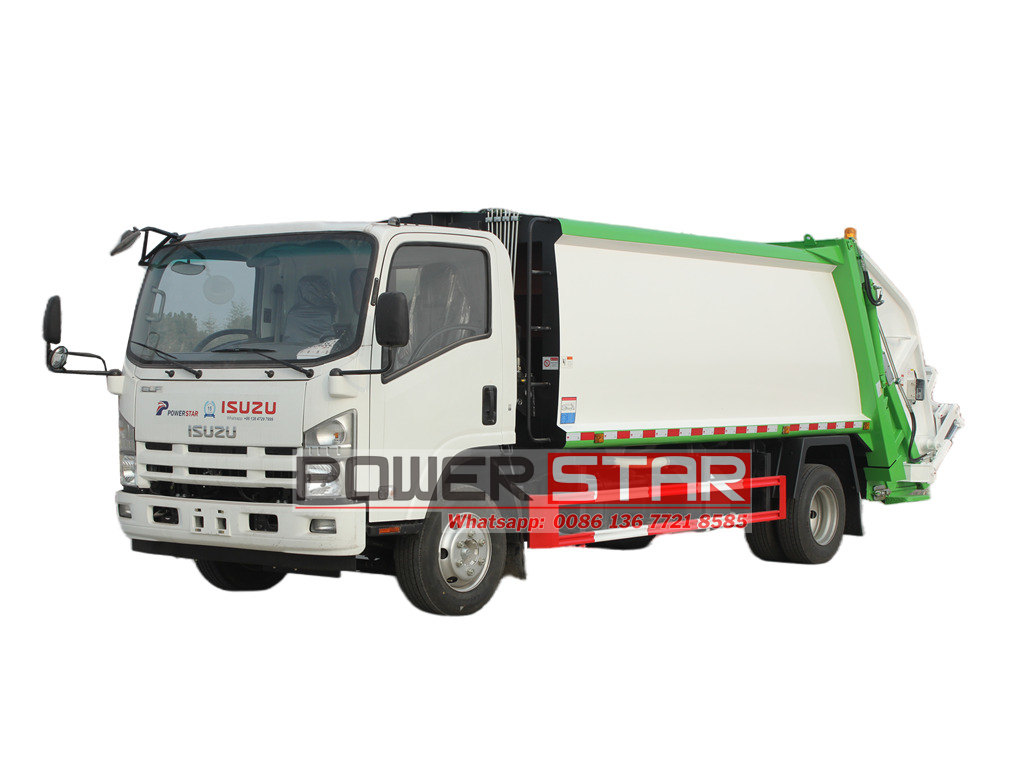

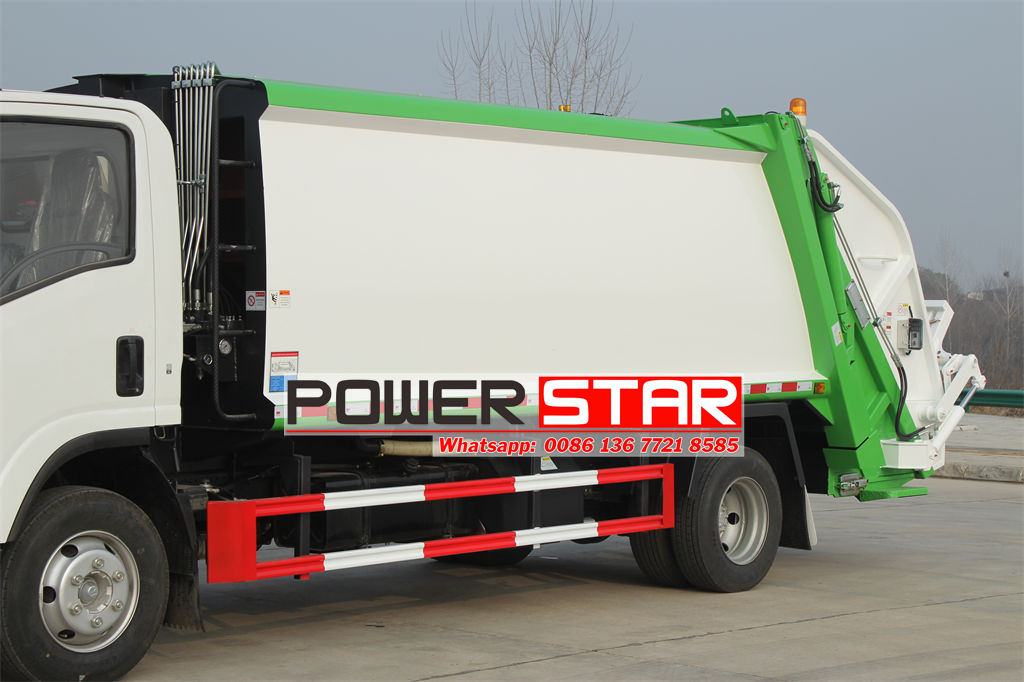

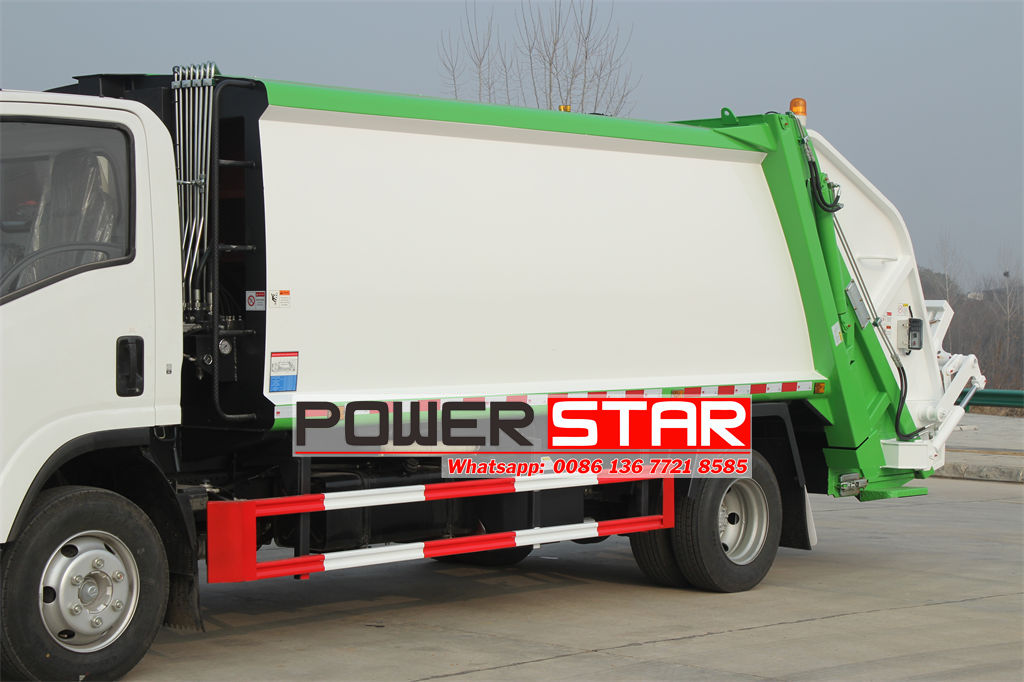

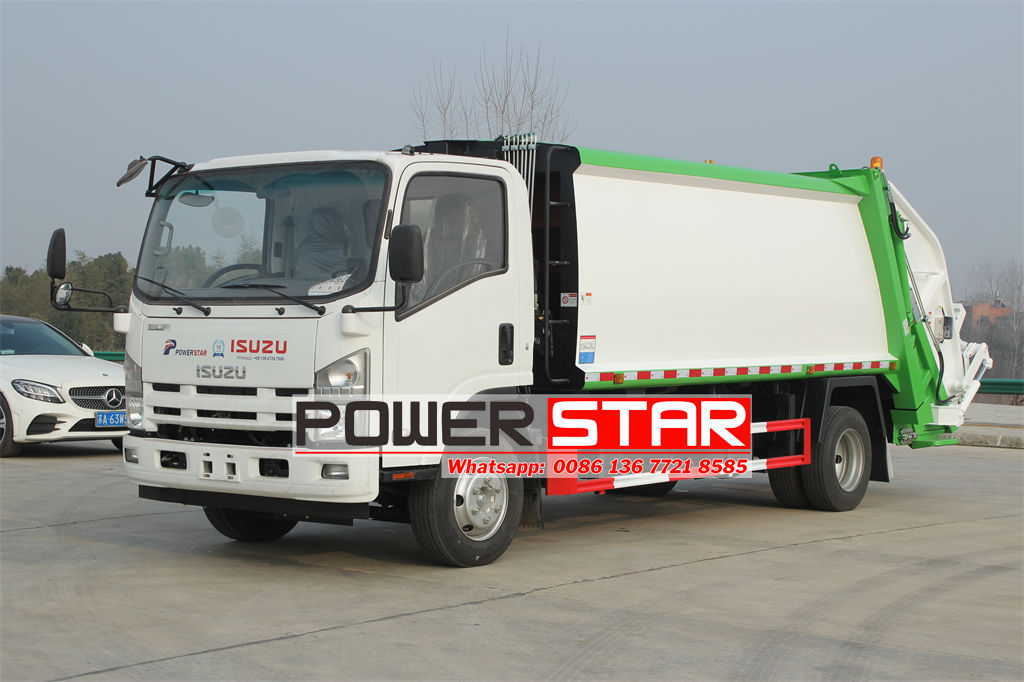

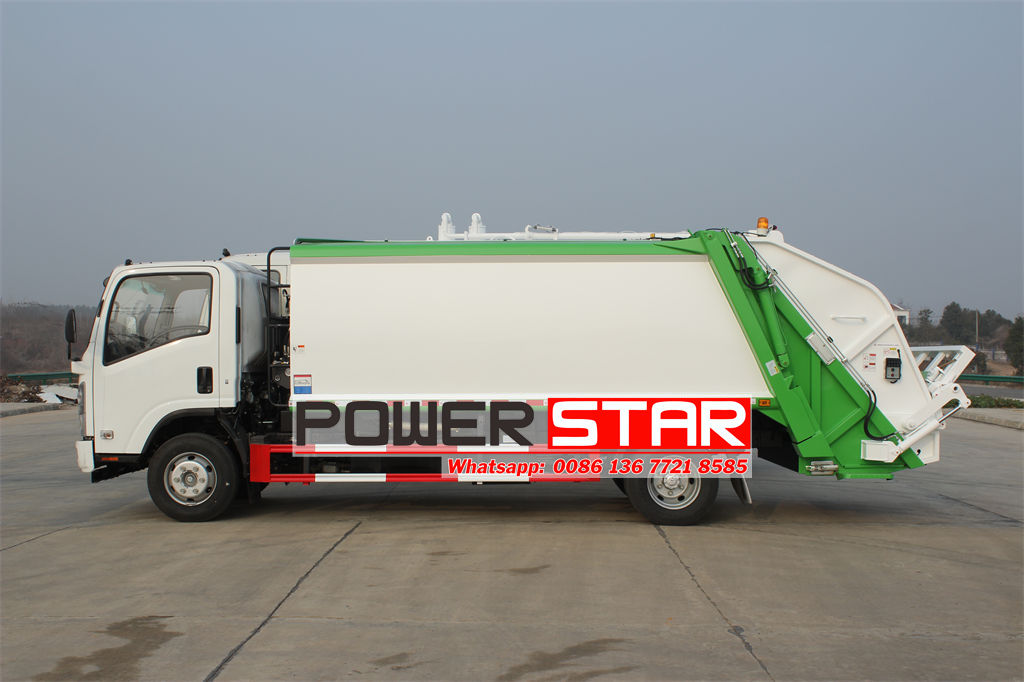

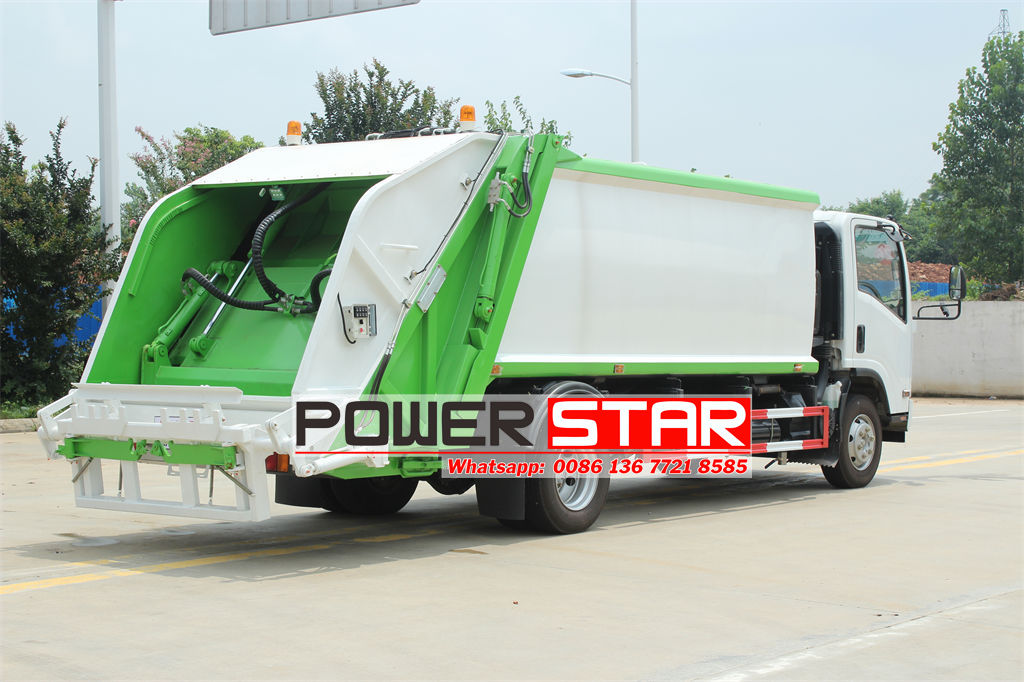

The ISUZU NPR 10CBM Rear Load Compactor Garbage Truck is a professional vehicle specifically designed for efficient and environmentally friendly waste management. It combines ISUZU's robust chassis technology with an advanced garbage compression system, offering a compactor volume of 10CBM to meet the diverse needs of urban waste collection, transportation, and disposal. Whether in city streets, residential communities, or industrial parks, this garbage truck delivers exceptional performance and reliability.
Manufacturer:
Powerstar TrucksWork capacity:
10 CBMDimension:
7400 x 2300 x 2640mmCabin type:

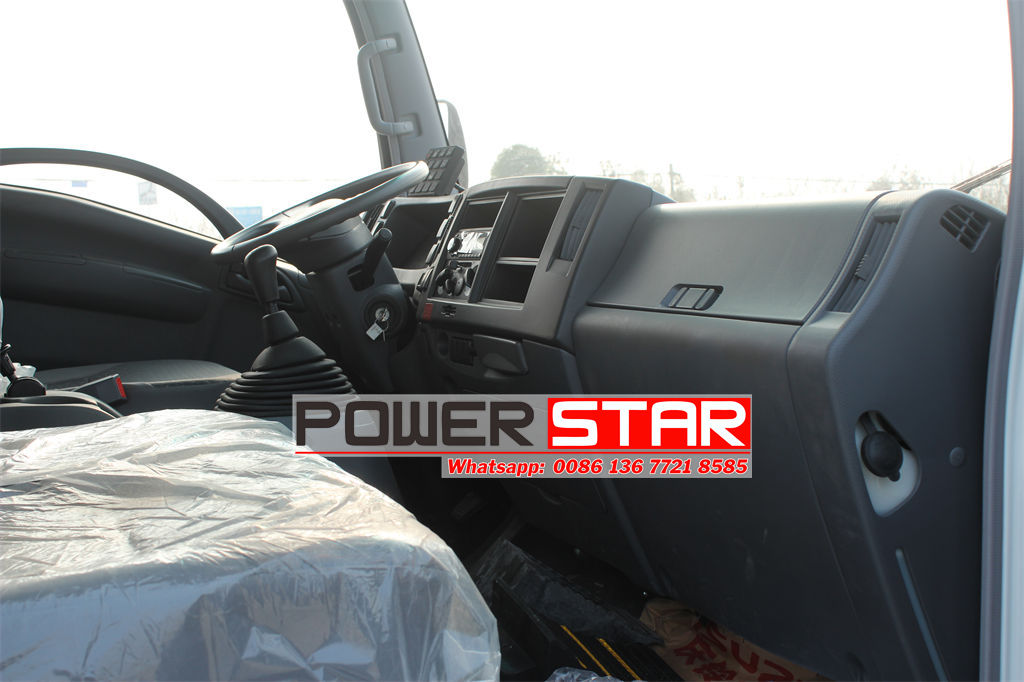

Isuzu ELF 700P light cabin,2 seatsWheelbase:
4175mmEngine power:
189 HPEngine type:
4HK1-TCG61Axle drive:
4x2Gear box:
MLD 6-speed,manualRemarks:
Custom painting and logoThe ISUZU NPR 10CBM Compactor Garbage Truck (Model: PT5110ZYS10) is a highly efficient and intelligent professional vehicle designed for modern urban waste management. Its core advantage lies in the seamless integration of ISUZU's robust chassis technology with an advanced garbage compression system, enabling it to effortlessly tackle the multiple challenges of urban waste collection, transportation, and disposal. Powered by the ISUZU 4HK1-TCG61 engine, the vehicle boasts a strong performance with a maximum output of 139 kW (189 HP), while complying with Euro VI emission standards, ensuring high efficiency and minimal environmental impact. Whether on city streets, in residential communities, or industrial parks, this garbage truck delivers exceptional performance and reliability to meet demanding operational needs.
The garbage compactor body of the ISUZU 10CBM Rear Loader Garbage Truck is its core working component, showcasing highly intelligent and user-friendly design. With a compactor volume of 10 cubic meters, the body is constructed from T420 high-strength wear-resistant steel plates, with wall and floor thicknesses of 4mm, ensuring durability and pressure resistance. The compaction ratio exceeds 2.5, significantly improving waste loading capacity and transportation efficiency. The tailgate offers an effective volume of ≥0.8 cubic meters, ensuring smooth waste unloading. In terms of the hydraulic system, the vehicle employs advanced hydraulic transmission technology, with a system pressure of 18 MPa, guaranteeing fast and stable operations during compression, loading, and unloading processes. The control system supports both automatic and manual modes, providing flexible and convenient operation. Utilizing CAN-bus technology, the system enables seamless communication and intelligent management between the vehicle's various systems. Two operation panels are installed—one inside the cabin and another on the side of the tailgate—allowing operators to monitor and control operations from different positions, greatly enhancing work efficiency and convenience.
● China best Isuzu garbage compactor truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We can offer your a good after-sell service
● CKD, SKD parts service, Container shipping, Save freight
● Build strict QC team to guarantee the quality
Product Specifications
|
ISUZU NPR 10CBM Rear Load Trash Truck Specifications |
||
|
Vehicle Model |
PT5110ZYS10 |
|
|
Vehicle Main Dimensions |
Overall size (mm) |
7400*2300*2640 |
|
Wheel base (mm) |
4175 |
|
|
Wheel track (front/rear) (mm) |
1680/1650 |
|
|
Approach/Departure angle(°) |
20/14 |
|
|
Weight in KGS |
G.V.W. |
10550 |
|
Curb Weight |
6900 |
|
|
Max. driving speed(km/h) |
110 |
|
|
Engine |
Brand |
ISUZU |
|
Model |
4HK1-TCG61 |
|
|
Type |
4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Horse Power |
189(HP) |
|
|
Emission standard |
Euro VI |
|
|
Displacement |
5193ml |
|
|
Max. Output Power |
139kw |
|
|
Gearbox |
6 forwards& 1 reverse, manual |
|
|
Tire |
235/75R17.5 16PR, 6+1 pcs |
|
|
Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
|
Steering Gear |
power steering, hydraulic steering with power assistance |
|
|
Garbage Compactor Body |
||
|
Compactor Volume(M3) |
10 CBM |
|
|
Material |
T420 high strength wear resistance steel |
|
|
Thickness |
Walls 4mm; floor 4mm |
|
|
Compaction ratio |
≥2.5 |
|
|
Tailgate effective volume |
≥0.8 CBM |
|
|
Loading cycling time |
≤35s |
|
|
Unloading cycling time |
≤35s |
|
|
Bin lifter |
Can lift 2 units 240L bin |
|
|
Hydraulic system pressure |
18 Mpa |
|
|
Control mode |
Automatic and manual control mode |
|
|
Control system |
CAN-bus |
|
|
Operation panel |
2 units: one in cabin, one on side of tailgate |
|
Main Performance and Features:
The ISUZU 10CBM Rear Loader Truck boasts an elegant appearance, easy waste collection, convenient operation, and a sealed design that prevents waste overflow and secondary pollution. It is safe, reliable, and its performance has been widely recognized by users. The product features are as follows:

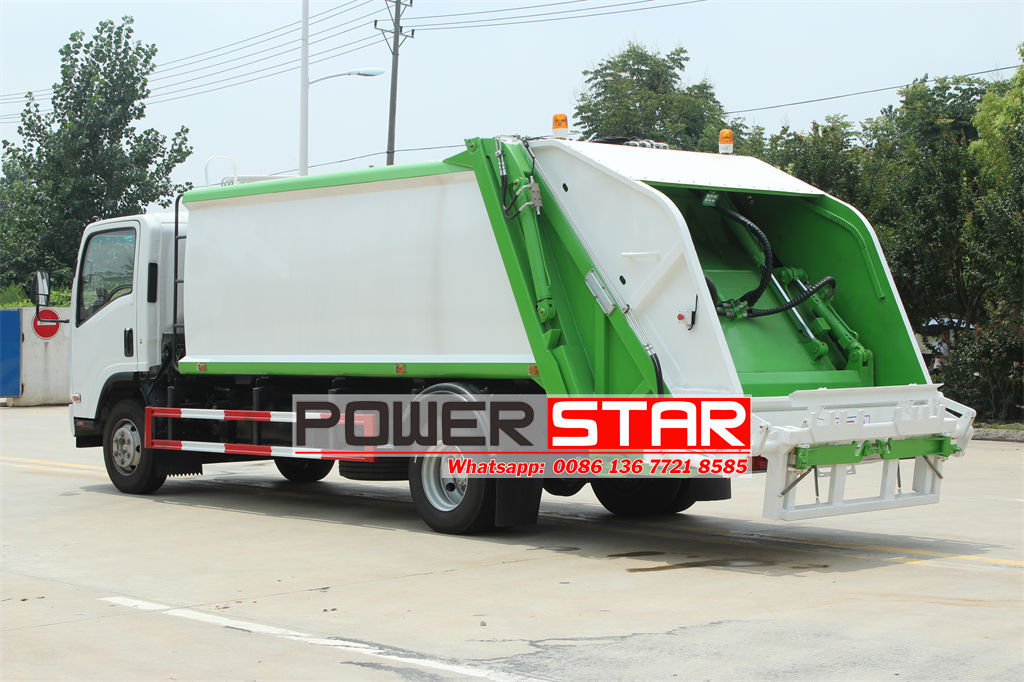

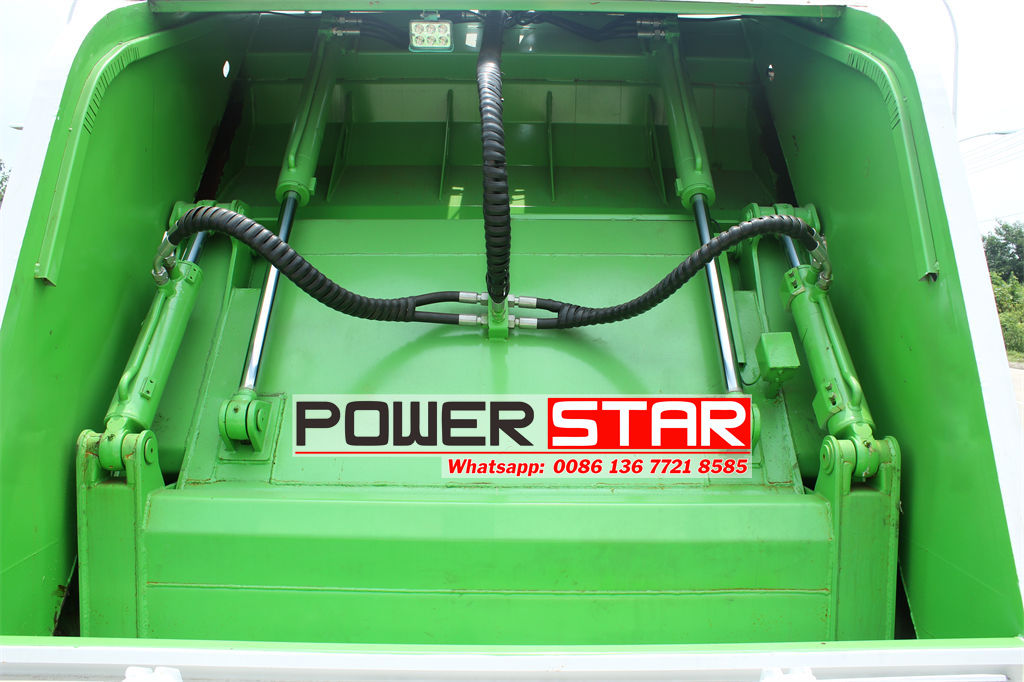

1. Robust Garbage Compactor Structure: The garbage compactor is constructed with reinforced beams and steel plates welded into a sturdy frame. The sides feature curved surfaces, while the top is a flat structure with reinforced ribs. The compactor is aesthetically pleasing, lightweight, durable, and resistant to deformation.
2. Electro-Hydraulic Combined Control: The control system integrates the advantages of both electrical and hydraulic controls. The electrical system controls the hydraulic valve group, enhancing reliability and efficiency.
3. Elimination of Secondary Pollution: Waste remains enclosed during compression, loading, and transportation. The joint between the tailgate and the compactor body is equipped with specially designed rubber seals, compressed and secured with locking devices. A unique drainage valve is installed on the sewage tank, ensuring reliable sealing and preventing blockages.

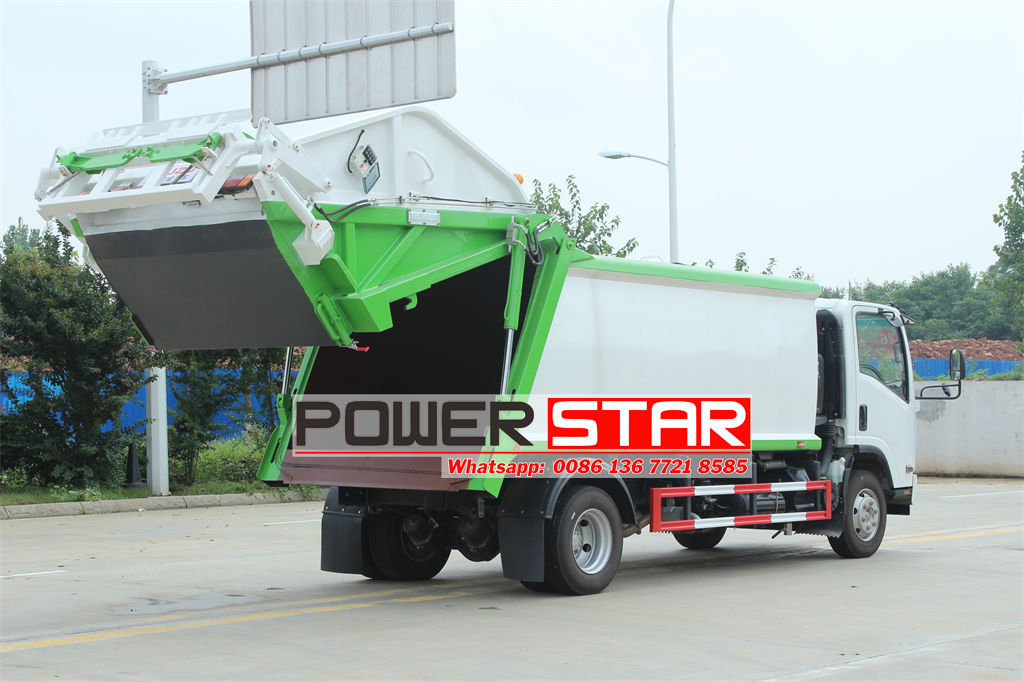

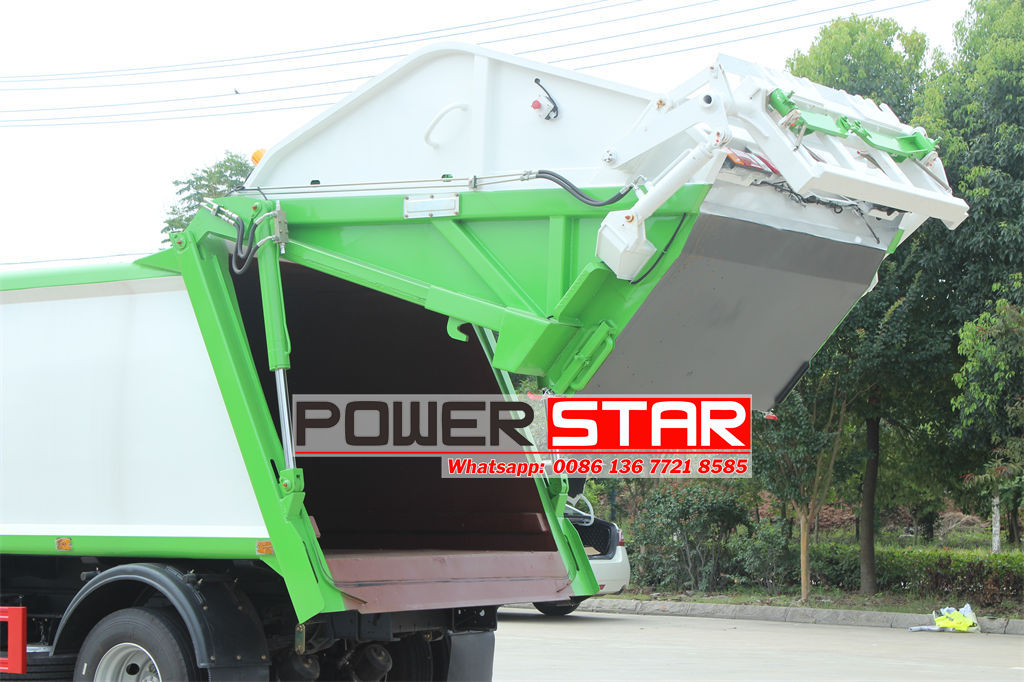

4. Hydraulic Lifting Safety Circuit: The hydraulic system for lifting the tailgate is equipped with a bidirectional balance valve. This valve ensures smooth descent of the tailgate and isolates the lifting cylinder from direct connection with hydraulic hoses. Even if a hose bursts, the tailgate will not suddenly drop, enhancing operational safety.

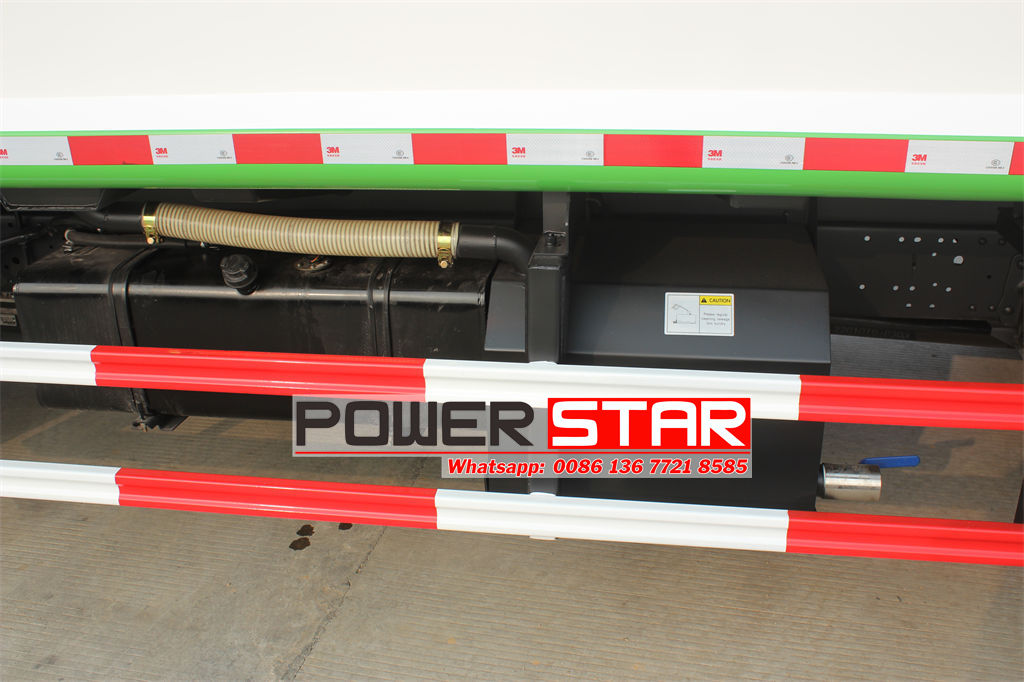

5. Dual Sewage Tanks: The vehicle is equipped with two sewage tanks to prevent pollution during operation or when stationary:
o One located under the tailgate to collect sewage from the tailgate.
o Another on the side of the vehicle to collect sewage from the compactor body.
6. Control Modes for Vehicle Operation: The vehicle offers both automatic and manual control modes:

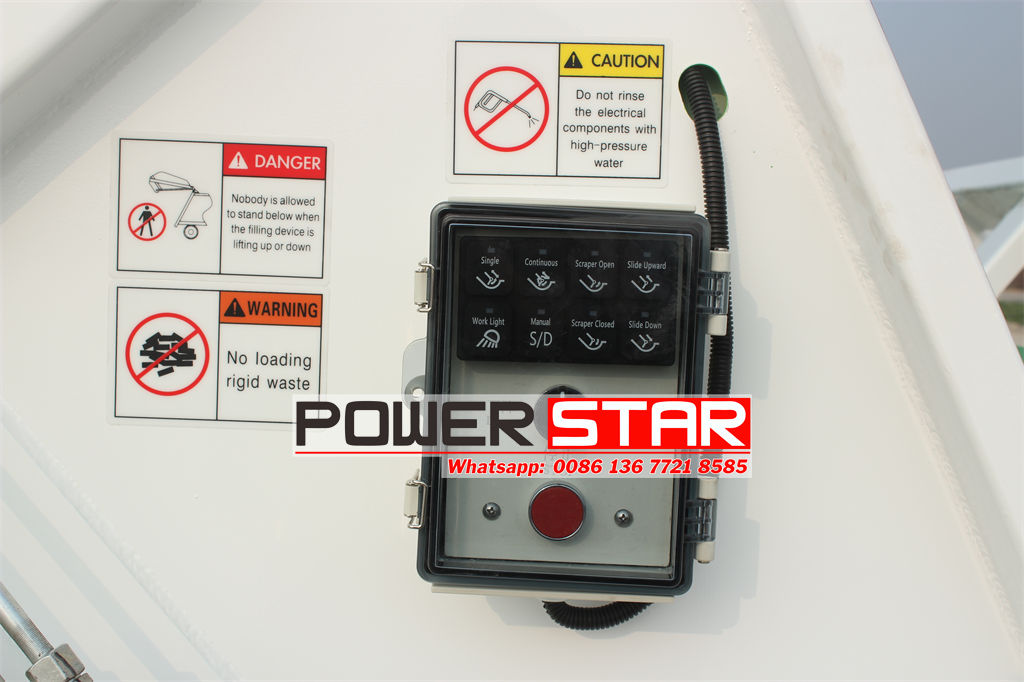

o Automatic Control System: Utilizes CAN bus control, with silicone operation panels (two in total: one inside the cabin and one on the right side of the tailgate). This ensures interlocking of operational commands, reduces failure rates, prevents accidents caused by misoperation, and improves reliability.

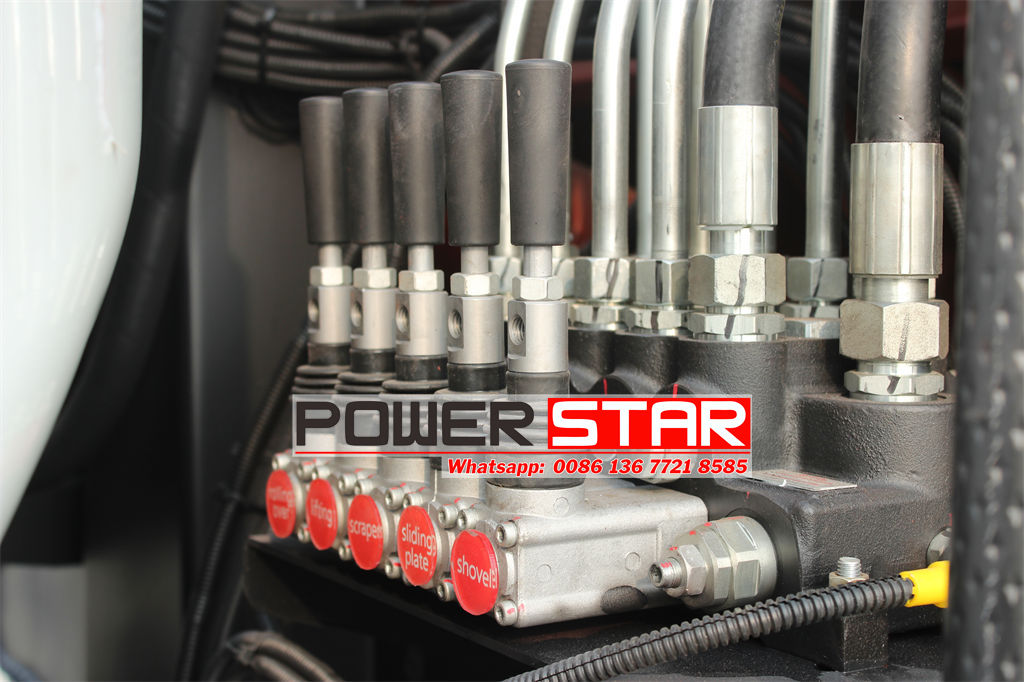

o Manual Control System: Uses high-quality multi-directional valves from renowned brands, ensuring excellent and reliable operation.

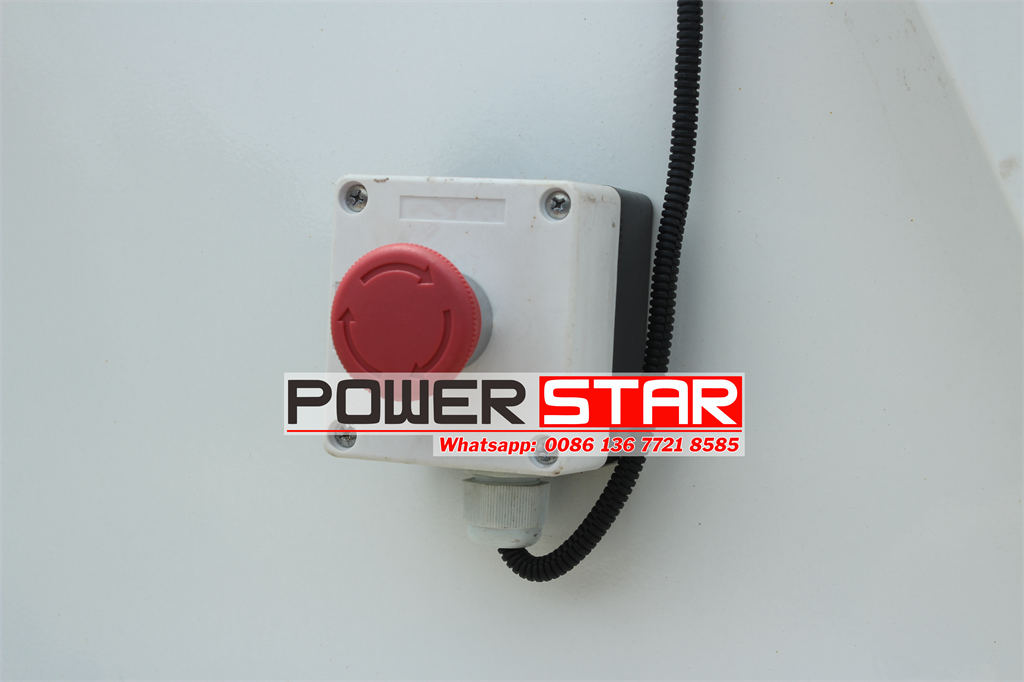

7. Emergency Stop Button: The ISUZU 10CBM refuse compactor truck is equipped with an emergency stop button that can halt the waste compression mechanism in any state or position, ensuring the safety of operators and equipment.

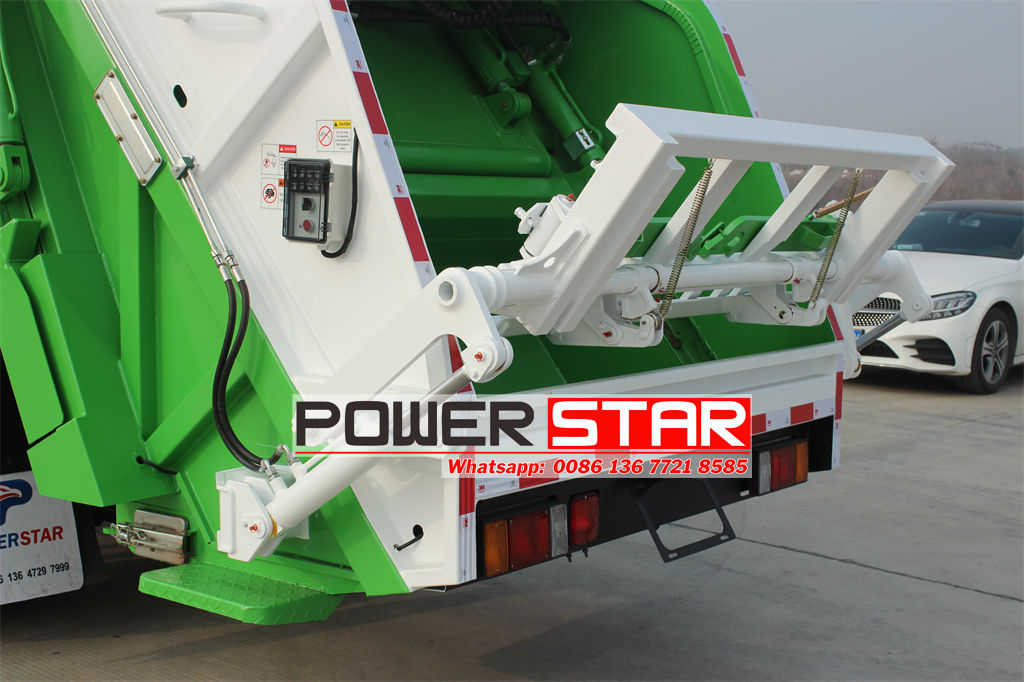

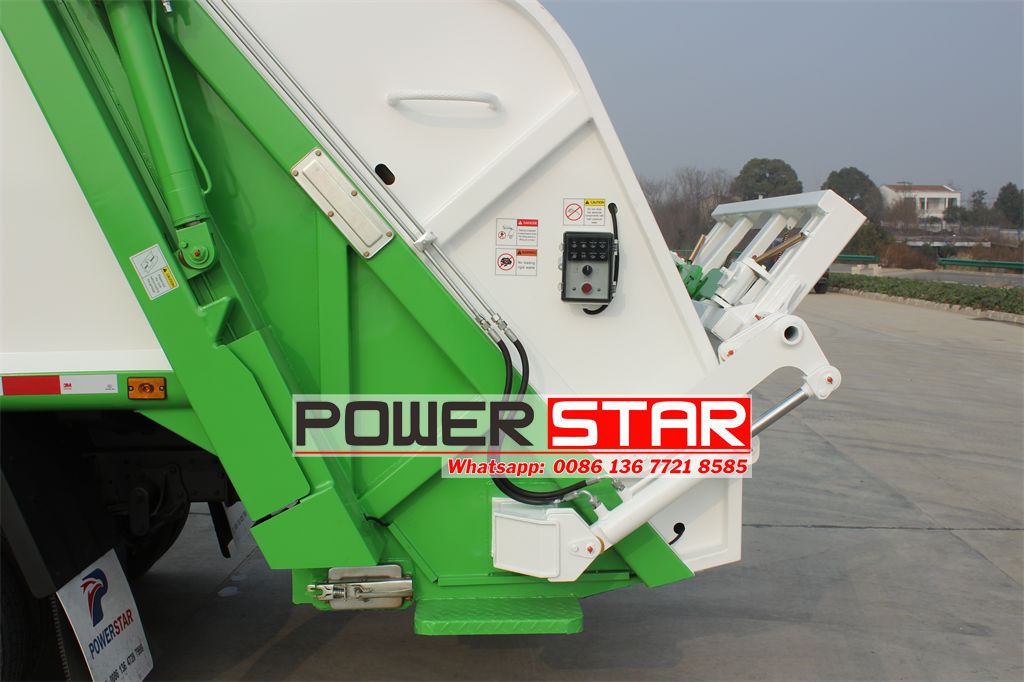

8. Standard Bin Lifting Device: The rear of the tailgate is equipped with a bin lifter structure, capable of holding two 240L plastic waste bins simultaneously.
