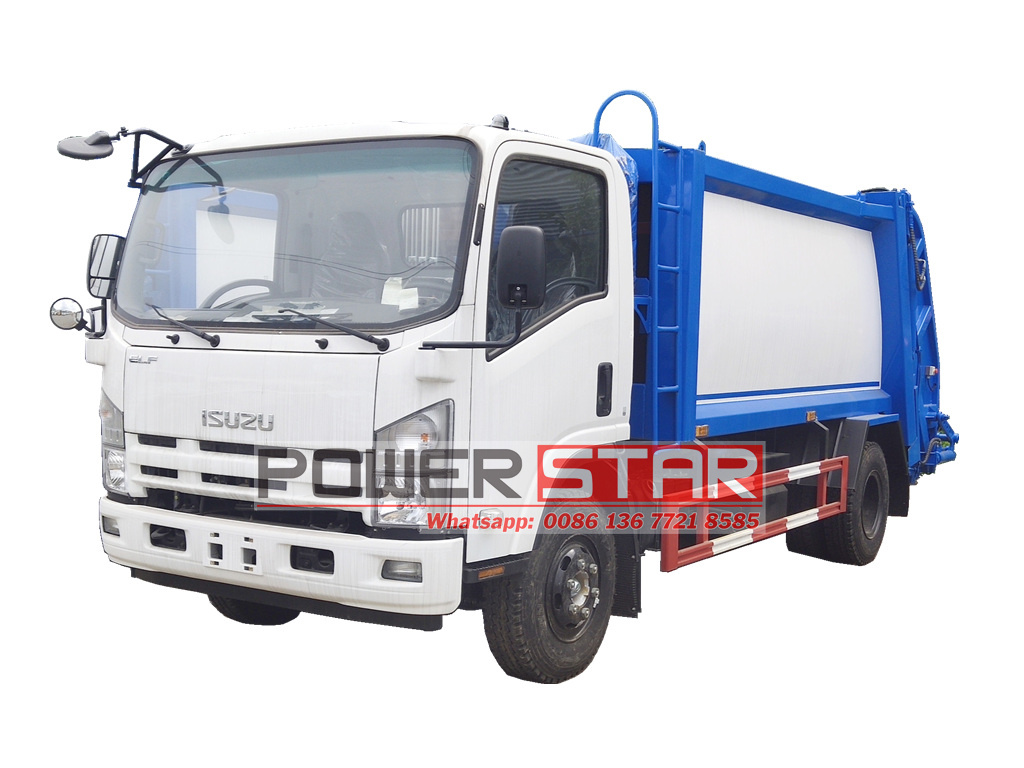

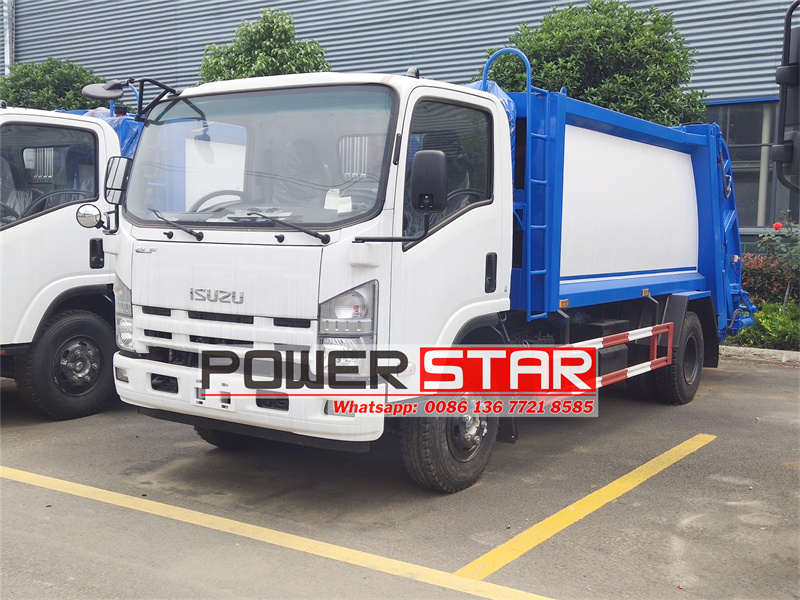

Laos customer purchased ISUZU NPR 190HP 8CBM Refuse Compactor Truck, with overall dimensions of 7200×2200×2500mm, not only boasts an aesthetic appearance but also ensures excellent maneuverability in narrow urban streets. Its based on QL1110ANKWY series truck chassis and Gross Vehicle Weight is 10550kg, providing ample allowance for garbage loading 8 cubic meters. Standard 4×2 left-hand drive model renowned for its stability and durability, making it an ideal choice for garbage truck modifications.
Work capacity:
8cbmDimension:
6500 × 2200 × 2550mmCabin type:
Isuzu 700P Single Row, 3 seatsWheelbase:
3360mmEngine power:
190HPEngine type:
Isuzu 4HK1-TCG61Axle drive:
4X2,LHDGear box:
Isuzu MLD 6-speed,manualRemarks:

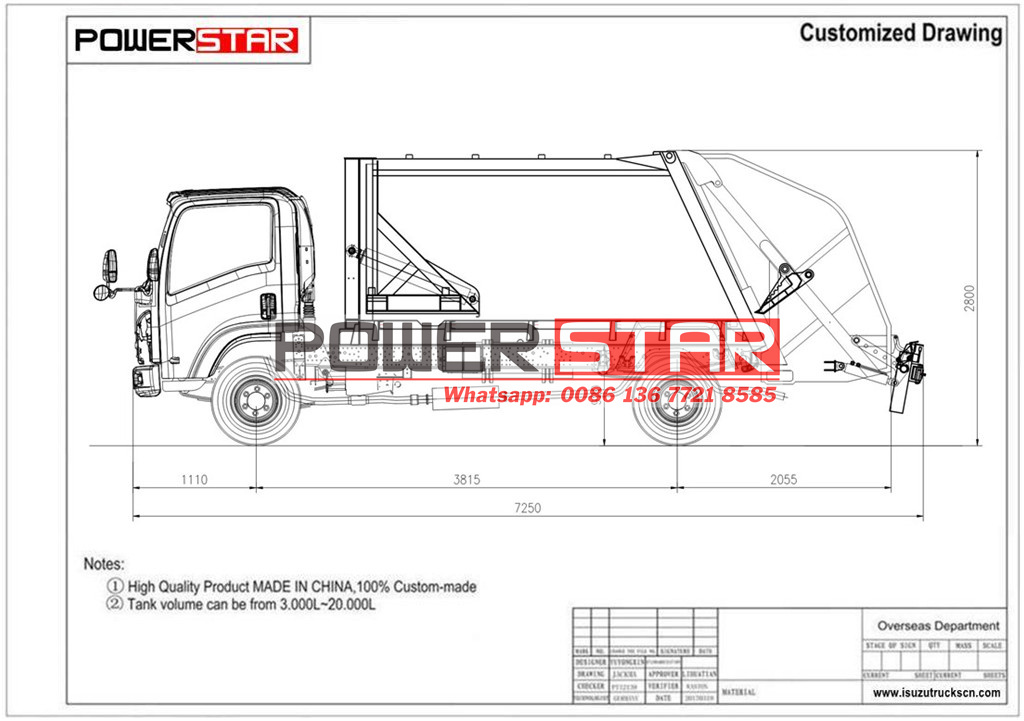

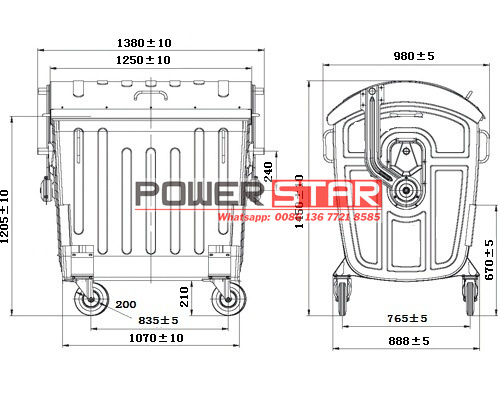

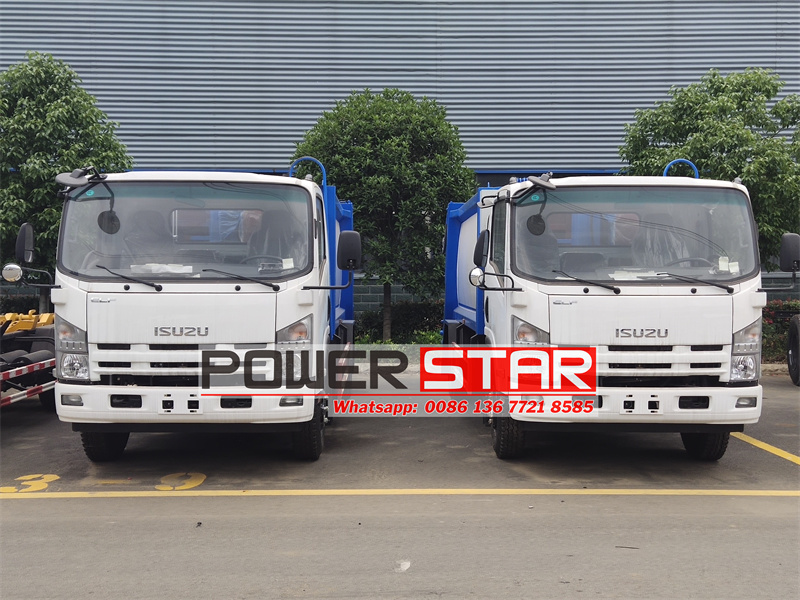

Rear tilting device for 240L and 1100L binsYear 2025 new ISUZU NPR 8CBM Garbage Compactor Truck is built on a stable and durable Japanese ISUZU 700P ELF 4×2 truck chassis. Isuzu 10 yard rear loader compactor truck with designed dimensions of 7200×2200×2500mm and a wheelbase of 3815 mm / 4175 mm. It features a T420 high-strength steel compartment with a fully sealed design, with thickness for side and floor both 4mm, Also equipped with HARDOX material rear hopper for special requirement. Isuzu rear loader truck achieving a high compression ratio of 2.5 and rapid discharge. Equipped with an advanced CAN BUS intelligent control system to optimize operational processes, as well as a full air and exhaust brake system to ensure safety, it is suitable for various urban settings. The ISUZU NPR ELF 8CBM Rear Loader sets a new benchmark for efficient, environmentally friendly, and intelligent urban cleaning.
● 30 years experience on rear loader truck designing
● 50 units Isuzu garbage compactor truck in stock, 5 cbm, 8 cbm, 12 cbm
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight

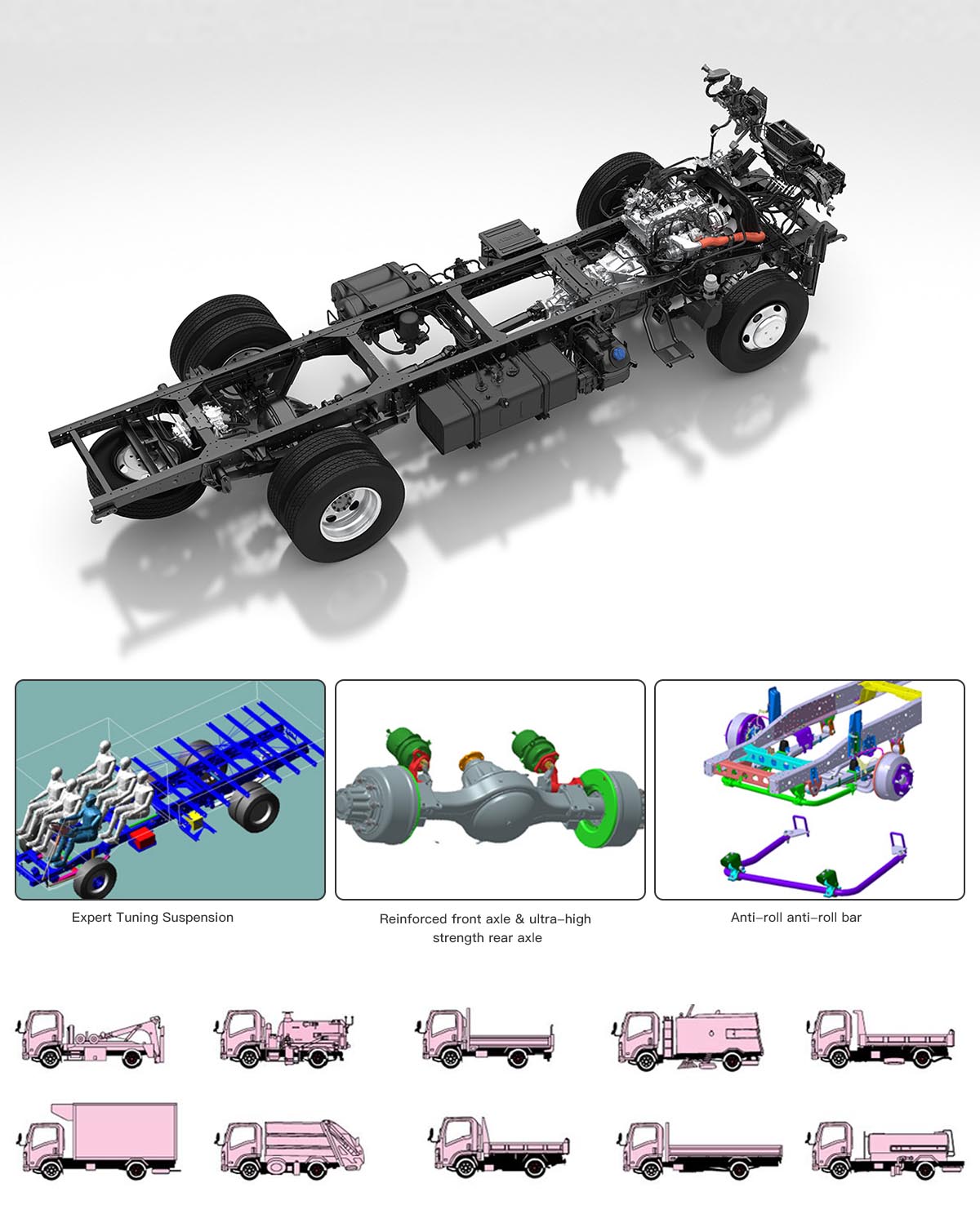

This ISUZU rear loader garbage truck based on ISUZU new NPR truck chassis and features a single-row cabin with three spacious and comfortable seats, all adopting a welded steel tilting design that facilitates maintenance and enhances cabin robustness. The mechanical cabin tilt, rear mechanical suspension, adjustable driver's seat, power windows, manual locks, and air conditioning ensure driver comfort and operational convenience.
Main features:
★ The body size ranges from 3 cubic meters to 20 cubic meters
★ Isuzu engine, powerful and reliable. No overhaul within 1000000km
★ Taiwan Yonghong PLC integrated control, efficient operation
★ Different rear lifting systems can be selected.
★ Can be put into 20",40"container and ship to worldwide

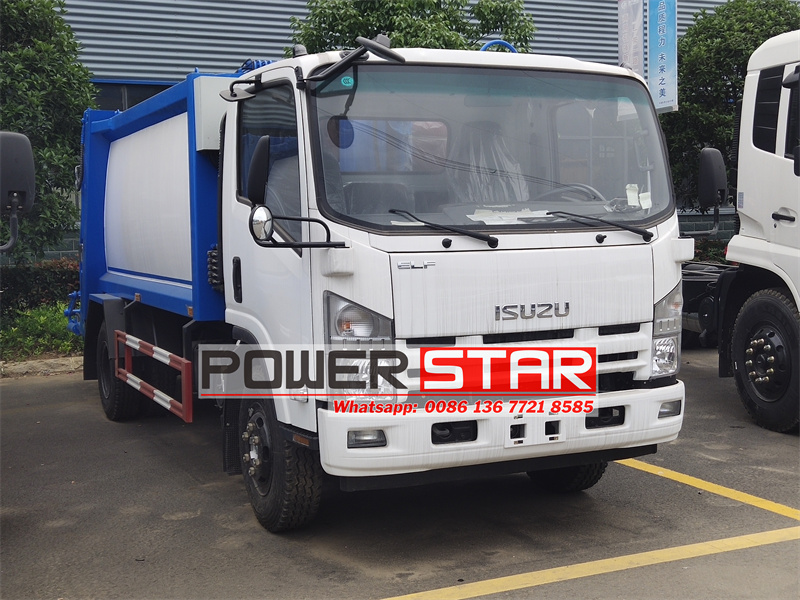

Laos customer purchased newly designed year 2025 ISUZU waste compactor truck with 8CBM capacity. Crafted from T420 high-strength special steel with thickness for side and floor both 4mm, the compartment is lightweight yet strong, and its fully sealed design ensures that garbage remains enclosed during compression, loading, and transportation, effectively preventing secondary pollution and odor emission. With a compression ratio exceeding 2.5, the same compartment volume can accommodate more garbage, significantly boosting transportation efficiency. The tailgate capacity is no less than 0.8 cubic meters, and coupled with the rapid discharge system, the discharge time is no more than 45 seconds, greatly shortening the garbage processing cycle. In terms of operation, the ISUZU 8cbm Rear Loader supports both manual and automatic modes, catering to different operational scenarios and enhancing operational flexibility and convenience.

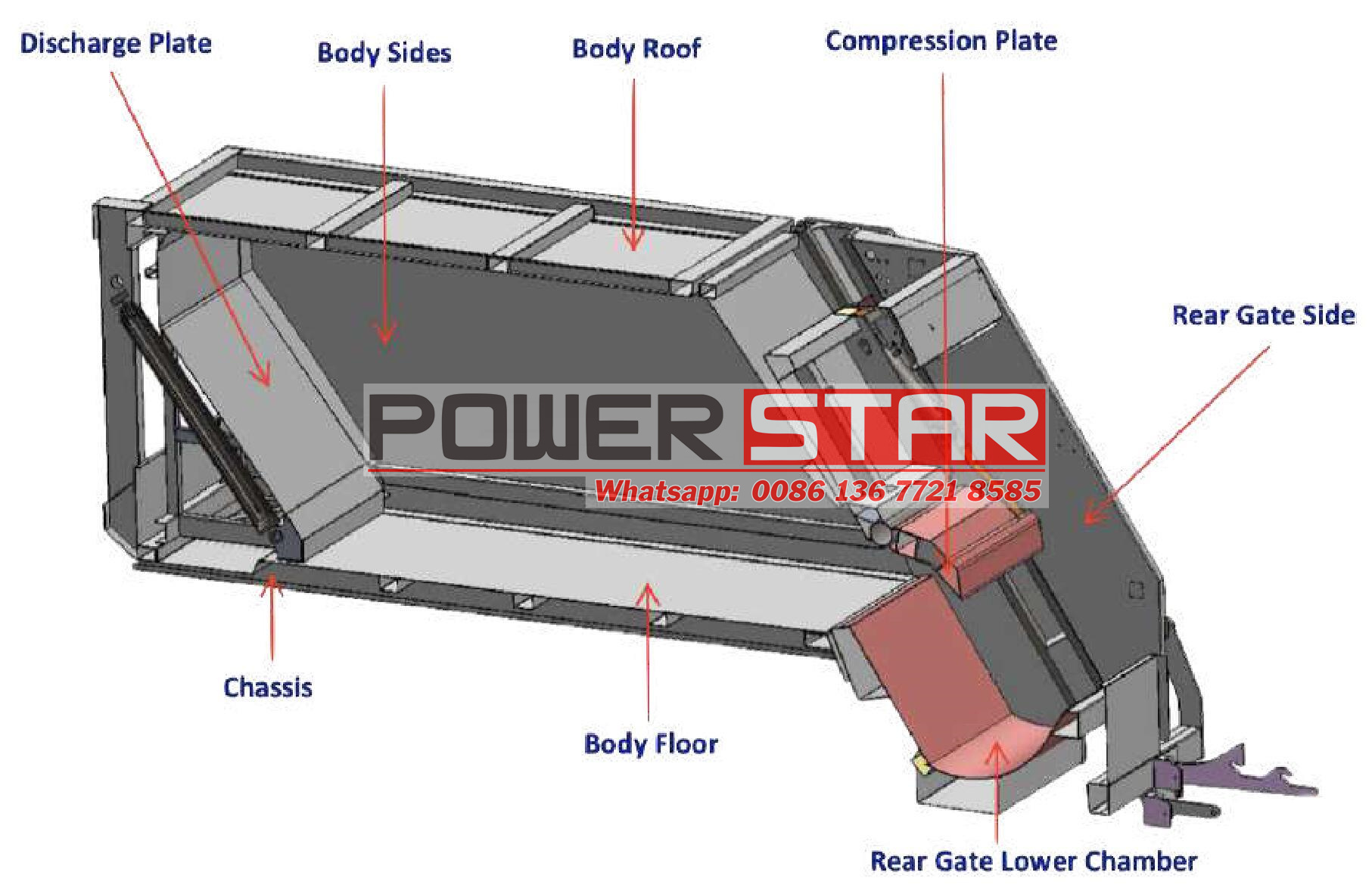

ISUZU NKR garbage compactor truck is widely suitable for urban streets, residential areas, commercial districts, schools, hospitals, and various other settings. Whether for routine urban cleaning and maintenance or emergency garbage disposal during special periods, the ISUZU 6CBM Rear End Loader consistently delivers exceptional performance, meeting the diverse needs of customers for garbage processing equipment. And below 3D drawing showing detailed component of ISUZU refuse compactor truck. Including Discharge Plate, Body Sides, Body Roof, Compression Plate, Rear Gate Side, Chassis, Body Floor, Rear Gate Lower Chamber.
Product Parameters for ISUZU NPR rear loader compactor truck:
|
Basic Information |
|
|
Chassis brand |
ISUZU |
|
Product name |
ISUZU 8m3 rear load garbage truck |
|
Overall Dimension |
|
|
Cab |
Single Row, 3 seats, Air-conditioning, USB |
|
Driver position |
Left hand drive |
|
Drive Model |
4X2 |
|
Overall Parameter: L×W×H |
6500×2200×2550mm |
|
Wheel Base |
3360mm |
|
Curb Weight |
4800kg |
|
Max Speed |
90Km/h |
|
Engine and Chassis |
|
|
Engine manufacturer |
ISUZU |
|
Engine model |
4HK1-TCG61 |
|
Power |
190HP/140KW |
|
Displacement |
5193ml |
|
Emission Standard |
Euro 6 |
|
Transmission |
ISUZU MLD 6 speed Manual Transmission |
|
Suspension System |
Leaf spring |
|
ABS |
Yes |
|
Tyre |
235/75R17.5, 6+1 spare tire, radial tire |
|
Superstructure Parameter |
|
|
Compactor Volume |
8 m3 |
|
Material |
T420 high strength steel |
|
Steel and thickness |
Side 4mm, Bottom 4mm |
|
Unloading System |
Push Plate Type |
|
Control system |
CAN-BUS |
|
Lifting System |
Hang Ash-bin Type |
|
Loading one cycle working time |
≤10s |
|
Unloading one cycle working time |
≤40s |
|
Operation |
Manual and automatic |
Garbage compactor truck ISUZU is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing repollution. When the ISUZU npr refuse compactor truck arriving at destination, the garbage can be discharged by Push Plate completely. It is ideal solution for solid waste collection. The ISUZU Garbage compactor is also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle, which is designed to collect and transport municipal solid waste.
Isuzu truck mounted garbage compactor is an essential piece of equipment for efficiently managing waste collection. This type of garbage compactor is mounted on isuzu NPR ELF 700P truck chassis, allowing waste to be collected and compacted while on the move. Isuzu rear loader truck is a vehicle specially used for garbage collection and processing. It is usually equipped with a garbage bin body to store garbage. The pressure of the garbage bin body is very important. It directly affects the garbage processing efficiency and the working effect of the garbage compression truck. The pressure of the garbage bin body refers to the pressure inside the garbage bin body after the garbage is filled. Below showing advanced features of the ISUZU NPR refuse compactor truck chassis:
Working Principle and Process for ISUZU refuse compactor truck:
The Japanese ISUZU garbage compactor truck has the characteristics of simple structure, convenient operation and maintenance, safety and reliability, and high degree of automation. It can effectively avoid secondary pollution and noise pollution during garbage collection and transportation, and is extremely conducive to environmental protection.

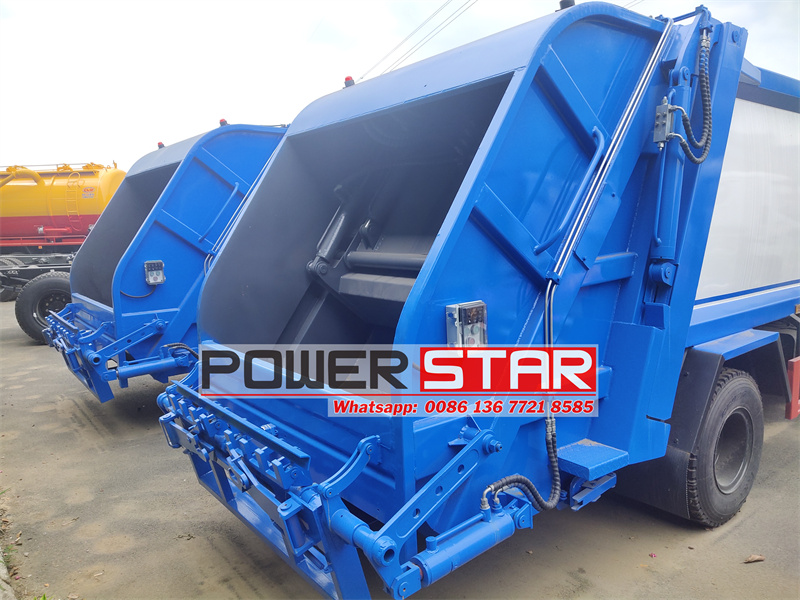

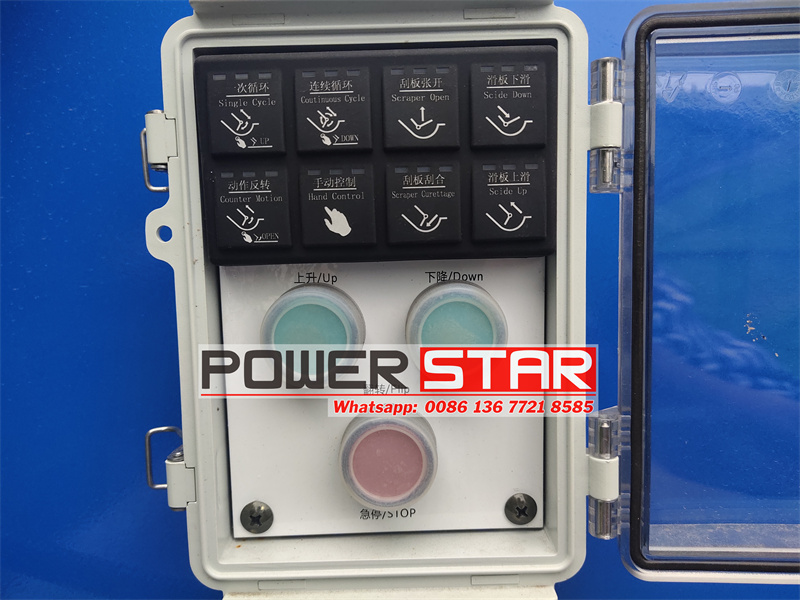

Garbage loading: Operate the control box at the rear of the rear loader truck or the wireless remote control, press the down button, lower the bucket lifting mechanism, and push the garbage can to the appropriate position. Press and hold the up button to make the hook firmly hang on the garbage can and rise until the garbage can is tipped into place. If there is garbage left in the bucket, press the down button to make the bucket swing back for a while and then press the up button to tip over and unload again.
Pressing operation: After the garbage is loaded from garbage bins in hopper, press the button to control Slide Plate and Scraper to make cycle work to perform the pressing and filling operation until the push plate is retracted and the garbage can is completely filled. During this process, manual or automatic mode can be selected as needed. In manual mode, a single cycle or continuous cycle operation can be performed in the order of opening the scraper and sliding the slide plate.
