Isuzu 8cbm garbage compactor truck is modified on the Isuzu NKR 600P chassis, with 3815mm wheelbase, 4KH1CN6LB 120HP engine, 2999ml displacement, EURO 6 emission, Isuzu MSB 5-speed gearbox,maximum speed 110Km/h, the upper body is an 8 cubic garbage bin, with sides 4mm and bottom 5mm thickness, anti-rust treatment, and is operated and controlled by Taiwan Yonghong PLC electronic control system and hydraulic manual operation system, including 1 set of electronic control operation buttons in the cab and 1 set on the left side of the tailgate (2 sets in total), and 1 set of hydraulic manual operation device behind the cab.
Manufacturer:
Powerstar TrucksWork capacity:
8CBMDimension:
7150 x 2210 x 2640mmCabin type:
Isuzu NKR 600P cabin , 2 seatsWheelbase:
3815mmEngine power:
120HPEngine type:
Isuzu 4KH1CN6LBAxle drive:
4X2Gear box:
Isuzu MSB 5-speed gearboxRemarks:

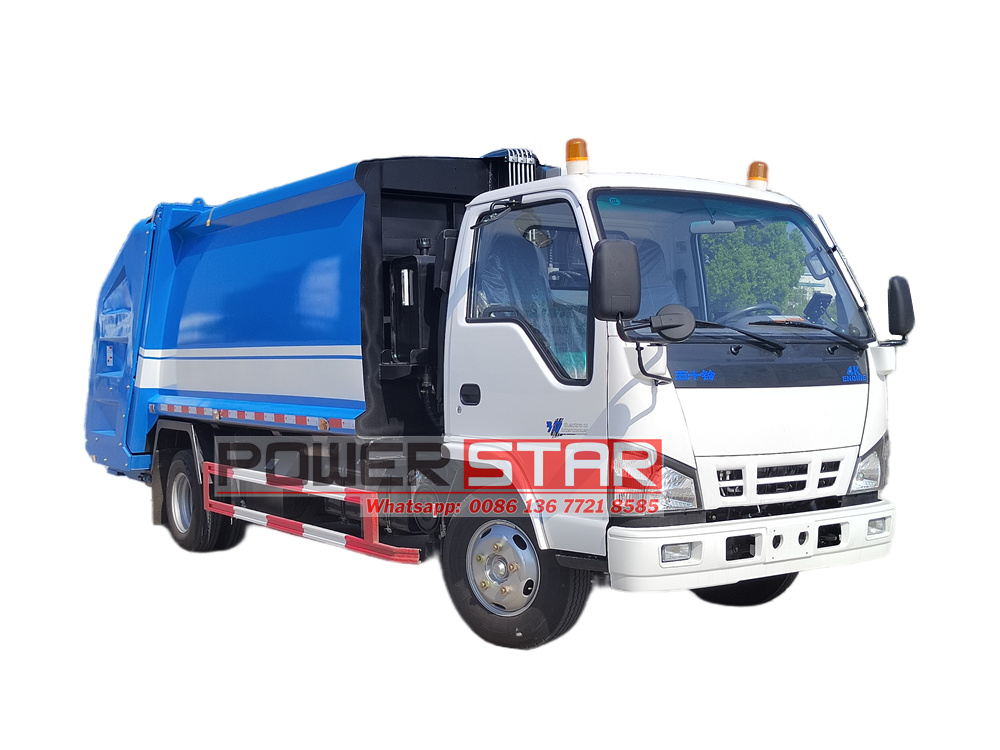

Isuzu NKR chassis,large capacity garbage binThe Isuzu NKR rear loader compactor truck is an efficient sanitation vehicle designed for urban garbage collection and treatment. It adopts advanced hydraulic transmission system and electronic control operation technology to achieve automatic loading, efficient compression and convenient unloading of garbage. The vehicle is equipped with a sturdy and durable garbage box, which can accommodate a large amount of garbage and reduce the number of transportation times.
During the loading process, the compression mechanism compacts the garbage tightly through reciprocating motion, which improves the loading efficiency and transportation capacity. At the same time, the electronic control system provides an intuitive and easy-to-use operation interface, allowing operators to easily monitor and control the entire working process. The vehicle is suitable for urban and rural garbage collection, with the advantages of high efficiency, environmental protection, and flexible operation, and is an ideal choice for modern garbage management.
● 30 years experience on rear loader truck designing

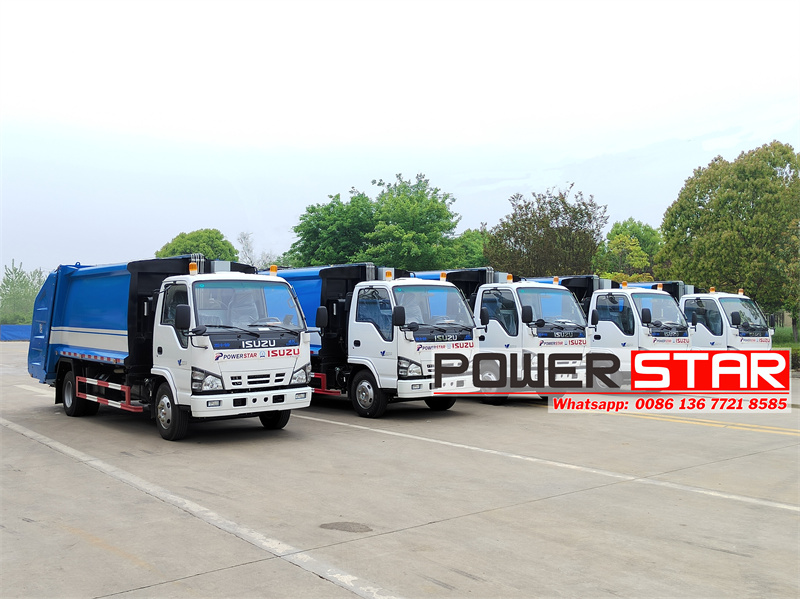

● 50 units Isuzu garbage compactor truck in stock, 5 cbm, 8 cbm, 12 cbm, 20CBM
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
|
Isuzu NKR rear loader compactor truck |
||
|
Cabin |
Driving type 4x2, Left Hand Drive. |
|
|
Isuzu 600P single row,2 seats,with A/C,USB,direction assistance. |
||
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H) |
7150*2210*2640mm |
|
Wheel base |
3815mm |
|
|
Overhang (front/rear) |
1110/2225mm |
|
|
Weight in KGS |
GVW |
7300kg |
|
Curb weight |
4020kg |
|
|
Front axles loading capacity |
2580kg |
|
|
Rear axles loading capacity |
4720kg |
|
|
Max. driving speed(km/h) |
110km/h |
|
|
Engine |
Brand |
ISUZU |
|
Model |
Isuzu 4KH1CN6LB |
|
|
Type |
4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling,diesel |
|
|
Horse Power |
120 HP/88kw |
|
|
Max torque |
290N·m |
|
|
Displacement |
2999ml |
|
|
Emission standard |
Euro VI |
|
|
Gearbox |
Isuzu MSB 5 forwards &1 reverse |
|
|
Clutch |
Diaphragm spring clutch |
|
|
Steering Gear |
Power steering |
|
|
Tire |
7.00R16 All radial tires with one spare, 7 pieces |
|
|
Compression garbage box body system |
||
|
Body Volume |
8CBM |
|
|
Material |
Carbon steel |
|
|
Thickness |
Side 4mm, Bottom 5mm |
|
|
Cycle Time of Filling |
25-30s |
|
|
Lifting Time of Filler |
8-10s |
|
|
Time of Discharging |
≤40s |
|
|
Working Pressure |
16 MPA |
|
|
Hydraulic system |
||
|
Shovel cylinder |
1 |
|
|
Scraper cylinder |
2 |
|
|
Slide plate cylinder |
2 |
|
|
Rear flip cylinder |
2 |
|
|
Lifting cylinder |
2 |
|
|

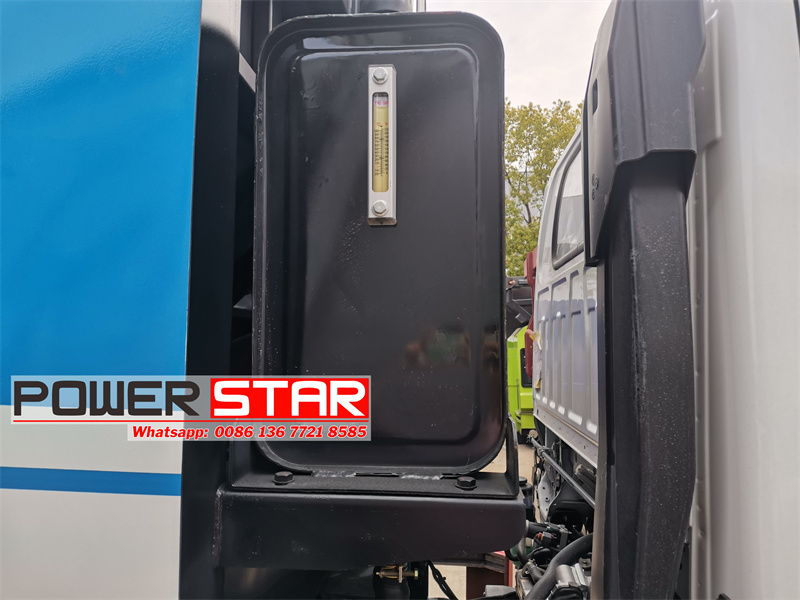

Hydraulic tank |
150L |
|
|
Hydraulic oil pump |
Hefei Wanye Oil Pump |
|
|
Multi-way valve |
Yangzhou Zhongmei multi-way valve |
|
|
Electric control system |
||
|
Operating system |
Taiwan Yonghong PLC electric control system and manual operation device |
|
|
Electronic control operation button |
1 set in the cabin, 1 set at the left of the tailgate (2 sets total) |
|
|
Manual operation device |
1 set behind cab |
|
|
Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank. |
||
The Isuzu NKR Rear Loader Compactor Truck is a highly efficient and robust waste management vehicle designed for urban and suburban garbage collection. Built on the reliable Isuzu NKR 600P chassis, this truck combines durability, performance, and advanced technology to meet the demands of modern waste disposal operations.
Key Features:
1.Chassis and Powertrain:
◆ Chassis Model: Isuzu NKR 600P
◆ Wheelbase: 3815 mm
◆ Engine: 4KH1CN6LB, 120 HP
◆ Gearbox:Isuzu MSB 5-speed,manual
◆ Displacement: 2999 ml
◆ Emission Standard: EURO 6
◆ Max Speed: 110 km/h
The 4KH1CN6LB engine provides a balance of power and fuel efficiency, ensuring reliable performance even under heavy loads. Its EURO 6 compliance makes it environmentally friendly, reducing harmful emissions.
2. Body and Compactor:
● Garbage Bin Capacity: 8 cubic meters
● Material Thickness: Side 4 mm, Bottom 5 mm
● Anti-Corrosion Treatment: The body is treated with anti-rust coatings to enhance durability and longevity, even in harsh working conditions.
The 8 m³ garbage bin is designed to handle large volumes of waste, making it ideal for high-density residential or commercial areas. The reinforced side and bottom panels ensure structural integrity and resistance to wear and tear.
3. Control Systems:
★ PLC Control System: The truck is equipped with a Taiwan Yonghong PLC control system, which ensures precise and efficient operation of the compactor and other hydraulic functions.

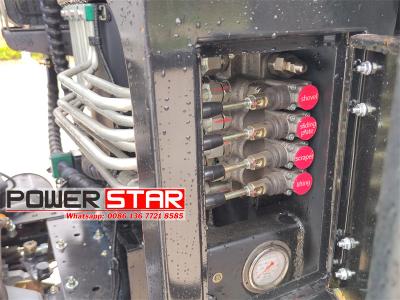

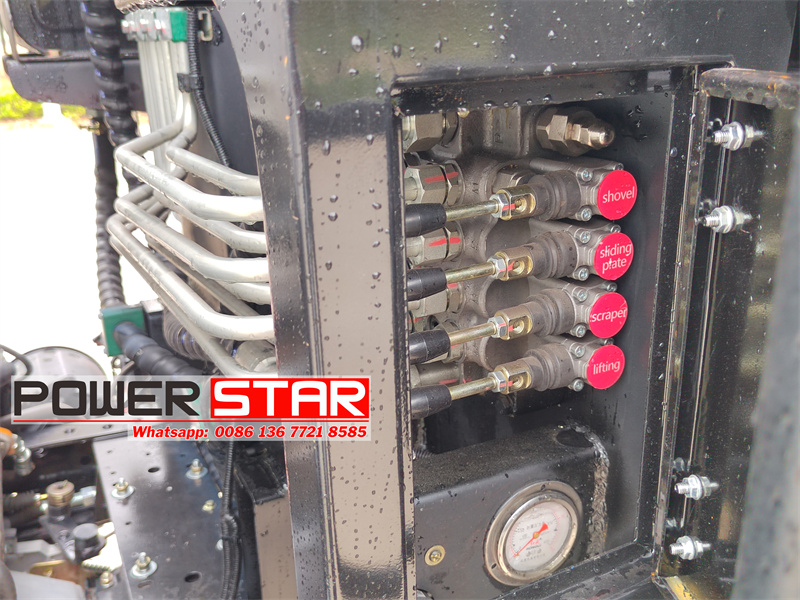

★ Hydraulic Manual Operation: A manual hydraulic control system is installed at the rear of the cab for backup or manual operation when needed.

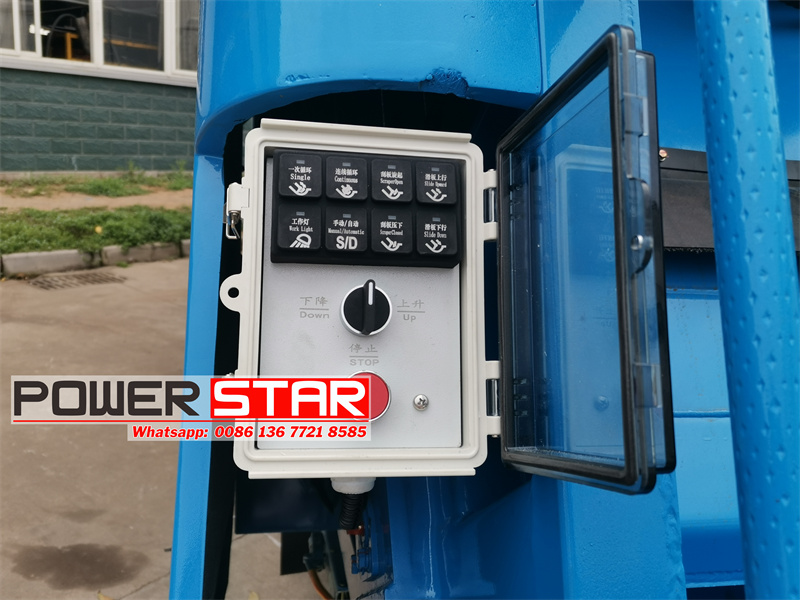

★ Electric Control Buttons:

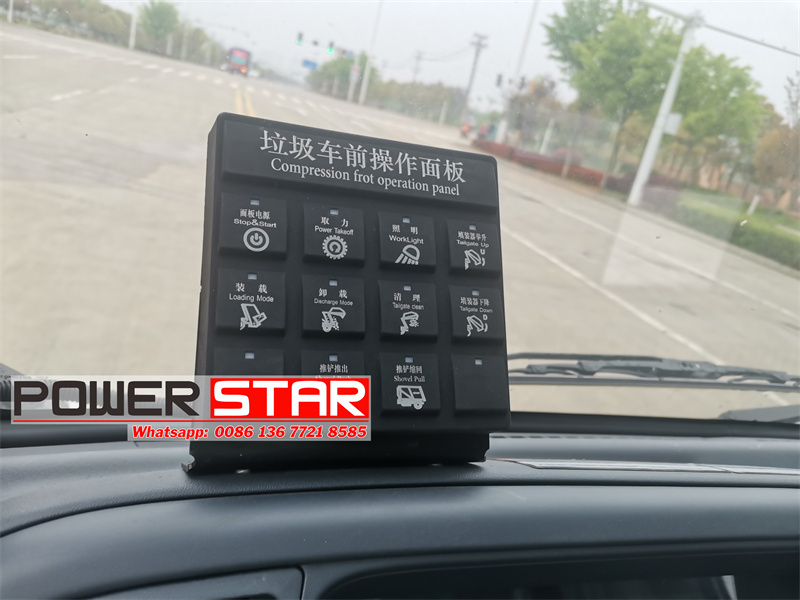

- 1 set inside the cab for convenient operation by the driver.

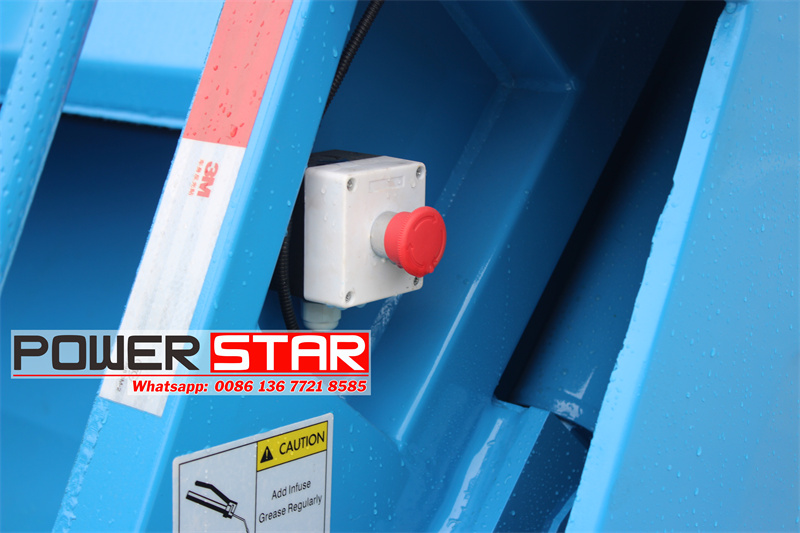

- 1 set on the left side of the tailgate for easy access during loading and unloading.
The dual control systems (electric and manual) provide flexibility and reliability, ensuring smooth operation in various scenarios.
4. Performance and Usability:
■ The rear loader compactor mechanism is designed to compress waste efficiently, maximizing the truck's capacity and reducing the frequency of trips to disposal sites.
■ The 110 km/h maximum speed allows for quick transit between collection points and disposal facilities, improving overall operational efficiency.
Applications:
This truck is ideal for:
● Municipal waste collection
● Residential and commercial garbage disposal
● Recycling operations
● Industrial waste management
Working Principle

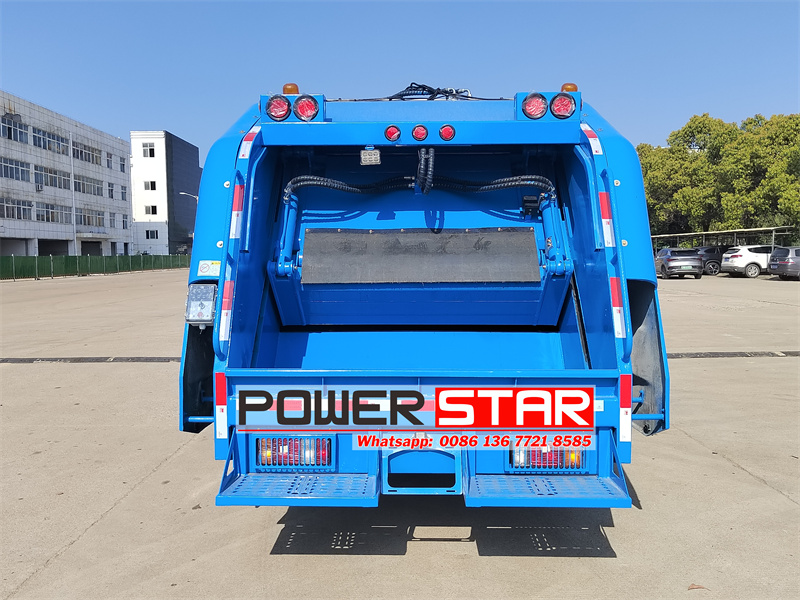

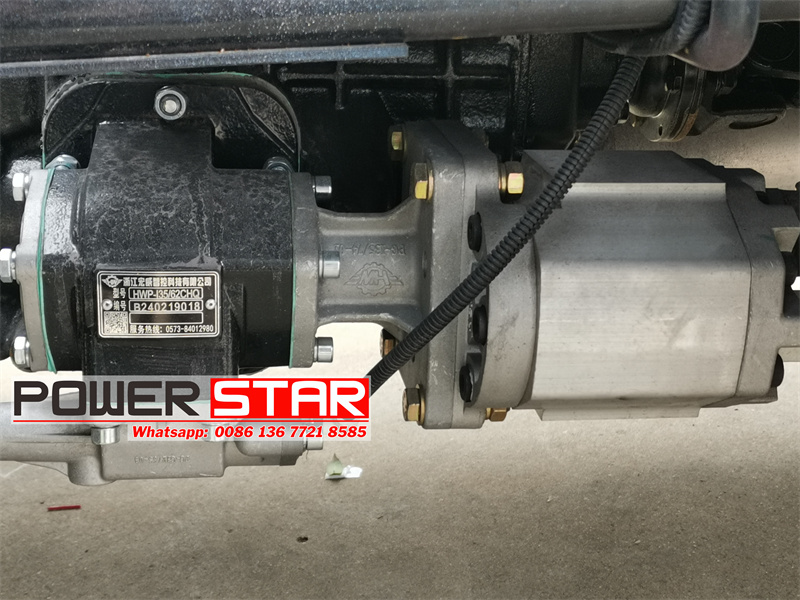

The Isuzu ELF 600P rear loader garbage truck is driven and controlled entirely by a hydraulic system. Specifically, the power generated by the vehicle's engine is transmitted to the oil pump through a power take-off and a transmission shaft. As the oil pump rotates, it generates high-pressure oil, which then drives the relevant hydraulic cylinders to work by operating the control switches on the multi-way directional valve. These cylinders drive specialized mechanisms to complete the tasks of garbage loading, compression, and unloading, respectively.

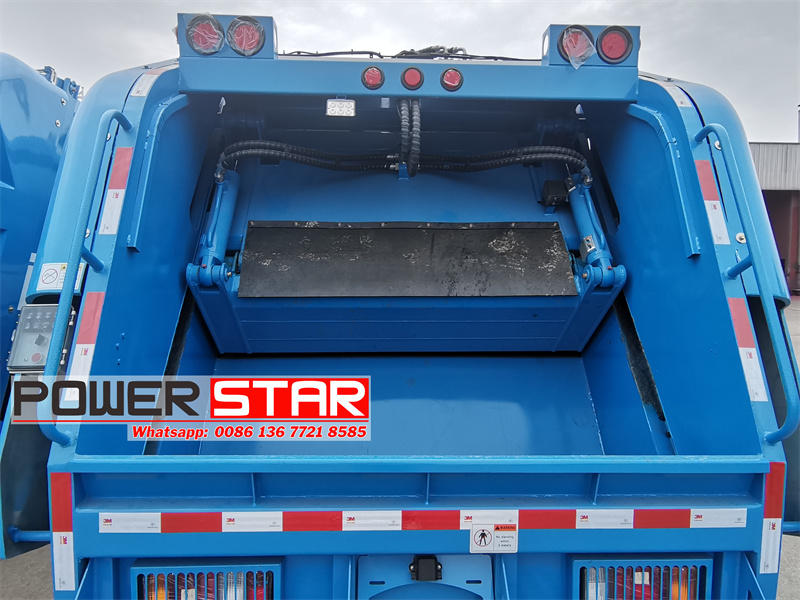

The compression mechanism consists of a press plate, guide wheels, and a cylinder base, all welded together with steel plates and channel steel. It can efficiently compress the garbage from the hopper into the carriage under the pushing force of the cylinder. The entire process takes only 25-30 seconds, with a compression density of 0.6-0.8 tons per cubic meter. The unloading mechanism, on the other hand, is composed of an unloading cylinder and an unloading push plate. The push plate is welded together with steel plates and brackets and is positioned through guide slots. When the cylinder extends, it pushes the unloading push plate, thereby discharging the garbage from the carriage. The entire unloading process takes approximately 40 seconds.
