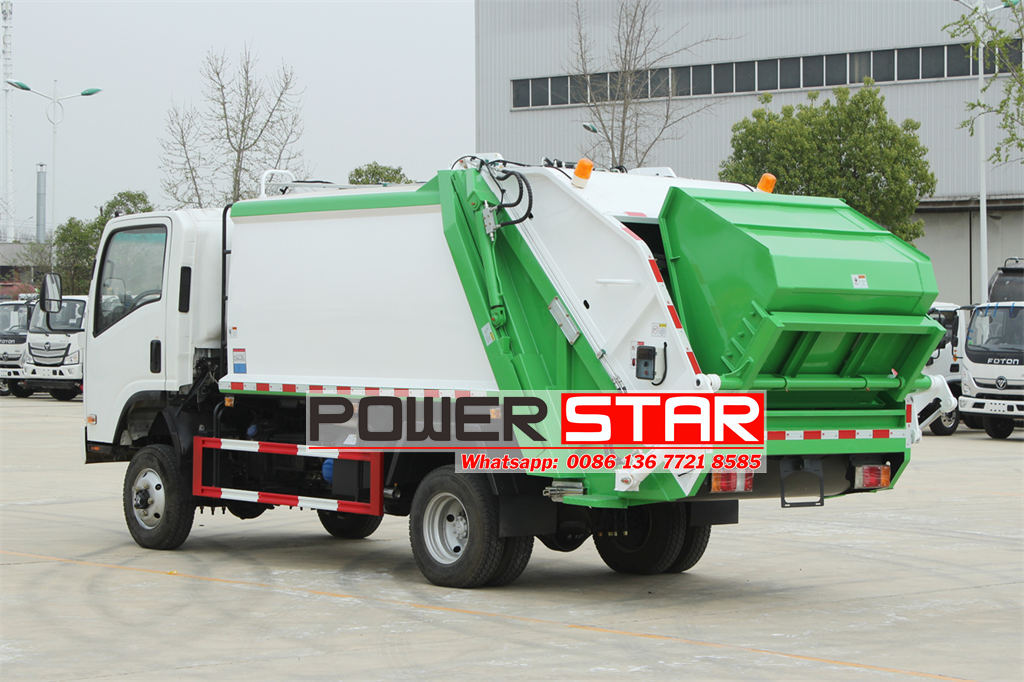

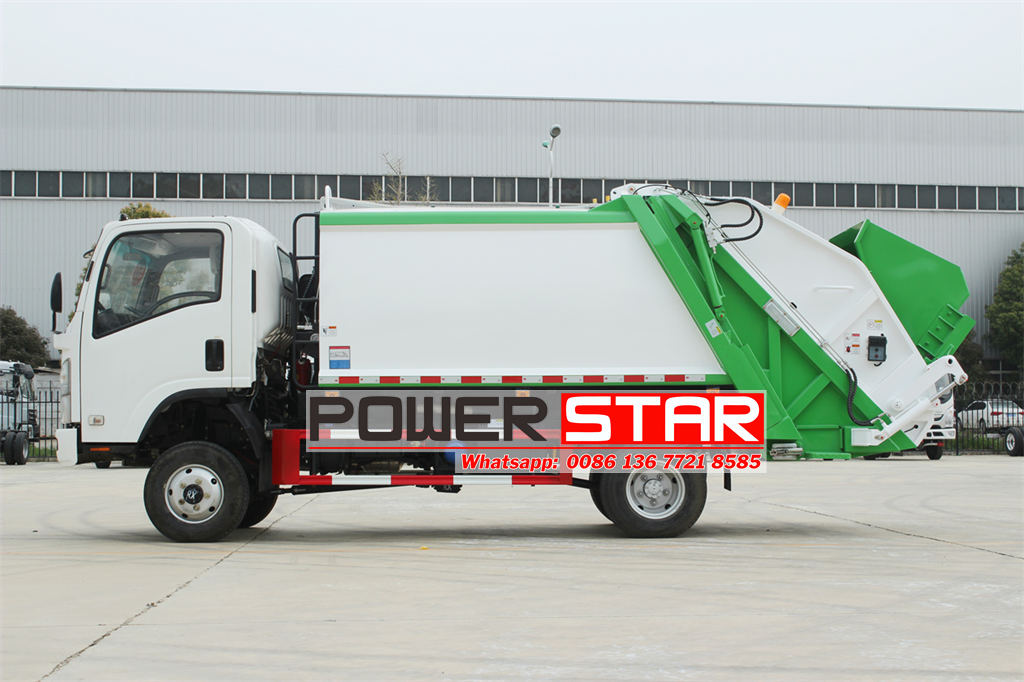

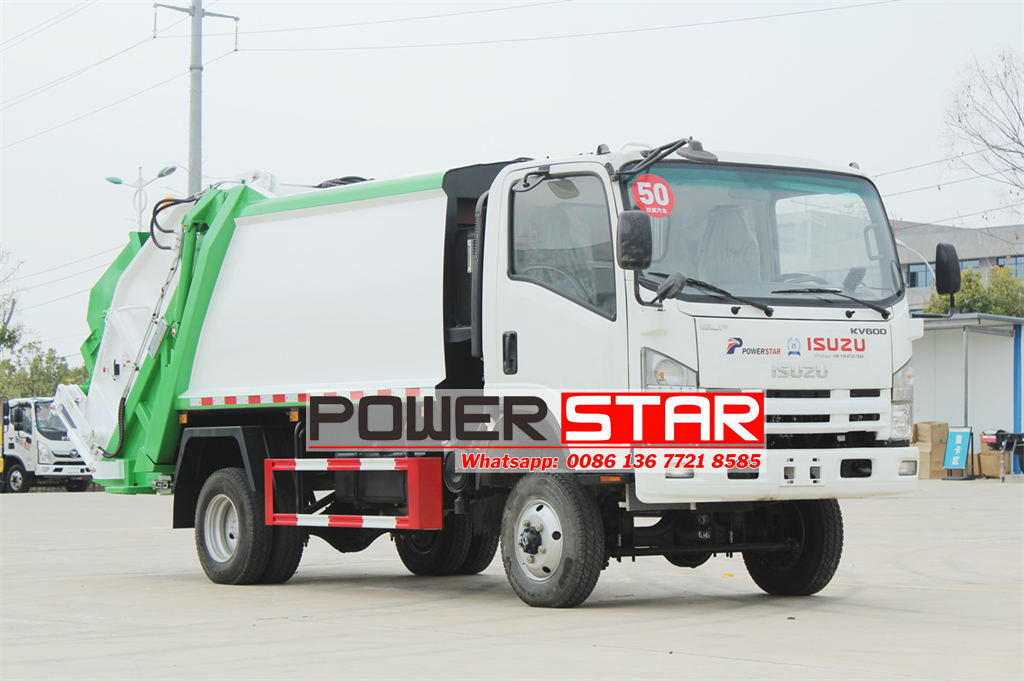

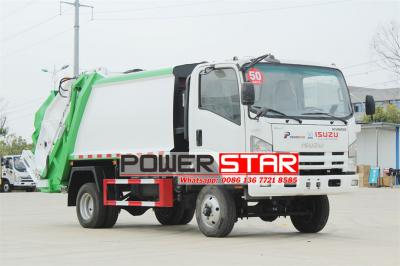

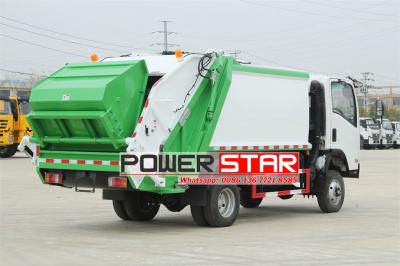

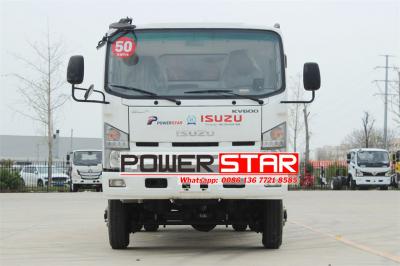

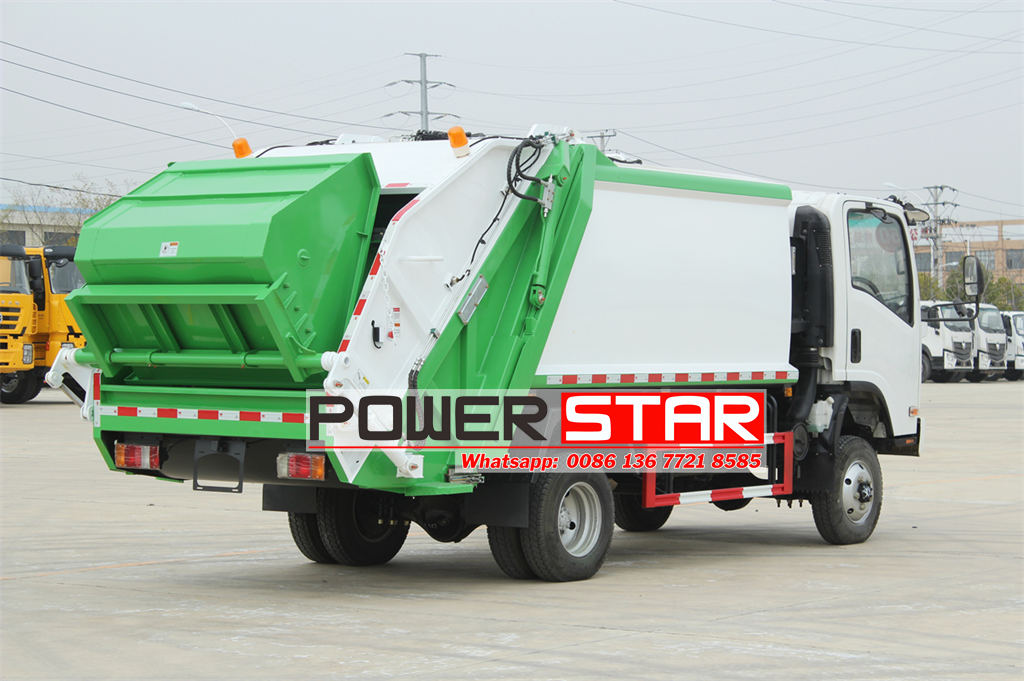

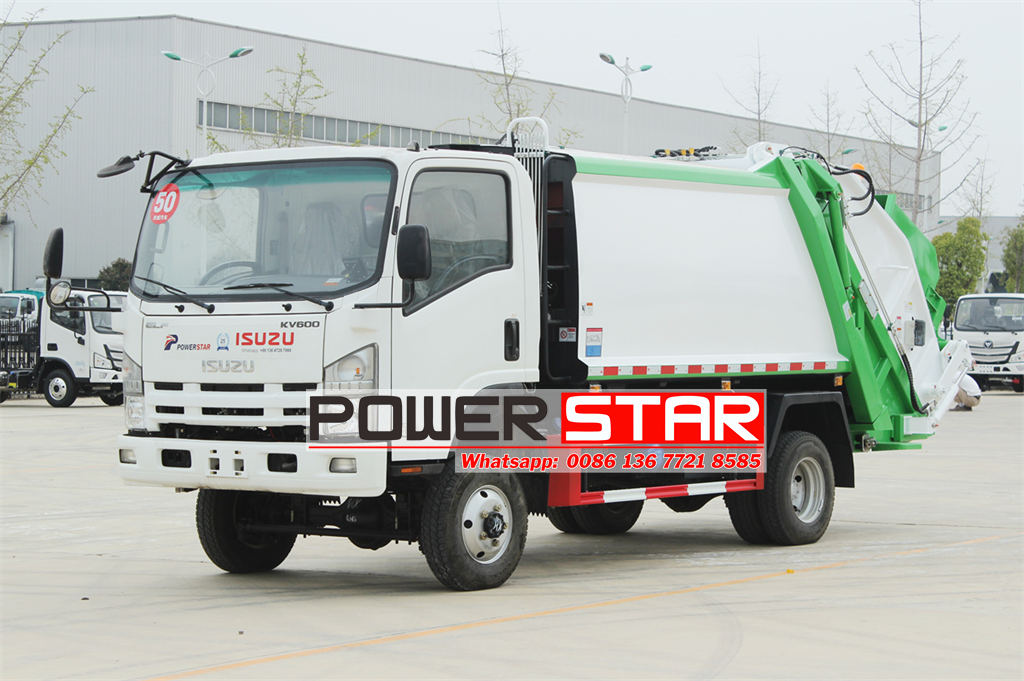

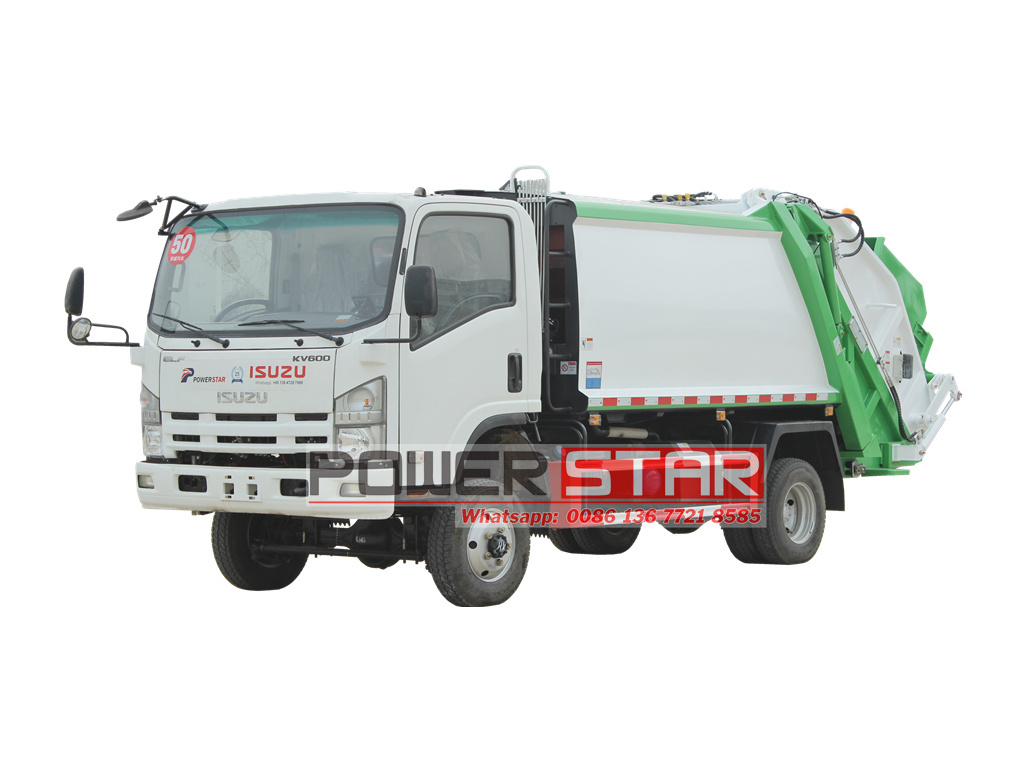

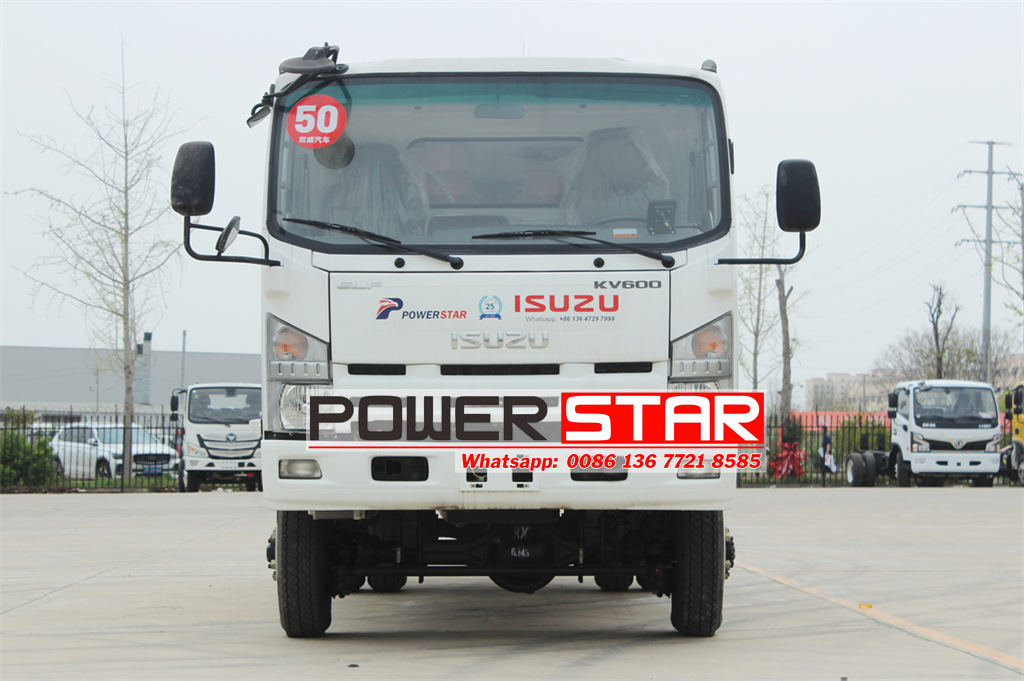

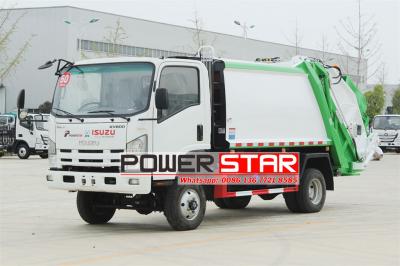

ISUZU 4x4 waste compactor truck for Philippines
The ISUZU 4x4 Garbage Compactor Truck is a highly efficient and environmentally friendly specialized vehicle for waste management. It is equipped with a 4KH1CN6HB diesel engine, delivering 97kW of power and complying with Euro VI emission standards. Featuring a 4x4 drive system, it has a gross weight of 8500kg and a compactor volume of 7 cubic meters, with a compaction ratio of ≥2.5. Both loading and unloading times are ≤35 seconds. The truck is equipped with a CAN-bus intelligent control system, supporting both automatic and manual operations, and a hydraulic system with a maximum pressure of 18MPa. Its robust chassis, 3365mm wheelbase, and 7.50R16 16PR tires make it suitable for complex road conditions, making it an ideal choice for urban waste management.
Manufacturer:
Powerstar TrucksWork capacity:
7CBMDimension:
6800 x 2250 x 2680mmCabin type:

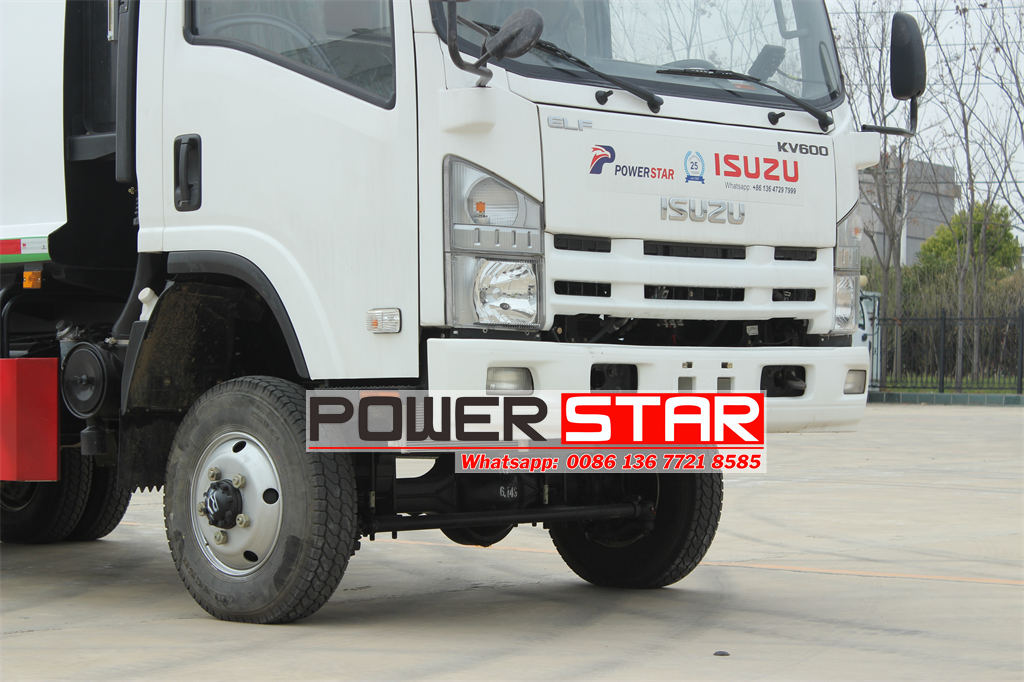

ISUZU KV600 4×4 chassis,2 seatsWheelbase:
3365mmEngine power:
132 HPEngine type:
4KH1CN6HBAxle drive:
4×4Gear box:
MLD 6-speed,manualRemarks:

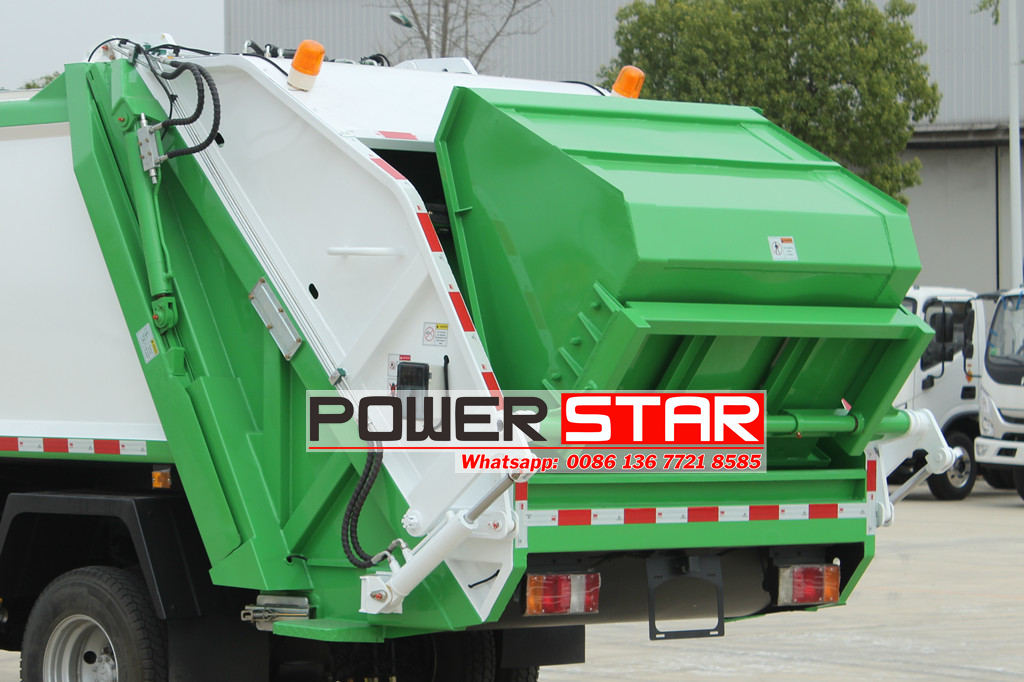

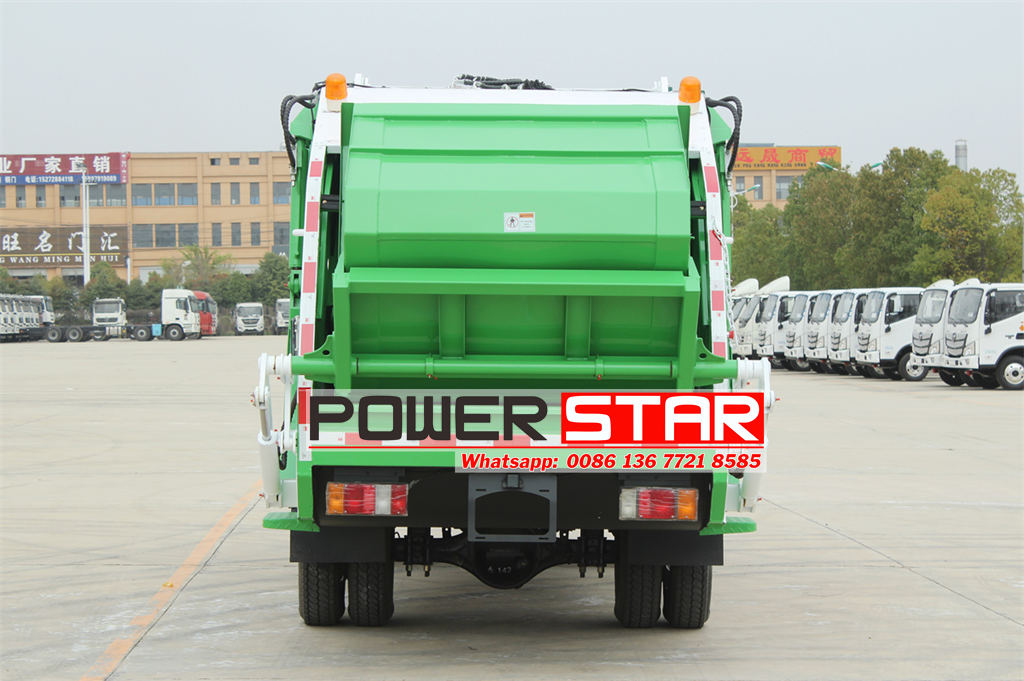

Hanging bucket rear flip mechanismThe ISUZU 4x4 Garbage Compactor Truck is a highly efficient and environmentally friendly vehicle specifically designed for urban waste management. Its powerful engine, advanced compaction technology, and robust chassis structure make it excel in garbage collection and transportation. The ISUZU compactor truck is equipped with a 4KH1CN6HB diesel engine from ISUZU, featuring a 4-cylinder in-line, water-cooled, turbocharged, and intercooled design, with a displacement of 2999 ml and a maximum power output of 97 kW (132 HP). The 4x4 drive system further enhances the vehicle's off-road capability and adaptability, allowing it to operate stably in various complex road conditions.

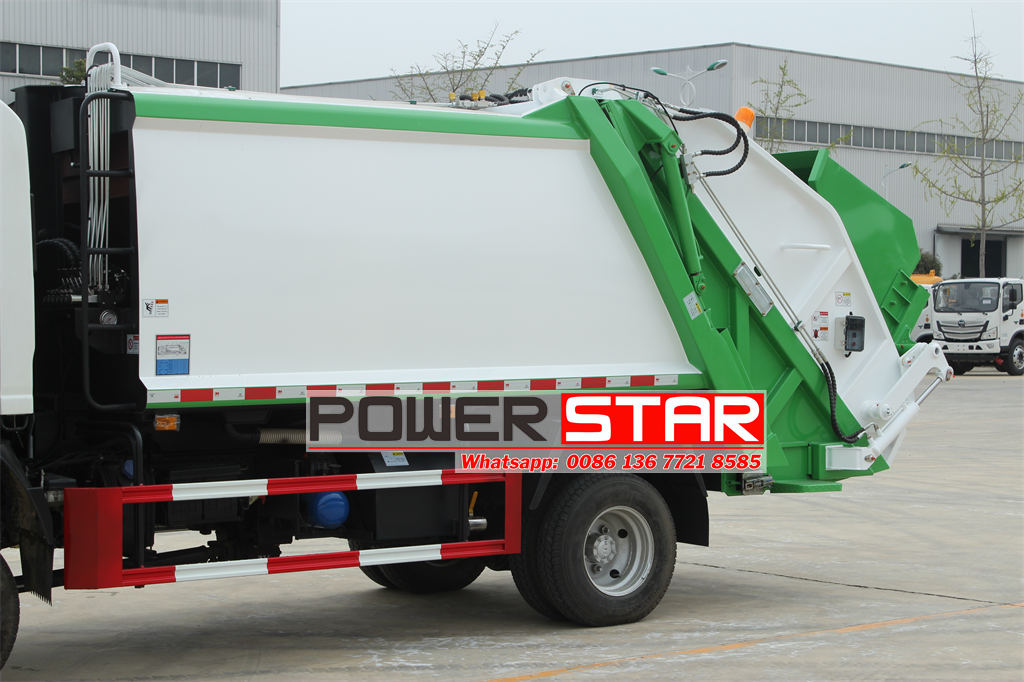

The compaction system is the core component of the garbage truck. The ISUZU 4×4 rear load garbage truck boasts a compactor volume of 7 cubic meters, constructed with T420 steel, and features side and floor plates with a thickness of 4 mm, ensuring the durability and sturdiness of the compactor body. With a compaction ratio of ≥2.5, the volume of garbage is significantly reduced after compaction, improving transportation efficiency. The tailgate volume of ≥0.8 cubic meters facilitates easy loading and unloading of waste. The hydraulic system reaches a maximum pressure of 18 MPa, ensuring efficient and stable compaction. The combination of automatic and manual control modes, along with the CAN-bus control system, makes operations more intelligent and user-friendly.
● Fast delivery time, quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● China best ISUZU waste compactor truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
Product Specifications
|
Items |
Descriptions |
Specifications and Types |
|
General |
Truck Name |
ISUZU Garbage Compactor Vehicle |
|
Drive Type |
4×4 |
|
|
Gross Weight (kg) |
8500 |
|
|
Curb Weight (kg) |
5200 |
|
|
Overall Dimensions L*W*H(mm) |
6800*2250*2680 |
|
|
Engine |
Engine Brand |
ISUZU |
|
Model |
4KH1CN6HB |
|
|
Fuel Type |
Diesel |
|
|
Power |
97kw/132HP |
|
|
Emission Standard |
Euro VI |
|
|
Displacement(ml) |
2999 |
|
|
Engine Type |
4 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling |
|
|
Chassis |
Chassis Brand |
ISUZU |
|
Front/rear axle |
3000kg/5500kg |
|
|
Tire No. |
6+1 |
|
|
Tire Specification |
7.50R16 16PR radial tire |
|
|
Wheelbase (mm) |
3365 |
|
|
Axle No. |
2 |
|
|
Steering Wheel |
Left hand drive with power-assisted |
|
|
Gear Box |
MLD, 6 speed, manual |
|
|
Brake |
Air brake |
|
|
Garbage Compactor |
Compactor Volume |
7 Cubic meter |
|
Compactor Material |
T420 steel |
|
|
Compactor Thickness(mm) |
Side plate 4mm, floor plate 4mm |
|
|
Compaction Ratio |
≥2.5 |
|
|
Tailgate volume |
≥0.8 m3 |
|
|

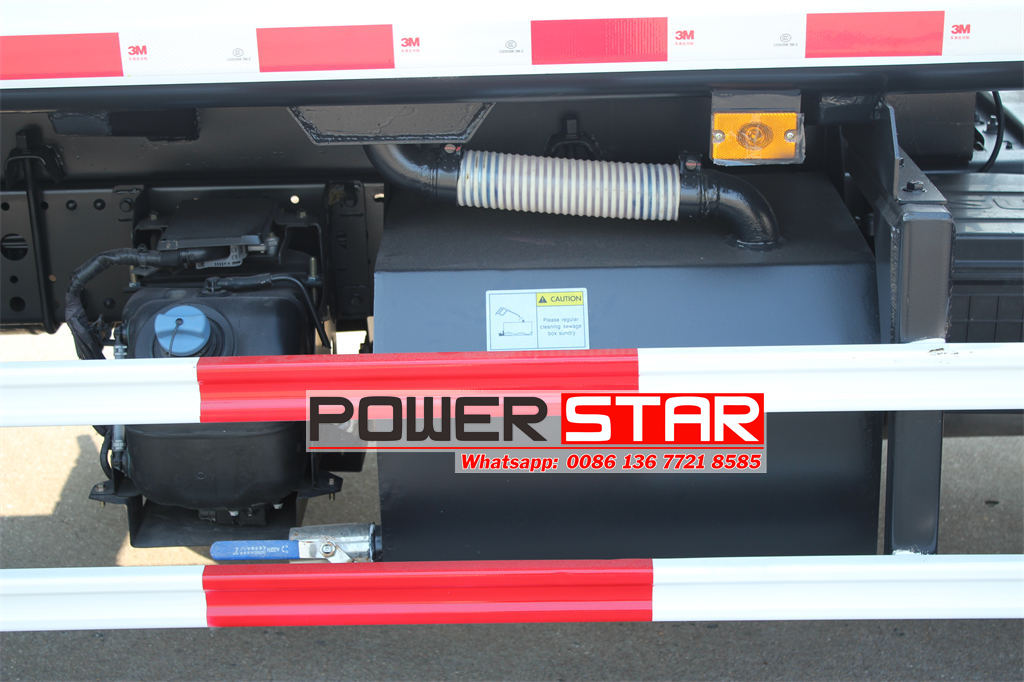

Sewage tanks |
450L |
|
|
Loading one cycle time |
≤35s |
|
|
Unloading time |
≤35s |
|
|
Control mode |
Automatic+manual |
|
|
Control system |
CAN-bus |
|
|
Max. pressure of hydraulic system |
18 Mpa |

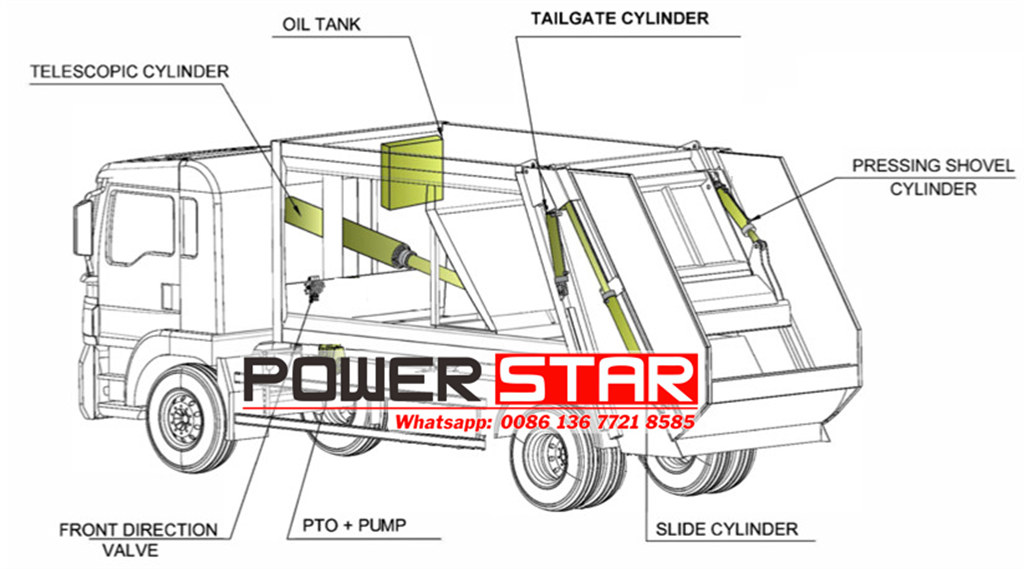

Technical Drawing
Product Features
1. Using high-intensity U-shaped integral truss groove as the working rail for the garbage pushing board, it provides excellent compression capability and is resistant to deformation.
2. The body is constructed with high-strength steel, ensuring durability and strength while reducing self-weight and improving the compression rate. The body features an arc-shaped design, offering a large volume and an aesthetically pleasing appearance.

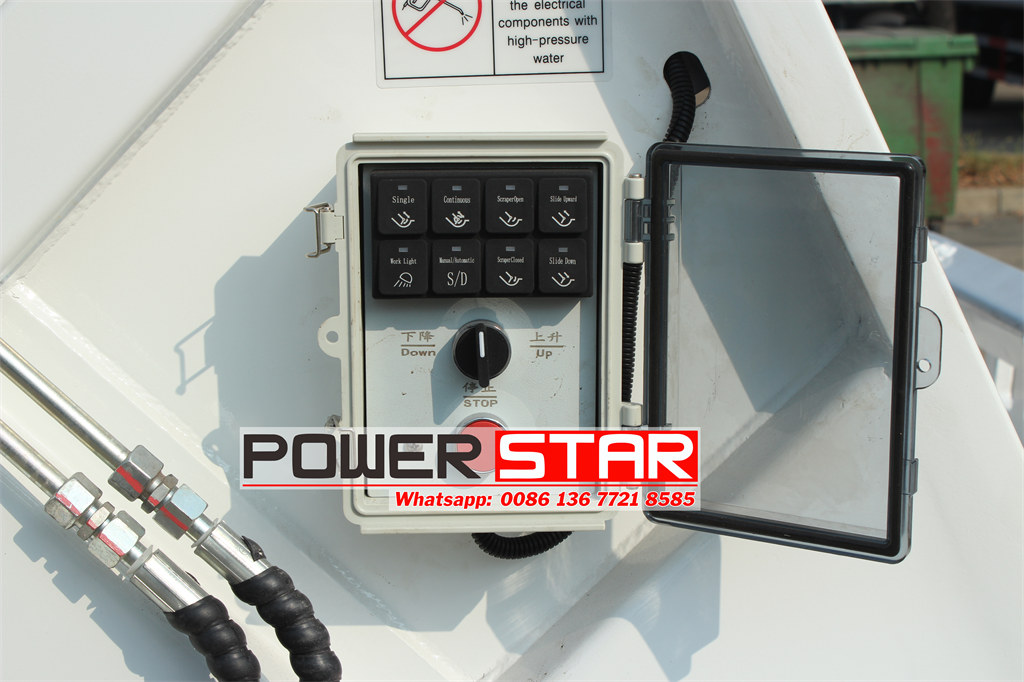

3. With a CAN-bus intelligent control system, it enables centralized control from the cab.

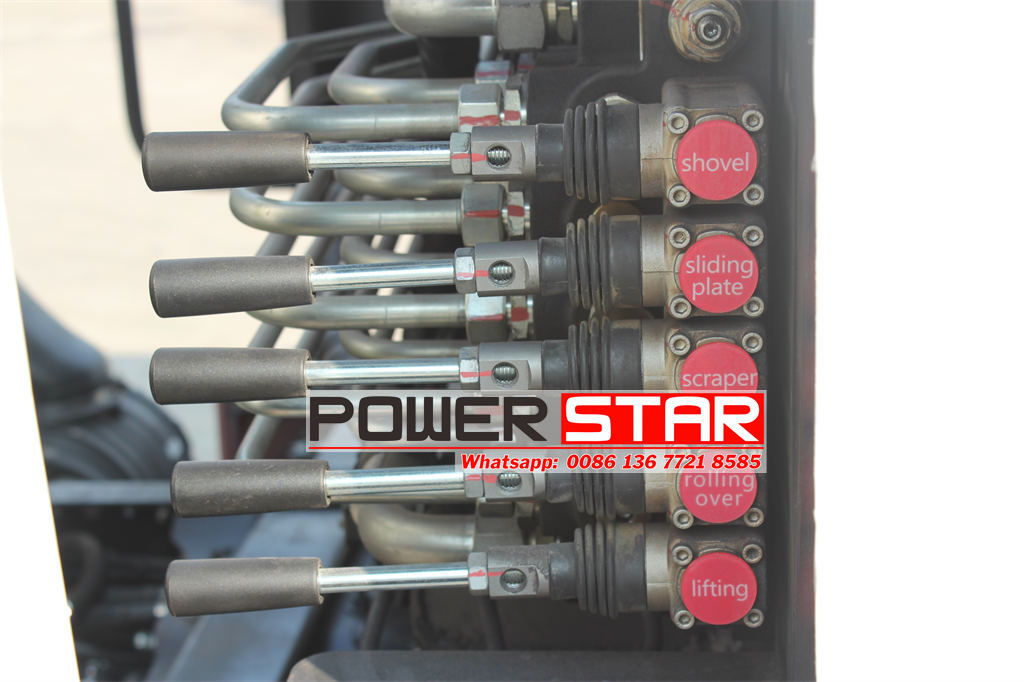

4. Featuring both automatic and manual control methods, it allows workers to operate from the cab, the middle of the carriage, or the rear of the truck, meeting the needs of various working situations.
5. Equipped with night working lights, it ensures the safety of operators during nighttime work.
