Isuzu 16CBM multi compartment rear loader
Isuzu 16 CBM trash compressor truck is designed a testament to efficiency and reliability in waste management. Built on a sturdy ISUZU GIGA 5X chassis with a 4x2 drive type, this vehicle boasts impressive capabilities tailored for urban sanitation operations. With a substantial payload capacity of 12,000 Kg, this trash truck is adept at handling sizable loads, making it ideal for municipal waste collection tasks. The utilization of T420 steel for the garbage tanker material ensures durability and resilience against the rigors of daily operations, enhancing the vehicle's longevity.
Manufacturer:
Powerstar TrucksWork capacity:
16cbmDimension:
8600 x 2500 x 3600mmCabin type:
ISUZU GIGA 5X cab, one and a half row seatsWheelbase:
4500mmEngine power:
240HPEngine type:
Isuzu 6HK1-TCG61Axle drive:
4X2Gear box:
FAST 8-speed,manualRemarks:
CAN-BUS control box and Hydraulic ValveYear 2025 newly customized brand new ISUZU GIGA 5X 4x2 LHD rear loader garbage truck for sale, ISUZU garbage truck factory produced, produce top quality rear loader refuse compactor truck. 4x2 drive GIGA 5X LHD classical cabin truck chassis, ISUZU 6HK1-TC diesel engine with 240HP, FAST manual 8-shift gear box with 8 forward and 1 reverse, customized curved-shape body with material T420, thickness for side and floor both 5mm, 16CBM garbage compactor tank body capacity with loading weight over 12tons , CAN-BUS electric and hydraulic valve control system.

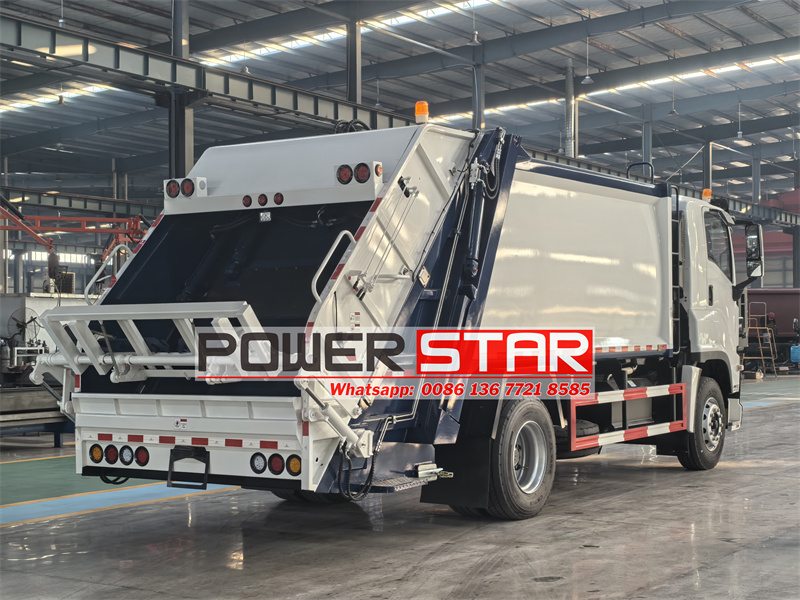

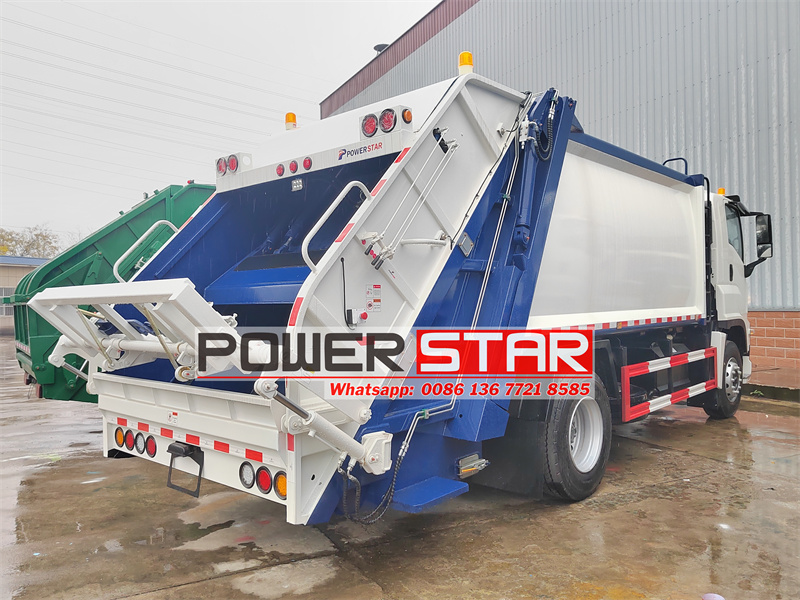

ISUZU GIGA rear loader garbage truck also called ISUZU GIGA 5X Waste Management Rear Loader Truck is a specialized vehicle used for waste collection and disposal. It plays a crucial role in maintaining cleanliness and hygiene in our communities. The ISUZU FVR 16cbm rear loader truck is equipped with a large container hopper at the back, which can hold a significant amount of waste materials, and all working based on efficiently Slide Plate and Scraper. The truck follows a scheduled route to collect trash from residential and commercial areas. Once the truck is full, it transports the waste to a designated disposal site, such as a landfill or recycling center.
The ISUZU trash truck rear loader has a unique feature that sets it apart from other waste collection vehicles. It is equipped with a full hydraulic lifting system, which allows the operator to lift and dump the international standard waste container into the truck without physical contact, bins can be customized as 120L, 240L, 360L, 660L, 770L and 1100L. This feature not only ensures the safety of the operator but also improves efficiency and reduces the risk of littering.
● 30 years experience on rear loader truck designing
● 50 units Isuzu garbage compactor truck in stock, 5 cbm, 8 cbm, 12 cbm, 20CBM
● Fast delivery time, Quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
Technical Parameters for ISUZU rear loader garbage compactor truck:
The ISUZU 16CBM rear end loader truck GIGA 5X chassis is equipped with a 6HK1-TCG61 engine. This engine features a 6-cylinder inline, 4-stroke, water-cooled, intercooled, turbocharged diesel design, delivering excellent power performance and fuel economy. With a rated power of 240 horsepower, a displacement of 7,790cc, truck standard EURO 6 emission standard that can meet international emission requirement, also can be customized to remove DPF and ADBlue system, then can make all Isuzu refuse compactor trucks working as EURO 3 or 4 to cover the problem of diesel quality.
| Truck Specification | ||||
| Model | PT5180ZYS | |||
| Cab | ISUZU GIGA 5X cab, one and a half row seats, with USB connector radio | |||
| Driving Type | 4*2 Left hand driving | |||
| Max Speed (km/h) | 99 | |||
| Overall Dimension (mm) | Appro. 8600mm * 2500mm * 3600mm | |||
| GVW (kg) | 18000 | |||
| Truck Tare Weight (kg) | 9500 | |||
| Wheelbase (mm) | 4500 | |||
| F/R Track Base (mm) | 1750/1650 | |||
| F/R Overhang (mm) | 1200/2140 | |||
| Approach/Departure Angel (°) | 22/10 | |||
| Tire | 295/80R22.5 | |||
| Clutch | Single-plate dry diaphragm spring clutch | |||
| Steering | Hydraulic steering with power assistance | |||
| Gear Box | 8 forward speeds, 1 reverse speed | |||
| Bridge | Front Axle (kg) | 6300 | ||
| Rear Axle (kg) | 13000 | |||
| Engine | Model | 6HK1-TCG61 | ||
| Fuel Type | Diesel fuel | |||
| Emission Standard | Europe 6 | |||
| Type | Water-cooled four-stroke, direct injection, turbocharged | |||
| Output Power (kw) | 177 | |||
| Exhaust(ml) | 7780 | |||
| Max output power/rotate speed (hp /rpm ) | 240/2400 | |||
| Max torque/max torque speed (N.m/rpm) | 760/1450 | |||
| Braking System | Service Brake | Compressed air brake | ||
| Park Brake | Spring energy | |||
| Auxiliary Brake | Engine exhaust brake | |||
| Electrical System | 24v | |||
| Upper-Body Specification | ||||
| Tank | Volume | 16 CBM | ||
| Material | T420 | |||
| Thickness (side/bottom) | 5mm/5mm | |||
| Hydraulic Pump | 532 model | 1 set | ||
| Multi-way Valve | DL-15B-6 | 1 set | ||
| Flap Cylinder | 80/45-410*180 | 2 set | ||
| Lifting Cylinder | 80/45-900*580 | 2 set | ||
| Scraper Cylinder | 80/45-700*415 | 2 set | ||
| Skateboard Cylinder | 90/50-980*670 | 2 set | ||
| Push plate Cylinder | YSTB-1180*2420 | 1 set | ||
| The Electromagnetic Valve | UZCT-115/24V | 2 set | ||
| Dirty Tank Volume | 200L | |||
| Filler Volume | 500L | |||
| Filing Time | 8-10s | |||
| Filling Cycle Time | 50-60s each time | |||
| Discharge Type | Flat-pushing | |||
| Dumping Time | 30-40s | |||
| Hydraulic Pressure | 16Mpa | |||
| Controlling Way | Manually and CAN BUS electrical control | |||

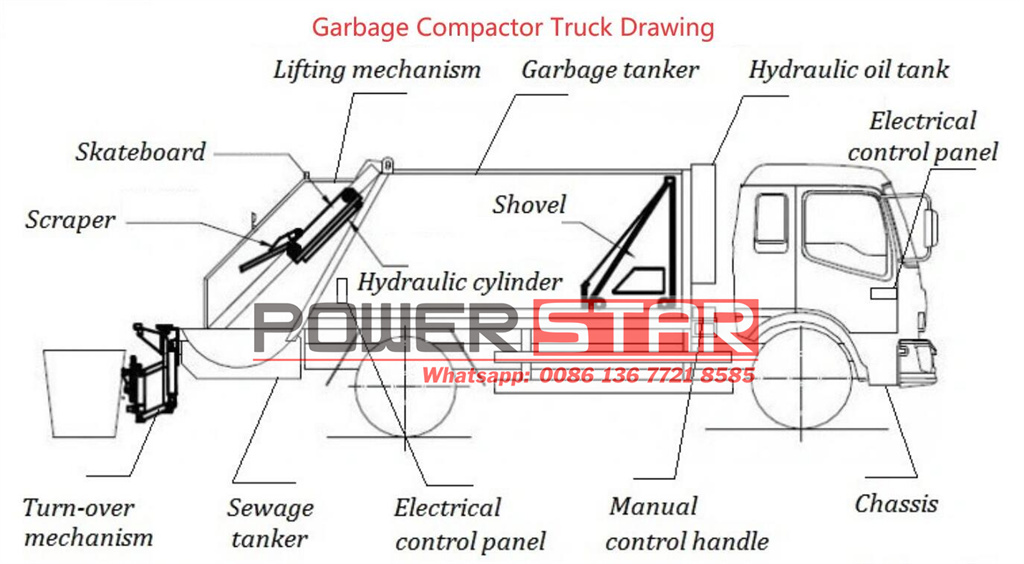

Component of ISUZU garbage compactor truck:
POWERSTAR TRUCKS Garbage Compactor Truck based on Customized ISUZU GIGA 5X 4x2 model LHD chassis, classical GIGA cabin with sleeper, Compactor body capacity could up to 12tons / 16CBM, which equipped with CAN BUS Electric Control System and Hydraulic Joystick Control System, mainly used for garbage collection and transportation, and the working aerial can be city street, factory, community and other areas of need. Isuzu rear loader truck designed to fully rely on the advantages of the original of ISUZU GIGA 5X brand chassis, fully consider the product's convenience and reliability, also the chassis technology features. The garbage compactor body material is international standard high strength carbon steel T420, also can be customized as HARDOX material, both internal and external with anti-rust painting, which can effective to avoid rusting. The 4x2 ISUZU GIGA 5X Garbage Compactor Truck equipped with new designed smart control system, multi-function garbage compression system, side climbing ladder, Electric control boxes in cabin and rear of hopper, rear part installed foot pedal, which is customized to collect garbage from different area, two units waste water collection tank can efficiently prevent second pollution during transportation. Cab for the single-row Comfortable seat, nice driving feeling. Therefore, the truck is an ideal Garbage Truck mainly for oil transportation & refueling function.

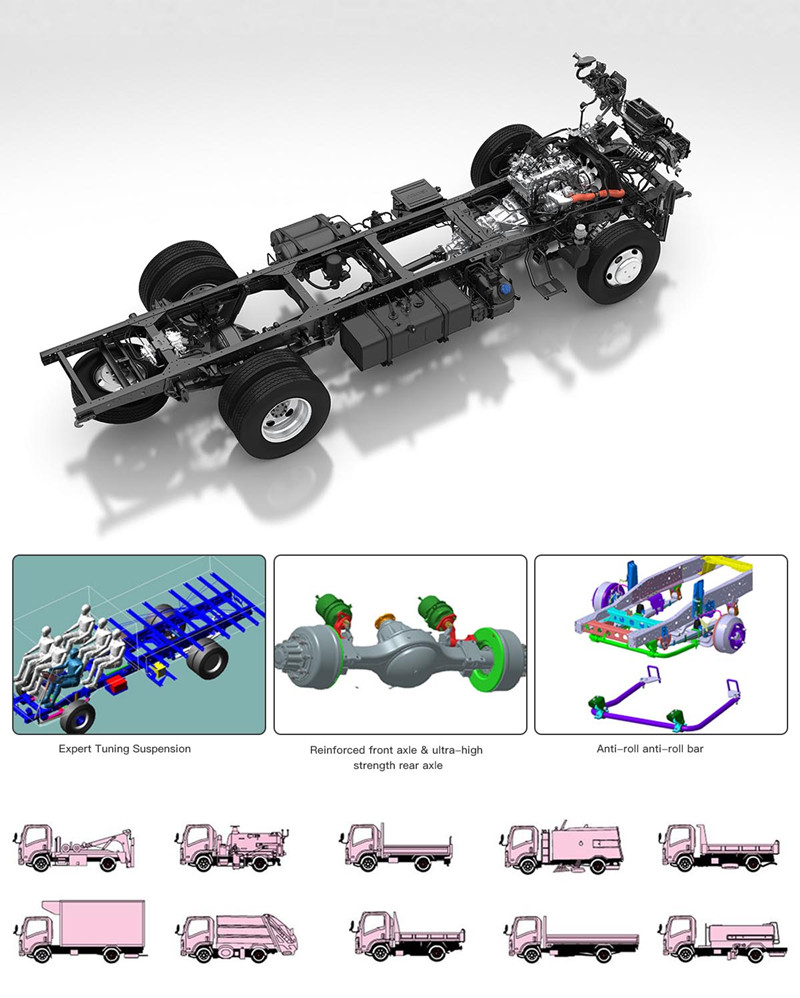

ISUZU GIGA 5X truck chassis:
As an important part of ISUZU trucks, the ISUZU FVR GIGA 5X chassis is known for its durability and stable performance. This chassis system is widely used in various commercial vehicle models, such as ISUZU GIGA rear loader truck, ISUZU GIGA 5X fire truck, ISUZU GIGA 5X sewage truck, etc., meeting the diverse needs of different industries for commercial vehicle chassis. The ISUZU GIGA 5X chassis is made of high-strength steel and has undergone strict process treatment and quality inspection to ensure the durability of the chassis. This sturdy chassis design allows the vehicle to maintain a stable driving state under various harsh road conditions. The suspension system and steering system of the ISUZU GIGA 5X chassis have been carefully adjusted to ensure the stability and controllability of the vehicle under various road conditions. At the same time, the chassis's transmission system has also been optimized to improve the vehicle's fuel economy and driving smoothness. ISUZU GIGA 5X truck chassis can be flexibly configured according to different models and uses to 100% meet customer requirement.

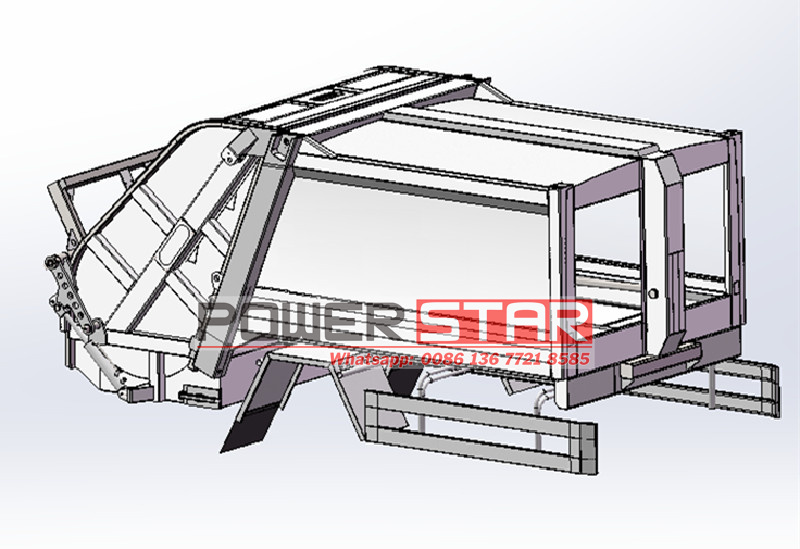

ISUZU GIGA 5X Rear Loader Truck Compactor Body Kit:
ISUZU GIGA rear loader garbage truck is an efficient, environmentally friendly and durable garbage disposal equipment, and is widely used in urban sanitation operations. Its efficient compression capacity, automated operation and environmentally friendly design make it an important tool for modern garbage disposal.
Compactor Body: welded with high-strength steel plates (such as T420 or HARDOX), the bin is designed as a streamlined or rectangular structure, with a flat bottom and arc-shaped top and side surfaces, which is both lightweight and high-strength, with a compression ratio of 1:2.5 or more1:3 or 1:4.

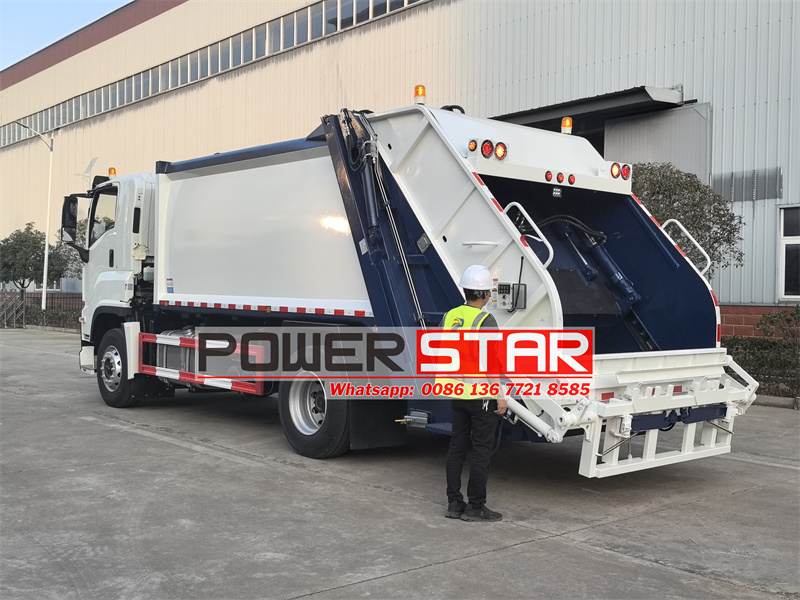

Push Plate and Compression System: including components such as slide plates, scrapers, and push shovels. The slide plates drive the scrapers to crush and compress the garbage in both directions, and the push shovels evenly distribute the garbage through back pressure to ensure that the bin is fully loaded.

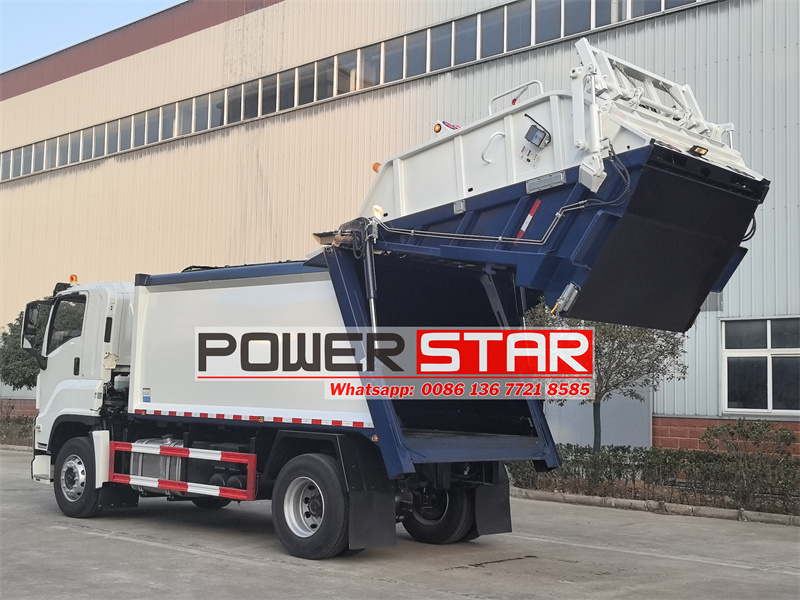

Garbage collection rear tilting assembly: The rear tilting device can be customized to lift 120L, 240L, 460L, 660L, 770L and 1100L international bins, matched with suitable hydraulic cylinder to realize garbage loading and unloading working.
