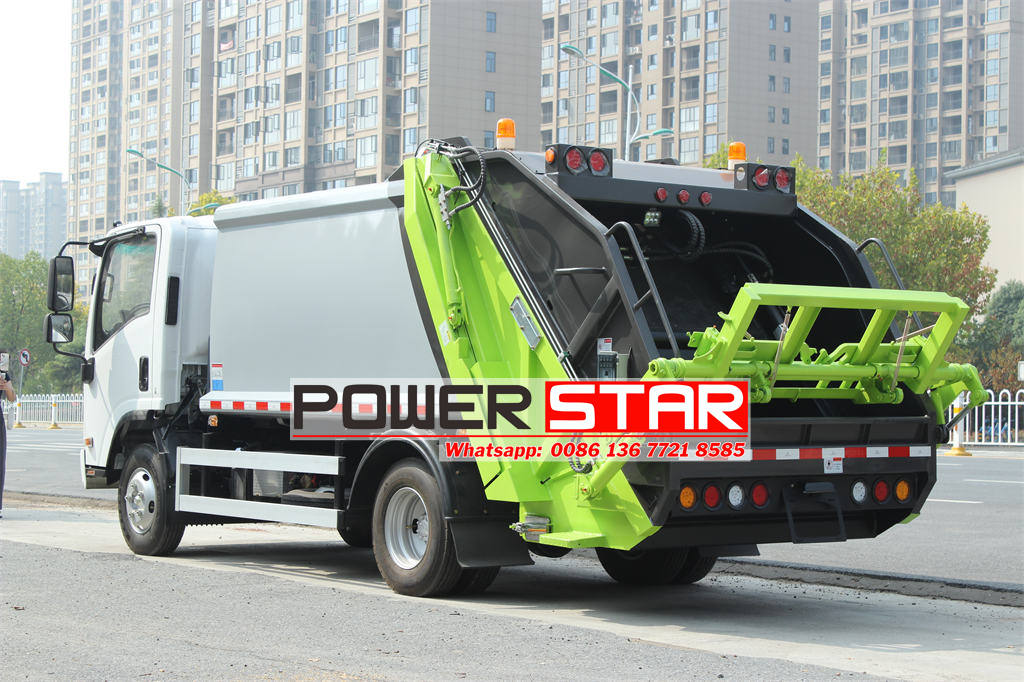

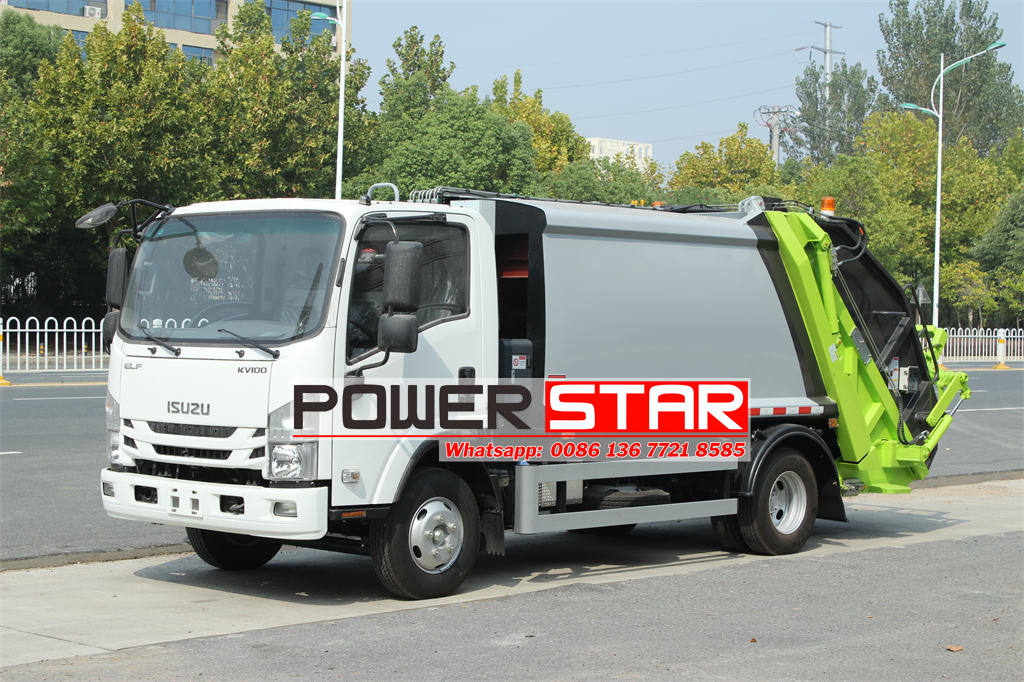

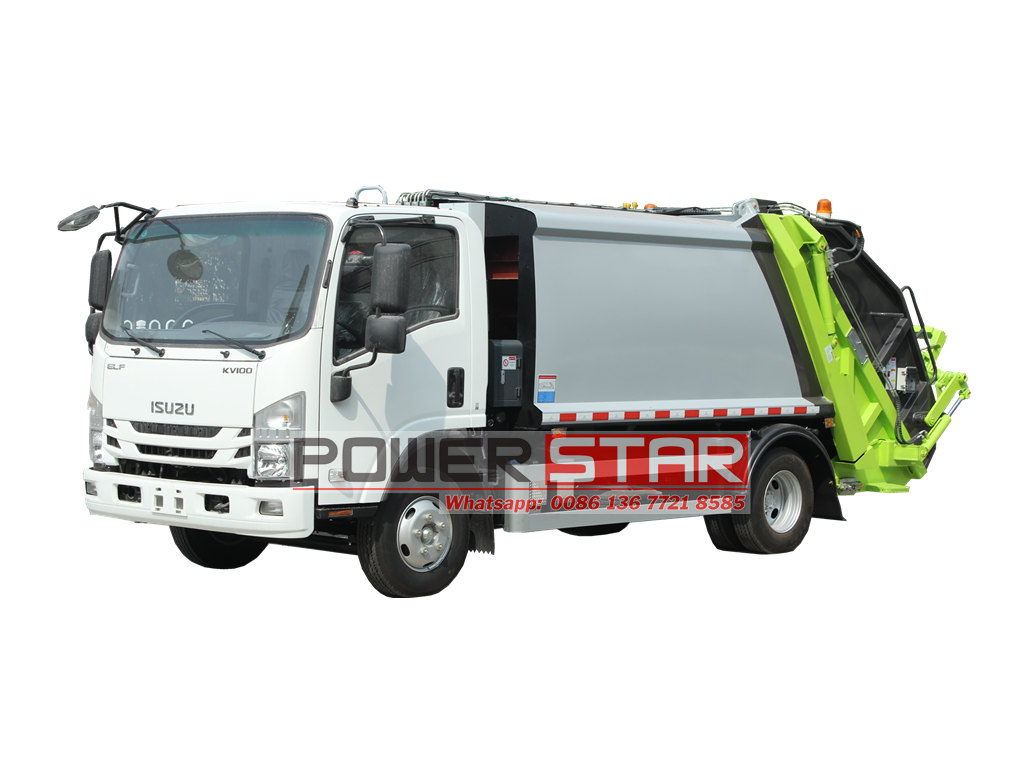

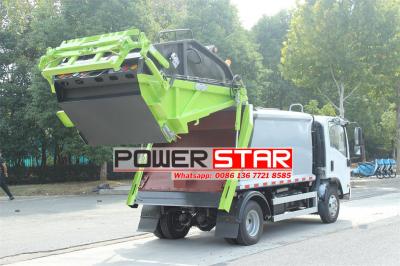

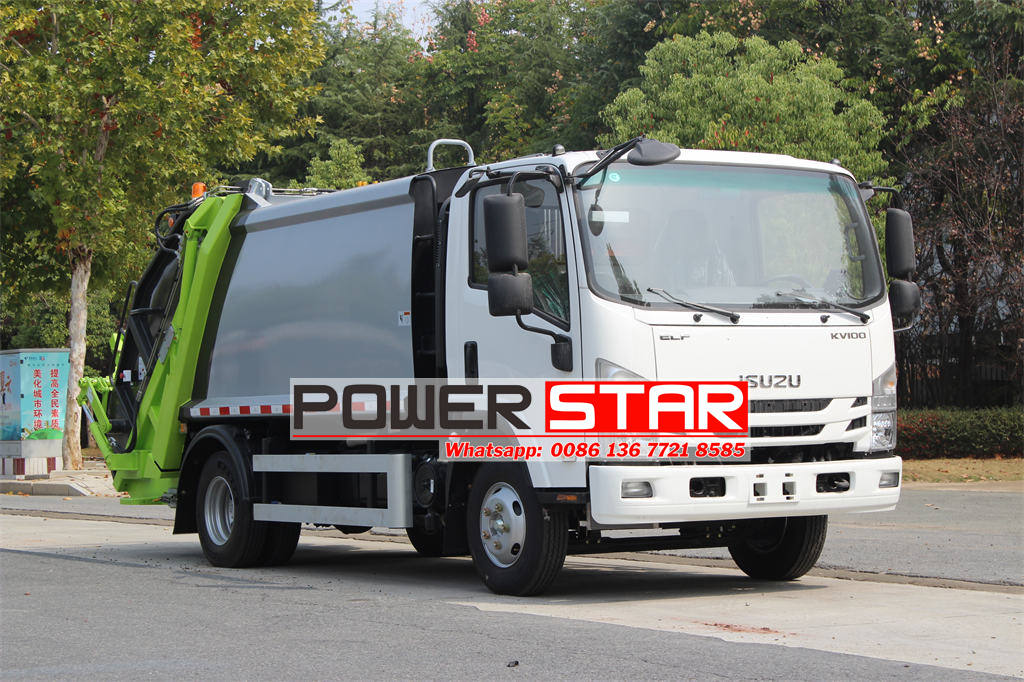

The ISUZU 6CBM garbage compactor truck is a highly efficient and environmentally friendly specialized vehicle designed for urban sanitation. It is equipped with an ISUZU 4KH1CN6LB engine, compliant with Euro 6 emission standards, delivering an output of 88 kW (120 hp). The truck features a 6-cubic-meter compactor with a compression ratio of ≥2.5, constructed from T420 high-strength steel, and includes 200L + 150L sewage tanks. The hydraulic system operates at a maximum pressure of 18 MPa, with a discharge time of ≤45 seconds. It supports both manual and automatic operation modes, and its intelligent CAN-bus control system enhances operational efficiency, making it an ideal choice for urban waste management.
Manufacturer:
Powerstar TrucksWork capacity:
6 CBMDimension:
6500 x 2200 x 2500mmCabin type:
Isuzu KV100 Single row cab, 3 seatsWheelbase:
3360Engine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4x2Gear box:
Isuzu MSB 5-speed,manualRemarks:
High compaction ratioThe ISUZU NKR 6CBM waste compactor truck is a highly efficient and environmentally friendly specialized vehicle designed for urban waste management, renowned for its exceptional performance and reliable design, making it an ideal choice for urban sanitation operations. The vehicle is built on the QL1070 chassis, provided by ISUZU, known for its high reliability and durability. It is powered by the ISUZU 4KH1CN6LB engine, with a displacement of 2999 ml, delivering an output of 88 kW (120 hp), offering robust power and smooth operation.
The upper body of the ISUZU NKR rear loader garbage truck is constructed from T420 high-strength special steel, providing excellent compression resistance and wear resistance. The compactor body has a volume of 6 cubic meters and a compression ratio of ≥2.5, significantly improving garbage loading efficiency and reducing transportation frequency, thereby lowering operational costs. The tailgate volume is 0.8 cubic meters, designed for convenient garbage dumping and cleaning. The ISUZU waste compactor is also equipped with two sewage tanks, with capacities of 200 liters and 150 liters, effectively collecting wastewater generated during garbage compression to avoid secondary pollution. The hydraulic system operates at a maximum pressure of 18 MPa, ensuring efficient garbage compression and discharge. Additionally, the vehicle supports both manual and automatic operation modes, meeting the operational needs of different scenarios while enhancing flexibility and convenience in operations.
● 30 years experience in garbage compactor truck designing
● 50 units Isuzu rear loader trucks in stock, 5 cbm, 8 cbm, 12 cbm, 16cbm, 20cbm
● Fast delivery time, quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, container shipping, save freight
● OEM customized service, print your company logo
● China best Isuzu refuse compactor truck factory
Product Specifications
|
Vehicle Description |
||
|
Overall dimensions |
6500*2200*2500mm |
|
|
GVW |
7300kg |
|
|
Curb weight |
4800kg |
|
|
Chassis brand |
ISUZU |
|
|
Traction type |
4*2, left hand drive |
|
|
Chassis Description |
||
|
Chassis model |
QL1070 |
|
|
Cab |
Single row cab, 3 seats, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver seat, electric windows, central lock, air conditioner. |
|
|
Wheelbase |
3360mm |
|
|
Tire specification |
7.00R16 |
|
|
Tire quantity |
6+1 units |
|
|
Engine |
Engine brand |
ISUZU |
|
Engine model |
4KH1CN6LB |
|
|
Emission standard |
Euro 6 |
|
|
Displacement |
2999ml |
|
|
Output |
88 kw |
|
|
Horse power |
120 hp |
|
|
Gear box |
Model |
ISUZU MSB |
|
Number of gears |
5 forward gears& 1 reverse |
|
|
Brake system |
Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake |
|
|
Axle |
Front |
2.5T |
|
Rear |
4.8T |
|
|
Suspension |
Front |
3 pcs- Leaf spring with shock absorber |
|
Rear |
6+6 pcs-Leaf spring |
|
|
Fuel tanker |
Type |
Steel fuel tank, with lockable cap |
|
Capacity |
100L |
|
|
Upper body description |
||
|
Compactor body volume |
6 CBM |
|
|
Compactor body material |
T420 high-strength special steel |
|
|
Compression ratio |
≥2.5 |
|
|
Tailgate volume |
≥0.8m3 |
|
|
Sewage tanks |
200L+150L |
|
|
Discharging time |
≤45s |
|
|
Operation type |
Manual operation+ automatic operation |
|
|
Hydraulic system max. pressure |
18Mpa |
|
|
Control system |
CAN-bus control system |
|

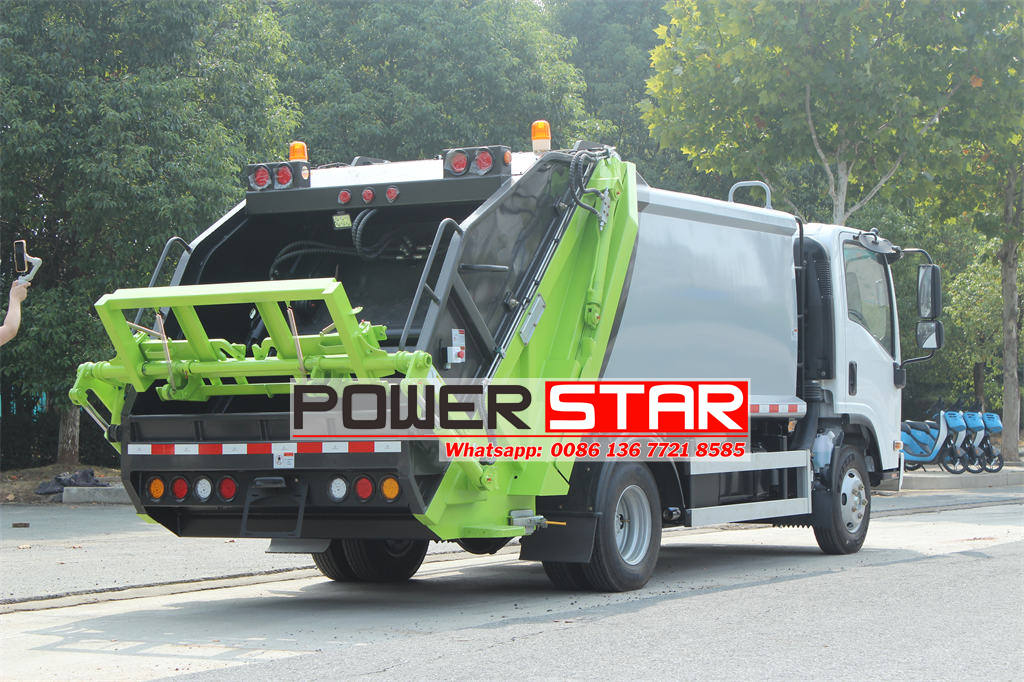

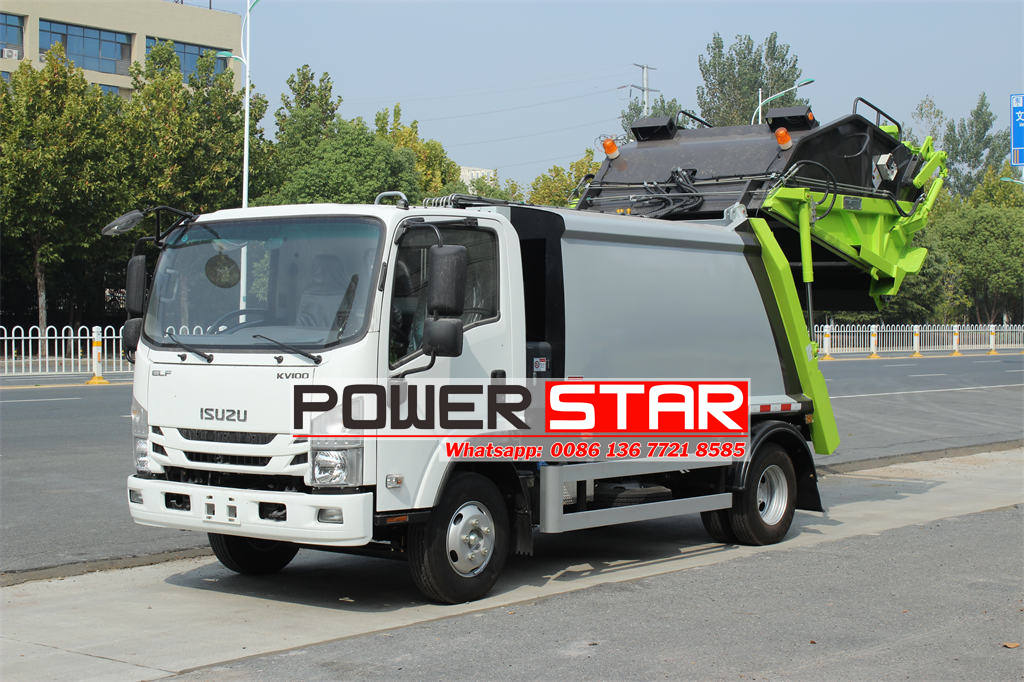

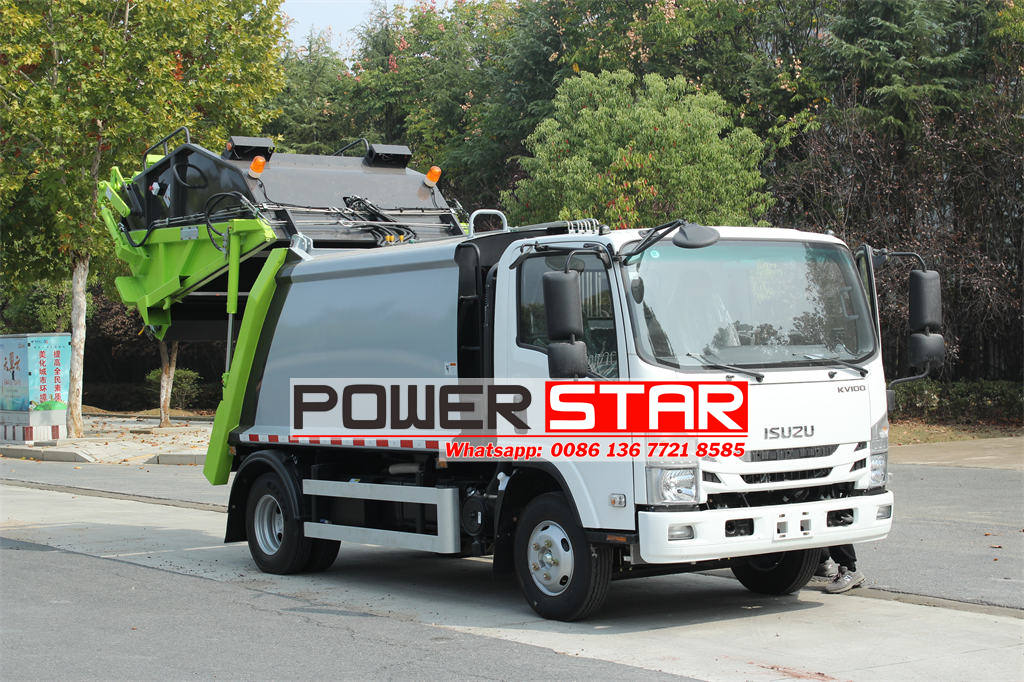

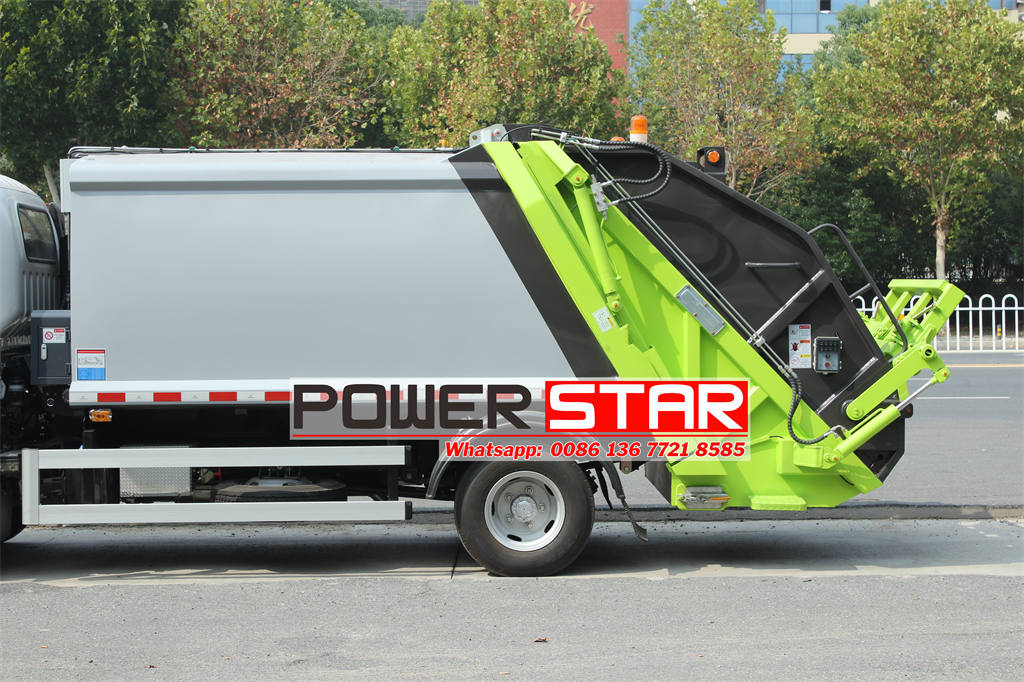

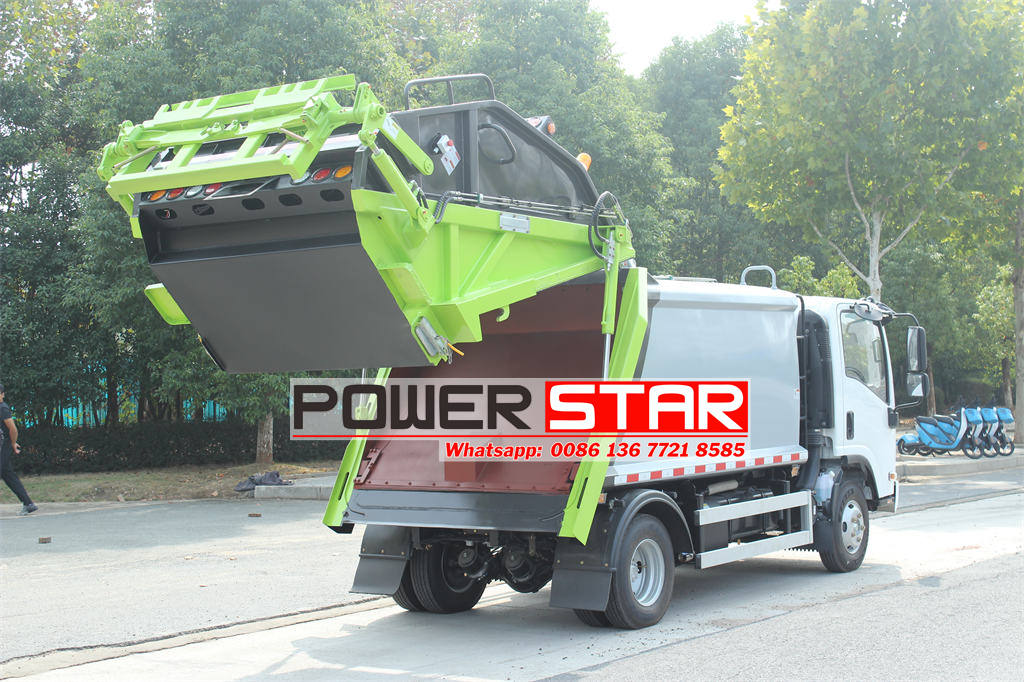

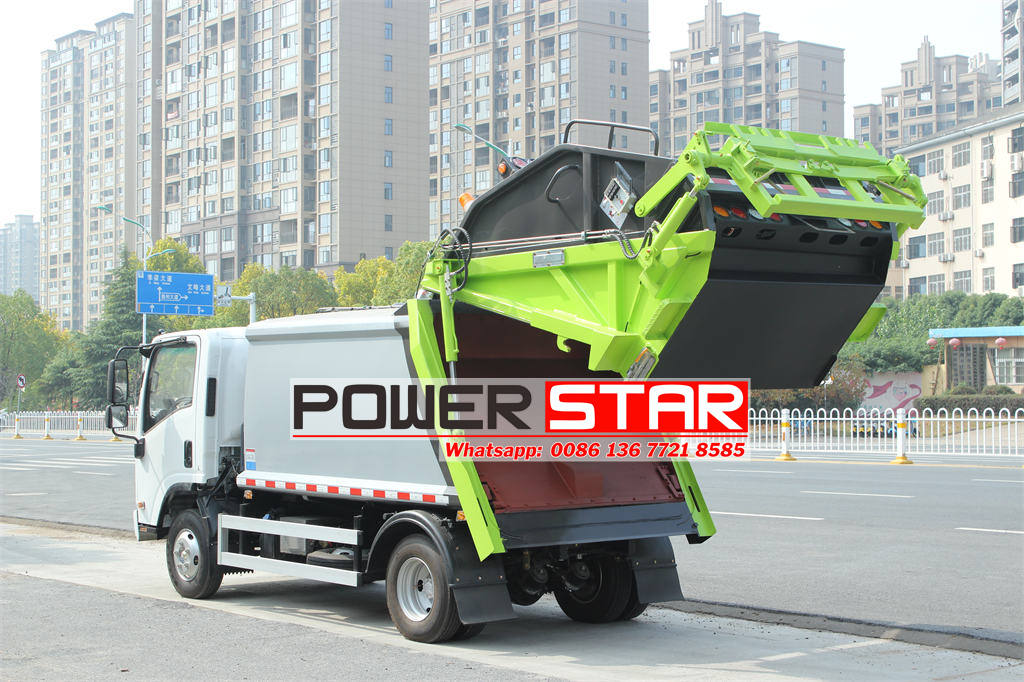

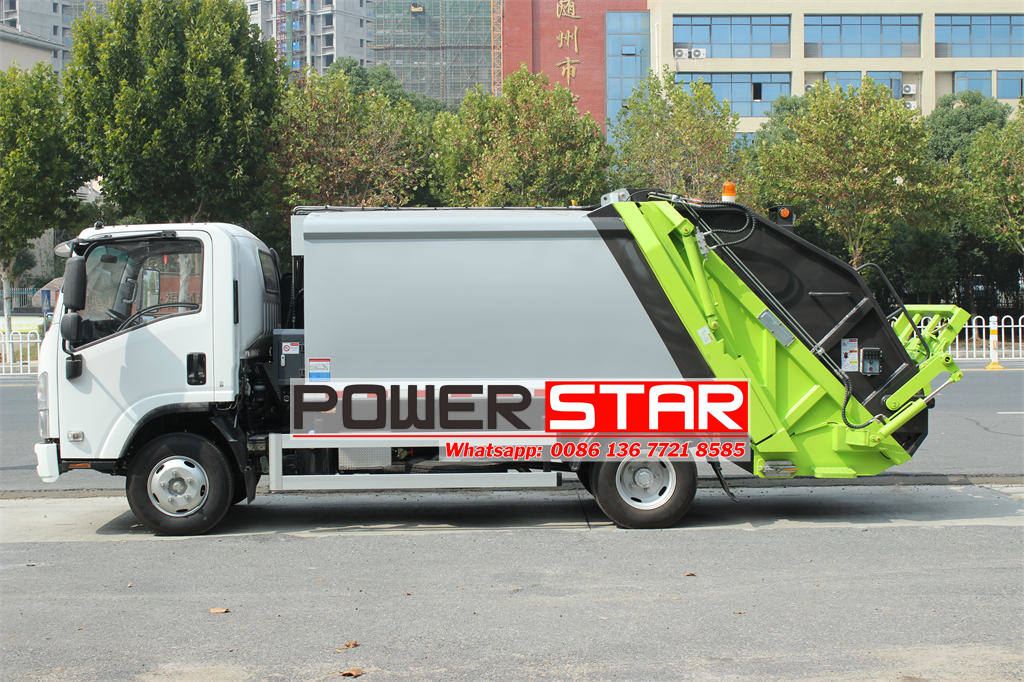

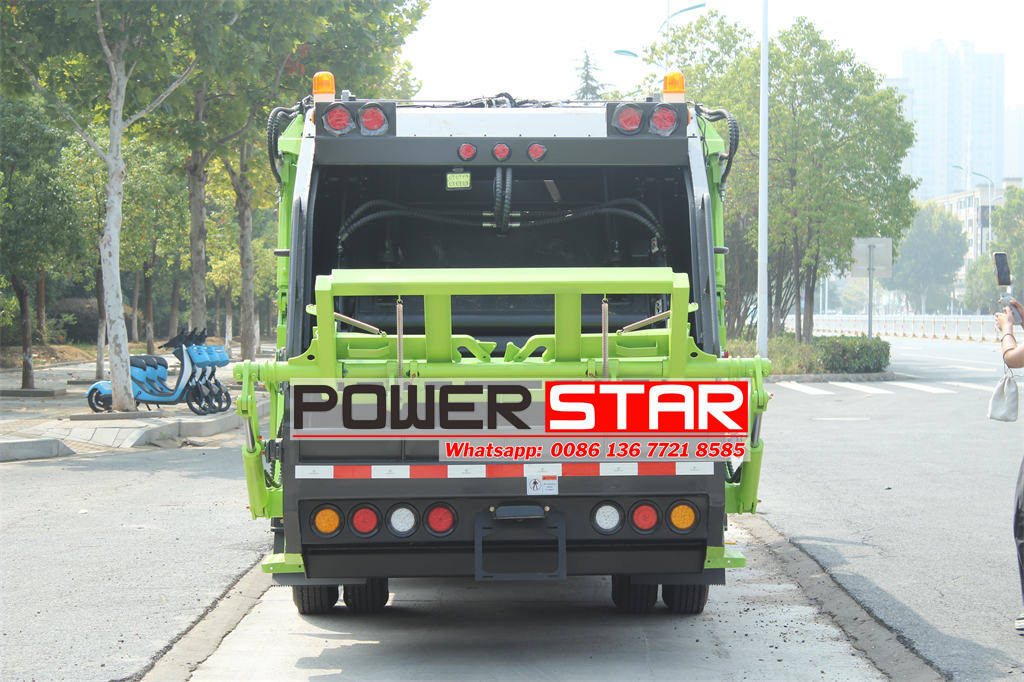

Product Detials

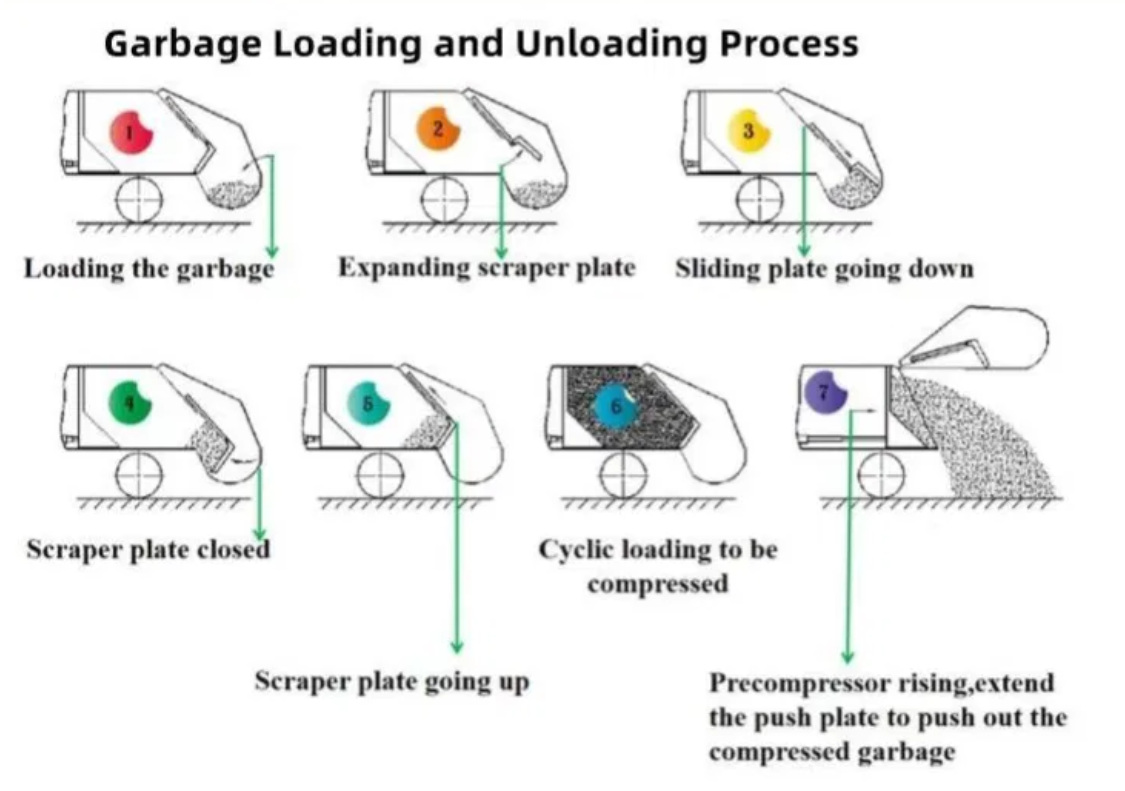

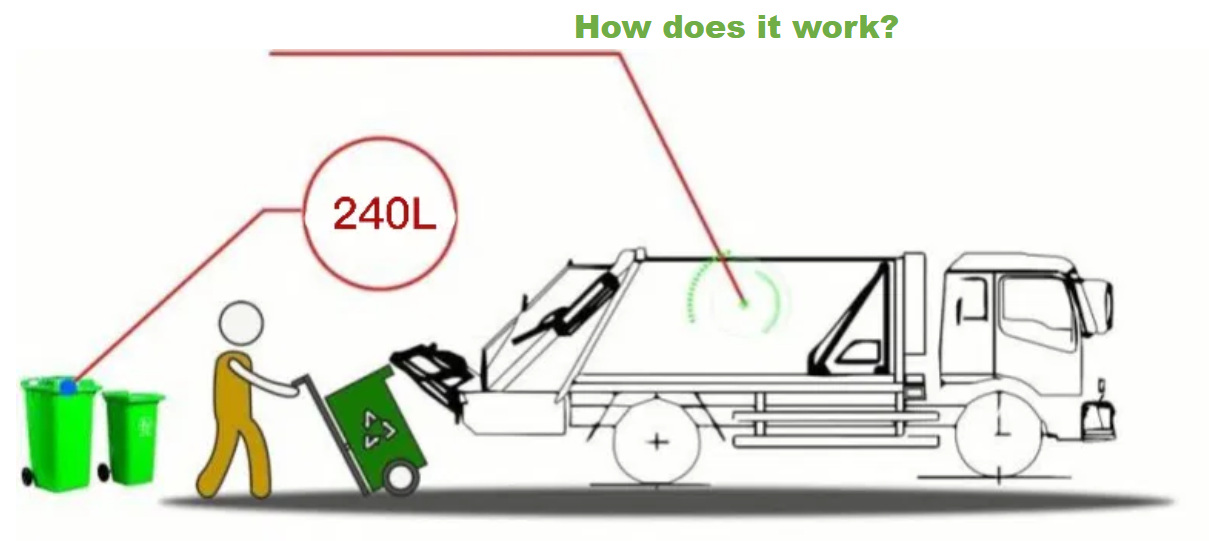

Product Working Process
Product Structure Features

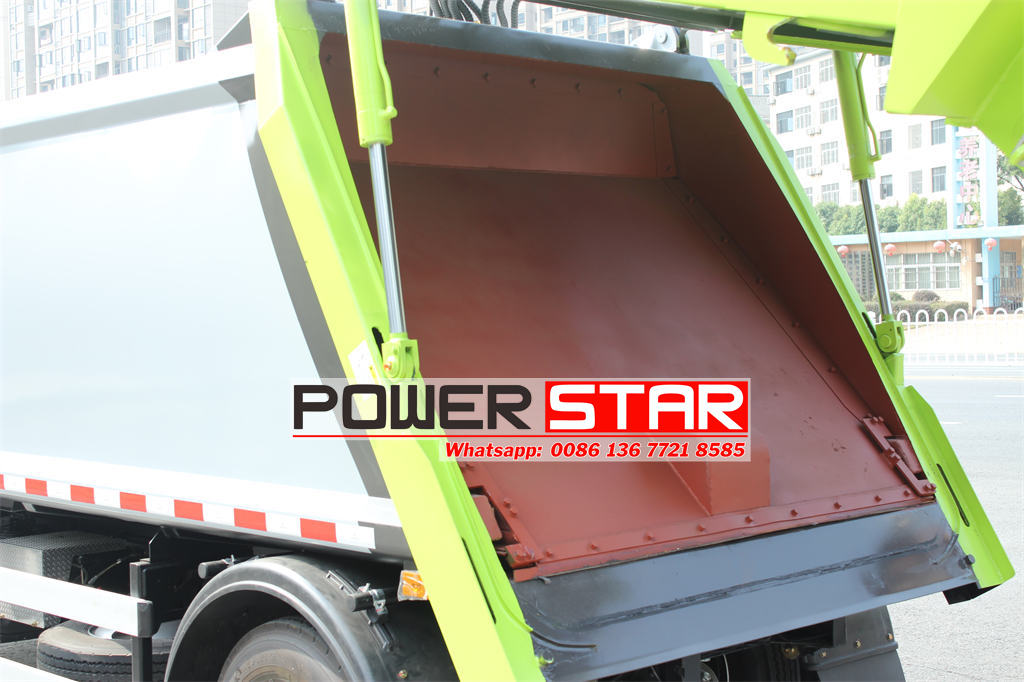

1. Compression System
The compression system includes the compactor body, ejector panel, and push plate, all made of high-strength steel, ensuring reliability and durability.

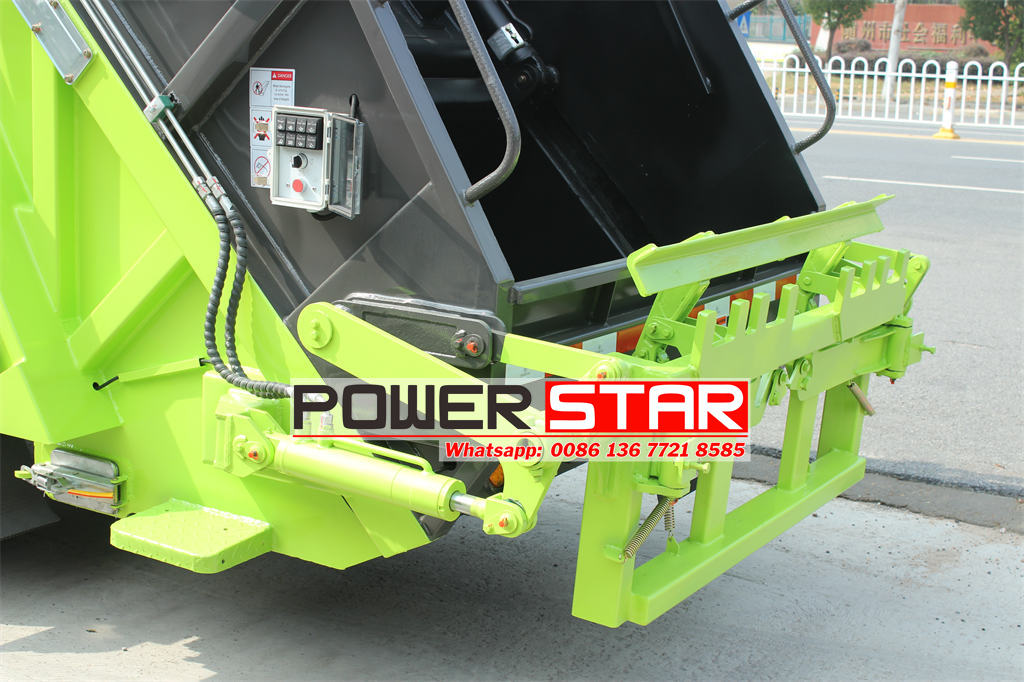

2. Loading System
The loading system can be customized based on customer requirements, including options for bin lifter, triangular hooper, ground hooper and swing arm hooper.

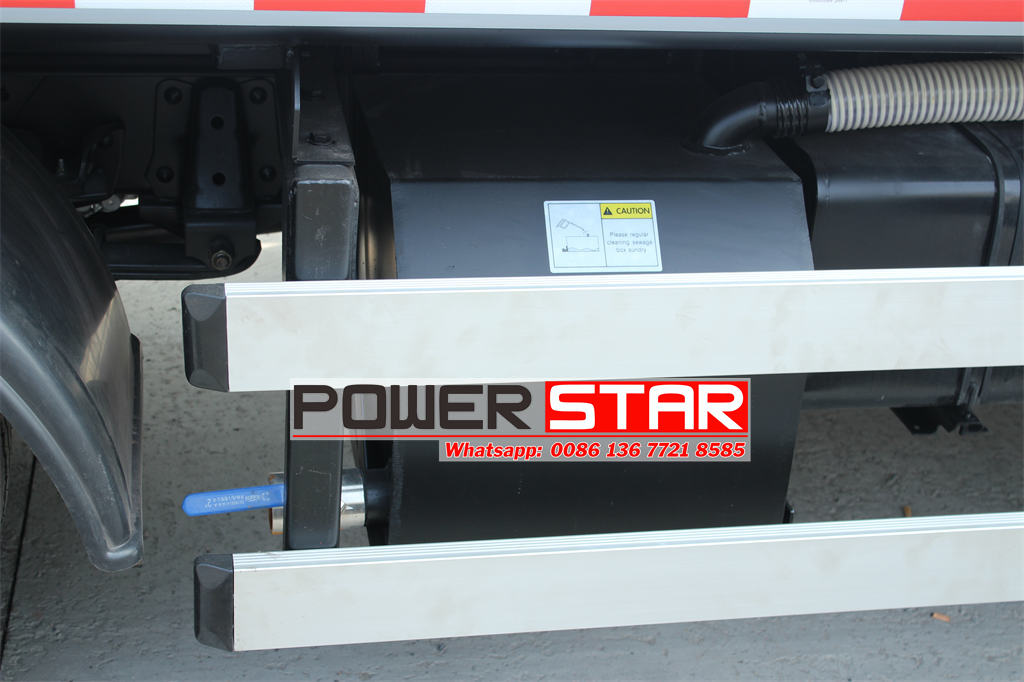

3. Sewage tanks
Equipped with two sewage collection tanks to prevent leakage of wastewater from the tank, effectively avoiding secondary pollution. The material of the sewage tank can be selected from carbon steel or stainless steel based on customer preferences.

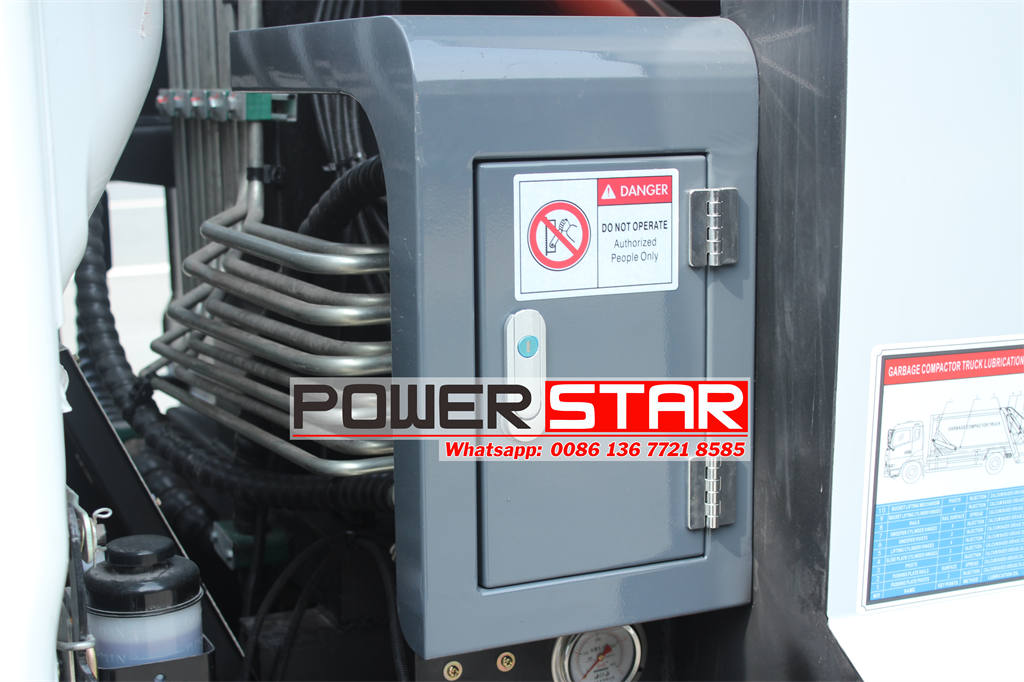

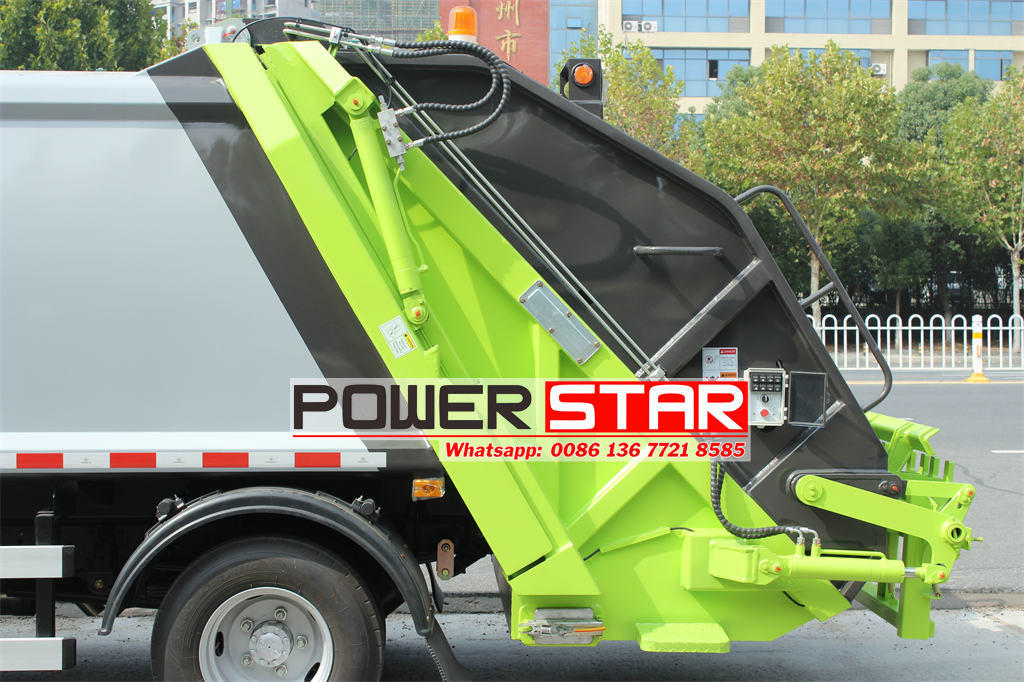

4. Hydraulic System
The hydraulic cylinders, gear pump, multi-way valve, and hydraulic pipelines are sourced from well-known domestic brands, offering stable performance, high reliability, and a long service life.

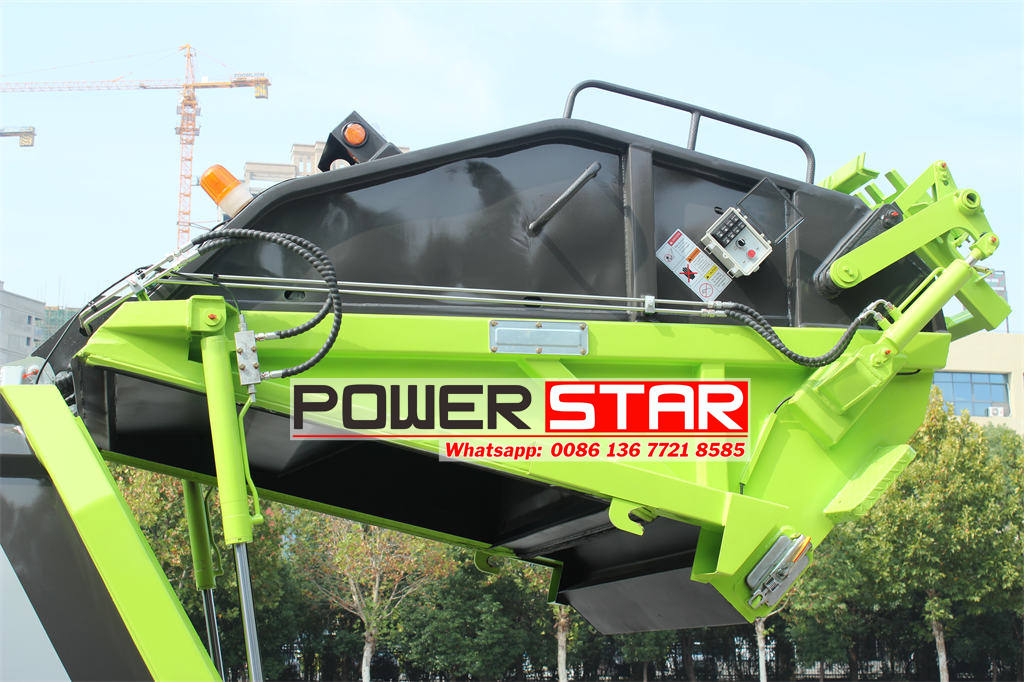

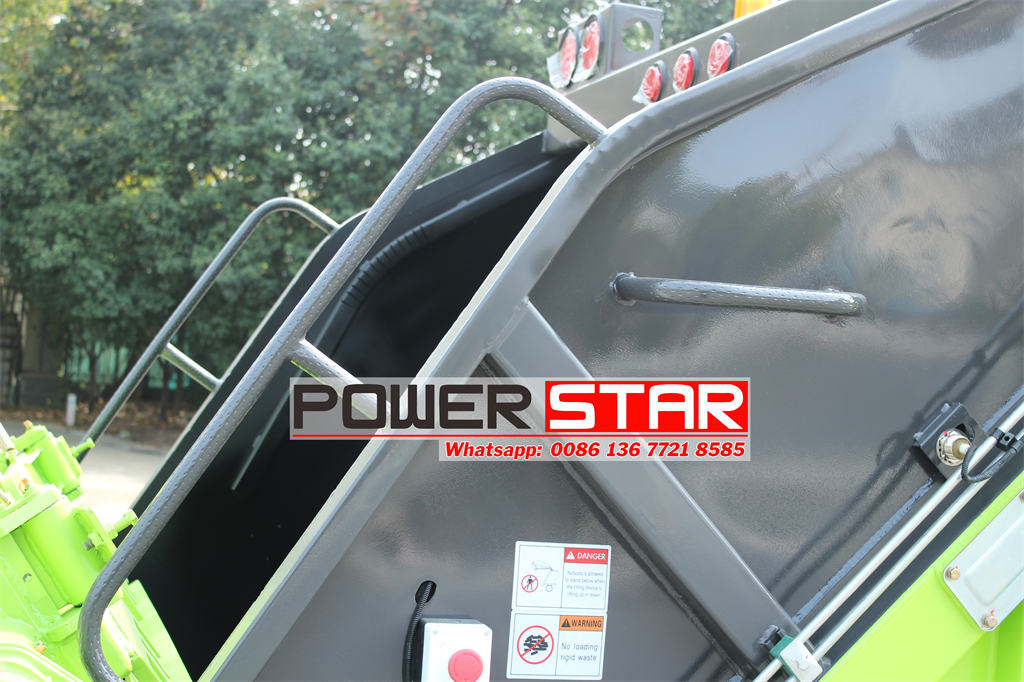

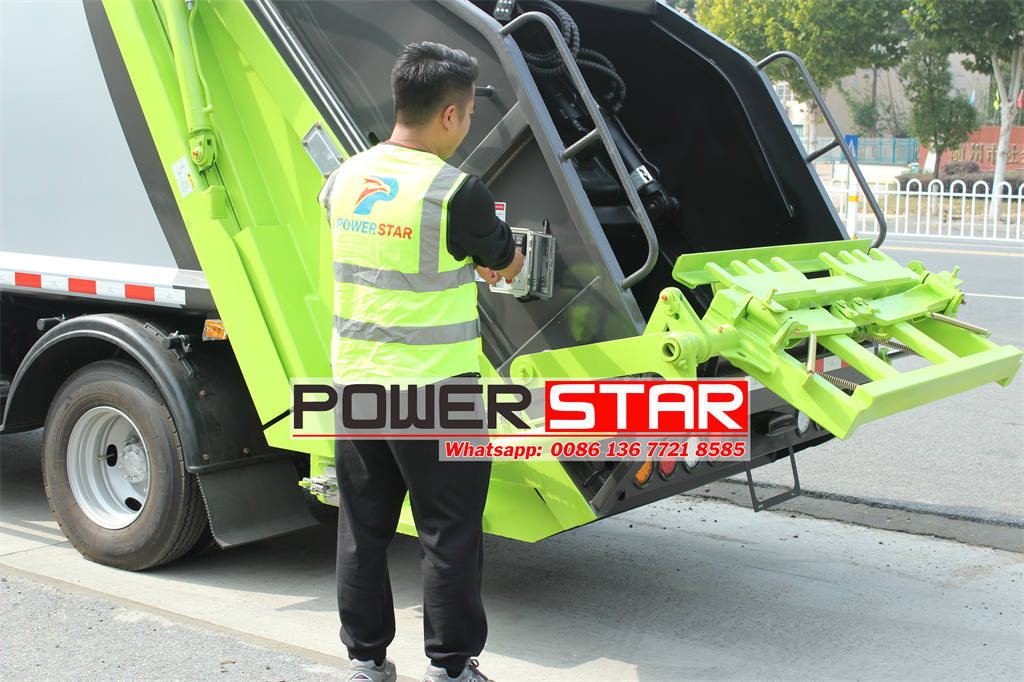

5. Rear Electronic Control
An electronic control panel is installed at the rear of the tailgate for easy operation. The CAN-bus control system supports both automatic and semi-automatic control. Remote control is also available as an option.
6. Manual Control Operation
The hydraulic multiway valves located at the rear of the cab manages the operation of the compression mechanism and tailgate, ensuring the accuracy and reliability of each mechanism and enhancing the overall reliability of the vehicle.
