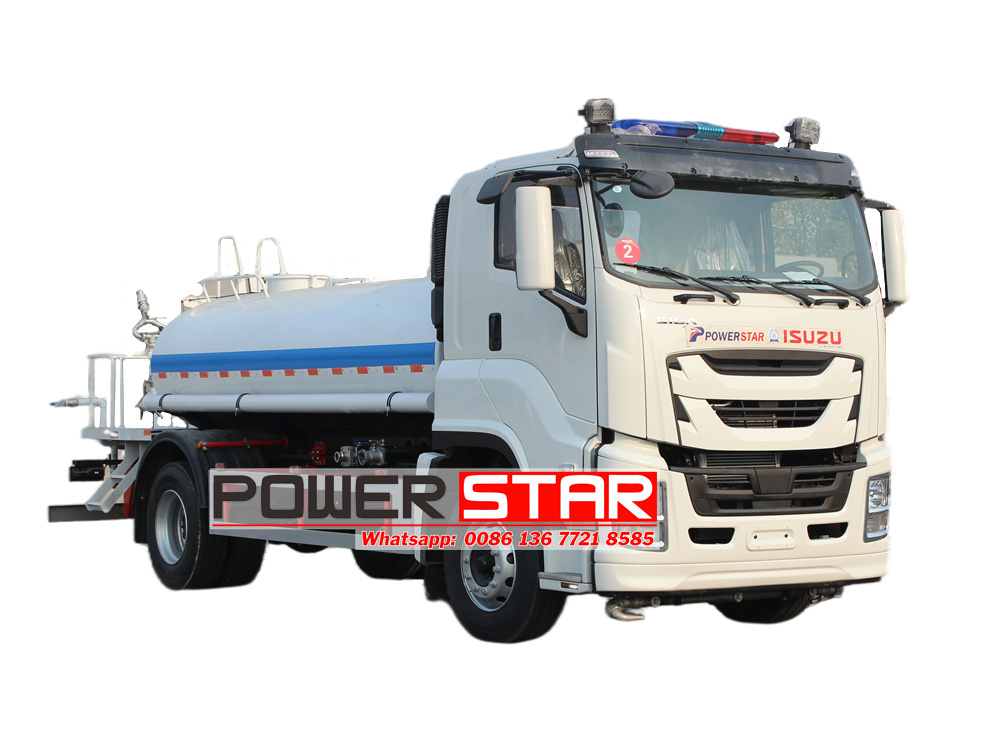

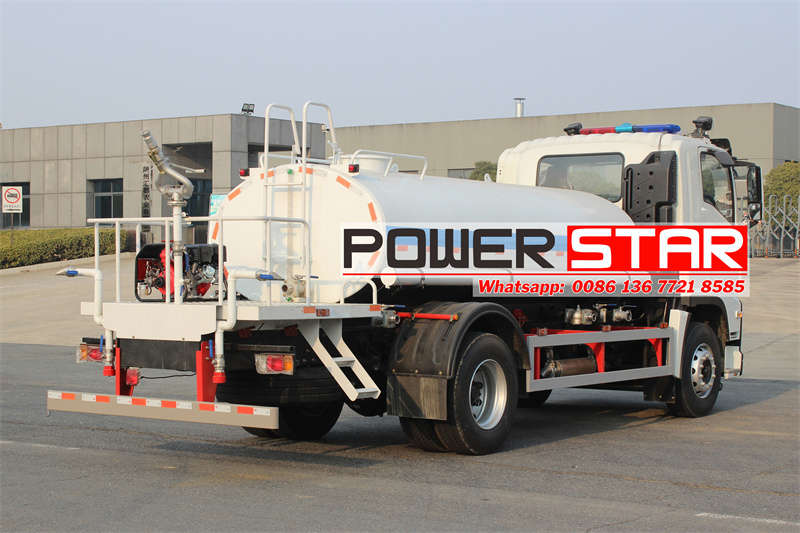

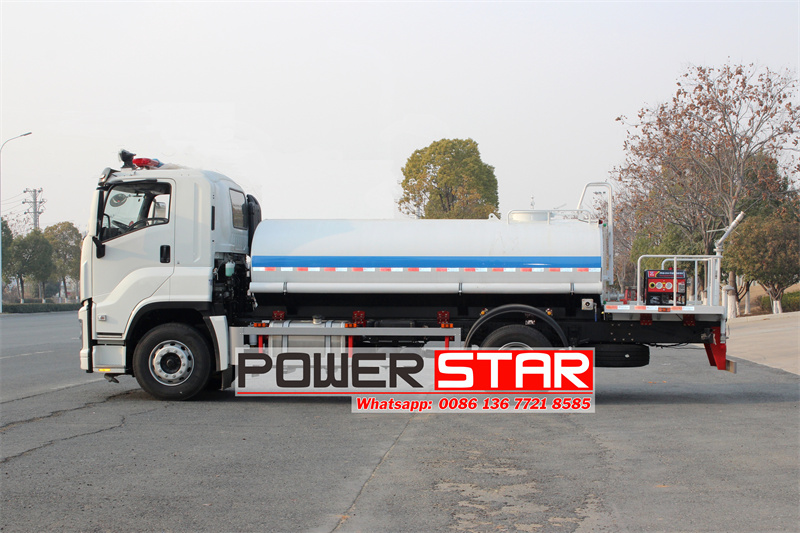

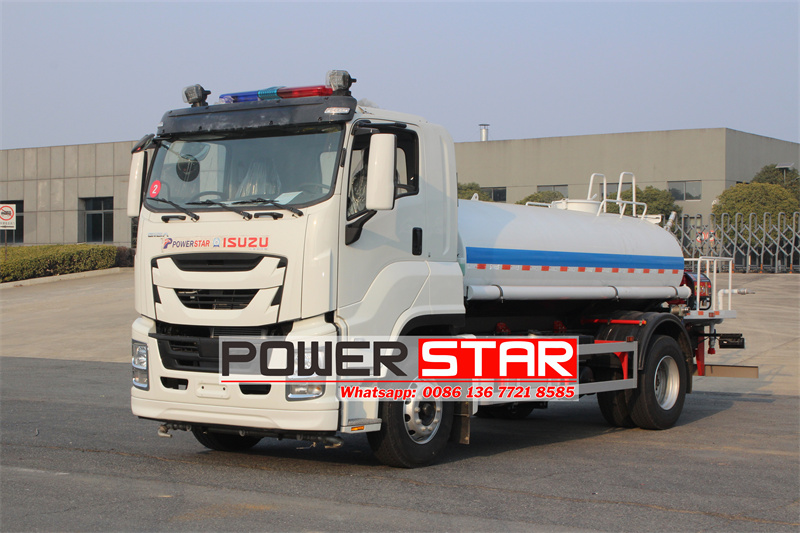

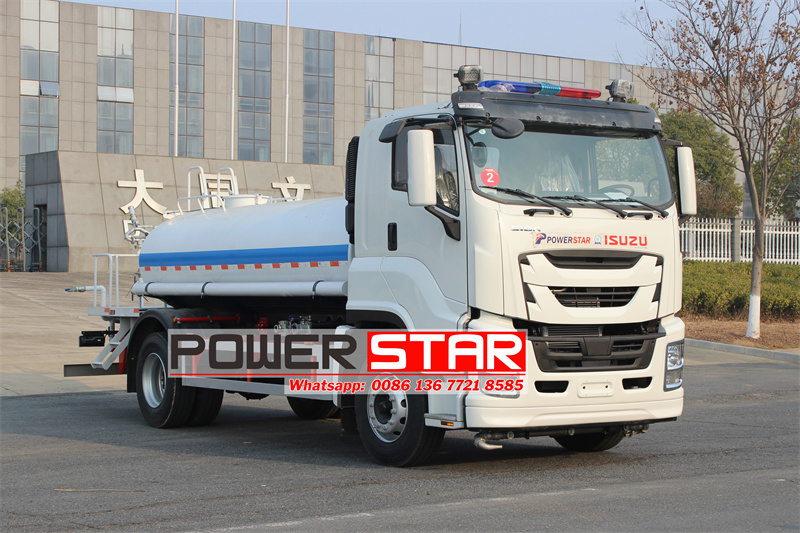

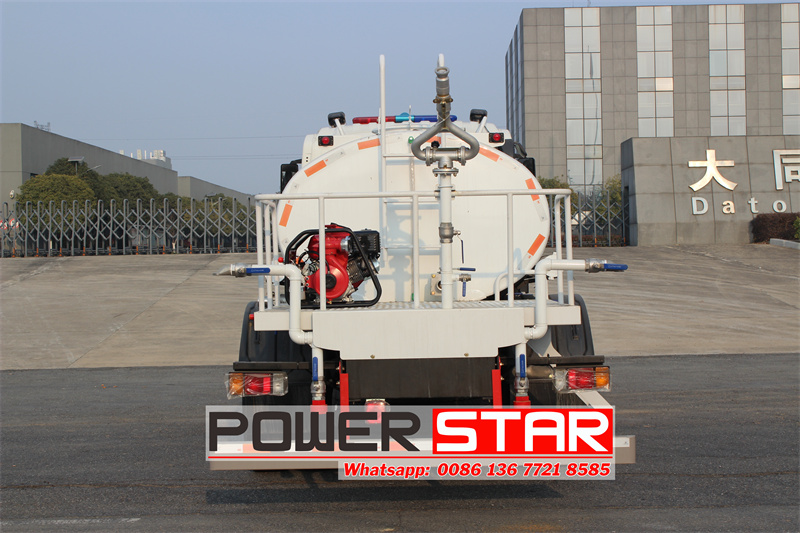

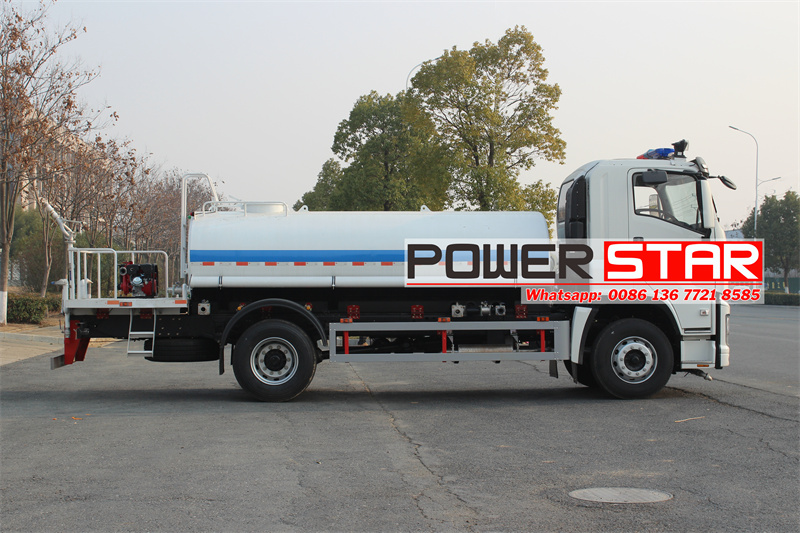

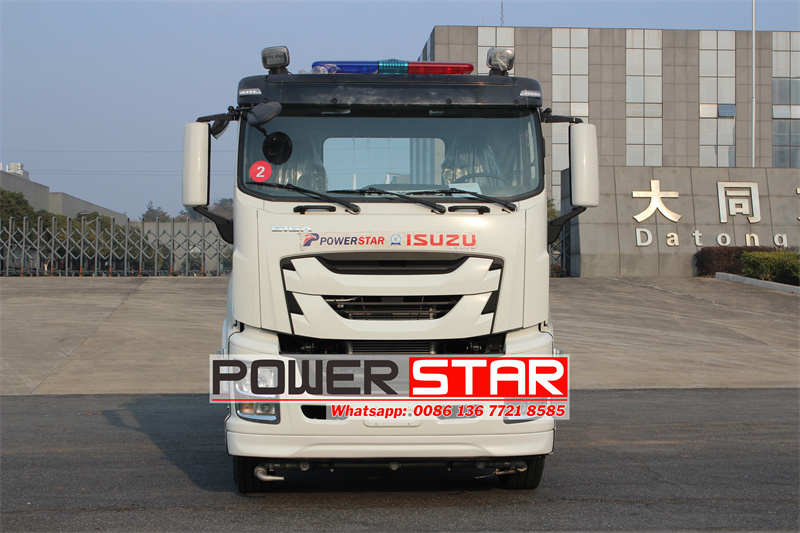

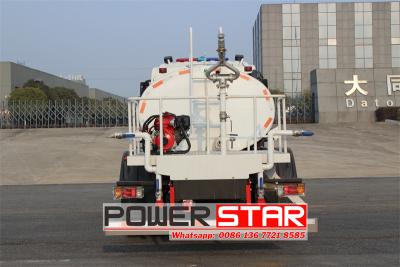

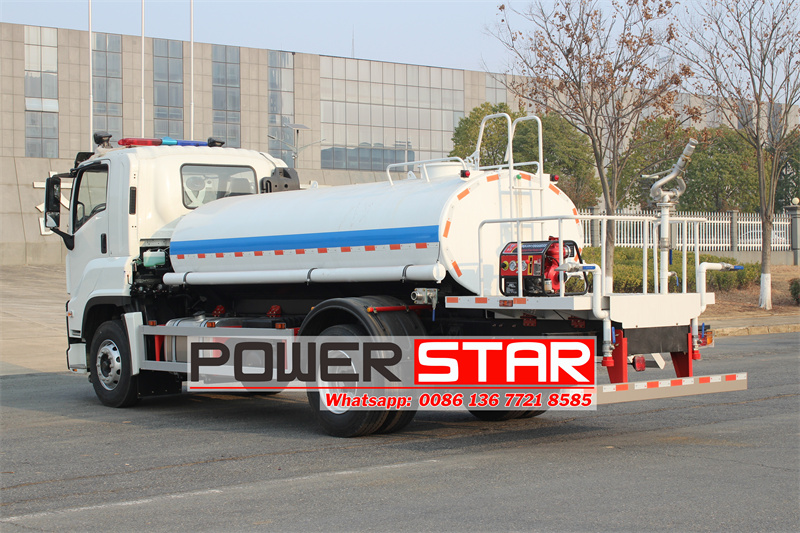

The Isuzu FVR 10cbm water sprinkler truck is modified on Isuzu FVR GIGA 5X cab chassis, 4500mm wheelbase,with Isuzu 6HK1-TCG61 diesel engine, FAST 8-speed gearbox, the upper is a 10 cbm ellipse carbon steel water tank,with pipeline storage boxes on both side, the rear tank is a working platform, equipped with a high-pressure water spray gun, and a portable fire pump set installed on the platform.
Work capacity:
10cbmEngine power:
240HPEngine type:
Isuzu 6HK1-TCG61Axle drive:
4x2，LHDGear box:
FAST 8-shift gearbox,manualRemarks:
Large water tank capacity，powerful water pumpThe Isuzu GIGA 6HK1 10cbm water tanker truck has a high-end and practical overall configuration, integrating advanced chassis technology and efficient upper body design. Its chassis adopts the Isuzu FVR GIGA 5X cab chassis, equipped with a 4500mm wheelbase, equipped with a powerful Isuzu 6HK1-TCG61 diesel engine and FAST 8-speed gearbox, ensuring excellent driving performance and operating stability.
● 30 years experience on water tank truck designing
● 50 units Isuzu water spray truck in stock, 3tons, 8tons, 12tons
● Fast delivery time, Quick 10 days shipping time
● We accept 100% inspection, welcome to our factory at any time
● 24 months long guarantee time assurance

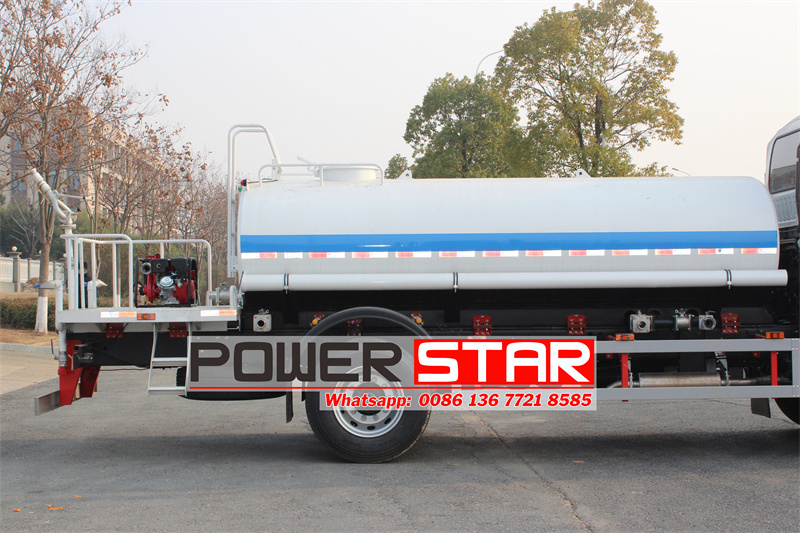

The upper body is an ellipse carbon steel water tank with a capacity of 10 cubic meters, equipped with a WEILONG 80QZF-60/90S pump, pipeline storage boxes on both sides, the rear of the tank is working platform, with a high-pressure water spray gun and a portable fire pump set on the platform. In addition, the vehicle also has three spraying modes: front water spray nozzle, rear water spray nozzle and water cannon spray monitoring, which can meet a variety of watering operation needs. The truck is a professional watering operation vehicle that integrates high efficiency, multi-function, safety and reliability, suitable for various scenarios such as urban road maintenance, landscaping and emergency response.
Key Features
---- ISUZU FVR GIGA chassis, perfect performance
---- ISUZU 6HK1 engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
|
Isuzu FVR GIGA 10000L water tanker truck |
||
|
Main Technology Parameter |
||
|
Driving Type |
4×2,left hand drive |
|
|
Color |
White,blue,color can choose |
|
|
GVW/ Curb weight |
18000/7850kg |
|
|
Wheelbase |
4500 mm |
|
|
Overall Dimension |
8050*2300*2850mm |
|
|
Front/rear overhang |
1335/2215mm |
|
|
Front/rear track |
1960/1855mm |
|
|
Max speed |
105 km/h |
|
|
Engine |
||
|
Engine model |
Isuzu 6HK1-TCG61 |
|
|
Engine type |
Inline 6-cylinder 4-stroke, supercharged, intercooled, water-cooled |
|
|
Horsepower |
240HP |
|
|
Max. output (kw) |
177Kw |
|
|
Displacement(L) |
7.79L |
|
|
Emission standard |
Euro 6 |
|
|
Chassis |
||
|
Cabin |
Isuzu FVR GIGA 5X cabin chassis,one and half row,with A/C,USB,direction assistance |
|
|
Front/ Rear axle |
6500/11500kg |
|
|
Tire specification |
295/80R22.5 standard tire,6 tires+1 spare tire |
|
|
Transmission |
FAST 8-speed,8 forwards,1 reverse gear box, manual operation |
|
|
Steering |
Power steering |
|
|
Brake |
Air brake |
|
|
Water truck |
||
|
Tank volume |
10000L |
|
|
Water tanker material |
High quality carbon steel (Q235). Ellipse tank |
|
|
Introduction |
1. Suction≥7m Sprinkler width≥14m Range≥28m |
|
|
2. With front water spraying nozzles, rear water spraying nozzles, water spraying monitor |
||
|
3. with the working platform at the back, installed high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.) |
||
|
4. Equipped with a portable fire pump set |
||
|

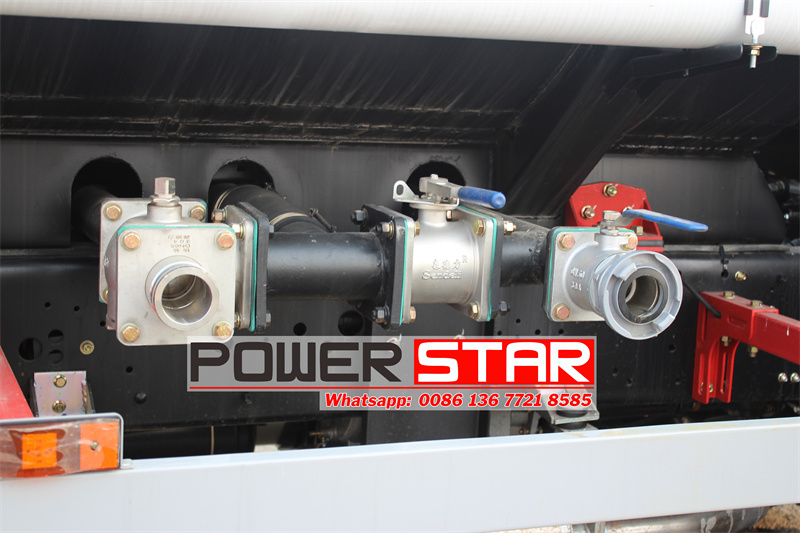

5.Water Inlet & Outlet control valves |
||
|
6. Equipped with pipeline storage box at the side of tank |
||
|

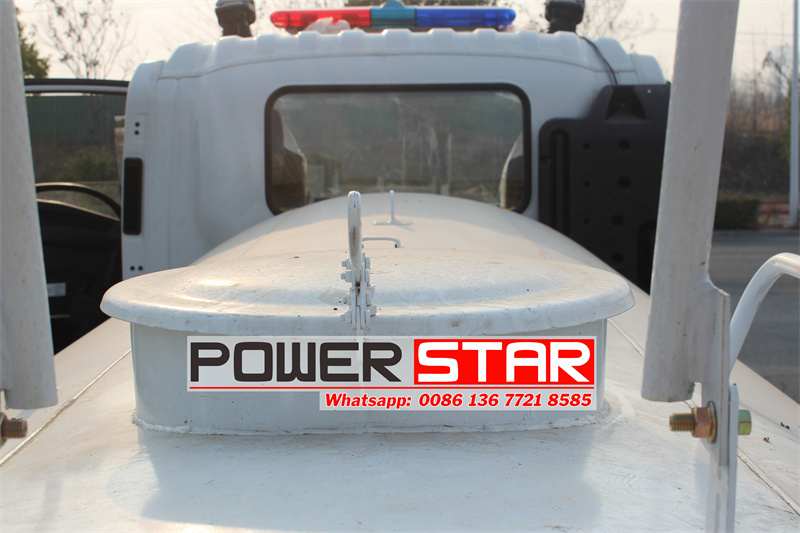

Manhole |
Man way access hole on top of tank;1 units DN500mm manhole |
|
|
Horse reels |
Two hose pipes on each side of the tank |
|
|
Water pump |
Model |
WEILONG 80QZF-60/90S pump |
|
Flow rate(L/m): |
60m3/h |
|
|
Head of delivery(m) |
90m |
|
|
Self-priming function(min/4m) |
1.5 |
|
|
Efficiency(%) |
95% |
|
|
Related rotate speed(r/min) |
1180 |
|
|
Matched power(kw) |
22 |
|
|
Portable fire pump set |
||
|
Portable fire pump set |
Model |
JBQ5.5/9.0 portable fire pump set |
|
Type |
Single stage centrifugal pump |
|
|
Starting method |
Electric start/hand start |
|
|
Power |
13HP（9.6KW） |
|
|
Speed |
2500r/min |
|
|
Oil capacity |
1.1L |
|
|
Lift |
55m |
|
|
Water diversion time |
＜30s |
|
|
Working condition 1 |
Flow≥9L/s, 0.55MPa |
|
|
Working condition 2 |
Flow≥4.5L/s, 0.55Mpa |
|
|
Max working pressure |
≤0.9Mpa |
|
Isuzu FVR 10 cbm water tanker truck is a highly efficient working vehicle designed for tasks such as road cleaning, greening irrigation and emergency firefighting. The upper part is equipped with a 10 cbm large-capacity carbon steel water tank, which is compact and practical.
WEILONG 80QZF-60/90S water pump
The WEILONG 80QZF-60/90S pump is the core component of the truck 's sprinkler system. The pump has the characteristics of high performance, high reliability and high efficiency, providing the sprinkler truck with a stable and powerful water source output capacity.
Working principle
The working principle of the WEILONG 80QZF-60/90S water pump is mainly based on the action of centrifugal force. When the water pump is started, the impeller begins to rotate, generating centrifugal force. Under the action of centrifugal force, water is sucked into the inlet of the water pump and flows along the blades of the impeller. As the water flow continues to accelerate and diffuse, its pressure gradually increases and is eventually delivered to the sprinkler truck's spraying device.
During the sprinkler operation, the WEILONG 80QZF-60/90S water pump can adjust its output flow and head according to the needs of the spraying device to ensure the best sprinkler effect. At the same time, the water pump can also automatically adjust its working state according to the changes in the engine speed to maintain a stable performance output.
Main features
1. Strong self-priming ability:
● WEILONG 80QZF-60/90S pump has excellent self-priming ability, which can suck the water in the tank into the pump and transport it to the spraying device in a short time. This enables the sprinkler to start quickly and put into watering operations in various complex environments.
2. Large flow and high pressure:
● The pump has a large flow and high pressure, which can meet the needs of various spraying operations. Whether it is fine spraying or wide-area coverage, it can provide stable water flow and pressure support.
3. Wear-resistant and durable:
● WEILONG 80QZF-60/90S pump adopts high-quality materials and advanced manufacturing technology to ensure the wear resistance and durability of the pump. Even in long-term use, it can maintain stable performance.
4. Easy maintenance:
● The design of the pump fully considers easy maintenance, making daily maintenance and repair work more convenient and efficient. Users can complete the cleaning, inspection and replacement of the pump through simple operations.
The vehicle is unique in its spraying method and has three different spraying modes:
1. Front Water Spraying Nozzles:
The front of the vehicle is equipped with two left and right water spraying nozzles, which can evenly and widely cover the road ahead, and are particularly suitable for road cleaning, cooling and dust removal. By adjusting the amount of water, effective coverage of roads of different widths can be achieved, ensuring the uniformity and efficiency of the watering operation.

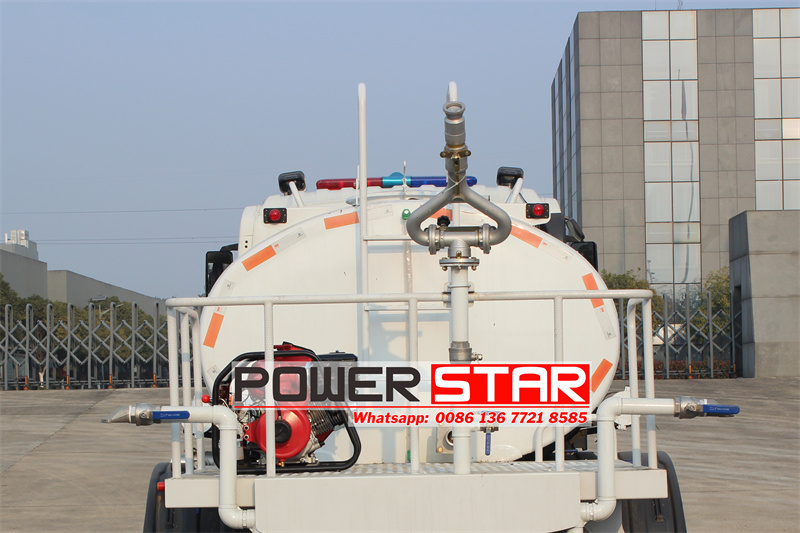

2. Rear Water Spraying Nozzles:
Water spraying nozzles are also set at the rear of the vehicle. These nozzles are mainly used for watering operations behind the vehicle, such as road maintenance and green belt irrigation. Compared with the front nozzle, the design of the rear nozzle focuses more on precise spraying of specific areas. By adjusting the amount of water in the nozzle, flexible response to different areas and different needs can be achieved.
3. Water Spraying Monitor:

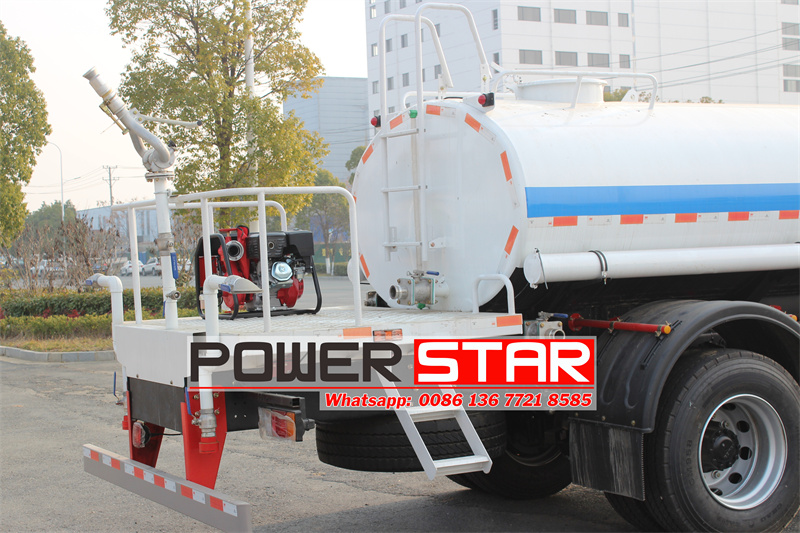

In addition to the front and rear water spray nozzles, the Isuzu FVR 10m3 water spray truck is equipped with a high-pressure water spray gun on the rear platform that can rotate 360 degrees in all directions and adjust the spray angle and water flow intensity according to the operation requirements. This device generates a strong impact force through high-pressure water flow, which can achieve precise spraying of long-distance targets, such as irrigation of tall trees and cleaning of building exterior walls.

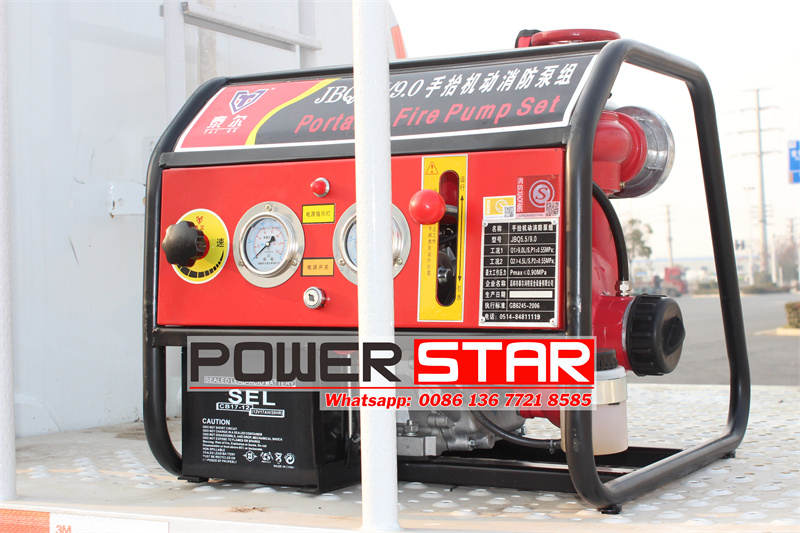

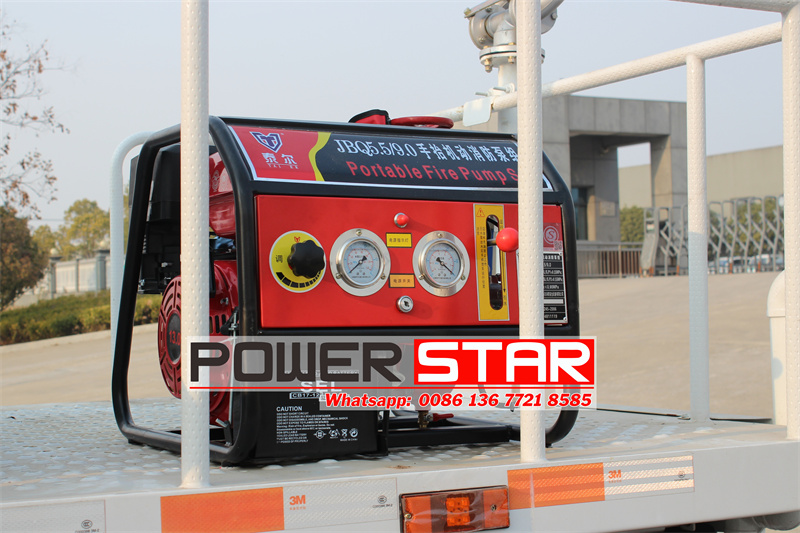

Rear JBQ5.5/9.0 portable fire pump set
On the working platform the Isuzu FVR 10 m³ water spraying truck is also specially equipped with a JBQ5.5/9.0 portable fire pump set. This pump set has the characteristics of small size, light weight, and easy operation. It can be quickly started in an emergency and provide additional water source support for the sprinkler truck.
• Efficient performance: The portable fire pump set adopts advanced pumping technology, which can quickly pressurize the water in the tank and transport it to the designated location to meet the needs of emergency firefighting or special sprinkler operations.
• Flexible application: The design of the pump set fully considers portability and versatility. It can be easily disassembled and carried, and is suitable for emergency operations in different scenarios. At the same time, the pump set can also be used in conjunction with other spraying devices of the sprinkler truck to achieve more diverse sprinkler operation methods.
• Safe and reliable: The JBQ5.5/9.0 portable fire pump set strictly abides by relevant safety standards during the design and manufacturing process to ensure stable and reliable operation in emergency situations. At the same time, the pump set is also equipped with necessary safety protection devices, such as overload protection and pressure protection, which further improves the safety of the operation.
