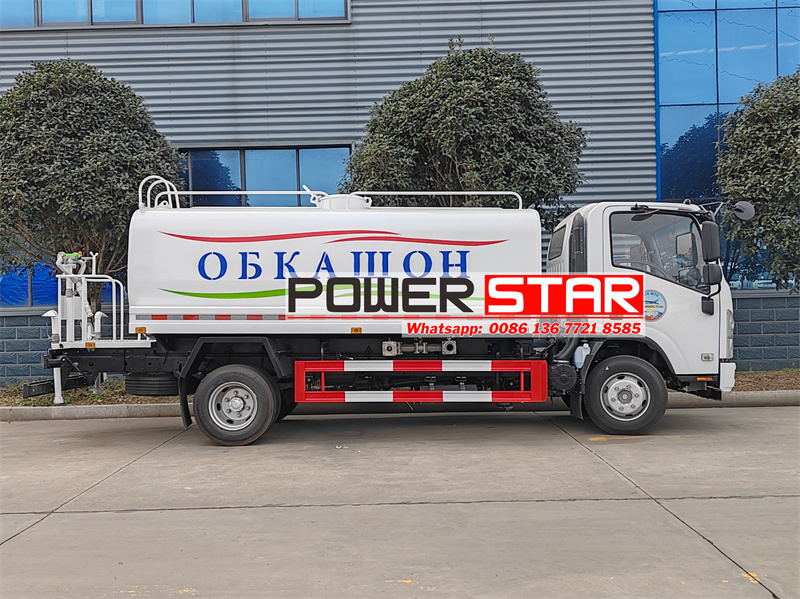

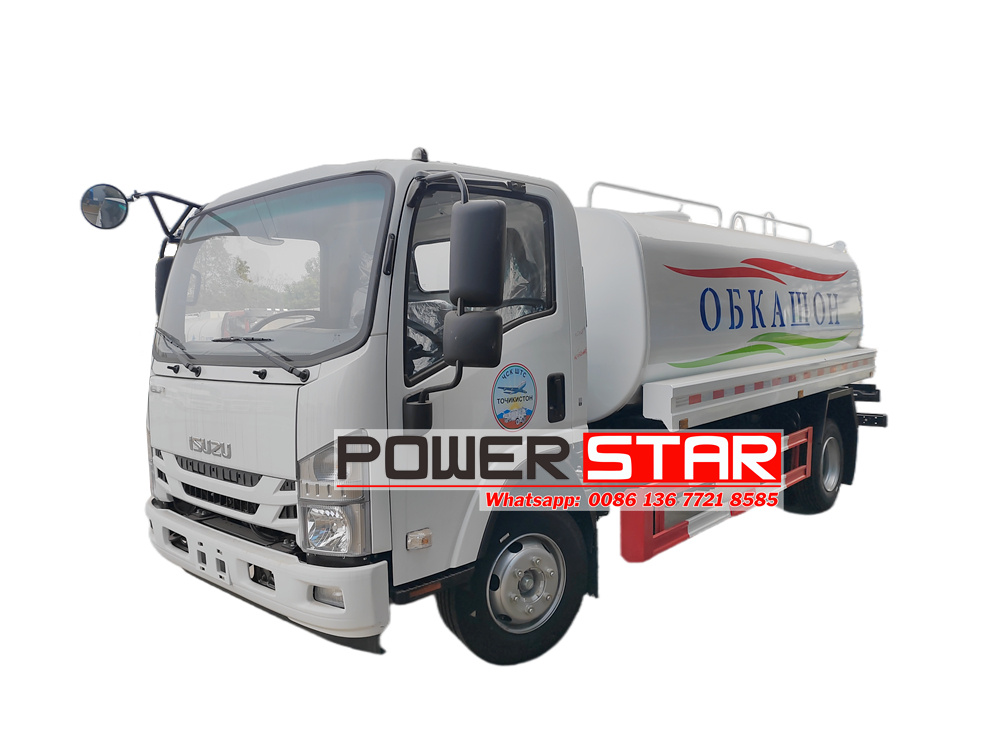

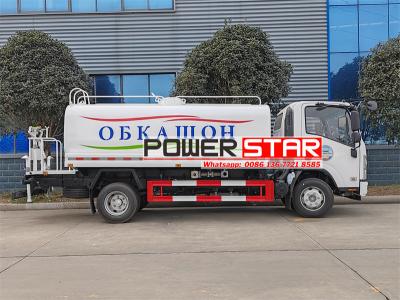

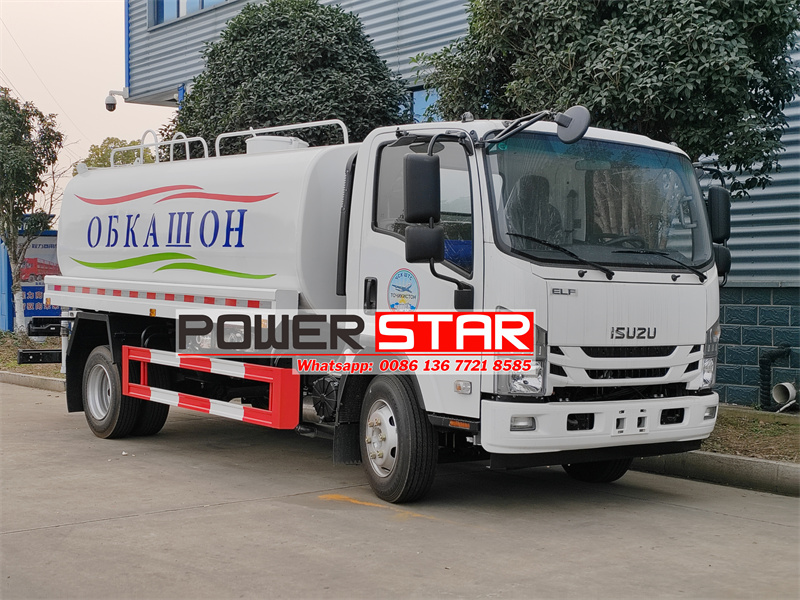

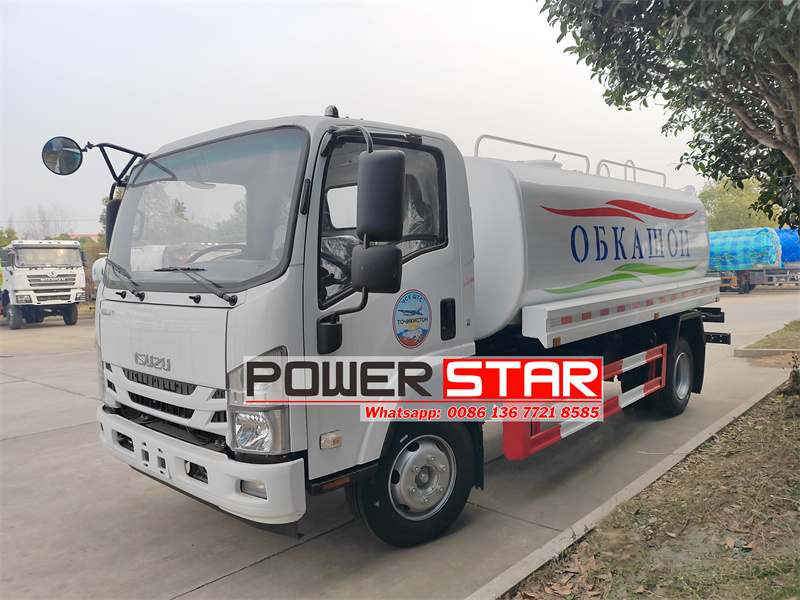

The Isuzu 700P 8cbm water tanker truck is used for road sprinkling.The truck is modified on the ELF 700P chassis,with 4175mm wheelbase,A/C,USB,direction assistance,Isuzu 4HK1 diesel engine,5193ml displacement,MLD 6 shift gearbox.The upper structure is a 8cbm water tank, with front, rear and side three spraying modes.
Work capacity:
8000 litersEngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4x2，LHDGear box:
Isuzu MLD 6-shift gearbox,manualRemarks:

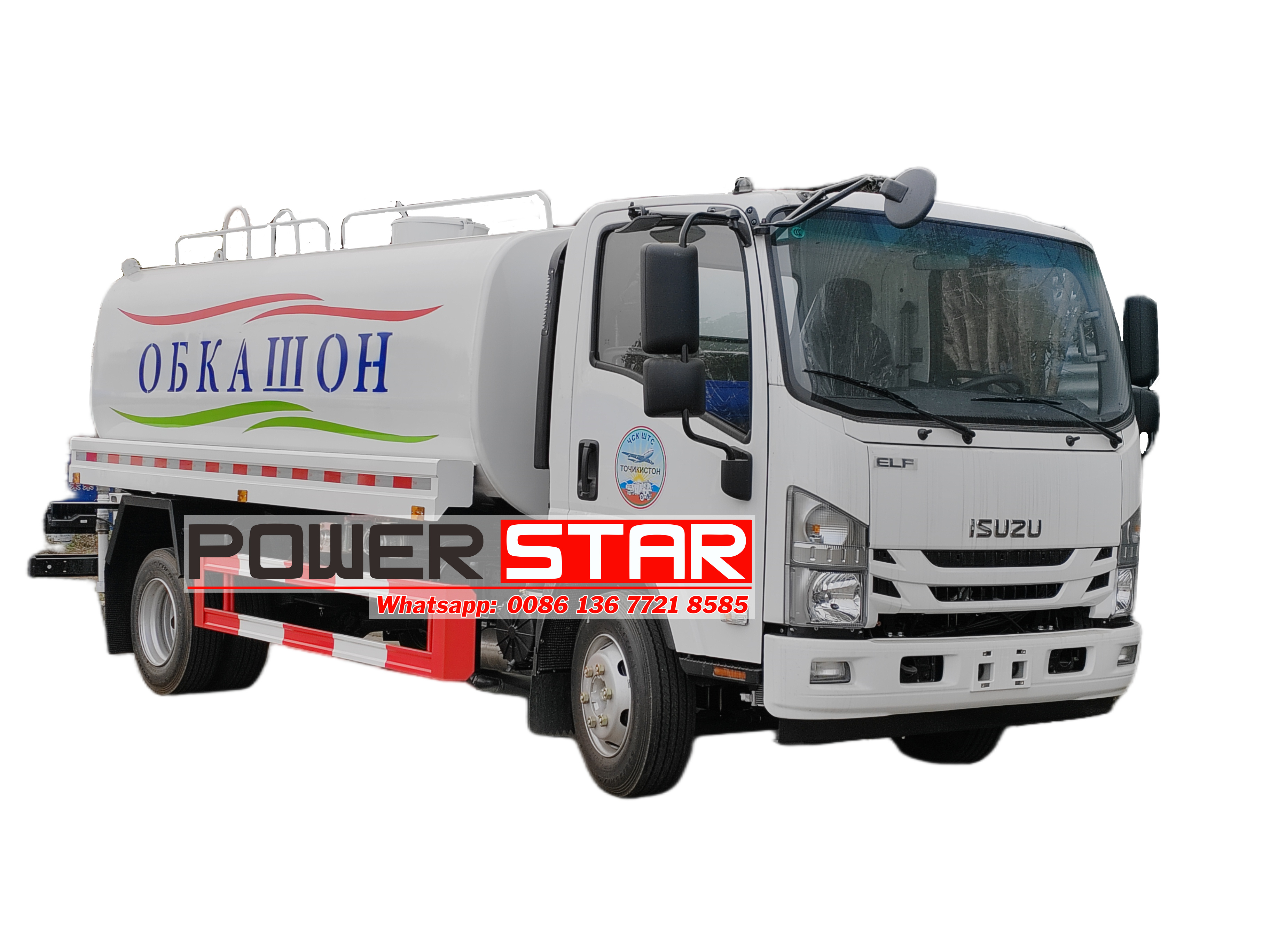

8cbm water tank,with front, rear and side three spraying modes.The Albania Isuzu water hauling tanker truck, equipped with the renowned Isuzu 700P chassis, is a powerful and reliable vehicle designed for water transportation tasks. This tanker truck boasts an impressive 8 cubic meters (cbm) water tank, making it highly efficient for various water hauling needs.
● More than 500 workers, large and advanced production
● 50 units Isuzu water spray truck in stock, 5 cbm, 8 cbm, 12 cbm
● Promptly delivery. any order is welcome.
● OEM customized service, print your company logo
● 24 months quality guarantee term
Key Features
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
|
Isuzu 700P 8000 liters water tank truck |
||||
|
Chassis Specification |
||||
|
Driving Type |
4*2 Left hand driving |
|||
|
Max Speed (km/h) |
105 |
|||
|
Overall Dimension (mm) |
7200*2300*2550 |
|||
|
GVW (kg) |
11000 |
|||
|
Truck Tare Weight (kg) |
4050 |
|||
|
Wheelbase (mm) |
4175 |
|||
|
Tire |
235/75R17.5 |
|||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||
|
Steering |
Hydraulic steering with power assistance |
|||
|
Gear Box |
Isuzu MLD 6-speed,manual |
|||
|
Bridge |
Front axle |
4tons |
||
|
Rear axle |
7tons |
|||
|
Engine |
Brand |
Isuzu |
||
|
Model |
4HK1-TCG61 |
|||
|
Fuel Type |
Diesel fuel |
|||
|
Emission Standard |
Euro VI |
|||
|
Type |
Inline 4-cylinder, water-cooled four-stroke, direct injection, turbocharged |
|||
|
Displacement(ml) |
5193 |
|||
|
Max output power/rotate speed |
190HP/2600 rpm |
|||
|
Max torque/rotate speed |
507 N.m /1600-2600 rpm |
|||
|
Upper Parts Specification |
||||
|
Tank |
Sprinkler |
Front,side,rear sprinklers |
||
|
Tank shape |
Ellipse |
|||
|
Material of tanker |
Carbon steel |
|||
|
Tank volume |
8000 liters |
|||
|
Tank thickness |
Side 4 Bottom 5 |
|||
|
Color of the tanker |
According your demands |
|||
|
Water pump |
Mode |
65SQB-40/50L |
||
|
Style |
Self-priming centrifugal |
|||
|
Material |
S304 stainless steel |
|||
|
Lift |
45m |
|||
|
Input speed |
1150-1450r/min |
|||
|
Self-priming performance |
1min/5m |
|||
|
Shaft power |
9.3Kw |
|||
|
Introduction of function |
Front back sprinkler, side spray, with working platform at back of truck, with high pressure gun, which can be adjusted according to requirement, and assemble the high quality watering pump, with fire fighting connection and overflow valve, with self-suction function. |
|||
|
Front Flushing |
Horizontally clean width 15m |
|||
|
Rear Spray |
Rear spray with fan-shaped range 14m |
|||
|
Side Spreading |
Could Vertically control the dust with a range of 10m |
|||
|
Sprinkler(Water Canon) |
Range with 28m |
|||
|
Fittings |
PTO water pump |
|||
|
One Manhole |
||||
|

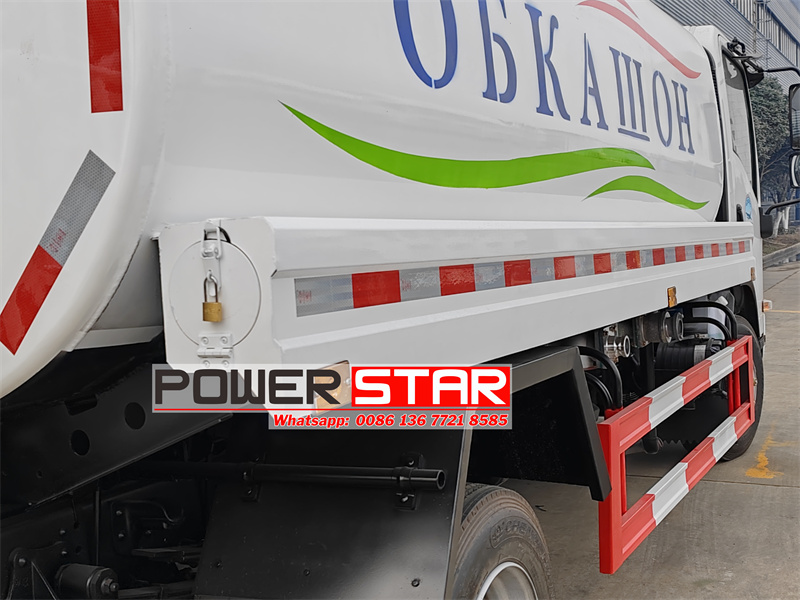

water hose box fitted on both side of tank |
||||
|
One spare tyre |
||||
|
Ladder: For access to top of tank complete with cat walk on top of tank |
||||
|
Heavy-duty rear bumper |
||||
The vehicle is equipped with an Isuzu 4HK1 190HP diesel engine. It provides a strong power output and stable operating performance for the sprinkler truck. The powerful power of 190 horsepower ensures that the sprinkler truck can easily cope with various road conditions, whether it is a city street or a country road, it can easily complete the sprinkler task.
The water tank capacity of the Isuzu 700P8 cubic sprinkler truck reaches 8 cubic meters, which can meet the needs of long-term and large-scale sprinkler watering. The interior of the water tank uses high-quality anti-corrosion materials to ensure the cleanliness and hygiene of the water quality. At the same time, the water tank is also equipped with an advanced liquid level meter and drain valve, which is convenient for users to monitor the water volume and drain water at any time.
As a sprinkler truck, the Isuzu 700P 8 cubic water tank truck is equipped with an advanced sprinkler system, including a high-pressure water pump, an adjustable sprinkler nozzle and an intelligent control system. These configurations enable the vehicle to flexibly adjust the sprinkler pressure and coverage according to actual needs, meeting the needs of various application scenarios such as road cleaning, greening irrigation, and dust reduction at construction sites.
In terms of spraying methods, the vehicle is equipped with three spraying methods: front, rear, and side. The front spraying method is mainly used to clean the road surface and reduce dust; the rear spraying method is suitable for spraying and moisturizing the road surface behind the vehicle; the side spraying method can achieve precise irrigation of the green belts on both sides of the road. The three spraying methods can be switched freely, allowing the sprinkler truck to perform at its best in different operating scenarios.

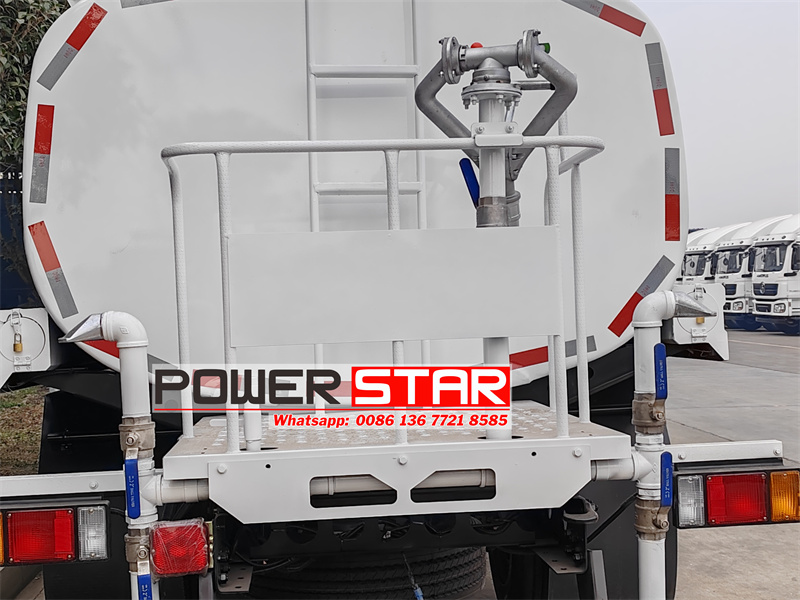

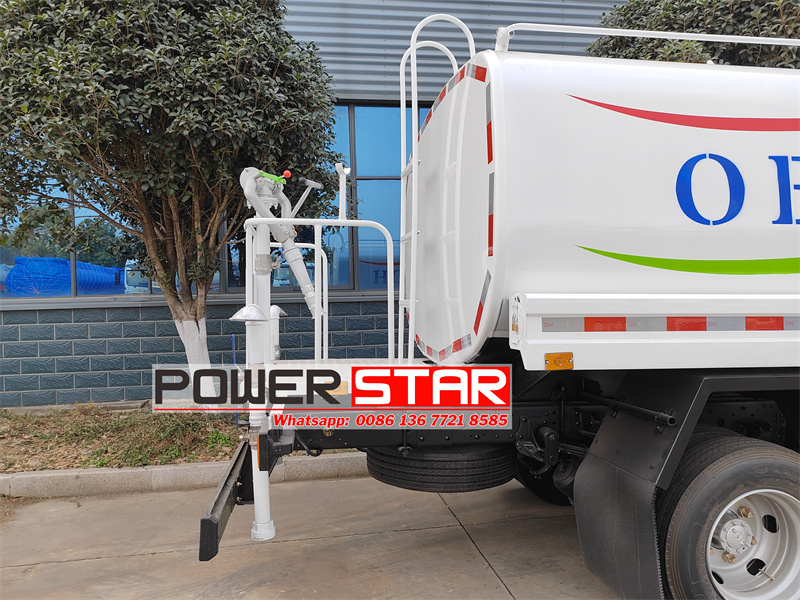

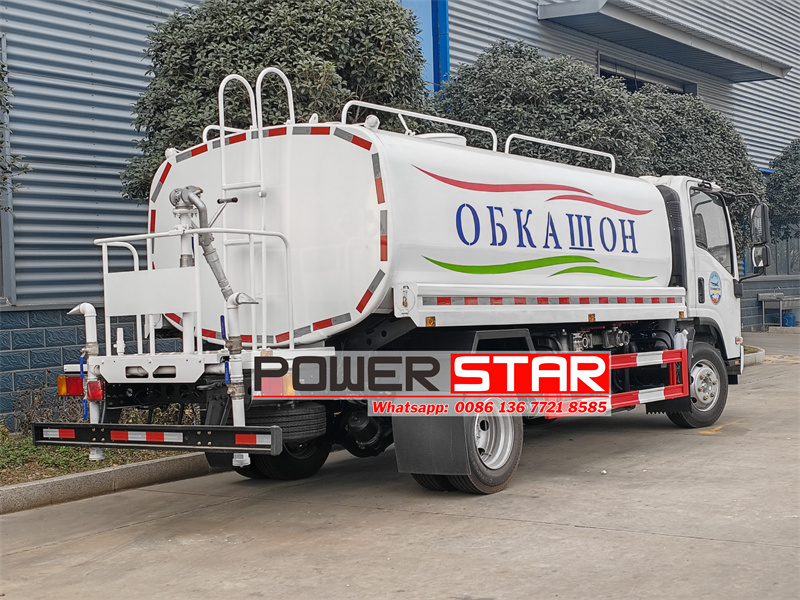

Water Monitor
It can be adjusted into a column shape with a range of ≥28 meters and can be adjusted into a fog shape with a range of ≥15 meters. It can be used for remote watering and auxiliary firefighting operations.

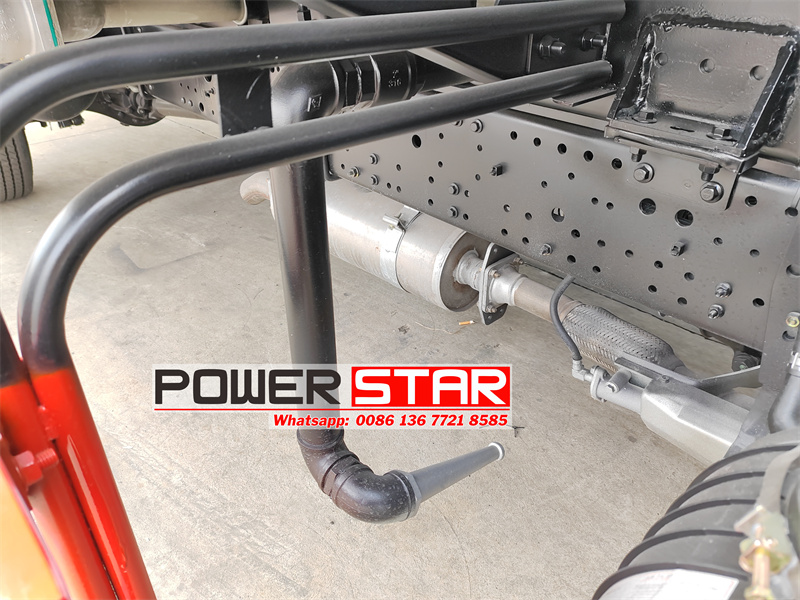

Front Flushing
With a pneumatic valve (optional), flushing width 15meters, can be used for road flushings such as roads and squares.

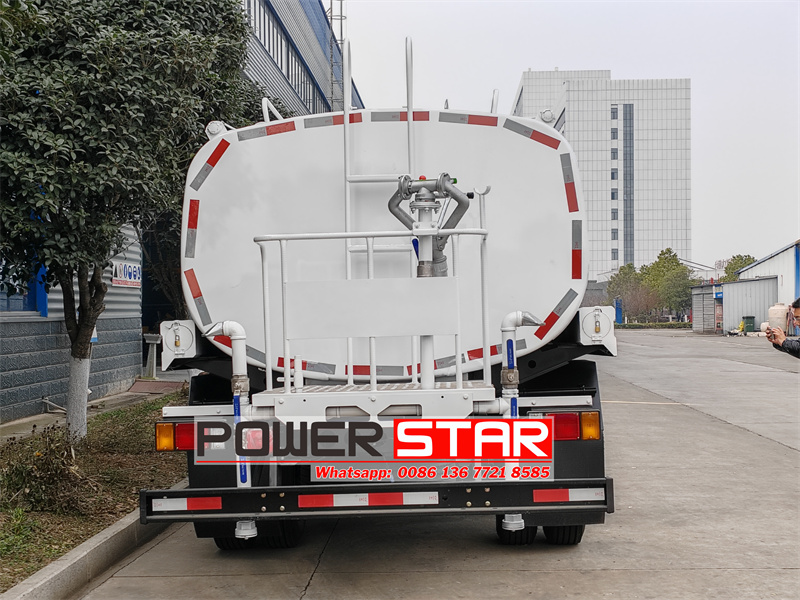

Rear Sprinkler
With pneumatic valve (optional), watering width 14meters, used for water on roads, squares and other roads.

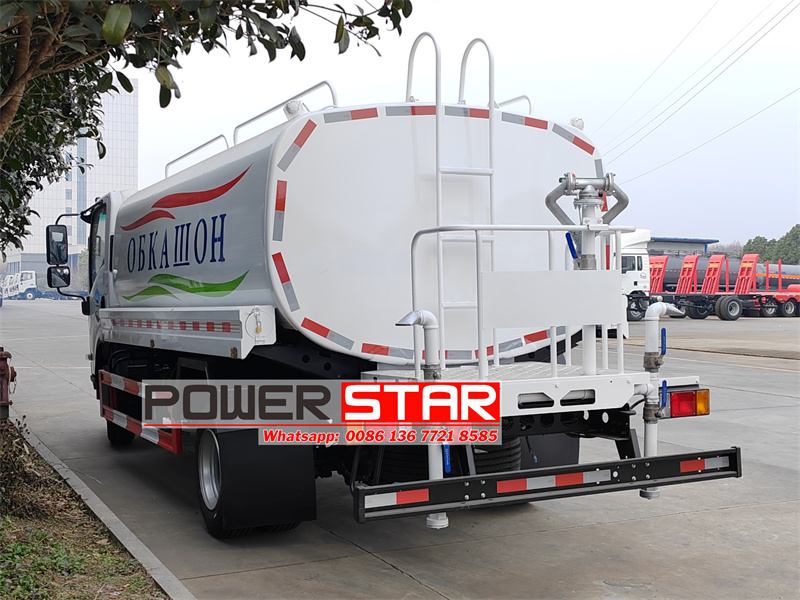

Side Spray
Could Vertically control the dust with a range of 10m

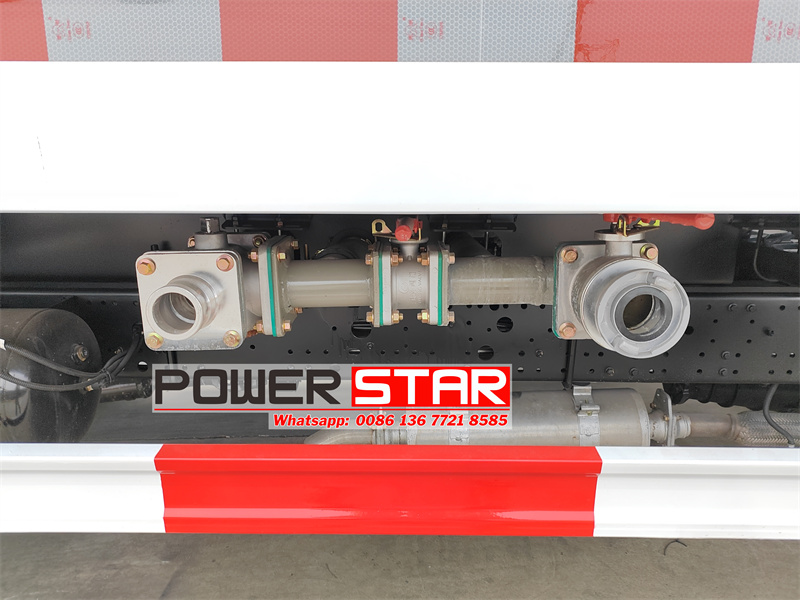

Inlet Pipe Network System
The ball valve can self-absorb the water source, and the fire interface can be connected to the fire water source, which is convenient and quick.
Water pump
Stainless steel self-priming sprinkler pump, the Lift is 45m，Input speed is 1150-1450r/min,self-priming performance is 1min/5m，
shaft power is 9.3Kw. It has the advantages of simple structure, stable operation, high efficiency, and reliable use.
