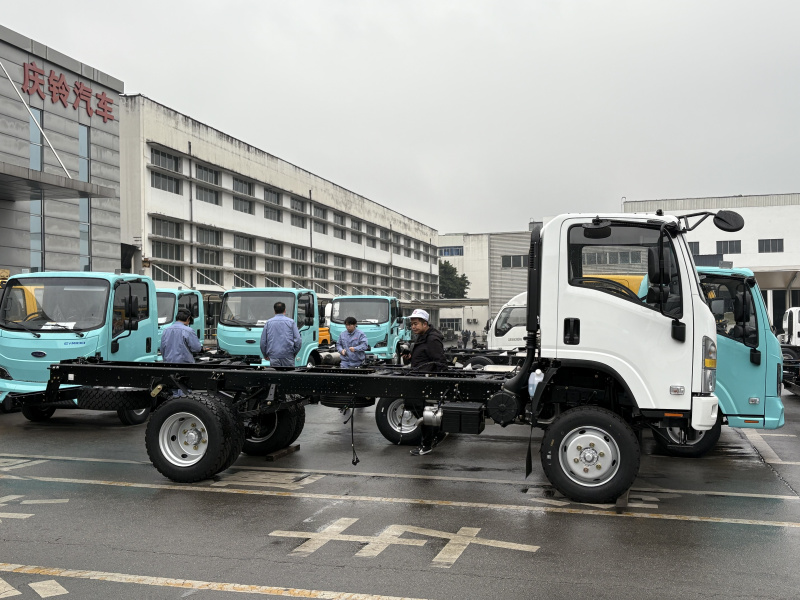

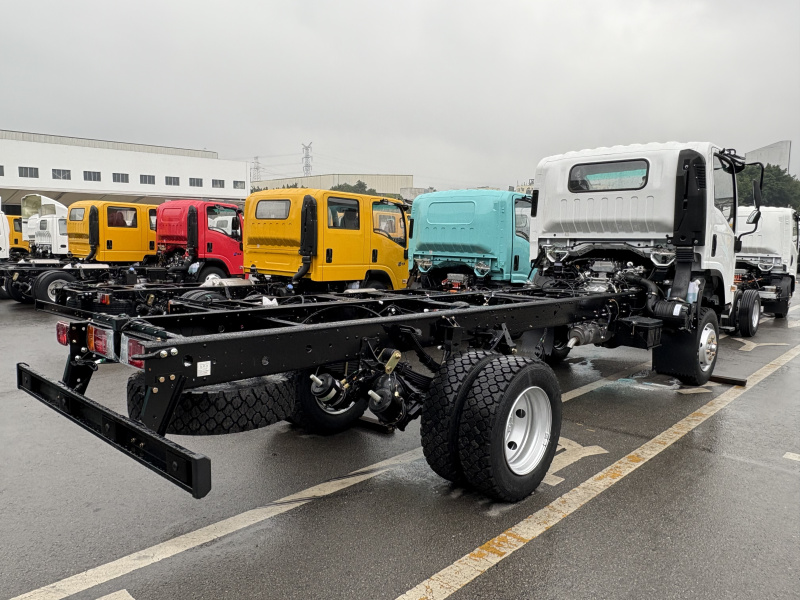

The Powerstar Isuzu KV800 4x4 cab chassis trucks, also named QL1110ANMAY off road truck chassis Isuzu KV800 or 4JZ1 engine KV800 cabin chassis, is a wide-body light truck designed specifically for heavy-duty transportation. Its chassis and powertrain perform exceptionally well, making it suitable for a variety of applications. It is widely used for heavy-duty urban logistics and specialized vehicles like garbage compactors and aerial work platforms.

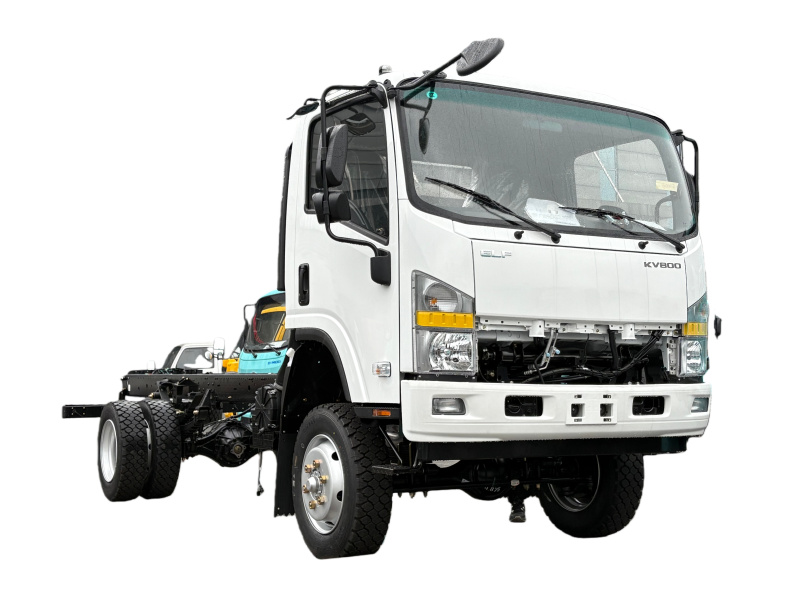

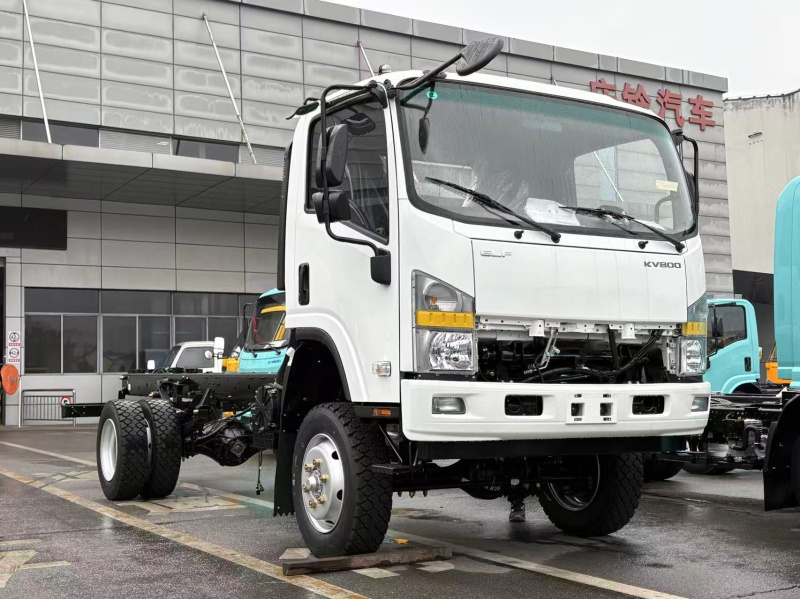

Front view QL1110ANMAY ISUZU KV800 4x4 cab chassis truck with 4JZ1-TCG62

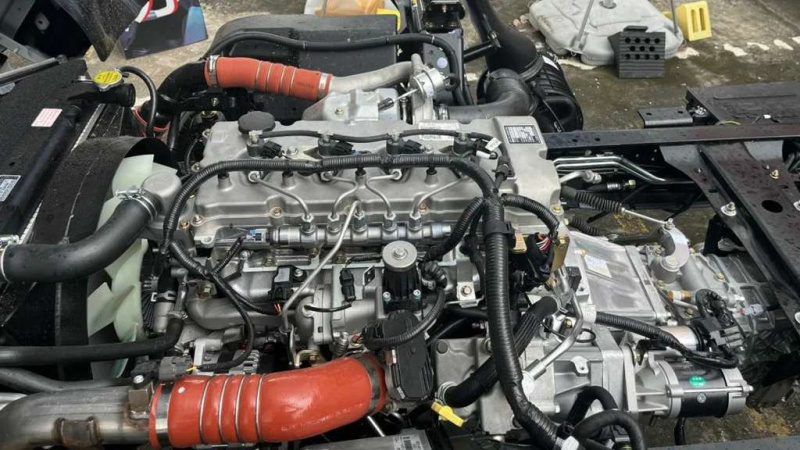

» 1.Powerful engine 4JZ1 series:
Main spec of Isuzu 4JZ1-TCG62
▶ Engine Model: 4JZ1-TCG62
▶ Engine Brand: ISUZU
▶ Engien Power: 131KW/180HP
▶ Torque: 510 Nm
▶ Displacement: 3.0 L
Features: High efficiency, reliable, durable, powerful, suitable for steep incline starts and full-load acceleration.

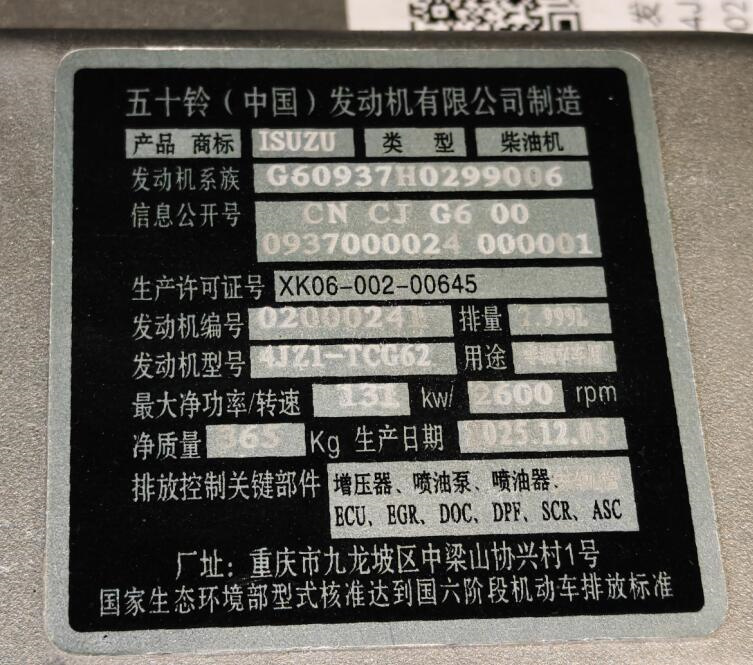

Isuzu 4JZ1 180HP Engine Plate
▶ Type: Diesel engine
▶ Applicaiton: Special purpose vehicle
▶ Weight: 365 kg
▶ Key parts: ECU, EGR, DOC, DPF, SCR, ASC
» 2.MYY 6-shift gearbox:

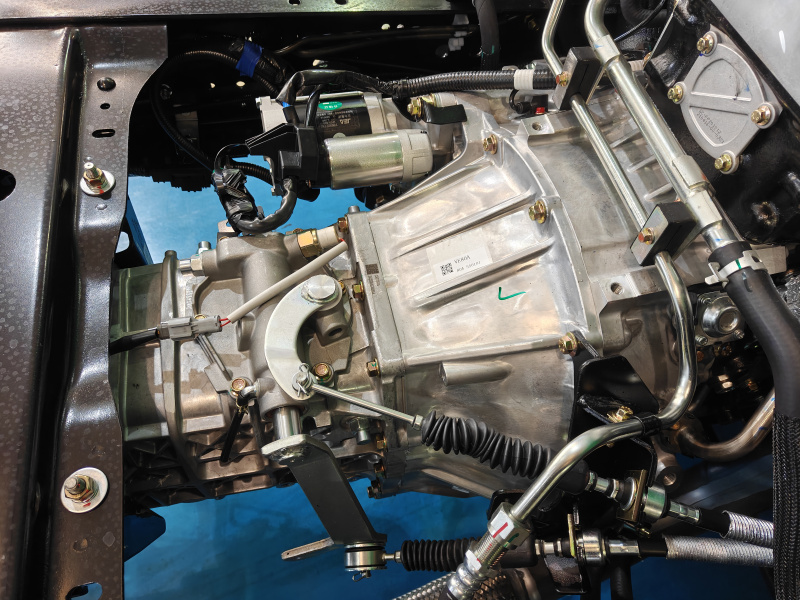

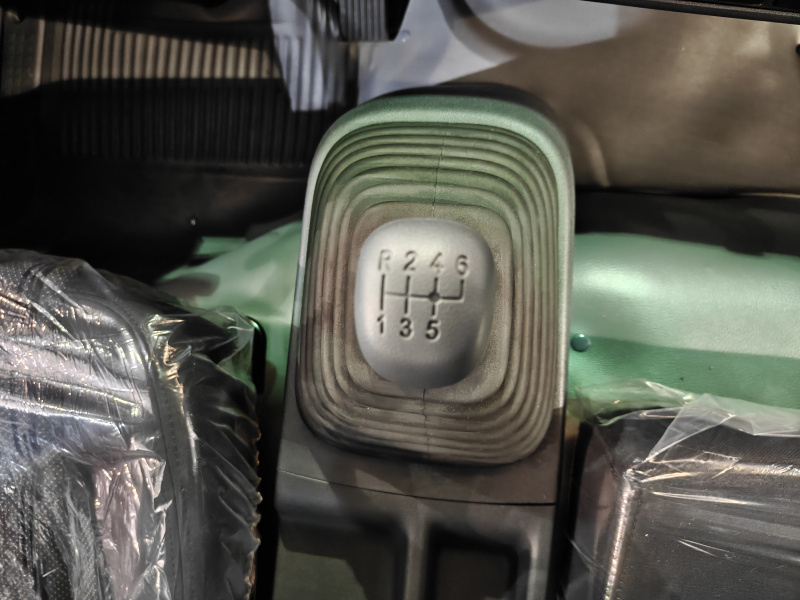

Isuzu MYY 6-shift gearbox
▶ Type: 6-speed manual
▶ Material: All-Aluminum
▶ Efficiency: 98%
▶ Rear: 1 shift
Features: Low power loss, durable and fuel-efficient, with multiple axle ratio combinations for precise adaptation to different working conditions
Isuzu MYY-6P Gear Ratios
1st Gear: 5.979:1
2nd Gear: 3.434:1
3rd Gear: 1.862:1
4th Gear: 1.297:1
5th Gear (Direct): 1.000:1
6th Gear (Overdrive): 0.774:1
Reverse: 5.701:1

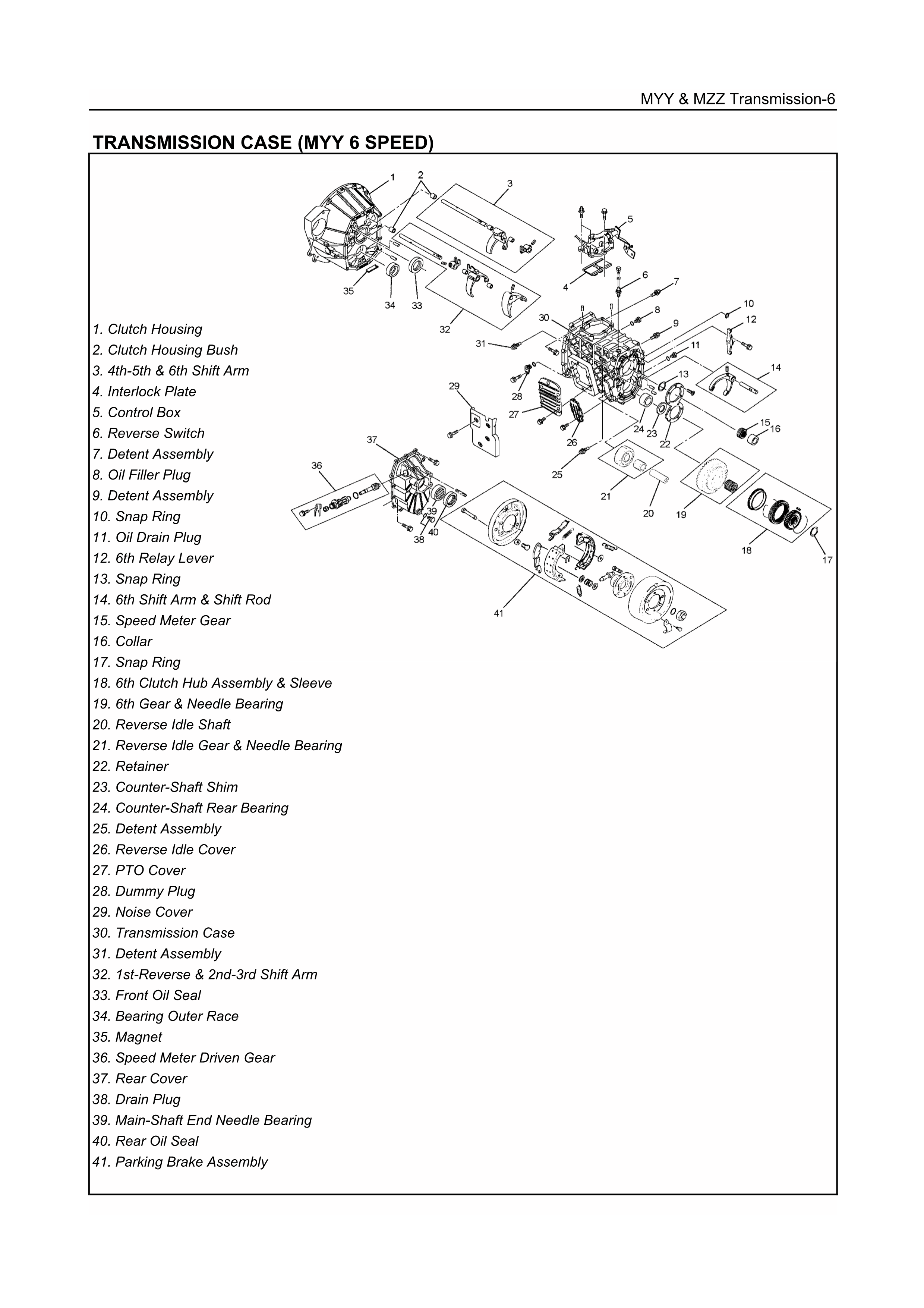

ISUZU MYY 6shift gearbox transmission technical drawing

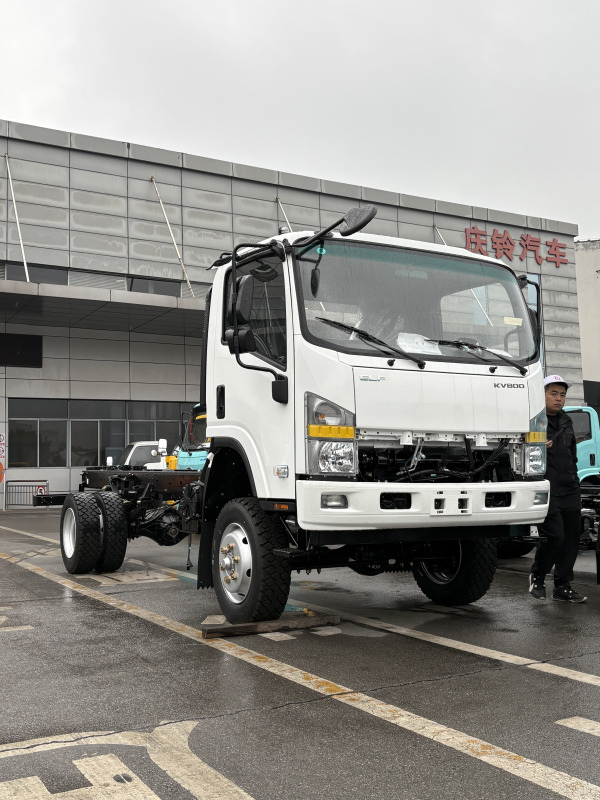

» 3. 4x4 off-road drive system:
Isuzu KV800 truck chassis 4x4/off road system, is a robust, part-time system featuring selectable modes (2H, 4H, 4L) for on-road cruising, moderate off-roading (4H), and extreme terrain (4L), often with an electronic rear differential lock for maximum grip, allowing easy shifting between modes for versatile performance on diverse surfaces, from pavement to mud.
Our ISUZU AWD & 4x4 trucks can be adapted to suit almost any need you might have.

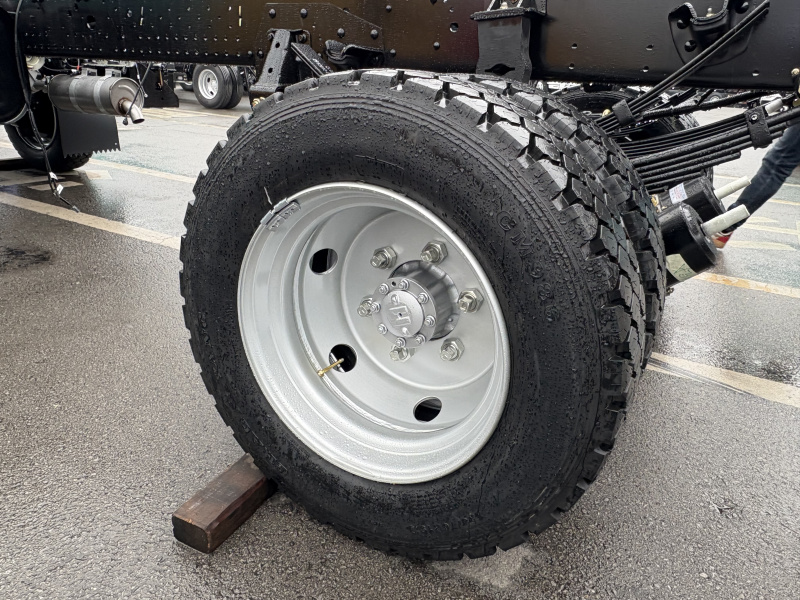

Off road tires for 4x4 KV800 cabin chassis truck
» 4. Classical cabin:
Isuzu's KV800 classical and comfortable cabin

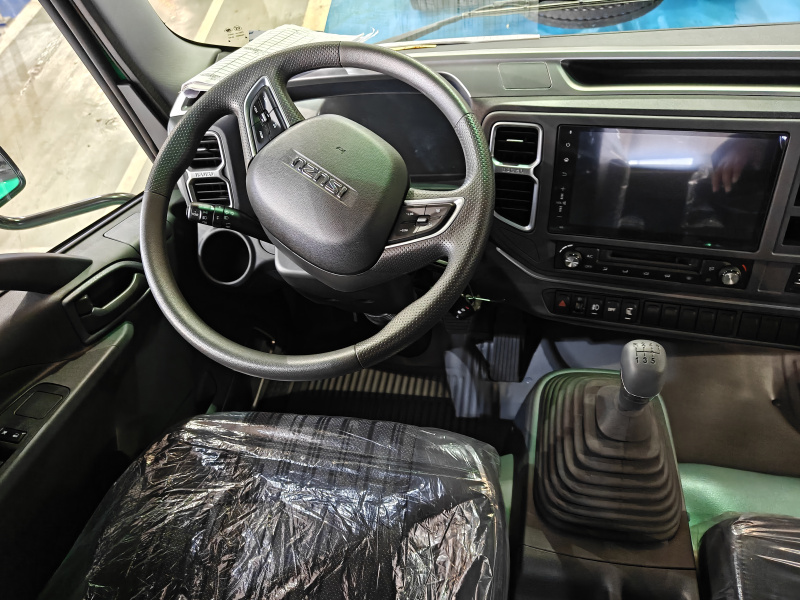

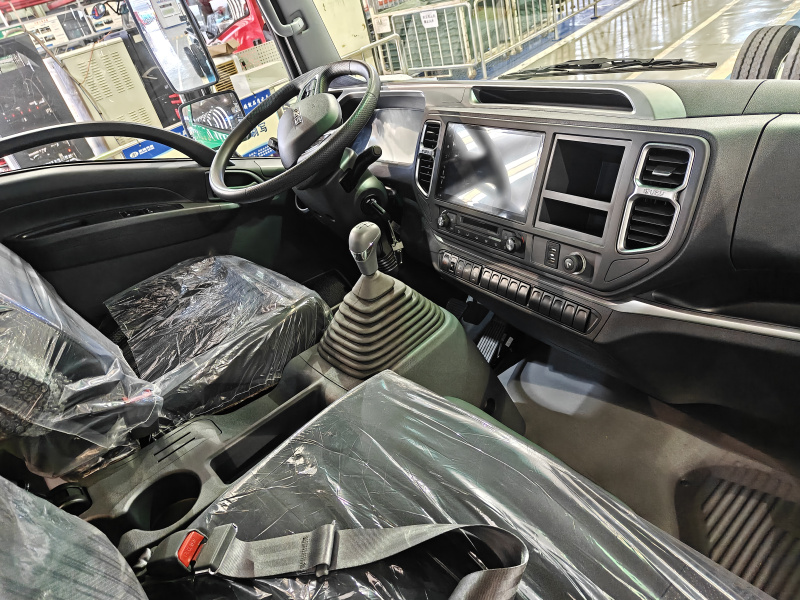

Isuzu's KV800 cabin inside, easy to drive
Addressing challenges such as difficulty starting heavy loads and sluggish performance on long uphill climbs, the Isuzu KV800 is equipped with the Isuzu 4JZ1 engine. Its 3.0L displacement delivers powerful performance, boasting 180 horsepower and 510 Nm of torque, providing instant acceleration. Combined with an all-aluminum gearbox with 98% transmission efficiency, it climbs hills with ease and overtakes without hesitation when fully loaded. Multiple axle ratio combinations allow the vehicle to operate efficiently on various road conditions, including urban and rural roads and highways, helping truck drivers secure more orders and increase their profits.
Long hours of driving can easily lead to back pain, but the Isuzu KV800's new cab design is exceptionally thoughtful. It features an air-suspension seat that effectively filters out discomfort from bumps, and an electric air conditioner to regulate temperature, creating a comfortable environment that's warm in winter and cool in summer. The fully digital instrument cluster clearly displays vehicle data, and the intelligent central control screen offers easily accessible functions, significantly improving ease of operation. Furthermore, it's equipped with a full range of safety features, including heated side mirrors, ABS, tire pressure monitoring, and a reversing camera, providing comprehensive protection for drivers, especially during nighttime driving and navigating narrow roads, making driving safer and transporting goods more effortless!
» 5. KV800 applications:
The Isuzu KV800 truck chassis series features a modular chassis design, allowing for customization of refrigerated compartments, specialized equipment, and other superstructures. It is precisely adapted for various scenarios including cold chain transportation, high-end logistics, road clearing, sanitation, postal services, and forest fire prevention. Certain specialized vehicles can also utilize the original four-wheel drive system, providing enhanced off-road capability and passability, ensuring stable operation in various complex road conditions. It truly prioritizes the user's perspective, comprehensively meeting diverse usage needs.
Cold chain transportation: Customizable refrigerated compartments, precisely adapted to cold chain transportation needs High-end Logistics: Modular chassis design supports various customized superstructures.
Road Clearing and Sanitation: Powerful engine suitable for heavy-duty scenarios such as road clearing and sanitation.
Postal and Forest Protection: Certain special-purpose vehicles can utilize original four-wheel drive systems, providing enhanced off-road capability and passability.
