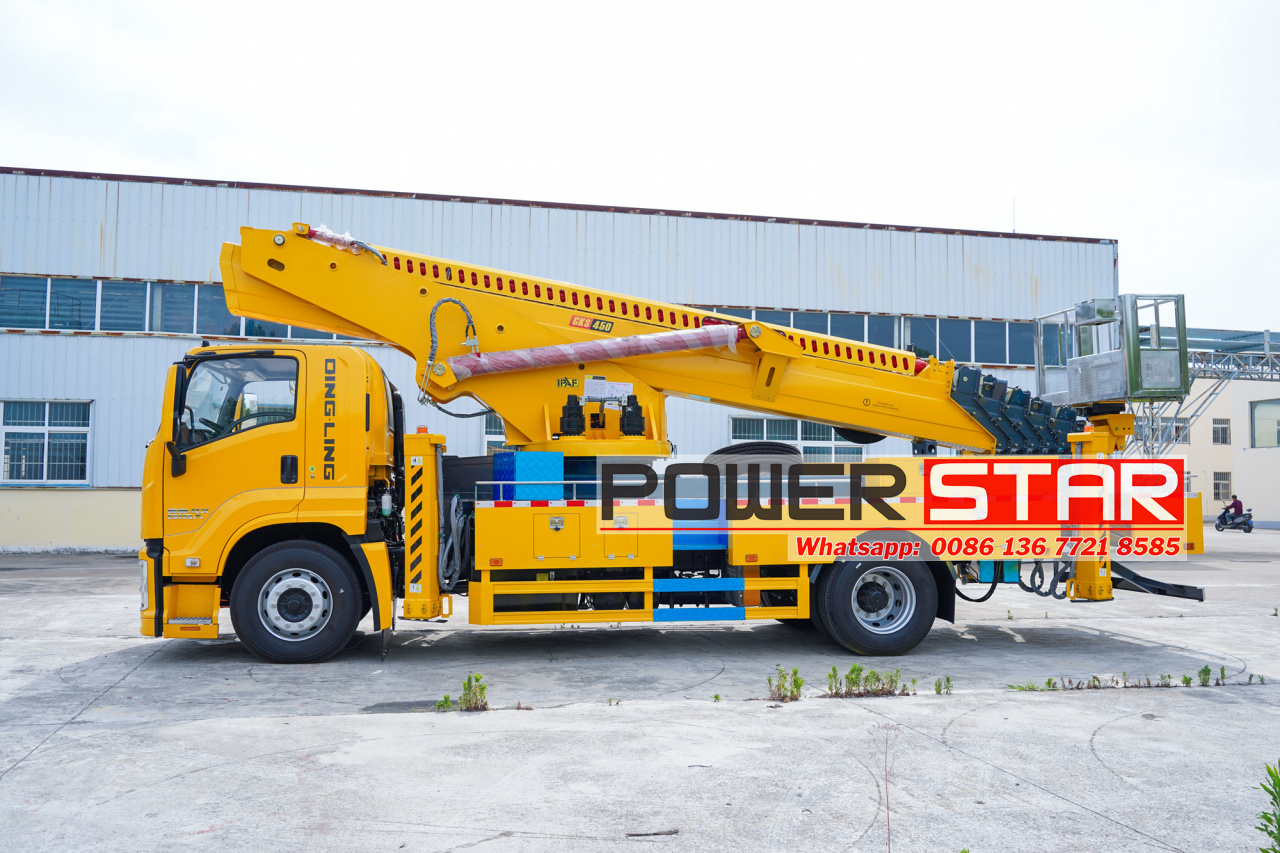

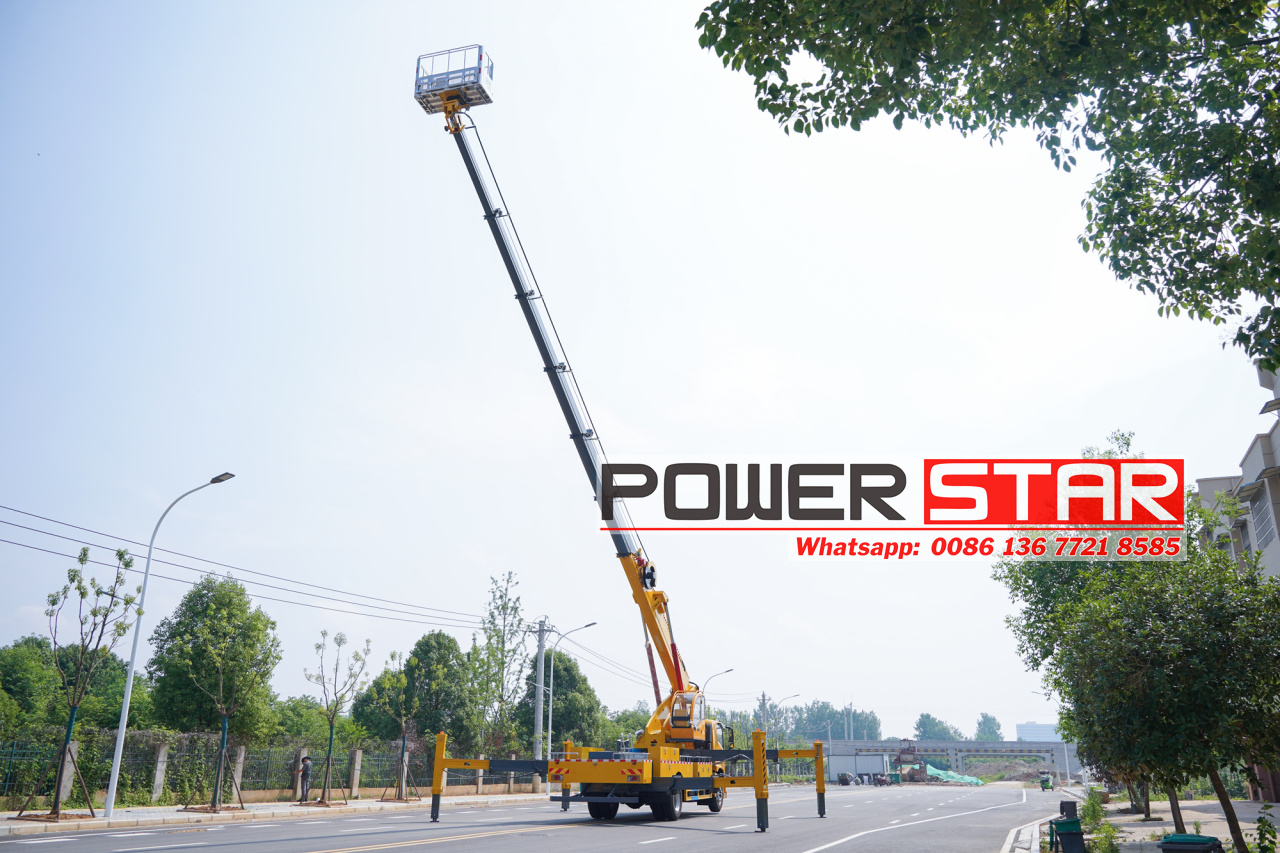

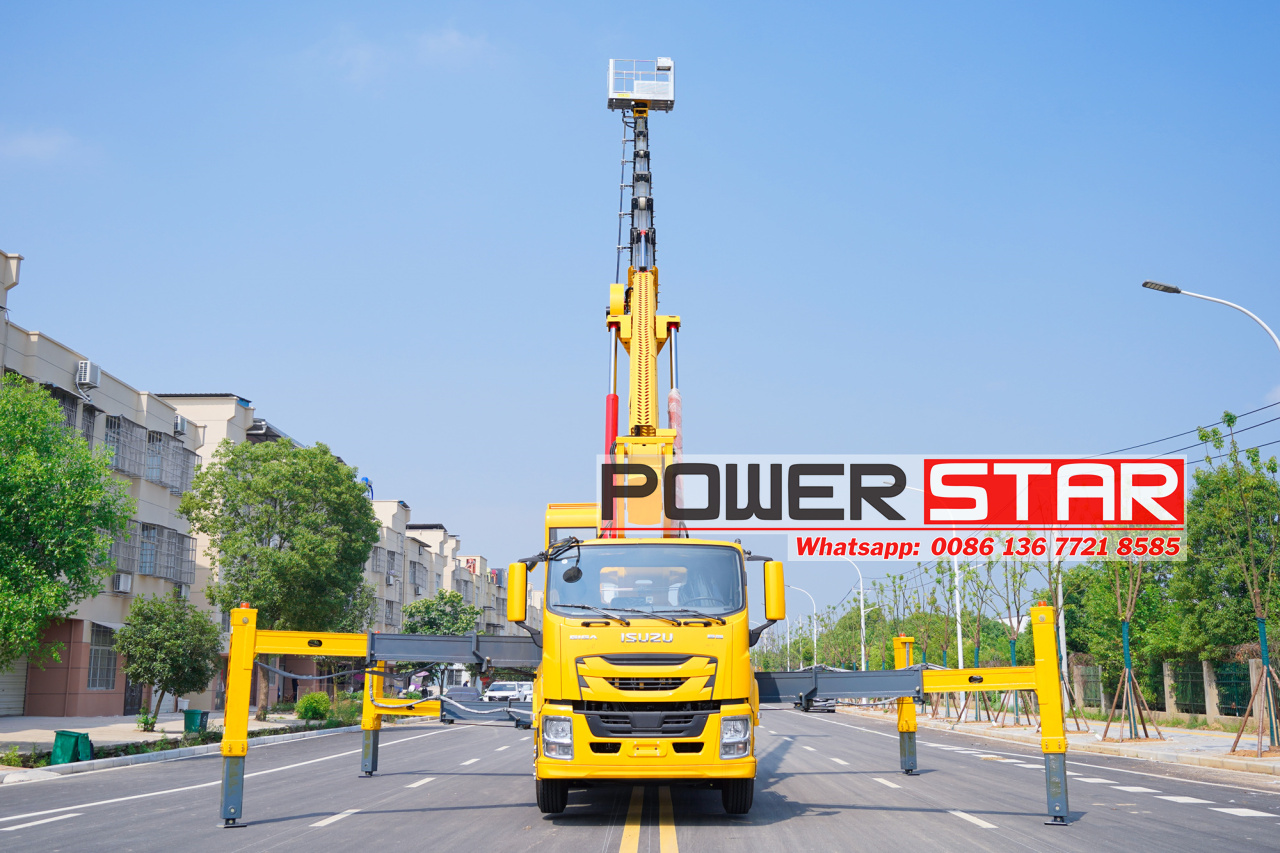

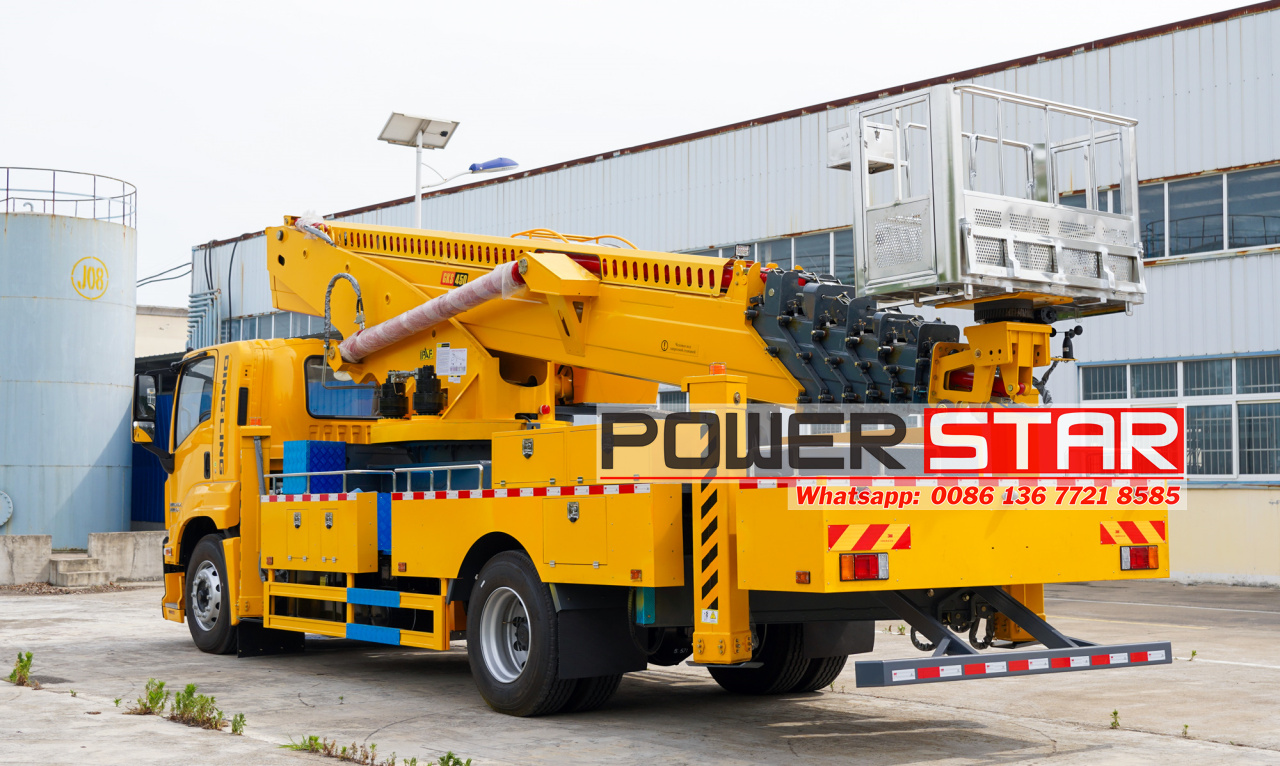

45M Isuzu Giga truck mounted aerial working platform Operation Manual (Isuzu giga Manlift truck user manual). 45M Isuzu Giga truck mounted aerial working platform build on QL1180JQFRY Isuzu GIGA FTR truck chassis, Isuzu 4HK1 205hp engine, Isuzu MLD 6-shift gearbox.

I. Product Overview

45M Isuzu Giga truck mounted aerial working platform is a fully rotating, multifunctional engineering work vehicle designed to safely and smoothly send workers to high altitudes for various operations, such as maintenance, installation, cleaning, photography, shipbuilding, chemical industry, electricity, pruning, replacement of street lights, etc. This product is manufactured based on the chassis of QL1180JQFRY Isuzu giga truck chassis. (other vehicles can also be modified), with the characteristics of beautiful appearance, comfortable driving, and easy operation.

II. Main technical parameters of Isuzu giga Truck-Mounted Aerial Work Platform

Operation height: Depending on different models, the operation height can reach 14-20 meters.

Operation radius: The maximum operation radius varies depending on the model, and the rotation angle is 360°.

Outrigger setting: Horizontal and longitudinal H-type support to increase the support span.

Working load: The upper limit of the working bucket is 200kg, limited to two people.

Hydraulic system: The maximum working pressure can reach 16MPa, the flow rate is 25L/min, with a unique stepless speed regulation system, energy saving and flexible movement.

Working environment: ambient temperature -20℃-40℃, wind speed not exceeding level 6, solid and flat ground, no dark ditch or hole.

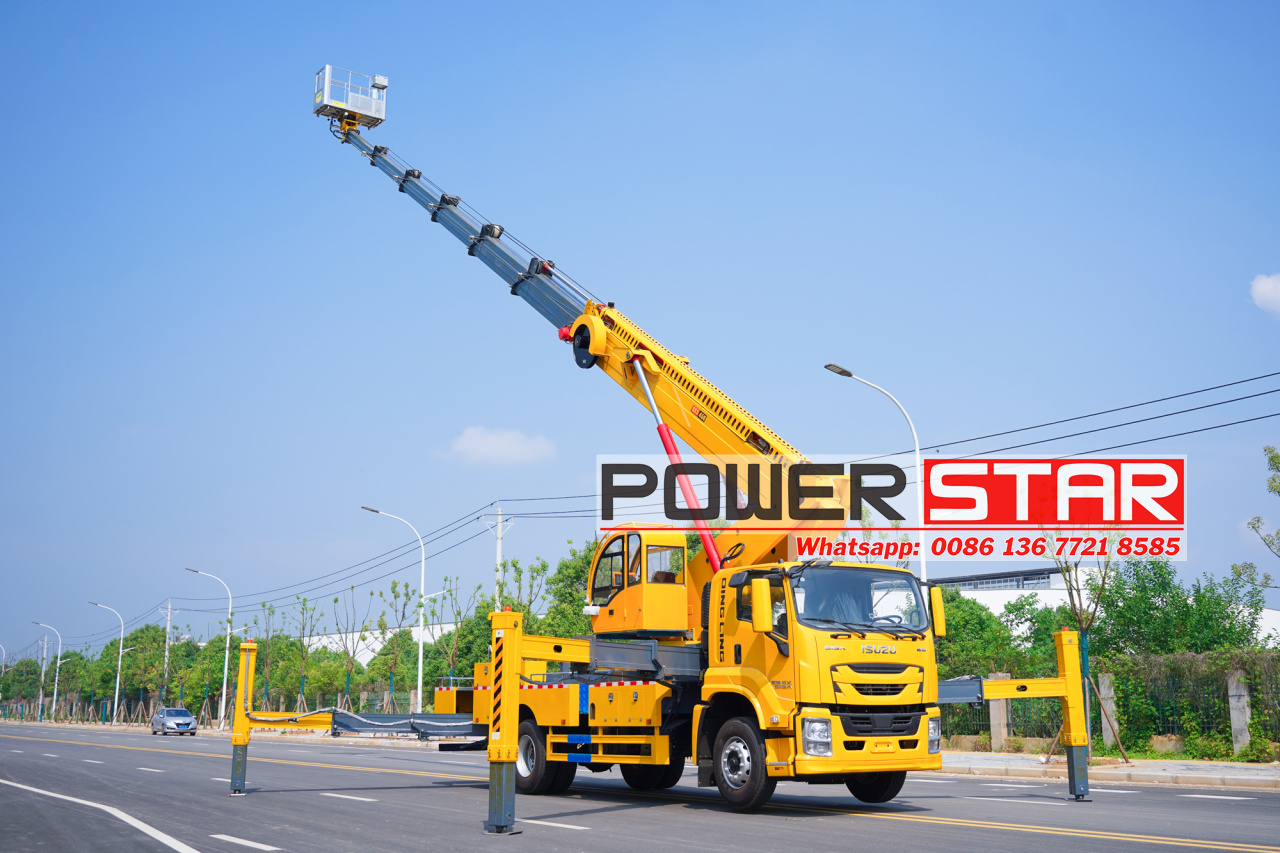

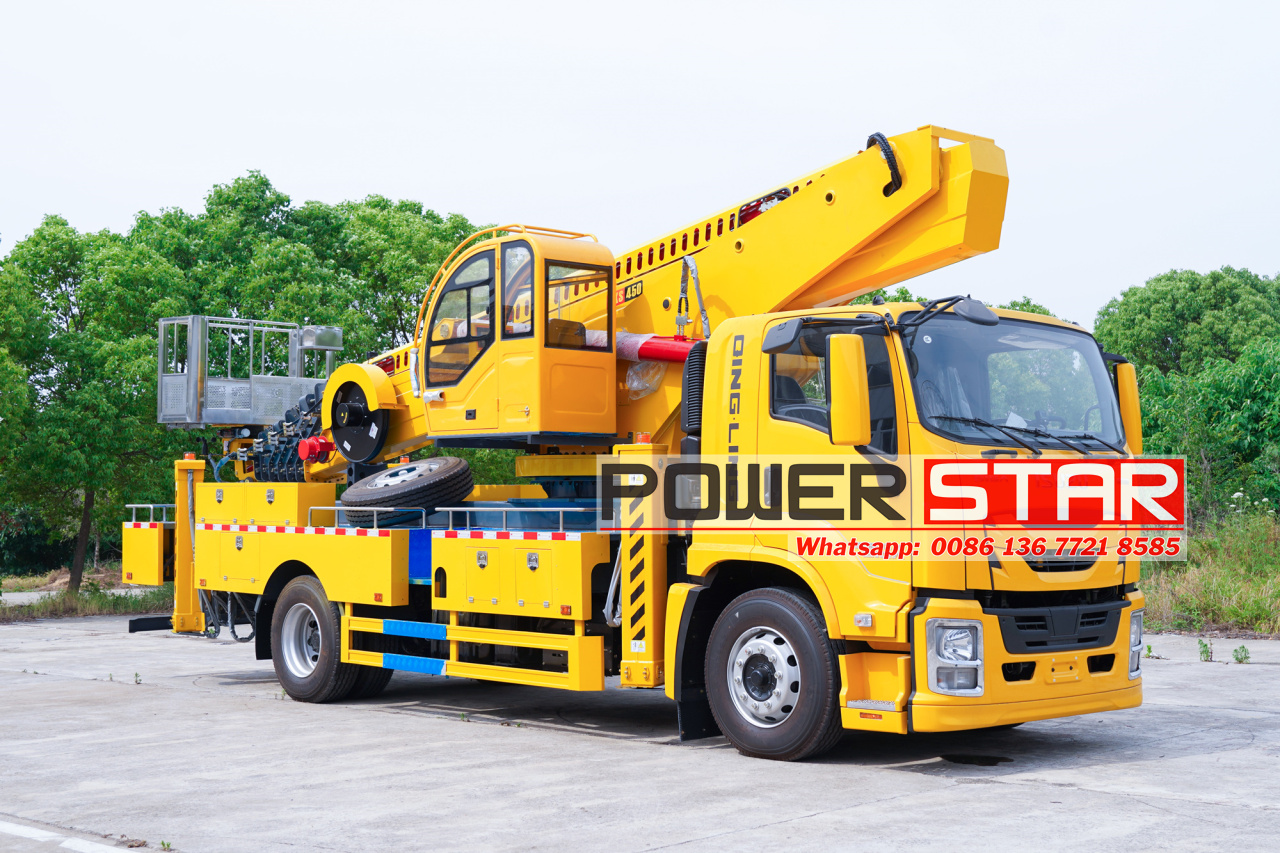

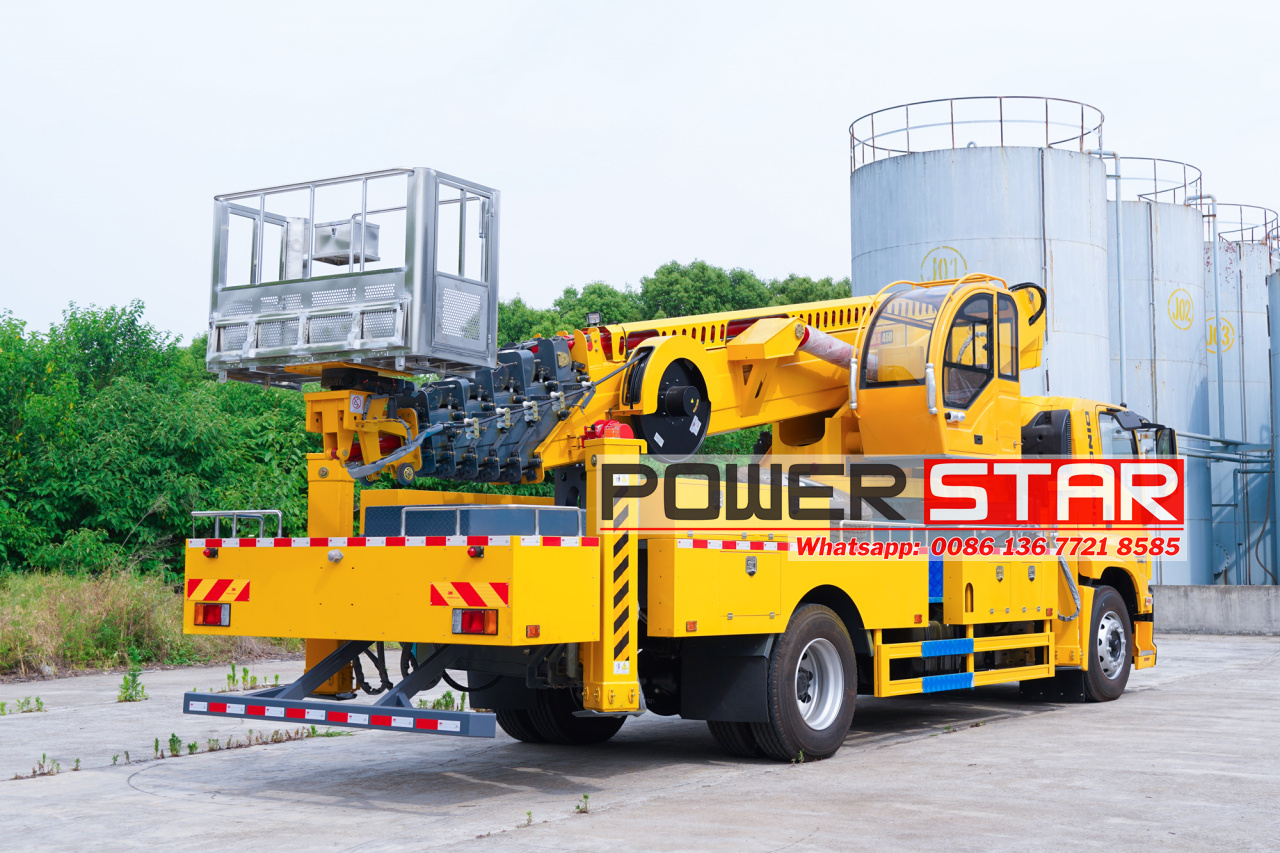

3. Structure and function of 45M Isuzu Giga truck mounted aerial working platform

Chassis: high-quality automobile chassis with good driving performance and stability.

Turntable and boom: full-revolving turntable, equipped with three-fold boom, can achieve 360° continuous rotation. The boom consists of lower arm, upper arm and working bucket, driven by hydraulic cylinder, and the movement is smooth and reliable.

Outrigger system: The outrigger can be adjusted separately to achieve leveling of the whole vehicle on uneven roads. The outrigger operating valve can control the extension and retraction of the outrigger as needed.

Hydraulic system: oil is supplied by the hydraulic pump, and the system working pressure is adjusted by the overflow valve. The hydraulic system is equipped with various limit devices to ensure safe operation.

Electrical system: waterproof switch is used to avoid rust and leakage caused by water ingress to the switch. The electrical control system is equipped with an engine emergency shutdown device, which can automatically cut off the power supply or emergency stop the engine in case of operating errors or failures.

Working bucket: It adopts tubular working bucket with beautiful appearance and can accommodate two workers. Safety belts and hooks are installed in the working bucket to ensure the safety of workers.

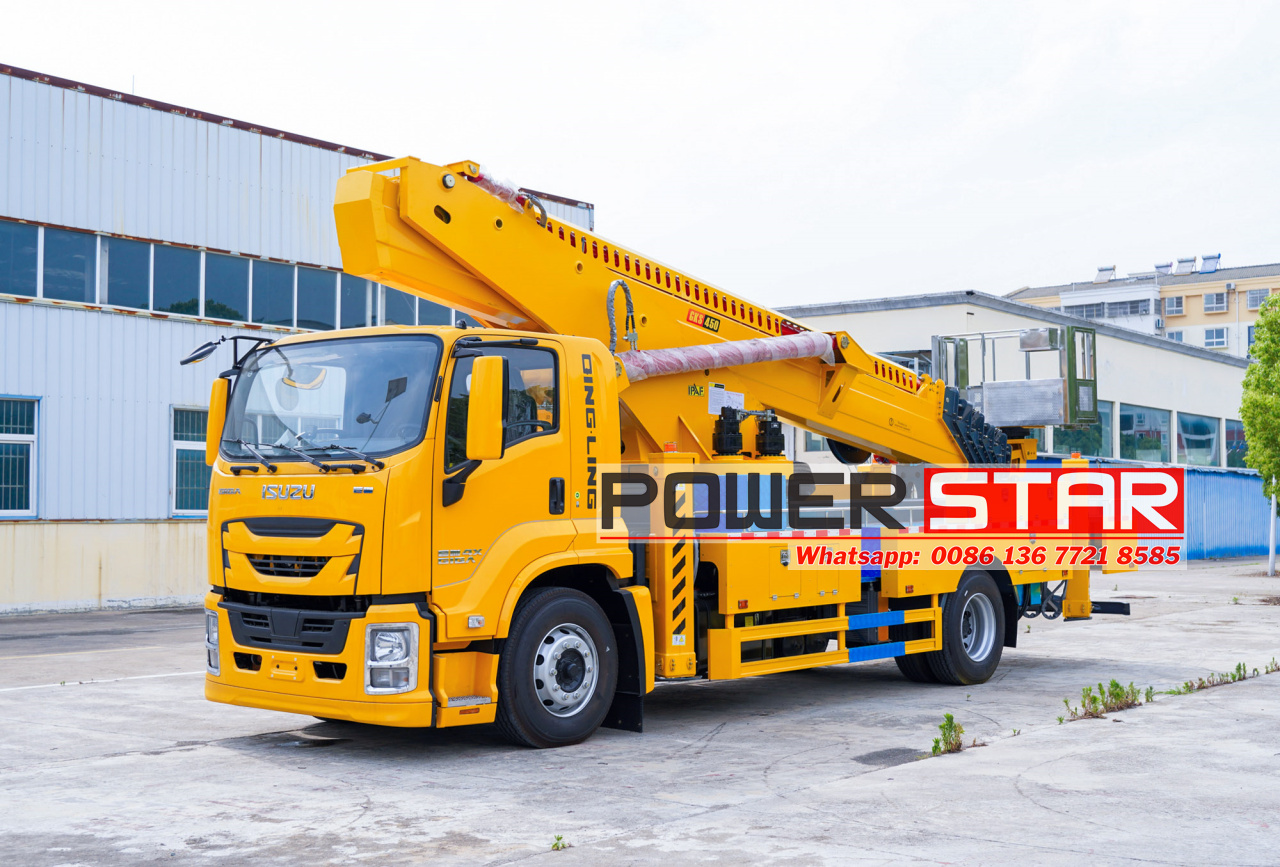

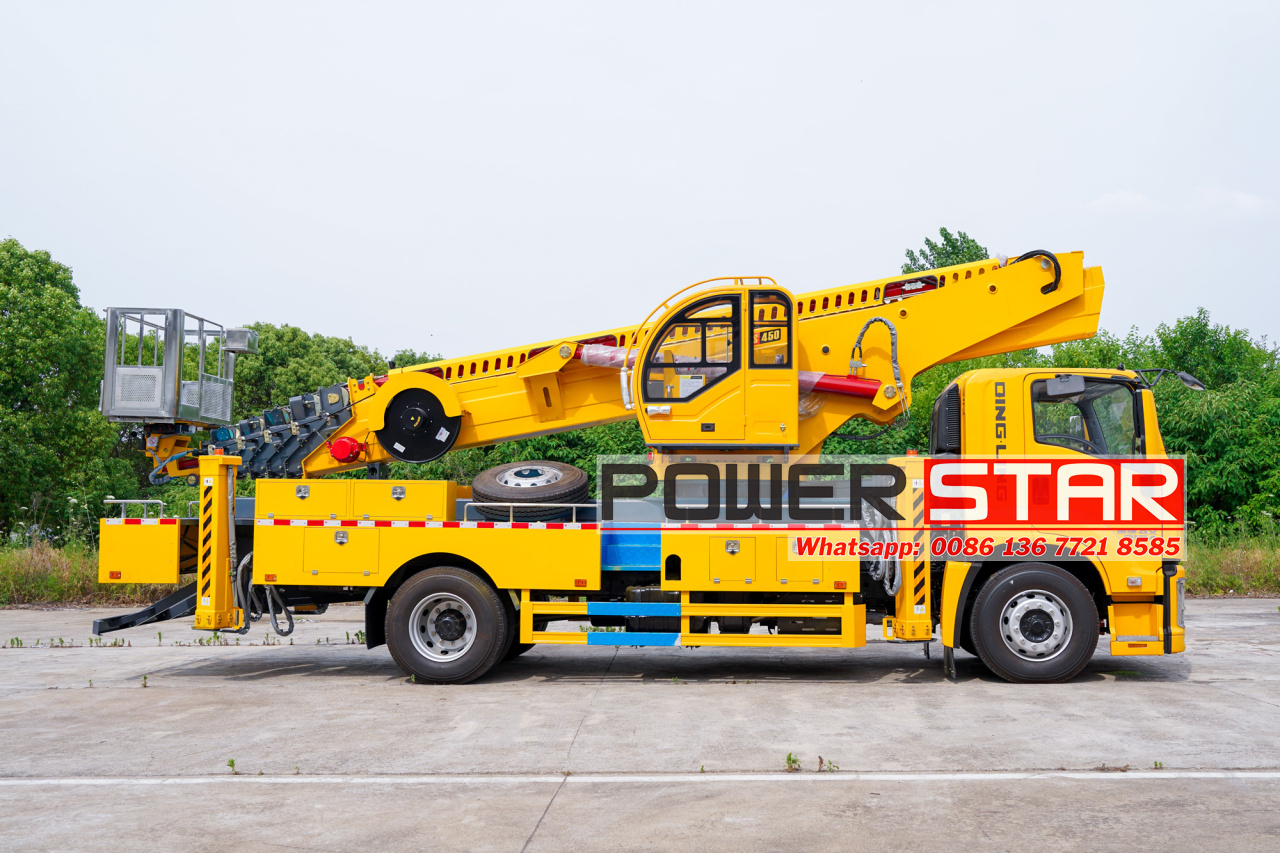

Specifications of 45M Isuzu Giga truck mounted aerial working platform

IV. 45M Isuzu Giga truck mounted aerial working platform Operating procedures

Preparation stage:

Choose a suitable working position to ensure that the ground is solid and flat without dark ditches or holes.

Check whether the outriggers, booms, working buckets and other parts are intact, without damage or abnormality.

Start the vehicle and check whether the hydraulic system and electrical system are working properly.

Outrigger operation:

Operate the combined control valve of the vehicle to extend the outriggers and level the vehicle.

Each outrigger can be leveled separately to ensure the level of the whole vehicle.

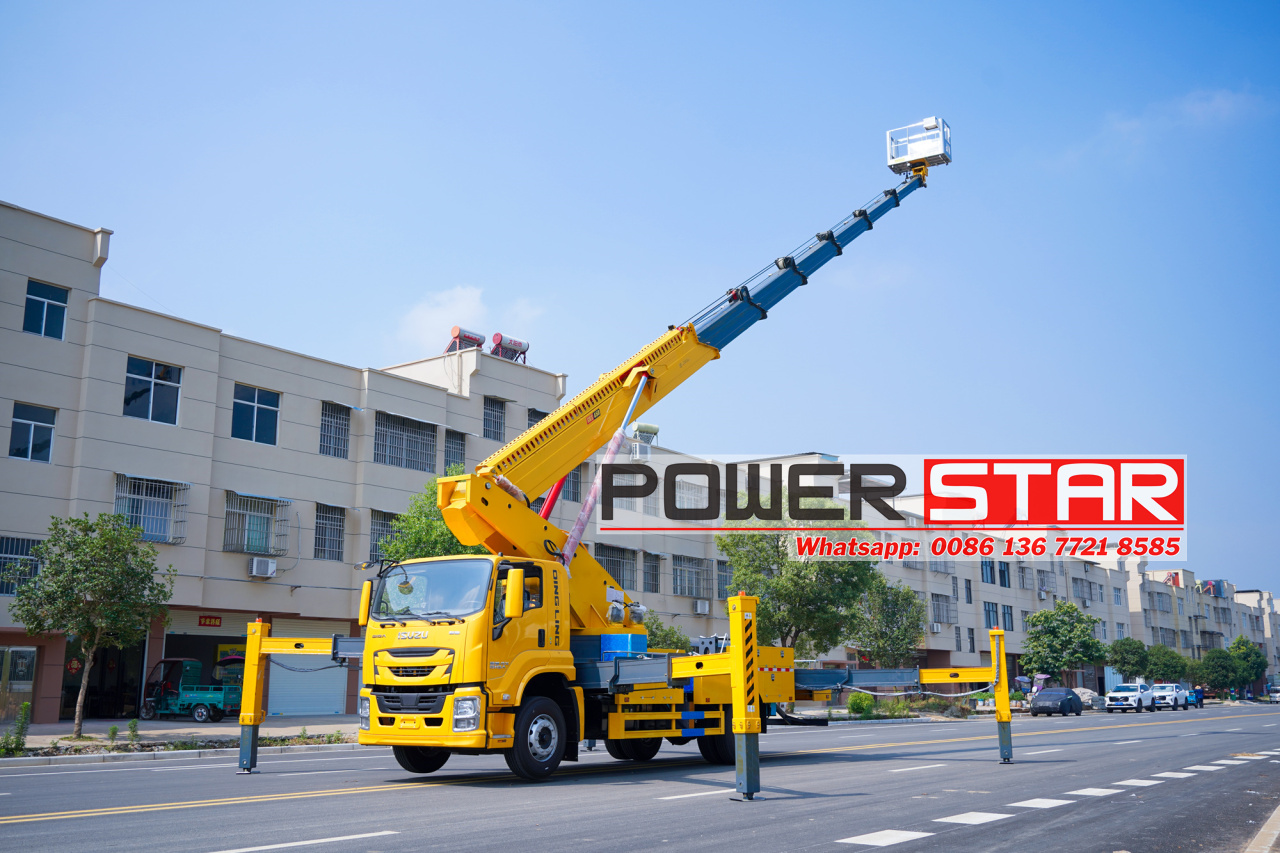

Boom operation:

According to the needs of the operation, first unfold the small arm, then extend the second arm and the large arm.

During the lifting and lowering process, each arm should be raised and lowered alternately until the required height and position are reached.

Working bucket operation:

After entering the working bucket, the worker must wear a safety belt.

Operate the upper electrical control box or manual control valve to control the lifting and rotation of the working bucket.

End of operation:

After the operation is completed, retract each lifting arm to the driving state.

Turn off the power switch and cut off the power supply.

V. Precautions of 45m Isuzu aerial platform vehicle

Safe operation: Operators must be certified and strictly abide by the operating procedures. It is strictly forbidden to perform lifting operations without supporting the vehicle.

Environmental requirements: Ensure that the operating environment temperature, wind force, etc. meet the specified requirements. Avoid working in bad weather or unfavorable environments.

Maintenance: Regularly inspect and maintain the vehicle to ensure that all components are in good performance. Replace damaged or worn parts in time.

Fault handling: If a fault or abnormal situation occurs during the operation, the operation should be stopped immediately and reported to relevant personnel for processing. Forced operation or private repair is strictly prohibited.

Operation method of aerial work vehicle

The operation of aerial work vehicle is usually divided into manual operation and electronic control operation. The following are specific operation steps and precautions:

Manual operation

Select the working position: Pay attention to whether the ground is solid and flat, and avoid the vehicle weightlessness that may be caused by dark ditches, holes, etc. It is strictly forbidden to perform lifting operations without supporting the vehicle.

Outrigger operation: Operate the combined control valve for getting off the vehicle to extend the outrigger and level the vehicle. Each outrigger can be leveled individually to ensure that the vehicle is in a horizontal state.

Boom operation:

According to the needs of the operation, first unfold the small arm, then extend the second arm and the large arm.

During the lifting and lowering process, each arm should be raised and lowered alternately until the required height and position are reached.

Two-way operation can be performed through the combined operating valve on the vehicle (swing arm seat operating platform and hanging rail operating platform).

Working bucket operation:

After entering the working bucket, the staff must fasten their seat belts.

Open the reversing valve stem at the left end of the swing arm operating valve to allow the fluid to enter the hanging rail operating valve through the valve body and complete the operating procedure shown on the hanging rail sign.

End of operation:

After the operation is completed, retract each lifting arm to the driving state.

Turn off the power switch and cut off the power.

Electronic control operation

Get off the vehicle: Same as manual operation, pay attention to the leveling of the outrigger and the vehicle.

Get on the vehicle operation:

Turn on the power switch, the power indicator light is on, indicating that the power supply is normal.

Toggle the command switch, and then toggle the stepless throttle valve joystick to produce action.

Specific operations can be performed through turntable operations such as hanging rail operations.

Precautions

Pre-operation inspection: Before operation, you should carefully read the instructions, understand the driving and use requirements, and master the driving performance parameters of the whole vehicle. Check the fuel tank oil level, hydraulic oil level, etc. to ensure that the oil volume in the hydraulic tank reaches the specified value. Check whether there are any missing tools or items in the work platform and remove them in time. Check whether the outriggers are fully retracted and whether the power take-off lever has disengaged the power take-off gear from the vehicle gearbox.

Choice of work location: The maximum allowable inclination angle of the workplace ground should comply with regulations. When working on the road, the vehicle body should be kept at a certain distance from the edge of the road, and the hazard warning signal lights should be turned on in time. Avoid working in areas with fire and explosion hazards and corrosive environments. Pay attention to the temperature range and relative humidity requirements of the work vehicle. It is prohibited to work when the light is dim or the visibility is low, and the wind force exceeds the specified level. When there are wires passing through the working range, a sufficient safety distance should always be maintained.

Safe operation: It is strictly forbidden to overload the work, and it is strictly forbidden for the operator to perform aerial work without a safety belt. It is forbidden to use stools, ladders, etc. to raise the work during operation, and the center of gravity of the body shall not be extended outside the bottom plate of the work platform. It is forbidden to throw objects from or onto the working platform. It is forbidden to lift and climb at the same time. It is forbidden to use a hook to lift objects buried underground and whose situation is unknown, and it is forbidden to drag heavy objects horizontally. When working, it is forbidden to stand under the crane arm.

Operation specification: The operator should concentrate to prevent misoperation, and it is forbidden to operate after drinking. When operating the handle, it should be stable, and never operate it quickly and violently, so as not to cause excessive inertial swing of the working arm and accidents. Operate strictly in accordance with the technical parameters and operating range specified by the equipment. During the operation, if the hydraulic system has abnormal sound or sudden oil leakage, the work should be stopped immediately and can only be continued after inspection or repair.
