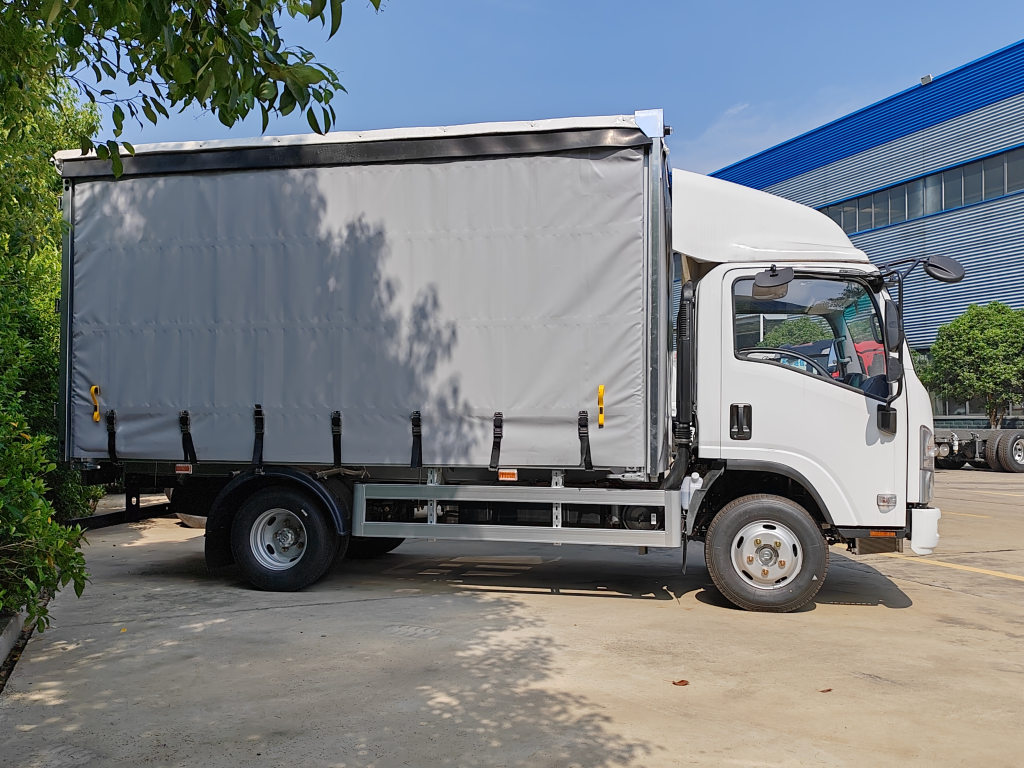

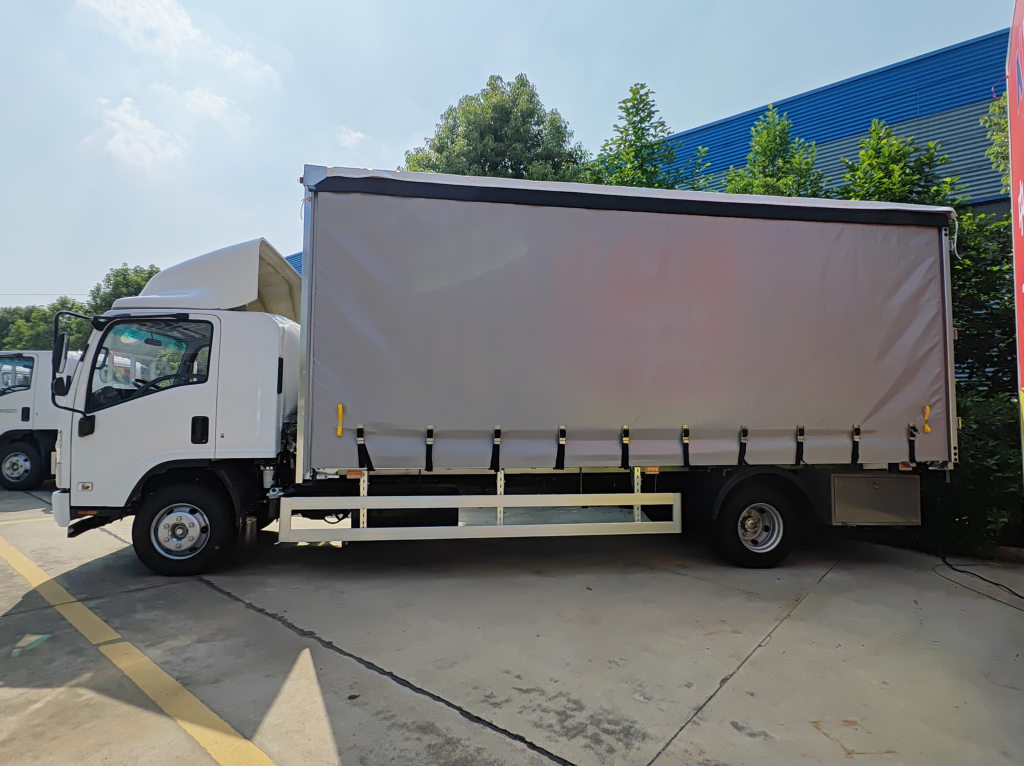

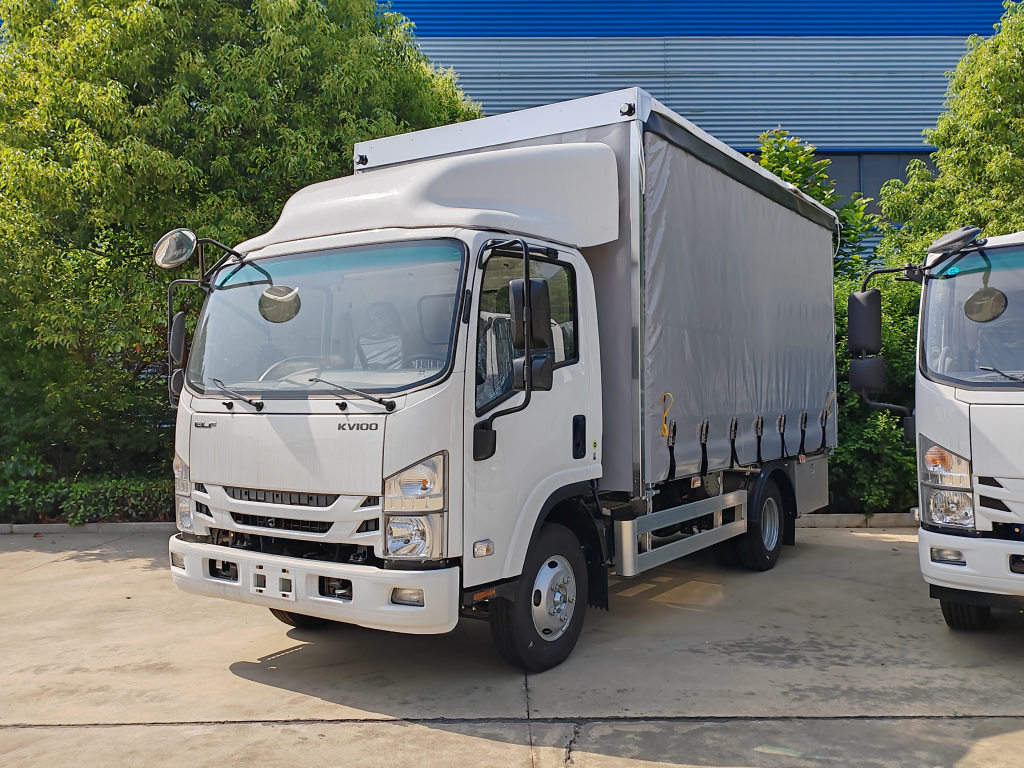

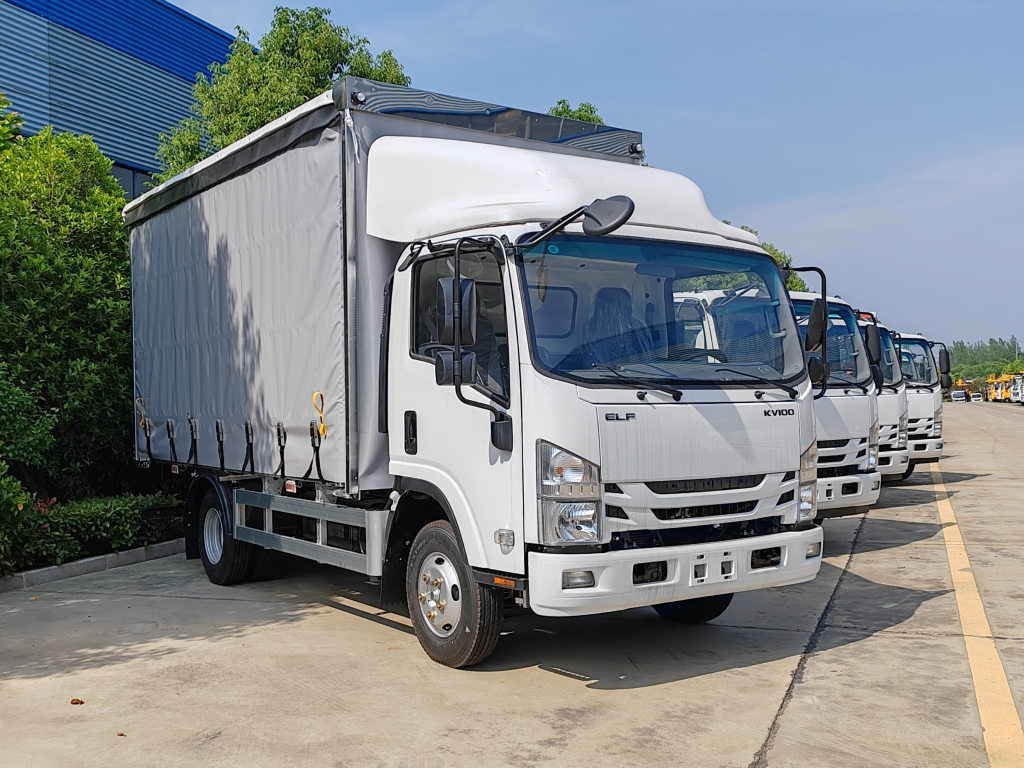

Powerstar Curtainside Truck Isuzu, also called as Powerstar Curtainside body truck or isuzu van truck within curtains. Below is ISUZU Curtainside Truck Working Principle
ISUZU Curtainside Truck is a special truck widely used in modern logistics and transportation. Its core feature is the use of flexible curtains to replace the traditional hard car side walls, so as to achieve fast loading and unloading of goods and efficient transportation. The following will introduce the working mechanism of the curtain side truck in detail from three aspects: definition of purpose, structural characteristics and working principle.
1. Definition and main use of curtain side truck
ISUZU Curtainside Truck (Curtainsider Truck/Trailer) is a freight vehicle. Its most notable feature is that the two sides of the vehicle body are designed with rollable curtains, replacing the traditional metal or hard plate side walls. This design makes loading and unloading of goods more convenient, while reducing the weight of the vehicle body and improving fuel efficiency.
Main uses:
| Type | Length | Width | Height | Volume | Common Applications |
|---|---|---|---|---|---|
| Small (3.5 Tonne) | 4.0 to 5.0 m (13 to 16 ft) | 2.0 to 2.2 m (6.5 to 7 ft) | 2.3 to 2.5 m (7.5 to 8 ft) | 25 to 30 m³ | Light goods transport, local deliveries. |
| Medium (7.5 Tonne) | 6.0 to 7.0 m(20 to 23 ft) | 2.3 to 2.4 m (7.5 to 8 ft) | 2.5 to 2.6 m (8 to 8.5 ft) | 45 to 50 m³ | General cargo transport, retail goods. |
| Large (12- 18 Tonne) | 7.0 to 9.0 m (23 to 30 ft) | 2.4 to 2.5 m (8 to 8.2ft) | 2.5 to 3.0 m(8.2 to 9.8 ft) | 60 to 70m³+ | Industrial goods, construction materials. |

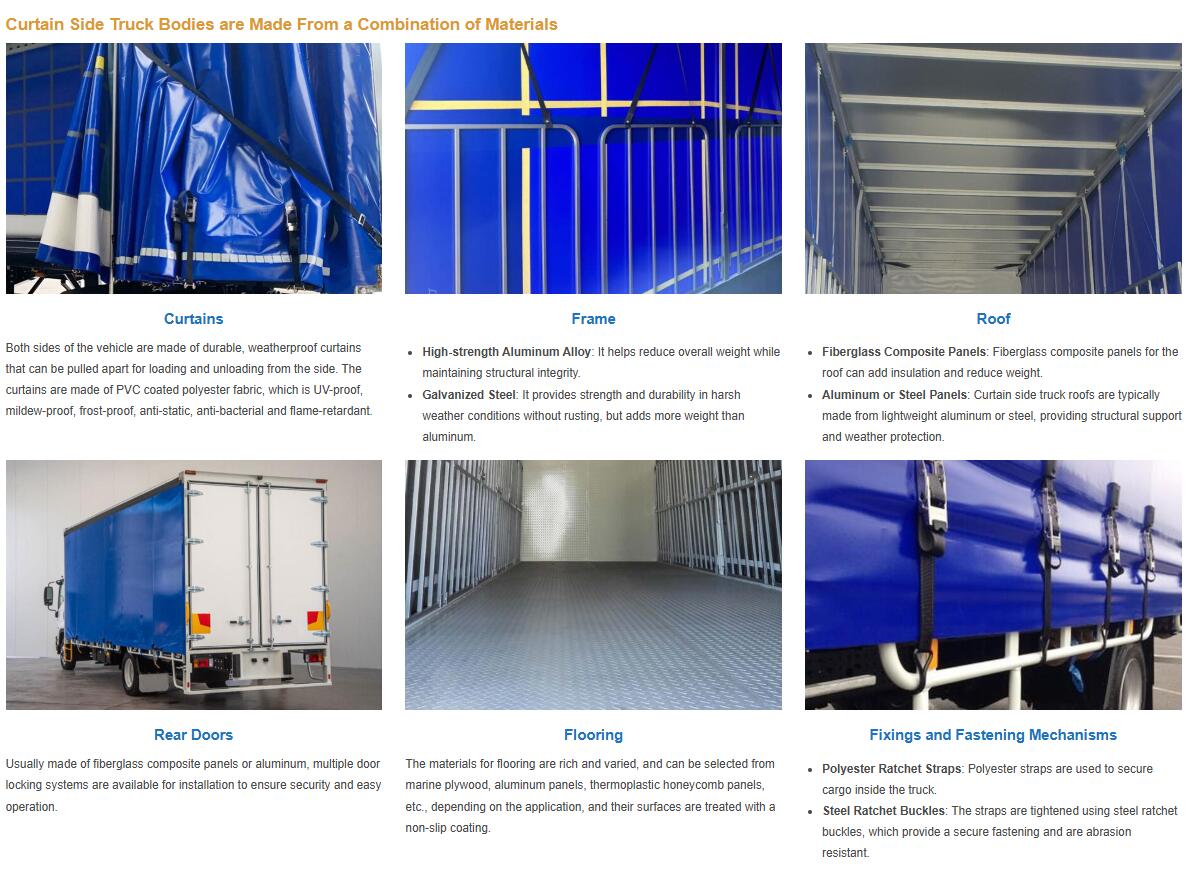

2. Structural features of ISUZU side curtain vehicles
The body structure of the side curtain vehicle is mainly composed of the following key parts:
1. Basic frame structure
Frame: As the skeleton of the entire vehicle, it supports the weight of the entire vehicle body
Axle system: Ensures the stability and load-bearing capacity of the vehicle during driving
Suspension system: Provides driving comfort and cargo protection
Braking system: Ensures driving safety
2. Curtain system (core component)
Curtain material: mostly high-strength synthetic fibers (such as polyester or nylon), with waterproof, sun-proof and tear-resistant properties
Curtain design: equipped with reinforcing ribs, which not only increase the strength of the curtain, but also are the main measures to limit the ductility of the curtain
Support structure: including sliding columns and top support frames. Some models adopt the design concept of "rigidity and flexibility", allowing moderate deformation but limiting excessive deformation
3. Opening mechanism type
Manual roller blinds: traditional method, tighten or loosen the curtain by manually operating the roller blind rod
Electric roller blinds: driven by a motor, remote control operation can be achieved
Sliding curtains: the curtain slides open along the track, which is more convenient to operate
Top lifting structure: equipped with some high-end models, which can further improve loading and unloading efficiency
3. Working principle and loading and unloading mechanism of ISUZU side curtain car
1. Basic working principle
The core working principle of the side curtain vehicle is to achieve efficient loading and unloading through the rapid opening and closing of the curtain system:
Loading and unloading preparation: After the vehicle stops, start the braking system to ensure safe loading and unloading
Curtain opening: Use the control system (manual or electric) to smoothly unfold the side curtain along the track or reel
Electric side curtain vehicles can complete the curtain opening and closing operation within 20 seconds
The curtains of some models can be opened forward and backward at the same time, or gathered in the middle to form a column-free loading and unloading platform
Cargo loading and unloading: After forming a spacious loading and unloading port, forklifts or manual labor can directly enter and exit the car for operation
Curtain closing: After loading and unloading, close the curtain and check the sealing to prevent cargo from shifting or losing
Transportation process: The curtain system keeps cargo safe and windproof
2. Features of loading and unloading mechanism
Full side opening: Compared with traditional vans, curtain-side vehicles can open almost the entire side, and loading and unloading are not restricted by pillars
Quick operation: The electric control system greatly shortens the preparation time for loading and unloading (some models can complete unloading within 15 minutes)
Multi-functional design: Some models are equipped with a rear-mounted crane to achieve self-loading and self-unloading functions without the assistance of other vehicles
Flexible adaptation: You can choose to open part or all of the curtains according to the size of the cargo
3. Operation precautions

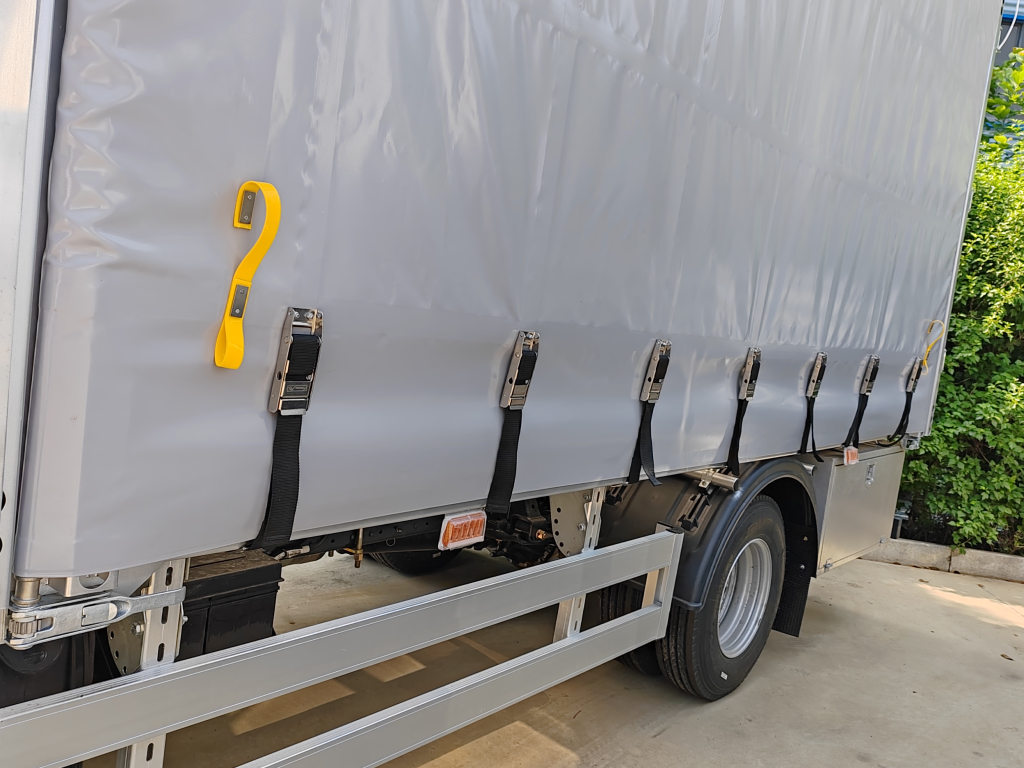

Tighten the curtain: It is necessary to ensure that the curtain is fully tightened, which is the key to design, manufacturing and subsequent operation and use
Avoid common problems:
The curtain is too long, causing the roller to get stuck
The unreasonable position of the buckle hook affects the longitudinal tension
The buckle is not tightened enough
The curtain is not equipped with reinforcing ribs, resulting in excessive ductility
