How to Choose an EV Charging Pile for Isuzu Electric Garbage Trucks
when you purchase a Isuzu Electric garbage truck, you also need equip with the EV charging Pile. Driven by favorable policies, market demand upgrades, and technological innovation, Isuzu electric compression garbage trucks will maintain rapid growth in the next decade and become the core solution for urban solid waste management. It is expected that the market size will exceed 20 billion yuan in 2028. Technological iteration and large-scale application will further reduce costs and push the industry into a period of explosive growth.
Selecting a suitable charging pile for your Isuzu electric garbage trucks—especially models designed for compressed waste handling—requires careful consideration of technical specifications, operational demands, and environmental conditions. Below are critical factors to guide the decision-making process:

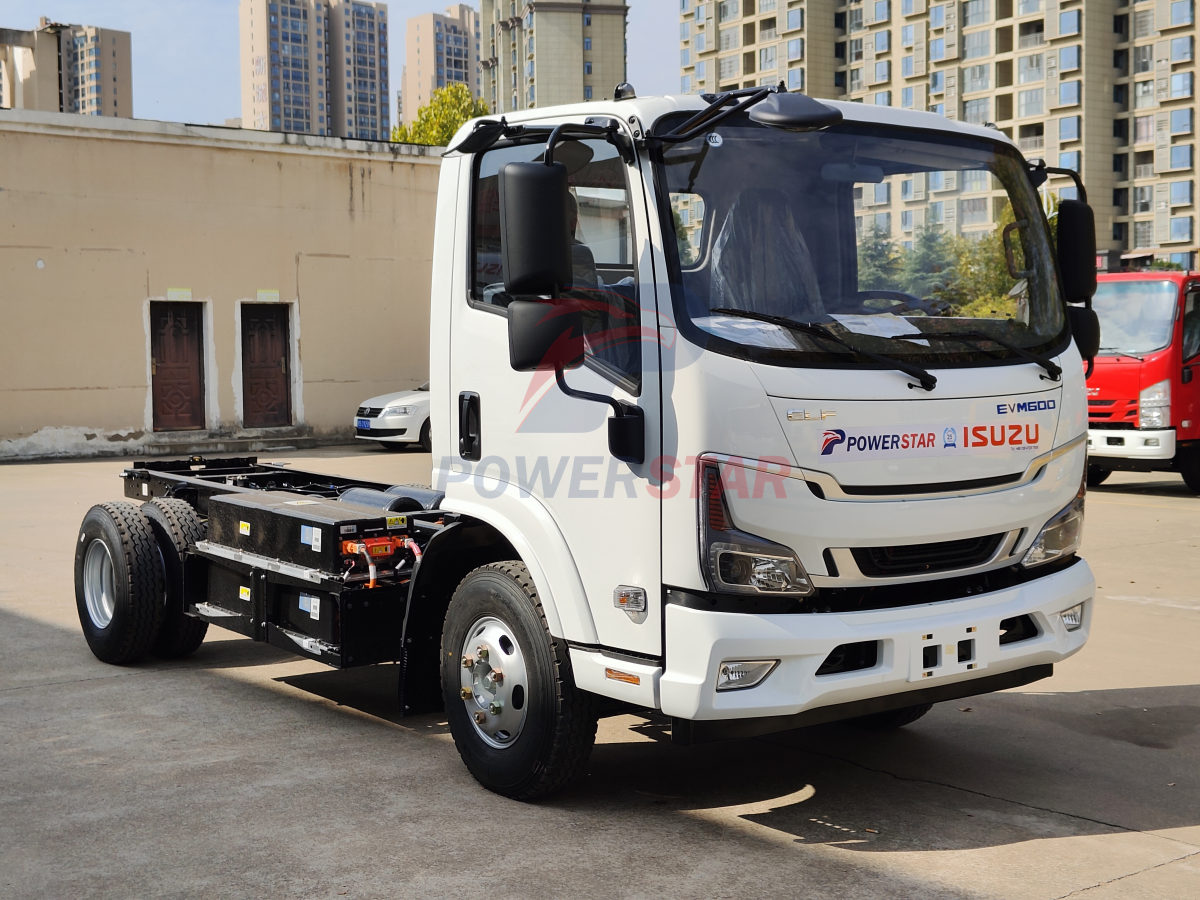

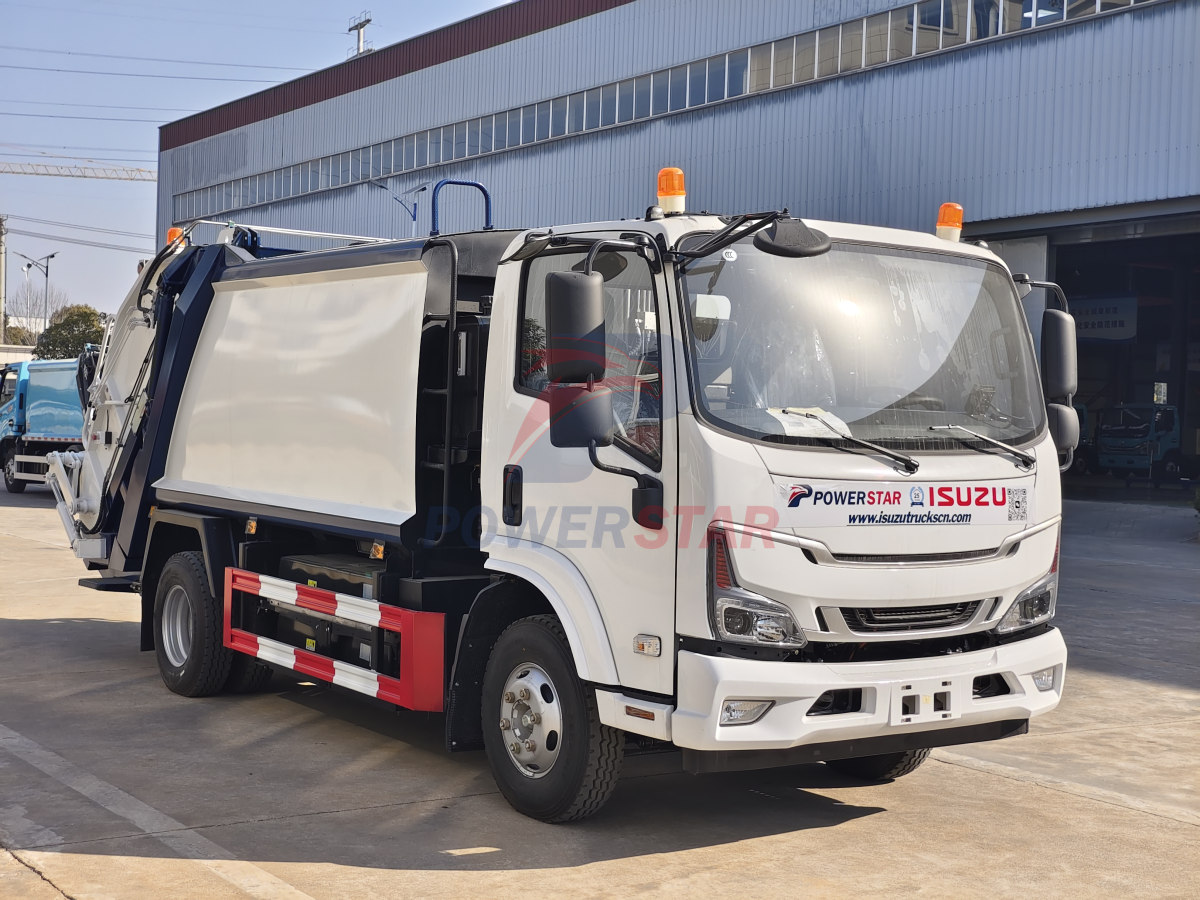

EV Charging Pile for Isuzu Electric Garbage Trucks Chassis
EV Charging Pile for Isuzu Electric Garbage Trucks Chassis

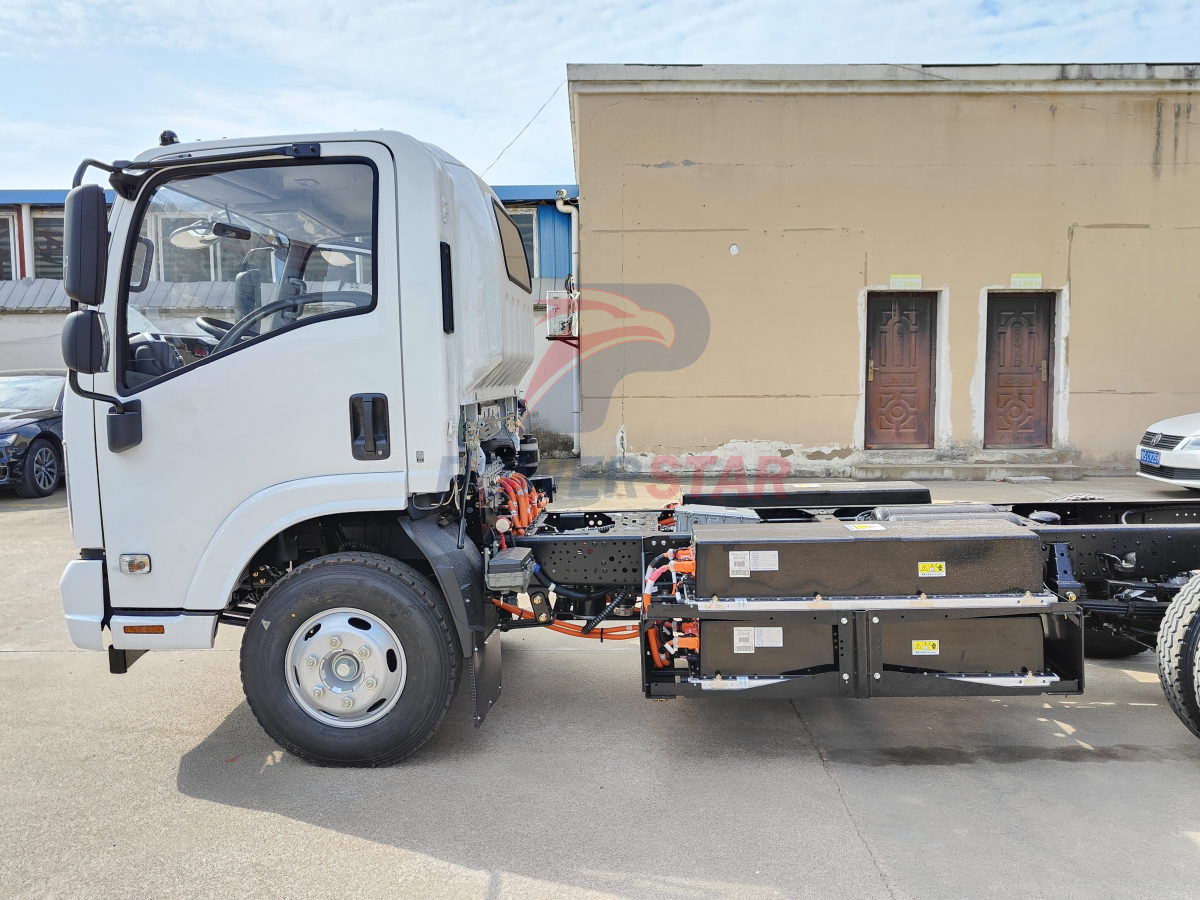

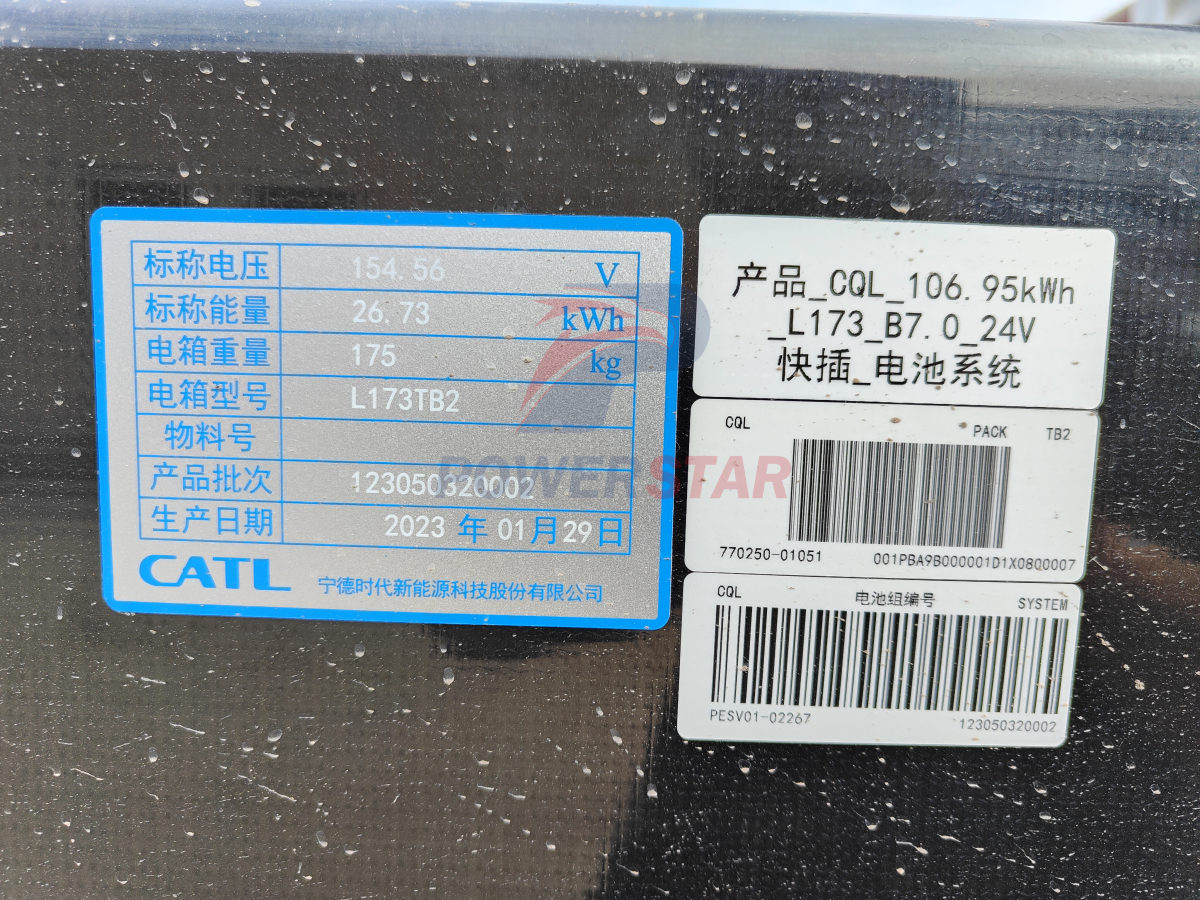

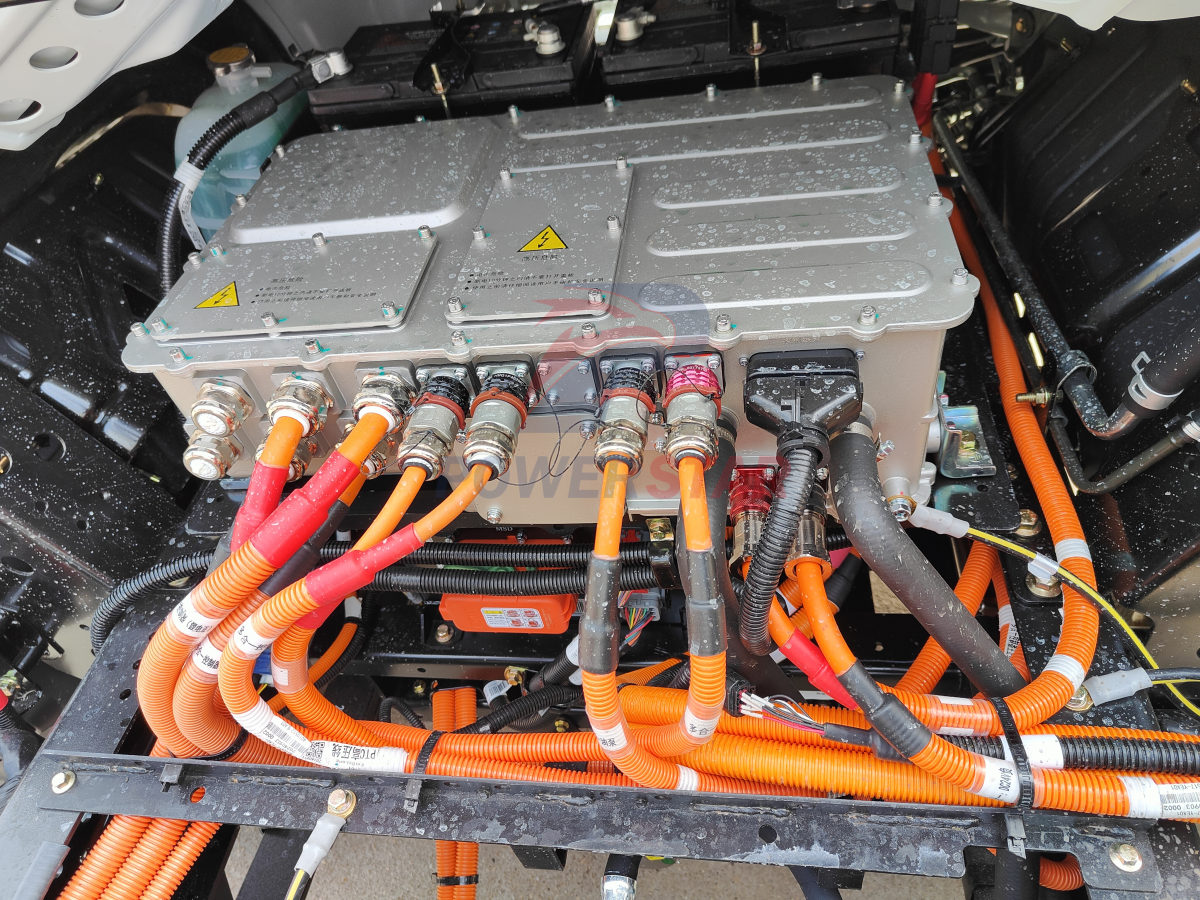

Battery of Isuzu Electric Garbage Trucks Chassis
Battery of Isuzu Electric Garbage Trucks Chassis

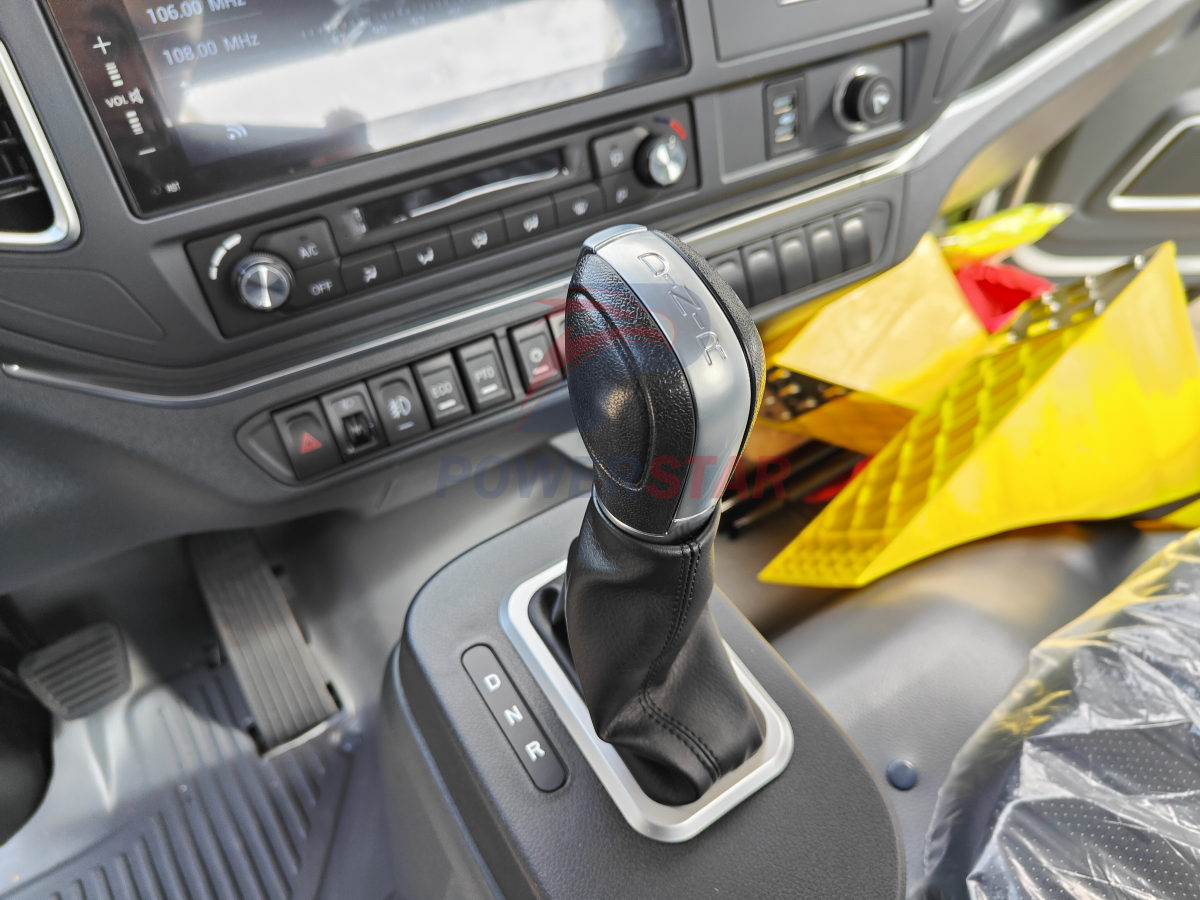

Cabin inside view of Isuzu Electric Garbage Trucks Chassis
EV Charging Pile for Isuzu Electric Garbage Trucks Chassis
|
Item |

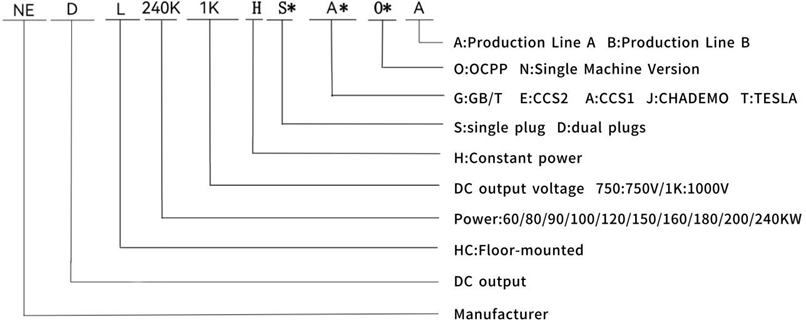

Model Number：NEDF40K750/NEDF40K1K |
|
|
AC Input Characteristics |
Voltage Range |
AC380V±20% |
|
Input Connection |
3P+N+PE |
|
|
Operating Frequency |
45-65HZ |
|
|
Power Factor |
≥99%，@ normal output power |
|
|
Input Current |
0-100A |
|
|
Output Characteristics |
Output Power |
≤40KW |
|
Auxiliary Power Supply |
GB/T Standard: Compatible with 12V European/American/Japanese Standards: 12V |
|
|
Voltage Range |
DC200-750V/DC200-1000V |
|
|
Output Current |
0-100A |
|
|
Number of Charging Connectors |
2 |
|
|
Rated Power Distribution |
Single-gun operation: 40kW / Dual-gun operation: 20kW each |
|
|
Charging Cable Length |
Standard Configuration: 5-meter cable (optional upgrade available) |
|
|
Cable Type |
Air cooling |
|
|
Environmental Conditions |
Temperature Range |
Operating Temperature: -20~50℃; 25℃ (typical); Storage Temperature: -40~85℃; 25℃ (typical); Intelligent power derating when shell temperature exceeds 70℃ |
|
Humidity Range |
5~90RH%；Non-condensing |
|
|
Altitude |
≤2000M |
|
|
Operating Environment |
Indoor/Outdoor |
|
|
Protection Level (IP Rating) |
IP54 |
|
|
Dimensions and Weight |
Machine Dimensions |
700 x 435 x 1500 mm (excluding gun holder and protruding components like charging guns) |
|
Enclosure Material |
2.0 mm galvanized steel plate |
|
|
Net Weight |
About 170KG |
|
|
Packaging Dimensions |
1020 x 620 x 1730mm |
|
|
Gross Weight |
About 205KG |
|
|
Display |
Size |
7-inch color touch screen |
|
Language |
Chinese, English, Russian (other languages customizable) |
|
|
Charging Standards |
GB/T Standard (G) |
GB/T 18487 、GB/T 20234 、GB/T 27930 |
|
European Standard (E)/American Standard (A) |
EN61851 、EN62196 、ISO15118 、DIN70121 |
|
|
Japanese Standard (J) |
CHAdeMO |
|
|
Protection Features |
Emergency stop/Input over/under-voltage protection/Output over- voltage protection/ Over-temperature protection/Overcurrent protection/Short-circuit protection/Leakage protection/ Integrated surge protection/Battery reverse polarity protection/Insulation monitoring protection |
|
|
Charging Method |
Button start/Access control card swipe/OCPP remote start |
|
|
Charging Mode |
Local mode/Offline mode/OCPP network mode |
|
|
Payment Method |
RFID/POS machine/Cloud-based payment |
|
|
Networking Method |
WIFI/Ethernet/4G |
|
|
Installation Method |
Floor-mounted |
|
|
Item |
Model Number：NEDF60K1K |
|
|
AC Input Characteristics |
. |
AC380V±20% |
|
Input Connection |
3P+N+PE |
|
|
Operating Frequency |
45-65HZ |
|
|
Power Factor |
≥99%，@ normal output power |
|
|
Input Current |
0-116A |
|
|
Output Characteristics |
Output Power |
≤60KW |
|
Auxiliary Power Supply |
GB/T Standard: Compatible with 12V European/American/Japanese Standards: 12V |
|
|
Voltage Range |
DC200-1000V |
|
|
Output Current |
0-150A |
|
|
Number of Charging Connectors |
2 |
|
|
Rated Power Distribution |
Single-gun operation: 60kW / Dual-gun operation: 30kW each |
|
|
Charging Cable Length |
Standard Configuration: 5-meter cable (optional upgrade available) |
|
|
Cable Type |
Air cooling |
|
|
Environmental Conditions |
Temperature Range |
Operating Temperature: -20~50℃; 25℃ (typical); Storage Temperature: -40~85℃; 25℃ (typical); Intelligent power derating when shell temperature exceeds 70℃ |
|
Humidity Range |
5~90RH%；Non-condensing |
|
|
Altitude |
≤2000M |
|
|
Operating Environment |
Indoor/Outdoor |
|
|
Protection Level (IP Rating) |
IP54 |
|
|
Dimensions and Weight |
Machine Dimensions |
700 x 435 x 1500 mm (excluding gun holder and protruding components like charging guns) |
|
Enclosure Material |
2.0 mm galvanized steel plate |
|
|
Net Weight |
About 190KG |
|
|
Packaging Dimensions |
1020 x 620 x 1730mm |
|
|
Gross Weight |
About 225KG |
|
|
Display |
Size |
7-inch color touch screen |
|
Language |
Chinese, English, Russian (other languages customizable) |
|
|
Charging Standards |
GB/T Standard (G) |
GB/T 18487 、GB/T 20234 、GB/T 27930 |
|
European Standard (E)/American Standard (A) |
EN61851 、EN62196 、ISO15118 、DIN70121 |
|
|
Japanese Standard (J) |
CHAdeMO |
|
|
Protection Features |
Emergency stop/Input over/under-voltage protection/Output over- voltage protection/ Over-temperature protection/Overcurrent protection/Short-circuit protection/Leakage protection/ Integrated surge protection/Battery reverse polarity protection/Insulation monitoring protection |
|
|
Charging Method |
Button start/Access control card swipe/OCPP remote start |
|
|
Charging Mode |
Local mode/Offline mode/OCPP network mode |
|
|
Payment Method |
RFID/POS machine/Cloud-based payment |
|
|
Networking Method |
WIFI/Ethernet/4G |
|
|
Installation Method |
Floor-mounted |
|
1.1.3 Specifications NEDF80KW detailed technical parameters
|
Item |
Model Number：NEDF80K1K |
|
|
AC Input Characteristics |
Voltage Range |
AC380V±20% |
|
Input Connection |
3P+N+PE |
|
|
Operating Frequency |
45-65HZ |
|
|
Power Factor |
≥99%，@ normal output power |
|
|
Input Current |
0-152A |
|
|
Output Characteristics |
Output Power |
≤80KW |
|
Auxiliary Power Supply |
GB/T Standard: Compatible with 12V European/American/Japanese Standards: 12V |
|
|
Voltage Range |
DC200-1000V |
|
|
Output Current |
0-200A |
|
|
Number of Charging Connectors |
2 |
|
|
Rated Power Distribution |
Single-gun operation: 80kW / Dual-gun operation: 40kW each |
|
|
Charging Cable Length |
Standard Configuration: 5-meter cable (optional upgrade available) |
|
|
Cable Type |
Air cooling |
|
|
Environmental Conditions |
Temperature Range |
Operating Temperature: -20~50℃; 25℃ (typical); Storage Temperature: -40~85℃; 25℃ (typical); Intelligent power derating when shell temperature exceeds 70℃ |
|
Humidity Range |
5~90RH%；Non-condensing |
|
|
Altitude |
≤2000M |
|
|
Operating Environment |
Indoor/Outdoor |
|
|
Protection Level (IP Rating) |
IP54 |
|
|
Dimensions and Weight |
Machine Dimensions |
700 x 435 x 1500 mm (excluding gun holder and protruding components like charging guns) |
|
Enclosure Material |
2.0 mm galvanized steel plate |
|
|
Net Weight |
About 200KG |
|
|
Packaging Dimensions |
1020 x 620 x 1730mm |
|
|
Gross Weight |
About 235KG |
|
|
Display |
Size |
7-inch color touch screen |
|
Language |
Chinese, English, Russian (other languages customizable) |
|
|
Charging Standards |
GB/T Standard (G) |
GB/T 18487 、GB/T 20234 、GB/T 27930 |
|
European Standard (E)/American Standard (A) |
EN61851 、EN62196 、ISO15118 、DIN70121 |
|
|
Japanese Standard (J) |
CHAdeMO |
|
|
Protection Features |
Emergency stop/Input over/under-voltage protection/Output over- voltage protection/ Over-temperature protection/Overcurrent protection/Short-circuit protection/Leakage protection/ Integrated surge protection/Battery reverse polarity protection/Insulation monitoring protection |
|
|
Charging Method |
Button start/Access control card swipe/OCPP remote start |
|
|
Charging Mode |
Local mode/Offline mode/OCPP network mode |
|
|
Payment Method |
RFID/POS machine/Cloud-based payment |
|
|
Networking Method |
WIFI/Ethernet/4G |
|
|
Installation Method |
Floor-mounted |
|
|
Item |
Model Number：NEDF120K1K |
|
|
AC Input Characteristics |
Voltage Range |
AC380V±20% |
|
Input Connection |
3P+N+PE |
|
|
Operating Frequency |
45-65HZ |
|
|
Power Factor |
≥99%，@ normal output power |
|
|
Input Current |
0-232A |
|
|
Output Characteristics |
Output Power |
≤120KW |
|
Auxiliary Power Supply |
GB/T Standard: Compatible with 12V European/American/Japanese Standards: 12V |
|
|
Voltage Range |
DC200-1000V |
|
|
Output Current |
0-250A |
|
|
Number of Charging Connectors |
2 |
|
|
Rated Power Distribution |
Single-gun operation: 120kW / Dual-gun operation: 60kW each |
|
|
Charging Cable Length |
Standard Configuration: 5-meter cable (optional upgrade available) |
|
|
Cable Type |
Air cooling |
|
|
Environmental Conditions |
Temperature Range |
Operating Temperature: -20~50℃; 25℃ (typical); Storage Temperature: -40~85℃; 25℃ (typical); Intelligent power derating when shell temperature exceeds 70℃ |
|
Humidity Range |
5~90RH%；Non-condensing |
|
|
Altitude |
≤2000M |
|
|
Operating Environment |
Indoor/Outdoor |
|
|
Protection Level (IP Rating) |
IP54 |
|
|
Dimensions and Weight |
Machine Dimensions |
700x600x 1500mm (excluding gun holder and protruding components like charging guns) |
|
Enclosure Material |
2.0 mm galvanized steel plate |
|
|
Net Weight |
About 280KG |
|
|
Packaging Dimensions |
1020 x 780 x 1730mm |
|
|
Gross Weight |
About 320KG |
|
|
Display |
Size |
7-inch color touch screen |
|
Language |
Chinese, English, Russian (other languages customizable) |
|
|
Charging Standards |
GB/T Standard (G) |
GB/T 18487 、GB/T 20234 、GB/T 27930 |
|
European Standard (E)/American Standard (A) |
EN61851 、EN62196 、ISO15118 、DIN70121 |
|
|
Japanese Standard (J) |
CHAdeMO |
|
|
Protection Features |
Emergency stop/Input over/under-voltage protection/Output over- voltage protection/ Over-temperature protection/Overcurrent protection/Short-circuit protection/Leakage protection/ Integrated surge protection/Battery reverse polarity protection/Insulation monitoring protection |
|
|
Charging Method |
Button start/Access control card swipe/OCPP remote start |
|
|
Charging Mode |
Local mode/Offline mode/OCPP network mode |
|
|
Payment Method |
RFID/POS machine/Cloud-based payment |
|
|
Networking Method |
WIFI/Ethernet/4G |
|
|
Installation Method |
Floor-mounted |
|
1.1.5 Specifications NEDF160KW detailed technical parameters
|
Item |
Model Number：NEDF160K1K |
|
|
AC Input Characteristics |
Voltage Range |
AC380V±20% |
|
Input Connection |
3P+N+PE |
|
|
Operating Frequency |
45-65HZ |
|
|
Power Factor |
≥99%，@ normal output power |
|
|
Input Current |
0-304A |
|
|
Output Characteristics |
Output Power |
≤160KW |
|
Auxiliary Power Supply |
GB/T Standard: Compatible with 12V European/American/Japanese Standards: 12V |
|
|
Voltage Range |
DC200-1000V |
|
|
Output Current |
0-300A |
|
|
Number of Charging Connectors |
2 |
|
|
Rated Power Distribution |
Single-gun operation: 160kW / Dual-gun operation: 80kW each |
|
|
Charging Cable Length |
Standard Configuration: 5-meter cable (optional upgrade available) |
|
|
Cable Type |
Air cooling |
|
|
Environmental Conditions |
Temperature Range |
Operating Temperature: -20~50℃; 25℃ (typical); Storage Temperature: -40~85℃; 25℃ (typical); Intelligent power derating when shell temperature exceeds 70℃ |
|
Humidity Range |
5~90RH%；Non-condensing |
|
|
Altitude |
≤2000M |
|
|
Operating Environment |
Indoor/Outdoor |
|
|
Protection Level (IP Rating) |
IP54 |
|
|
Dimensions and Weight |
Machine Dimensions |
700 x 600 x 1500 mm (excluding gun holder and protruding components like charging guns) |
|
Enclosure Material |
2.0 mm galvanized steel plate |
|
|
Net Weight |
About 290KG |
|
|
Packaging Dimensions |
1020 x 780 x 1730mm |
|
|
Gross Weight |
About 330KG |
|
|
Display |
Size |
7-inch color touch screen |
|
Language |
Chinese, English, Russian (other languages customizable) |
|
|
Charging Standards |
GB/T Standard (G) |
GB/T 18487 、GB/T 20234 、GB/T 27930 |
|
European Standard (E)/American Standard (A) |
EN61851 、EN62196 、ISO15118 、DIN70121 |
|
|
Japanese Standard (J) |
CHAdeMO |
|
|
Protection Features |
Emergency stop/Input over/under-voltage protection/Output over- voltage protection/ Over-temperature protection/Overcurrent protection/Short-circuit protection/Leakage protection/ Integrated surge protection/Battery reverse polarity protection/Insulation monitoring protection |
|
|
Charging Method |
Button start/Access control card swipe/OCPP remote start |
|
|
Charging Mode |
Local mode/Offline mode/OCPP network mode |
|
|
Payment Method |
RFID/POS machine/Cloud-based payment |
|
|
Networking Method |
WIFI/Ethernet/4G |
|
|
Installation Method |
Floor-mounted |
|
|
Item |
Model Number：NEDF180K1K |
|
|
AC Input Characteristics |
Voltage Range |
AC380V±20% |
|
Input Connection |
3P+N+PE |
|
|
Operating Frequency |
45-65HZ |
|
|
Power Factor |
≥99%，@ normal output power |
|
|
Input Current |
0-348A |
|
|
Output Characteristics |
Output Power |
≤180KW |
|
Auxiliary Power Supply |
GB/T Standard: Compatible with 12V European/American/Japanese Standards: 12V |
|
|
Voltage Range |
DC200-1000V |
|
|
Output Current |
0-300A |
|
|
Number of Charging Connectors |
2 |
|
|
Rated Power Distribution |
Single-gun operation:180kW / Dual-gun operation: 90kW each |
|
|
Charging Cable Length |
Standard Configuration: 5-meter cable (optional upgrade available) |
|
|
Cable Type |
Air cooling |
|
|
Environmental Conditions |
Temperature Range |
Operating Temperature: -20~50℃; 25℃ (typical); Storage Temperature: -40~85℃; 25℃ (typical); Intelligent power derating when shell temperature exceeds 70℃ |
|
Humidity Range |
5~90RH%；Non-condensing |
|
|
Altitude |
≤2000M |
|
|
Operating Environment |
Indoor/Outdoor |
|
|
Protection Level (IP Rating) |
IP54 |
|
|
Dimensions and Weight |
Machine Dimensions |
700x600x 1800mm (excluding gun holder and protruding components like charging guns) |
|
Enclosure Material |
2.0 mm galvanized steel plate |
|
|
Net Weight |
About 360KG |
|
|
Packaging Dimensions |
1020 x 780 x 2030mm |
|
|
Gross Weight |
About 400KG |
|
|
Display |
Size |
7-inch color touch screen |
|
Language |
Chinese, English, Russian (other languages customizable) |
|
|
Charging Standards |
GB/T Standard (G) |
GB/T 18487 、GB/T 20234 、GB/T 27930 |
|
European Standard (E)/American Standard (A) |
EN61851 、EN62196 、ISO15118 、DIN70121 |
|
|
Japanese Standard (J) |
CHAdeMO |
|
|
Protection Features |
Emergency stop/Input over/under-voltage protection/Output over- voltage protection/ Over-temperature protection/Overcurrent protection/Short-circuit protection/Leakage protection/ Integrated surge protection/Battery reverse polarity protection/Insulation monitoring protection |
|
|
Charging Method |
Button start/Access control card swipe/OCPP remote start |
|
|
Charging Mode |
Local mode/Offline mode/OCPP network mode |
|
|
Payment Method |
RFID/POS machine/Cloud-based payment |
|
|
Networking Method |
WIFI/Ethernet/4G |
|
|
Installation Method |
Floor-mounted |
|

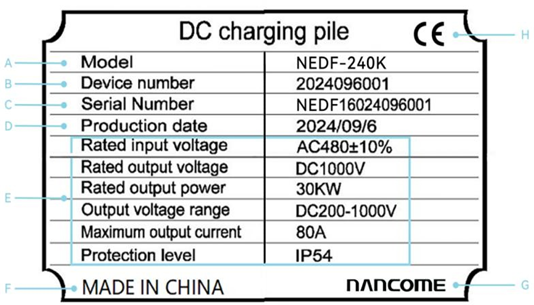

1.1.7 Specifications NEDF240KW detailed technical parameters
|
Item |
Model Number：NEDF240K1K |
|
|
AC Input Characteristics |
Voltage Range |
AC380V±20% |
|
Input Connection |
3P+N+PE |
|
|
Operating Frequency |
45-65HZ |
|
|
Power Factor |
≥99%，@ normal output power |
|
|
Input Current |
0-456A |
|
|
Output Characteristics |
Output Power |
≤240KW |
|
Auxiliary Power Supply |
GB/T Standard: Compatible with 12V European/American/Japanese Standards: 12V |
|
|
Voltage Range |
DC200-1000V |
|
|
Output Current |
0-300A |
|
|
Number of Charging Connectors |
2 |
|
|
Rated Power Distribution |
Single-gun operation: 240kW / Dual-gun operation: 120kW each |
|
|
Charging Cable Length |
Standard Configuration: 5-meter cable (optional upgrade available) |
|
|
Cable Type |
Air cooling |
|
|
Environmental Conditions |
Temperature Range |
Operating Temperature: -20~50℃; 25℃ (typical); Storage Temperature: -40~85℃; 25℃ (typical); Intelligent power derating when shell temperature exceeds 70℃ |
|
Humidity Range |
5~90RH%；Non-condensing |
|
|
Altitude |
≤2000M |
|
|
Operating Environment |
Indoor/Outdoor |
|
|
Protection Level (IP Rating) |
IP54 |
|
|
Dimensions and Weight |
Machine Dimensions |
700x600x 1800mm (excluding gun holder and protruding components like charging guns) |
|
Enclosure Material |
2.0 mm galvanized steel plate |
|
|
Net Weight |
About 380KG |
|
|
Packaging Dimensions |
1020 x 780 x 2030mm |
|
|
Gross Weight |
About 420KG |
|
|
Display |
Size |
7-inch color touch screen |
|
Language |
Chinese, English, Russian (other languages customizable) |
|
|
Charging Standards |
GB/T Standard (G) |
GB/T 18487 、GB/T 20234 、GB/T 27930 |
|
European Standard (E)/American Standard (A) |
EN61851 、EN62196 、ISO15118 、DIN70121 |
|
|
Japanese Standard (J) |
CHAdeMO |
|
|
Protection Features |
Emergency stop/Input over/under-voltage protection/Output over- voltage protection/ Over-temperature protection/Overcurrent protection/Short-circuit protection/Leakage protection/ Integrated surge protection/Battery reverse polarity protection/Insulation monitoring protection |
|
|
Charging Method |
Button start/Access control card swipe/OCPP remote start |
|
|
Charging Mode |
Local mode/Offline mode/OCPP network mode |
|
|
Payment Method |
RFID/POS machine/Cloud-based payment |
|
|
Networking Method |
WIFI/Ethernet/4G |
|
|
Installation Method |
Floor-mounted |
|
|
Item |
Model Number：NEDF360K1K |
|
|
AC Input Characteristics |
Voltage Range |
AC380V±20% |
|
Input Connection |
3P+N+PE |
|
|
Operating Frequency |
45-65HZ |
|
|
Power Factor |
≥99% ，@ normal output power |
|
|
Input Current |
0-696A |
|
|
Output Characteristics |
Output Power |
≤360KW |
|
Auxiliary Power Supply |
GB/T Standard: Compatible with 12V European/American/Japanese Standards: 12V |
|
|
Voltage Range |
DC200-1000V |
|
|
Output Current |
0-300A |
|
|
Number of Charging Connectors |
2 |
|
|
Rated Power Distribution |
In theory: Single-gun operation: 360kW / Dual-gun operation: 180kW each It needs to be matched according to the specific requirements on the vehicle side. |
|
|
Charging Cable Length |
Standard Configuration: 5-meter cable (optional upgrade available) |
|
|
Cable Type |
Air cooling |
|
|
Environmental Conditions |
Temperature Range |
Operating Temperature: -20~50℃; 25℃ (typical); Storage Temperature: -40~85℃; 25℃ (typical); Intelligent power derating when shell temperature exceeds 70℃ |
|
Humidity Range |
5~90RH%；Non-condensing |
|
|
Altitude |
≤2000M |
|
|
Operating Environment |
Indoor/Outdoor |
|
|
Protection Level (IP Rating) |
IP54 |
|
|
Dimensions and Weight |
Machine Dimensions |
700x600x 1800mm (excluding gun holder and protruding components like charging guns) |
|
Enclosure Material |
2.0 mm galvanized steel plate |
|
|
Net Weight |
About 380KG |
|
|
Packaging Dimensions |
1020 x 780 x 2030mm |
|
|
Gross Weight |
About 480KG |
|
|
Display |
Size |
7-inch color touch screen |
|
Language |
Chinese, English, Russian (other languages customizable) |
|
|
Charging Standards |
GB/T Standard (G) |
GB/T 18487 、GB/T 20234 、GB/T 27930 |
|
European Standard (E)/American Standard (A) |
EN61851 、EN62196 、ISO15118 、DIN70121 |
|
|
Japanese Standard (J) |
CHAdeMO |
|
|
Protection Features |
Emergency stop/Input over/under-voltage protection/Output over-voltage protection/Over-temperature protection/Overcurrent protection/Short- circuitprotection/Leakage protection/Integrated surge protection/Battery reverse polarity protection/Insulation monitoring protection |
|
|
Charging Method |
Button start/Access control card swipe/OCPP remote start |
|
|
Charging Mode |
Local mode/Offline mode/OCPP network mode |
|
|
Payment Method |
RFID/POS machine/Cloud-based payment |
|
|
Networking Method |
WIFI/Ethernet/4G |
|
|
Installation Method |
Floor-mounted |
|
Key Selection Criteria
Charging Mode Compatibility
Prioritize DC fast-charging piles to meet the high-power demands of commercial vehicles. DC charging significantly reduces downtime by delivering rapid energy replenishment, essential for garbage trucks operating on tight schedules.
Power Output and Battery Compatibility
Match the charging pile’s power output (e.g., 60 kW, 120 kW) to the truck’s battery capacity. For heavy-duty vehicles like electric garbage trucks, higher power levels (e.g., 150 kW+) ensure efficient charging without compromising battery longevity.
Durability and Environmental Resistance
Opt for charging piles with IP65 or higher protection ratings to withstand dust, moisture, and temperature fluctuations in outdoor or industrial environments. Reinforced casings and corrosion-resistant materials enhance reliability in harsh conditions.
Control System Requirements
Ensure the charging pile features stable, industrial-grade control systems with full English-language interface displays. This is critical for error diagnostics, real-time monitoring, and seamless operation by technicians in multilingual settings.
Charging Interface Standardization
Verify compatibility with CCS (Combined Charging System) or CHAdeMO standards, depending on the truck’s design. Standardized connectors minimize compatibility issues and future-proof infrastructure investments.
Safety and Certification
Select products certified by international standards (e.g., UL, CE) and equipped with safety mechanisms such as overvoltage protection, short-circuit detection, and emergency stop functions.

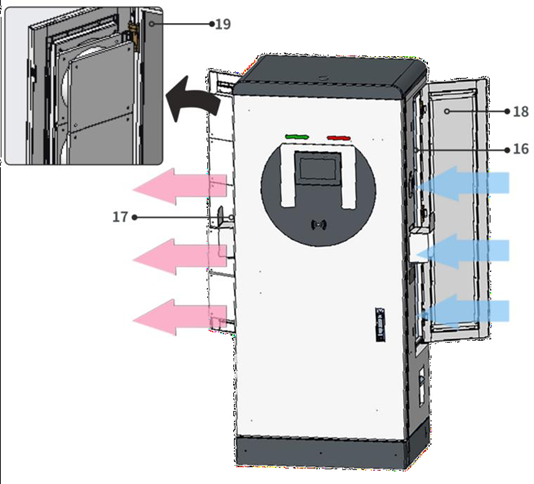

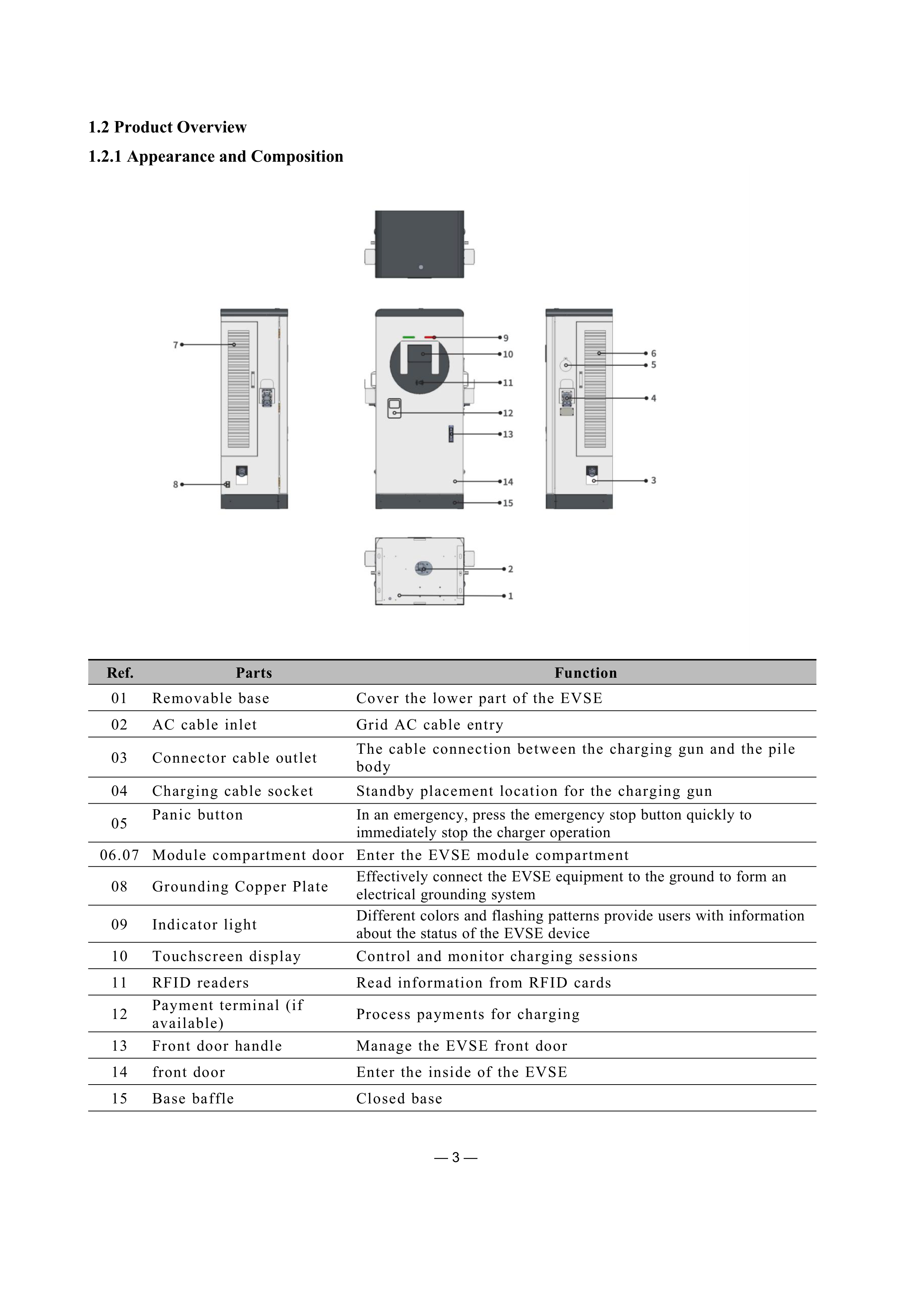

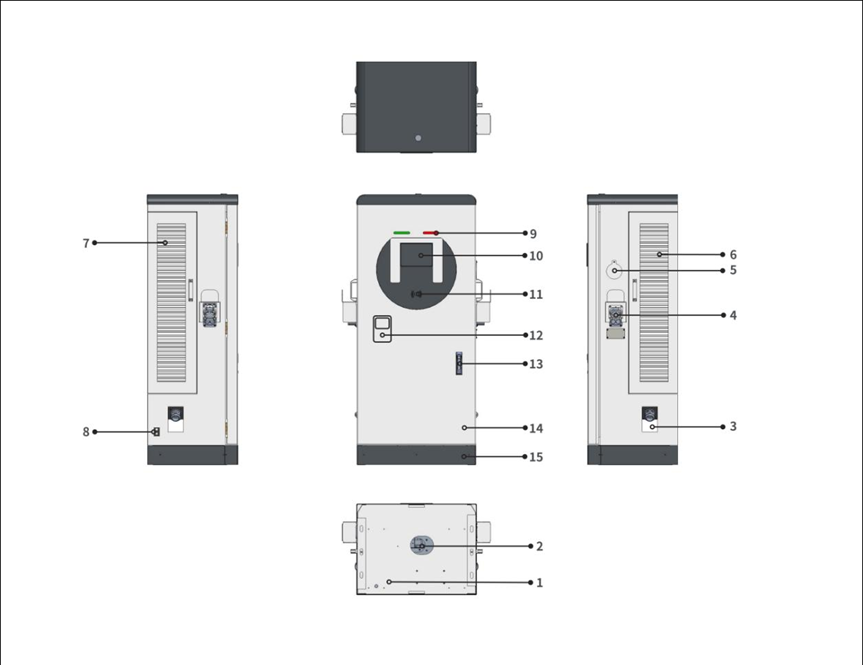

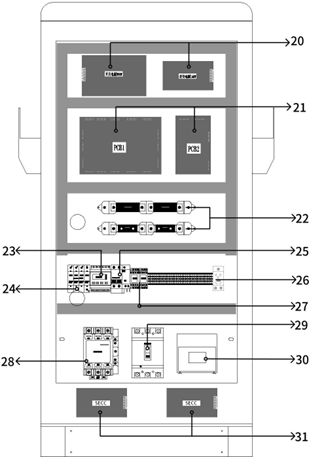

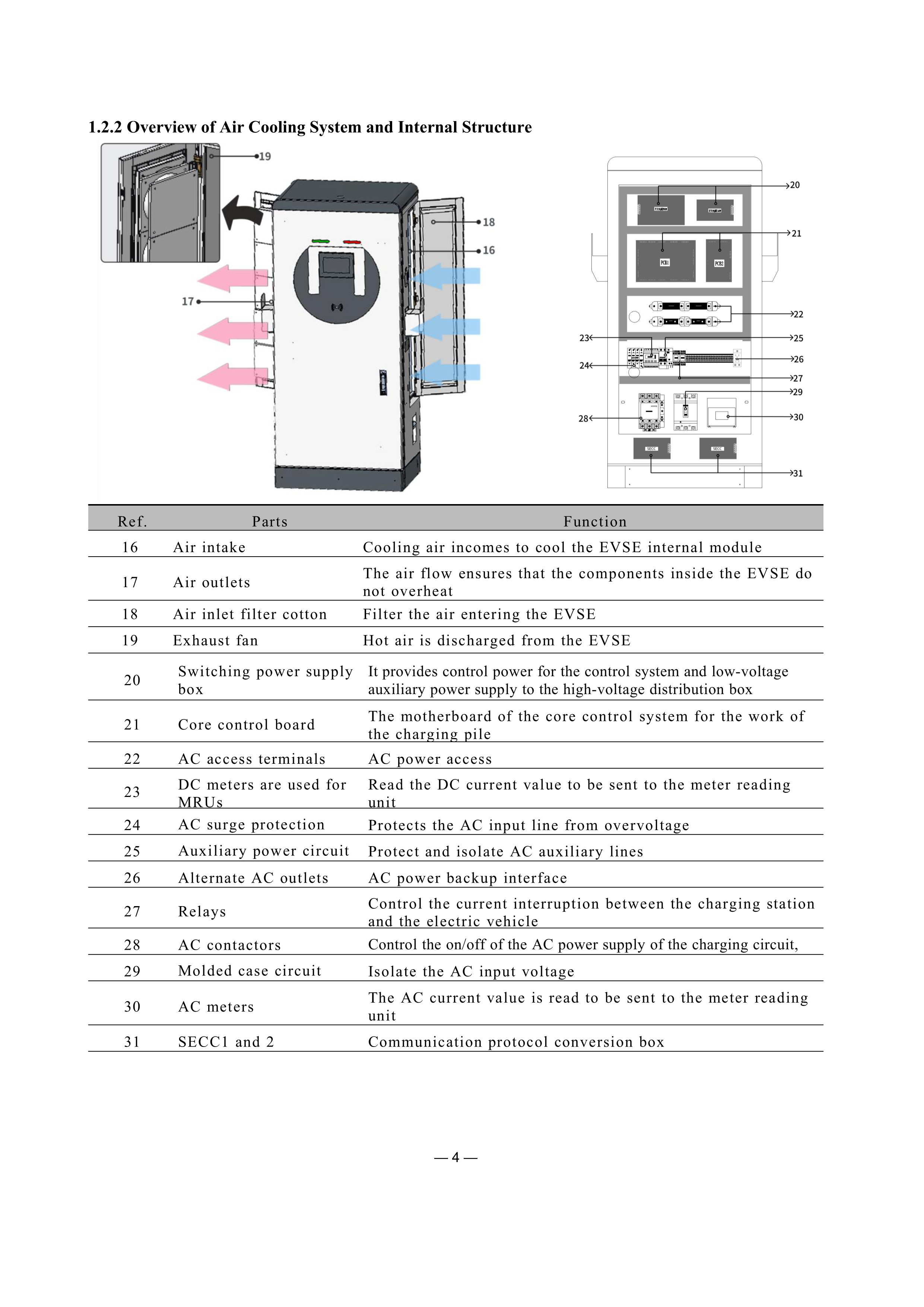

HC fixed ac-dc DC charging pile is a DC charging equipment that specializes in providing fast charging services for electric vehicles, integrating human-computer interaction, charging control, metering and billing, fee payment, remote communication and intelligent safety protection. The product series has a variety of power configurations, charging interfaces have different standard configurations such as GBT/T, CCS2, CCS1, CHAdeMO, single and double guns are optional, and double guns can be freely combined with different standard charging interfaces.
Touchscreen Display and Main Interface Display
• Red light on: The device is in standby mode.
• Green light on: The corresponding charging terminal is working, please do not unplug.
• Yellow light on: Equipment malfunction, service suspended.
• Support local operation: via touch screen, card reader
• Remote operation: remote control operation through the Internet background
This device can support local charging mode, offline charging mode, and remote operation mode: Local Charging Mode: Tap the button on the screen to initiate charging.
Offline charging mode: After it is enabled, the offline OCPP function will not be run when it is not connected to the Internet (if it is connected to the Internet, the OCPP function will continue to be used), and the card can be swiped offline to start charging.
Remote operation mode: It can be operated through the OCPP back-end management software.
The energy charged by an electric vehicle is metered, and a precision energy meter is configured to measure the total energy consumption of the charging pile and the electric vehicle.
The metering information is displayed through the display on the front panel, and can be selected and queried by tapping the touch screen button for gun A and gun B.
The device can be used with or without authorization, which can be based on radio frequency identification (RFID), personal identification numbers, or mobile authentication methods. Authorization can be a standard solution provided by the manufacturer or an external company that provides an authorized solution through the OCPP.
The device can be authorized to be used and charged based on radio frequency identification (RFID).
Devices can optionally be equipped with POS payment terminals, enabling charging point operators to offer secure payment methods and enhance the customer experience.
Special Considerations for Isuzu Electric Compressed Waste Trucks
High-Cycle Demands: Garbage trucks typically operate multiple shifts daily. DC fast-charging piles with high efficiency (e.g., ≥95% energy transfer rate) minimize energy loss during frequent charging sessions.
Load Stability: Charging piles must maintain consistent performance under heavy loads. Systems with advanced thermal management prevent overheating during extended use.
Integration with Fleet Management: Choose models supporting remote monitoring and data logging to align with fleet management software for scheduling and maintenance tracking.
Recommended Configuration Summary
Feature Requirement
Charging Mode DC Fast Charging (150 kW+)
Protection Rating IP65/IP67
Control Interface English display, real-time diagnostics
Connector Type CCS/CHAdeMO
Safety Certification UL, CE, or equivalent
By prioritizing these factors, operators can ensure reliable, efficient charging solutions tailored to the unique needs of Isuzu electric garbage trucks, supporting both operational efficiency and long-term sustainability goals.
Methods to ensure compatibility between EV charging piles and electric compression garbage trucks
1. Confirm that the charging interface matches the standard
Physical interface consistency : Give priority to charging interfaces that meet international or regional standards, such as GB/T (Chinese standard), CCS (European and American standard) or CHAdeMO (Japanese standard). Electric compression garbage trucks are usually equipped with high-power DC interfaces, and it is necessary to ensure that the plug specifications of the charging pile fully match the vehicle charging port.
Communication protocol compatibility : The charging pile must support the communication protocol of the vehicle battery management system (BMS), such as GB/T 27930-2015 (China) or ISO 15118 (International) to achieve safe interaction and real-time adjustment of charging parameters.
2. Match charging power with battery parameters
Power adaptability : Electric garbage trucks usually require high-power DC fast charging (above 150 kW), and the rated power of the charging pile must cover the maximum charging demand of the vehicle battery to avoid insufficient power and reduced charging efficiency.
Voltage and current range: Ensure that the output voltage range (e.g. 200-1000V) and current (e.g. 250A or above) of the charging pile are compatible with the rated parameters of the vehicle battery to prevent overvoltage or undervoltage risks.
3. Verify environmental adaptability and durability
Protection level: Select charging piles with IP65 or IP67 protection levels to withstand dust, moisture and corrosive environments in garbage disposal scenarios.
Temperature adaptability: The charging pile needs to support a wide temperature range (e.g. -30℃ to 50℃) to ensure stable operation in extreme climates.
4. Testing and verification process
Pre-deployment joint testing: Perform real-machine joint debugging of the charging pile and the vehicle before installation to verify interface connection, communication handshake, charging efficiency and safety protection mechanisms (e.g. overcurrent, leakage protection).
Long-term operation and maintenance monitoring: Monitor charging data through the remote management system and regularly update the charging pile software to adapt to vehicle upgrade requirements.
5. Safety and certification requirements
International certification: Choose charging piles that have passed UL, CE or equivalent certification to ensure that electrical safety and electromagnetic compatibility meet industry standards.
Redundant protection mechanism: Charging piles must integrate multiple safety functions, including insulation monitoring, emergency stop button and fault self-diagnosis system.
Recommended implementation plan
Hardware configuration: DC fast charging pile (150 kW+), IP67 protection, CCS/GB-T dual-mode interface.
Software function: Support BMS protocol automatic identification, remote OTA upgrade, multi-language interface (including full English display).
Verification process: Continuous stress test for 72 hours before deployment to simulate high-load charging and discharging scenarios.
The selection of cables should comply with the relevant specifications of the electrical industry. Please refer to the following table to determine the cable, the cable selection in the table is for reference only, please refer to the judgment of the professional construction qualification unit:
|
Cable Specification Requirements |
|||
|
Product power |
Input cable |
||
|
The name of the cable |
location |
Cable specifications |
|
|
40kw |
AC three-phase A |
MCCB L1 |
≥16mm² |
|
AC three-phase B |
MCCB L2 |
≥16mm² |
|
|
AC three-phase C |
MCCB L3 |
≥16mm² |
|
|
AC input N |
MCCB N |
≥10mm² |
|
|
AC PE wire |
PE busbar |
≥10mm² |
|
|
60kw |
AC three-phase A |
MCCB L1 |
≥25mm² |
|
AC three-phase B |
MCCB L2 |
≥25mm² |
|
|
AC three-phase C |
MCCB L3 |
≥25mm² |
|
|
AC input N |
MCCB N |
≥16mm² |
|
|
AC PE wire |
PE busbar |
≥10mm² |
|
|
80kw |
AC three-phase A |
MCCB L1 |
≥35mm² |
|
AC three-phase B |
MCCB L2 |
≥35mm² |
|
|
AC three-phase C |
MCCB L3 |
≥35mm² |
|
|
AC input N |
MCCB N |
≥16mm² |
|
|
AC PE wire |
PE busbar |
≥16mm² |
|
|
120kw |
AC three-phase A |
MCCB L1 |
≥70mm² |
|
AC three-phase B |
MCCB L2 |
≥70mm² |
|
|
AC three-phase C |
MCCB L3 |
≥70mm² |
|
|
AC input N |
MCCB N |
≥35mm² |
|
|
AC PE wire |
PE busbar |
≥25mm² |
|
|
160kw |
AC three-phase A |
MCCB L1 |
≥95mm² |
|
AC three-phase B |
MCCB L2 |
≥95mm² |
|
|
AC three-phase C |
MCCB L3 |
≥95mm² |
|
|
AC input N |
MCCB N |
≥50mm² |
|
|
AC PE wire |
PE busbar |
≥35mm² |
|
|
180kw |
AC three-phase A |
MCCB L1 |
≥120mm² |
|
AC three-phase B |
MCCB L2 |
≥120mm² |
|
|
AC three-phase C |
MCCB L3 |
≥120mm² |
|
|
AC input N |
MCCB N |
≥50mm² |
|
|
AC PE wire |
PE busbar |
≥35mm² |
|
|
240kw |
AC three-phase A |
MCCB L1 |
≥150mm² |
|
AC three-phase B |
MCCB L2 |
≥150mm² |
|
|
AC three-phase C |
MCCB L3 |
≥150mm² |
|
|
AC input N |
MCCB N |
≥70mm² |
|
|
AC PE wire |
PE busbar |
≥35mm² |
|
|
The cable selection in the table is for reference only, and should be judged by the contractor with power construction qualifications according to the actual situation, the length of the wire, the environment and other factors |
|||
An electric vehicle with a compatible connection entrance must be provided to test the functionality of the charging station. If the charging station has more than one charging connector type, an electric vehicle with each type of charging socket must be available.
The emergency shutdown test is a necessary test before going into production.
1.2.1 Start a charging session
• Park your EV where the charging station has access to the connector.
• Turn off the electric car.

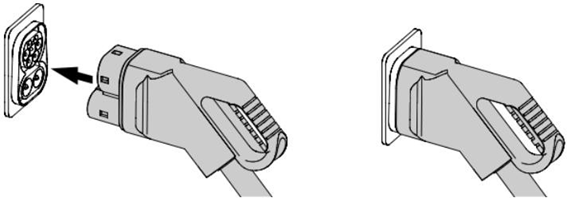

• Unplug the EV charging connector from the charging station and plug it into the EV charging socket.

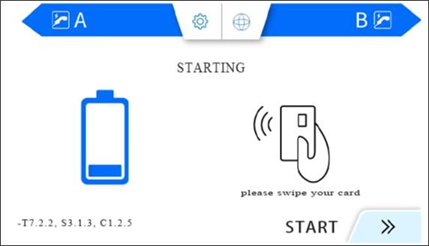

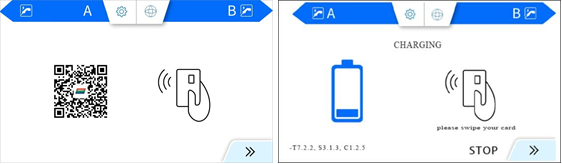

• The touch screen displays a message authorizing the charging session, please follow the displayed instructions to swipe to initiate.

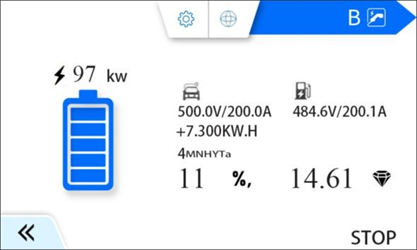

• The device charges the electric car and displays the charging status on the display.
1.1.1 Stop The Charging Session
• On the touch screen, press the stop button or swipe the card to stop and complete the payment as required.
• Remove the connector from the vehicle and place it back in the connector bracket on the charging station.
1. Maintenance and Troubleshooting
|
Contents |
Check the method |
Maintenance intervals |
|
System operating status and environment |
• 1. Listen to whether there is any abnormal sound during the operation of the charging pile; • 2. Check whether the heating of the charging pile shell is normal; • 3. Observe whether the inlet and outlet air is normal; • 4. Check the humidity and dust of the surrounding environment of the charging pile. • Note! The ventilation of the air intake must be checked. If the module is not cooled effectively, it will fail due to overheating. |
1 time every 6 months |
|
External inspection and cleaning |
1. Observe whether the shell structure of the charging pile, the charging gun, and the connecting cable are damaged or deformed; 2. Clean the equipment shell and vent; 3. Check whether the touch screen data display is normal; 4. Check the status of the LED strip light; 5. Radio Frequency Identification Technology, Payment Terminals (if any). |
1time every 3 months |
|
Internal inspections clean |
1. Check the cleanliness of circuit boards and components; 2. Check the internal charging module and if necessary, remove the module for cleaning; 3. Check whether there is any damage to the fan blades, etc., and maintain and replace them in time; 4. Check whether the internal instrument display is normal; 5. Do routine inspection of the corrosion of all metal components. |
1time every 6 months |
|
Circuit connection safety check |
1. Check whether the power cable and control cable are in good condition, especially whether the skin in contact with the metal surface is damaged; 2. Check whether the switch, contactor, circuit breaker and fan are normal; 3. Check whether the insulation and wrapping of the power cable terminal are intact, whether the insulation of the parts and cables is discolored or mechanically damaged, and whether the contact force of the fuse is normal. |
Half a year after the first commissioning, and then every six months to1year |
|
security and other system functions |
1. Check the emergency stop button and whether the stop button function is normal; 2. Simulate operation tests such as start-up charging, shutdown, and card swiping, and observe whether the functions of each system such as power allocation, safety control function, and billing are normal. |
1time every 6 months |
