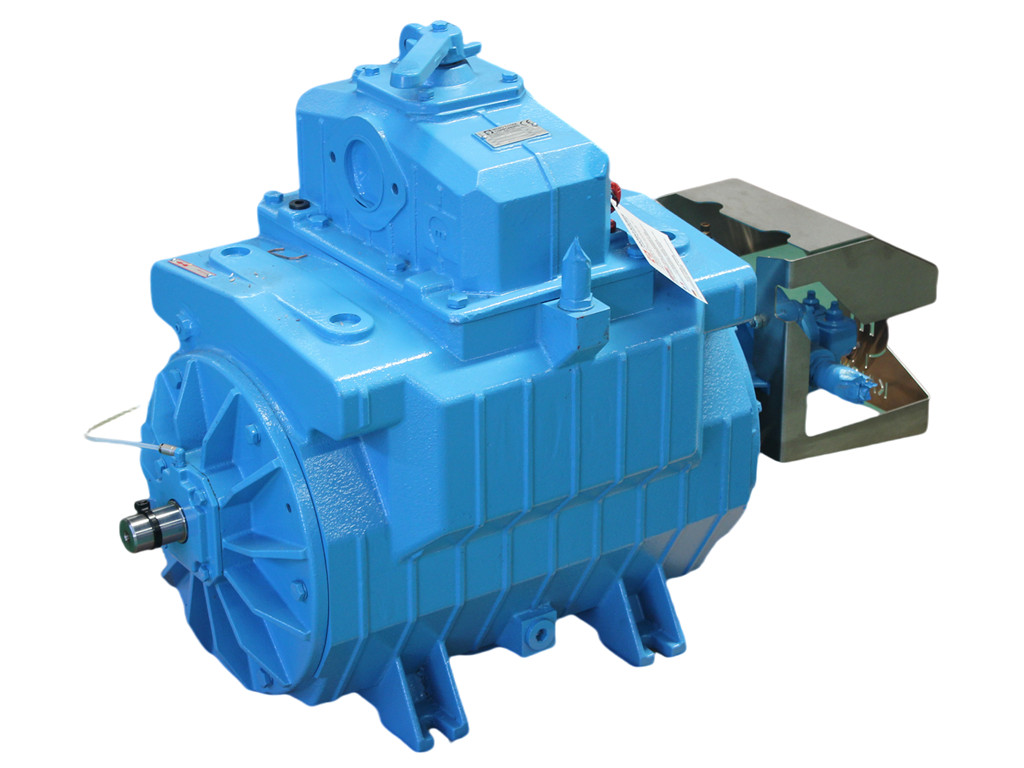

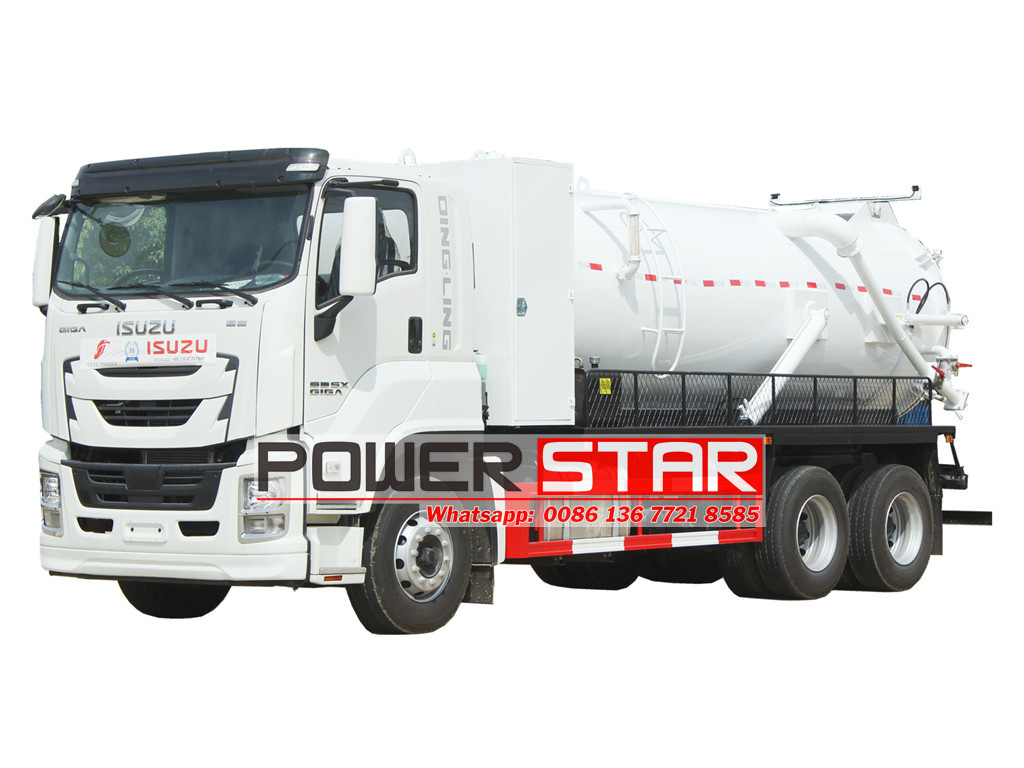

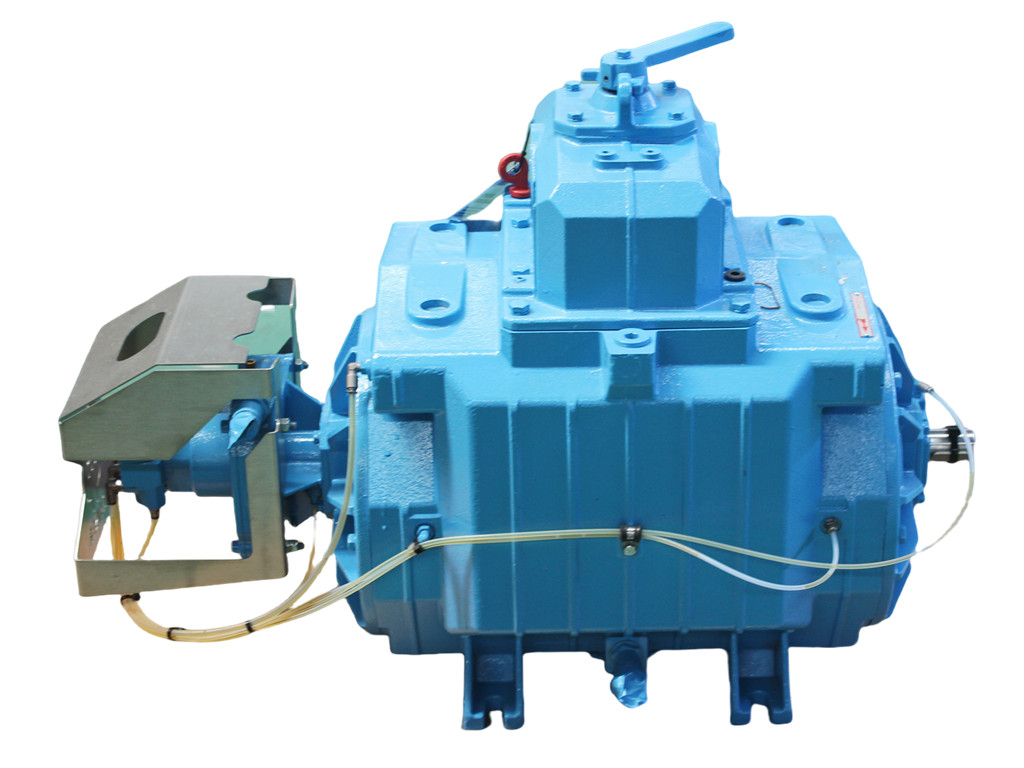

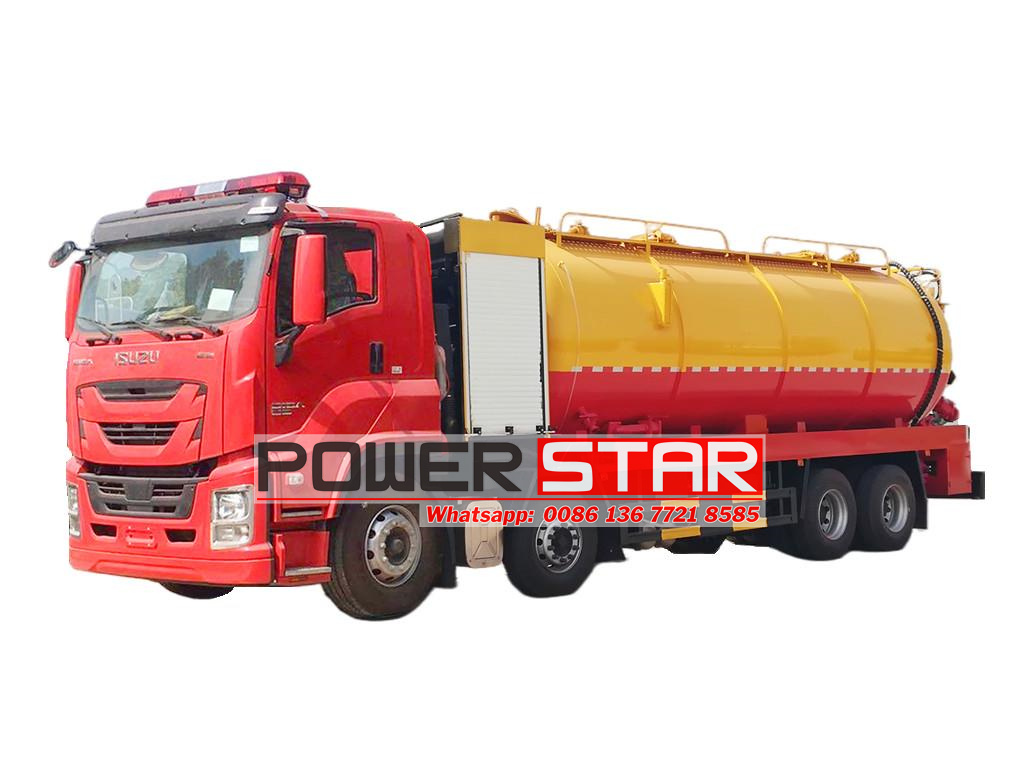

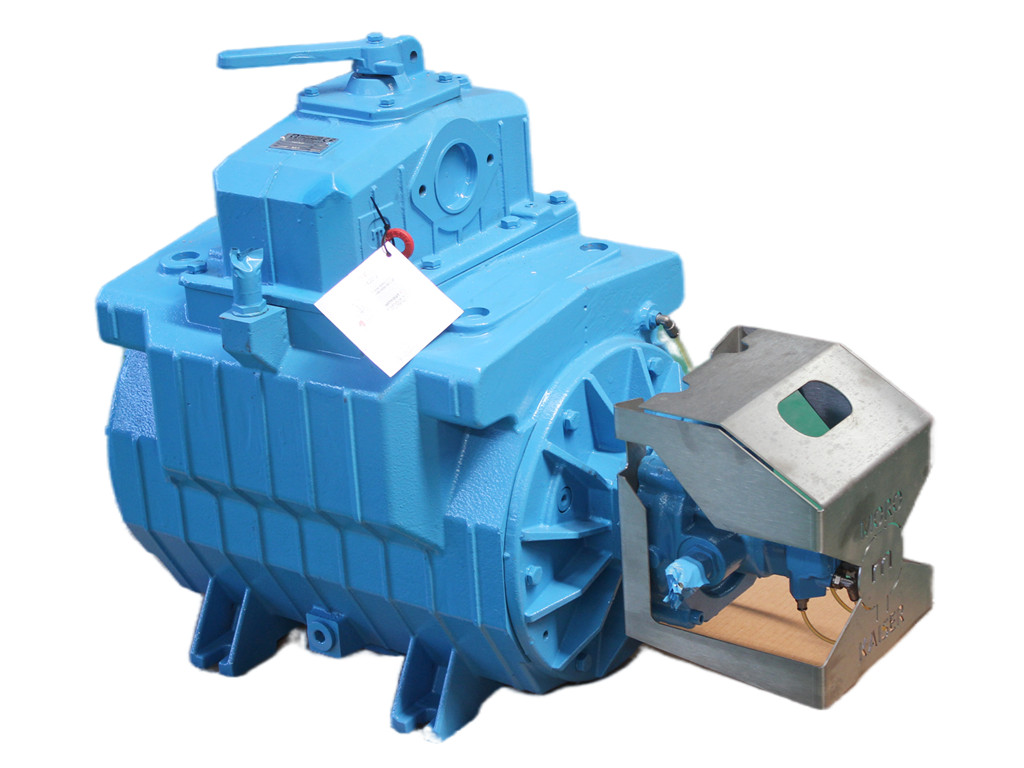

ISUZU vacuum truck is a special vehicle that uses the Italy brand MORO vacuum pump with negative pressure principle to suck and transport liquid dirt such as sludge and sewage. ISUZU sewage suction truck with working principle as below, the working principle of ISUZU vacuum suction truck is to use the power of the Japanese ISUZU truck chassis engine to drive the MORO vacuum pump after taking power through the power take off box. The Italy brand MORO vacuum pump generates a strong negative pressure to suck liquid dirt such as sludge and sewage into the vehicle storage container through the suction pipe. When the storage container is full, the vehicle can transport it to a designated location for discharge or treatment. ISUZU sewer pumper truck is widely used in sludge and sewage cleaning in urban sewers, septic tanks, sewage treatment plants, construction sites and other places. Isuzu vacuum pumper tanker can also be used for dredging and dredging of small rivers. And the mounted MORO pump can be customized as MORO PM60A pump, MORO PM70A pump, MORO PM80A pump, and MORO PM110W pump.

ISUZU septic vacuum truck is an efficient, environmentally friendly and flexible sludge and sewage cleaning tool, which provides strong support for urban environmental sanitation and sewage treatment. And based on requirement, Isuzu cesspit emptier trucks can be classify as below model, Isuzu mini ELF vacuum pumper truck, Isuzu NKR septic tank truck, Isuzu NPR sewer pump tanker truck, Isuzu GIGA septic tank lorry, etc. To make customer enjoy better service of ISUZU sewer trucks, we POWERSTAR can always design and produce best vacuum tankers based on requirement.

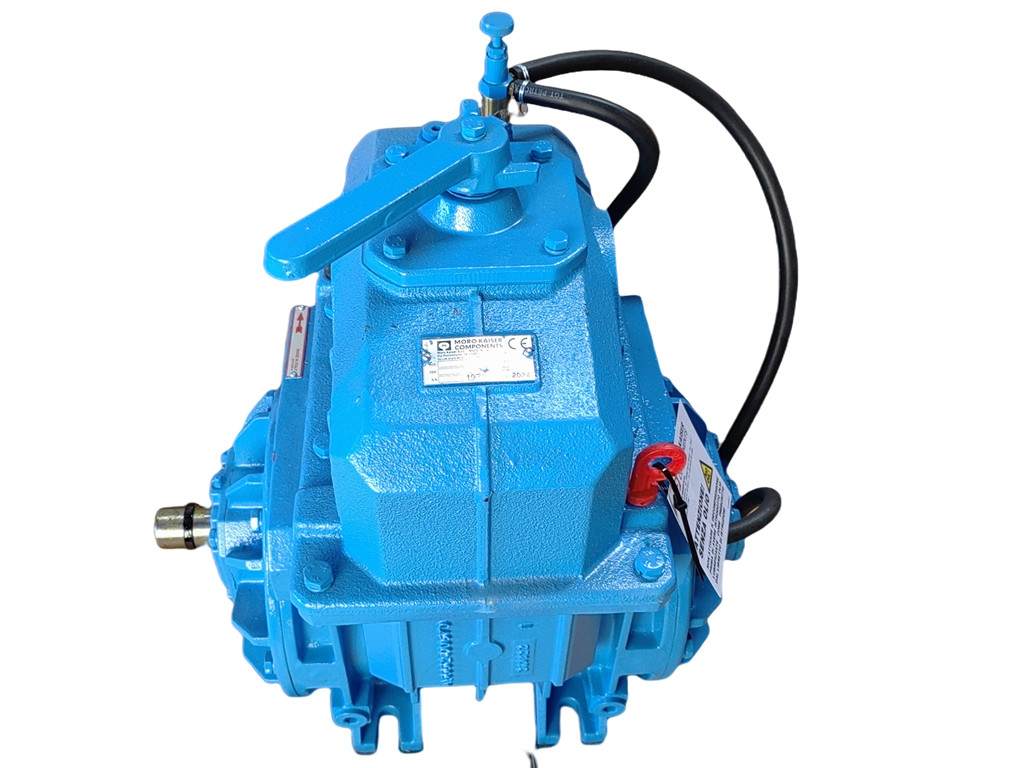

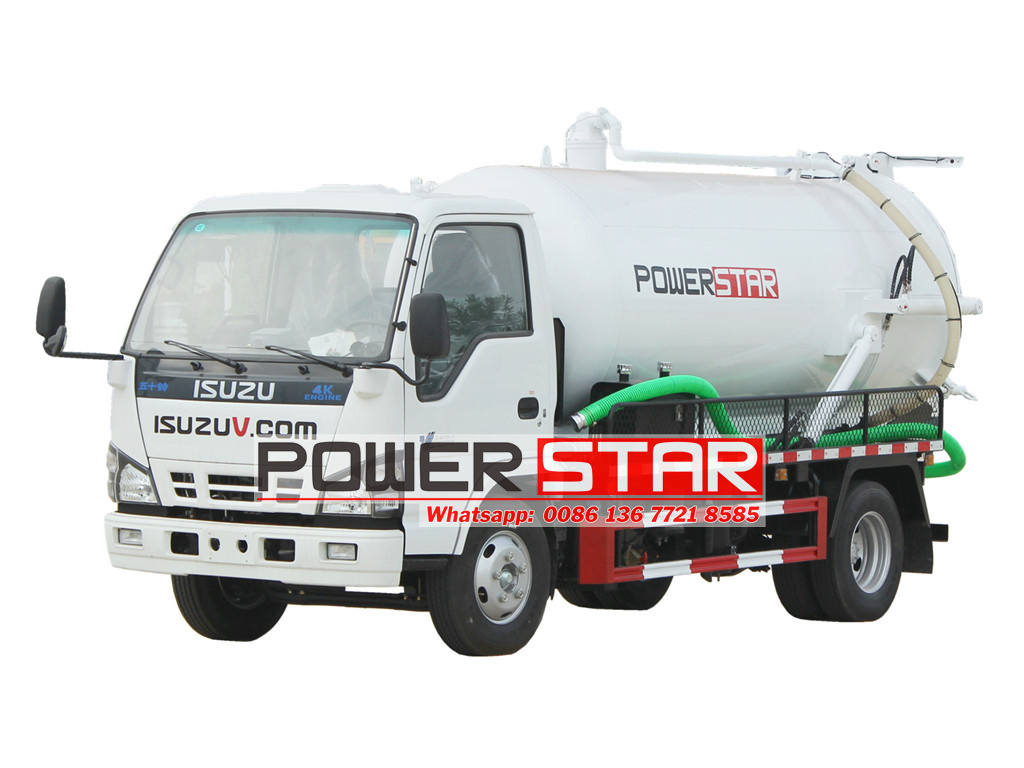

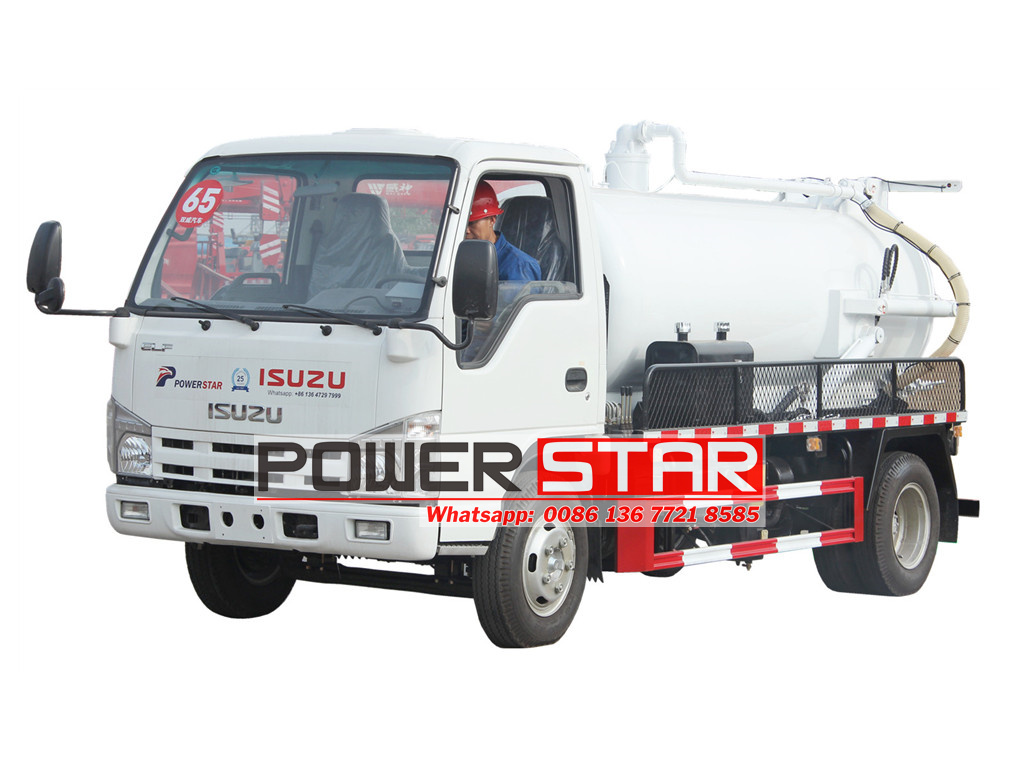

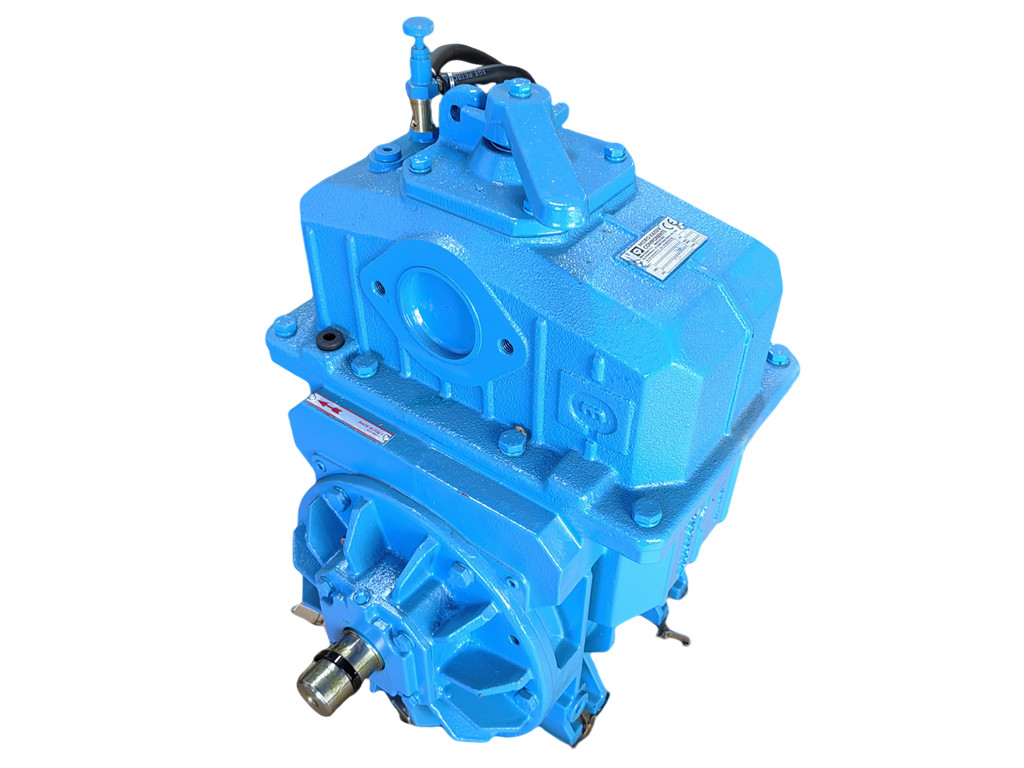

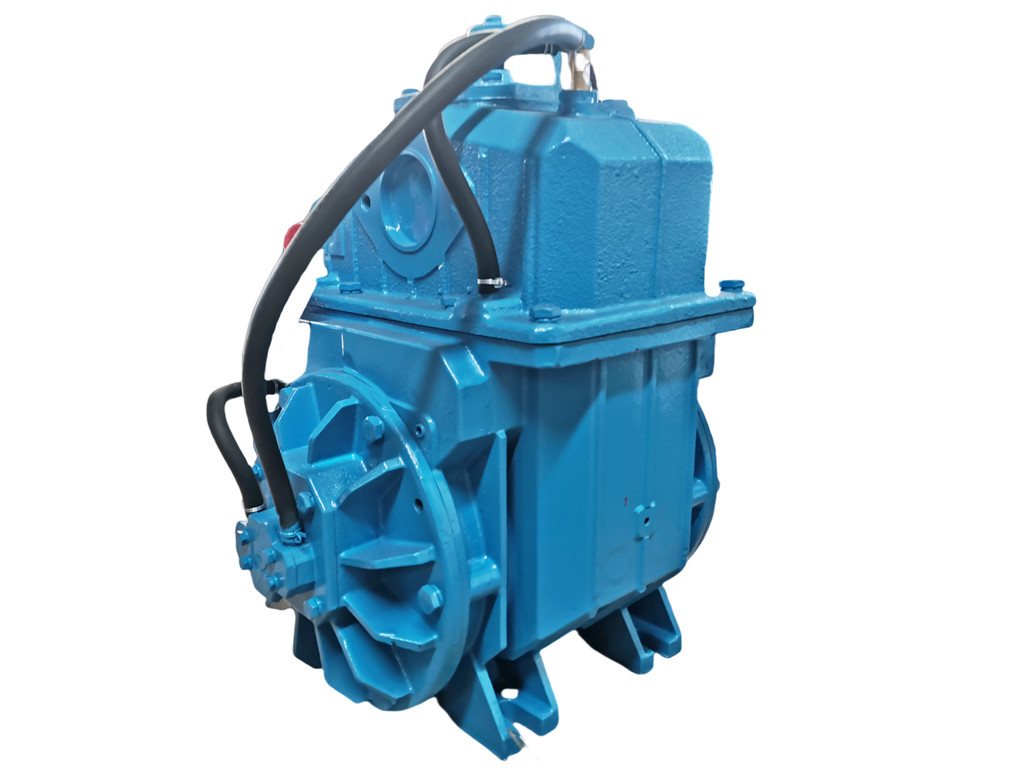

Isuzu mini ELF vacuum pumper truck and Isuzu NKR septic tank truck, which can be mounted with Italy brand MORO PM60A vacuum pump, details as below showing:

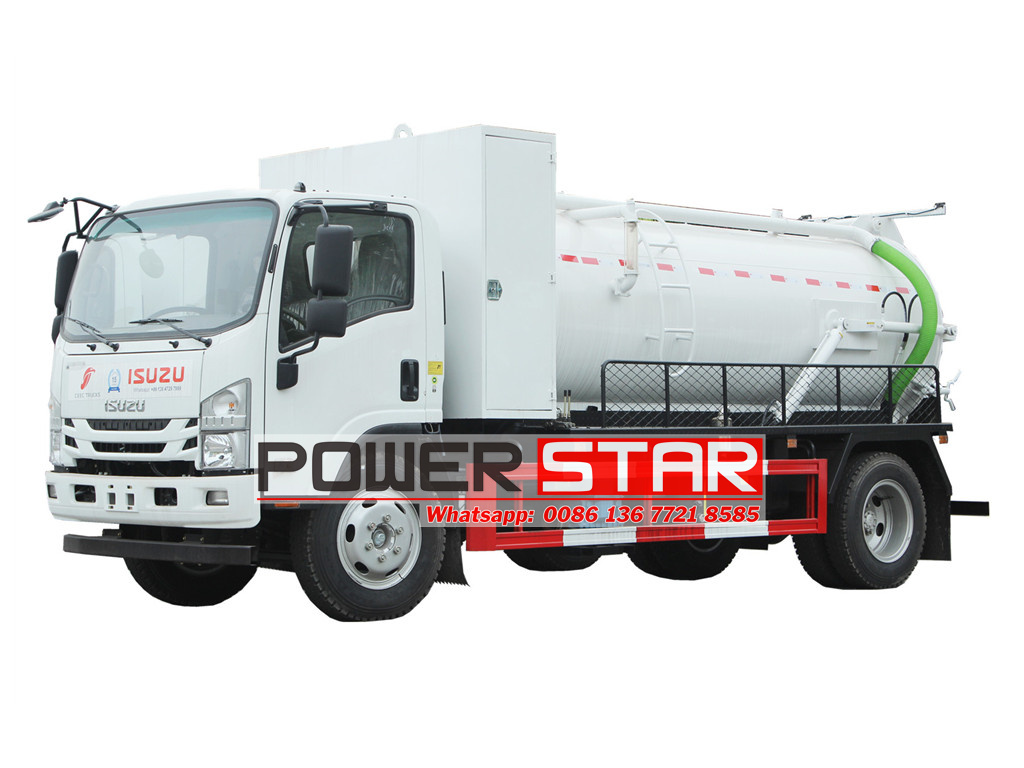

Isuzu NPR sewer pump tanker truck, which can be mounted with Italy brand MORO PM70A vacuum pump, details as below showing:

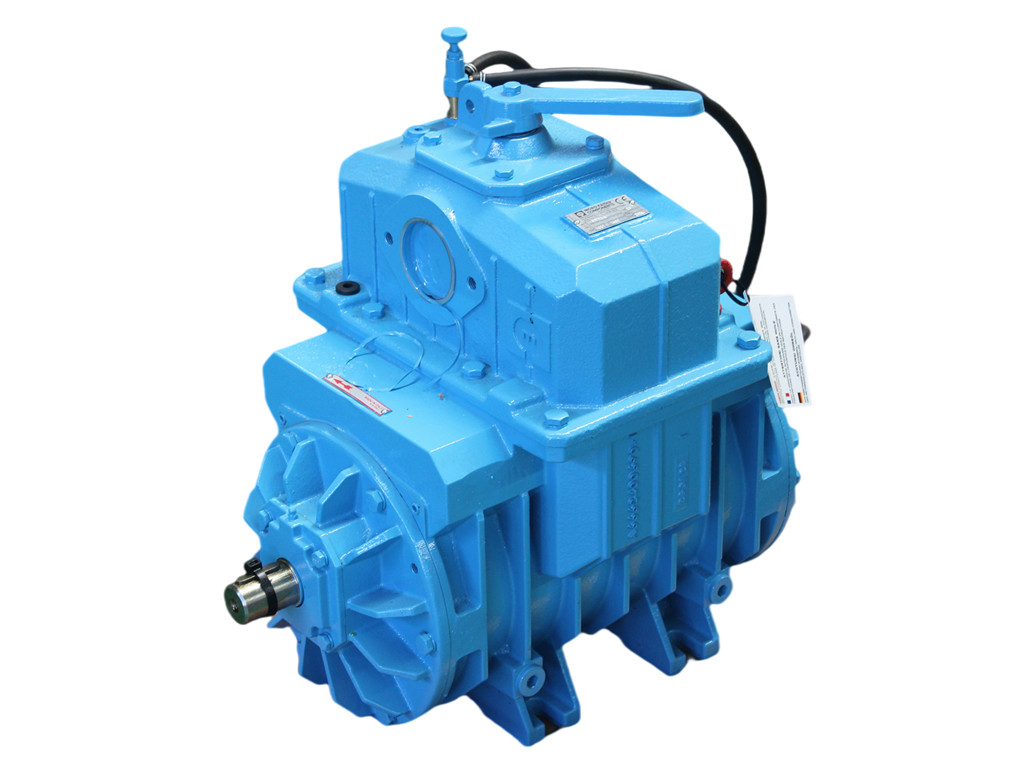

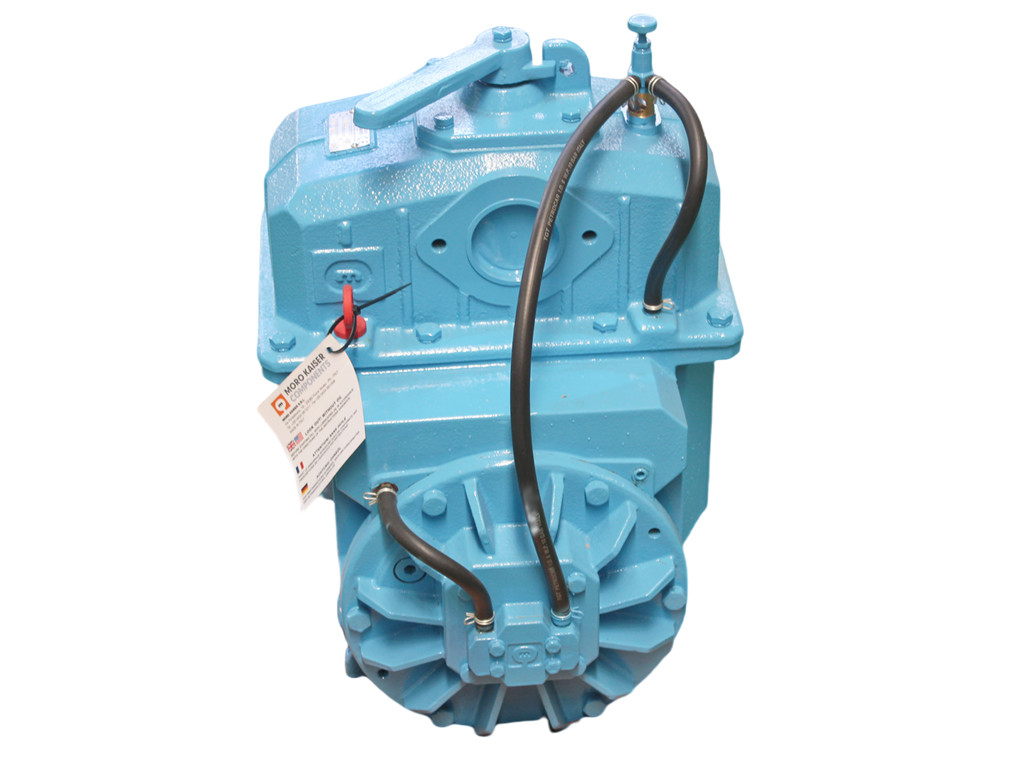

PM70A Vacuum Pump

The Moro AIR Series of radiant-cooled vacuum pumps sets the gold standard in the vacuum suction pump industry. Tailored for industrial use with diverse performance demands, Moro provides three distinct AIR Series models to suit various applications. Crafted with a robust cast iron housing, these pumps ensure ultimate reliability, leveraging cast iron's exceptional heat dissipation properties. The intake and exhaust systems are engineered to minimize noise and thermal output. A unique inspection window on the pump body lets operators visually monitor its operation. Incorporating non-return and four-way valves, the pumps feature flange-coupled hose elbows that can be oriented as needed for optimal vacuum pump performance. Designed to enhance heat exchange in demanding environments, the AIR Series can be seamlessly mounted on truck frames and linked directly to the vehicle's drive system, making it indispensable for all pump-related tasks. Notably, the Air-Cooled MORO PM70A Vacuum Pump offers a free air flow capacity of 332 cubic feet per minute.

Weight	265 lbs
Dimensions	16 × 30 × 33 in
CFM	332
PSI	29
RPM	1100
Weight	309 lbs
Hose	3"
Oil Tank Capacity	4 Qts
Suggested Tank Size	1000-3000 Gallons
Max. Vacuum	28 InHg
Continuous Duty Vacuum	18 InHg

•

  Isuzu pumper truck mounted MORO pump
•

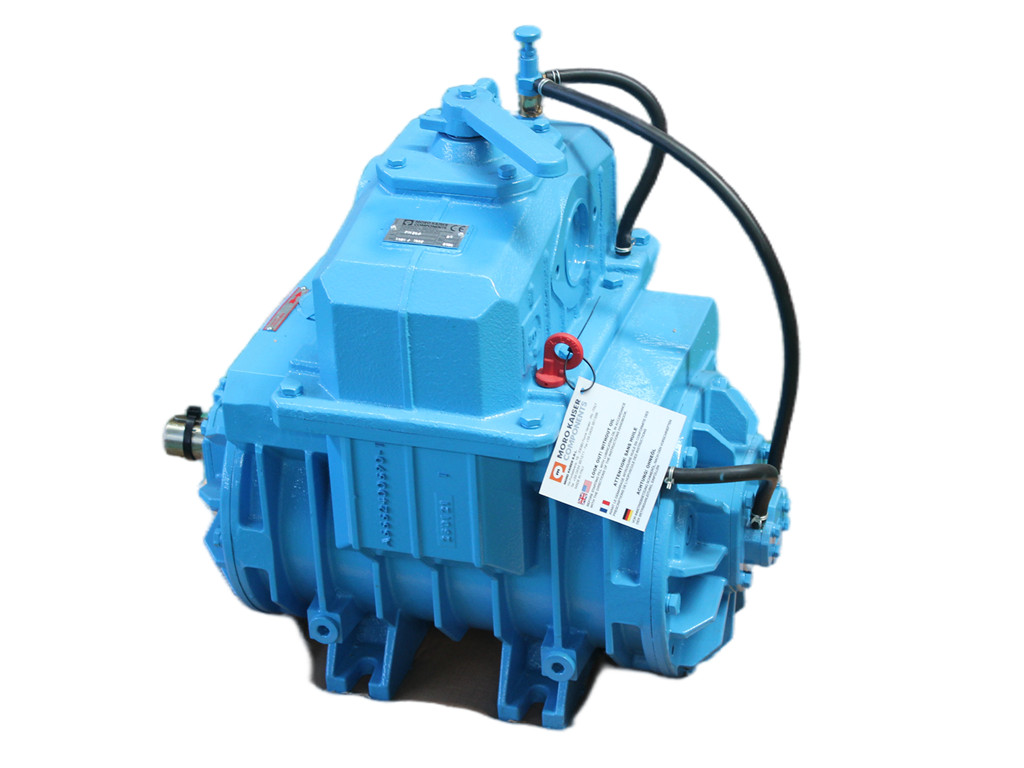

  Italy PM70A vacuum pump

•

  MORO PM70A vacuum truck

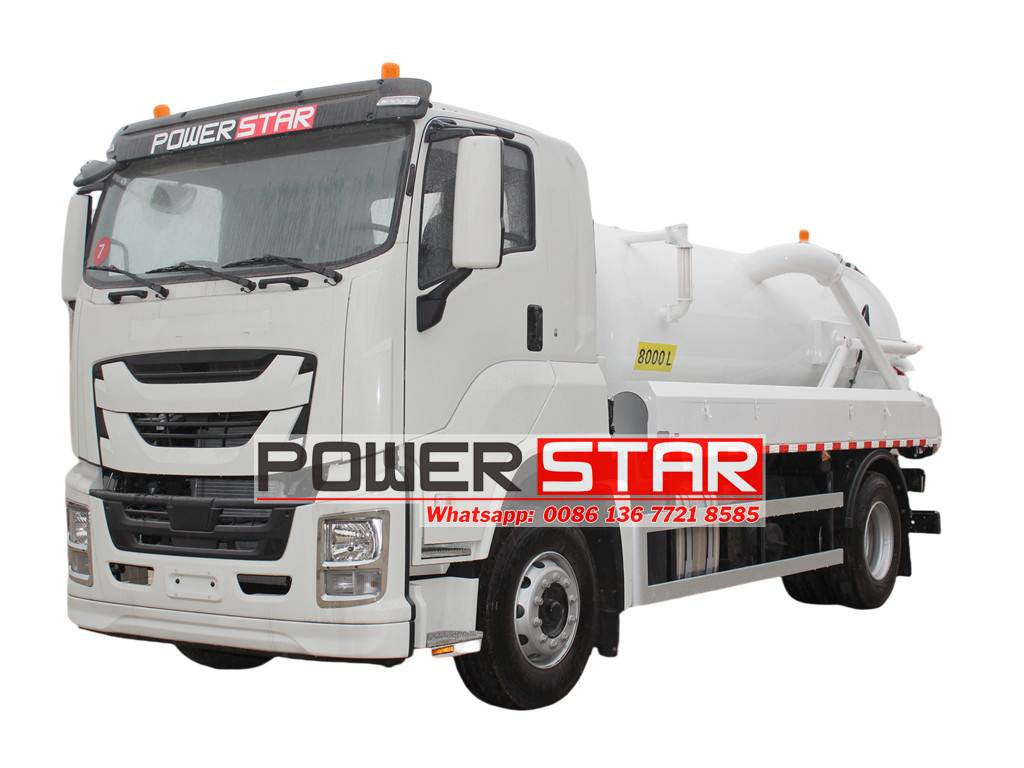

Isuzu GIGA septic tank lorry, which can be mounted with Italy brand MORO PM80A vacuum pump, details as below showing:

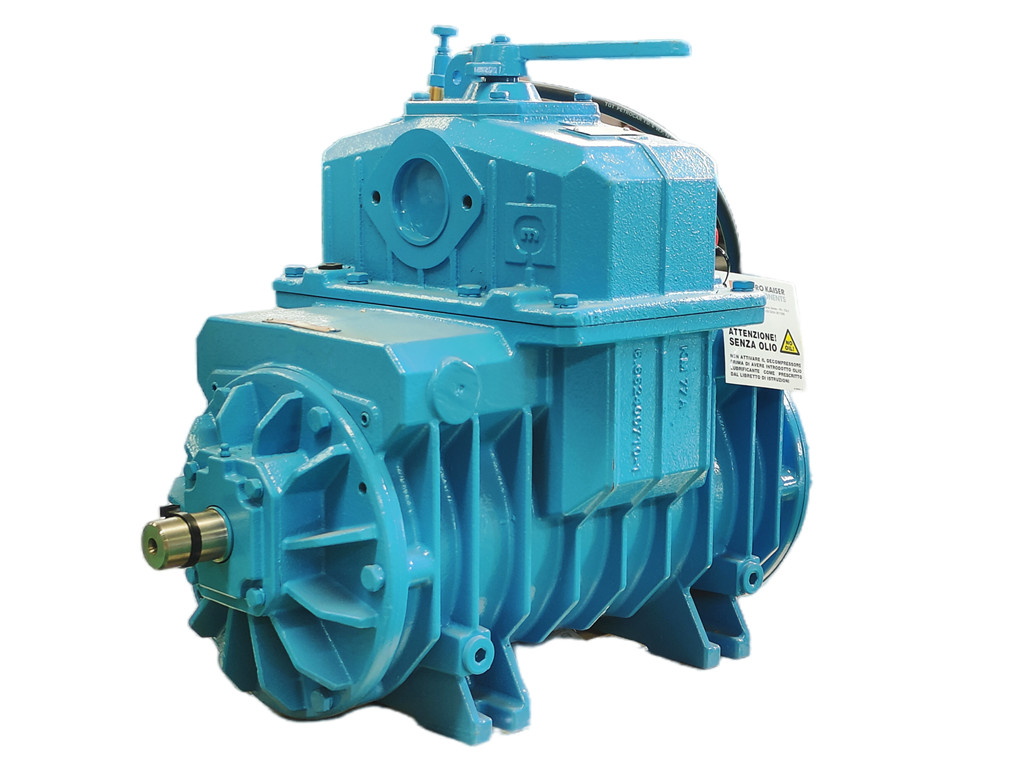

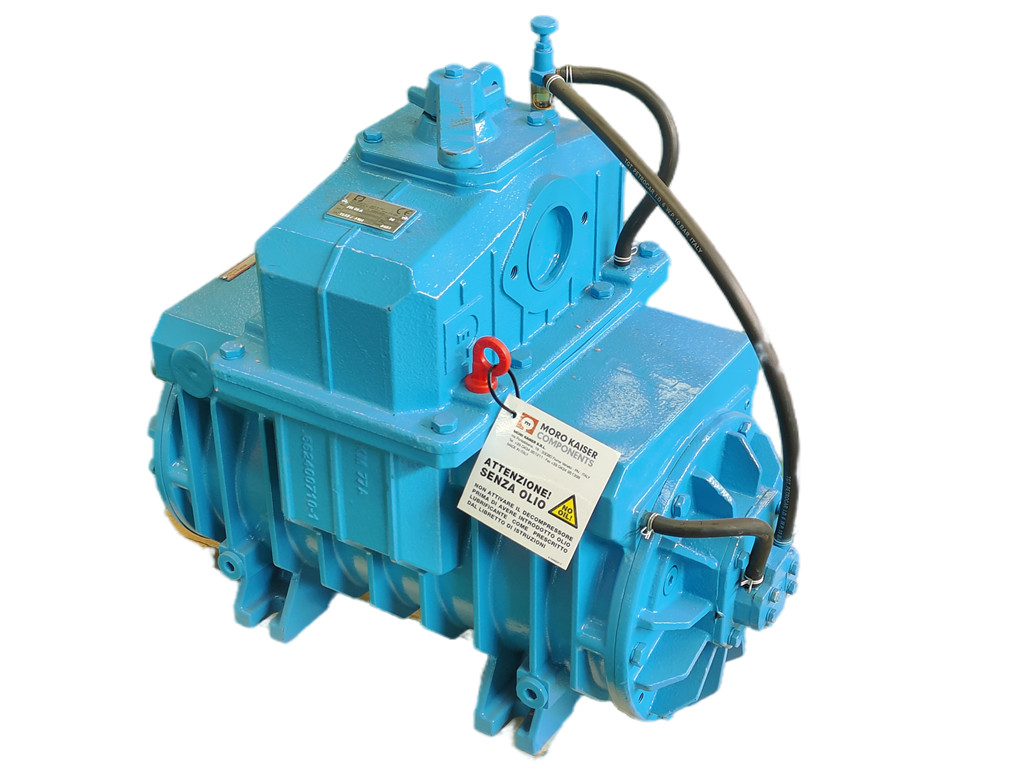

Moro Vacuum Pump PM80A

The Moro AIR Series radiant cooled vacuum pumps embody the most elevated standards in the field of vacuum suction pumps. These pumps are designed to be used in industrial applications that have varying capability requirements. Moro offers three separate AIR Series pumps to meet these differing application needs.

The AIR Series vacuum pumps are crafted with a cast iron body to guarantee maximum reliability. Cast Iron is the most efficient material for releasing heat from the pump. The air intake and discharge are designed to reduce noise and heat production. This series is equipped with a special inspection port in the pump body allowing the operator to visually check the pump’s operation. The non-return and the four-way valves are integrated into the pump. The hose connection elbows consist of flange couplings and can be moved in a desired direction in accordance with the requirements of the vacuum pump usage.

This series was designed to improve the heat exchange of the pump in heavy-duty usage. This series can be easily mounted onto a truck frame and connected directly to the truck’s drive system, making this vacuum pump essential for any pump-related duties.

Air Cooled MORO PM80A Vacuum Pump produces free air flow of 424 CFM.

Weight	265 lbs
Dimensions	16 × 30 × 33 in
CFM	424
PSI	29
RPM	1100
Weight	357 lbs
Hose	3"
Oil Tank Capacity	4 Qts
Suggested Tank Size	1000-4000 Gallons
Max. Vacuum	28 InHg
Continuous Duty Vacuum	18 InHg



Advacned features for ISUZU vacuum truck

Efficient suction: ISUZU vacuum suction truck is equipped with a high-performance vacuum pump with strong suction capacity, which can quickly and effectively suck sludge, sewage and other liquid waste.
Large-capacity storage: The on-board storage container has a large capacity and can load a large amount of sludge, sewage and other liquid waste, reducing the trouble of multiple round-trip transportation.
Flexible operation: ISUZU septic pumper truck is easy to operate. The driver only needs to control the valve and suction pipe to complete the suction and discharge operations.
Environmental protection and energy saving: The vehicle adopts advanced vacuum suction technology to realize the containerization of feces collection and reduce secondary pollution. At the same time, the vehicle runs smoothly, with low noise, in line with environmental protection requirements.
