The Isuzu aerial work platform truck is a specialized construction machinery equipment, mainly used for aerial work in construction, maintenance, cleaning and other projects. It is equipped with a telescopic arm and platform, which enables workers to easily reach heights without the need to use dangerous ladders or scaffolding to perform various tasks such as repairing building facades, installing billboards or cleaning windows.
Isuzu aerial work truck also called man lift truck, aerial work platform truck, aerial platform truck, telescopic boom aerial work truck, high altitude operation truck,telescoping hydraulic lift truck.
The working principle of Isuzu aerial work platform truck is mainly realized through hydraulic system and electrical control system. The hydraulic system mainly includes hydraulic pump, hydraulic cylinder, hydraulic pipeline and control valve, which work together to complete the lifting, extension and rotation of the aerial work platform truck. The electrical control system controls the operation of the aerial work platform truck through electrical equipment to realize the control and operation of various functions.
|

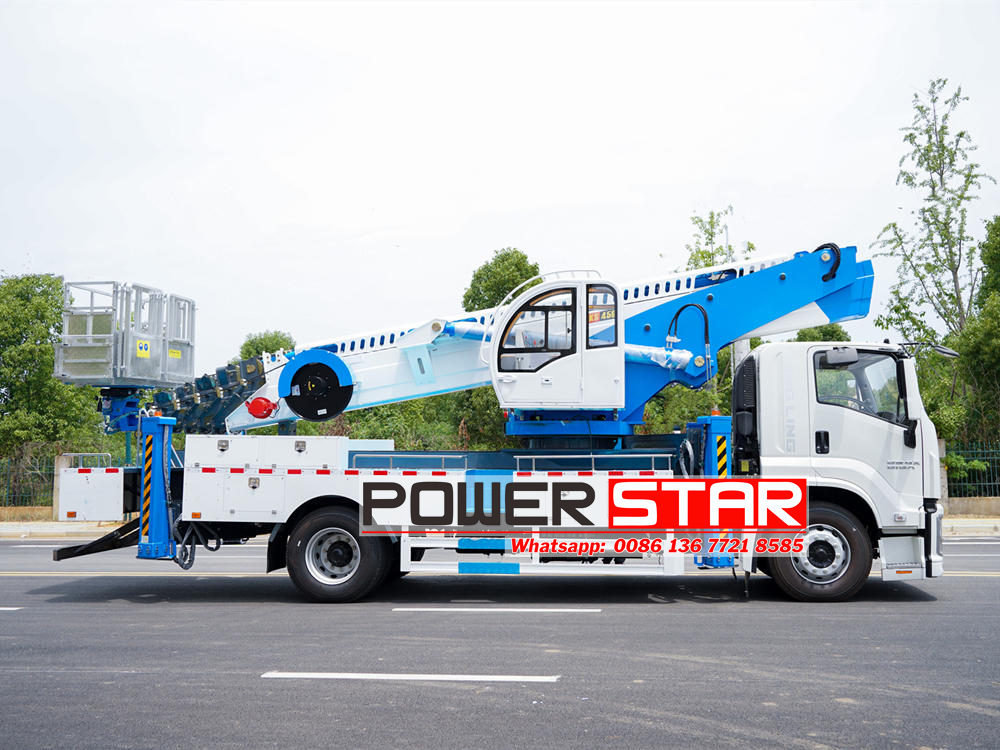

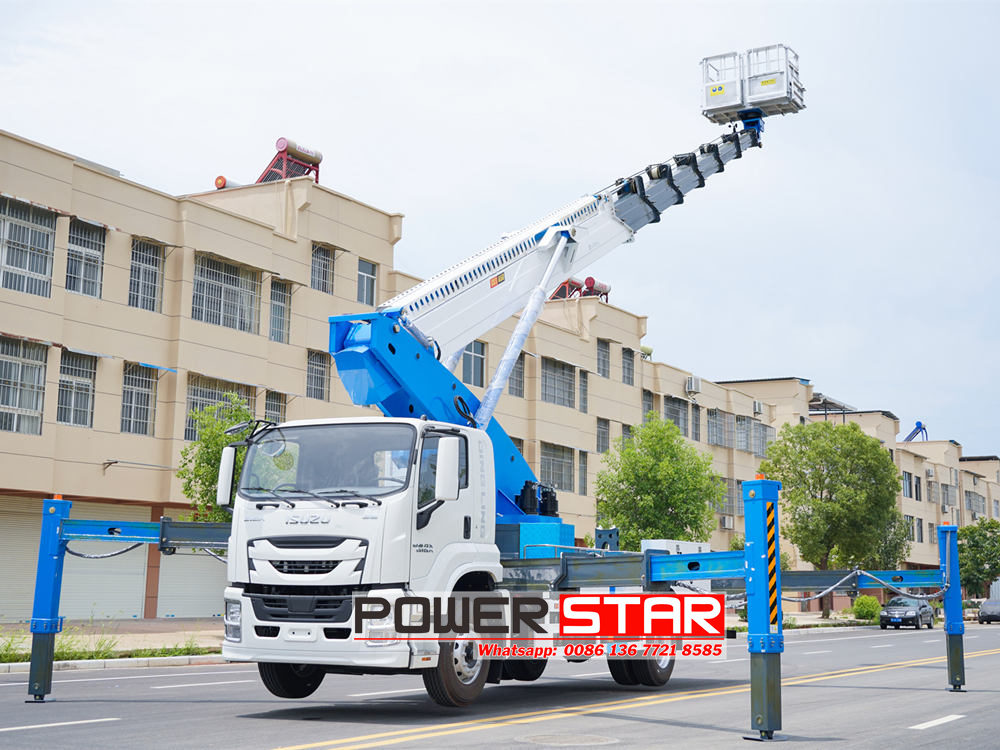

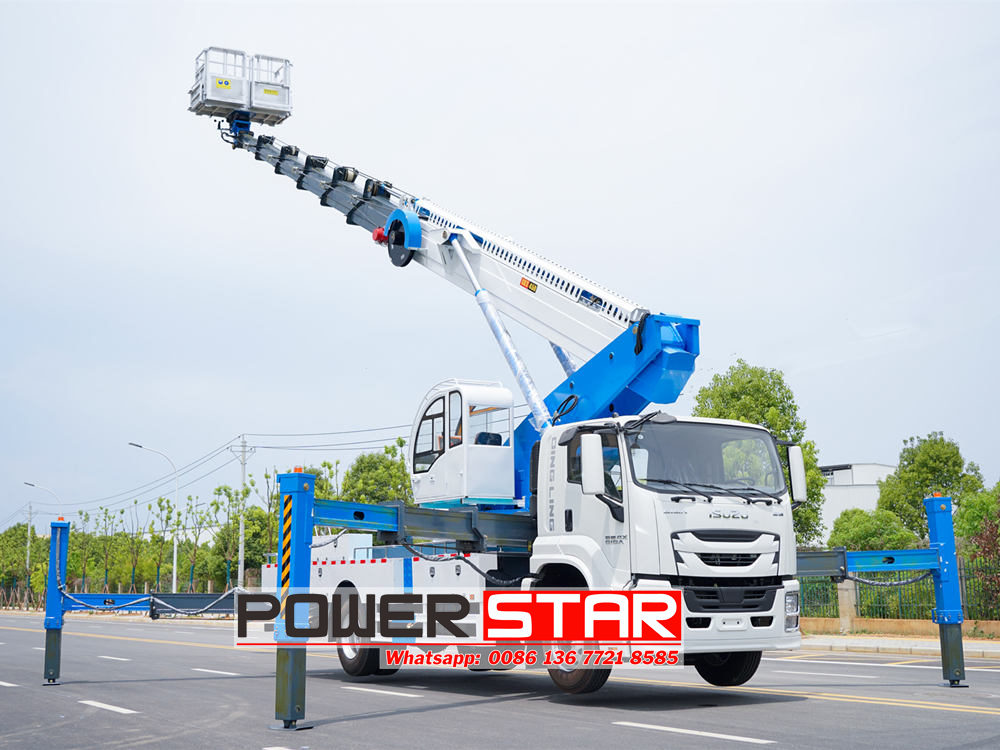

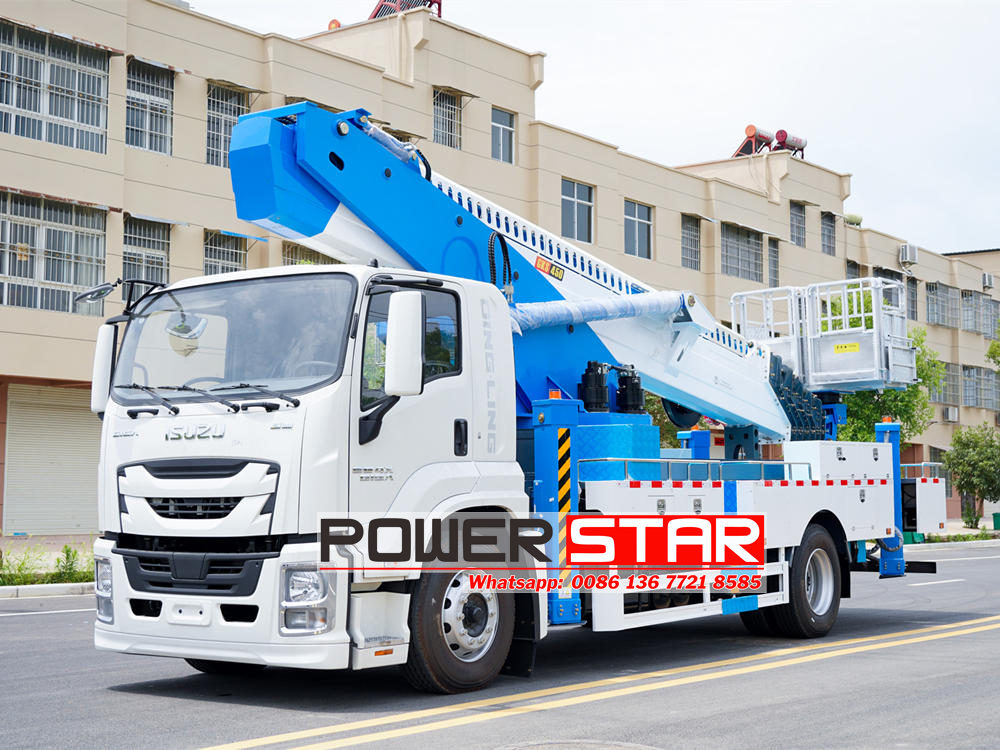

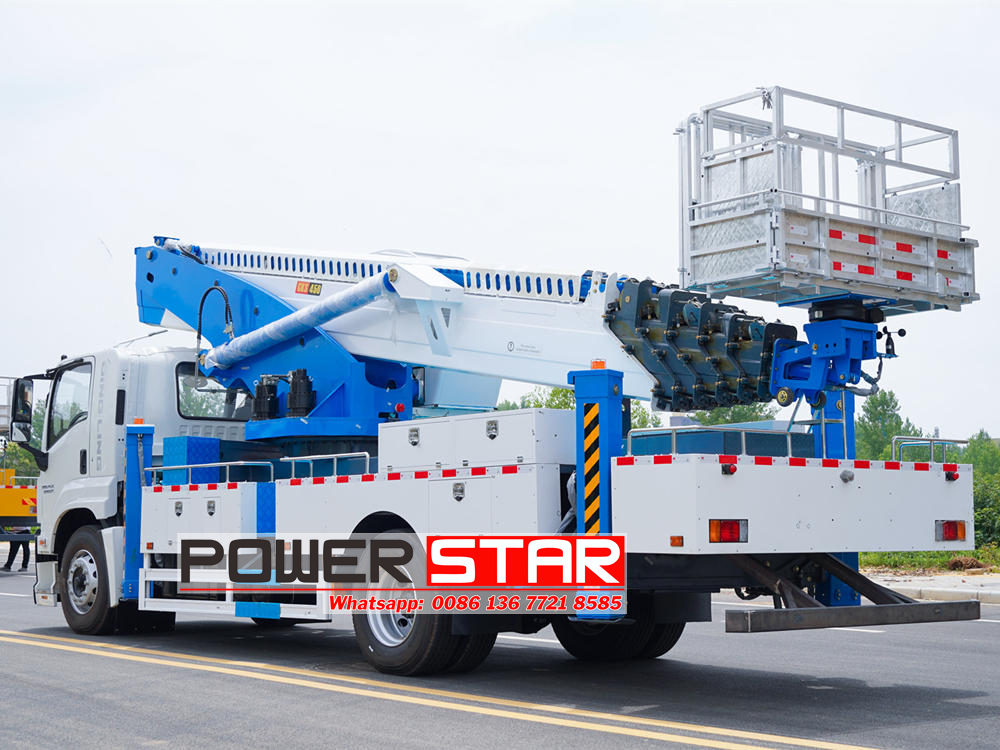

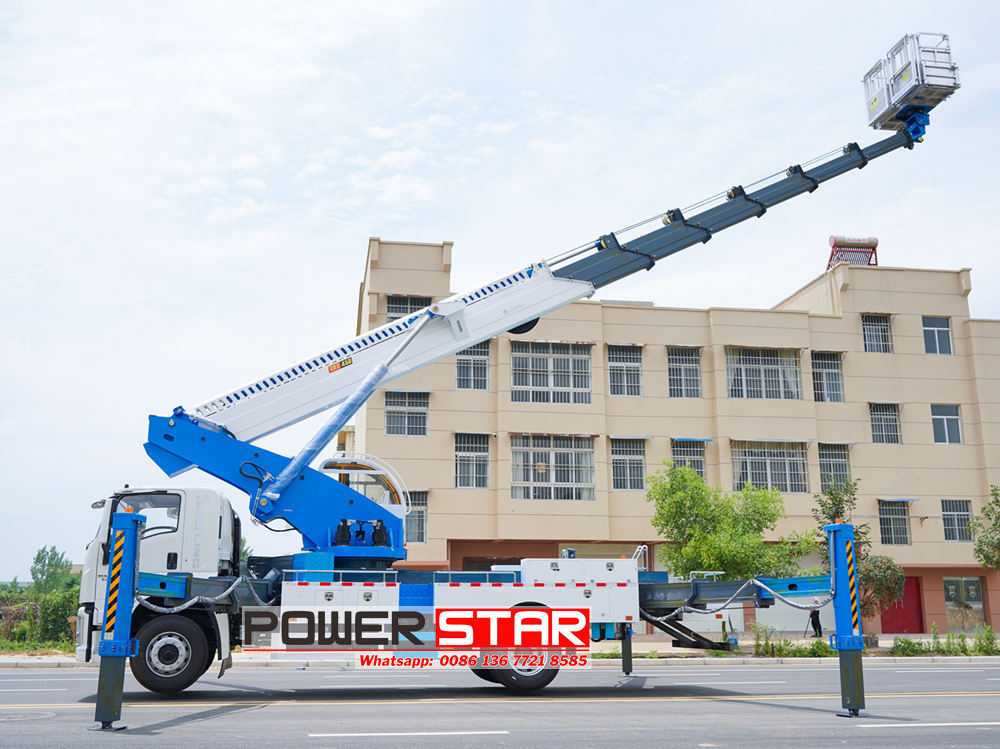

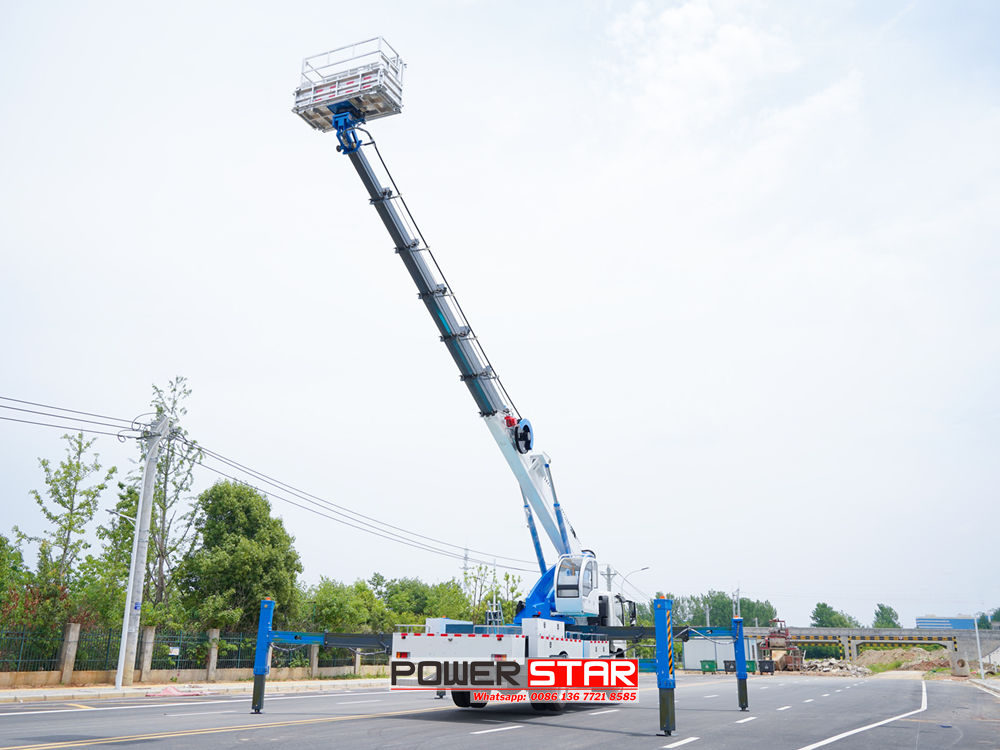

Isuzu 45 meter aerial work platform truck |
||
|
Vehicle parameters |
Vehicle brand |
POWERSTAR |
|
Chassis brand |
Isuzu |
|
|
Cabin |
Isuzu FTR GIGA 4X cabin,one and half row,with A/C,USB,direction assistance |
|
|
Persons in cab |
3 |
|
|
Drive Type |
4×2 |
|
|
Overall Dimensions (L*W*H) |
9800*2600*3820mm |
|
|
Gross weight |
18000kg |
|
|
Chassis |
wheelbase |
5000mm |
|
Front/Rare suspension |
1110/2475mm |
|
|
Approaching/Departure Angle |
20/10(°) |
|
|
Front axle loading |
6500kg |
|
|
Rear axle loading |
11500kg |
|
|
Tire type/number |
295/80R22.5 |
|
|
Brake |
Air brake |
|
|
Transmission |
Isuzu MLD-shift gearbox,manual |
|
|
Engine |
Brand/Model |
4HK1-TC60 |
|
Type |
Inline 4-cylinder 4-stroke, supercharged and intercooled |
|
|
Power |
151(Kw) |
|
|
Horsepower |
205(HP) |
|
|
Displacement |
5.193(L) |
|
|
Fuel type |
Diesel |
|
|
Emission standard |
Euro VI |
|
|
Rated speed |
2600rpm |
|
|
Max torque |
647N.m |
|
|
Max torque speed |
1600rpm |
|
|
Color |
According to wish |
|
|
Upper body configuration |
Platform Working Height |
45 meters |
|
Boom type |
Seven-section hexadecagonal synchronous telescopic arm |
|
|
Working range at maximum working height |
7m |
|
|
Maximum working range |
27m |
|
|
Working height at maximum working range |
6m |
|
|
Boom luffing time |
160～180s |
|
|
Boom extension time |
140～160s |
|
|
Boom rotation speed |
160～180s/r |
|
|
Outrigger retraction time |
100～120s |
|
|
Outrigger |
4 pcs, front V + rear V type hydraulic outriggers |
|
|
Bucket |
1600×700×1000mm(LWH), 200kg load |
|
|
Slewing device |
Two-way 360° continuous slewing, 360°slewing basket |
|
|
Operating system |
Up and down operation both on ground and in bucket, Wireless remote control + platform operation + manual 3 groups of operating system + manual emergency system |
|
|
Emergency device |
Yes |
|
Producing the best Isuzu aerial work platform truck involves meticulous attention to detail, advanced engineering, and a commitment to quality.
1.Selection of High-Quality Materials and Components:
The foundation of a superior aerial work platform truck starts with selecting high-quality materials and components. Isuzu engines are renowned for their reliability and performance, so ensuring that the truck is powered by a robust Isuzu engine is crucial. Additionally, the boom and platform must be constructed from durable, high-strength materials to support the weight and movement of workers and equipment. Choosing advanced hydraulics and controls ensures smooth, precise operation and enhances the overall user experience.
2.Innovative Design and Functionality:
Customizable Options: Offer a range of customizable options to suit different customer needs, such as various working heights (e.g., 18m, 24m, 32m, up to 42m or even higher), boom types (articulated or telescopic), and cabin configurations (double-row, one-and-half-row, or single-row).
Safety Features: Equip the truck with safety features like limit switches, alarms, emergency descent power, and safety interlocks. Ensure the outriggers can be operated individually and have a large span for stability.
3. Implement Rigorous Testing：
Durability Testing: Conduct extensive durability testing to ensure the truck can withstand the rigors of daily use and maintain peak performance over time.
Functionality Testing: Test all functions and features of the truck, including boom operation, platform stability, and control system responsiveness.
Safety Testing: Perform safety testing to verify the effectiveness of the truck's safety features and ensure it meets all relevant safety standards.
