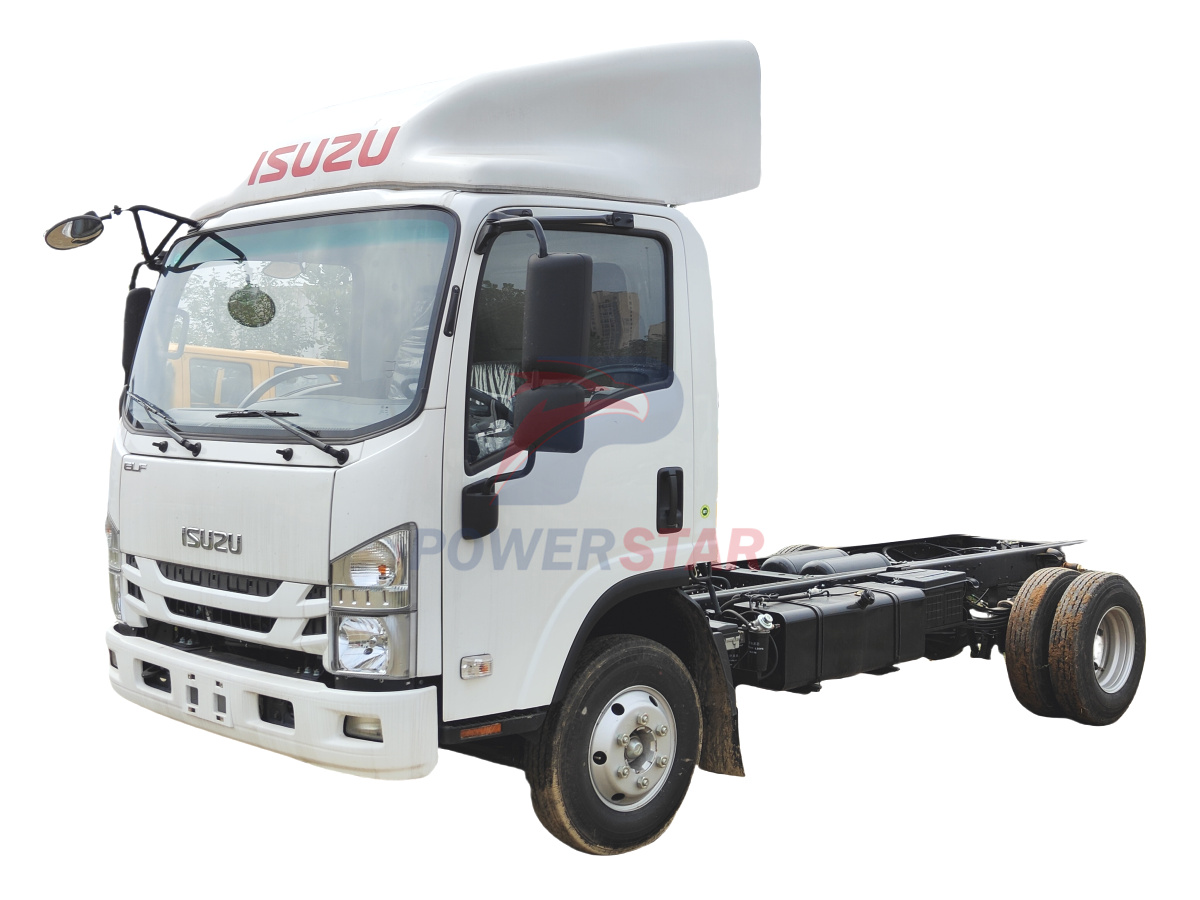

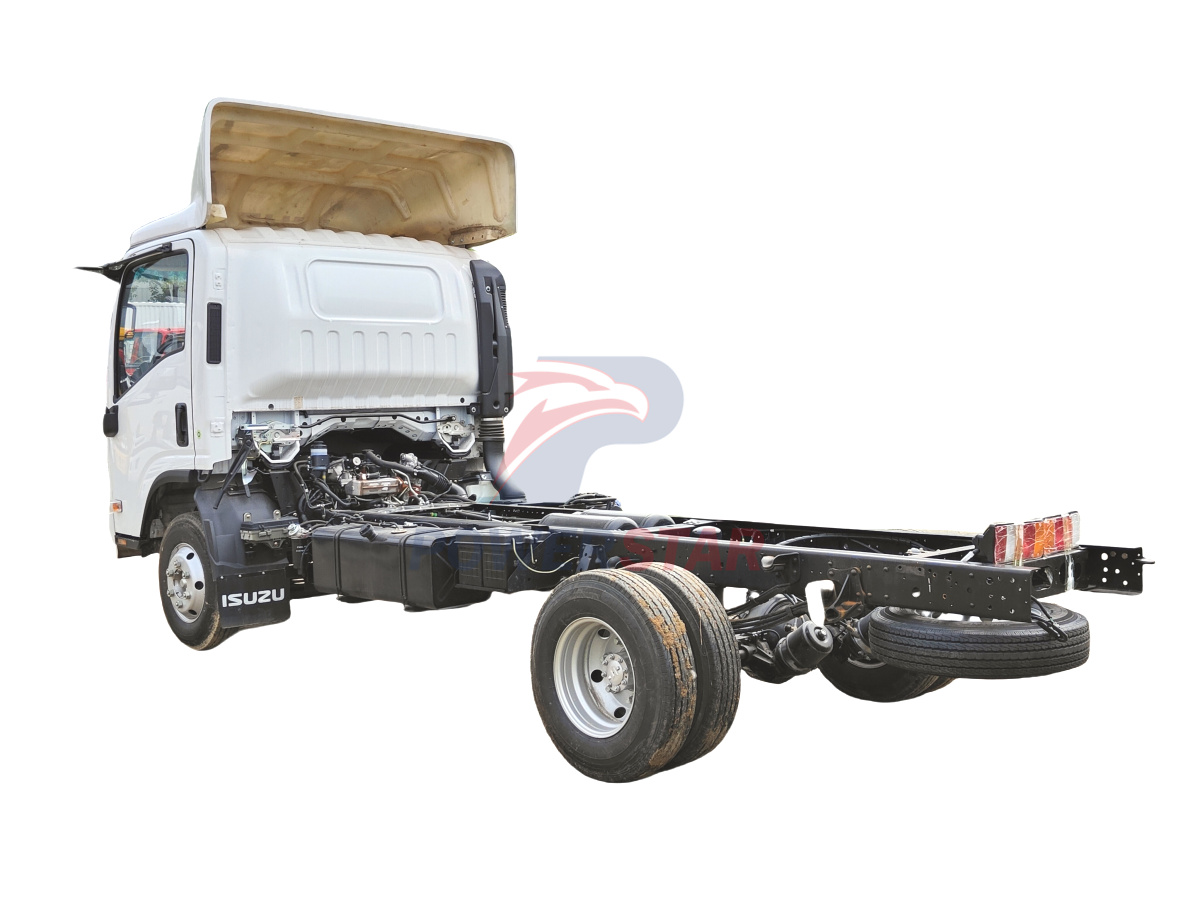

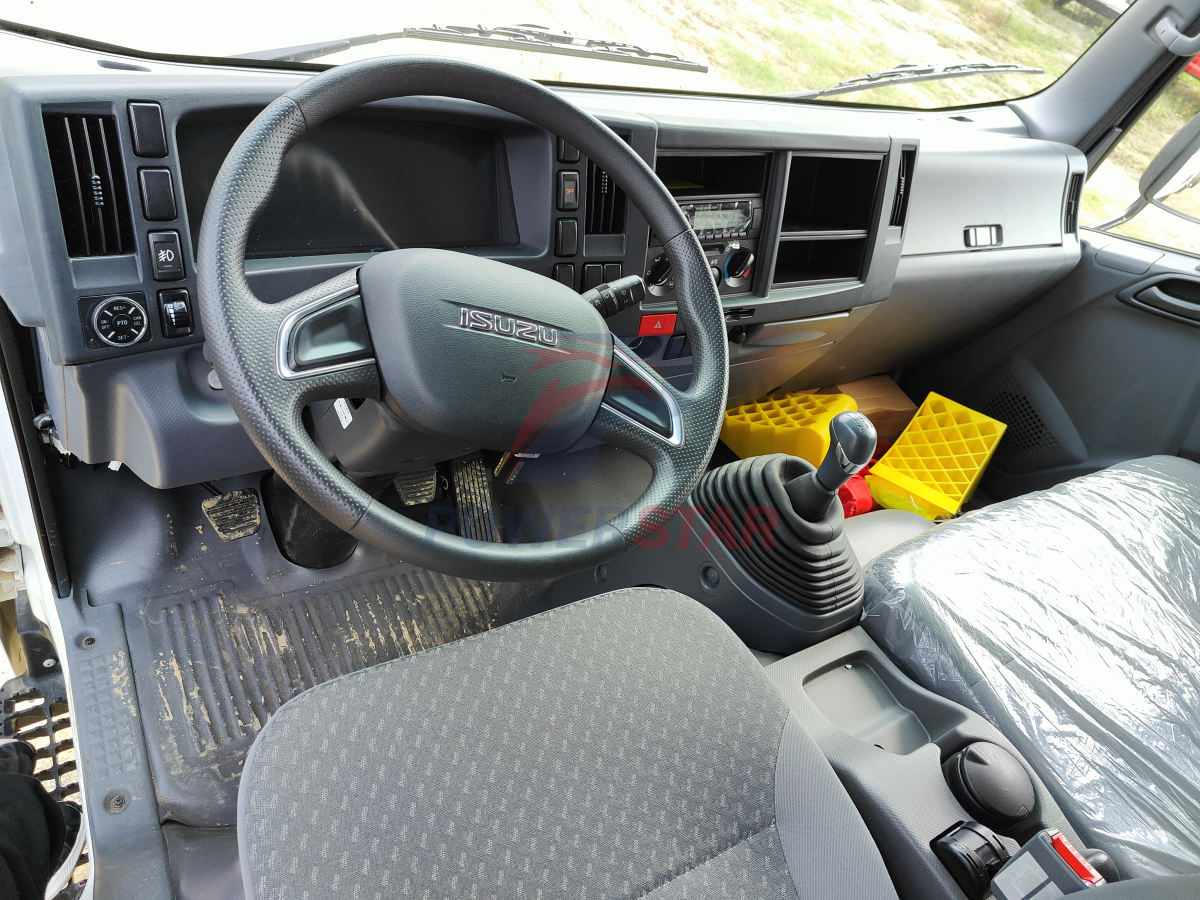

ISUZU QL1043MVHAY Cab truck chassis with 4KK1N6HD 160HP Engine, also named Isuzu MYY-6Z gearbox cab chassis truck.

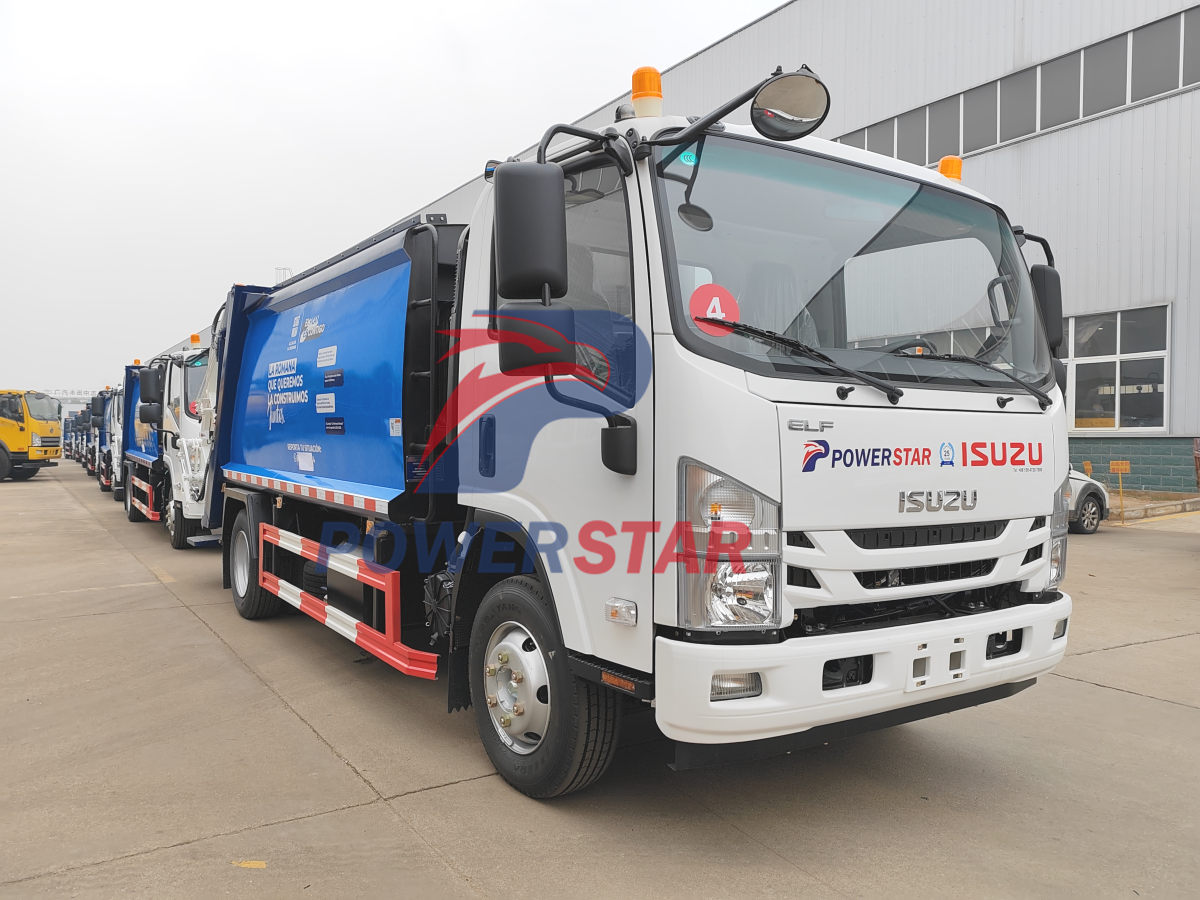

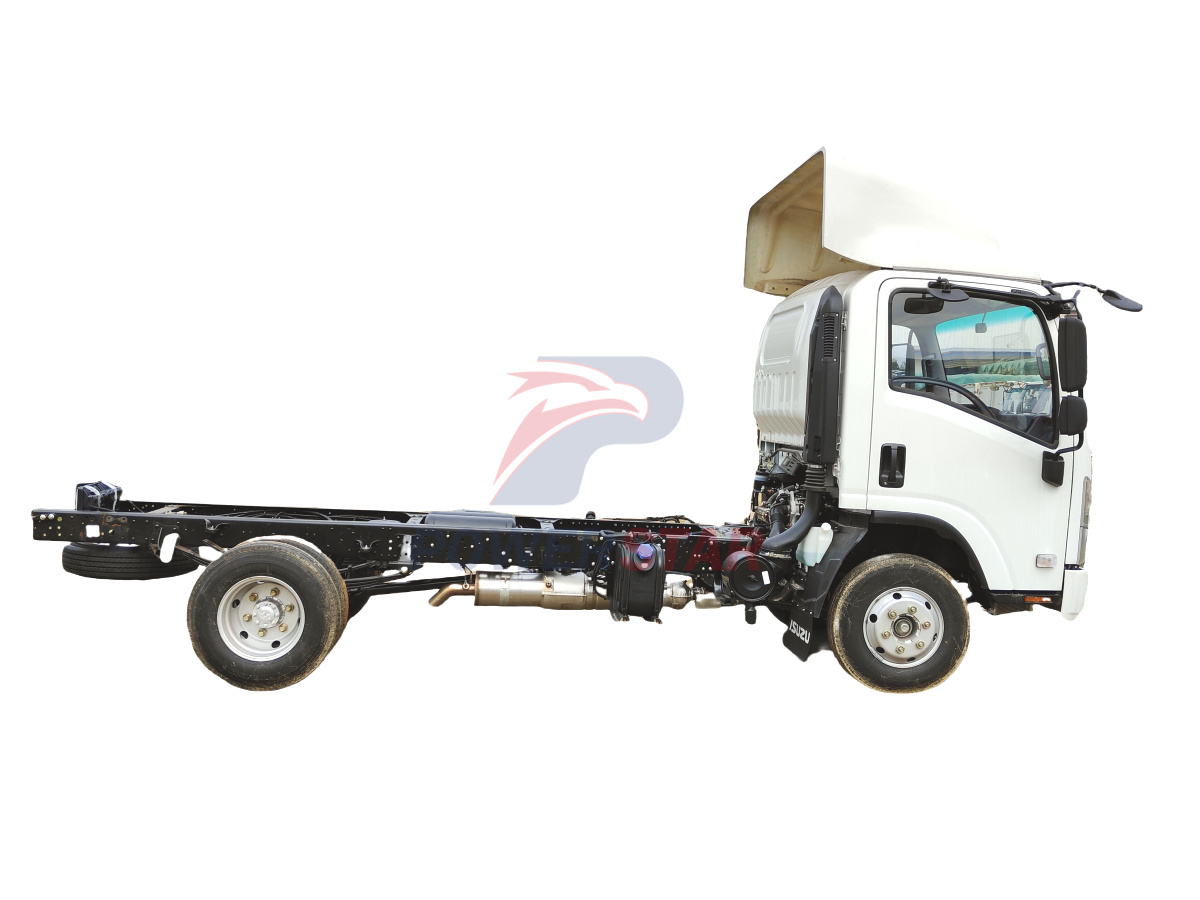

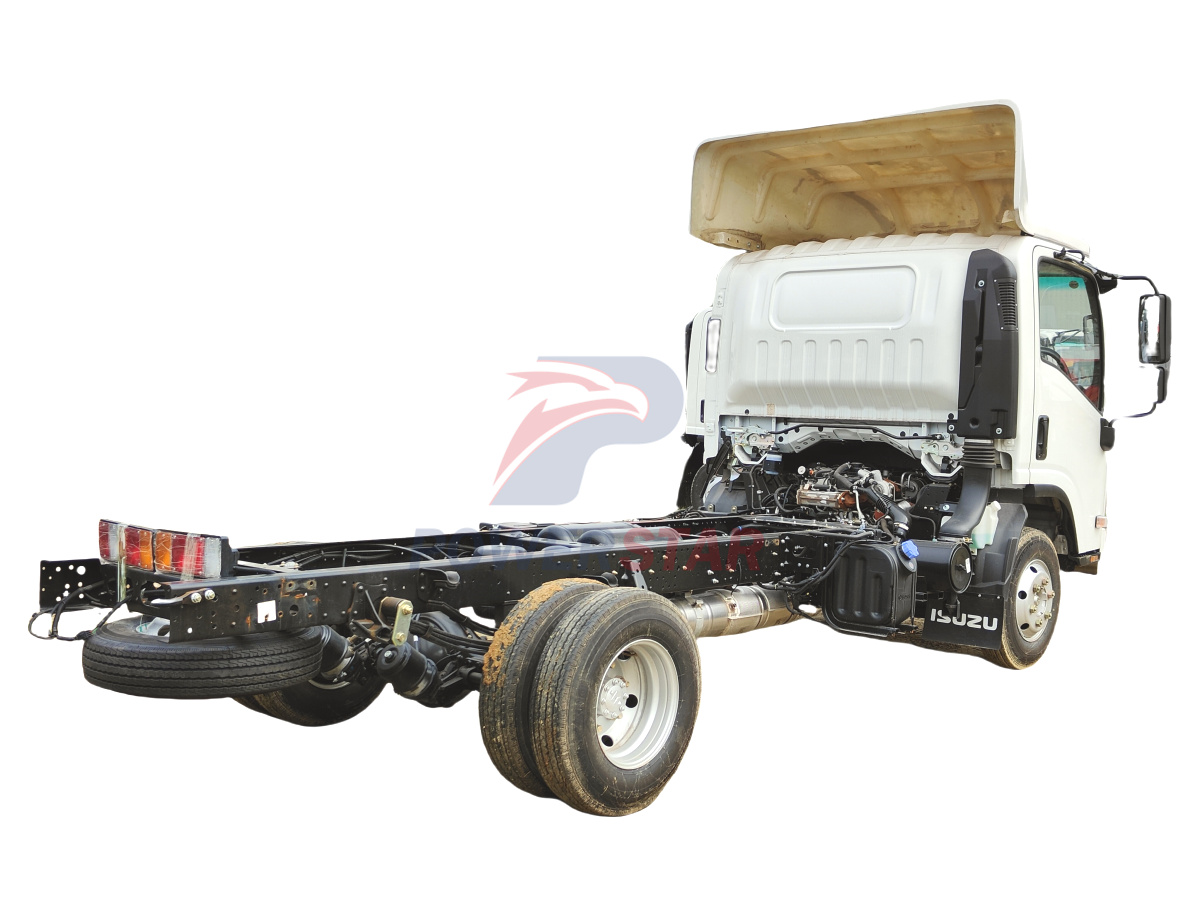

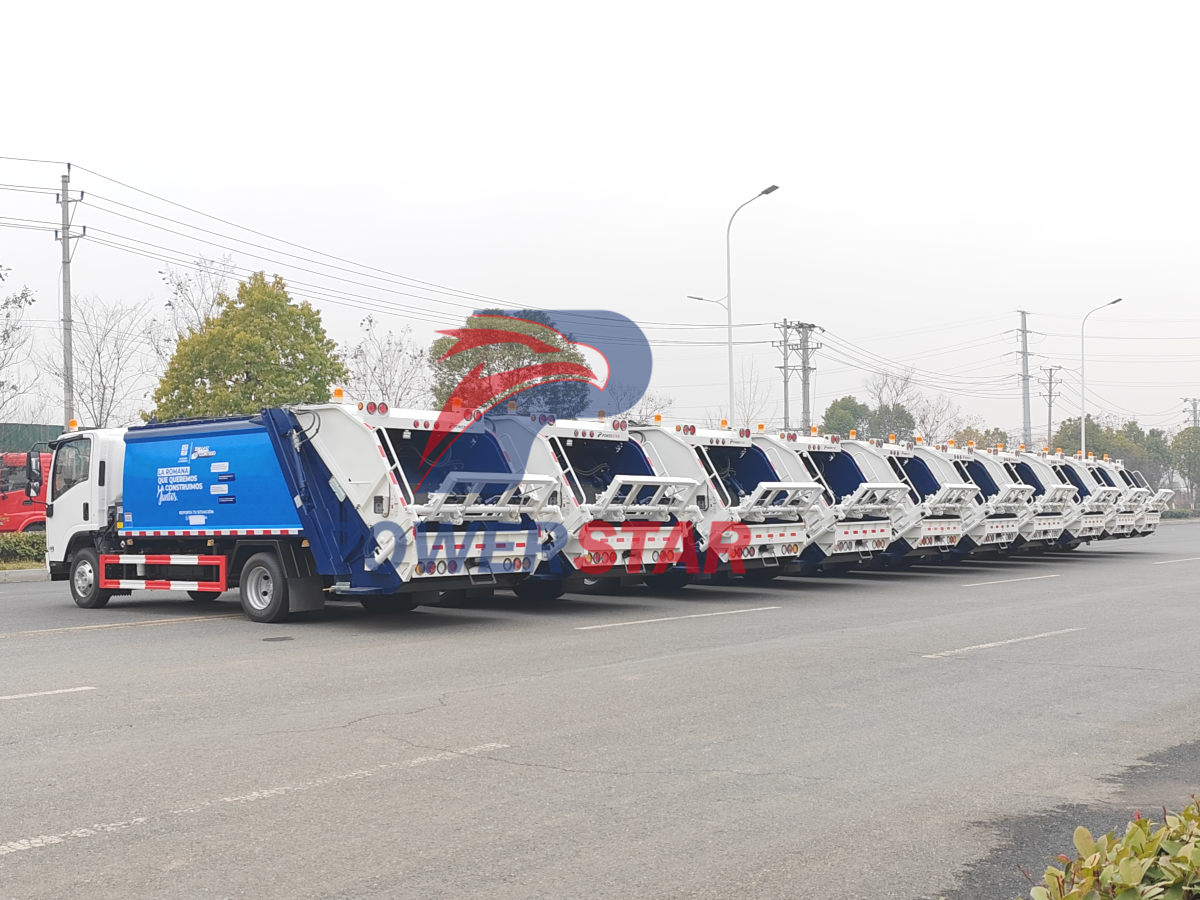

New 4KK1N6HD 160HP Engine ISUZU KV600 garbage truck cabin chassis
New 4KK1N6HD 160HP Engine ISUZU KV600 garbage truck cabin chassis
New 4KK1N6HD 160HP Engine ISUZU KV600 garbage truck cabin chassis
New 4KK1N6HD 160HP Engine ISUZU KV600 garbage truck cabin chassis
| Qingling Isuzu KV600 4KK1 Engine 160HP Cabin Chassis Truck | ||||
| NO. | SPECIFICATION | PARAMETER | ||
| 4×2 | ||||
| 1 | Vehicle Model | QL1043MVHAY | QL5080XXYBUHA | QL5080XXYBUKA |
| 2 | GVW(kg) | 4495 | 8280 | 8280 |
| 3 | Curb Weight(kg) | 2805 | 3540 | 3830 |
| 4 | Axle Loads(kg) | 1750/2745 | 3000/5280 | 3000/5280 |

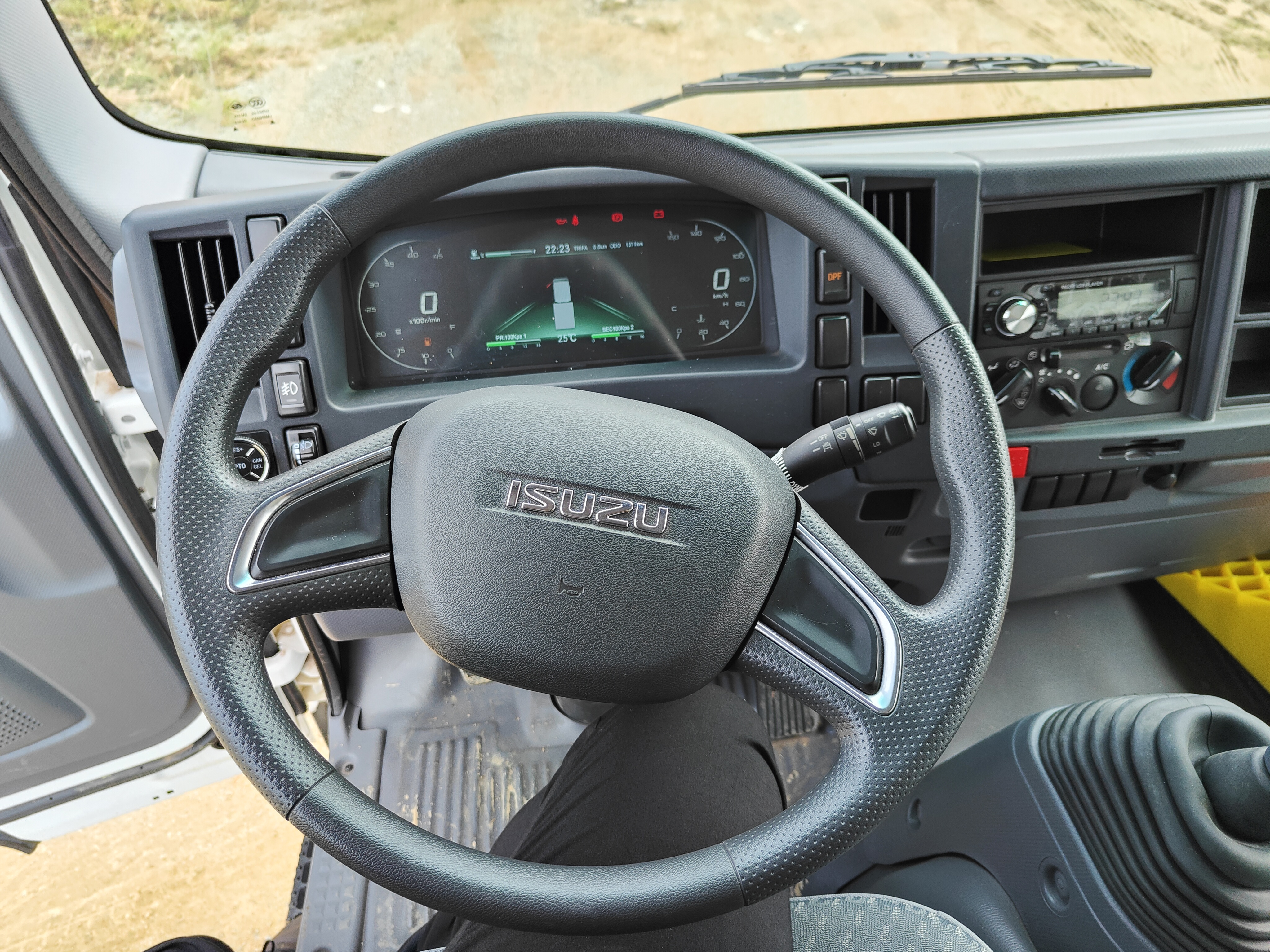

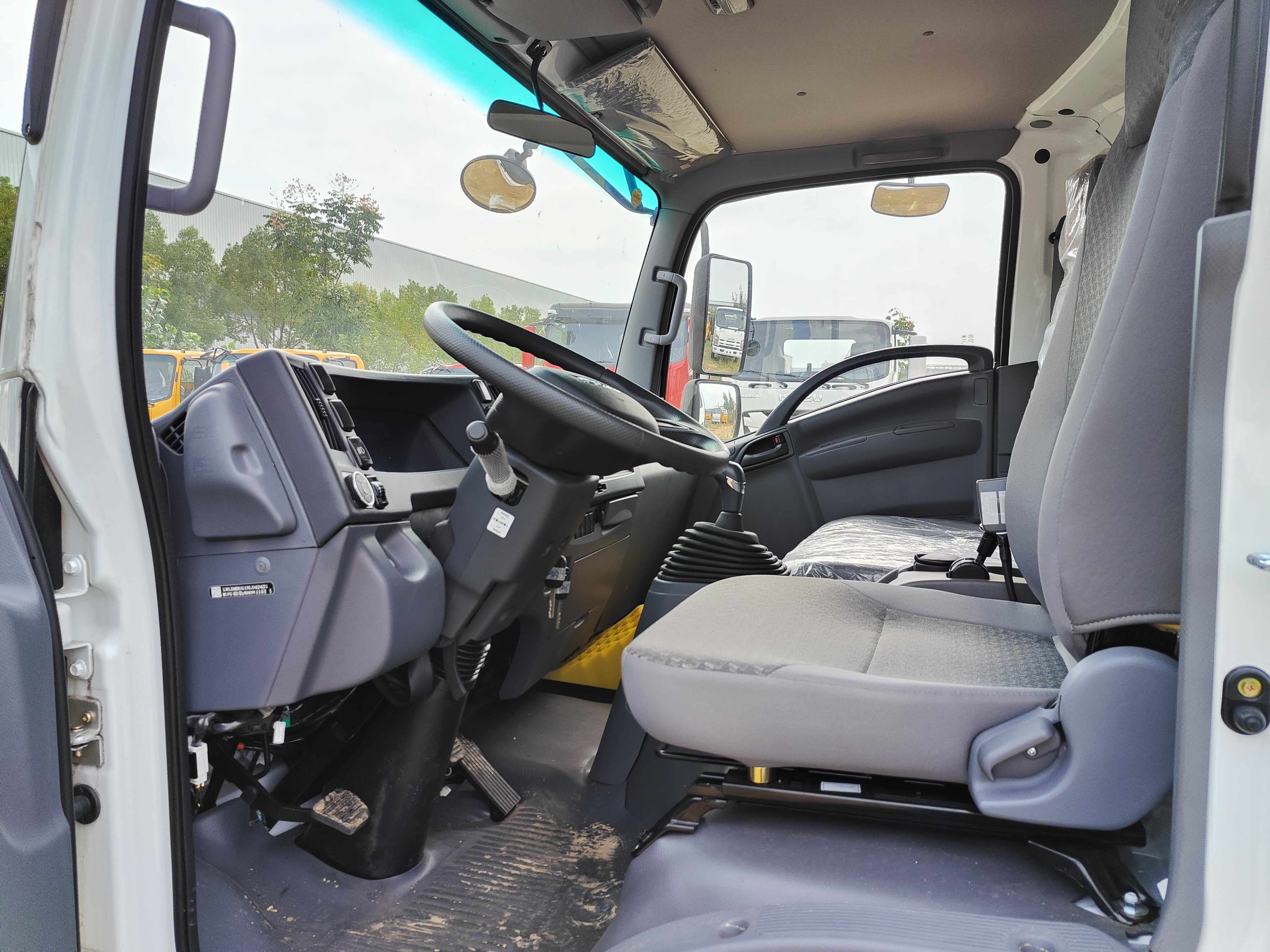

| 5 | Cabin | Isuzu cab, high-roof, left-hand drive, with Air-conditioner, 3 passengers | ||
| 6 | Overall Dimension(mm) | 5995×2180×3150,3300 | 5995×2360×3330 | 7025×2360×3330 |

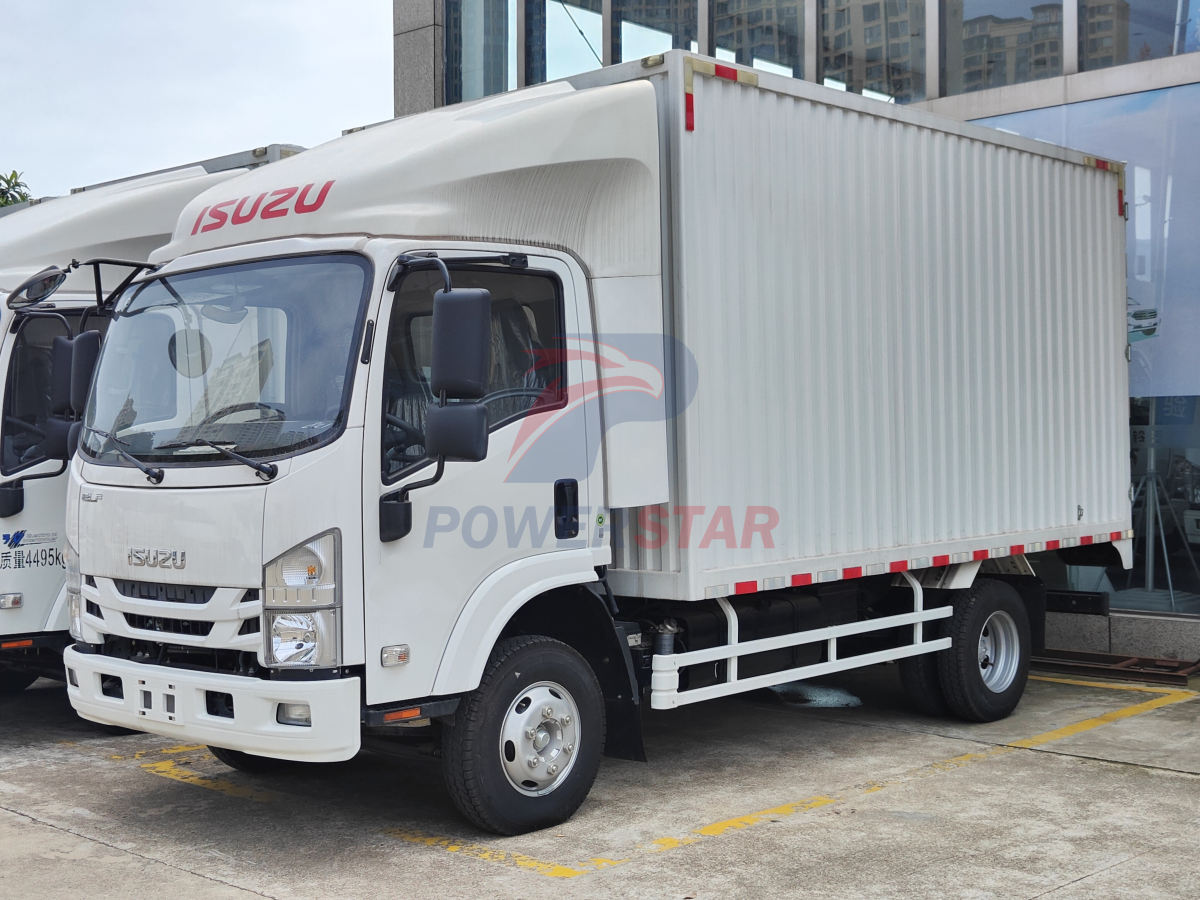

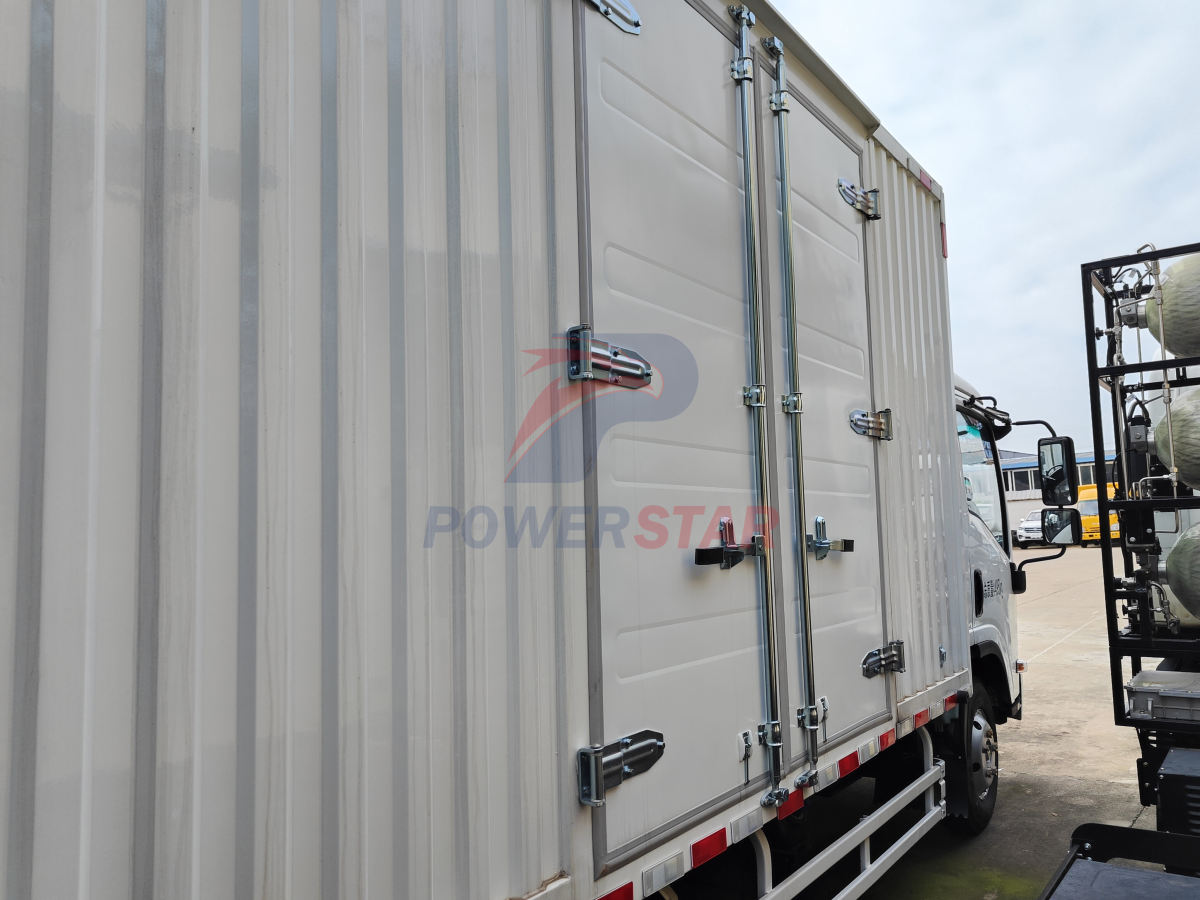

| 7 | Box Dimension(mm) | 4130,4150×2100×2150,2300 | 4130×2300×2300 | 5175×2300×2300 |
| 8 | Wheelbase(mm) | 3360, 3365 | 3365 | 3815 |
| 9 | Engine | 4KK1N6HD | 4KH1CN6HB | 4KH1CN6HB |
| 10 | Engine Output (kW(PS)) | (118kW)160PS | (97kW)132PS | (97kW)132PS |
| 11 | Displacement(L) | 2.499 | 2.999 | 2.999 |
| 12 | Emission Standard | Euro 6 | ||
| 13 | Braking Mode | Air Brake | ||
| 14 | Max Speed(km/h) | 115 | 105 | 105 |
| 15 | Front/Rear Overhang(mm) | 1110/1525,1120/1510 | 1120/1510 | 1120/2090 |
| 16 | Tire Model | 7.00R16LT 8PR | 7.50R16LT 14PR | 7.50R16LT 14PR |
4KK1N6HD 160hp-2025 Brand new

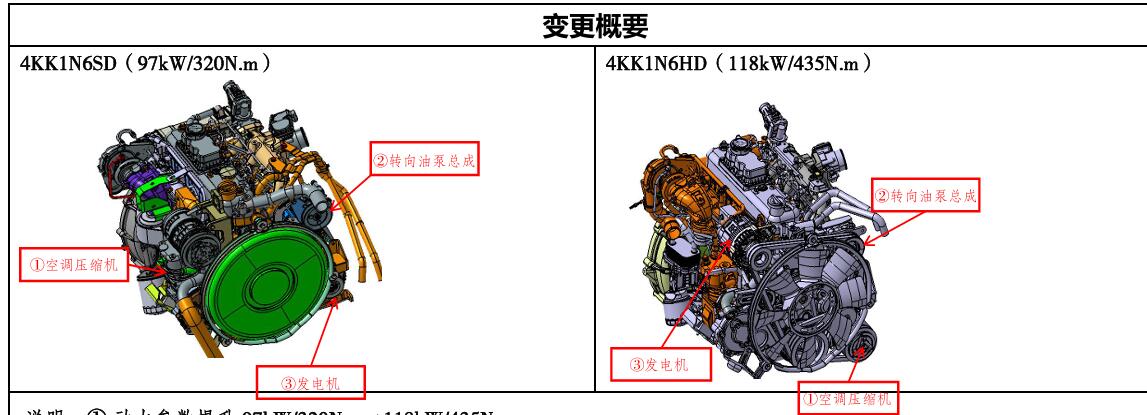

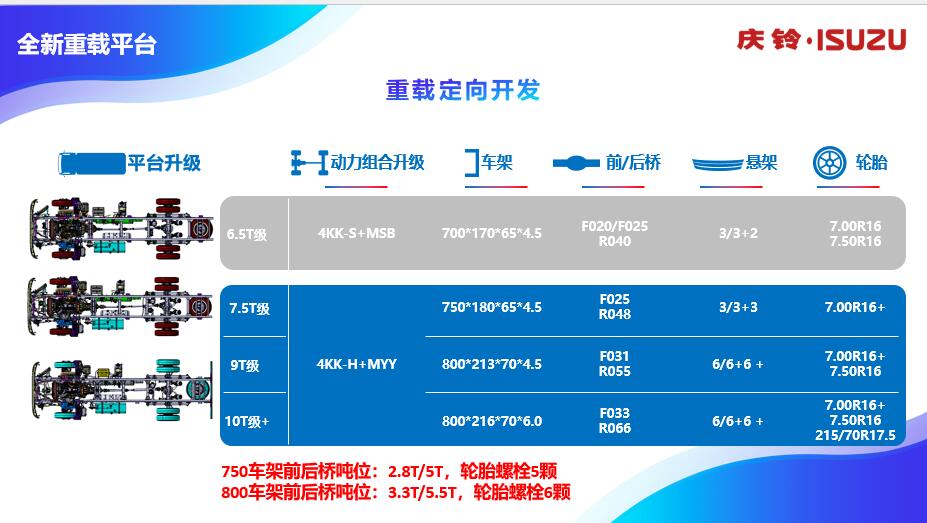

Technical Specifications Upgrade Summary:
① Power parameter enhancement: 97kW/320N·m → 118kW/435N·m .
② Air compressor alignment: Shared with the 4KB1 model, with modified SD pipeline configuration .
③ Steering oil pump upgrade: Increased pressure and flow capacity based on the 4KB1 model, featuring a multi-ribbed belt pulley .
④ Generator upgrade: Aligned with the 4KB1 model, capacity improved from 90Ah to 110Ah, equipped with a multi-ribbed belt pulley .
⑤ Fan enlargement: Diameter increased from ⌀420 to ⌀475, with a reserved ⌀480 specification .
⑥ Radiator upgrade: Core dimensions expanded (width/height: 474/510 → 548/590), outer air duct diameter increased to ⌀510, heat dissipation improved from 97.7kW to 106.7kW .
⑦ Drive shaft reinforcement: Torque capacity elevated from 1800N·m to 2500N·m .
⑧ Clutch optimization: Enhanced torque capacity and separation efficiency based on the 4KB1 model .
Note: Specifications reflect component compatibility, performance metrics, and structural adjustments across powertrain, cooling, and transmission systems.

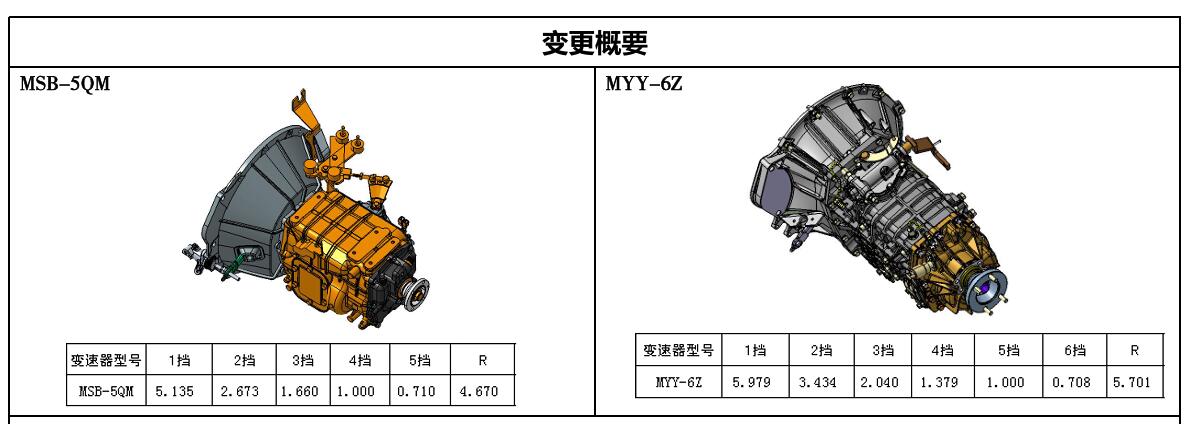

Technical Specifications of Isuzu MYY-6Z Transmission
1. Basic Parameters
Type: 6-speed Automated Manual Transmission (AMT)
Compatible Vehicles: Qingling Isuzu light trucks (e.g., KV600, M600, ELF refrigerated trucks)
Torque Capacity: 290–435 N·m (matched with 4KK1 series diesel engines)
Transmission Efficiency: Up to 98% (optimized gear design).
2. Core Features
Intelligent Shifting Logic:
Eco/Power Mode (E/P): Automatically adjusts shifting strategy based on load conditions.
Creeper Mode (L): Designed for low-speed, heavy-load scenarios (e.g., slope starts).
Smooth Shifting: Utilizes gear anti-deformation technology to reduce shifting impact.
Lightweight & Durability:
Material: High-strength aluminum alloy housing, 15% lighter than traditional transmissions.
Reliability: Passed 500,000-kilometer bench tests for heavy-duty use.
Ergonomic Design:
Integrated "doll-head" gear lever supporting automatic/manual switching (A/M).
Compatibility with vehicle displays for real-time gear status (optional).
3. Application Examples
Vehicle Model Powertrain Configuration Primary Use Cases
Qingling KV600 4KK1 2.5L (160 HP) + MYY-6Z Mountainous haulage, logistics
Qingling M600 4K-series diesel engine + MYY-6Z Cold chain, urban delivery
ELF Refrigerated Truck 132 HP engine + MYY-6Z Fresh food, medical transport
4. Key Upgrades
Fuel Efficiency: 8–10% improvement via wide gear ratio coverage (up to 5.857).
Smart Expansion: CAN bus interface预留 for future autonomous driving upgrades.
Maintenance: Extended service interval to 100,000 km with long-life transmission oil.
5. Notes
The "MYY-6Z" may represent an upgraded version of "MYY-6S" (suffix "Z" indicates special tuning).
Verify performance through Qingling dealership test drives or official repair manuals.
This translation omits source references as requested while retaining technical accuracy and structure.

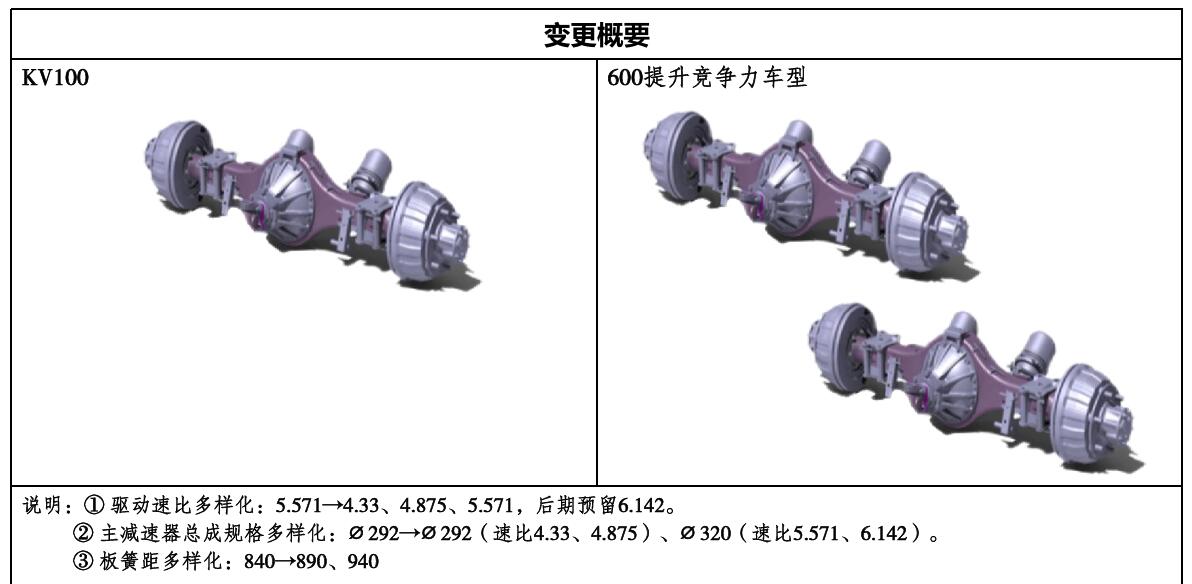

Driving Axle for a long run
Translation of Technical Specifications:
