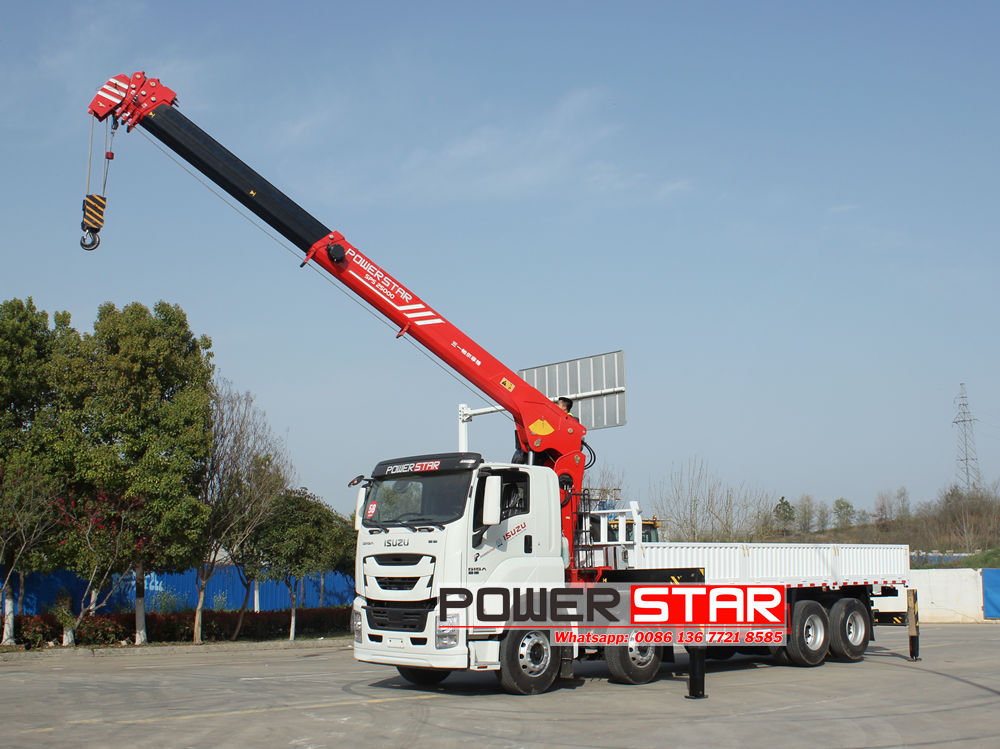

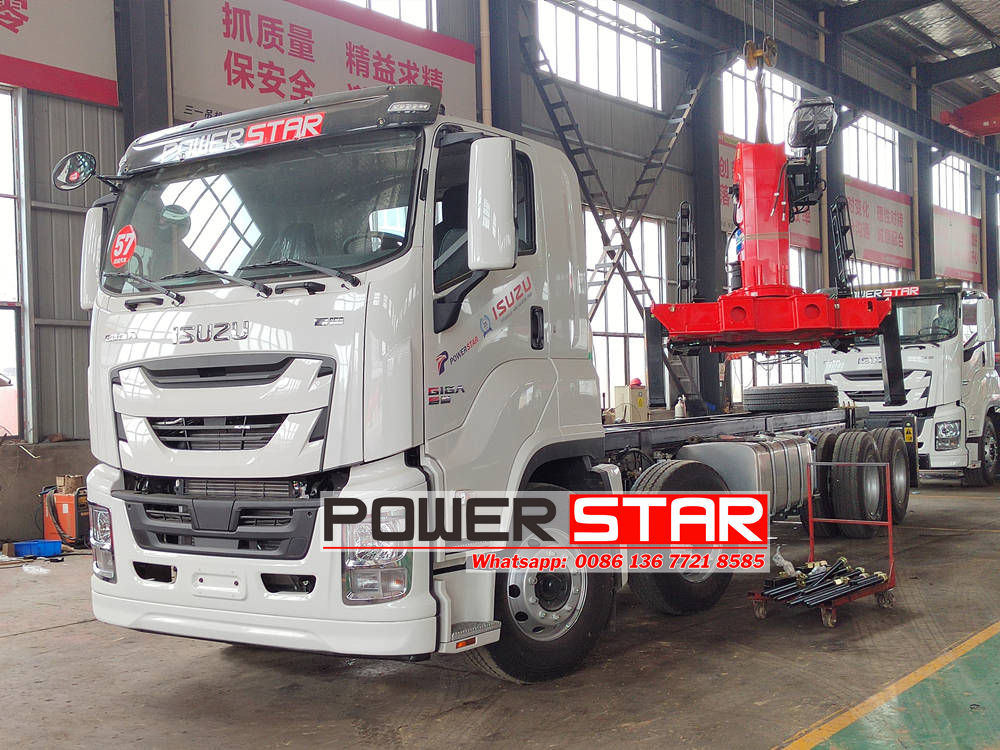

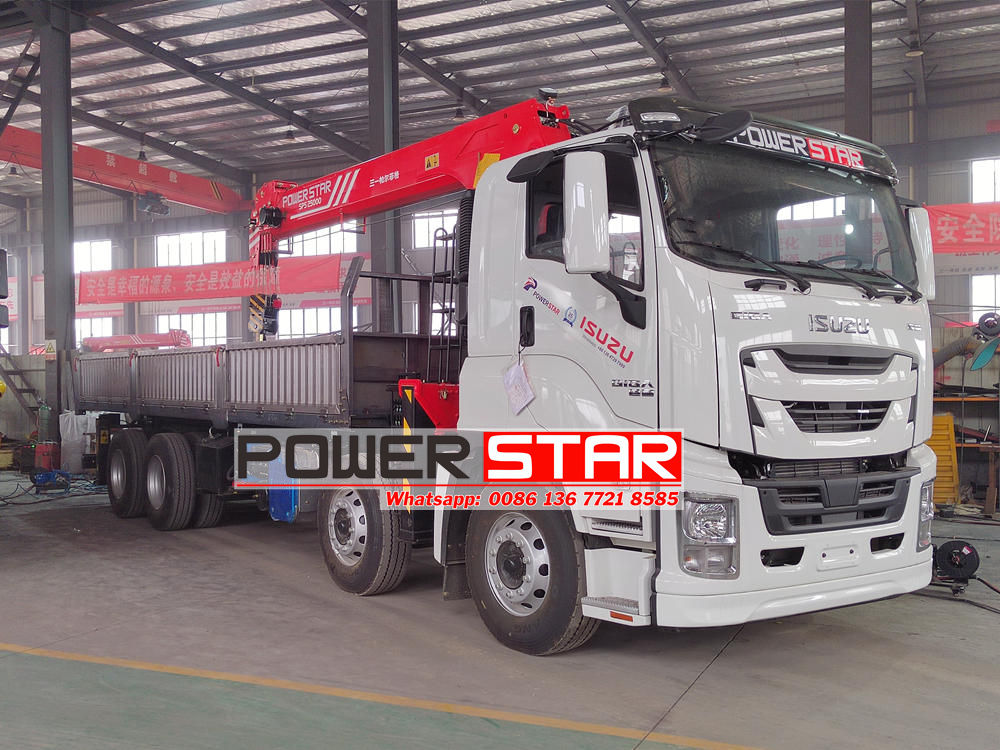

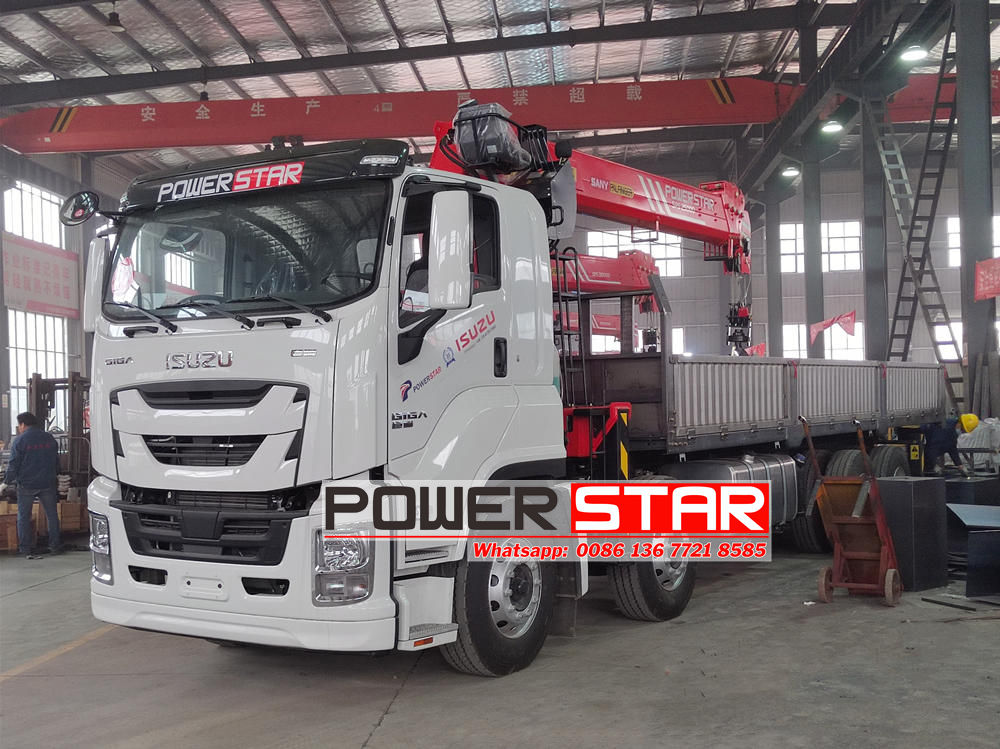

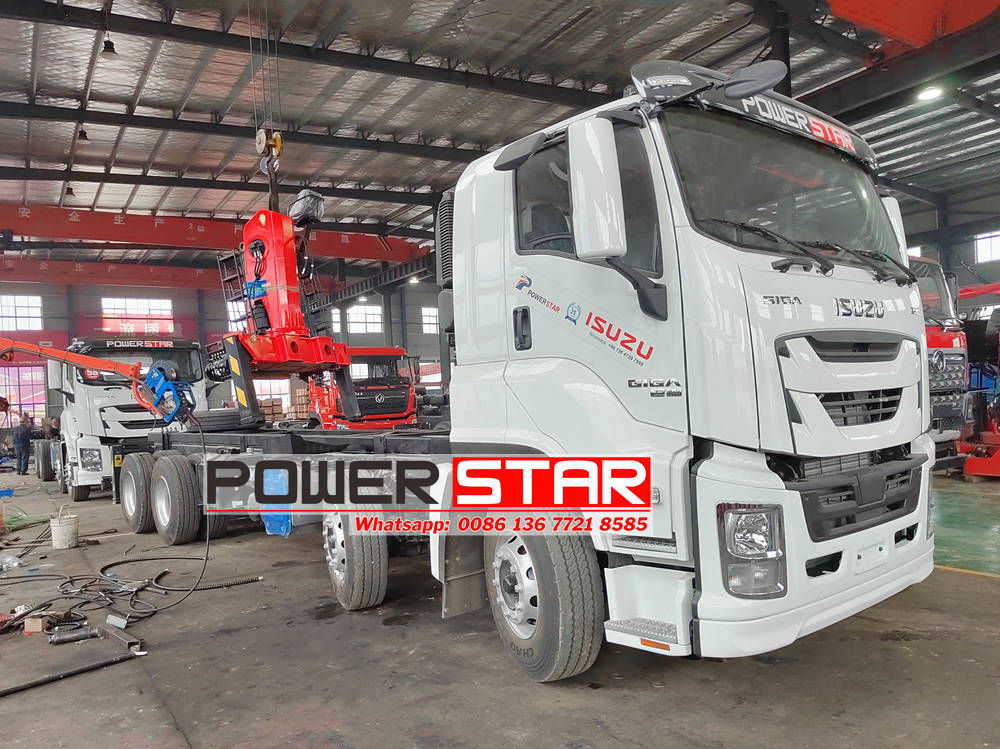

Isuzu boom crane cargo truck is a lifting equipment that can be installed on a vehicle anytime and anywhere, with the characteristics of flexible movement, quick installation and unloading. It is widely used in construction sites, port terminals, logistics warehouses and other places for lifting, loading and unloading cargo, repairing buildings, emergency rescue and other work.
The use of Isuzu boom crane cargo truck can not only improve work efficiency and save manpower and material costs, but also effectively reduce accident risks and ensure construction safety. At the same time, it also has the advantages of multi-function, multi-function configuration, easy operation, etc., suitable for various scenes and environments.
Isuzu boom crane cargo truck also called truck mounted crane, mobile truck crane, telescopic straight boom crane, hydraulic arm crane for trucks, elescopic boom truck mounted crane,etc.
The optional tonnages include 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 18 tons, 20 tons, 25 tons, 30 tons, etc. You can choose straight arm or folding arm crane. Isuzu boom crane cargo truck is composed of boom, turntable, frame, outriggers and other parts. The mechanical action of the truck crane is realized through the action of the mechanism of luffing, telescopic, slewing, hoisting, etc., and the lifting operation is realized through the combination of different actions.
|
Technical parameter of chassis |
|||
|
Chassis Brand |
ISUZU/NPR |
Color |
White or optional |
|
Engine |
Fuel Type |
Diesel |
|
|
Horse power |
338kw/460HP |
||
|
Displacement |
15.681L |
||
|
Emission Standard |
Euro 6 |
||
|
Wheel Base(mm) |
1850+4575+1370 |
Driving type |
8x4 |
|
Type & Size of Tyre |
315/80R22.5 tire(12+1pcs) |
Gear Box |
FAST 12-shift transmission, Manual, 12-speed forward, 2 reverse gears |
|
Brake |
Air brake |
Steering Wheel |
Left Hand Drive with power-assisted |
|

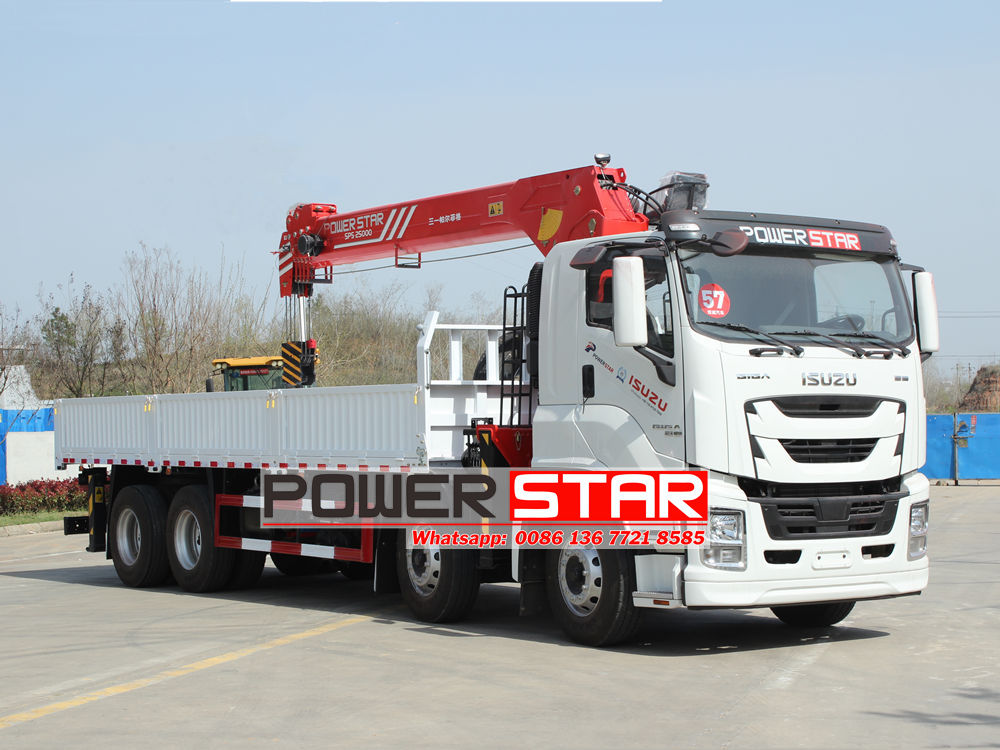

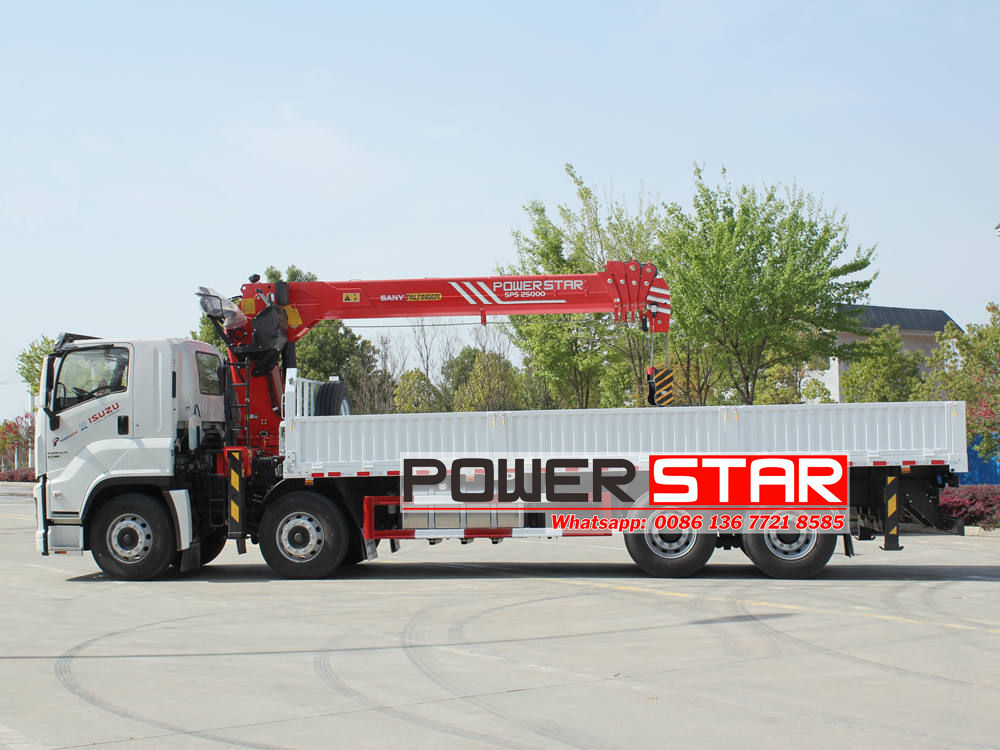

Technical parameter of crane |
|||
|
Crane model |
SPS25000 |
Crane Type |
Telescopic boom crane |
|
Material |
High performance carbon steel |
Crane weight (KG) |
3800 |
|
Max. lifting weight(KG) |
10,000 |
Max. working height (m) |
16.3 |
|
Oil tank capacity (L) |
160 |
Max. Oil Flow of Hydraulic System |
63 L/min |
|
Max. working radius (m) |
14.3 |
Installation space(mm) |
1200 |
|
Rotation angle |
360°, all rotation |
Boom No |
4 section |
As a heavy equipment that integrates lifting and transportation functions, Isuzu boom crane cargo truck plays a pivotal role in modern logistics and construction industries. Its working principle mainly comes from the power transmission of the hydraulic system, the mechanical structure of the boom and the precise control of the operator. The following is a detailed description of the working principle of the truck mounted crane:
1. Power transmission system
The power of Isuzu boom crane cargo truck mainly comes from the vehicle's own engine. The power generated by the engine is transmitted to the hydraulic oil pump through the power take-off, and the hydraulic oil pump then converts mechanical energy into hydraulic energy. In this process, the hydraulic oil is pumped out at high pressure, providing the necessary energy basis for subsequent hydraulic operations.
2. Hydraulic system
The hydraulic system is the core part of the work of Isuzu truck mounted crane. It consists of key components such as hydraulic pump, control valve group, hydraulic cylinder and hydraulic motor. The hydraulic pump sends high-pressure oil to the control valve group, and the valve group adjusts the flow direction and pressure of the oil according to the operating instructions. Subsequently, these high-pressure oils are sent to the hydraulic cylinder or hydraulic motor to drive them to work. The telescopic movement of the hydraulic cylinder realizes the up and down movement of the boom, while the hydraulic motor drives the slewing and telescopic movement of the boom.
3. Boom and operation control
The boom is the main component of the Isuzu truck mounted crane to perform lifting tasks. It consists of a multi-section telescopic arm, a slewing mechanism, a lifting mechanism and a suspension device. Driven by the hydraulic system, the boom can flexibly perform actions such as telescopic, slewing and lifting. At the same time, the wire rope, as the load-bearing structure of the lifting, realizes the suspension and transportation of the goods through the cooperation of the pulley block.
The operator can accurately control the various actions of the truck crane through the controller located in the operating room. There are various buttons and knobs on the operating table. The operator can input the corresponding instructions as needed. The control valve group adjusts the movement speed and direction of the hydraulic cylinder or hydraulic motor according to these instructions, thereby realizing the precise positioning and lifting of the goods.
In summary, the working principle of Isuzu boom crane cargo truck is a sophisticated system engineering, which relies on the synergy of power transmission, hydraulic system and boom and operation control. The precise coordination and efficient operation of these components enable Isuzu boom crane cargo truck to complete lifting and transportation tasks in various complex environments.
