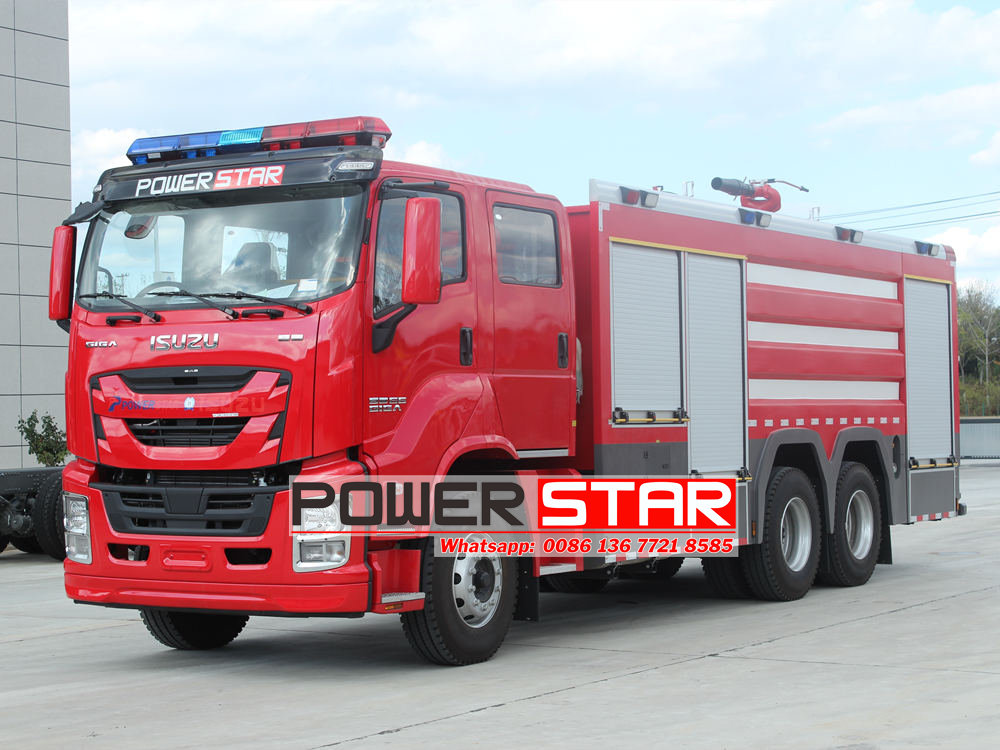

Isuzu GIGA water fire truck is an important tool for fire fighting and rescue, and its control panel is the core component to realize the functions of the fire truck. The control panel of the fire truck is composed of multiple control buttons, switches and indicator lights. By operating the various control devices on the panel, firefighters can control the vehicle's lights, sounds, water pumps, foam spraying and other functions. Isuzu water fire truck also called fire tanker, fire engine, water fire truck ,foam fire truck ,fire rescue truck) is a vehicle designed primarity for fire fighting operations-to extinguish fire efficientyly to prevent fire spread ,reducing the loss caused by fire maximumly. Isuzu water fire truck is modified on the basis of Isuzu VC61 6x4 chassis. The vehicle is equipped with 6UZ1 380HP engine, which is powerful and matched with FAST 12-speed gearbox, which has smooth gear shifting. The front part of the vehicle body is a fire pump room, which is equipped with CB10/60 fire water cannon. In the middle of the vehicle body is a 14000L carbon steel water tank, which can carry a large amount of water for long-term firefighting or water spraying operations. The rear part of the vehicle body is a watering platform, with a watering width of ≥20m and a watering range of ≥50m, which can provide good rescue support. Isuzu VC61 GIGA water fire truck General Cab Isuzu VC61 6x4 chassis,one and half row,allowable 3 passengers,A/C,USB... Overall Dimensions(mm) 10220x2550x4080mm Wheelbase 5100+1370mm GVW/curb weight 25000/11000kg Water tank capacity 14000L Steering Power steering Chassis Brand ISUZU Tire specifications 10+1 pcs,315/80R22.5 Transmission FAST 12-speed,manual Front Axle 7T Rear Axle 18T Engine Model 6UZ1-TCG61 Horsepower 380HP Maximum output 279Kw Maximum torque 1800N.m Type 6cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine Displacement 9839ml Emission standard Euro 6 Brake System Air brake Color and LOGO Yellow,customized Electric system 24V Tank Material Carbon steel Capacity 14000L Shape Ellipse as standard Water fire pump Model CB10/60 Max. working pressure 1.082MPa Max. allowable inlet pressure 0.4MPa Speed Ratio 1:1.542 Working conditions1 60L/s/1MPa 3m Suction head Working conditions2 42L/s/1.3MPa Working conditions3 30L/s/1MPa 7m Suction head Fire monitor Model PS8/50W Rated working pressure 0.8MPa Rated flow 50L/s Range ≥70m Max.working pressure 1.0MPa Pitch rotation -35~+70° Front and rear water sprinkler Sprinkling width ≥20m Range ≥50m Standard configuration carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder. The water tank capacity of Isuzu fire truck reaches 14 cubic meters, which can carry a large amount of water to the fire scene. The water tank is made of high-strength materials, wit...
