Isuzu wrecker towing salvage Carrier truck For Sale   Best Isuzu brand Wrecker Towing Truck For Sale directly Isuzu Wrecker truck factory 9 years export experience overseas after-sale service ISUZU Wrecker Towing Truck For Sale     Wrecker Wrecker Model PT5065TQZLP Outline Dimension Length(mm) 7650 Width(mm) 2200,2300 Height(mm) 2280,2520 Wheelbase(mm) 3815 Mass Parameter (kg)Reorganize and outfit quality 4930 Total Mass Fully Loaded(kg) 6125 Chassis Model NKR77/ 600P No. of Axis 2 Specification of Tire 7.50-16 Engine Model 4KH1-TCG40 (PS)Power 120 Special Unit Platform Dimension(L*W)(mm) 5450*2200/2300 Working Stroke(mm) 3100 Loading Mass(kg) 3000 Rating Mass of Winch(KN) 40 )Min Angle(Folded)(°) 8 Lifting Organ Rating Lifting mass(kg) 1600 Rating Lifting Mass Fully Extended(kg) 1200 Effective Length(mm) 1700 Rating Towing Mass(kg) 6000

ISUZU 4X2 Road Platform Wrecker     Description ISUZU 4X2 Road Platform Wrecker Drive Model 4X2 Chassis QL1070 Vehicle Main Dimensions Dimensions(L x W x H)mm 7250*2300*2400 Wheel base (mm) 3815 Overhang (front/rear) (mm) 1015/2420 Wheel track (front/rear) (mm) 1504/1425 Approach/Departure angle(°) 24/12 Weight in KGS GVW. 7300 Curb Weight 4600 Max. driving speed(km/h) 100 Allowable passengers in cab 2 Engine Model 4KH1-TC Type 4-stroke direct injection , 4cylinder in-line with water cooling, turbo-charging and inter-cooling Horse Power(HP) 130 Emission standard Euro III Gearbox 6 forwards & 1 reverse Fuel tank (L) 120L Tire 7.50R15.6pieces+1 spare tire Operation control system Electrically hydraulic control   UPPER Platform Organ Length(mm)×Width(mm) 5400x2300   Operating stroke(mm)  2680   Min. angle of slope(°) 8   Rated loading weight(kg) 3000   Rated winch traction weight(kg) 3500   Length of steel wire rope(m) 21   Ground clearance of cage floor) 470   Hoisting Organ Max. length of extended boom(mm) 1300 Rated lifting weight(kg) 2500   Max. extended lifting weight(kg) 1250   Rated traction weight(kg) 7100   Elevation of boom (upper/ lower)(°) 9~-10 Optional Equipment Hydraulic clampElectric motor sawSearchlight

88KW NKR77 ISUZU 600P 120HP 4X2 Road Wrecker Towing Truck TOW TRUCK ISUZU 600P Road Wrecker Overall dimension Overall dimension Length(mm) 7240 Width(mm) 2300 Height(mm) 2270 Wheel base(mm) 3815 Mass parameter Max. Gross weight(kg) 7100 Curb weight(kg) 4700 Chassis Model NKR77 NKR77 Engine  Type ISUZU 4KH1-TCG40 output(kW) 88KW Tyre Tyre 7.50-15,7.00-16  Refitting system Flat board system Length(mm)×Width(mm) 5400×2300 Operating stroke(mm) 2680 Min. angle of slope(0) 7.6 Rated loading weight(kg) 3000 Rated winch traction weight(kg) 3000 Length of steel wire rope(m) 21 Lifting system Max. length of extended boom(mm) 1300 Rated lifting weight(kg) 2270 Max. extended lifting weight(kg) 1250 Rated traction weight(kg) 7100

Rwanda Isuzu food Refrigerated Vehicle, Africa 5 ton Isuzu seafood Refrigerator truck, Isuzu Brand fish cooling Trucks, Isuzu van trucks for sale Suitable to transport fresh food , meat , fruit , vegetable ,sea food , drugs 1:Refrigerated van truck body: Truck body of our reefer truck makes full use of advanced and environmental protection material , includes polyurethane boards structure , fiber glass reinforce plast sheet , color coated sheet , aluminium*magnesium alloy plate used in inner and outer plates. 2:Refrigerator unit: The refrigerator have USA brand optional ,  eg Thermoking , Carrier , Domestic brand optional , Korea Brand optional . its temperature can be adjusted automatically . Products Technical Specification  Product Name Refrigerator Truck Brand-Series NKR 600P Chassis Model  NKR77 Emission Standard Euro 3 Fuel type Diesel Cabin  Single row,With A/C Whole vehicle main  dimensions (mm) Overall dimensions (L×W×H)  5995*1930*2915 Cargo body dimensions   4050*1700*1600 Wheel base        3360 Front overhang        1015 Rear overhang     1525 Min. ground clearance  450 Weight data (kg) G.V.W 7300 Curb weight (chassis) 2900 Max payload 3000-5000 Whole vehicle  main performance Max. speed (km/h) 100 Max. slope of climb (%) 30 Engine Model 4KH1-TC Engine power 96kw / 130hp Displacement (L) 2.999 Number of cylinders 4 Max torque (N.m/rpm) 280/ Intake type Turbocharged and intercooled Transmission Number of gears 5 forward gears & 1 reverse Rear axle Type 4.8tons  Suspension Front 8- Leaf spring Rear  6+5-leaf spring Steering Wheel left/right hand drive LHD Brake system Service brake  oil braking Electric device Rated voltage 24V Tyres & Quantity 7.00-16 & 6+1 Cargo body Description Cargo body dimensions  (mm) 4050*170*1600 Cargo body material FRP inside & outside of the van,  polyurethane as the insulation Cargo body thickness 80 mm Optional 100mm Back Door hinged door Side door  Optional                                  Refrigeration systems Equipped with DT-150, South korean Hanya Brand Temperature Range Normal temperature,refrigeration temperature reached -18°C Others Stainless Steel d...

This type of Isuzu Mobile water purification truck using the technology of reverse osmosis film, is automation and simple operation, also good maneuverability.It is suitable for field operation, natural disasters, pollution accident ect. emergency situations ,which need to provide drinking water. FUNCTIONS 1.It is simple to make arrangements for somewhere you need,because it can be loaded by transport vehicle. 2.The carriage is made by high quality steel. It is light and the Structural strength is good. 3. Water filtration system which using the technology of reverse osmosis film  Can effectively remove bacteria and viruses and all kinds of heavy metals and other harmful     substances.The purified water can meet GB5749-2006. 4.The system is able to clean river water,lake water, groundwater, municipal wastewater and a part of industrial wastewater. 5.The system is efficient, which can producte 100 tons of water per day.Also,we can customized the Parameters for you. 6.The system is automatic,which is controllde by PLC.The cleaning of sand filter and Reverse osmosis membrane is autorun.So it is simple for operator. 7.The production has an engine group.It can work without any power supply.       Technical Data:   Model                                       PT5160XJS  Chassis Model                         FVR Emisssion Standrd                       EURO4 Engine Model/Power(kW)         6HK1 Maximum Driving Speed(km/h)     90 Technology of purging Water             reverse osmosis film Water Purification Ability(t/h)               4 Purified Water Standard                  GB5749-2006

2015 hot sale Isuzu ELF cargo van truck lorry vehicle for city transport We have professional and skilled engineers and experienced after sales service team who has been ready to provide One-Stop service to you. For More Options and Price, Pls Contact Me.

Isuzu Flood emergency vehicle, Isuzu super sewage truck for flood, Isuzu tanker truck with super pump for flood.   Vehicle technical parameters No. Project Name Description Remark 1 Whole tank vehicle Vehicle Name Multi-function joint drainage suction sewage truck ISUZU Chassis Type FVR Wheelbase 4500 The total mass kg 16000 Dimensions (mm) 8670×2475×3630 2 Engine Emission Standards              State four ISUZU Power kw 6HK1 240hp Fuel Type Diesel fuel 3 Drainagepumps Type Automatic self-priming pump   Flow (m3/hr) 800 Head (m) 56 particle diameter handle(mm) 75 automatic self-priming height (m) 8.5 4 Automatic tape laying Hose length m 300   Control Automatic retractable 5 Sludge tank Tank volume m3 6 　 Tank material High strength weathering steel Tank wall thickness mm 5 6 Suction system Sewage suction pipe diameter mm DN150, length: 8 m Vacuum degree bar -0.90 Air flow m3 / h 1400 Suction time min ≤4 Suction m Vertical: ≥ 9m, level: ≥ 50m 7 Rotating boom Function Forward and backward, up and down, left and right rotation moves 　 Dimensions mm telescopic 1350 Horizontal rotation angle 270° Boom straw diameter 6Inch

Sludge tank                                                              Shape                 Cylindrical shaped tank with U-sectional external stiffening rings. Material    Mild steel. Capacity . 6,000L sludge tank. 3,000L water tank. Shell thickness 6mm. Dish thickness 6mm. Working pressure -0.9bar underpressure. Tank inner filter Separate the sucked wastewater and solid, which protects key parts like pump, valve, hose and suction boom.   Tipping cylinder front tipping and double acting cylinder with safety support, provided for maximum liquid removal. Liquid level indicator Mounted at the rear of the tank. Overpressure safety Overpressure relief valve on tank top. Rear lid Rear lid with hydraulically opening operation and heavy adjustable hinges.  Safety Hydraulic check valves with auto check and mechanical hold on upper position. Outlet Valve One 150mm ball valve, manual operation. Float over-flow valve Shut-off float system prevents overfilling sludge tank.  When the tank’s full, suction hose is closed automatically and a horn signal is activated.   Vacuum System                                                        Vacuum pump Liquid ring vacuum pump, is driven from the PTO on the gearbox, provides high airflows along with high vacuum levels for removing materials above or below liquid surfaces. Engaged and disengaged from drivers cab. Brand KENFLO    Max vacuum level 90% Air flow rate 1440m3/h. Power requirement 45kW. Rotate speed Max 1300r/min. Pump protection 1)stainless steel&nb...

Powerstar trucks as the most professional Isuzu Fire truck supplier in China, Operating a Isuzu fire truck can be complex and requires specialized training. However, here are some general steps to operate a fire truck: 1. Check the condition of the fire truck: Before operating the truck, make sure that it is in good condition. Check the tires, brakes, lights, siren, and all other necessary equipment. 2. Understand the fire truck controls: Learn about the various switches, buttons, and levers of the fire truck. Familiarize yourself with the driving controls, such as the gas, brake, and steering wheel. 3. Wear proper PPE: Personal protective equipment (PPE) is essential for firefighters. You should wear your turnout gear, helmet, gloves, and boots. 4. Activate emergency modes: If you have an emergency situation, activate the emergency lights and siren. This will signal to other drivers that you need to get through quickly. 5. Drive safely: Always operate the fire truck with safety in mind. Drive at a safe speed and obey all traffic rules. Maintain a safe distance from other vehicles and pedestrians. 6. Position the fire truck: When you arrive at the fire scene, position the truck in a way that allows for efficient firefighting. Use outriggers or stabilizers to keep the truck stable if necessary. 7. Use firefighting equipment: Use the equipment on the fire truck to fight the fire. This may include hoses, ladders, extinguishers, and other tools. Ensure that you use the equipment safely and effectively. 8. Maintain communication: Use the fire truck's radios to communicate with other firefighters and emergency personnel. Keep everyone updated on your status and any changes in the situation. In general, operating a Isuzu fire truck requires specialized training, so it is crucial to receive proper training before operating one. If you need more information about our Isuzu fire truck, pls visit at: https://www.isuzutruckscn.com/isuzu-fire-truck_c36

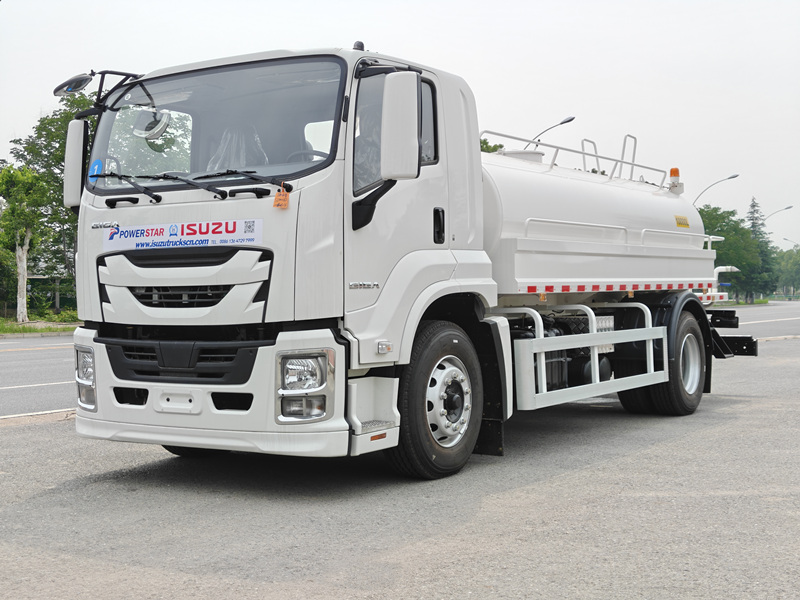

POWERSTAR factory directly supply Isuzu 5-10 cbm water sprinkler truck is modified based on the new FTR GIGA 4X chassis. The half-row cab can accommodate 3 people, and the 4500mm wheelbase ensures stable driving and flexible operation. Equipped with Isuzu 4HK1 - TCG60 205HP engine, it is powerful and fuel-efficient, matched with Isuzu MLD 6-speed gearbox, and the gear shifting is smooth. The upper body is equipped with a 10 cubic meter carbon steel water tank, which is sturdy and durable. The tail is equipped with a working platform with forward rush, rear sprinkler, and rear side spray functions, which can meet various needs such as road dust reduction and greening irrigation. Equipped with Weilong 80QZB - 60/90N self-priming sprinkler pump, it has strong self-priming power, large flow, high head, and efficient and reliable operation.
