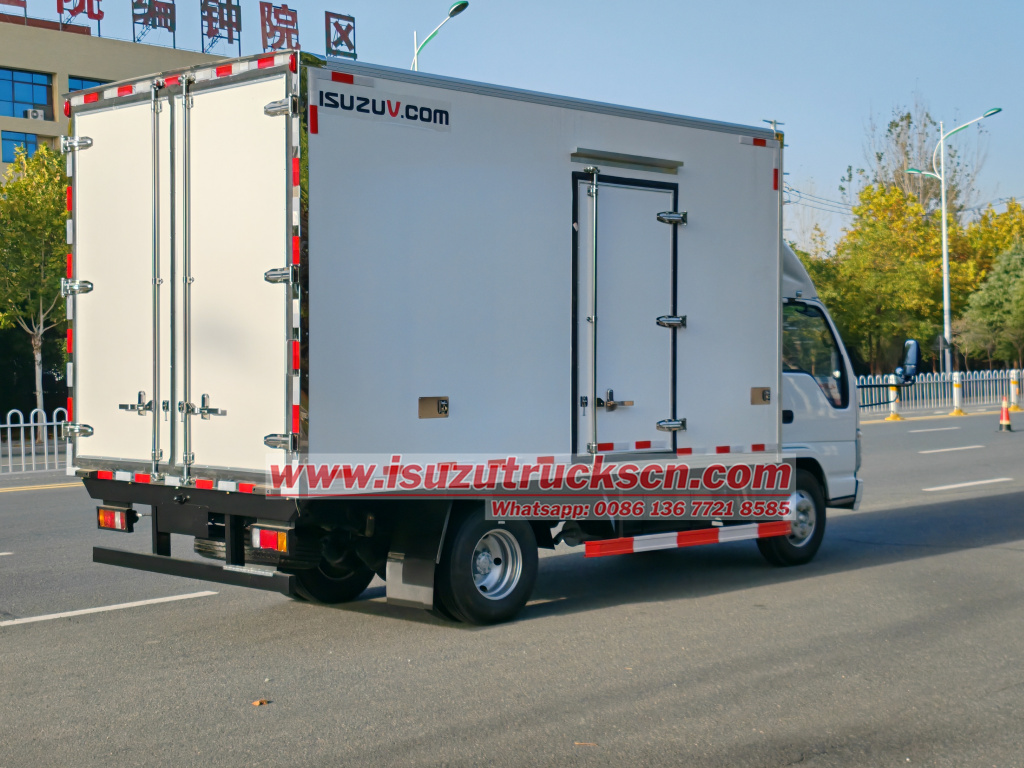

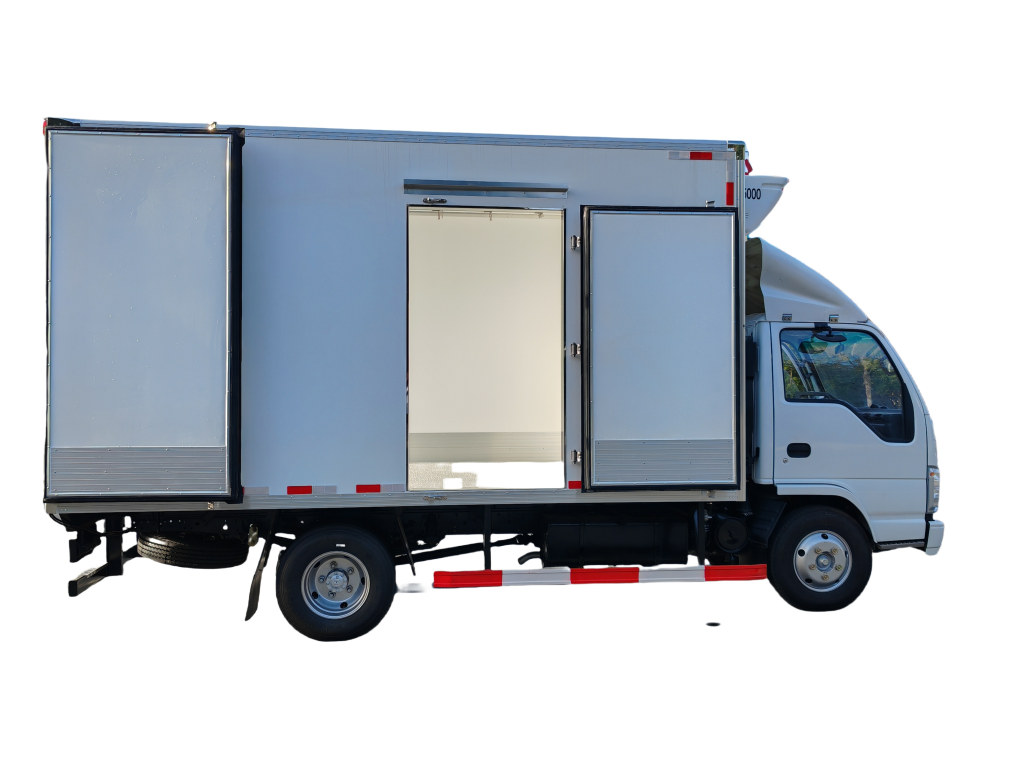

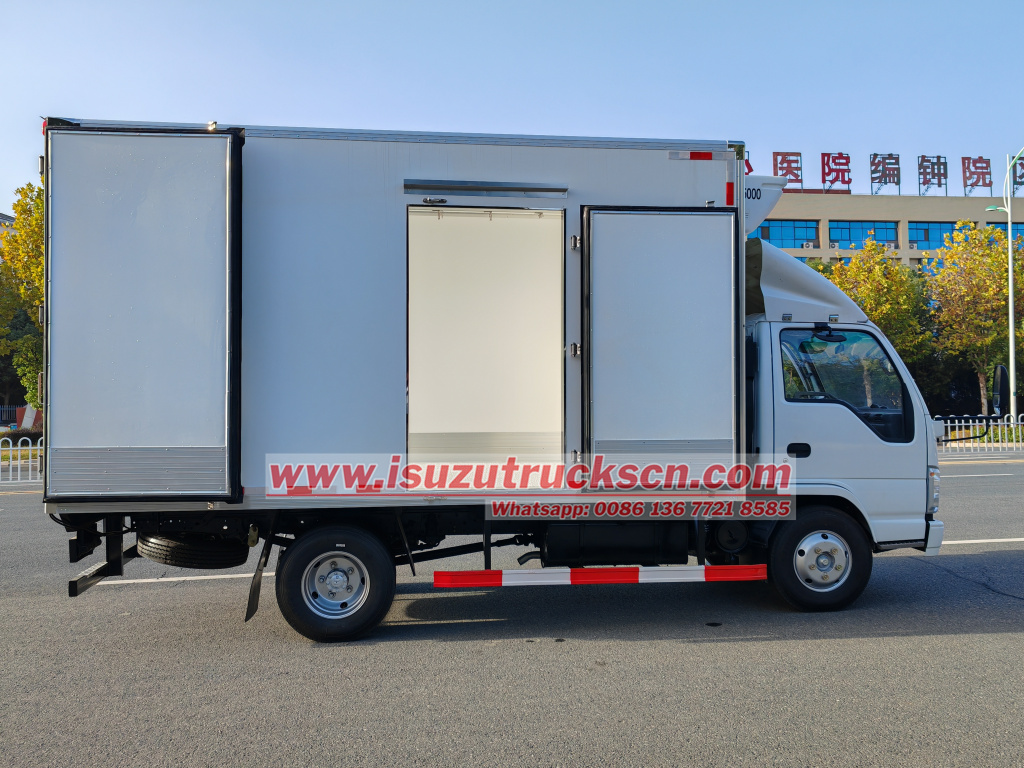

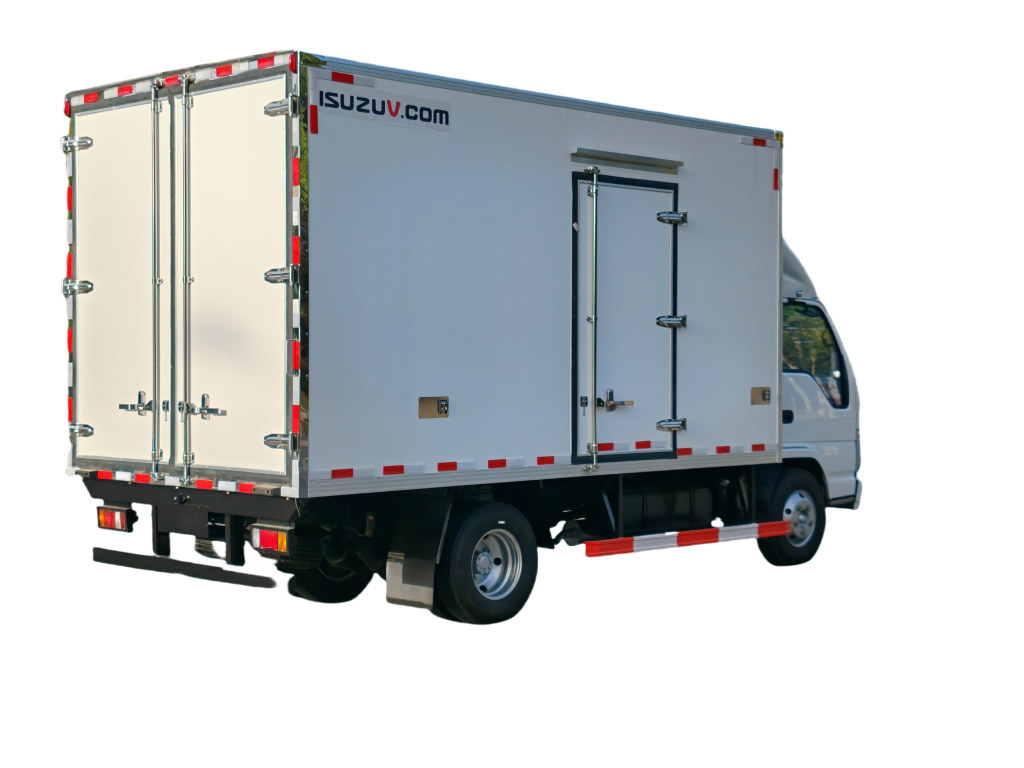

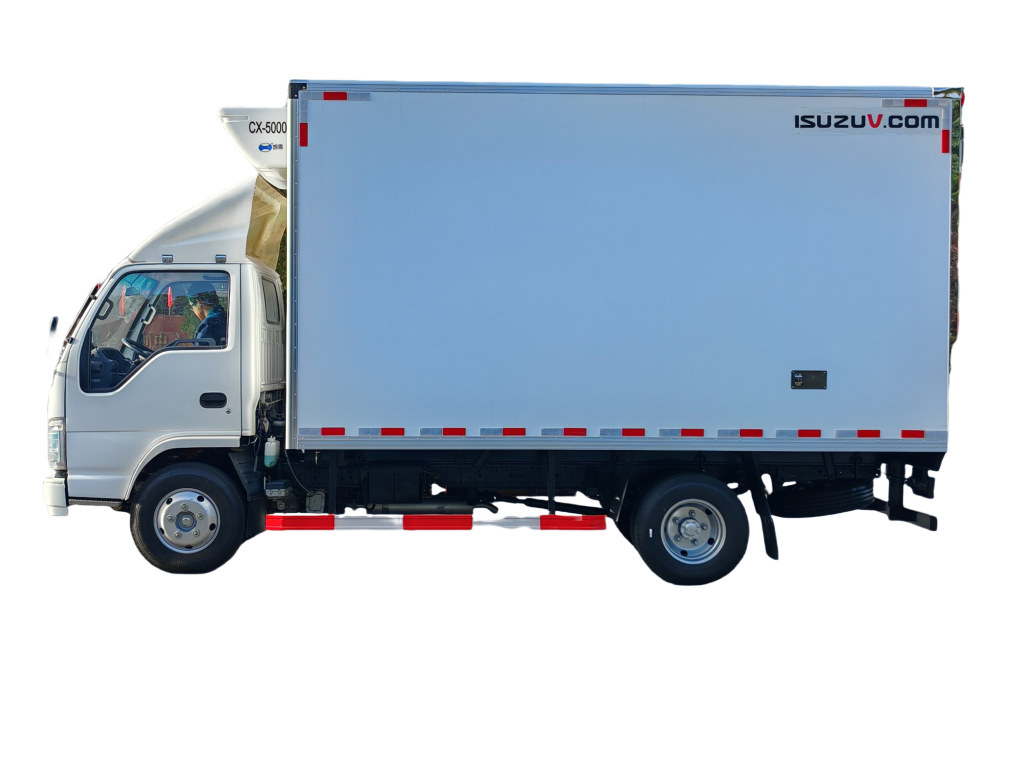

Powerstar 5tons Refrigerated Vans on Isuzu NPR, also named Refrigerated vans by Isuzu or Isuzu chassis referigerated reefer vans.
The 5-ton refrigerated truck (Powerstar Refrigerated Van) on the Isuzu NPR platform refers to a special refrigerated transport vehicle modified based on the Isuzu NPR series light truck chassis, with the following core features:
1. Basic configuration
1. **Chassis platform**
Adopting the Isuzu NPR series commercial chassis, it meets the National VI emission standards and is equipped with a 3.0L diesel engine (models such as 4KH1CN6LB), with a maximum power of 88-140kW and a torque of 450N·m, meeting the needs of efficient transportation.
2. **Load capacity**
The rated load capacity is 5 tons and the total mass is about 4.5 tons (such as the QL1070 chassis model), which is suitable for urban distribution and medium- and short-distance cold chain logistics.
2. Refrigeration system features

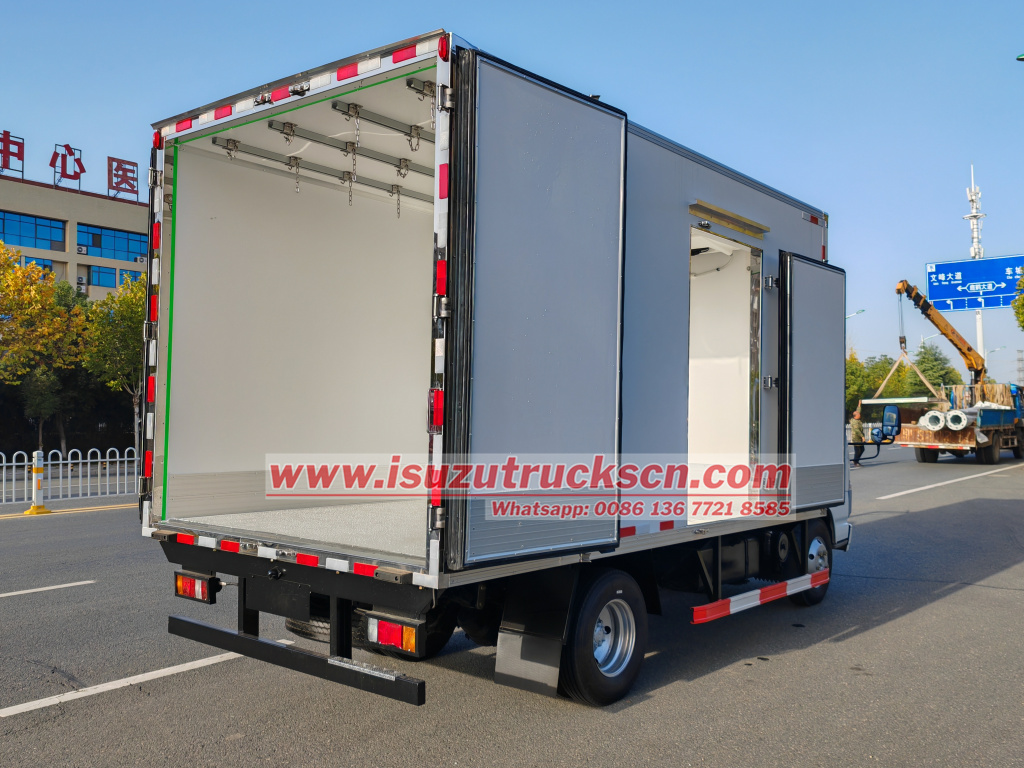

1. **Box structure**
- Size: Cargo box length 4.2 meters (blue license compliance) to 5.2 meters (some wide-body models)
- Process: Use polyurethane high-pressure foam insulation layer (thickness of more than 8cm), inner and outer skins are nano fiberglass or color steel plates to ensure that the insulation coefficient is ≤0.4W/m²·K.
- Volume: about 15-18 cubic meters (taking a 5.2-meter box as an example).

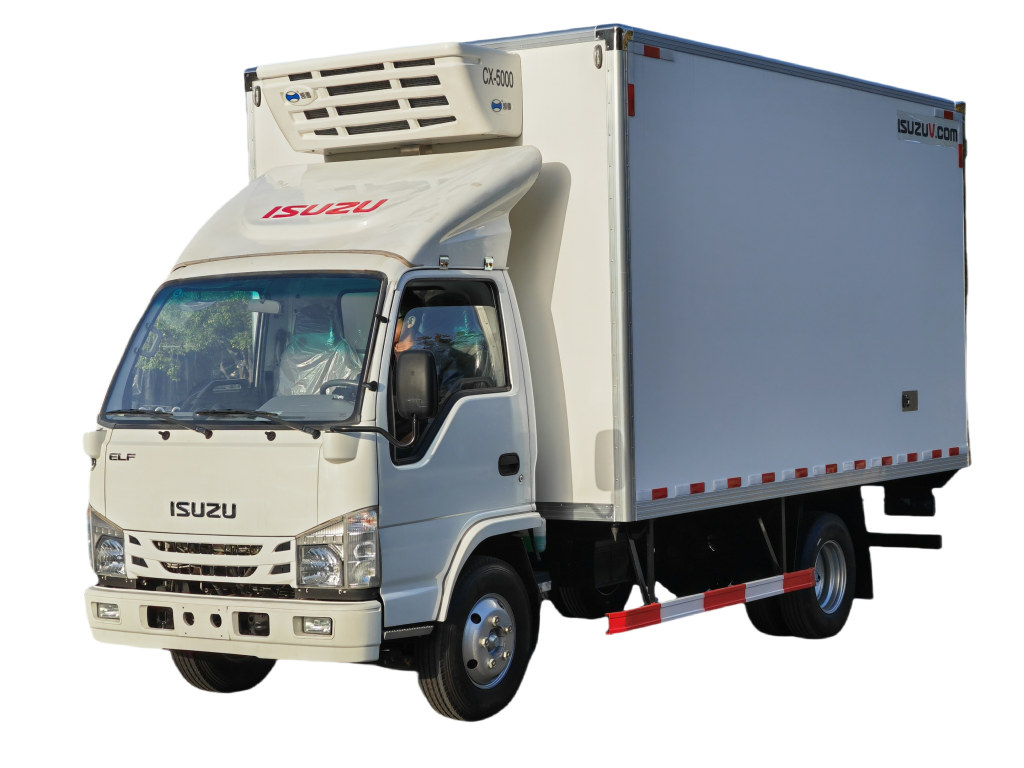

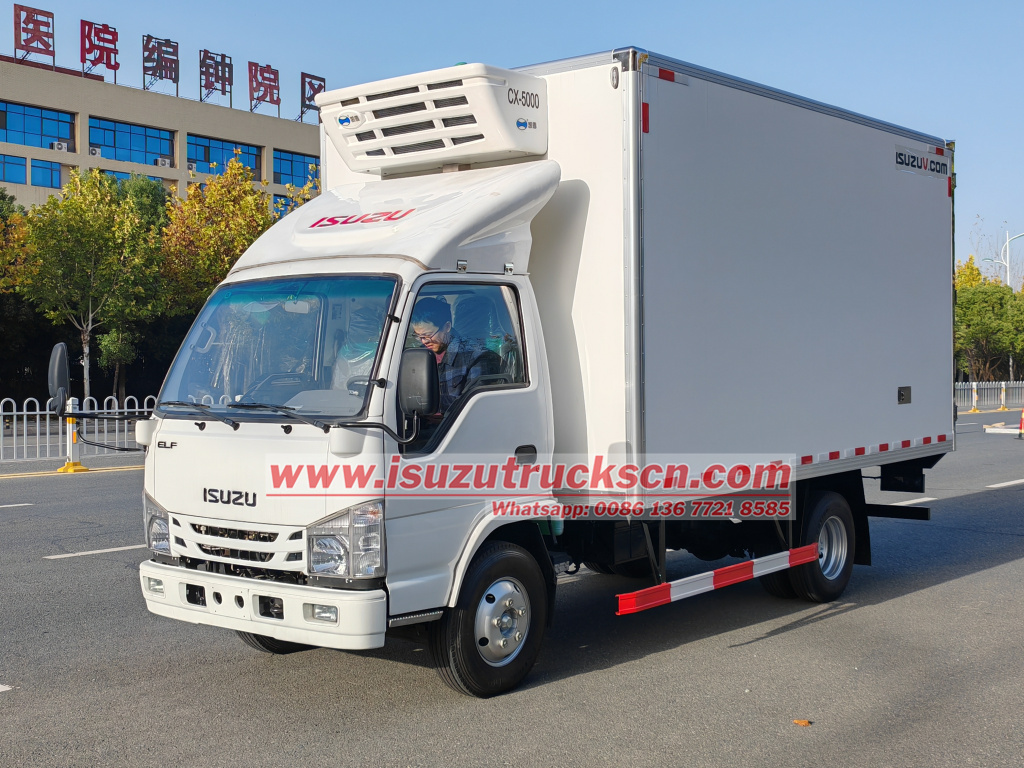

2. **Refrigeration unit**
Standard mechanical refrigeration system, temperature control range -18℃ to +12℃, supports freezing/fresh-keeping dual mode, suitable for food, medicine and other multi-scenario transportation.
3. Key performance parameters
| Project | Parameter value |
|--------------|---------------------------|
| Maximum speed | 110 km/h |
| Fuel consumption per 100 kilometers | 9.8-11.3L (diesel) |
| Wheelbase | 3360mm |
| Tire specifications | 7.00R16 or 8.25R20 (6) |
| Drive mode | Rear drive (4×2) |
IV. Function expansion

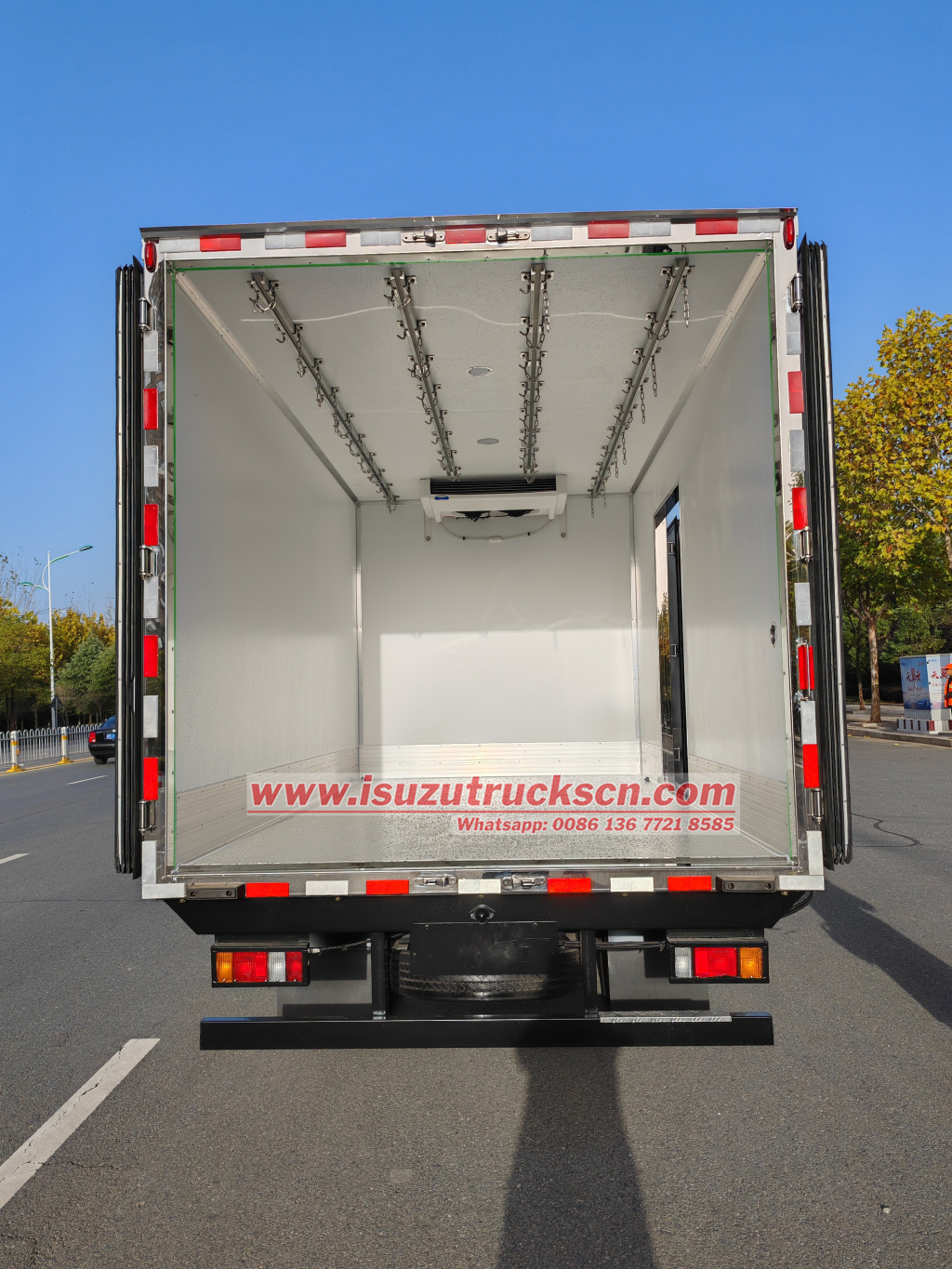

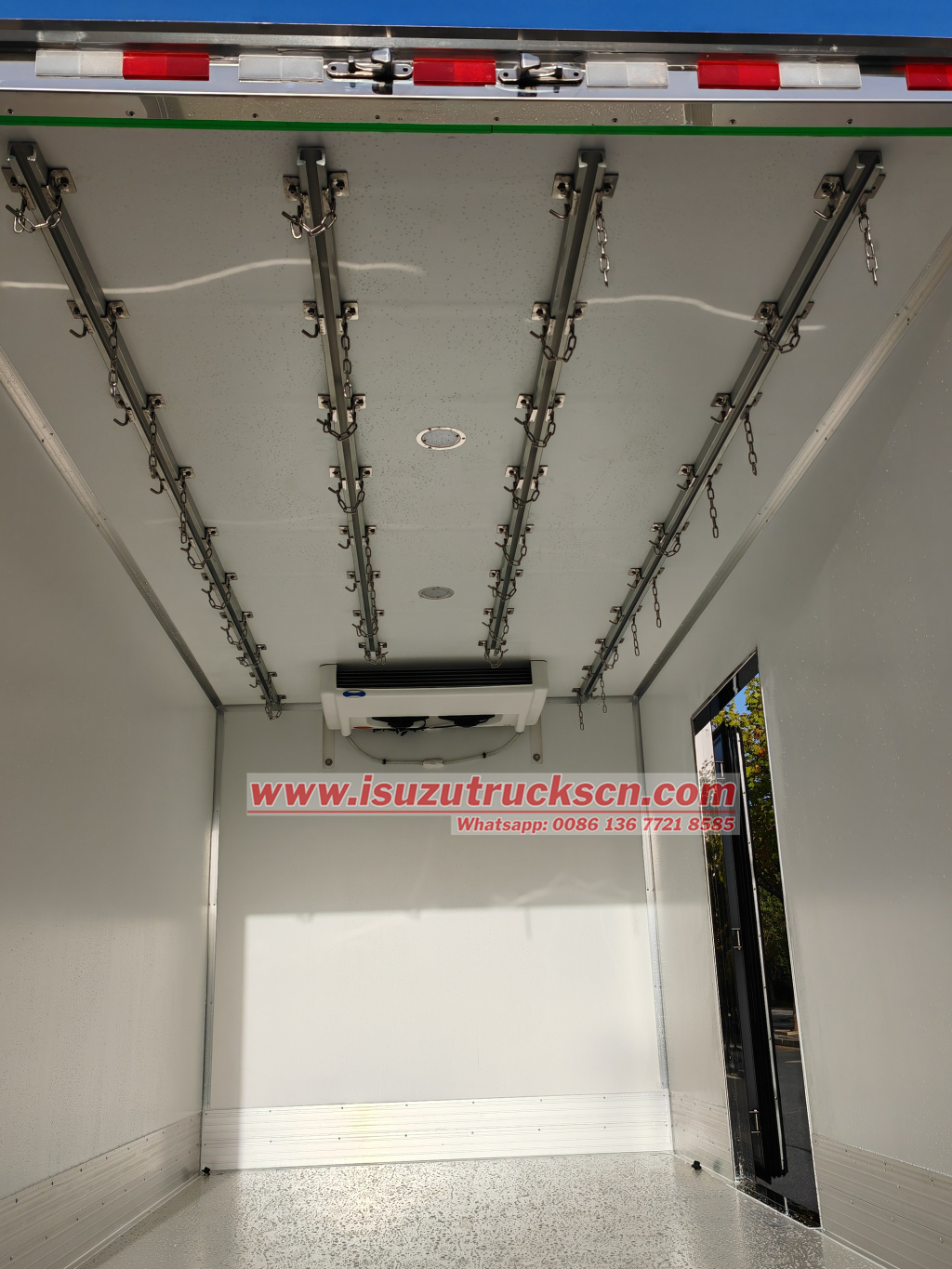

- **Optional configuration**: Stainless steel meat hook rails (for mounting fresh meat), aluminum alloy ventilation slots (for optimizing cold circulation), multi-temperature zone partitions, etc. can be installed in the body.
- **Compliance**: Complies with the regulations for blue-plate light trucks (vehicle length <6 meters), and can be driven with a C license.
> Note: The current models on sale are mainly based on the National VI emission standards, and some export models are adapted to the needs of Southeast Asia, the Middle East and other regions. When actually purchasing, it is necessary to comprehensively evaluate the vehicle configuration based on the type of cargo, transportation distance and local regulations.
