Isuzu 700P AWD 10m3 garbage compactor truck: a powerful player in urban cleaning
In modern urban management, garbage disposal is a vital task. The Isuzu 700P AWD 10m3 garbage compactor truck has become a powerful player in urban cleaning with its excellent performance and many advantages. Below, we will use the Isuzu 700P AWD 10m3 rear loader garbage truck to tell you how to choose a suitable and satisfactory compression garbage truck.
When choosing a satisfactory garbage compactor truck, you need to consider it comprehensively from multiple dimensions to ensure that the selected vehicle can meet actual needs and has good performance and economy.
I. Upper body configuration
★. Box volume and material
● Box volume: The appropriate box volume should be determined according to actual needs. Generally speaking, the larger the volume, the more garbage can be loaded, thereby improving work efficiency. However, too large a volume may lead to a decrease in the vehicle's maneuverability, so it is necessary to consider it comprehensively according to the specific city conditions, the amount of garbage generated, and the transportation route.
● Box material: The box material should have good corrosion resistance and sealing properties to prevent garbage leakage and odor emission. Common box materials include Q235 steel plates, etc., and their thickness and strength should meet the needs of long-term use.
★. Post-filler material and design
● Material: The post-filler is a key component of the garbage truck for garbage compression, and its material should have high strength and wear resistance. High-quality post-fillers usually use high-strength steel such as Q710 to ensure stable performance in long-term use.
● Design: The design of the post-filler should be reasonable, such as the structure of the U-shaped groove, slide rail, scraper slide plate and its force-bearing parts should be professionally optimized to improve compression efficiency and reduce wear.
★. Compression mechanism
● A compression mechanism with efficient compression capacity should be selected to increase garbage loading and reduce transportation times. The compression ratio of a high-quality compression garbage truck can reach 1:2.5, and it has a two-way compression function to ensure that the garbage is fully compressed.
★. Hydraulic system
● The hydraulic system is the core component of the garbage compactor, and its performance directly affects the compression efficiency and stability. You should choose a model with a mature hydraulic system and stable performance, and pay attention to the brand and quality of key components such as the oil cylinder, power take-off, oil pump, and multi-way valve.
★. Electronic control system
● The electronic control system is responsible for controlling various operations of the vehicle, such as compression and unloading. You should choose an electronic control system that is simple to operate and has a low failure rate, and pay attention to whether it has automation and intelligent functions to improve work efficiency and reduce the difficulty of operation.
★. Diversity of loading and unloading operation methods of garbage compactor trucks
● In the loading and unloading operations of garbage trucks, the diversity of operation methods not only provides flexible choices, but also achieves powerful and efficient functions through the synergy and complementarity of different operation methods.

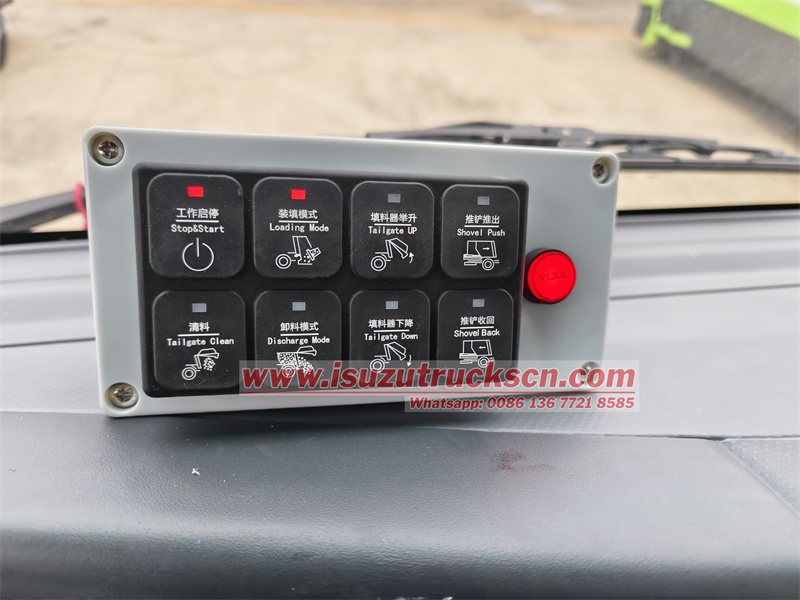

Cab electronic control box
• Location and function: Located in the cab, it integrates the control buttons for the power take-off switch button, garbage loading mode, unloading mode, loader lifting, push shovel push-out retraction, tailgate cleaning and other functions.

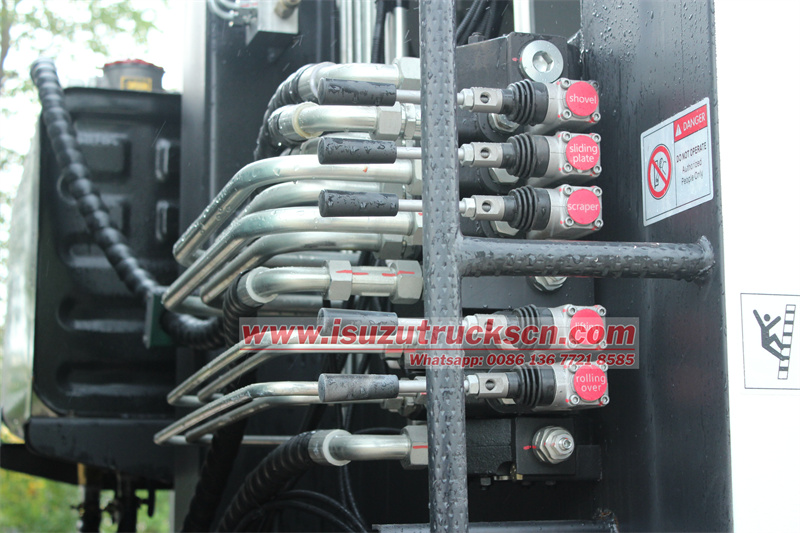

Manual hydraulic operating lever on the driver's side
• Position and function: Located on the driver's side, it is used to control the lifting of the tailgate of the garbage bin, the movement of the scraper, the skateboard, and the shovel.

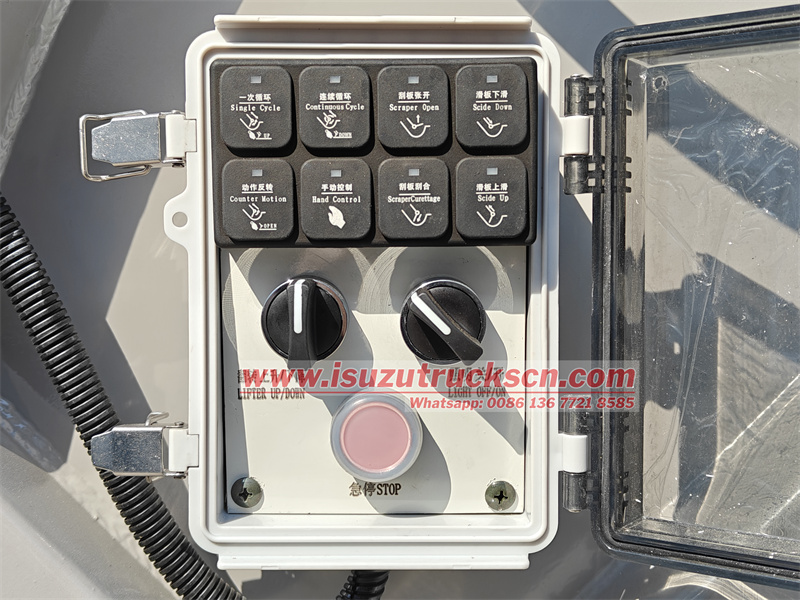

Tailgate electric control box
• Position and function: Located near the tailgate of the garbage bin, it controls the scraper to rotate up and down, the skateboard to go up and down, single cycle, multiple cycle loading, manual/automatic operation mode, lifting mechanism lifting, stop button and other functions.
Isuzu 700P all-wheel drive garbage compactor truck adopts Q235 carbon steel material box, arc design, easy loading and unloading, 10 cubic meters of large capacity can meet most garbage loading needs, and has good sealing and internal anti-corrosion treatment. The rear loader is equipped with high-strength steel and reasonable design. The vehicle has a two-way compression function with a compression ratio of 1:3.4. The key components of the hydraulic system are well-known brands with excellent quality. It adopts Taiwan Yonghong PLC electronic control system with stable performance. The vehicle is equipped with 3 operation modes including cab electronic control box, driver's side manual hydraulic operating lever and tailgate electronic control box, which are powerful and easy to operate.
II. Rear flip mechanism
The rear flip mechanism is one of the key components of garbage trucks for garbage collection. The appropriate flip mechanism type should be selected according to actual needs:

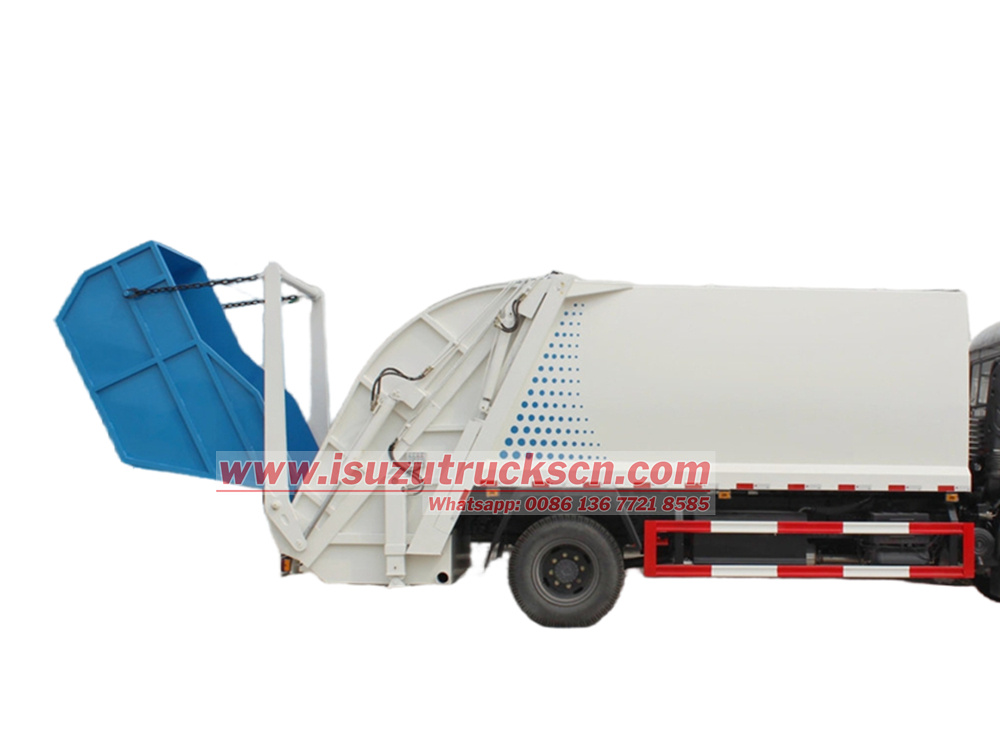

Swing arm mechanism: Add a swing arm device and cooperate with the swing arm bucket to pour the garbage into the box. The swing arm mechanism is very suitable for garbage transfer in remote areas such as sparsely populated areas, which can greatly reduce the workload.

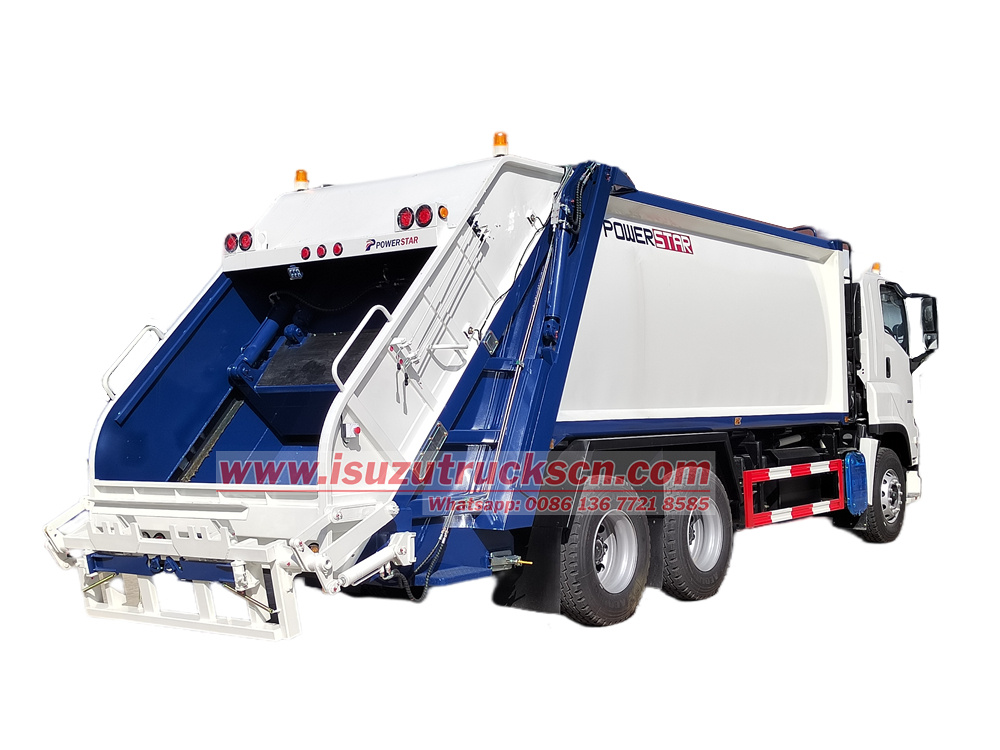

Hanging bucket type: It can automatically hang the garbage bin, which is easy to operate and efficient, but it needs to be equipped with a special garbage bin. It is suitable for garbage classification collection and community garbage removal.

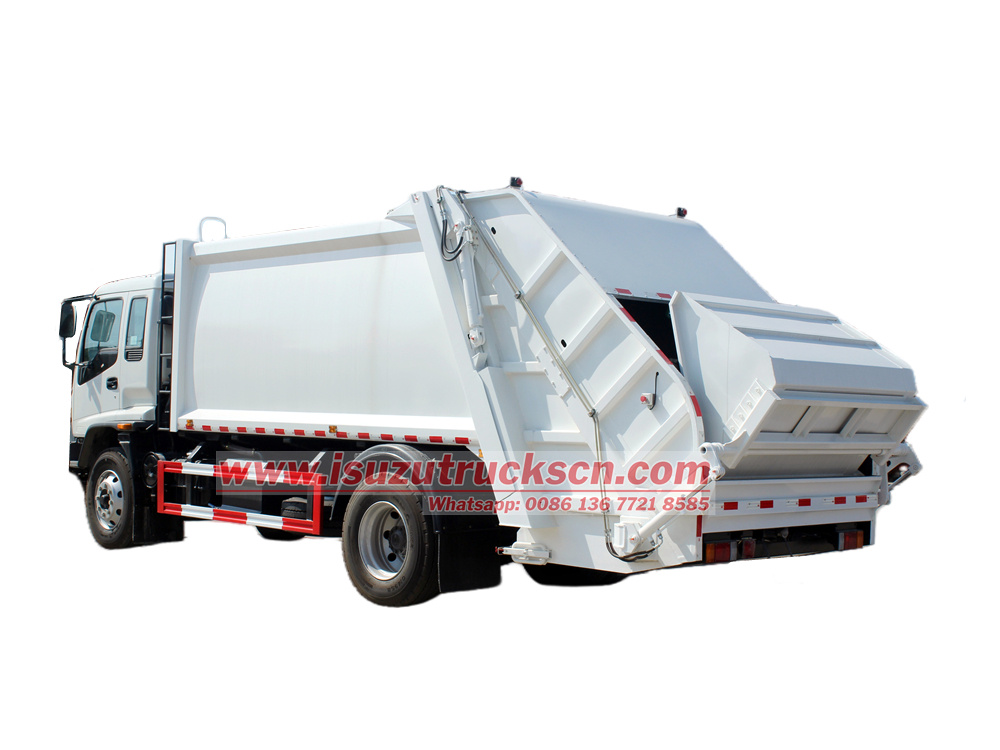

Triangle bucket mechanism: This mechanism can flip the garbage poured into the garbage bin and then pour it into the garbage filler to prepare for subsequent compression operations. The triangular bucket can be used to manually hold the shovel to pour the garbage into the bucket, or a fixed plastic bucket device can be installed to achieve a variety of different loading methods. It is suitable for garbage transfer in small garbage transfer stations.

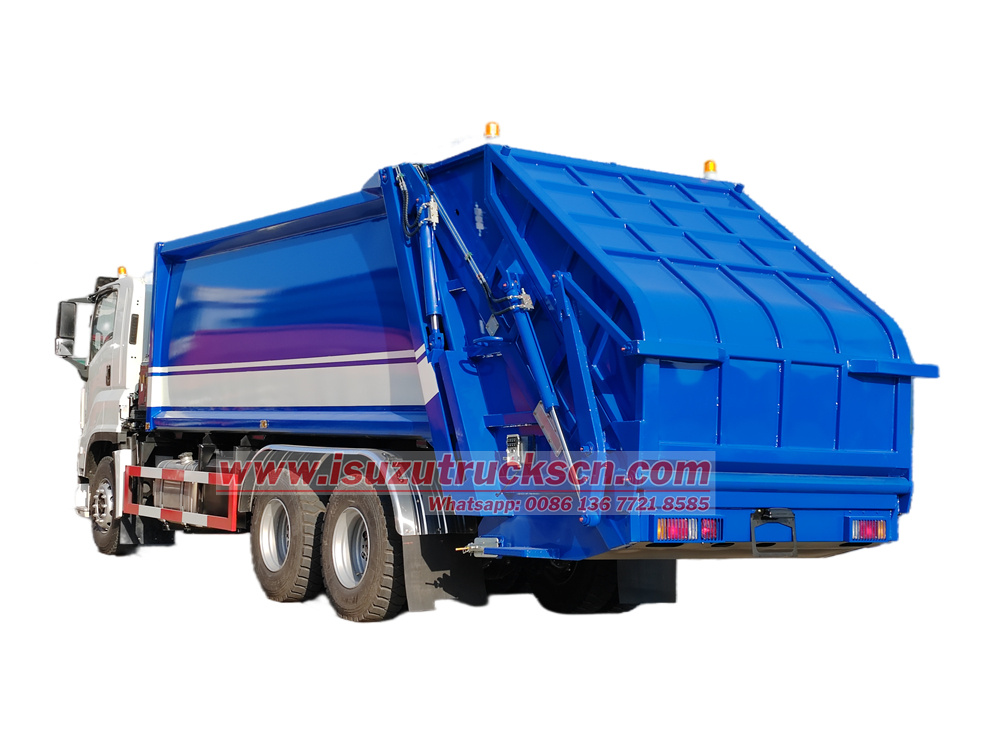

Large floor bucket mechanism: This mechanism is suitable for large application scenarios such as large garbage transfer stations and landfills. The area of the large floor bucket is larger than that of the triangular bucket, and the amount of material loaded at one time is larger, but it cannot be equipped with a fixed plastic bucket fixing device like the triangular bucket

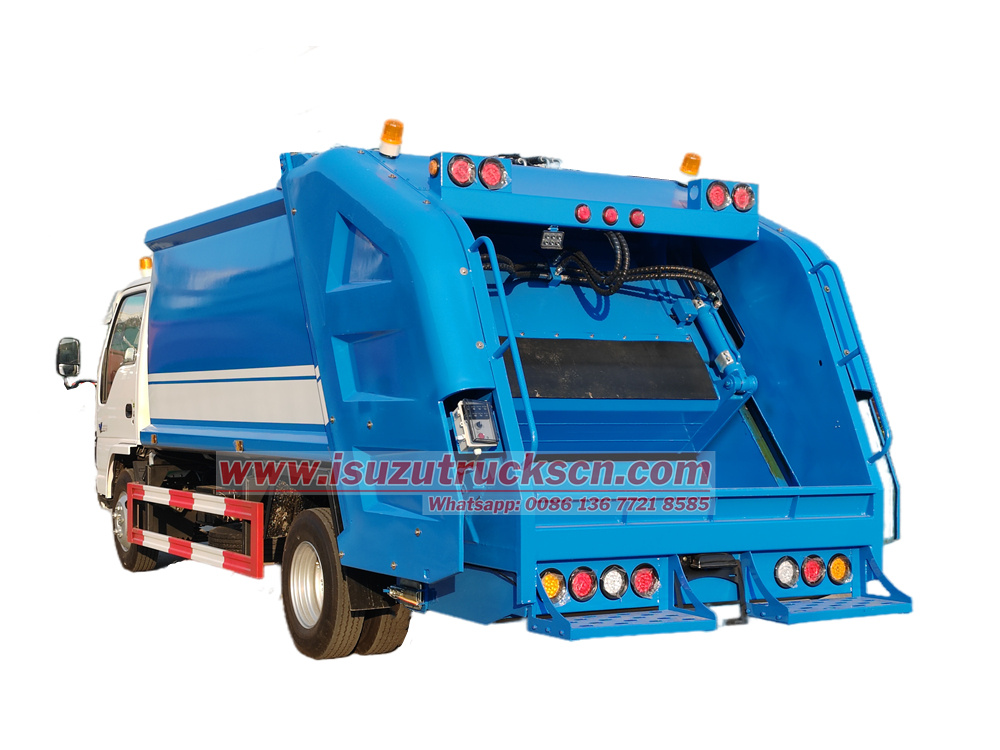

No rear flip device: It is necessary to dump the garbage directly by humans, and the vehicle can only realize the compression and unloading functions, but the sealing is poor, which is easy to cause secondary pollution.

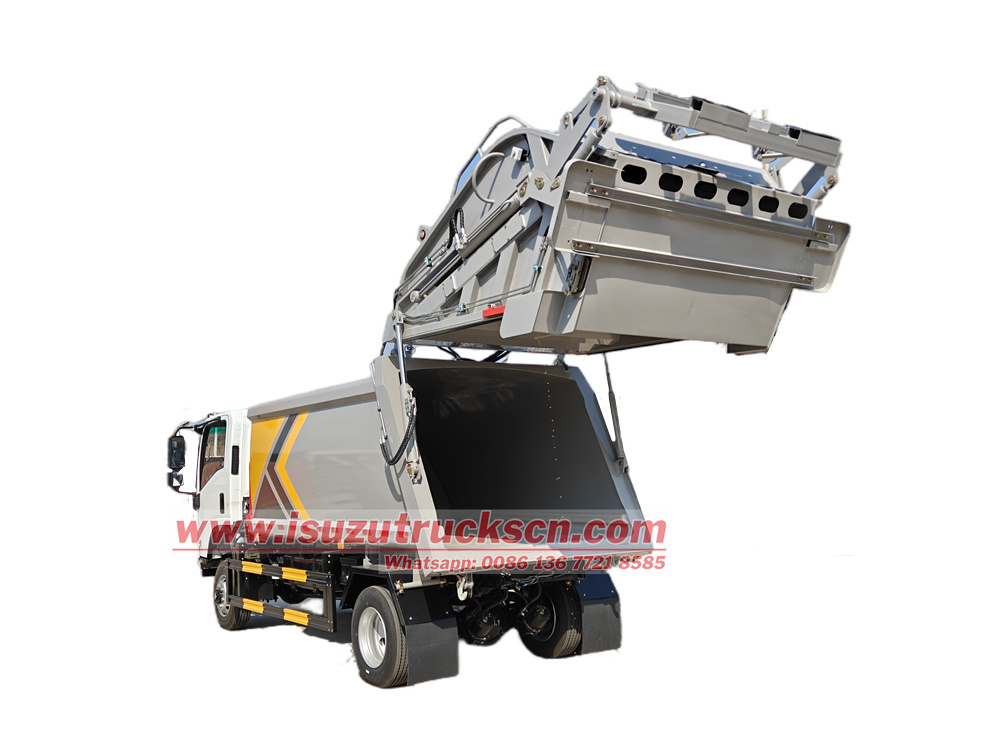

Isuzu 700P all-wheel drive 10 cubic compression garbage truck adopts a hanging bucket flip mechanism, which can fix hanging buckets of different specifications, such as 120L, 240L, 300L, 660L, etc. through the flip frame, which is suitable for garbage transportation in urban areas such as streets and communities.
III. Chassis performance:
The chassis is the foundation of the garbage truck, and its performance directly affects the vehicle's carrying capacity, passability and reliability:
★. Power performance
● The engine power and torque of the chassis should meet the power requirements during garbage collection and transportation. Choose an engine with strong power, low fuel consumption and emission standards, such as an Isuzu brand engine.
● Choose a gearbox with smooth operation and high reliability, such as Fast, ZF and other brand gearboxes.
★. Suspension and braking system
● The suspension system should have good passability and stability to adapt to different road conditions. The braking system should be sensitive and reliable to ensure driving safety.
★. Carrying capacity and durability
● The carrying capacity of the chassis should meet the use requirements of the garbage truck and ensure long-term stable operation. At the same time, a chassis that has been strictly tested and verified should be selected to improve durability and reduce failure rate.

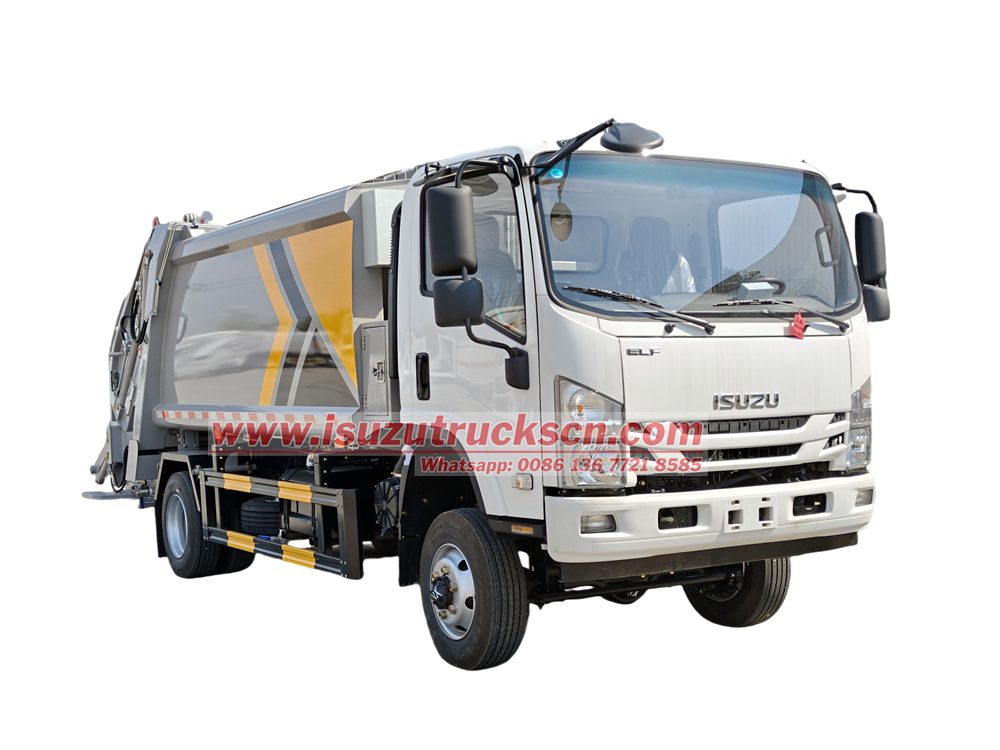

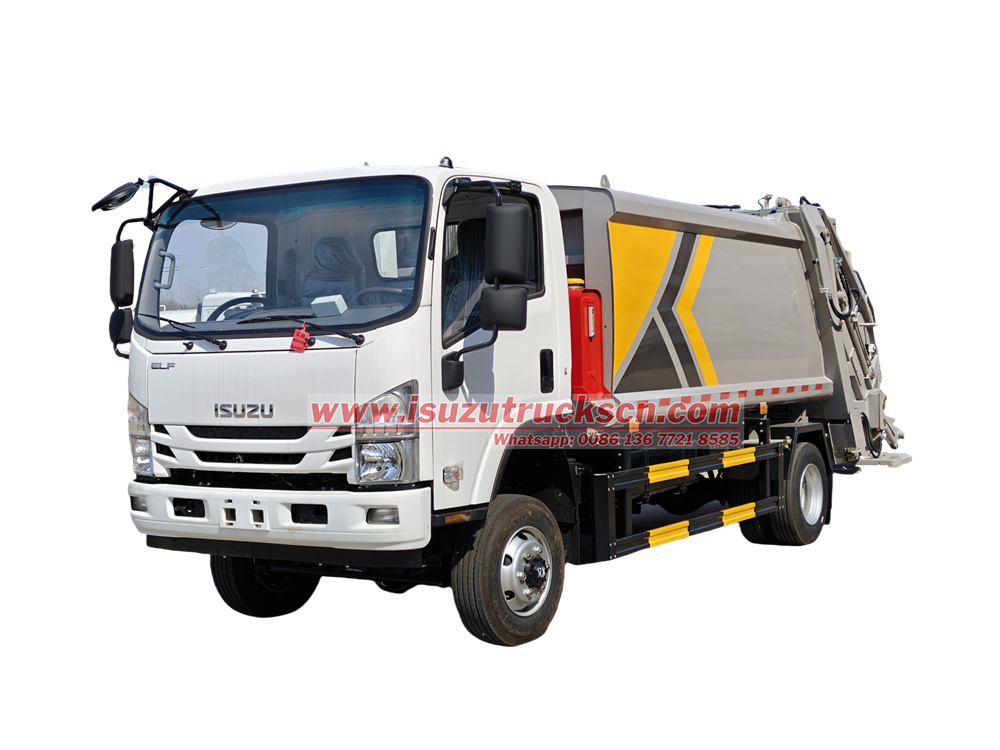

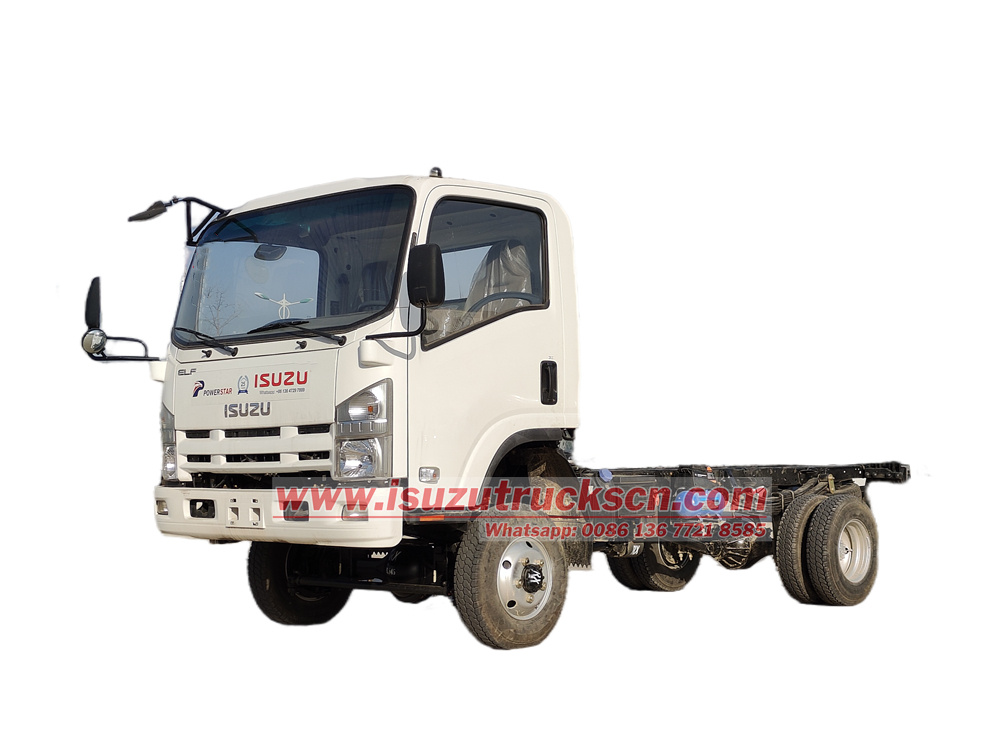

The Isuzu 700P waste compactor truck is modified on the basis of the Isuzu 700P all-wheel drive chassis. The suspension system of the all-wheel drive chassis has powerful performance and can easily handle various complex road conditions. The vehicle is equipped with an Isuzu 4HK1-TCG61 190HP diesel engine, which is powerful, with EURO 6 5193cc emissions, and is matched with an Isuzu MLD 6-speed gearbox for smooth gear shifting. The chassis has a large load capacity, and the modified Yasou garbage box on the upper body can load 10 cubic meters of compressed garbage.
IV. Use cost:
In addition to the cost of purchasing the vehicle, the following use costs also need to be considered:
• Fuel consumption: Choose a model with low fuel consumption to reduce daily operating costs.
• Maintenance: Choose a model with convenient maintenance and low cost, such as reasonable accessories and many service outlets.
• Service life: Choose a model with reliable quality and long service life to reduce replacement frequency and cost.
The Isuzu 700P garbage disposal truck has a stable chassis performance, low fuel consumption, a strong and durable upper body, excellent quality of various components, reasonable design, not easy to break, convenient maintenance, and low cost. It is a choice you should not miss when choosing a compression garbage truck.
