Isuzu fire fighting truck

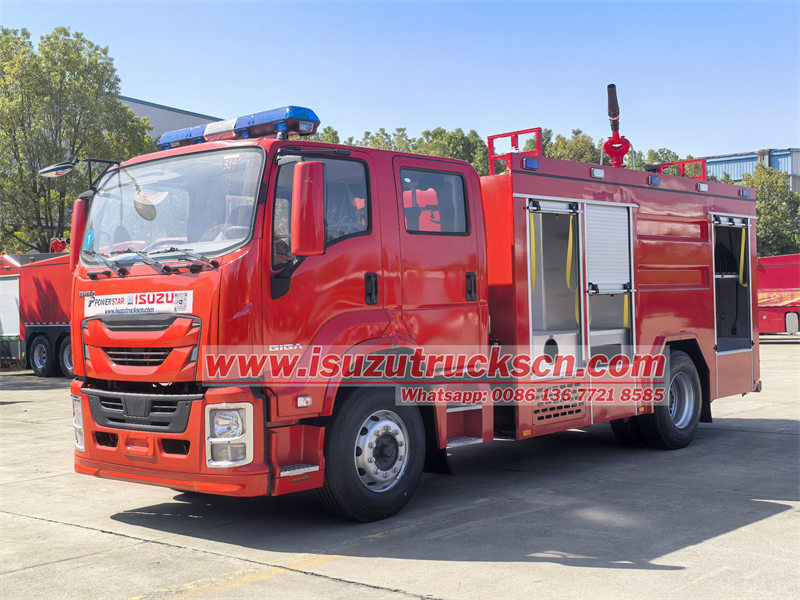

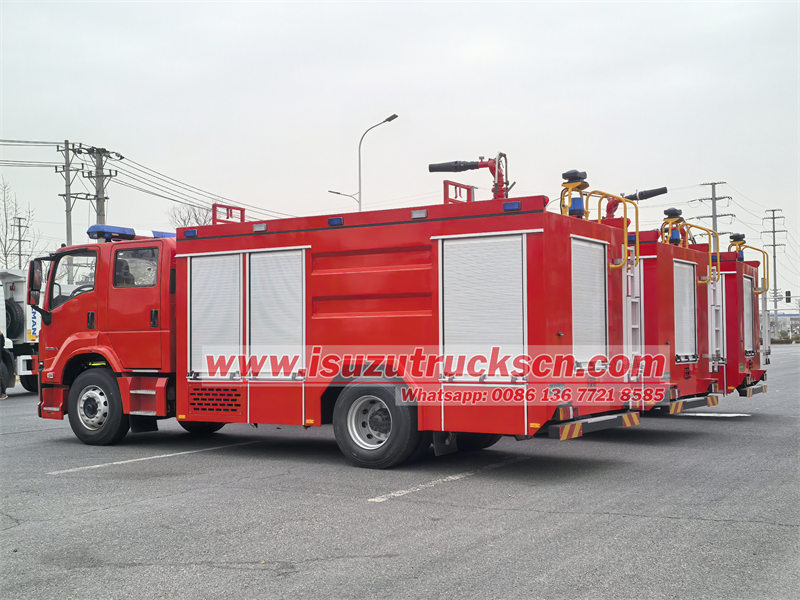

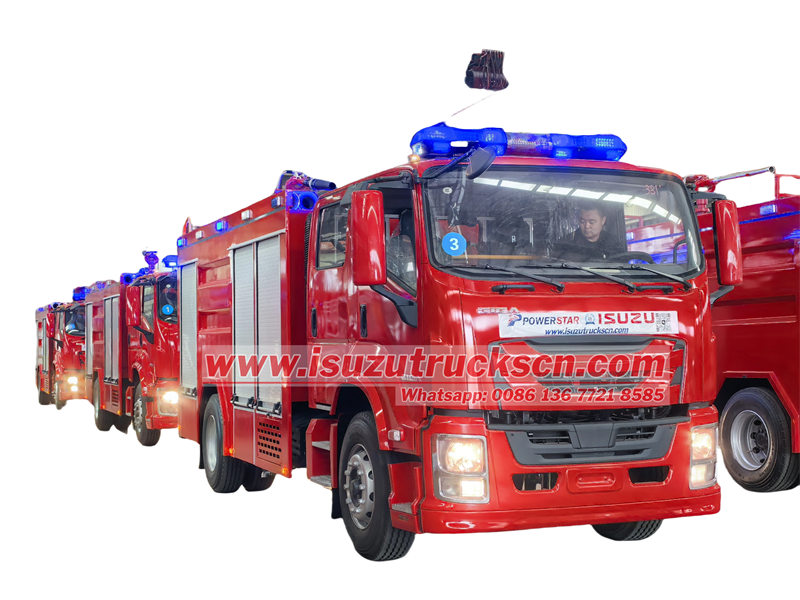

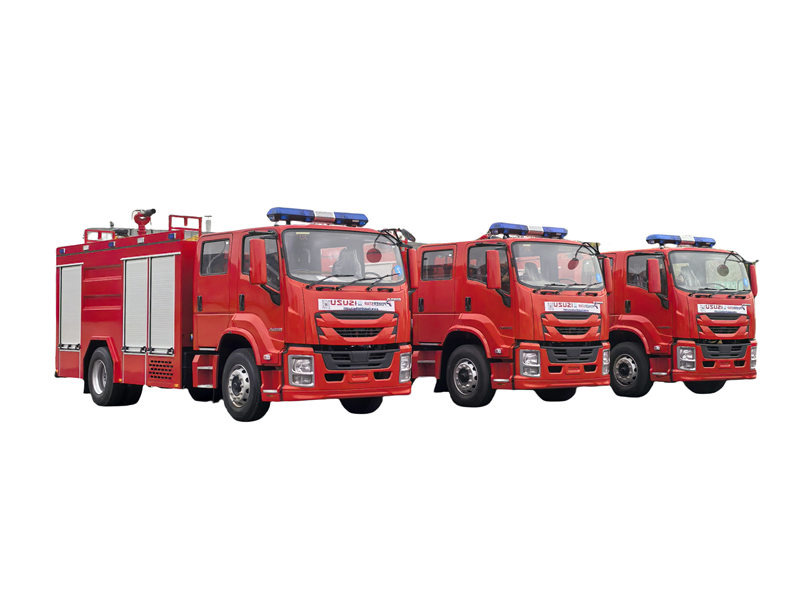

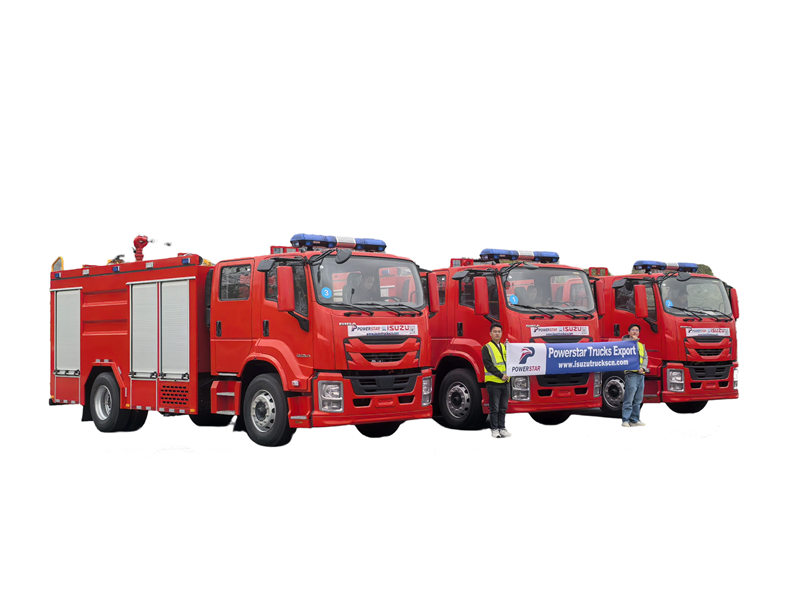

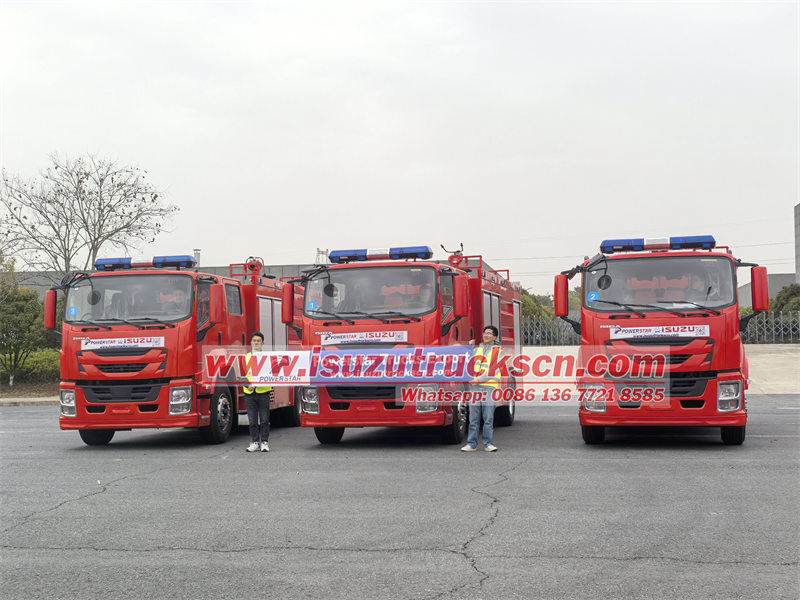

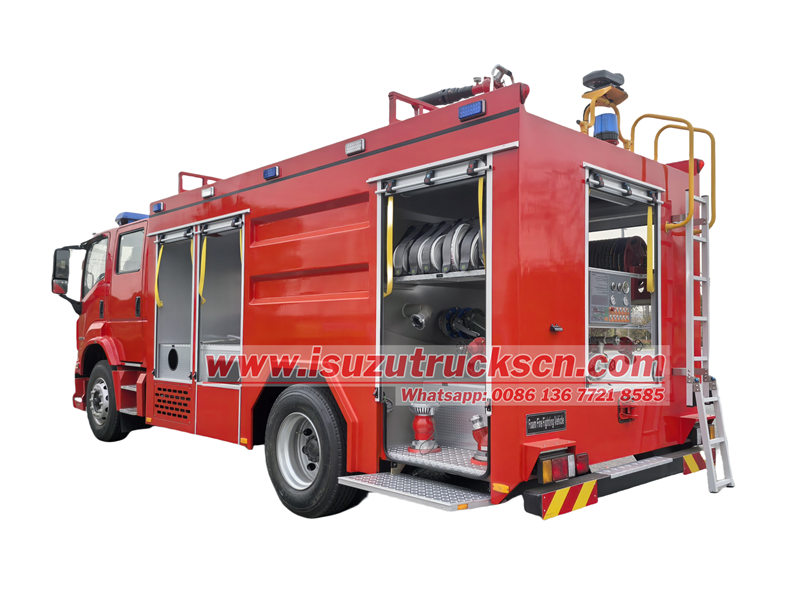

Isuzu 4,000-liter foam firefighting truck is a specialized emergency vehicle engineered to combat high-intensity fires, particularly those involving flammable liquids, chemicals, or industrial hazards. Its advanced foam suppression system, coupled with robust mobility, makes it indispensable for industrial complexes, airports, refineries, and urban fire departments. Below is a detailed breakdown of its applications and technical parameters.

1. Fire Suppression Capabilities

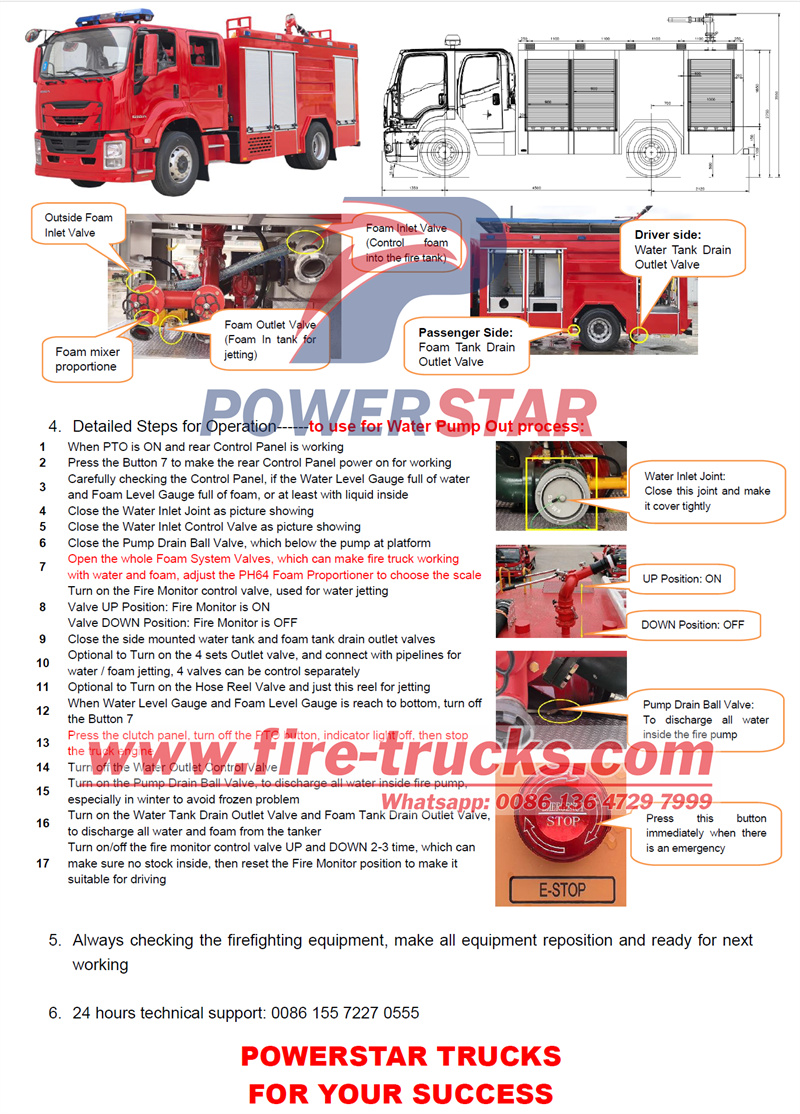

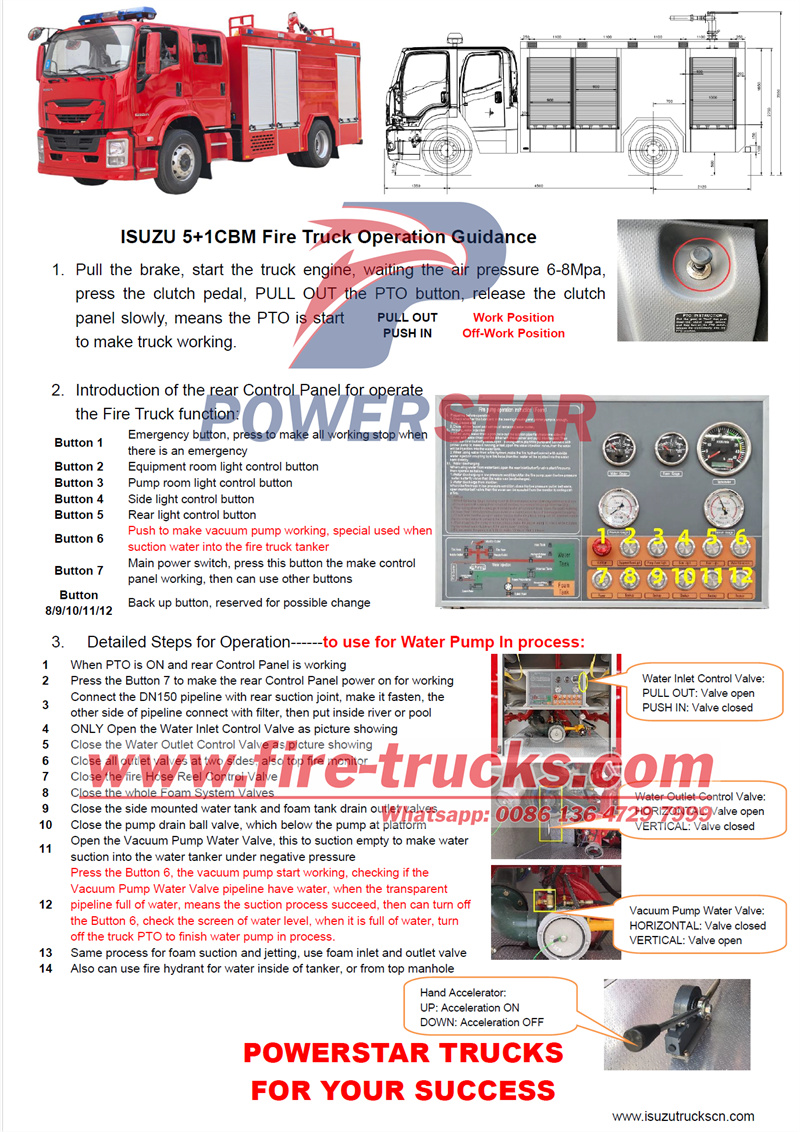

• Foam-Water Dual System: Equipped with a 4,000-liter water tank and a 600-liter foam concentrate tank, the truck delivers a foam-water mixture via a high-pressure pump. The foam proportioning system operates at 3–6% mixing ratios, adjustable based on fire type (e.g., 3% for hydrocarbons, 6% for polar solvents).
• High-Output Pump: The main pump delivers 4,000 liters per minute (LPM) at 10 bar pressure, enabling simultaneous foam deployment and water cooling. The foam cannon achieves a horizontal range of 70 meters and a vertical reach of 45 meters.
•

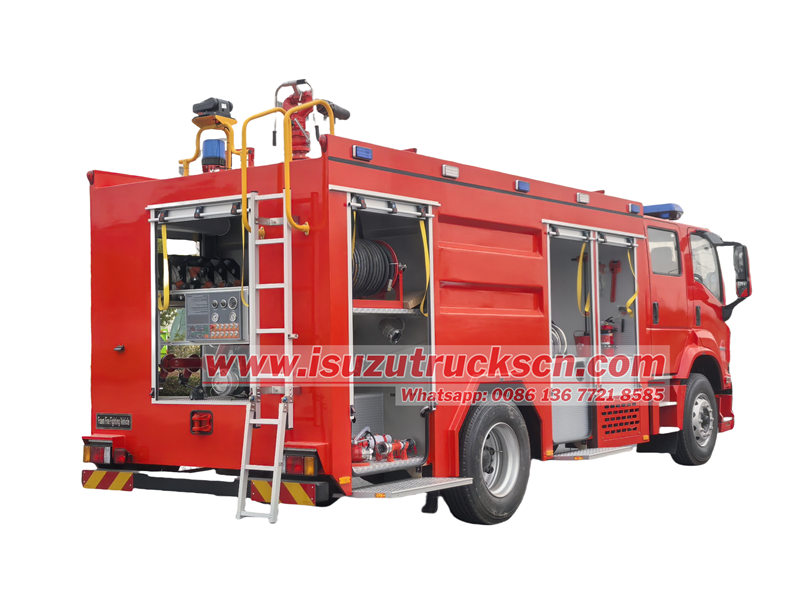

• Multi-Nozzle Flexibility: Includes a roof-mounted remote-controlled foam monitor (360° rotation, -15° to +75° elevation) and two rear-mounted handheld foam branches for precision targeting.

2. Chassis and Mobility

• Isuzu FVR Chassis: Powered by a 6UZ1-TCG 7.8L turbocharged diesel engine, generating 300 hp and 981 Nm torque, compliant with Euro VI emission standards.
• All-Terrain Performance: Features 4x4 drive, a 35° approach angle, and a 25° departure angle, ensuring access to confined or uneven industrial sites. The 5,500 mm wheelbase stabilizes operations during high-flow discharges.

3. Safety and Auxiliary Systems

• Integrated Safety Features: LED scene lighting (4 x 100W), explosion-proof cabin with air filtration, and an onboard firefighting PPE compartment.
• Rescue Tools: A 10 kW hydraulic generator powers extrication devices (e.g., spreaders, cutters) and a 60 m³/min air compressor for breathing apparatus refills.
