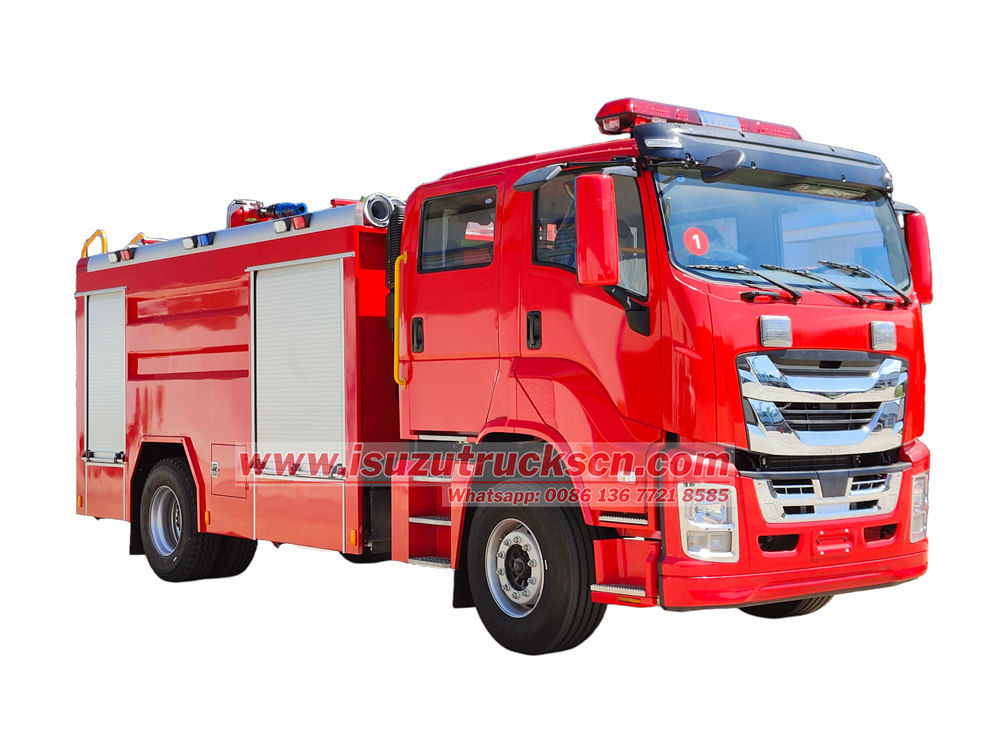

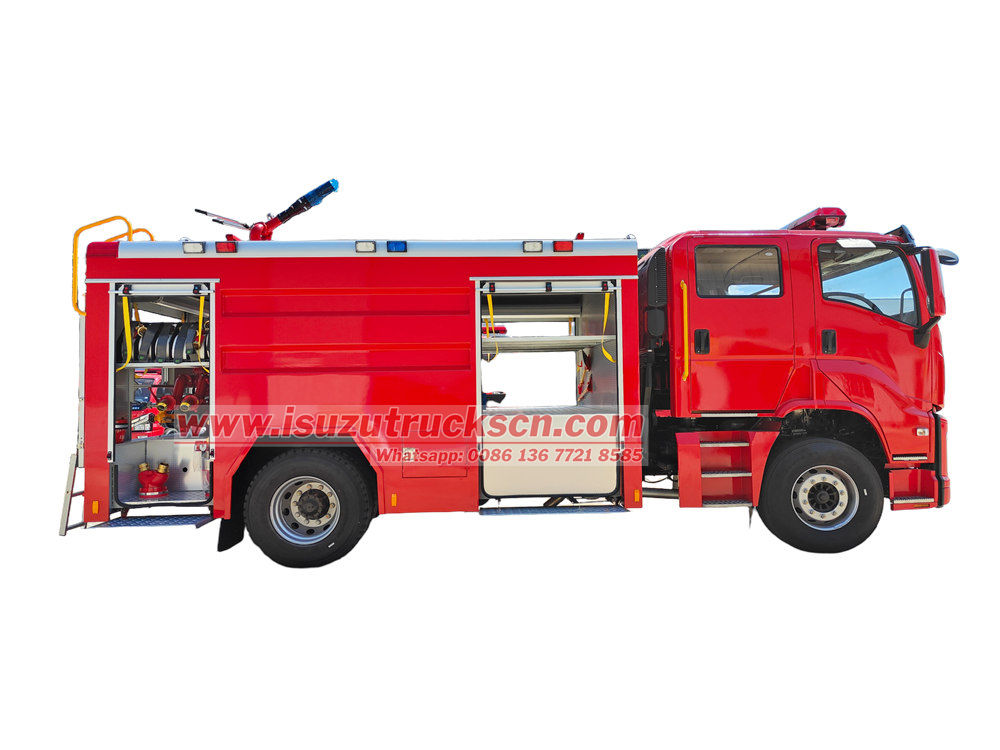

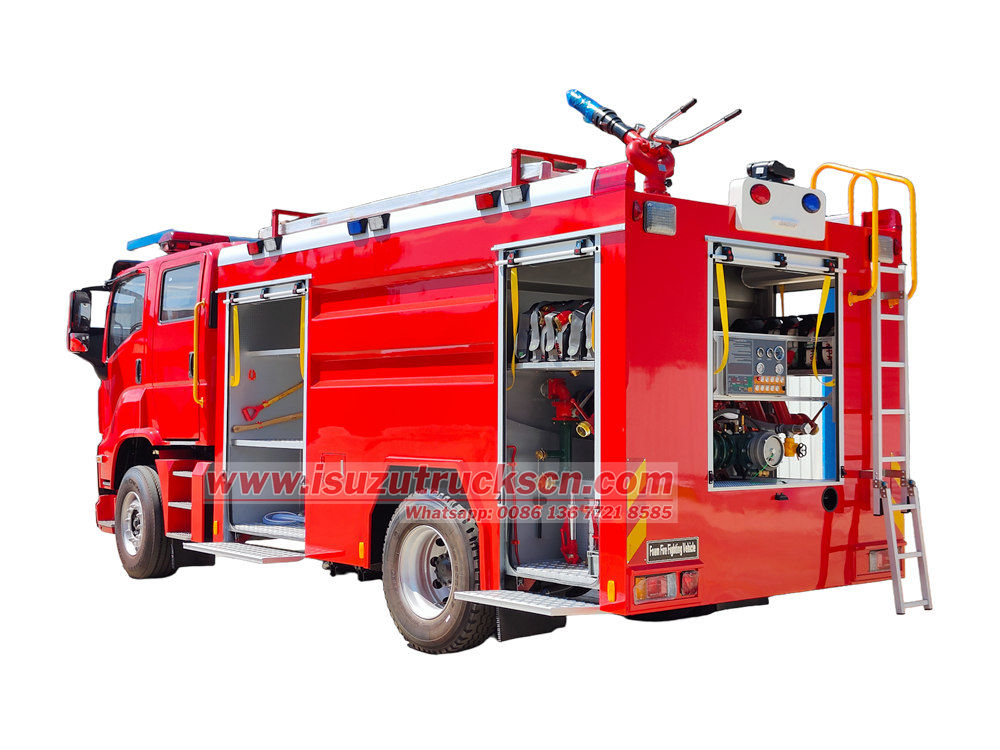

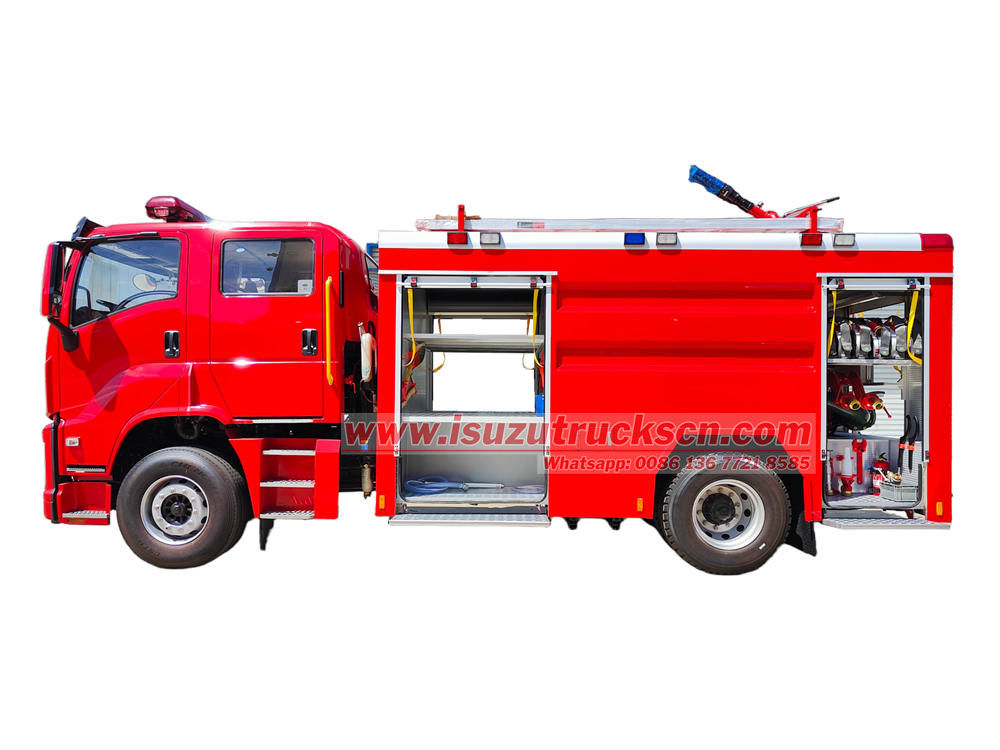

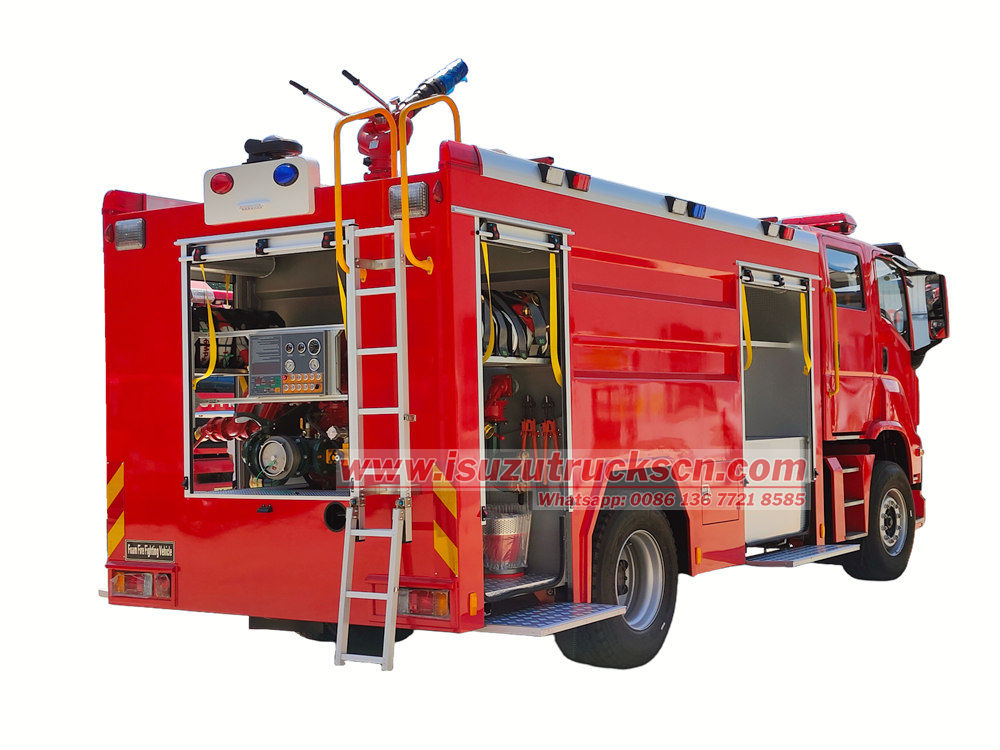

Isuzu fire fighting truck

Isuzu GIGA 8cbm water foam fire truck is a multifunctional firefighting equipment, which integrates water tank and foam fire extinguishing system, and is designed to deal with different types of fires. The vehicle is equipped with a large-capacity water tank and foam liquid tank, which can quickly spray strong water flow or foam mixture to effectively extinguish fires of oil, chemicals and general substances.

Its body is sturdy and highly maneuverable. It can quickly reach the fire scene in a complex environment, providing strong firefighting support for firefighters, and is an important tool for ensuring public safety.

Isuzu GIGA water foam fire truck also known as Isuzu fire fighting truck, Isuzu GIGA emergency fire truck, Isuzu heavy rescue fire truck, Isuzu GIGA fire department truck.

The core fire extinguishing device of the Isuzu 4x2 8cbm of water foam fire truck is its 8 cubic meters of water foam mixing system, of which 6cbm are used to store clean water and 2cbm are used to store foam fire extinguishing agents.

The body is made of high-quality materials, with a sturdy and durable structure, suitable for various harsh environments. The equipment box and pump room are equipped with a series of firefighting equipment to assist in firefighting.

Isuzu GIGA water foam fire truck adopts a 4x2 drive mode and is equipped, It adopts a spacious and comfortable double-row cab design with a 12-speed gearbox, with 4600mm wheelbase,6UZ1-TCG61 380HP engine,Euro 6 diesel 9.839L emission, which has a strong power guarantee.

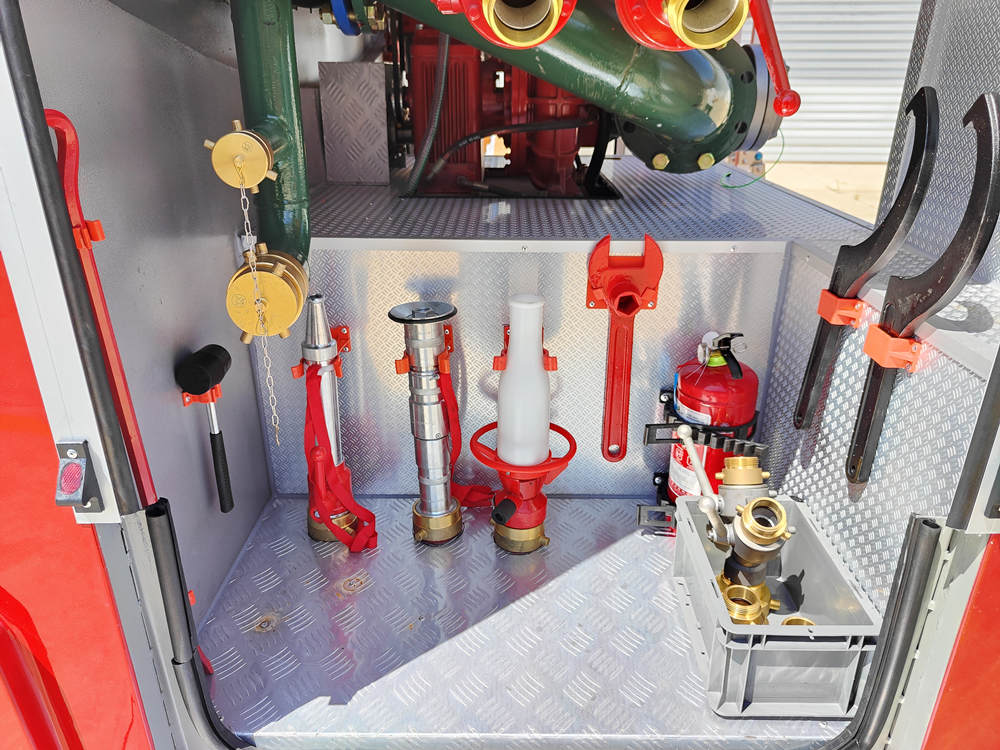

The Isuzu 4x2 water foam fire truck is also equipped with a series of firefighting equipment, including fire extinguishers, fire hoses, foam guns, water collectors, water filters, water distributors, fire hoses, fire wrenches, axes, shovels, pickaxes, fire suits, etc. These equipment are a supplement to the fire pump system and together ensure the airport's firefighting capabilities and efficiency.

1. Material of Isuzu water foam fire truck

Isuzu GIGA water foam fire truck is made of high-strength, corrosion-resistant high-quality steel to ensure that the vehicle can maintain structural integrity in an emergency and provide a safe operating platform for firefighters. The surface of the vehicle body has undergone special anti-corrosion treatment to resist the high temperature, smoke and chemical corrosion at the fire scene, extending the service life of the vehicle.

2. Fire extinguishing capability of Isuzu fire department truck

Isuzu GIGA fire department truck is equipped with 6cbm water tank and 2cbm foam, which can respond quickly and effectively to various fires. The 6cbm clean water storage is enough to meet the initial water demand of most fires, while the 2cbm foam liquid can produce a large amount of fine and long-lasting foam after mixing with water, quickly covering the fire source, isolating oxygen and achieving the purpose of fire extinguishing.

Whether it is oil fire, chemical fire or general material fire, Isuzu fire department truck can quickly control the fire and reduce losses with its powerful fire extinguishing capability.

3. Core components of Isuzu foam fire truck

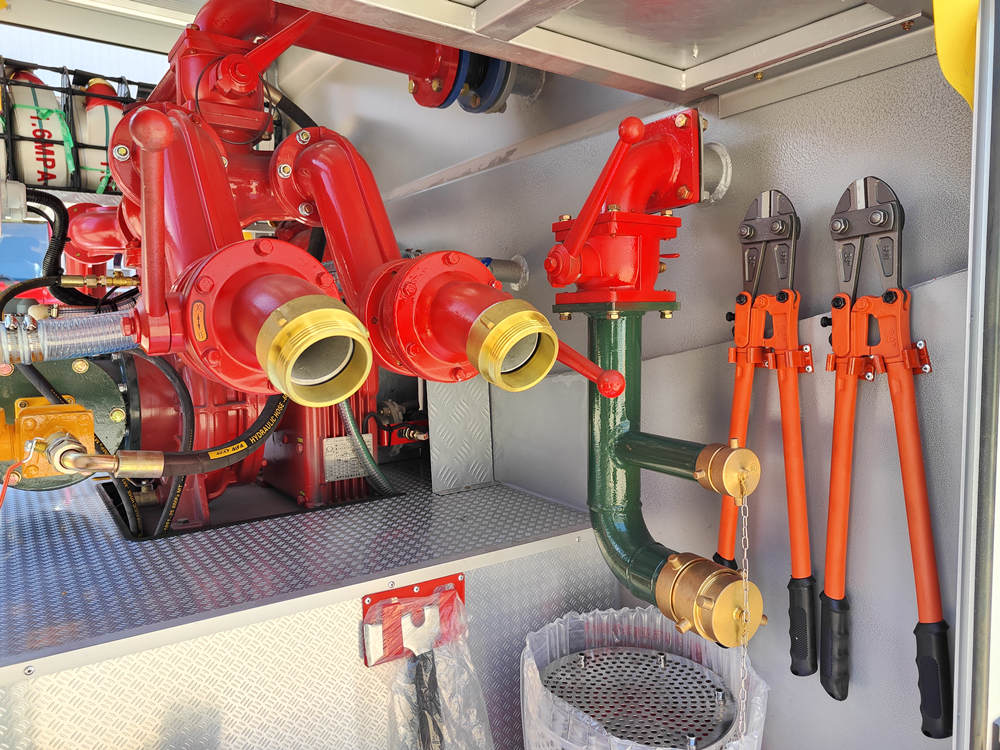

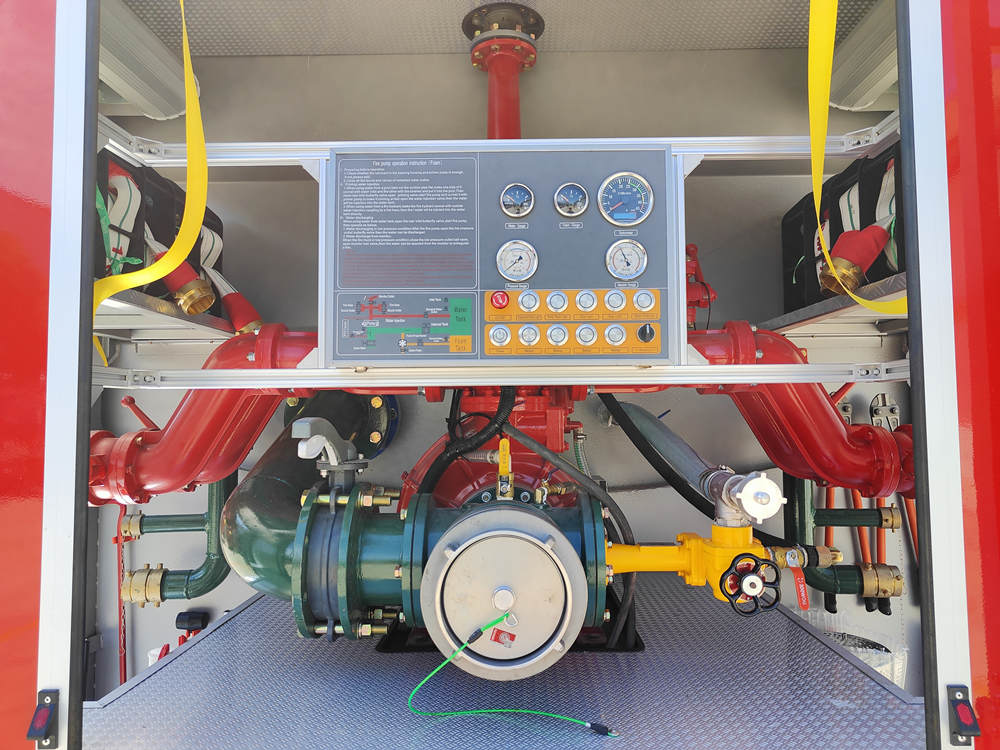

● CB10/60 fire pump: With the characteristics of large flow and high head, it can deliver a large amount of water to the fire scene in a short time, providing sufficient water source guarantee for fire fighting operations.

● PL8/48 fire monitor: With its precise spray angle and powerful spray force, it can accurately spray water or foam mixture to the fire source and quickly control the fire. The perfect combination of the two makes the water tank foam fire truck more efficient and flexible in the fire fighting process.

4. Wide range of application scenarios

The Isuzu GIGA 8cbm water foam fire truck has a wide range of application scenarios, from high-rise buildings in cities to remote rural fields, from bustling commercial districts to busy industrial parks.

➤ In high-rise building fires, the Isuzu GIGA water foam fire truck can use its high-pressure water gun and foam cannon to quickly extinguish the fire source at high altitudes;

➤ In chemical enterprise fires, it can effectively isolate the fire source from flammable and explosive materials through precise foam spraying to prevent the spread of fire;

➤ In forest fires, it can use its powerful water pump and long-distance water hose to transport water to the depths of the fire scene, providing strong support for firefighting operations.
