Isuzu fire fighting truck

1. High-strength material, strong and durable

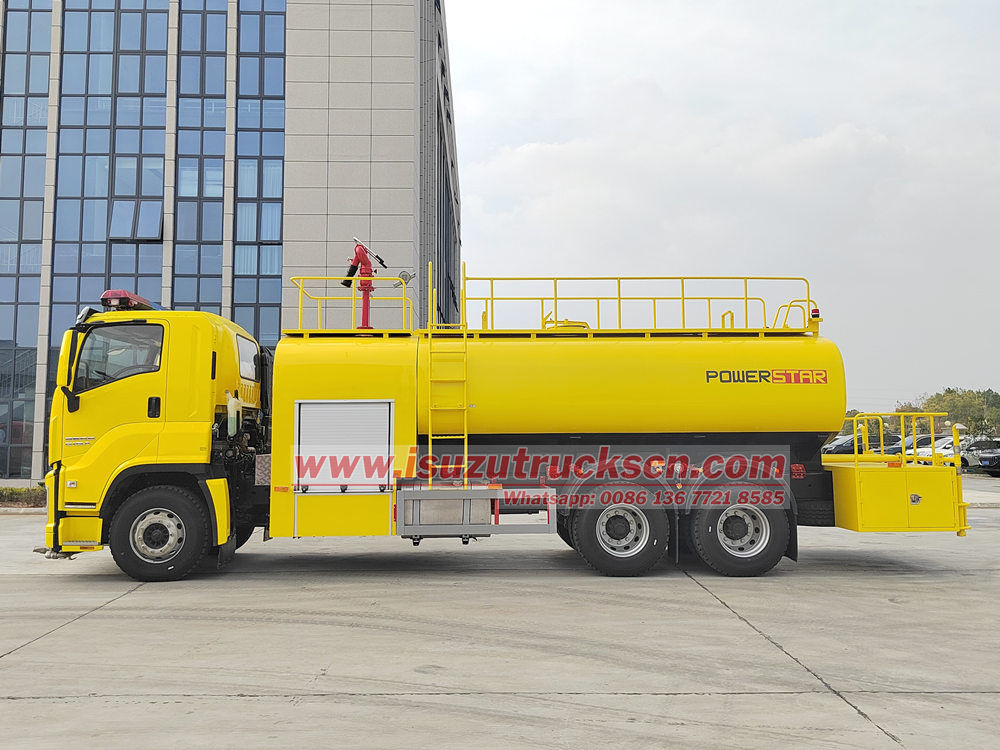

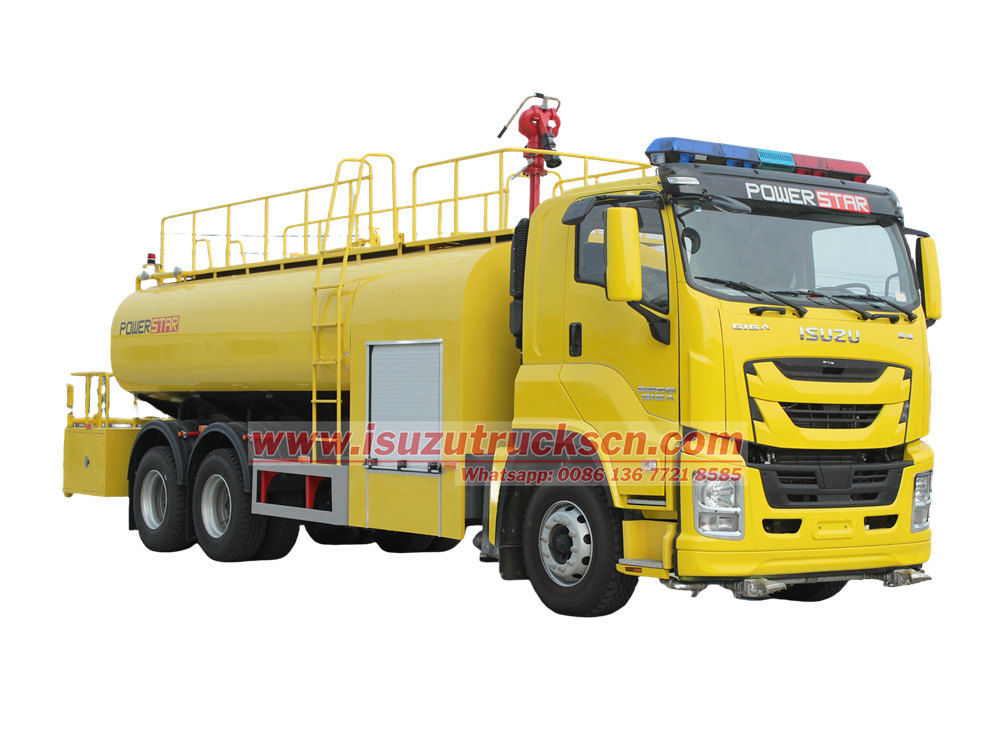

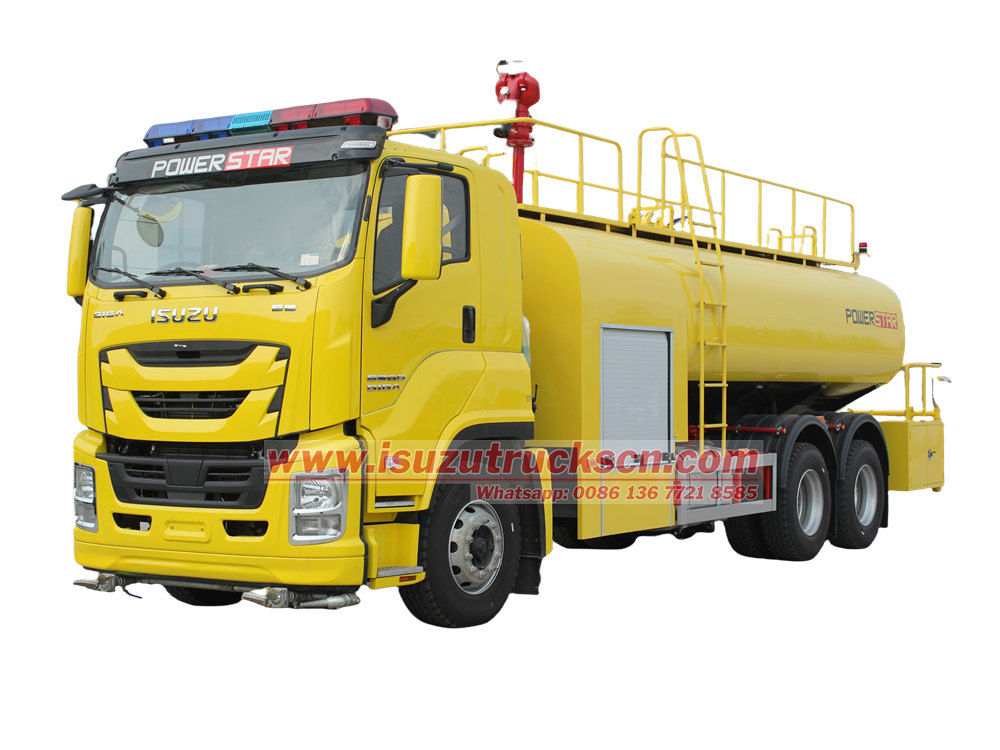

Isuzu GIGA 6x4 road sprinkler fire truck adopts high-strength carbon steel welded tank body, and the interior is treated with anti-corrosion to ensure long-term use without rust and leakage. Key components are made of 304 stainless steel, which is resistant to high temperature and corrosion and can adapt to various harsh environments. The chassis is built on the basis of Isuzu heavy-duty trucks, equipped with reinforced suspension and high-power engine to ensure the stability and maneuverability of the vehicle under complex road conditions.

2. PS8/50W fire cannon: the core weapon for long-distance precision firefighting

♦ Ultra-long range and wide coverage: Under standard working pressure, the water column range can reach more than 70 meters, which can effectively cover high-rise buildings or large-area fires, providing a safe distance for firefighters.

♦ Rapid suppression with large flow: The rated flow reaches 50L/s, and with a large-capacity water tank of 14,000L, it can quickly form a firefighting advantage in the early stage of a fire and effectively control the spread of the fire.

♦ Strong adaptability of dual-mode firefighting: It provides two spray modes, direct current and spray. The direct current mode has strong impact and is suitable for long-distance precision firefighting; the spray mode can form a water mist curtain wall, which effectively cools down and blocks heat radiation to protect the safety of rescuers.

3. Powerful fire extinguishing function system

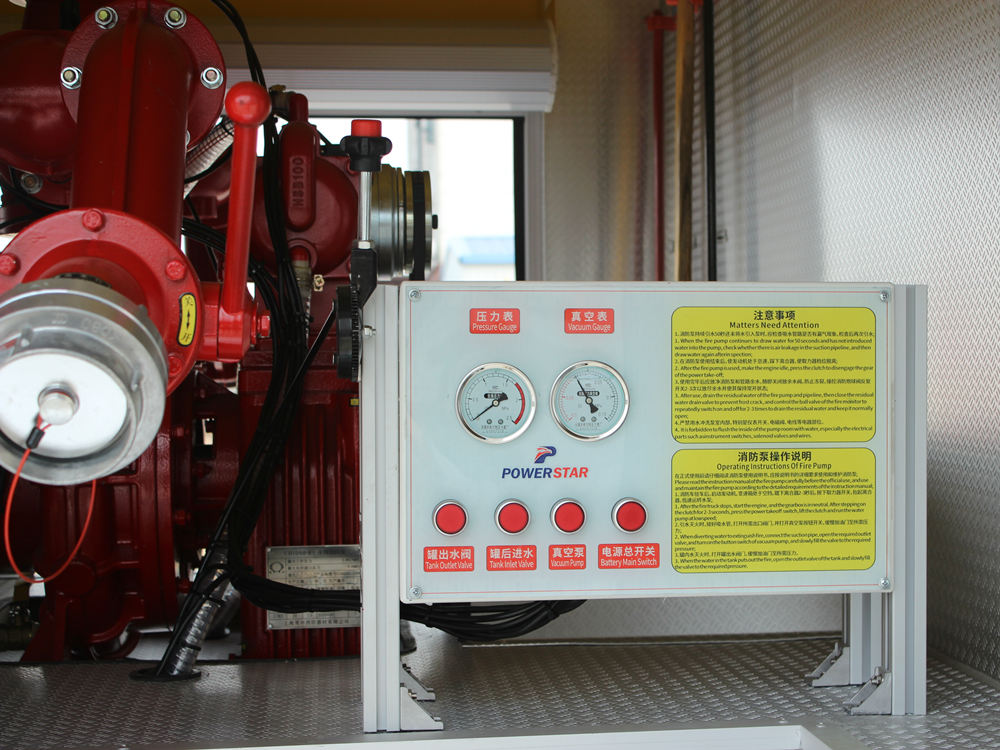

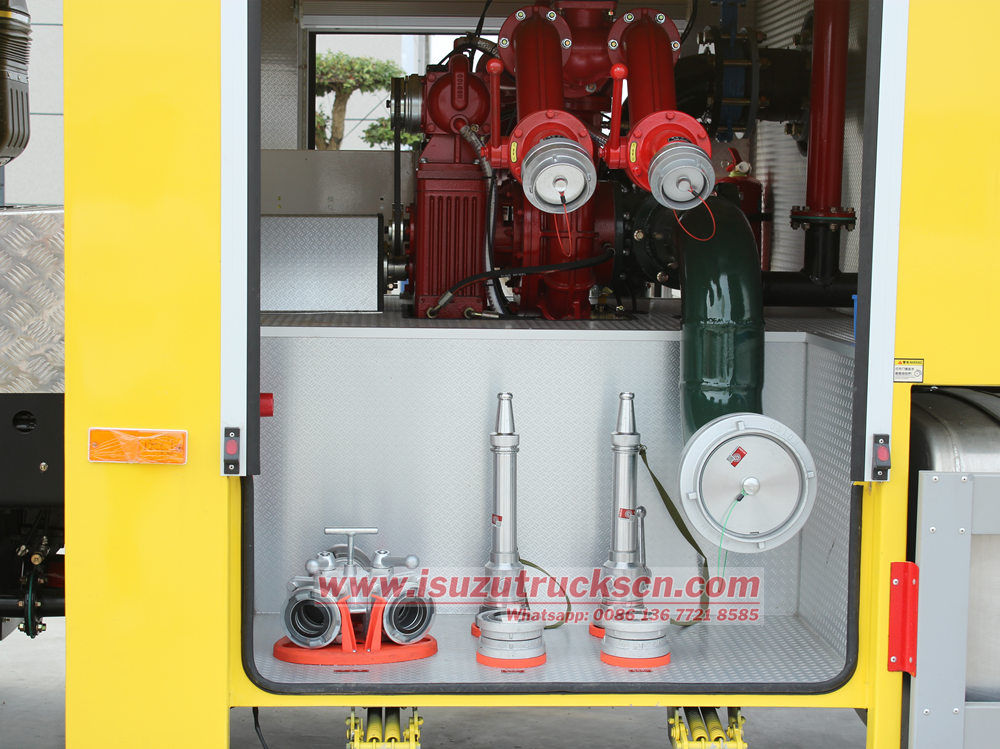

● Efficient water pump system: equipped with CB10/60 fire pump, rated flow rate 60L/s, maximum suction depth up to 7 meters, ensuring that the water supply system can be quickly established under various water source conditions. The water pump adopts a two-stage centrifugal design, which can provide stable high-pressure water flow at low speed.

● Foam fire extinguishing ability: optional foam proportion mixing system, the mixing ratio can be adjusted between 3%-6%, especially suitable for Class B fires such as oils and chemicals, and the fire extinguishing efficiency is more than 3 times higher than that of pure water.

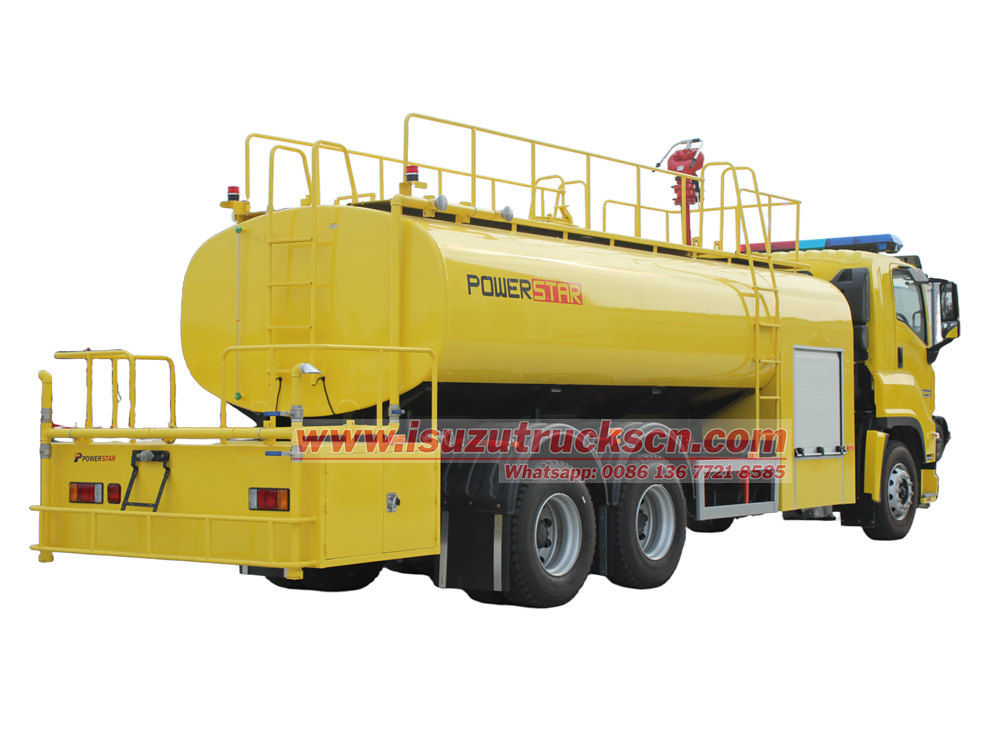

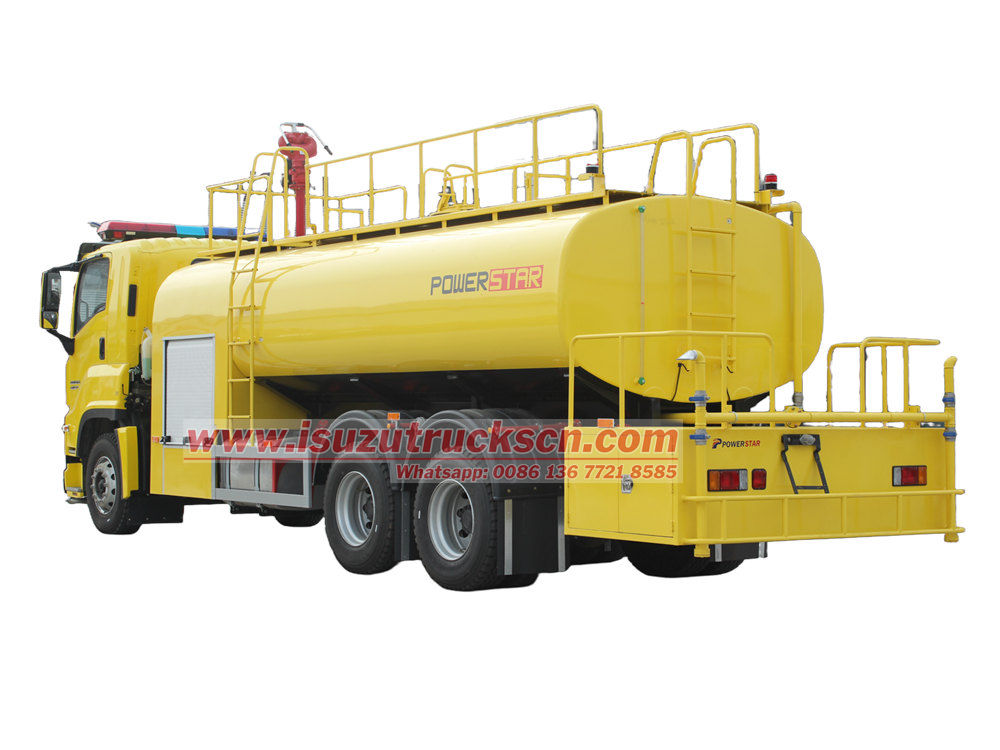

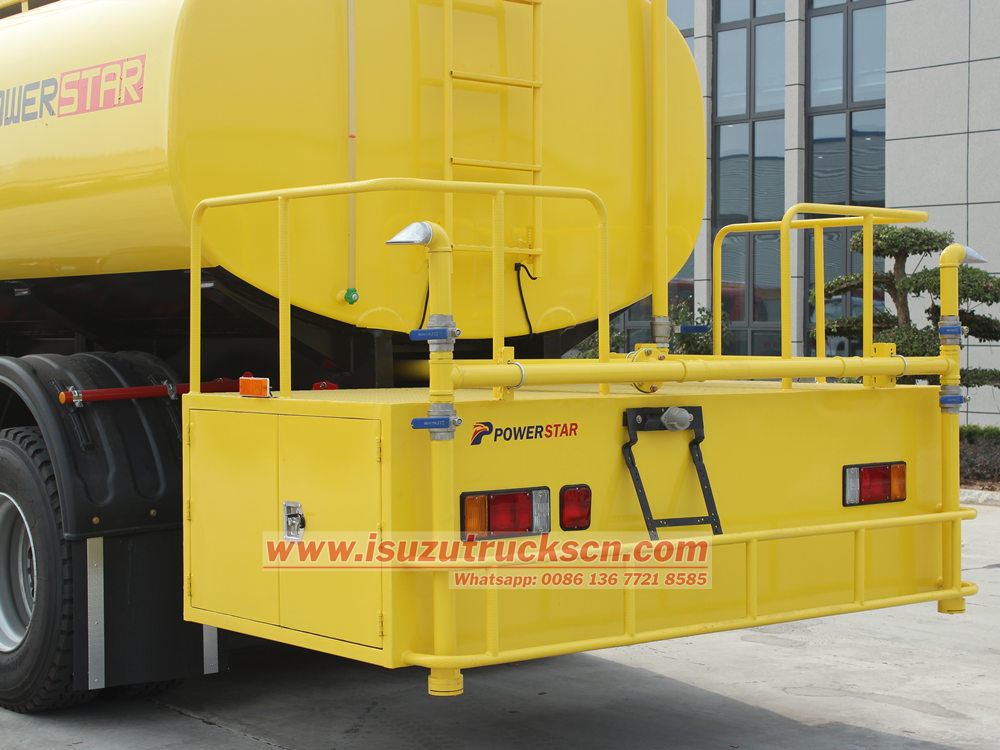

● Multi-function water outlet configuration: In addition to the main fire cannon, the side spray rod system is equipped on both sides of the vehicle, which can form a wide water curtain for isolating the fire; an emergency water outlet is set at the rear of the vehicle, which can quickly connect the fire hose to meet the needs of multi-point operations.

4. Wide range of application scenarios

➤ Urban fire fighting: Isuzu GIGA road sprinkler fire truck is the core equipment of urban fire rescue. It is equipped with a high-pressure water pump and a large-capacity water tank, which can quickly respond to various types of fires. Its long-range spraying function is particularly suitable for high-rise building fire fighting, providing firefighters with a safe operating distance.

➤ Municipal sanitation operations: In daily municipal services, Isuzu road sprinkler fire truck can be converted into a multi-functional cleaning vehicle. It is used for road watering and dust reduction, green belt irrigation, urban furniture cleaning and other operations. Spray dust reduction can be carried out in haze weather, and road cooling can be implemented in summer, which significantly improves the quality of urban environment.

➤ Forest fire prevention and control: The large-capacity water tank and high passability design make it a powerful tool for early forest fire fighting. Fire isolation belts can be quickly established, and water can be continuously drawn from natural water sources to extend the combat time.
