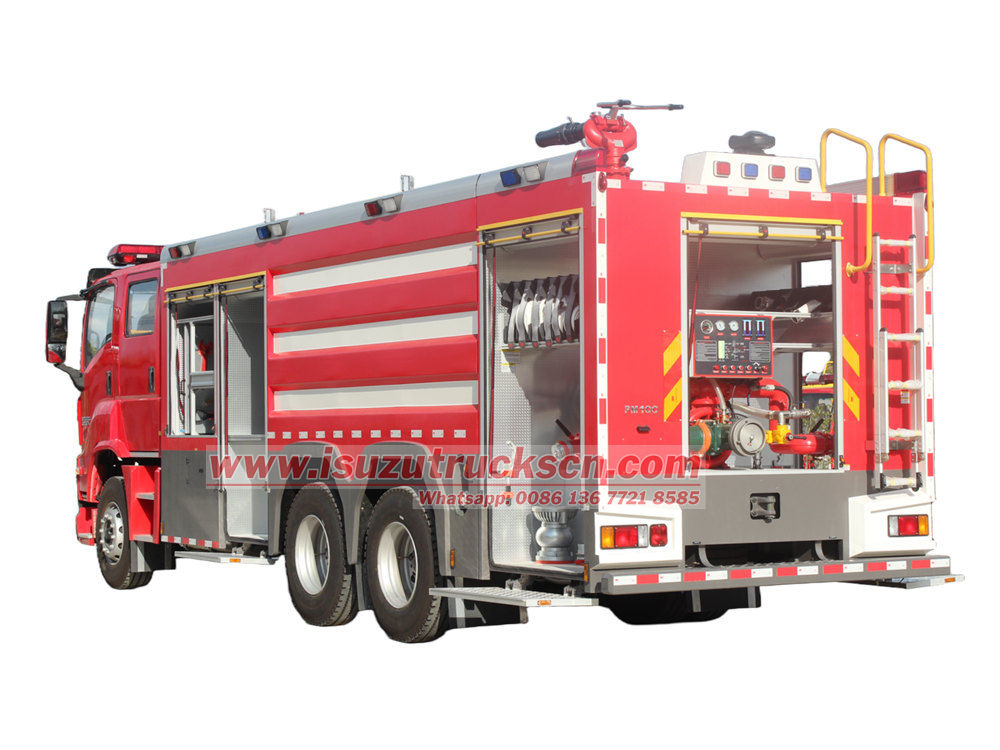

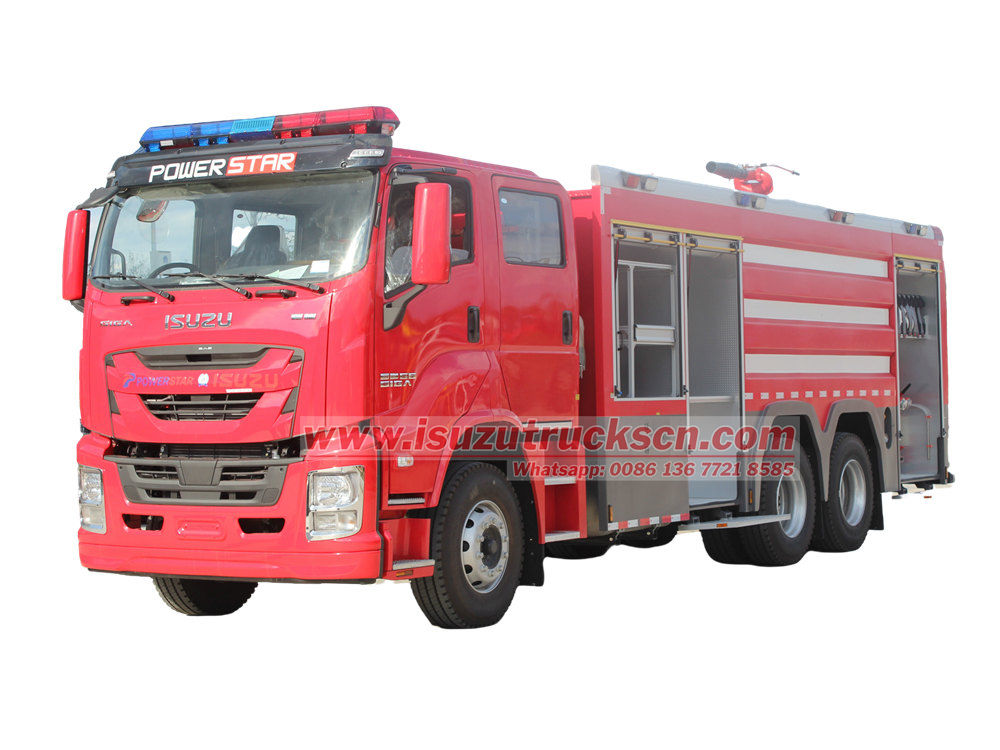

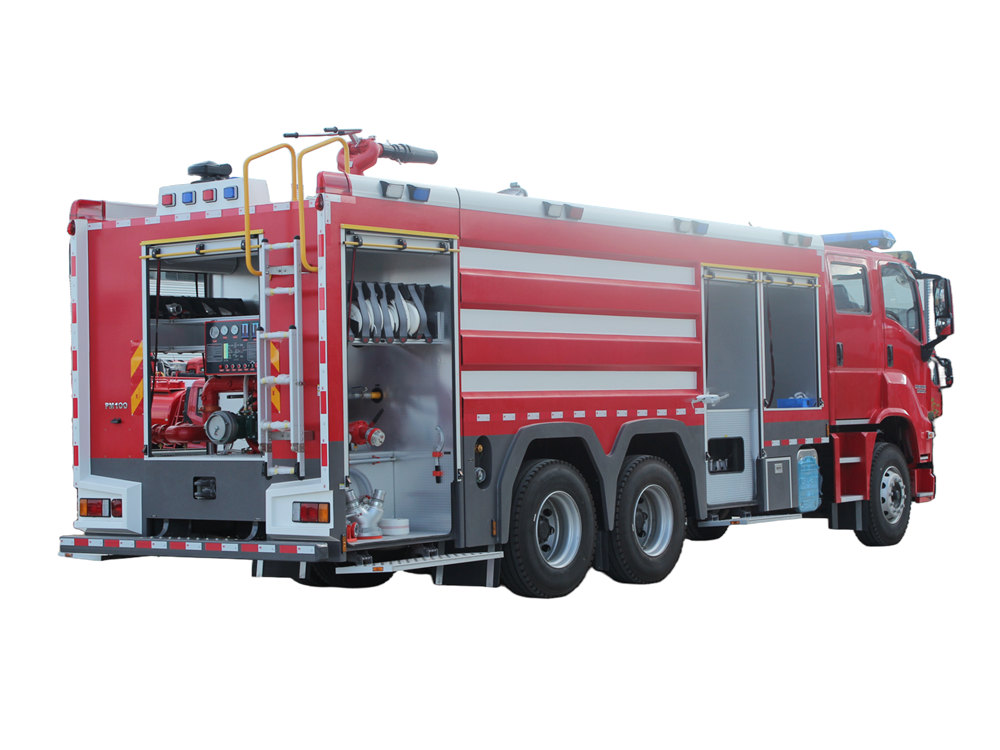

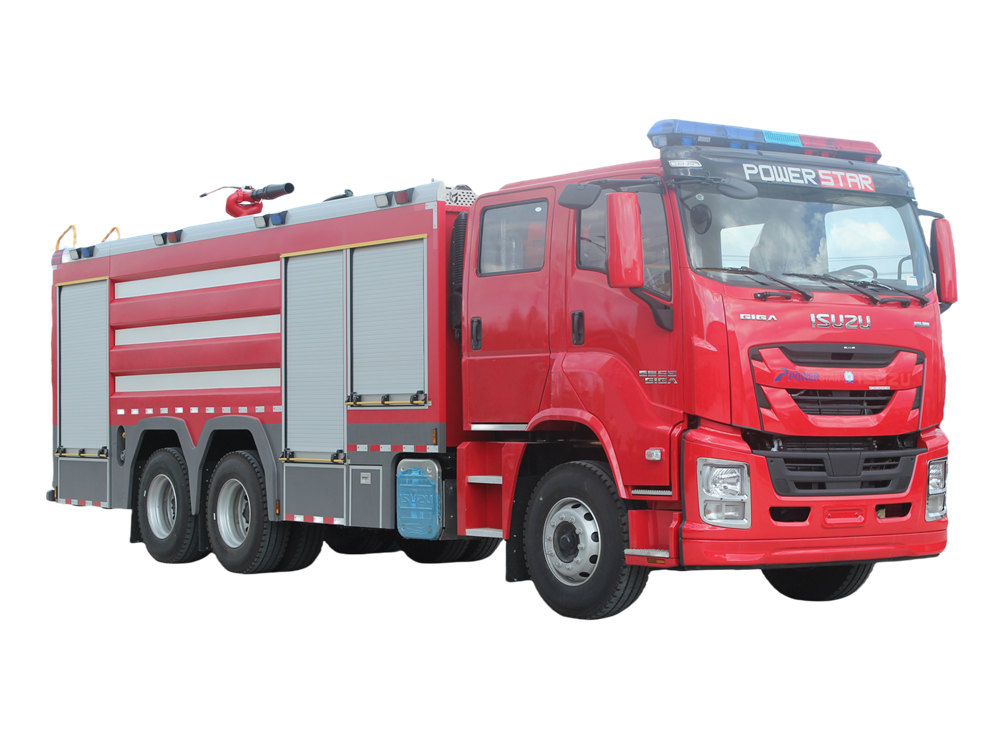

Isuzu 10wheels GIGA 10cbm foam fire fighting truck is a multi-purpose firefighting vehicle with both water and foam firefighting functions, integrating the dual advantages of water tank firefighting and foam firefighting. Its core structure includes a large-capacity water tank, an independent foam liquid tank and an intelligent proportion mixing system, which can flexibly switch between pure water and foam firefighting modes according to the fire situation.

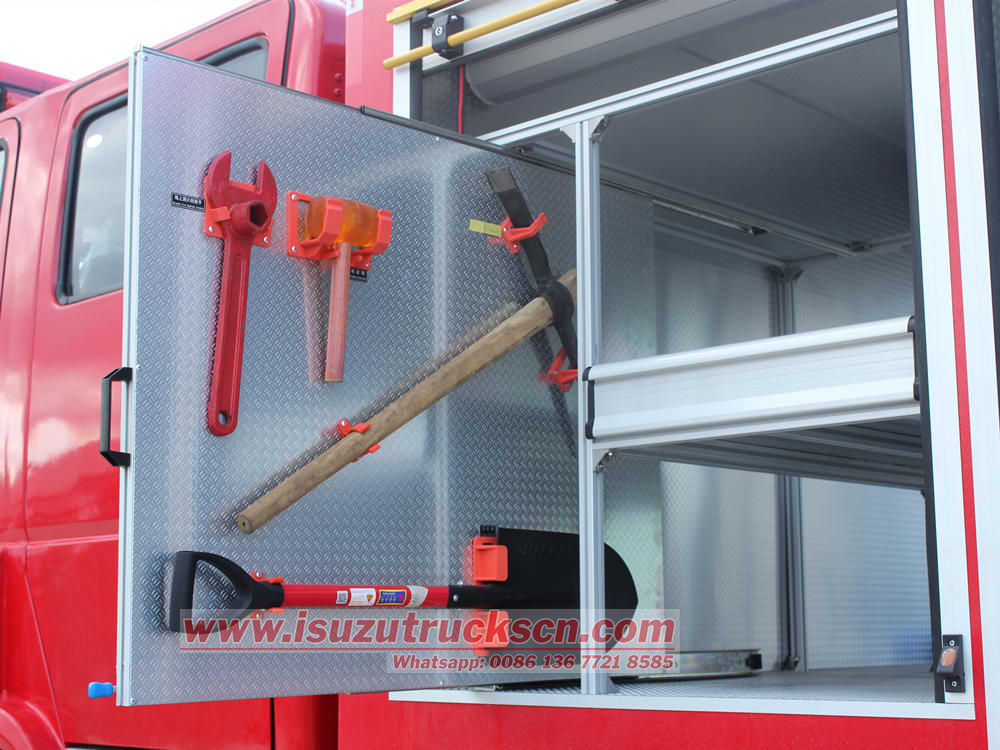

The body of Isuzu GIGA foam fire fighting truck is made of high-strength steel, equipped with a high-power water pump, a multi-functional fire cannon and an equipment compartment. It can not only spray direct current/spray water columns to extinguish ordinary fires, but also generate air foam through a foam mixing device to cover liquid fire sources such as oils and chemicals. There are flashing lights and sirens on the top of the cab.
Isuzu Heavy duty water foam fire truck also known as Isuzu fire fighting truck, Isuzu foam water fire truck, Isuzu heavy rescue fire truck, Isuzu foam powder fire truck, is an impressive firefighting weapon that combines advanced technology with powerful performance.
This model is widely used in urban fire fighting, industrial parks and highway rescue, demonstrating rapid response and tactical flexibility in mixed fire scenarios, significantly improving fire extinguishing efficiency and reducing water consumption.

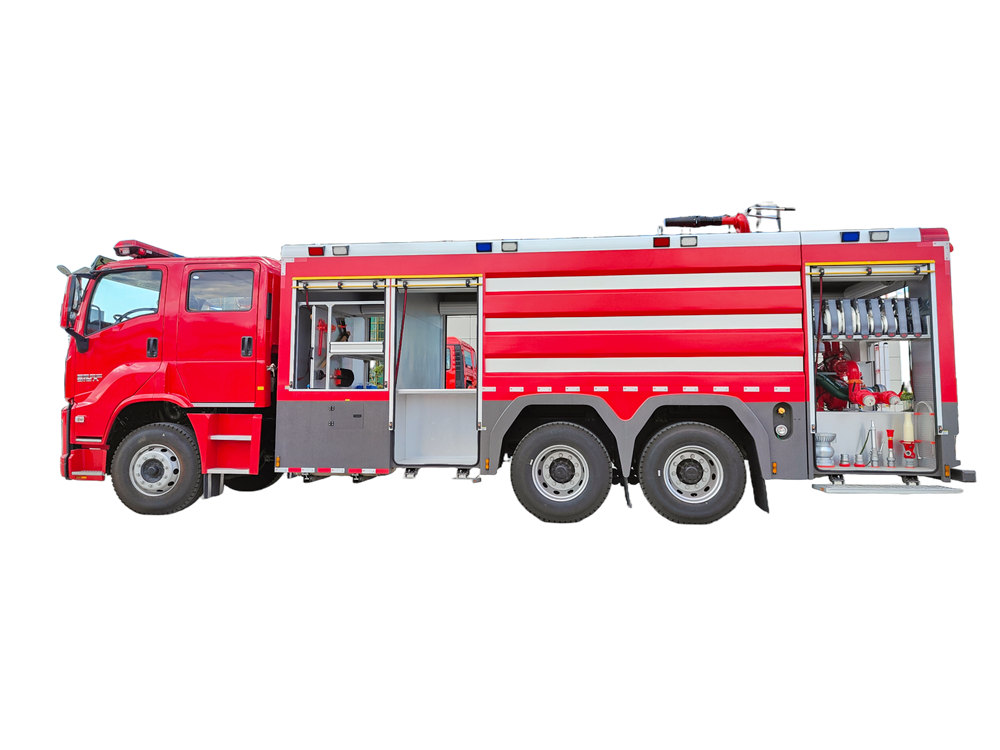

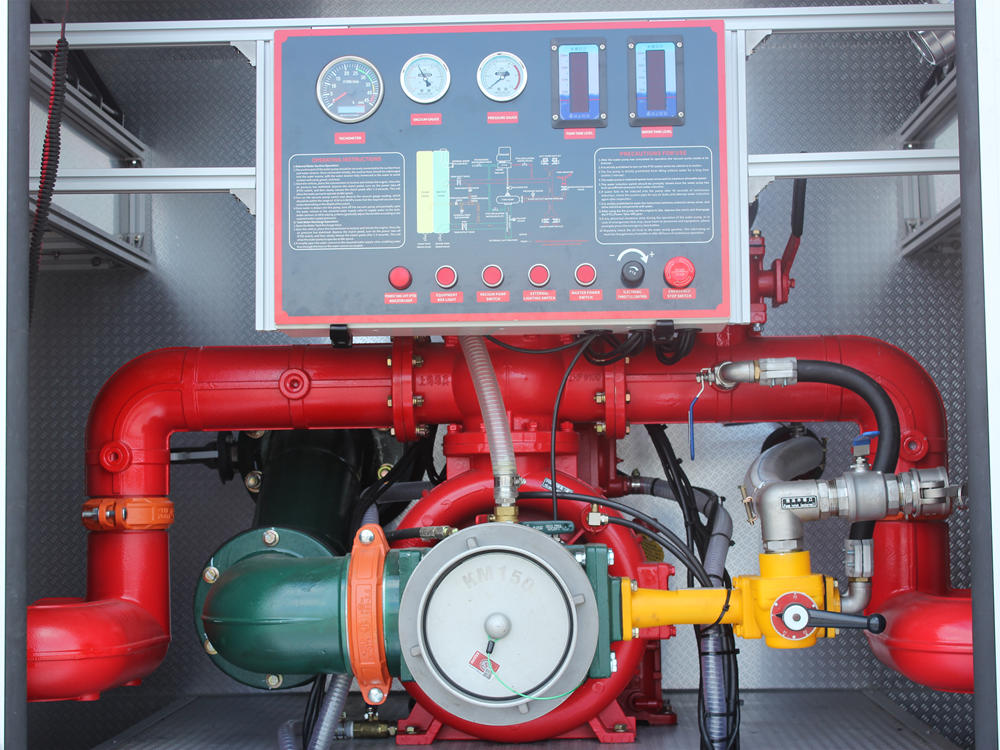

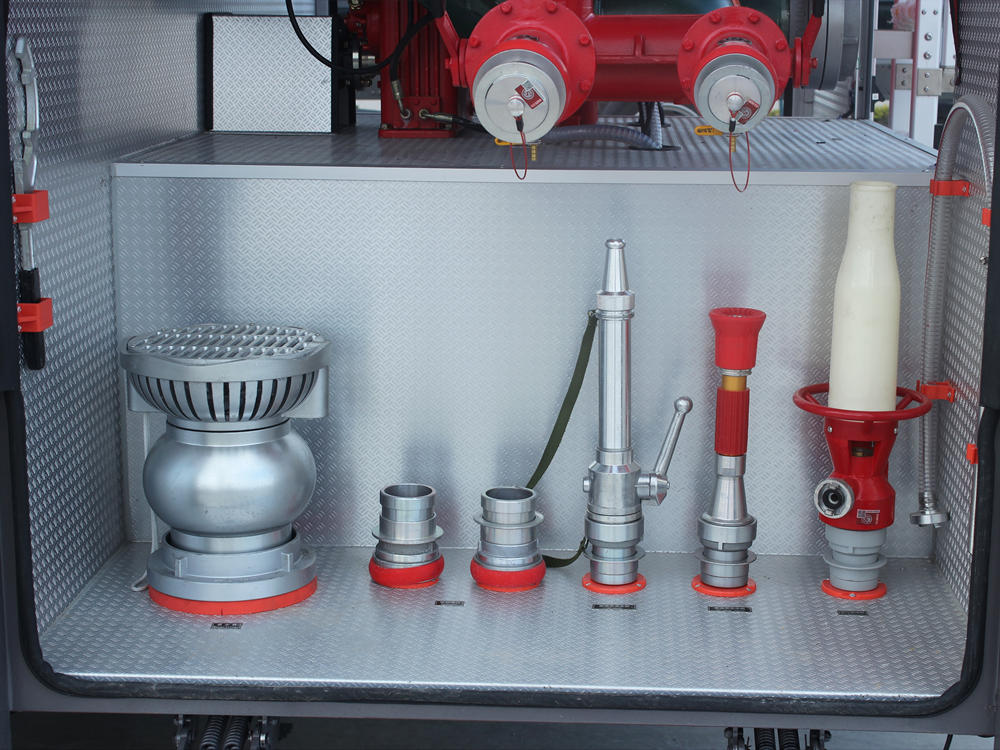

Isuzu GIGA foam fire fighting truck adopts Isuzu VC61 6x4 chassis, equipped with 4600+1370mm wheelbase, 6UZ1-TCG61 380HP engine, Fast 12-speed gearbox, and the upper is equipped with an 8-cubic carbon steel water tank and a 2-cubic stainless steel foam tank. It uses CB10/60 fire pump and PL8/48 water-foam dual-purpose fire monitor. The control panel at the rear of the vehicle can monitor the pressure gauge, tachometer, vacuum gauge, water level gauge, foam level gauge, etc. in real time. The vehicle is also equipped with a series of firefighting equipment for firefighting support.
|
Isuzu GIGA 10cbm foam fire fighting truck |
|||
|
Main specification |
Truck brand |
POWERSTAR |
|
|
Overall dimension(LxWxH) |
10000x2540x3640mm |
||
|
Cabin |
Isuzu VC61 cab, one and half row, with air conditioner, electronic windows |
||
|
GVW/Curb weight |
25000/10200kg |
||
|
Chassis |
Drive model |
6X4,left hand drive |
|
|
Wheel Base |
4600+1370mm |
||
|
Tyre size & number |
315/80R22.5,10+1wheel |
||
|
Transmission |
FAST gearbox, manual, 12 gears forwards with 2 reverse |
||
|
Engine |
Engine model |
Isuzu 6UZ1-TCG61 |
|
|
Horse power |
380HP/279Kw |
||
|
Displacement |
9839ml |
||
|
Max torque |
1800N.m |
||
|
Emission |
EURO 6 |
||
|
WATER TANK AND FOAM TANK SPECIFICATION |
|||
|
Tank |
Capacity |
8000L water tank and 2000L foam tank |
|
|
Material |
Water tank carbon steel,foam tank stainless steel |
||
|
Fire pump |
Model |
CB10/60 |
|
|
Pressure |
1MPa |
||
|
Max working pressure |
1.232MPa |
||
|
Flux |
60L/s |
||
|
Max suction height |
7m |
||
|
Rated speed |
3286±50r/min |
||
|
Speed Ratio |
1:1.44 |
||
|
Fire monitor |
Model |
PL8/48 |
|
|
Flow |
48L/s |
||
|
Rated working pressure |
0.8MPa |
||
|
Max working pressure |
1.0MPa |
||
|
Range |
Water |
≥70m |
|
|
Foam |
≥60 |
||
1.Isuzu GIGA foam fire fighting truck has powerful fire-fighting capability
► Water fire-fighting capability：Isuzu fire fighting truck has powerful high-pressure water jetting capability, which is suitable for extinguishing Class A fires in buildings, forests, ordinary warehouses, etc. Its CB10/60 fire pump can provide a large flow of 60L/s of water supply. With the PL8/48 fire monitor, the water column range can reach more than 70 meters, which can suppress the fire at a long distance. In addition, the fire monitor supports DC/spray mode switching. The spray mode can be used to cool down, disperse smoke, and improve rescue safety.
► Foam fire-fighting capability：For Class B fires such as oil and chemicals, Isuzu fire fighting truck is equipped with a 2 cubic meter stainless steel foam tank, which can store Class A or Class B foam liquid. The foam mixing system can accurately adjust the mixing ratio of 3%~6%, and spray through the fire monitor or foam gun to form a dense foam layer, quickly cover the burning surface, isolate oxygen, inhibit volatilization, and effectively prevent re-ignition.
2. Core configuration
● 8cbm carbon steel water tank: Made of high-strength carbon steel, anti-corrosion treatment, ensures long-term water storage safety and meets continuous fire extinguishing needs.
● 2cbm stainless steel foam tank: Made of 304 stainless steel, highly corrosion-resistant, can store Class A/B foam liquid, suitable for different fire types. The foam ratio mixing system can accurately adjust the mixing ratio (3%~6%) to ensure efficient fire extinguishing.
3. Key equipment
● CB10/60 fire pump: compact structure, stable operation, supports single pump dual water discharge or dual pumps, suitable for complex fire fighting environment.
● PL8/48 fire monitor: can rotate 360° horizontally, -30°~+70° in elevation, supports multiple spray modes of DC/spray/foam, flexible operation, suitable for different scenarios such as high-rise buildings and oil tank areas.
4. Application scenarios
➤ Petrochemical enterprises: Fight Class B fires such as oil tank and pipeline leaks.
➤ Airports and highways: Fight against emergencies such as fuel leaks and vehicle fires.
➤ Urban firefighting: Fight against both ordinary building fires (Class A) and chemical fires (Class B).
➤ Forests and warehouses: Foam covering can prevent re-ignition and improve firefighting efficiency.
