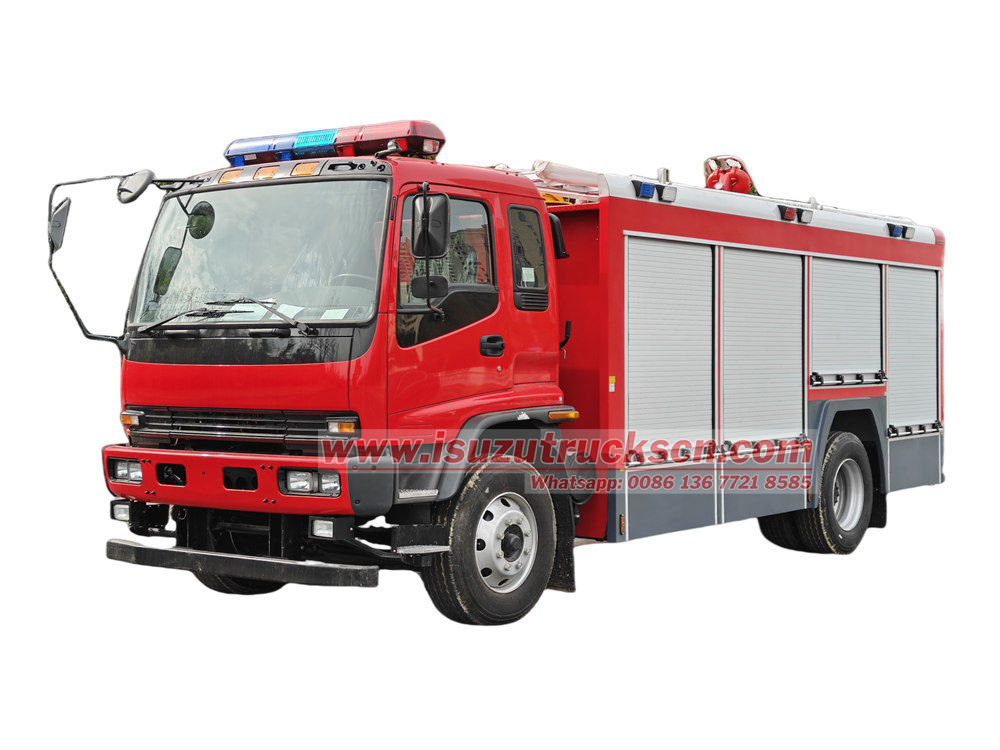

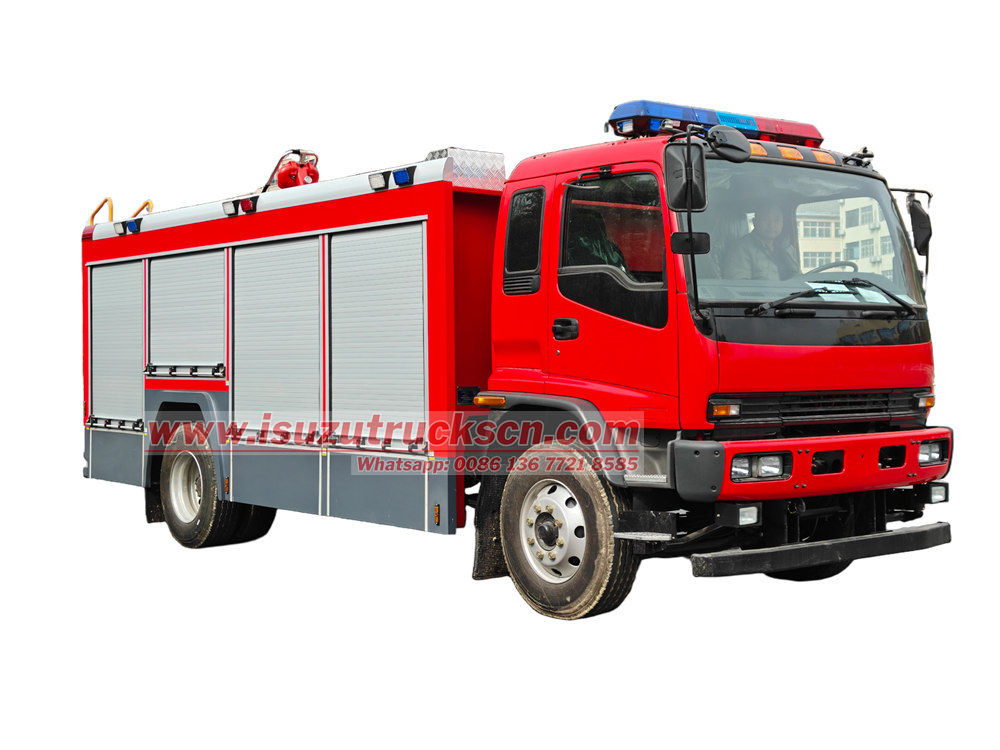

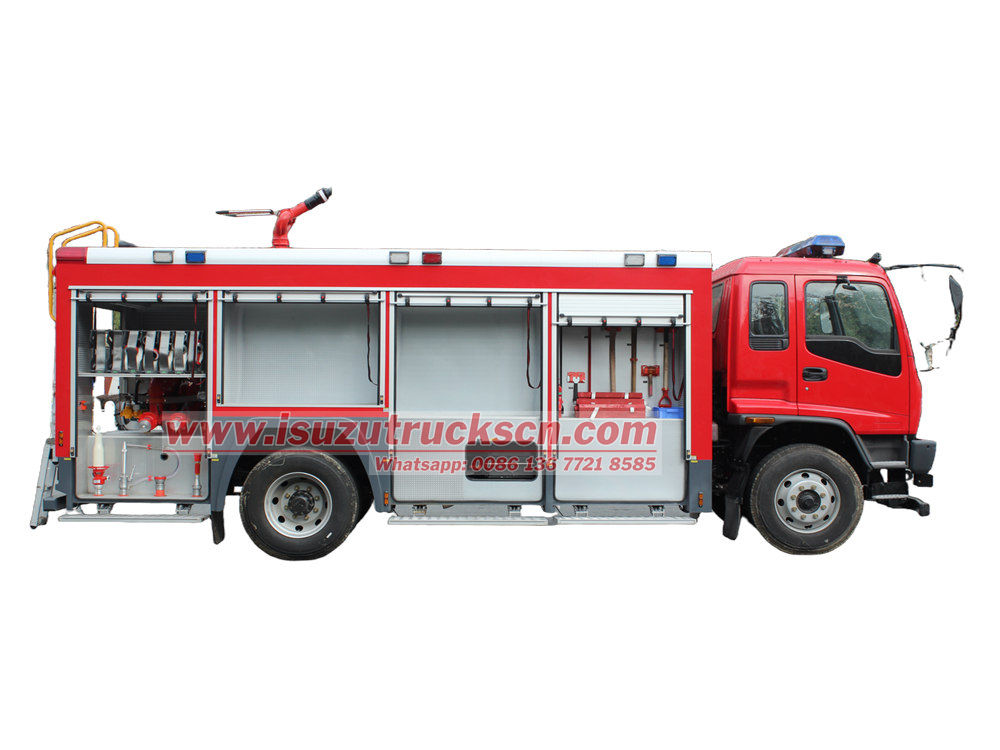

Isuzu FVR 6cbm foam pumper fire truck is a multifunctional firefighting equipment that combines water tank firefighting and foam firefighting. Its main uses include quickly reaching the fire scene, spraying high-pressure water or fire extinguishing agent to extinguish the fire, and rescuing trapped people.

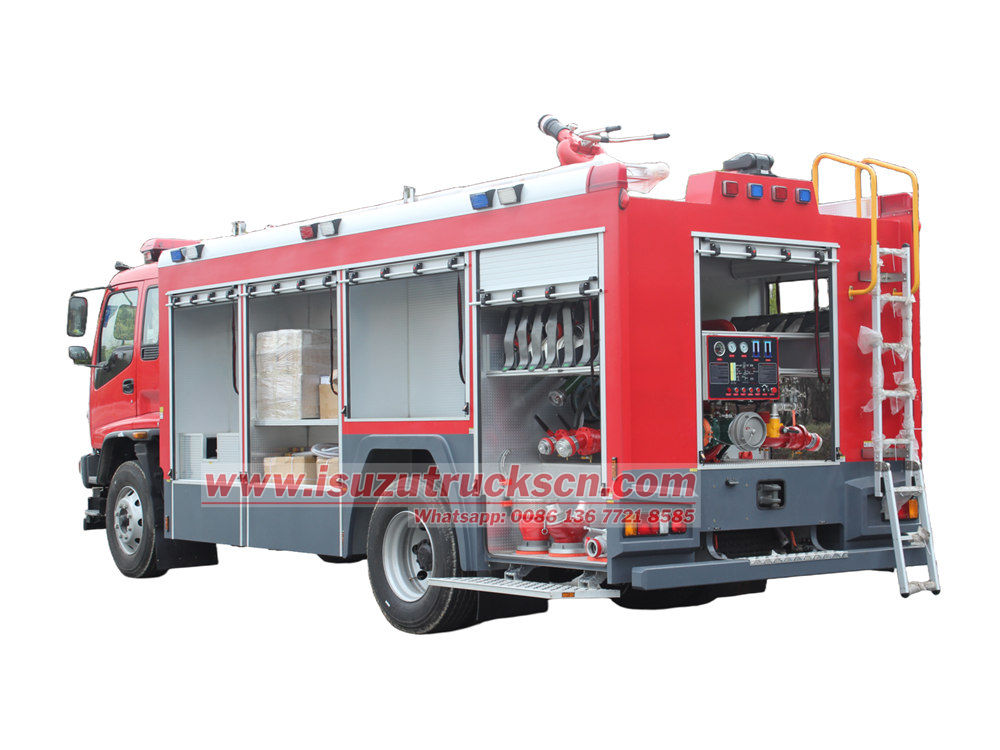

The body adopts high-strength steel structure and eye-catching red paint, equipped with a high-power fire pump, and equipped with an external water suction pipe port for rapid water replenishment. The top is equipped with a warning light and a loudspeaker, and a large water tank and foam liquid storage tank are set behind the cab.
Isuzu FVR foam pumper fire truck, also known as Isuzu fire fighting truck, Isuzu dry powder fire truck, Isuzu heavy rescue fire truck, Isuzu resuce fire truck, is an impressive firefighting weapon that combines advanced technology with powerful performance.

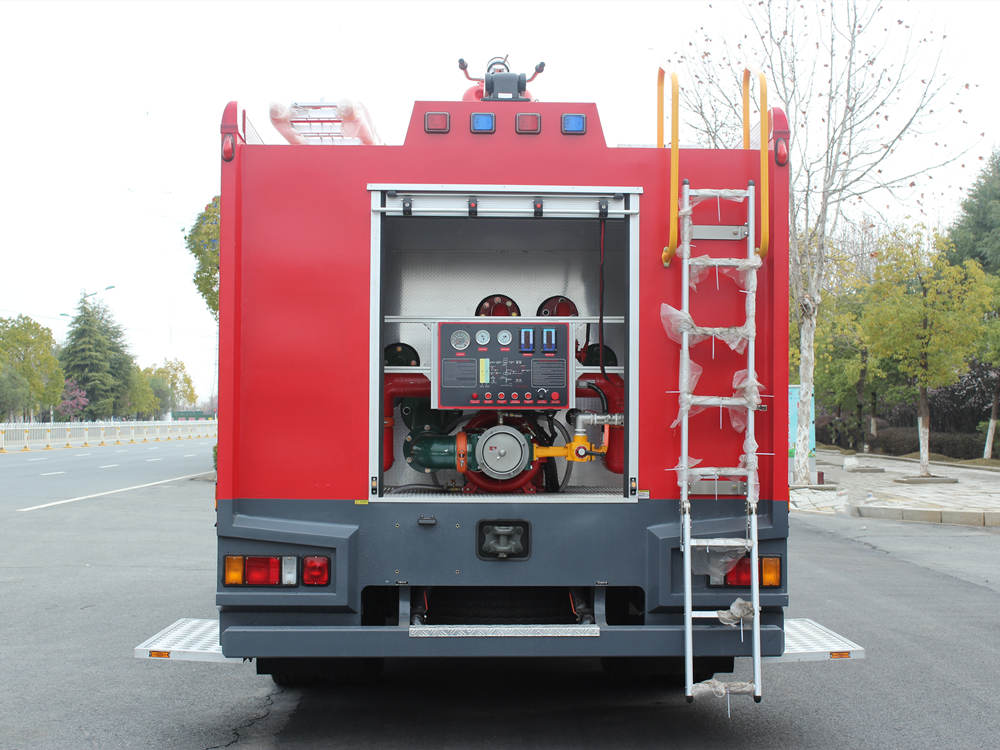

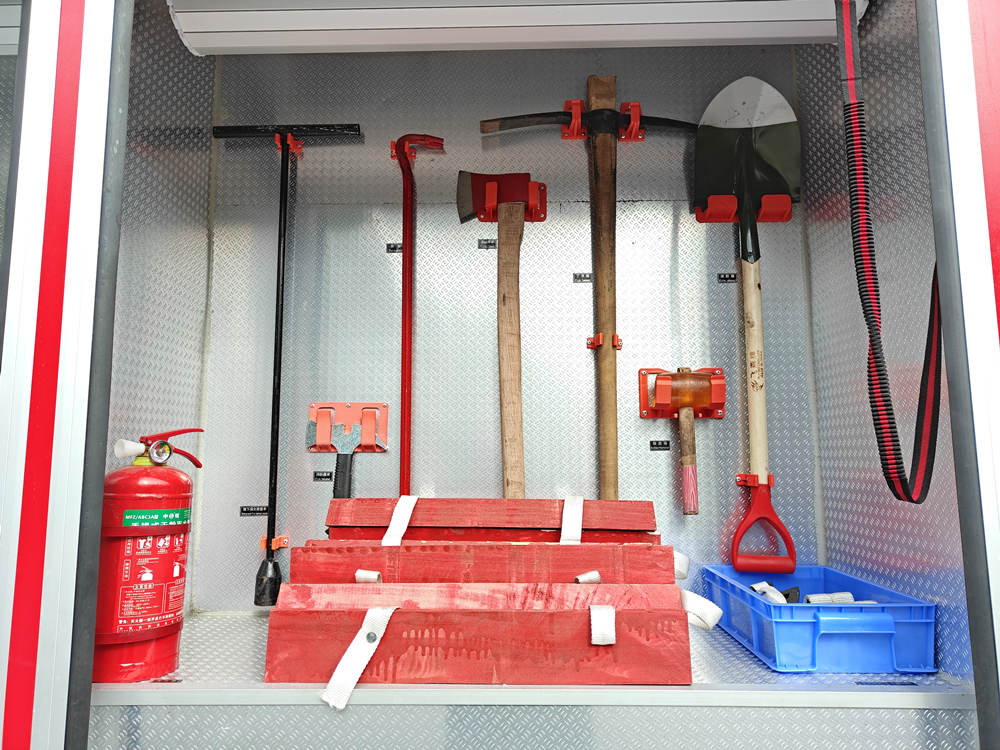

Isuzu FVR 6cbm foam pumper fire truck has a wheelbase of 4500mm, 6HK1-TCL 240HP engine, Fast 8-speed gearbox, 5 cubic water tanks, 1 cubic foam tank, equipped with CB10/60 fire pump, PL8/48 fire cannon, high fire extinguishing efficiency, long range and wide coverage. The body is made of high-quality materials, with a sturdy and durable structure, suitable for various harsh environments. The equipment box and pump room are equipped with a series of firefighting equipment to assist in firefighting.
|
Isuzu FVR 4x2 6cbm foam water fire truck |
||
|
General Specifications |
||
|
Overall size |
8095x2540x3460mm |
|
|
GVW |
18000kg |
|
|
Curb weight |
9200kg |
|
|
Truck Chassis Specifications |
||
|
Chassis brand |
Isuzu |
|
|
Cab |
Isuzu FVR 4x2 double row,left hand drive,with A/C,USB,direction assistance |
|
|
Wheelbase |
4500mm |
|
|
Axle loading |
6500/11500kg |
|
|
Engine |
Type |
Inline 6 cylinders, 4 stroke, turbocharged, intercooled, water cooled,diesle |
|
Model |
Isuzu 6HK1-TCL |
|
|
Horsepower |
240HP/176KW |
|
|
Displacement |
7790ml |
|
|
Emission standard |
Euro 5 |
|
|
Gearbox |
Fast 8 speed,manual |
|
|
Tire |
295/80R22.5,6+1 tires |
|
|
Water tank |
||
|
Material |
Water tank adopt high quality carbon steel Q235A |
|
|
Capacity |
Water 5000L |
|
|
Main devices
|
2 pcs DN 500mm inlet hole / 1 suction hole at the rear of pump room |
|
|
1 overflow valve device / 2 drain outlet with ball valve |
||
|
2 DN65 water inlet holes at both sides,structure: ball valve with inside bend upturning pipeline |
||
|
Foam tank |
||
|
Material |
Foam tank adopt high quality #304 Stainless Steel |
|
|
Capacity |
Foam 1000L |
|
|
Main devices |
2 pcs DN 500mm inlet hole / 1 suction hole at the rear of pump room |
|
|
1 overflow valve device / 2 drain outlet with ball valve |
||
|
2 DN65 water inlet holes at both sides,structure: ball valve with inside bend upturning pipeline |
||
1. Fire extinguishing function of Isuzu foam fire truck
●Independent fire extinguishing: Isuzu foam fire truck can quickly transport hydrated firefighters to the fire scene, and use water in large-capacity water storage tanks and water guns, water cannons and other equipment to independently extinguish the fire.
●Continuous water supply: The large-capacity water storage tank of Isuzu foam fire truck ensures that sufficient water can be continuously provided at the fire scene to support long-term fire extinguishing operations.
●Multi-functional application: Isuzu foam fire truck also has auxiliary functions such as lighting and demolition, which can be used in a variety of rescue scenarios.

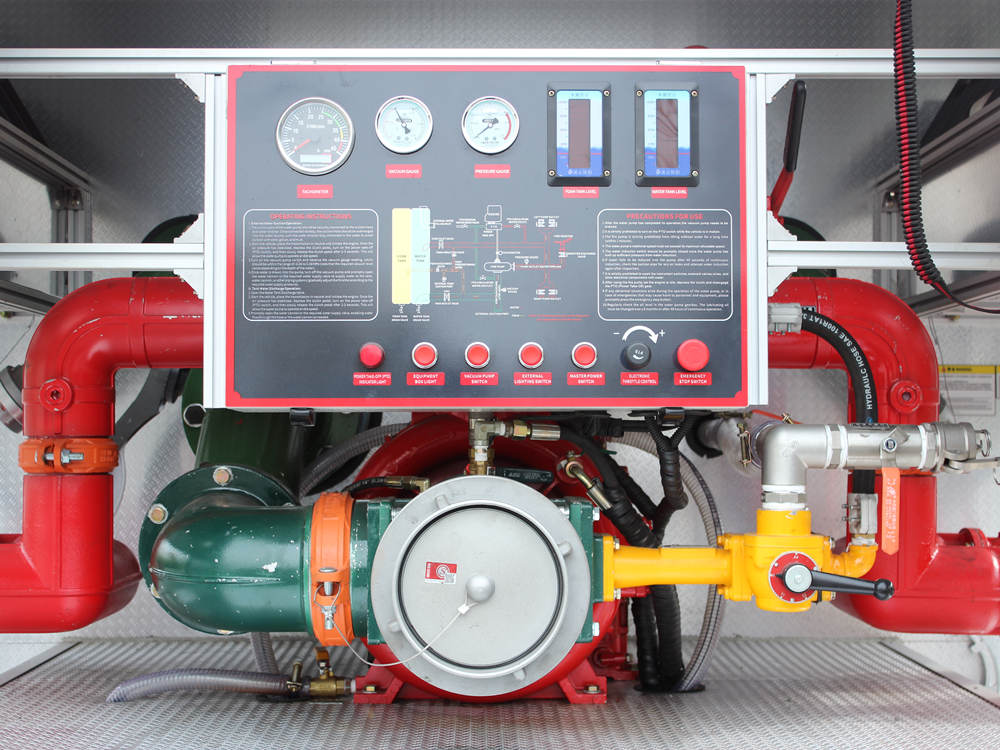

2.CB10/60 fire pump
CB10/60 fire pump is the core power unit of Isuzu FVR foam pumper fire engine. It adopts centrifugal design and has the characteristics of high efficiency and stability. The pump is equipped with high-quality mechanical seals, stainless steel impellers and guide vanes, with long service life and low failure rate, ensuring continuous and stable operation under high pressure environment.
|
Specifications |
Working Condition |
Flow |
Exit Pressure |
Rated Speed |
Shaft Power |
Suction Depth |
|
CB10/60 |
1 |
60 |
1.0 |
3280±50 |
102 |
3 |
|
2 |
42 |
1.3 |
3519±50 |
106 |
3 |
|
|
3 |
30 |
1.0 |
3120±50 |
73 |
7 |
3. PL8/48 fire monitor
PL8/48 fire monitor is the end effector of Isuzu foam pumper fire truck, with the characteristics of long range, concentrated jet and high foaming multiple. Its rated working pressure is 0.8MPa, flow rate is 48L/s, horizontal rotation angle is 360°, and it can achieve all-round coverage. The fire monitor can spray water or foam liquid, and can also be used as a water monitor after removing the foaming cylinder. It has three modes of DC/flowering/atomization, and is suitable for a variety of fire scenes.
|
Model |
Flow（L/s） |
Range（m） |
Rated working pressure（Mpa） |
Pitch rotation （°） |
Horizontal rotation （°） |
Weight （Kg） |
|
|
Water |
Foam |
||||||
|
PL8/48 |
48 |
≥70 |
≥60 |
0.8 |
-45～+70 |
0～360 |
27 |
4. Adaptability to emergency scenarios
▲Forest fire: Use a long-distance water cannon and foam mixture to quickly control the spread of fire;
▲Oil depot fire: Foam covers the liquid surface, isolates oxygen, and prevents re-ignition;
▲Traffic accident rescue: High-pressure water flow can break and dismantle deformed car bodies, and foam reduces the risk of flammable liquid leakage;
▲Chemical leakage: Spray mode dilutes toxic gases to protect the safety of rescuers.
