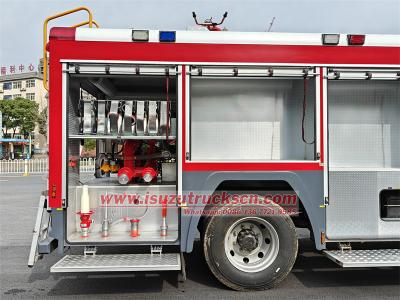

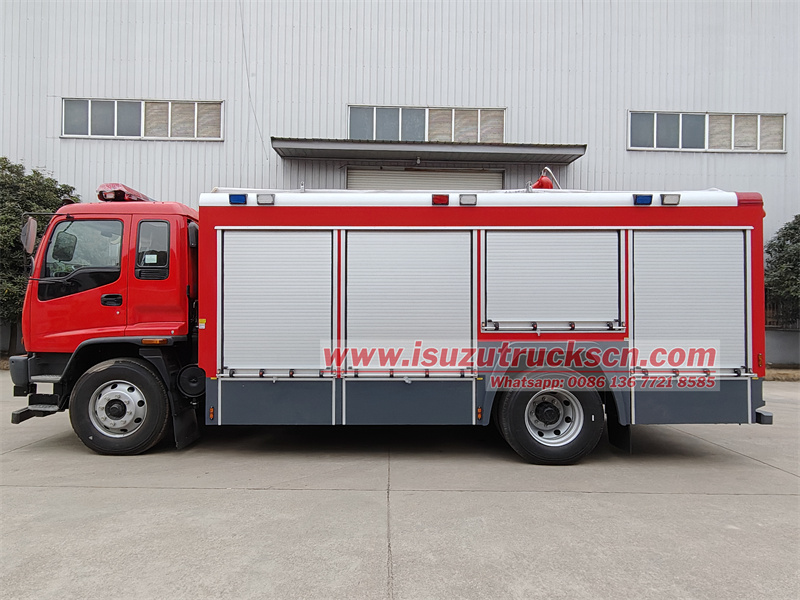

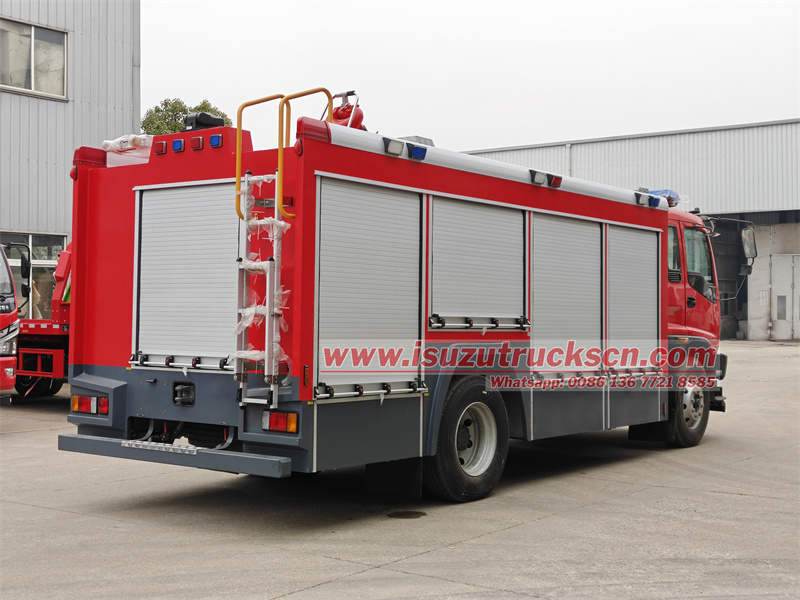

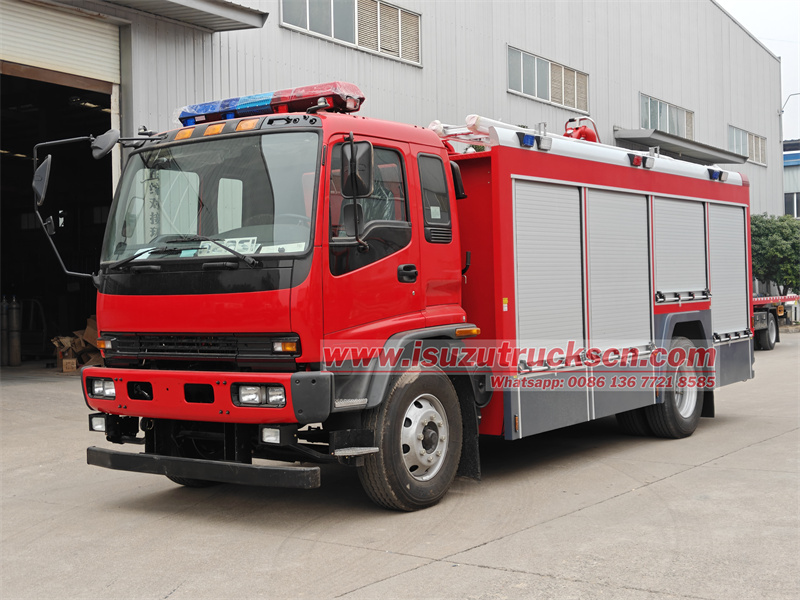

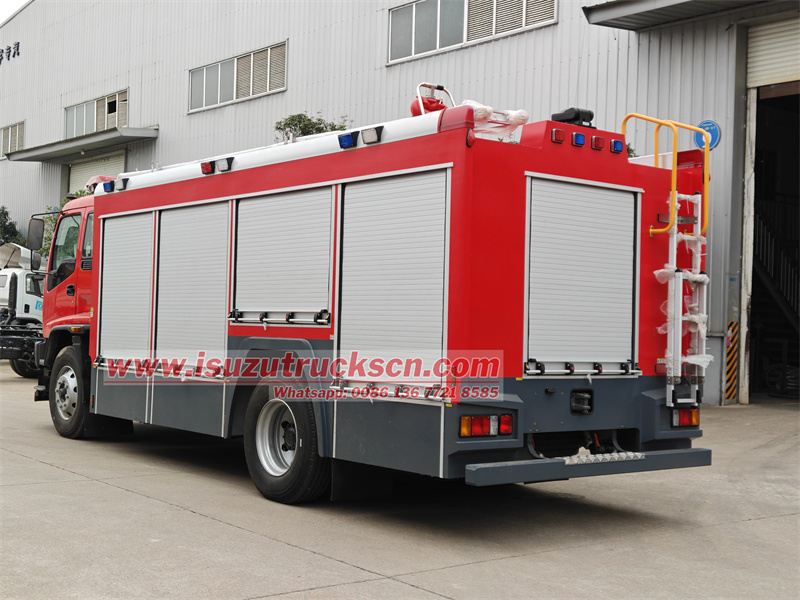

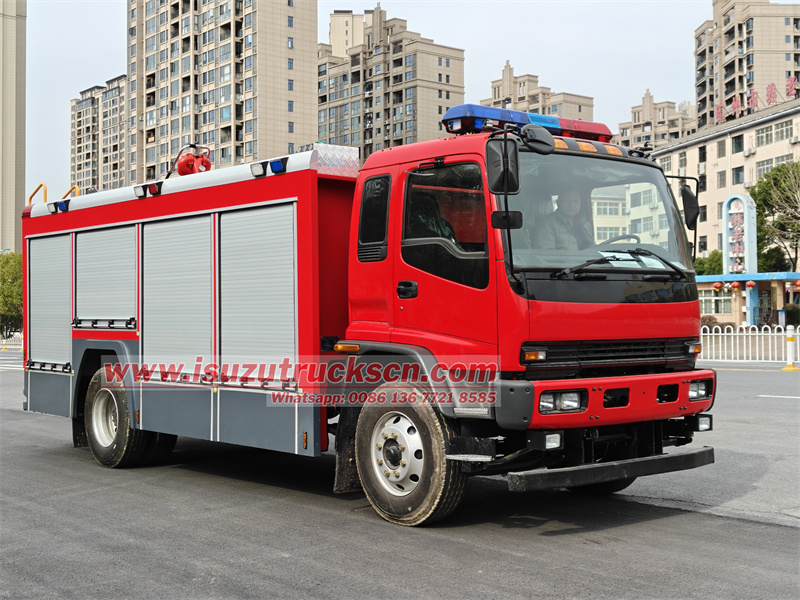

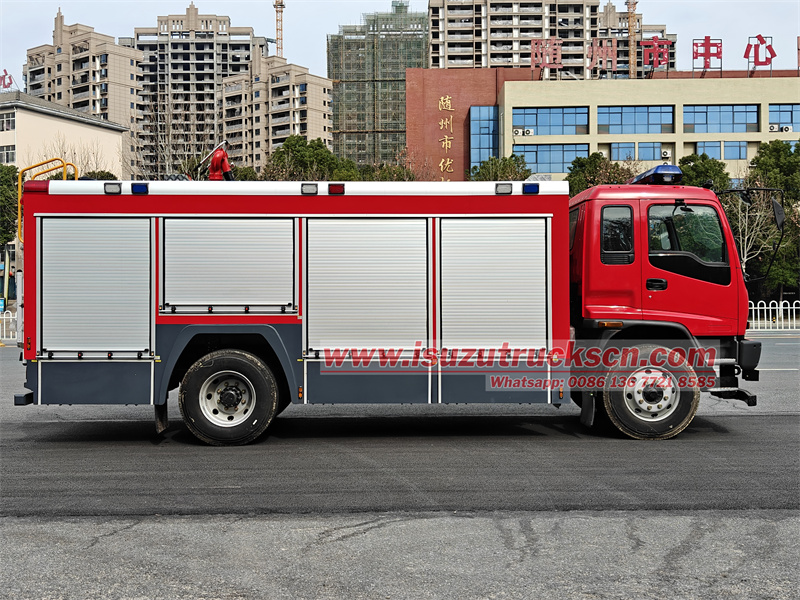

Isuzu FVR 6 cubic foam water fire truck is a truck used for fire fighting and rescue. The truck has a wheelbase of 4500mm, equipped with 6HK1-TCL 240 horsepower engine, powerful power, matched with Isuzu MLD 6-speed gearbox, smooth gear shifting;equipped with 5 cubic water tank and 1 cubic foam tank, equipped with CB10/60 fire pump and PL8/48 fire monitor, high fire extinguishing efficiency, long range and wide coverage. The body is made of high-quality materials, the structure is strong and durable, and can withstand various harsh environments. The equipment box and pump room are equipped with a series of fire-fighting equipment to assist in fire fighting.
Manufacturer:
Powerstar TrucksWork capacity:
6cbmDimension:
8095 x 2540 x 3460mmCabin type:
Isuzu FVR 4x2 one and half row,3 seatsWheelbase:
4500mmEngine power:
240HPEngine type:
Isuzu 6HK1-TCLAxle drive:
4X2Gear box:
Isuzu MLD 6-speed gearbox,manualRemarks:

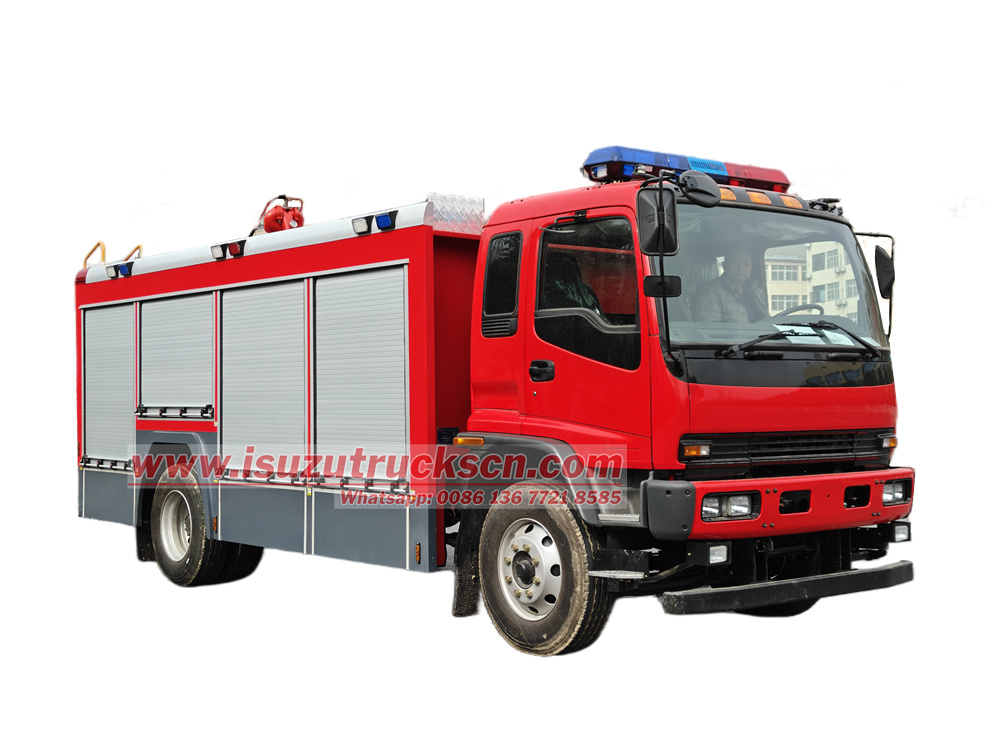

Equipped with CB10/60 fire pump, PL8/48 fire monitorThe Isuzu FVR 6cbm foam pumper fire engine which builted on the Isuzu FVR chassis is equipped with a CB10/60 high-pressure pump and a PL8/48 foam cannon, achieving a large flow output of 60L/s and a remote coverage of 48 meters. It can flexibly switch between water/foam dual modes and specialize in high-rise, oil tank and underground fires. The vehicle is equipped with more than 20 professional equipment such as water collectors, water distributors, demolition axes, iron shanks, etc., combined with the long-lasting endurance of 5-cubic-meter water tanks + 1-cubic-meter foam tanks, and can simultaneously complete fire extinguishing, demolition and rescue tasks. The modular tool cabin layout, firefighting equipment and other auxiliary equipment significantly improve the adaptability of field operations, and can be called an "all-round fighter" for urban and industrial firefighting.
● China best Isuzu water foam fire truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
|
Isuzu FVR 4x2 6cbm foam water fire truck |
||
|
General Specifications |
||
|
Vehicle model |
PT5180GXF |
|
|
Overall size |
8095x2540x3460mm |
|
|
GVW |
18000kg |
|
|
Curb weight |
9200kg |
|
|
Max. driving speed |
95km/h |
|
|
Truck Chassis Specifications |
||
|
Chassis brand |
Isuzu |
|
|
Cab |
Isuzu FVR 4x2 one and half row,left hand drive,with A/C,USB,direction assistance |
|
|
Wheelbase |
4500mm |
|
|
Axle loading |
6500/11500kg |
|
|
Engine |
Type |
Inline 6 cylinders, 4 stroke, turbocharged, intercooled, water cooled,diesle |
|
Model |
Isuzu 6HK1-TCL |
|
|
Horsepower |
240HP/176KW |
|
|
Displacement |
7790ml |
|
|
Emission standard |
Euro 5 |
|
|
Gearbox |
Isuzu MLD 6-speed gearbox,manual |
|
|
Tire |
295/80R22.5,6+1 tires |
|
|
Upper |
||
|
Water tank |
||
|
Structure |
Exposed tank,all metal welding structure, overall corrosion resistance, have shock absorption measures |
|
|
Material |
Water tank adopt high quality carbon steel Q235A |
|
|
Capacity |
Water 5000L |
|
|
Main devices
|
2 pcs DN 500mm inlet hole / 1 suction hole at the rear of pump room |
|
|
1 overflow valve device / 2 drain outlet with ball valve |
||
|
2 DN65 water inlet holes at both sides,structure: ball valve with inside bend upturning pipeline |
||
|
Foam tank |
||
|
Structure |
Exposed tank,all metal welding structure, overall corrosion resistance, have shock absorption measures |
|
|
Material |
Foam tank adopt high quality #304 Stainless Steel |
|
|
Capacity |
Foam 1000L |
|
|
Main devices |
2 pcs DN 500mm inlet hole / 1 suction hole at the rear of pump room |
|
|
1 overflow valve device / 2 drain outlet with ball valve |
||
|
2 DN65 water inlet holes at both sides,structure: ball valve with inside bend upturning pipeline |
||
|

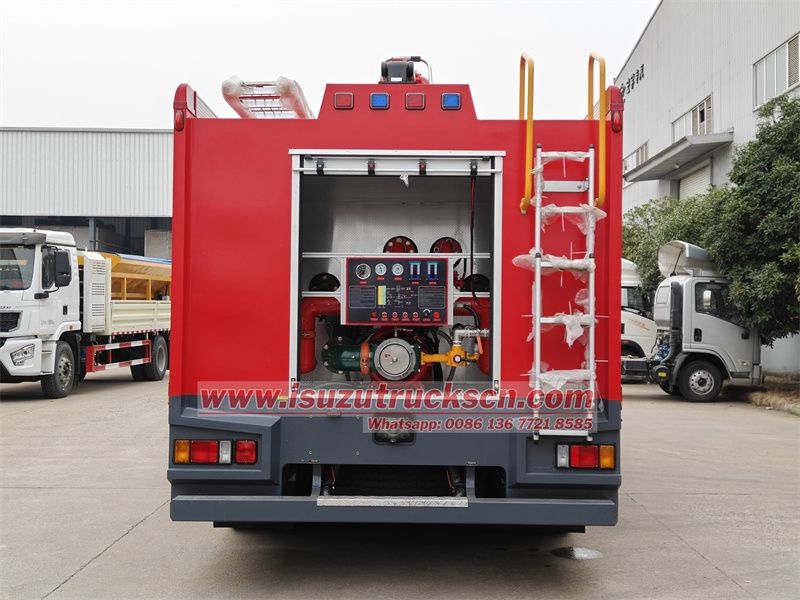

Fire Pump |
||
|
Model |
CB10/60 normal pressure fire pump |
|
|
Type |
Ordinary pressure centrifugal pumps |
|
|
Flow Capacity |
60L/s@1.0MPa |
|
|
Max work pressure |
1.232 MPa |
|
|
Suction Depth |
7m |
|
|
Priming device |
vacuum pump |
|
|
Priming time |
≤35s |
|
|
Fire Monitor |
||
|
Model |
PL8/48 High-quality fire monitor |
|
|
Capacity |
48L/S@0.8MPa |
|
|
Rotation angle |
360° |
|
|
Angle |
-45°- +70° |
|
|
Shooting Reach |
Water≥70m；Foam≥60m |
|
|
Other Attachments |
Hidden tank,material is carbon steel Q235A,with thickness 4 mm; |
|
Isuzu FVR 6 CBM foam fire truck: In-depth analysis of firefighting capabilities
As a multi-functional main combat equipment, the Isuzu FVR 6 cubic foam fire truck has a strong actual combat performance through its efficient power system, professional firefighting equipment and intelligent collaborative design. The following is an analysis of core firefighting equipment and comprehensive firefighting efficiency:
★ . Fire pump: CB10/60 high-pressure centrifugal pump
• Performance parameters: rated flow 60L/s, pressure 1.0MPa, with dual-mode output capability of water/foam mixture.
• Practical advantages:
1. Large flow output: The water supply capacity of 60L/s can spray 3.6 tons of water/foam mixture within 1 minute, quickly suppressing the initial fire.
2. Pressure stability: 1.0MPa pressure ensures that the water cannon/foam cannon maintains an effective coverage range within a range of 48 meters, which is suitable for high-rise building fires.
3. Dual-way water supply: supports switching between independent water and foam channels, and does not require parking and adjustment to deal with Class A (solid) and Class B (liquid) fires.

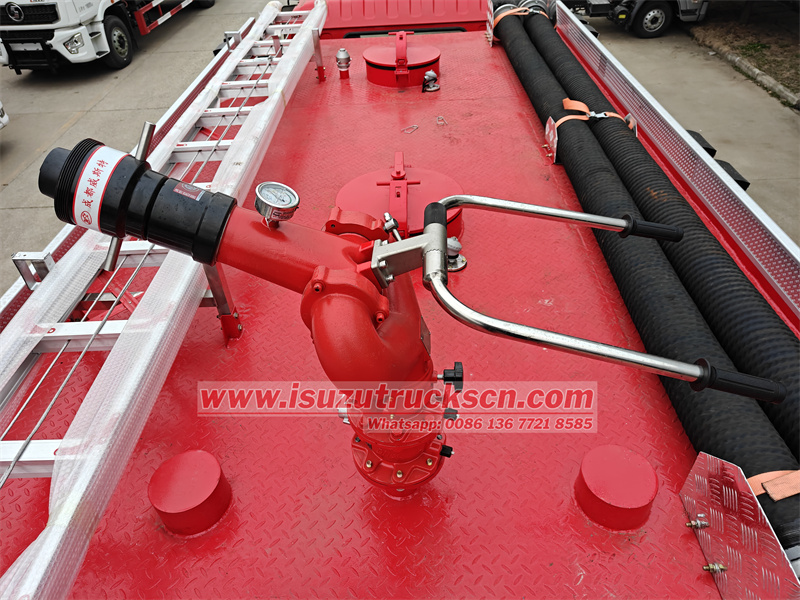

★ . Fire monitor: PL8/48 multifunctional foam monitor
• Spray performance:
o Water column mode: range ≥48 meters, coverage height over 15 meters, directly hitting the fire source of high-rise buildings.
o Foam mode: spray flow rate 48L/s, coverage area ≥120㎡, suitable for liquid fire scenes such as oil tank areas and chemical plants.
• Operational flexibility:
o The pitch angle of the gun head is -45°~+70°, horizontal rotation is 360°, and supports remote control/manual dual-mode control.
o Equipped with an intelligent proportion mixer, the foam mixing ratio is accurately controlled at 3%~6%, improving fire extinguishing efficiency.
★ . Tank coordination system: 5+1 square double tank layout
• Water tank (5m³ carbon steel):
o Independent compartment design, supports rapid water replenishment, and continuous water supply time ≥25 minutes (calculated at 30L/s flow rate).
o Carbon steel material with anti-rust coating, suitable for long-term storage of fire water needs.
• Foam tank (1m³ stainless steel):
o Store high-multiplier foam stock solution, 33m³ foam can be generated at a 3% mixing ratio, covering an area of more than 1,000 square meters.
o Stainless steel material avoids corrosion and ensures the long-term storage quality of foam stock solution.
★ . Intelligent control system: integrated fire fighting command

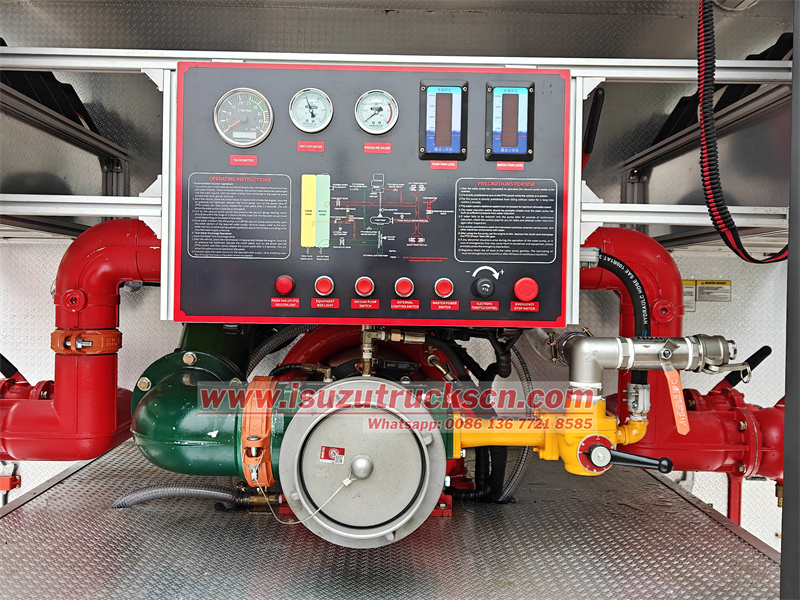

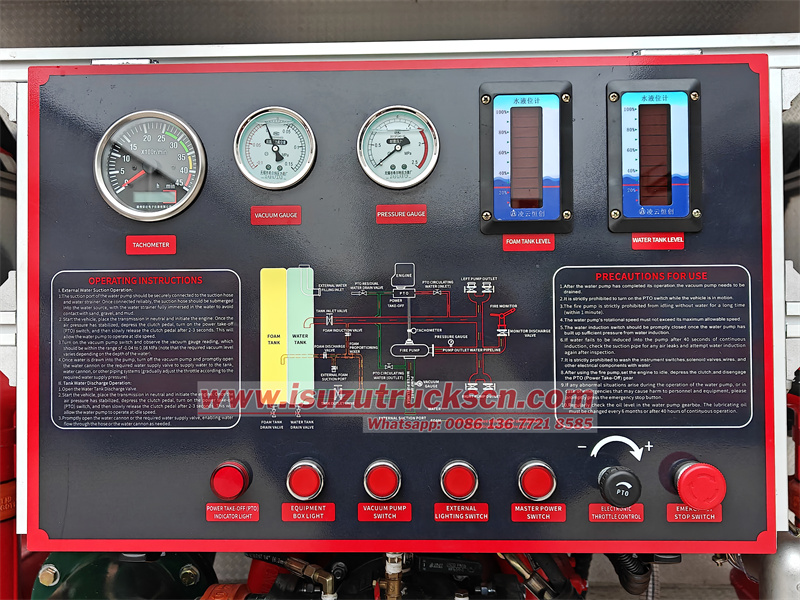

• Centralized control panel:
o Real-time monitoring of key parameters such as pump pressure, liquid level, foam ratio, etc., and automatic alarm for abnormal conditions.
o One-button start of pump, turret positioning, and foam mixing functions to shorten response time.
o Support remote monitoring and data transmission to facilitate real-time dispatch of the command center.
★ . Firefighting efficiency in typical scenarios
|
Scenario |
Firefighting Strategy |
Equipment Synergy |
|
High-rise Building Fire |
Water monitor shoot 70 meters directly to cover the fire source, and foam monitor assist in covering surrounding combustibles |
Dual-monitor linkage: water jet to suppress the fire + foam to isolate oxygen |
|
Oil Tank Farm Fire |
Foam monitor covers the leaking area, forming a foam layer to block oxygen |
1m³ foam stock solution can generate 33m³ fire extinguishing foam, which can cover the fire for more than 15 minutes |
|
Underground Garage Fire |
Low-pressure and high-flow mode is used to inject smoke into the smoke area, quickly reducing the temperature and toxic gas concentration. |
60L/s flow rate ensures rapid exhaust of dense smoke, and water mist mode reduces water damage |
|
Initial Stage of Forest Fire |
Water monitor suppress fires remotely, and vehicle-mounted water pumps draw water directly from the water source |
4.5m short wheelbase + high ground clearance adapts to complex terrain, and continuous water supply capability supports long-term combat |
★ . Comprehensive advantages
1. Quick response: The time from start-up to water/foam discharge is ≤30 seconds, seizing the golden window period for fire extinguishing.
2. Continuous operation: 5 cubic meters of water + 1 cubic meter of foam concentrate combination, supporting a single call to cover multiple types of fires.
3. Precision strike: The 70-meter range of the PL8/48 gun + intelligent proportion mixing realizes "long-distance, high coverage, low loss" fire extinguishing.
4. Multi-scenario adaptation: Through equipment mode switching, it is competent for rescue tasks in multiple scenarios such as cities, industries, and the wild.
★ . Core firefighting equipment

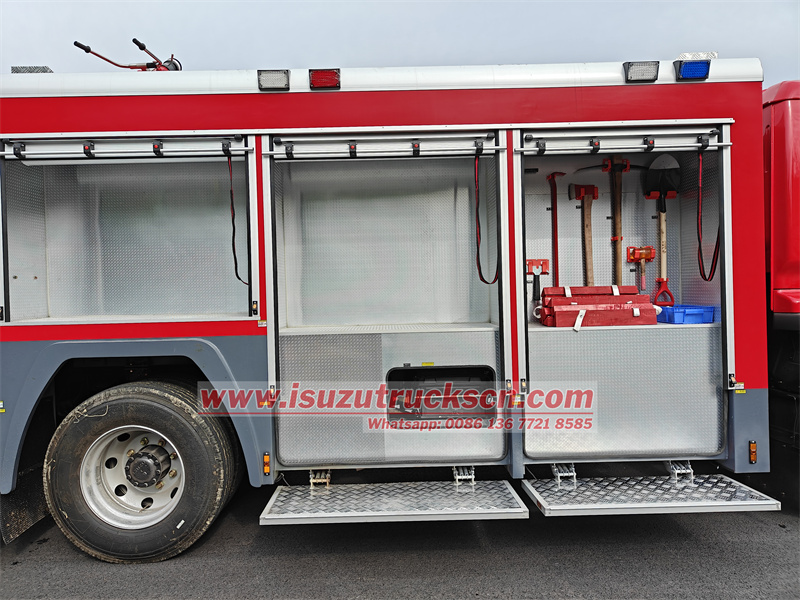

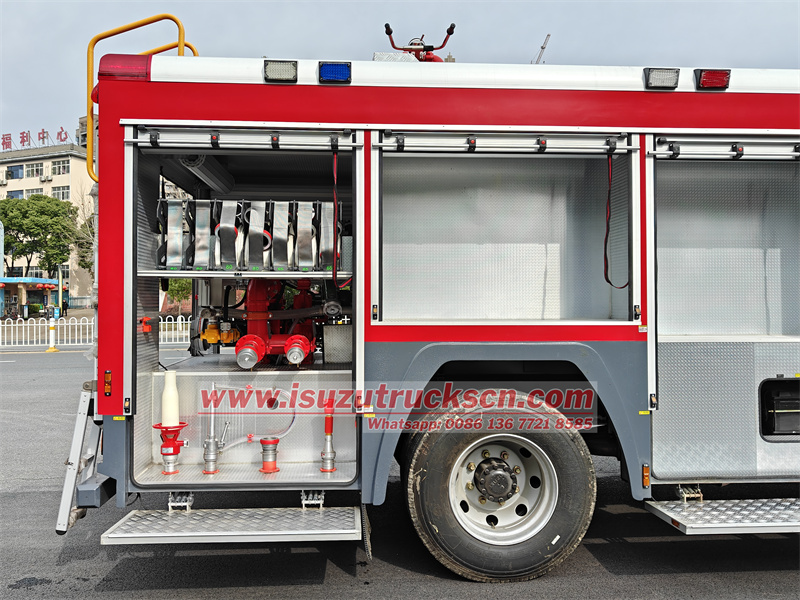

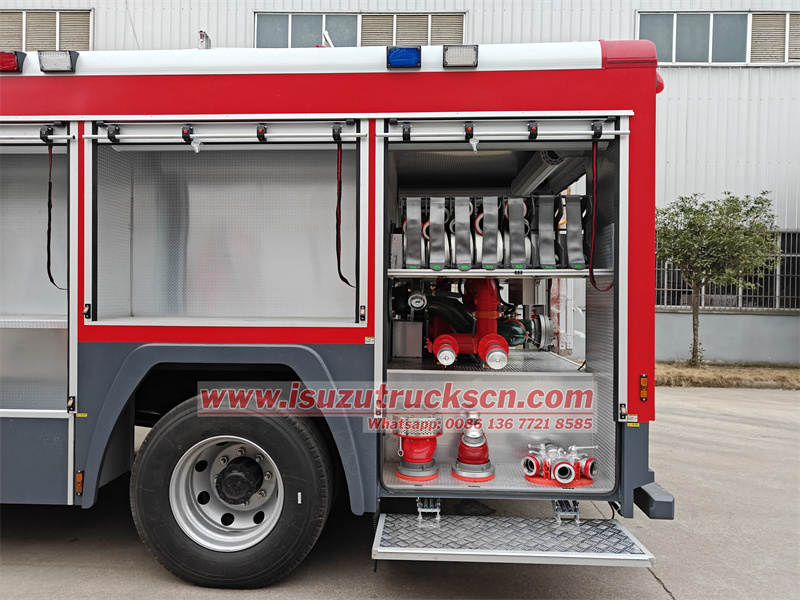

Equipped with high-pressure fire hose (φ65mm/φ80mm), water collector, water distributor, water filter, fire extinguisher, hose wrap, bridge guard, ground wrench, underground wrench, fire axe, shovel, pickaxe, hammer, iron collar, suction pipe wrench, water gun, foam gun and other complete professional firefighting equipment, together forming an integrated combat system of "firefighting + rescue + guarantee", and achieving the combat goal of "rapid response, efficient firefighting, multi-scenario rescue".
