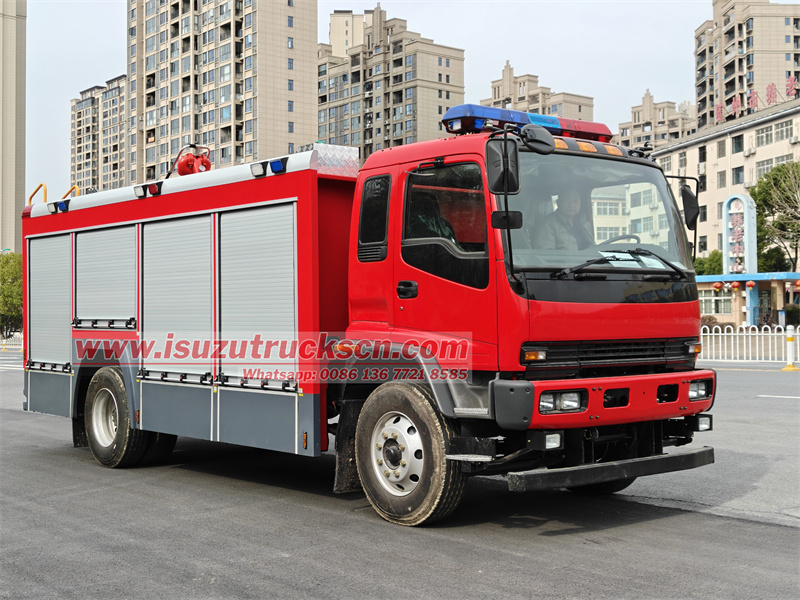

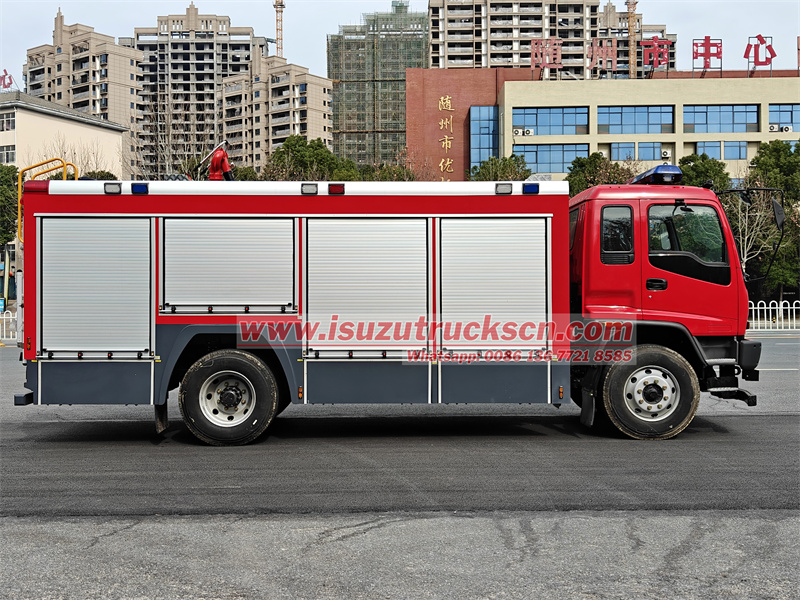

The Isuzu FVR 6cbm foam water fire truck features a wheelbase of 4,500mm, is powered by a 6HK1-TCL 240HP engine, and is equipped with an Isuzu MLD 6-speed transmission. It has a 5cbm water tank and a 1cbm foam tank, and is fitted with a CB10/60 fire pump and a PL8/48 fire monitor, providing high fire-extinguishing efficiency, long range, and wide coverage. The vehicle body is made of high-quality materials, with a sturdy and durable structure that can withstand various harsh environments. The equipment box and pump house are equipped with a series of fire-fighting equipment to assist in fire extinguishment.
Manufacturer:
Powerstar TrucksWork capacity:
6cbmDimension:
8095 x 2540 x 3460mmCabin type:
Isuzu FVR 4x2 one and half row,3 seatsWheelbase:
4500mmEngine power:
240HPEngine type:
Isuzu 6HK1-TCLAxle drive:
4x2Gear box:
Isuzu MLD 6-speed gearbox,manualRemarks:

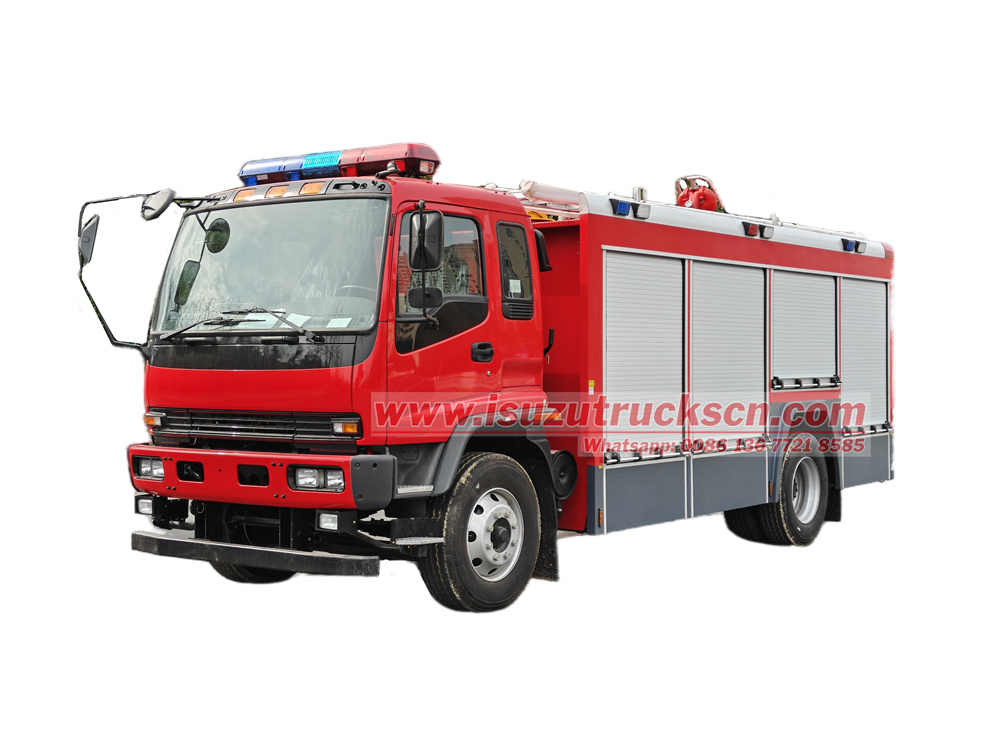

Equipped with CB10/60 fire pump and a PL8/48 fire monitorThe Isuzu 240 Hp water firefighting tanker is a medium-sized fire truck suitable for fire fighting in urban areas, industrial and mining enterprises, and other locations. Built on the Isuzu FVR Class 2 chassis, the vehicle features a wheelbase of 4,500mm and is equipped with a 240-horsepower 6HK1-TCL engine and a Isuzu MLD 6-speed gearbox, offering powerful performance and agile handling. It is fitted with a 5-cubic-meter water tank and a 1-cubic-meter foam tank, and comes with a CB10/60 fire pump (flow rate of 60L/s) and a PL8/48 fire monitor (range ≥ 60 meters), providing high fire-extinguishing efficiency. The vehicle body is made of high-quality carbon steel and stainless steel materials, which have undergone anti-corrosion treatment for enhanced durability. The aluminum alloy equipment box, anti-slip walkway plates, guardrails, and other designs not only improve the vehicle's aesthetic appearance but also enhance its safety and practicality. Additionally, the vehicle is equipped with a variety of fire-fighting equipment and tools to handle different types of fire scenarios. The entire vehicle structure is sturdy and safe, capable of operating stably in harsh environments.
● China best Isuzu water foam fire truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
|
Isuzu FVR 4x2 6cbm foam water fire truck |
||
|
General Specifications |
||
|
Vehicle model |
PT5180GXF |
|
|
Overall size |
8095x2540x3460mm |
|
|
GVW |
18000kg |
|
|
Curb weight |
9200kg |
|
|
Max. driving speed |
95km/h |
|
|
Truck Chassis Specifications |
||
|
Chassis brand |
Isuzu |
|
|
Cab |
Isuzu FVR 4x2 one and half row,left hand drive,with A/C,USB,direction assistance |
|
|
Wheelbase |
4500mm |
|
|
Axle loading |
6500/11500kg |
|
|
Engine |
Type |
Inline 6 cylinders, 4 stroke, turbocharged, intercooled, water cooled,diesle |
|
Model |
Isuzu 6HK1-TCL |
|
|
Horsepower |
240HP/176KW |
|
|
Displacement |
7790ml |
|
|
Emission standard |
Euro 5 |
|
|
Gearbox |
Isuzu MLD 6-speed gearbox,manual |
|
|
Tire |
295/80R22.5,6+1 tires |
|
|
Upper |
||
|
Water tank |
||
|
Structure |
Exposed tank,all metal welding structure, overall corrosion resistance, have shock absorption measures |
|
|
Material |
Water tank adopt high quality carbon steel Q235A |
|
|
Capacity |
Water 5000L |
|
|
Main devices
|
2 pcs DN 500mm inlet hole / 1 suction hole at the rear of pump room |
|
|
1 overflow valve device / 2 drain outlet with ball valve |
||
|
2 DN65 water inlet holes at both sides,structure: ball valve with inside bend upturning pipeline |
||
|
Foam tank |
||
|
Structure |
Exposed tank,all metal welding structure, overall corrosion resistance, have shock absorption measures |
|
|
Material |
Foam tank adopt high quality #304 Stainless Steel |
|
|
Capacity |
Foam 1000L |
|
|
Main devices |
2 pcs DN 500mm inlet hole / 1 suction hole at the rear of pump room |
|
|
1 overflow valve device / 2 drain outlet with ball valve |
||
|
2 DN65 water inlet holes at both sides,structure: ball valve with inside bend upturning pipeline |
||
|
Fire Pump |
||
|
Model |
CB10/60 normal pressure fire pump |
|
|
Type |
Ordinary pressure centrifugal pumps |
|
|
Flow Capacity |
60L/s@1.0MPa |
|
|
Outlet Pressure |
≤2.0 MPa |
|
|
Suction Depth |
7m |
|
|
Priming device |
vacuum pump |
|
|
Priming time |
≤35s |
|
|
Fire Monitor |
||
|
Model |
PL8/48 High-quality fire monitor |
|
|
Capacity |
48L/S@0.8MPa |
|
|
Rotation angle |
360° |
|
|
Angle |
-45°- +70° |
|
|
Shooting Reach |
Water≥70m；Foam≥60m |
|
|
Other Attachments |
Double row cab with 4 doors; |
|
Performance Characteristics:
• Powerful Engine: Equipped with a 6HK1-TCL diesel engine, boasting a maximum power of 240HP, strong climbing ability, and adaptability to various complex road conditions.
• Agile Maneuverability: With a wheelbase of 4,500mm and a moderately sized body, featuring a small turning radius and agile maneuverability, suitable for driving on urban roads and in narrow spaces.
• High Fire-Extinguishing Efficiency: Equipped with a CB10/60 fire pump and a PL8/48 fire monitor, offering high flow rate, long range, and efficient fire extinguishment.
• Large Liquid Carrying Capacity: A water tank with a capacity of 5 cubic meters and a foam tank with a capacity of 1 cubic meter, providing sufficient liquid for prolonged fire-fighting operations.
• Safe and Reliable: The entire vehicle is manufactured using high-quality materials, featuring a sturdy structure and ensuring safety and reliability.

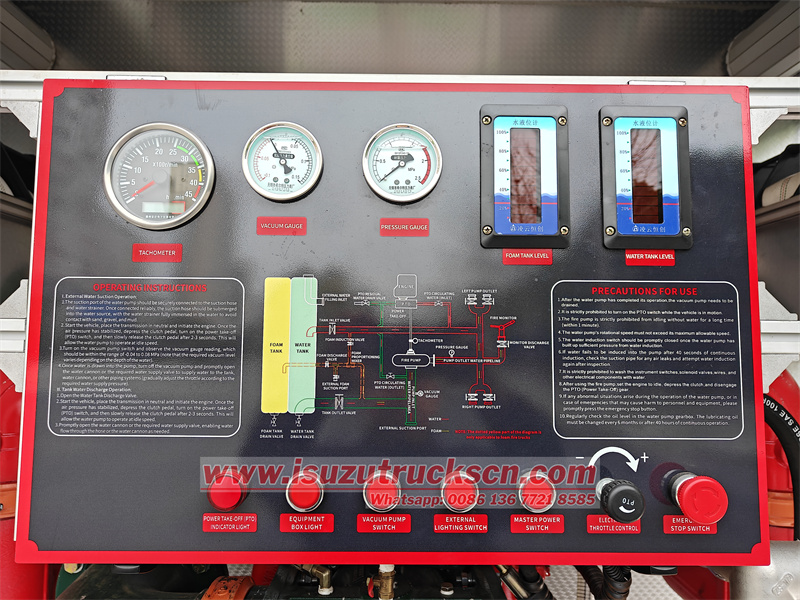

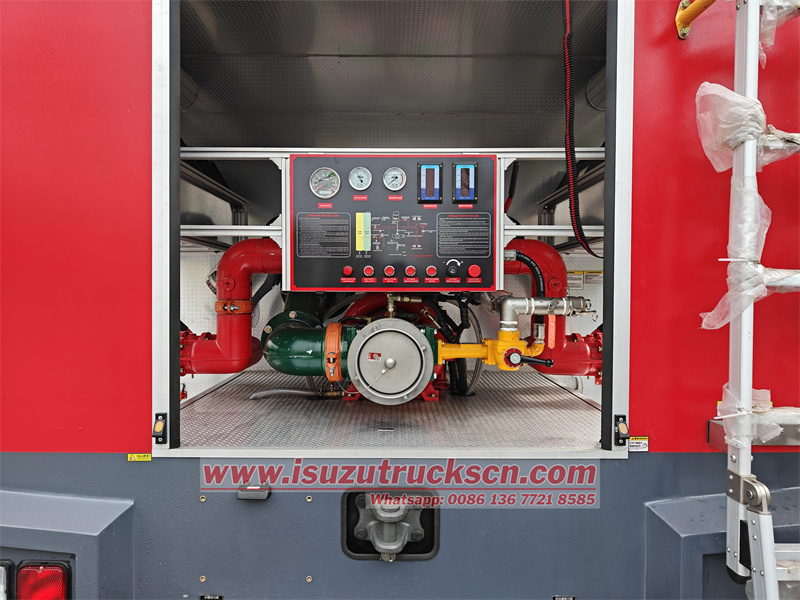

CB10/60 Fire Pump
1. Performance Parameters
Flow Rate and Pressure: The CB10/60 fire pump delivers 60L/s@1.0MPa, meeting the fire-extinguishing needs of various fire scenarios. It can quickly transport large amounts of water or foam to the fire site.
Efficiency and Stability: Adopting a centrifugal working principle with advanced hydraulic models, it offers high efficiency and a wide performance range. This means the CB10/60 fire pump maintains stable performance output under prolonged high-load operation.
2. Technical Features
High-Quality Materials: The pump body may be made of stainless steel or other corrosion-resistant, high-strength materials, ensuring good working condition in harsh environments.
Sealing Performance: Equipped with high-quality mechanical seals, reducing the risk of leakage and enhancing the pump's service life and reliability.
Easy Maintenance: Reasonably designed for easy routine maintenance and upkeep, lowering maintenance costs.
3. Application Scenarios
Multiple Fire Types: The CB10/60 fire pump is suitable for extinguishing various types of fires, including ordinary solid material fires, liquid fires, gas fires, and fires involving energized equipment.

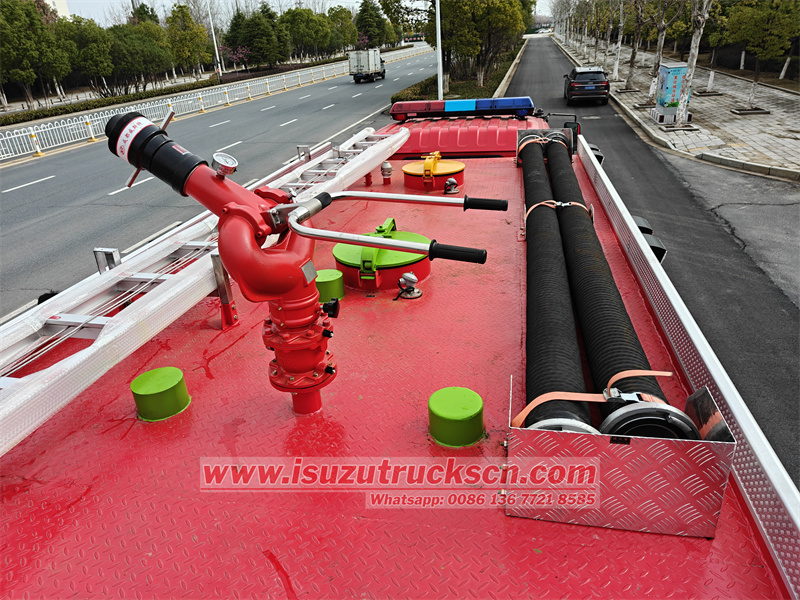

PL8/48 Fire Monitor
1. Performance Parameters
Range and Flow Rate: The PL8/48 fire monitor has a range of Water≥70m; Foam≥60m and a flow rate of 48L/S@0.8MPa, enabling rapid coverage of large fire areas and effectively shortening fire-extinguishing time.
2. Technical Features
Compact Structure: The monitor body is reasonably designed with a compact structure, facilitating installation and use on fire trucks.
Flexible Adjustment: The monitor body can perform horizontal and vertical rotations (-45° to +70°) and can be positioned, allowing firefighters to adjust the spray angle and coverage easily.
Multi-Functionality: When the foam generator is removed, it can be used as a water monitor, offering multiple spray functions such as spray and straight stream, meeting the fire-extinguishing needs of different fire scenarios.
3. Application Scenarios
Large-Scale Fire Sites: The PL8/48 fire monitor is suitable for extinguishing large-scale oil fires, chemical plant fires, warehouse fires, and other large-scale fire sites.
Special Environments: Due to its long range and flexible operation, this monitor can also be used to extinguish fires in special environments such as high-rise buildings and underground structures.
4. Safety and Durability
Safety: Made of high-strength materials such as precision cast aluminum, ensuring stable performance output under high-pressure spraying. Additionally, equipped with safety devices such as automatic drain valves to enhance operational safety.
Durability: Treated with special processes, the monitor body exhibits good corrosion and wear resistance, extending its service life.
As a professional firefighting equipment, the Isuzu FVR6 foam water fire truck is equipped with a series of other tools and equipment in addition to the basic chassis, tank, fire pump and fire cannon to ensure that firefighters can complete their tasks efficiently and safely during the firefighting process.

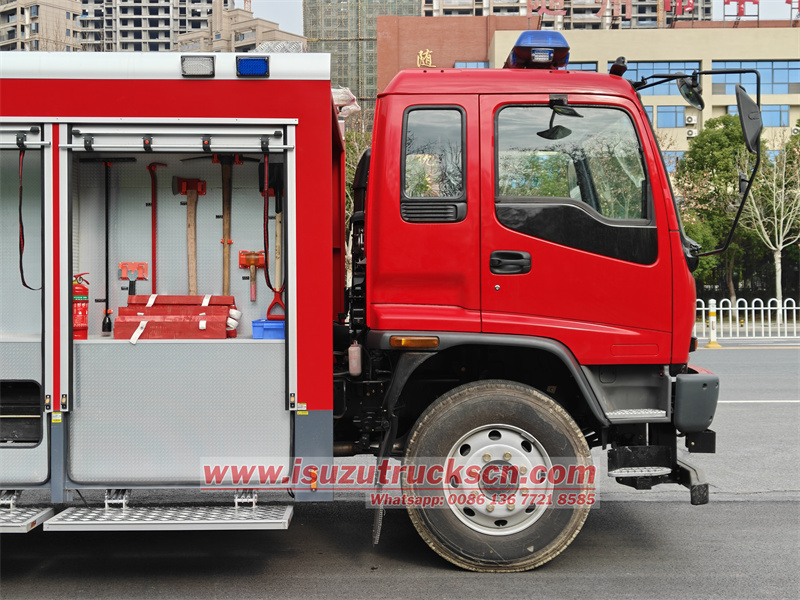

Firefighting equipment:

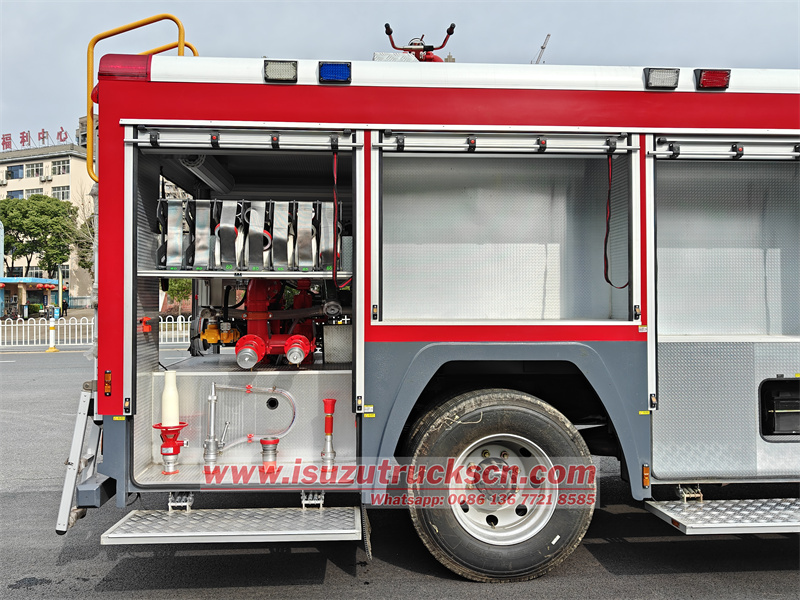

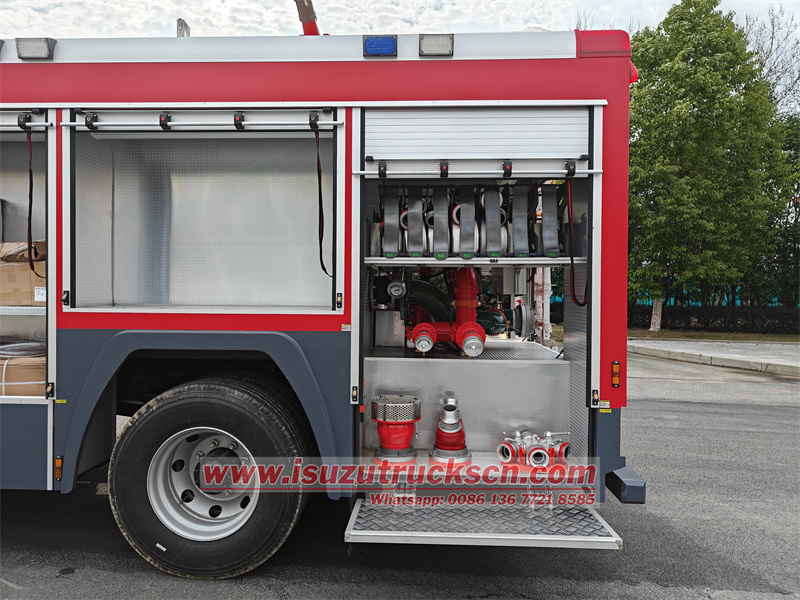

● Aluminum alloy rolling shutter doors and lighting are installed at the rear of the passenger compartment to facilitate firefighters to quickly access firefighting equipment in an emergency.
● Equipped with various firefighting equipment, such as fire hoses, hose hooks, hose wraps, reducer interfaces, same-type interfaces, DC water guns, flowering water guns, DC switch water guns, etc.
Demolition tools:
● Equipped with firefighting equipment such as fire picks, fire axes, shovels, wrenches, iron collars, etc.Used to demolish obstacles and open rescue channels.
Personal protective equipment:
● Air respirator: for firefighters to breathe in toxic, hypoxic or smoke environments to ensure the safety of firefighters' lives.
● Protective clothing: Made of fireproof and high-temperature resistant materials to protect firefighters from flames, high temperatures and harmful substances.
● Safety helmets, protective boots, gloves, etc.: provide additional protection for the head, feet and hands.
Other auxiliary equipment:
● Water filter: used to filter impurities in the water source to ensure the cleanliness of fire-fighting water.
● Water distributor: used to divide the fire hose into multiple branches so as to supply water to multiple directions at the same time.
● Water collector: connect the fire hose to the water inlet of the fire pump, take water from the fire hydrant or other water sources, and provide sufficient water source for the fire pump.
● Mixer suction pipe: used to mix the foam extinguishing agent with water to form a foam mixture.
