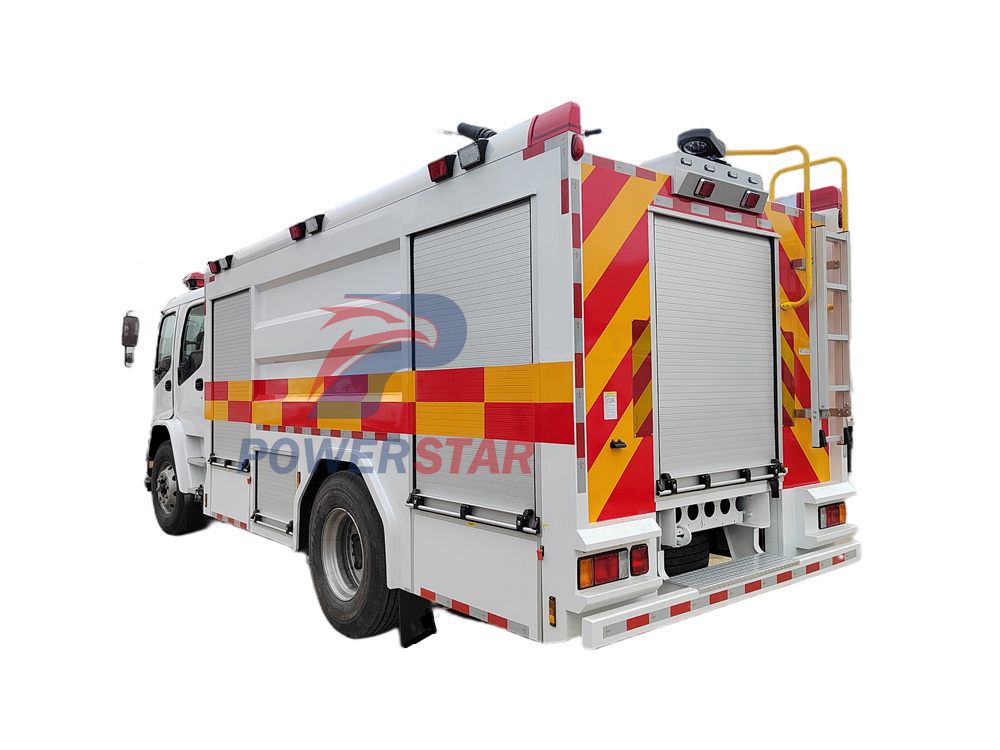

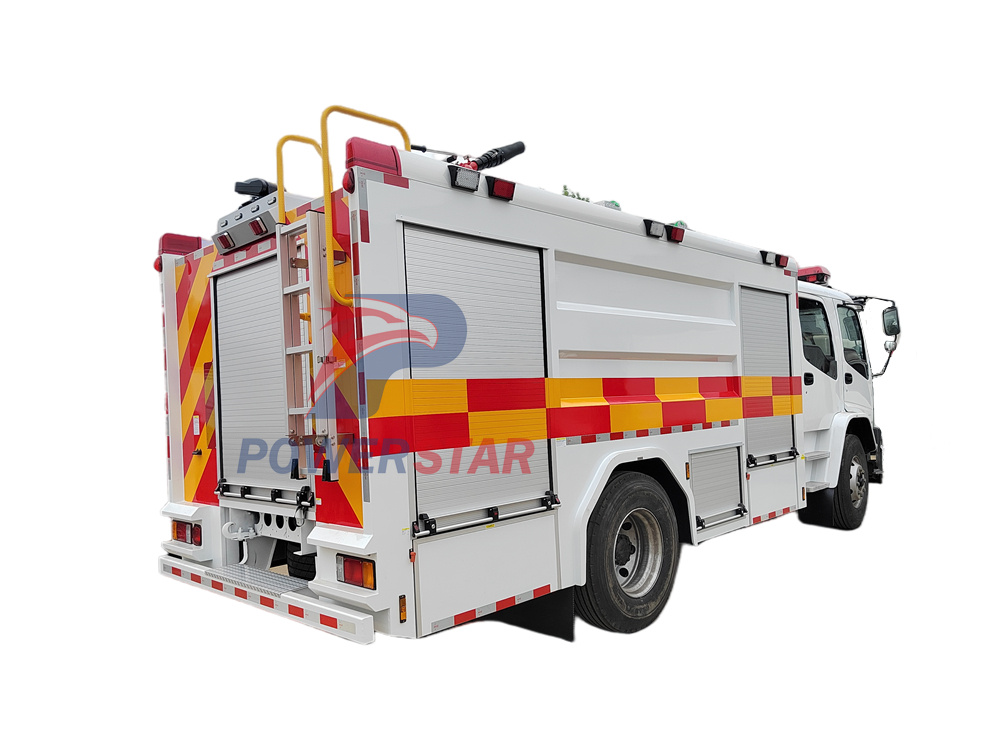

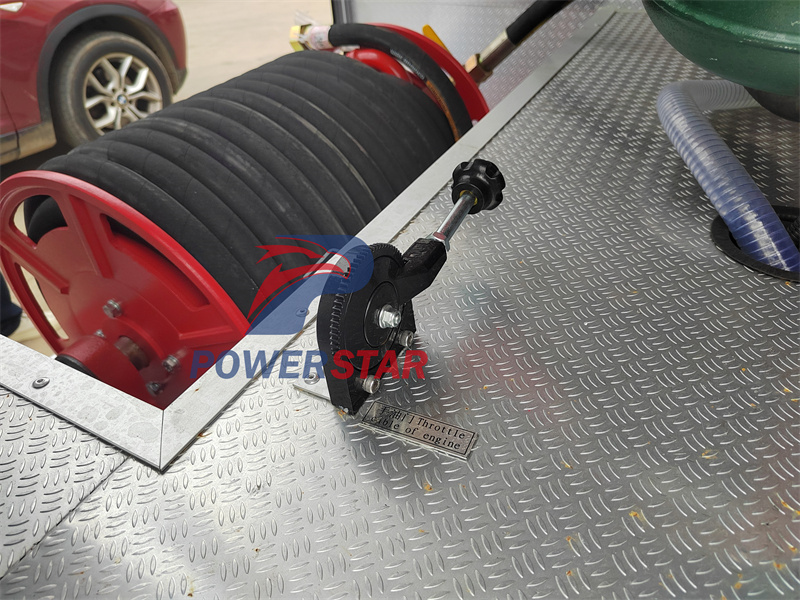

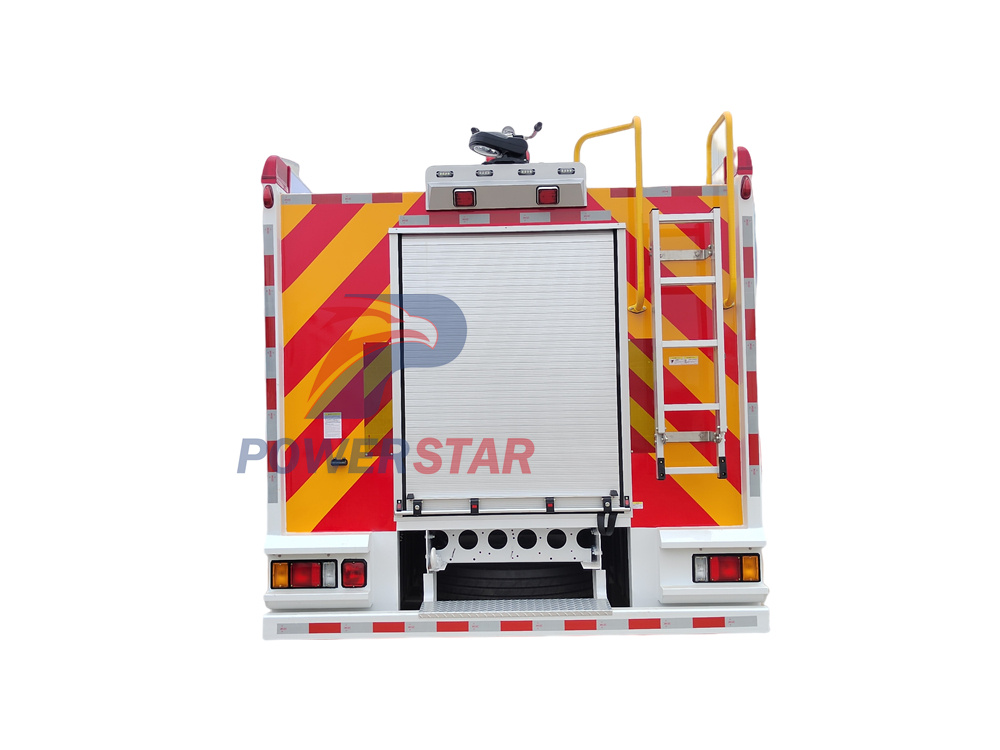

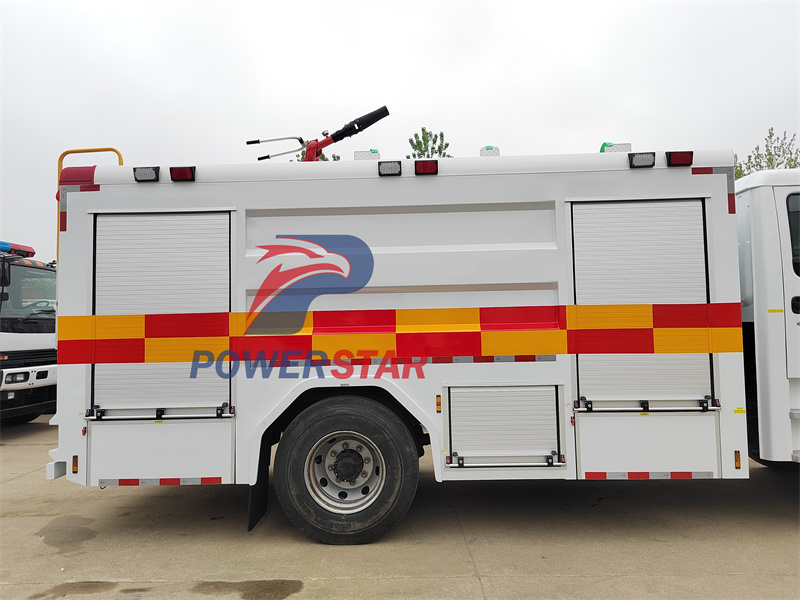

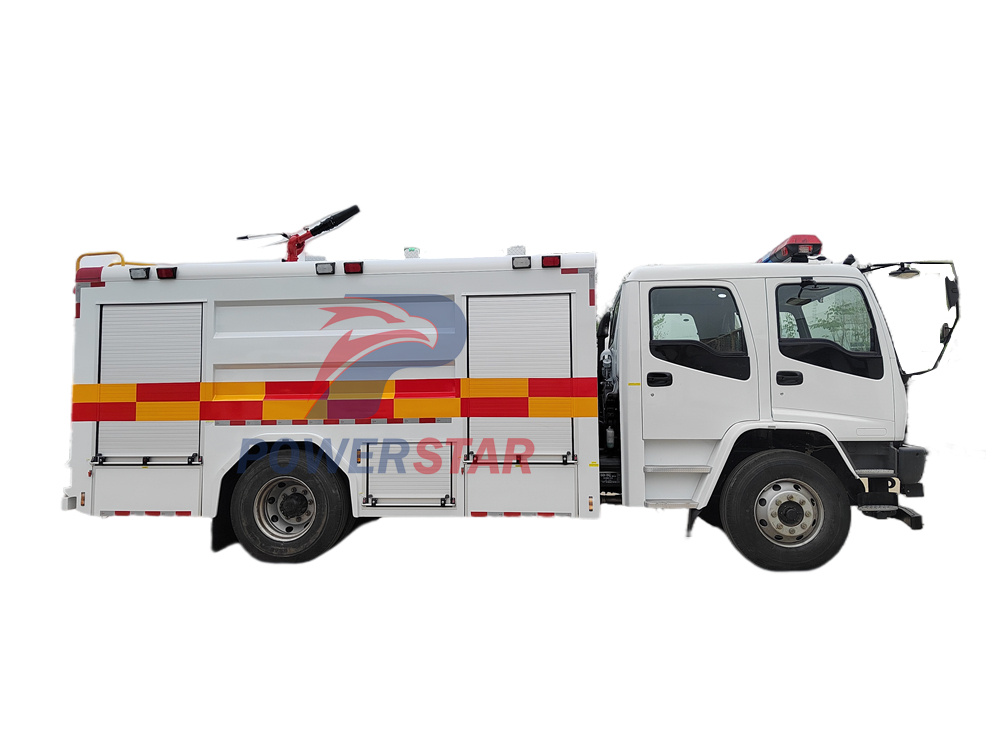

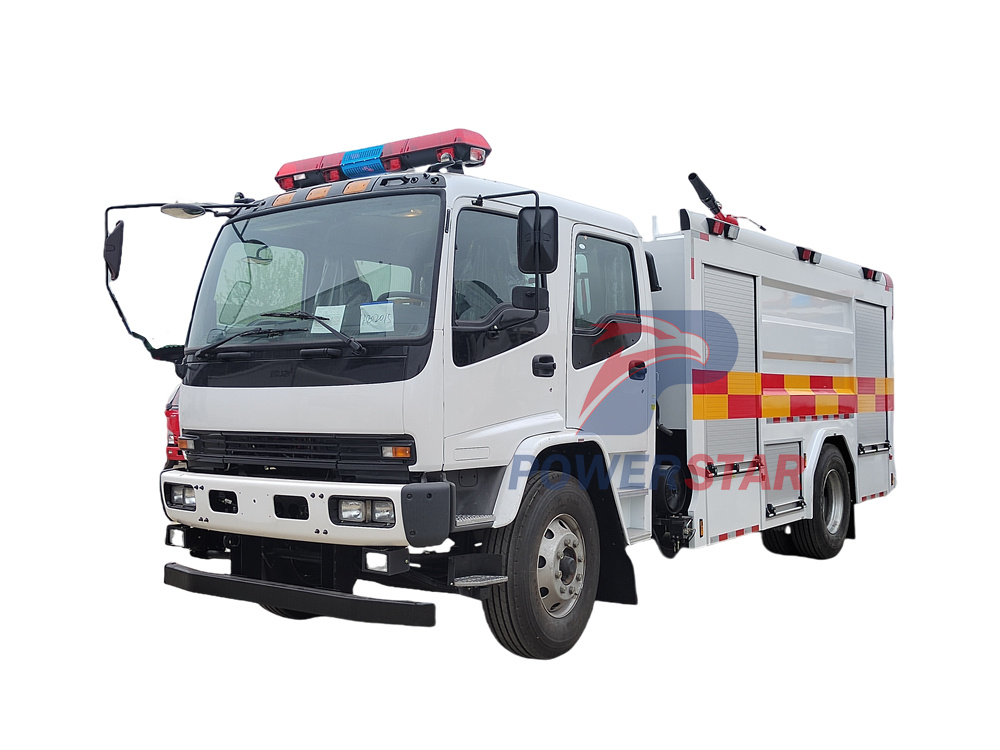

Isuzu FVR 6cbm foam fire truck adopts the old Isuzu FVR half-row cab chassis, 4500mm wheelbase, maximum speed 105Km/h, equipped with Isuzu 6HK1-TCG61 240HP diesel engine, FAST 8-speed gearbox, The upper installation is a 5-ton carbon steel water tank (tank body is treated with anti-corrosion), 1-ton 304 stainless steel foam tank, the front equipment box is a through warehouse, with an aluminum alloy equipment rack, the pump room is rear-mounted, equipped with CB10/40 low-pressure fire pump, 1 reel of 30 meters of medium-pressure reel,, the top of the body is equipped with PL8/32 fire monitor, with red warning lights, all red flashing lights, the rear of the vehicle is equipped with 360-degree rotating lighting, the warning lights/fire monitors/ladders are detachable.
Manufacturer:
Powerstar TrucksWork capacity:
6cbmDimension:
8110 x 2540 x 3600mmCabin type:

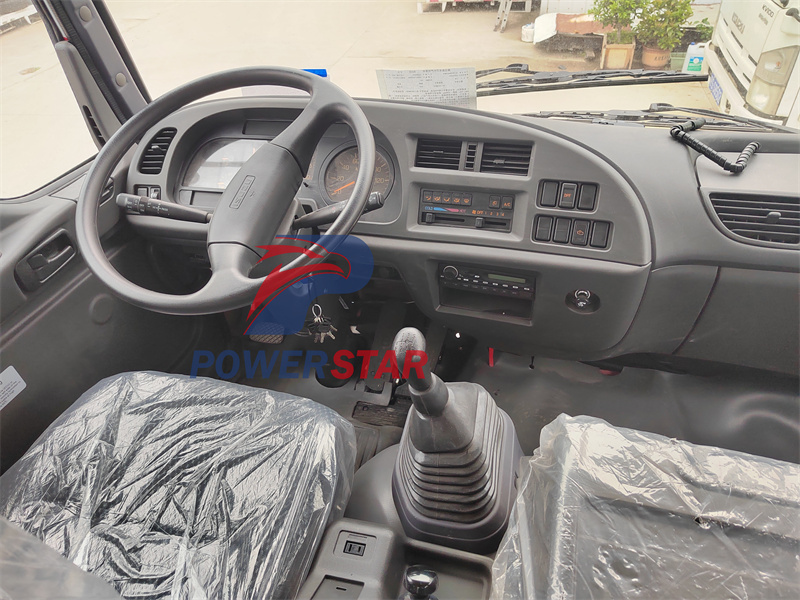

Isuzu FTR double row cabin,2+4 seatsWheelbase:
4500mmEngine power:
240HPEngine type:
Isuzu 6HK1-TCG61Axle drive:
4X2Gear box:
FAST 8-shift,manualRemarks:

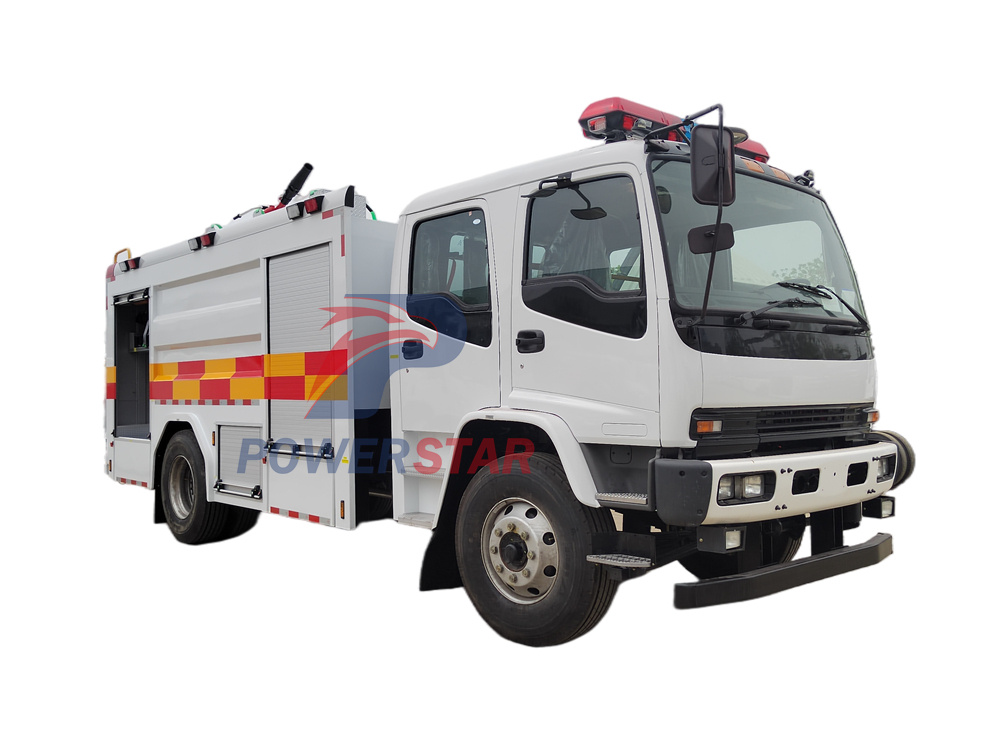

CB10/40 fire pump,PL8/32 fire monitorThis Saudi Arabia Isuzu Water Foam Fire Tanker is the backbone of Saudi Arabia's firefighting forces. With its excellent firefighting performance and unique design adapted to the desert environment, it has become a powerful weapon for dealing with various types of fires. The body is equipped with a large-capacity water tank and an efficient foam system, and with advanced CB10/40 fire pump and PL8/32 monitor, it can quickly control the fire and protect the safety of every inch of land. Its stable structure and excellent off-road capabilities ensure that it can move forward steadily in complex and changeable desert terrain. This fire truck is not only a powerful assistant for firefighting and rescue, but also a symbol of human wisdom and courage, and has built a solid line of defense to protect our beautiful homeland.
● China best Isuzu foam water fire truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
From the perspective of fire users, the application of Saudi Arabia Isuzu water foam fire truck in Saudi Arabia is not only a tool, but also a reliable "comrade". In the special environment of Saudi Arabia, the design and use experience of this car fully consider the actual needs of firefighters, from the convenience of operation to tactical flexibility, to reliability in extreme environments, all reflect the high support for the work of firefighters.
For fire users, the first impression of this fire truck is its excellent maneuverability. In the desert, the terrain is complex and changeable, and the roads are rugged and difficult to travel, but this fire truck can quickly shuttle between sand dunes and desert roads as if it were flat ground. Its chassis is stable, the wheelbase is moderate, and the maximum speed can reach 105Km/h, ensuring that after receiving the fire alarm, it can rush to the scene as soon as possible to win precious time for fire fighting.
And when we have a deeper understanding of its fire fighting system, we are even more impressed by its powerful fire fighting ability. The dual tank design of water (5cbm) and foam (1cbm) enables this vehicle to deal with both type A and type B fires. In particular, the use of foam fire extinguishing agents can effectively extinguish oil fires, suppress combustion and prevent re-ignition.

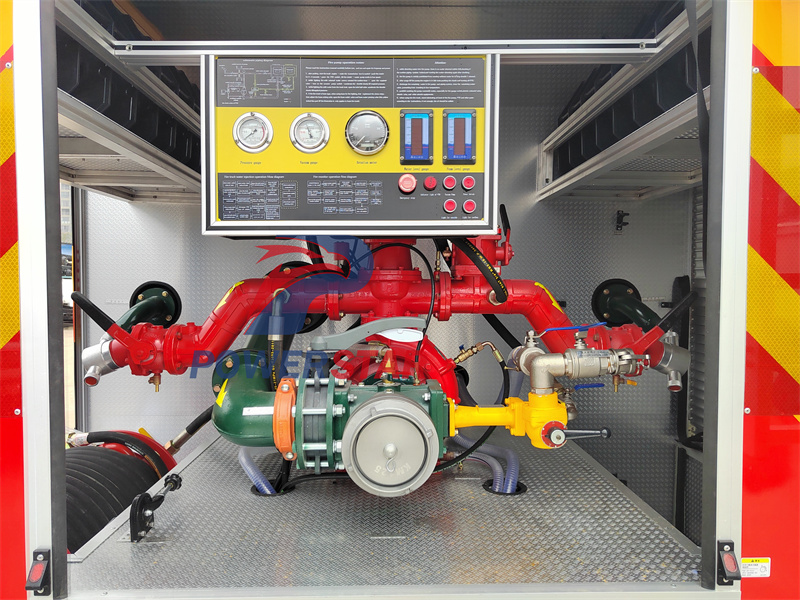

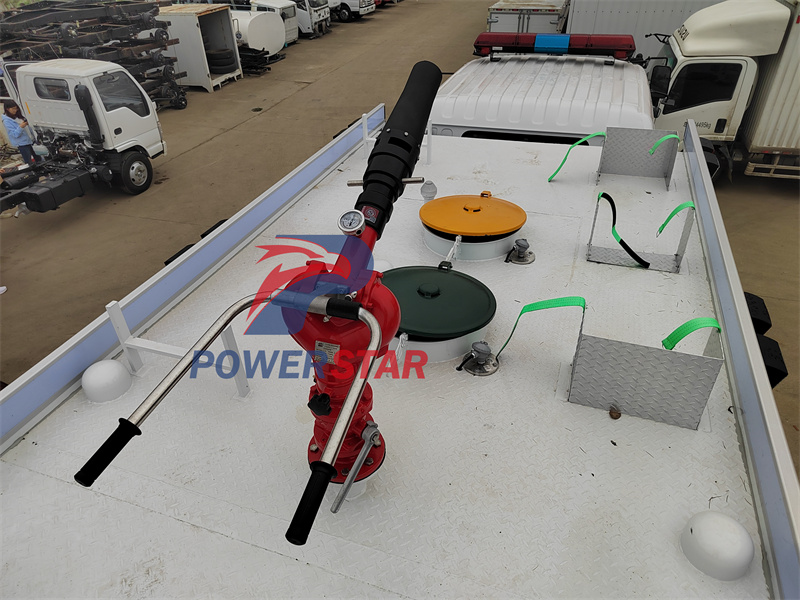

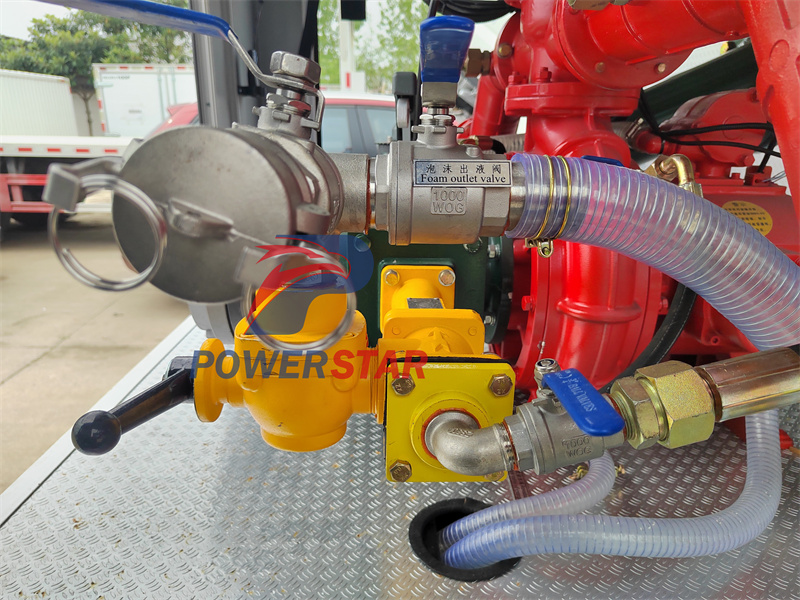

The CB10/40 low-pressure fire pump equipped with this fire truck can not only provide a stable and powerful water flow, but also maintain efficient operation under low pressure, which is particularly critical in desert areas. The PL8/32 fire cannon on the roof is like an accurate fire-fighting sword. It can spray water or foam at a long distance and efficiently, and can also adjust the spray mode and angle according to the fire situation to achieve accurate fire extinguishing. In the desert, wind often contributes to the spread of fire, but this fire cannon can effectively resist the influence of wind with its powerful spraying force and precise aiming, ensuring the smooth progress of fire-fighting operations.
In addition, the various fire-fighting equipment equipped in the tool room also provides comprehensive support for fire-fighting operations in the desert. Whether it is a fire hose, a fire axe or a demolition tool, it can play an important role in an emergency. In the desert, fires are often accompanied by various complex situations and challenges. The equipment of these firefighting equipment enables firefighters to respond to various emergencies more calmly and ensure the smooth progress of firefighting operations.
| Isuzu FVR 6CBM water foam fire fighting truck | ||
|
Vehicle Parameters |
||
|
General |
Vehicle brand |
POWERSTAR |
|
Chassis brand |
Isuzu |
|
|
Overall dimension |
8110*2540*3600mm |
|
|
GVW/Curb weight |
18000/11250kg |
|
|
Max speed |
105Km/h |
|
|
Chassis Parameters |
||
|
Cab |

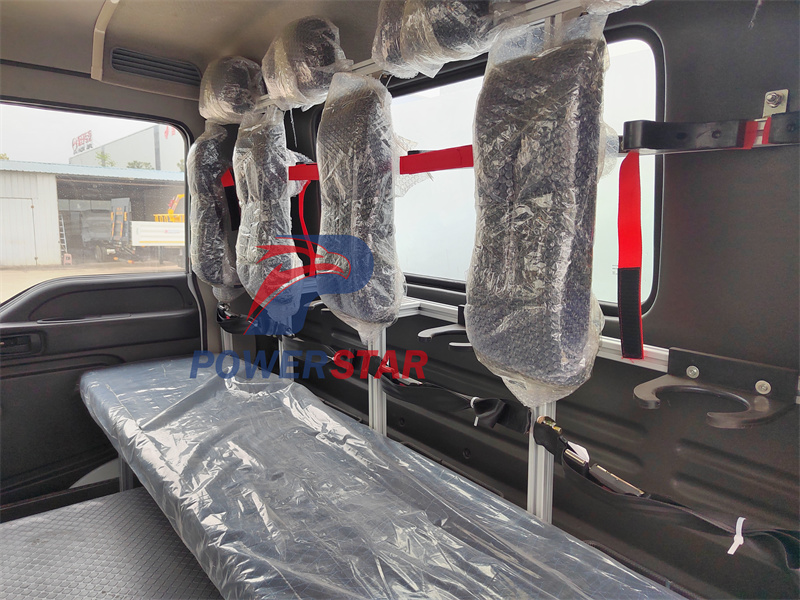

Seat capacity |
2+4 |
|
A/C |
Have |
|
|
Engine |
Fuel type |
Diesel |
|
Engine type |
6 cylinder inline |
|
|
Brand |
Isuzu |
|
|
Model |
6HK1-TCG61 |
|
|
Power |
240HP/177Kw |
|
|
Displacement |
7790ml |
|
|
Emission standard |
Euro 6 |
|
|
Chassis |
Drive type |
4x2,LHD |
|
Wheelbase |
4500mm |
|
|
Axle loading |
6500/11500kg |
|
|
Front/rear overhang |
1335/2275mm |
|
|
Gearbox |
FAST 8-shift,manual |
|
|
Tire specifications |
295/80R22.5 |
|
|
Tire No. |
6+1 |
|
|
Structure Parameters |
||
|
Tank |
Capacity |
5cbm water tank |
|
1cbm foam tank |
||
|
Material |
Carbon steel water tank(Anticorrosion treatment) |
|
|
304 stainless steel |
||
|
Fire pump |
Model |
CB10/40 |
|
Pressure |
1MPa |
|
|
Max work pressure |
1.144MPa |
|
|
Flow |
40L/s |
|
|
Fire monitor |
Model |
PL8/32 |
|
Pressure |
0.8MPa |
|
|
Flow |
32L/s |
|
|
Range |
Water≥60m |
|
|
Foam≥48m |
||
|
Pitch rotation |
-45～+70° |
|
|
Horizontal rotation |
360° |
|
|
Suction Head |
7m |
|
|
Fire Accessories |
Suction hose, water strainer, water segregator, water collector fire hose, hose patch, hose bridge, hydrant wrench, fire gun portable fire extinguisher, fire axe, 30m medium pressure fire hose reel etc. |
|
The application scenarios of Isuzu Water Foam Fire Tanker in Saudi Arabia are rich and diverse, which are specifically reflected in the following aspects:
1. Fire rescue of oil facilities:
● As the world's largest oil exporter, Saudi Arabia has numerous oil facilities, including oil fields, refineries, oil pipelines, etc. Once a fire occurs in these facilities, the consequences will be disastrous. Therefore, Isuzu Water Foam Fire Tanker has become the preferred firefighting vehicle for fire rescue of oil facilities with its powerful firefighting ability and fast response speed. It can quickly reach the fire scene, use the on-board water tanks and foam tanks, as well as efficient fire pumps and fire cannons to effectively control the fire and protect the safety of oil facilities.
2. Urban firefighting:
● In Saudi Arabia's cities, high-rise buildings, commercial areas, residential areas and other densely populated areas are also in urgent need of firefighting vehicles. Isuzu FVR foam water rescue fire truck has excellent urban firefighting capabilities, and can flexibly shuttle through narrow streets and complex urban environments and quickly reach the fire scene. Its advanced firefighting equipment and efficient firefighting performance can effectively respond to various fire scenes in the city and protect the lives and property of urban residents.
3. Forest fire fighting:
● Although most of Saudi Arabia is desert, there are still some oases and forest areas. Once a fire occurs in these areas, it is difficult to fight the fire because the fire spreads rapidly. With its large-capacity water tank and long-range fire cannon, the Isuzu FVR 4X2 foam pumper fire truck can effectively control the fire at a long distance to prevent the fire from spreading further. At the same time, its strong off-road capability and stable driving performance can also drive smoothly in complex forest terrain, providing strong support for forest fire fighting.
4. Fire safety guarantee in special places:
● In addition to the above scenarios, the Isuzu 6cbm water foam fire fighting truck can also be used for fire protection in some special places, such as chemical plants, military bases, etc. Once a fire occurs in these places, it is often accompanied by dangerous situations such as toxic gas leakage and explosion. Therefore, highly specialized and efficient firefighting vehicles are needed to deal with it. With its advanced fire extinguishing technology and comprehensive safety design, the Isuzu Water Foam Fire Tanker can provide reliable fire protection for these special places.
