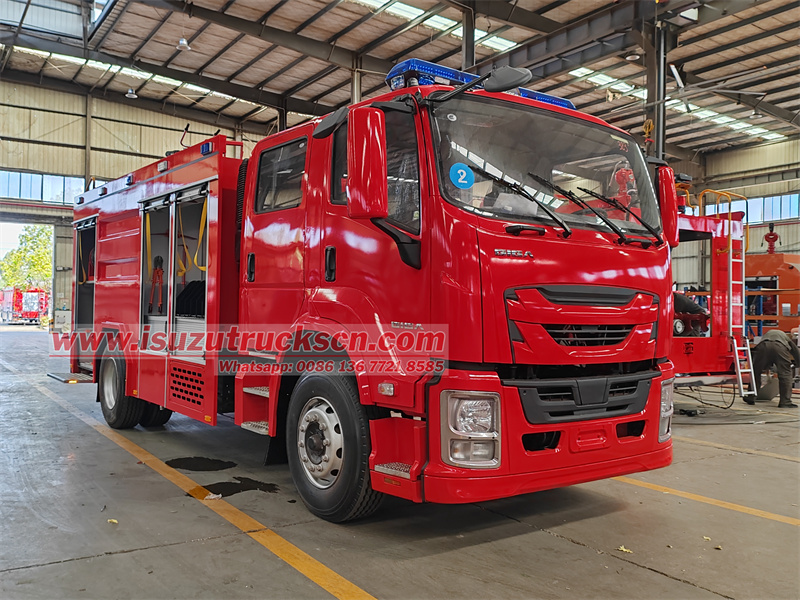

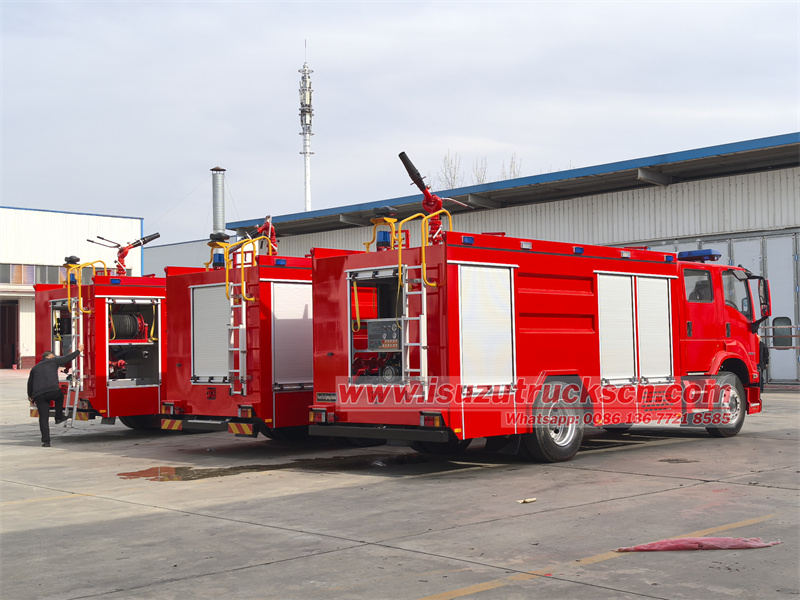

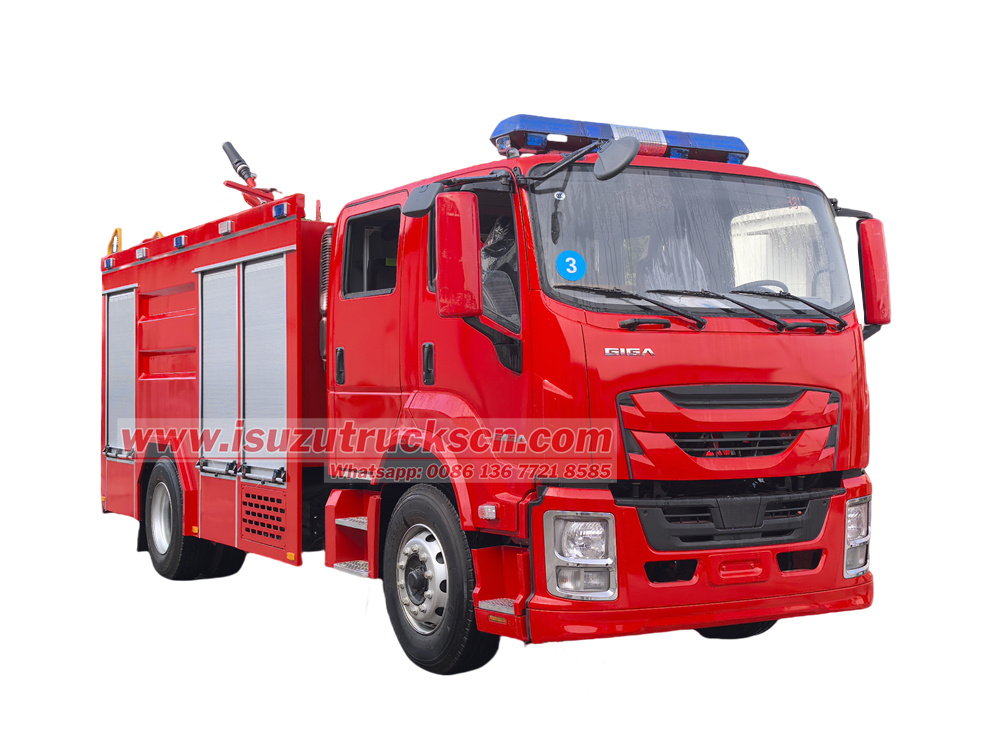

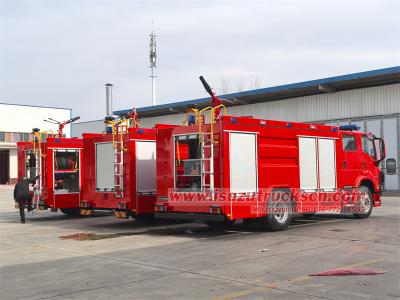

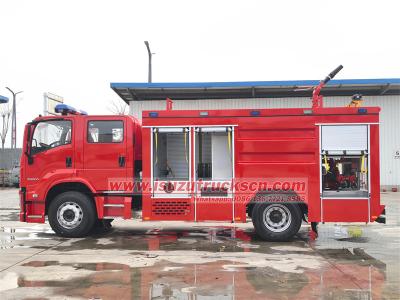

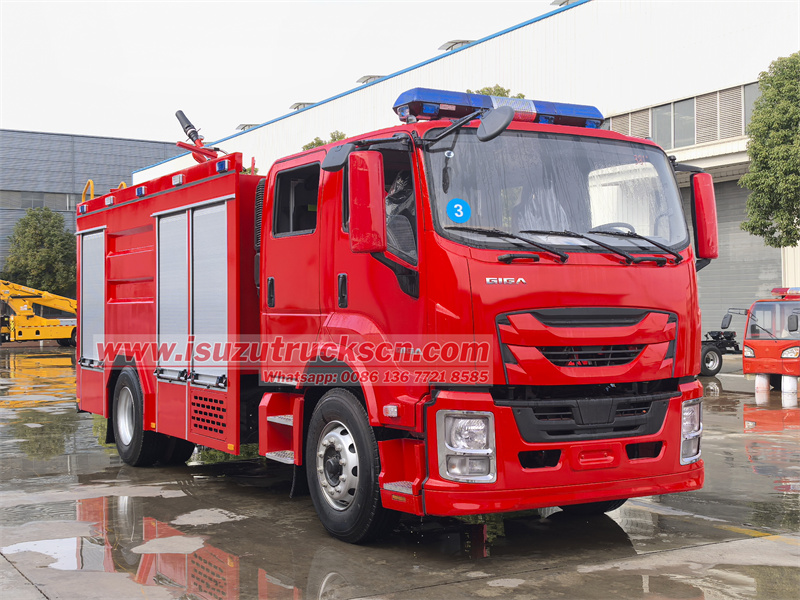

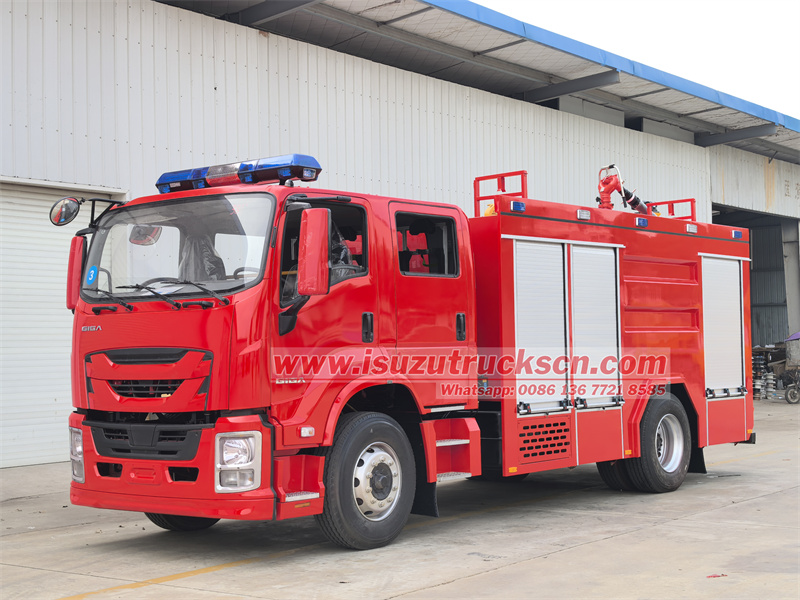

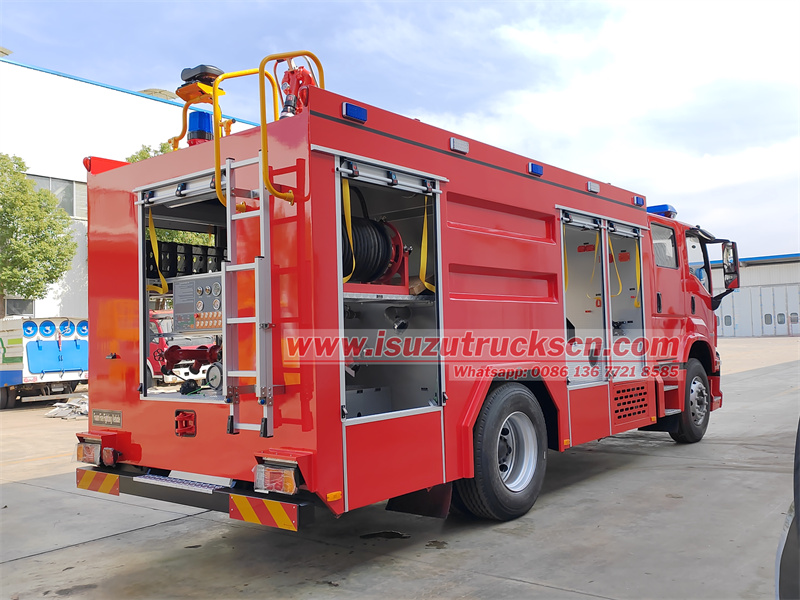

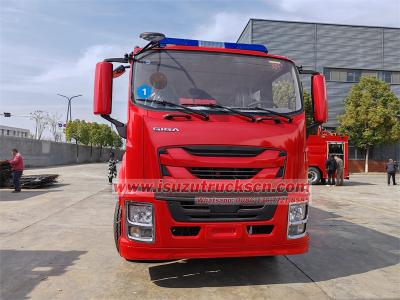

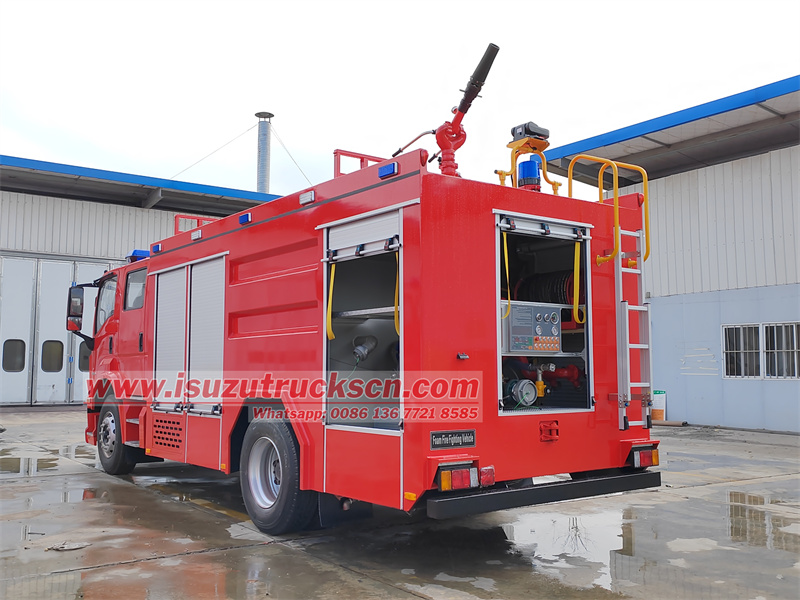

Isuzu FTR 6 cubic foam water tank fire truck is modified on the basis of Isuzu's new FTR GIGA 4X fire truck chassis. It has a wheelbase of 5550mm, equipped with a 4HK1-TCG60 205HP engine, an Isuzu MLD 6-speed gearbox, an equipment box behind the cab, a 5-cubic-meter water tank and a 1-cubic-meter foam tank in the middle, a pump room at the rear of the car, loaded with a CB10/40 fire pump and some firefighting equipment, and a PL8/32 fixed water-foam dual-purpose fire monitor on the top of the vehicle. The fire tank, fire pump, fire monitor and firefighting equipment work together to control the fire and protect people's lives and property.
Manufacturer:
Powerstar TrucksWork capacity:
5cbm water tank，1cbm foam tankDimension:
7970 x 2540 x 3550mmCabin type:
Isuzu new FTR GIGA 4X chassis, 2+4 seatsWheelbase:
4500mmEngine power:
205HPEngine type:
ISUZU 4HK1-TCG60Axle drive:
4X2Gear box:
Isuzu MLD 6-speed,manualRemarks:
Equipped with CB10/40 fire pump and PL8/32 fire monitorIsuzu FTR pumper tanker fire truck, which equipped with Shanghai Rongshen CB10/40 fire pump and Chengdu West PL8/32 fire monitor, is an efficient and professional fire-fighting equipment. The Shanghai Rongshen CB10/40 fire pump has excellent performance, large head flow, continuous stability, and provides strong support for fire fighting. Chengdu West PL8/32 fire monitor has a long range, large spray volume, flexible operation, dual-use water and foam, and is suitable for a variety of fire scenes. The car is equipped with 5 cubic water tanks and 1 cubic foam tank to meet most fire-fighting needs. The whole vehicle is reasonably designed, compactly laid out, responds quickly, and effectively controls the fire. Whether in the city or in the wild, it can provide firefighters with reliable and efficient fire-fighting support, and is a powerful assistant in protecting people's lives and property.
● China best Isuzu water foam fire truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
|
Isuzu FTR GIGA 6cbm foam water fire truck |
||
|
Chassis |
Chassis brand |
ISUZU |
|
Drive type |
4x2 left hand drive |
|
|
Cabin |

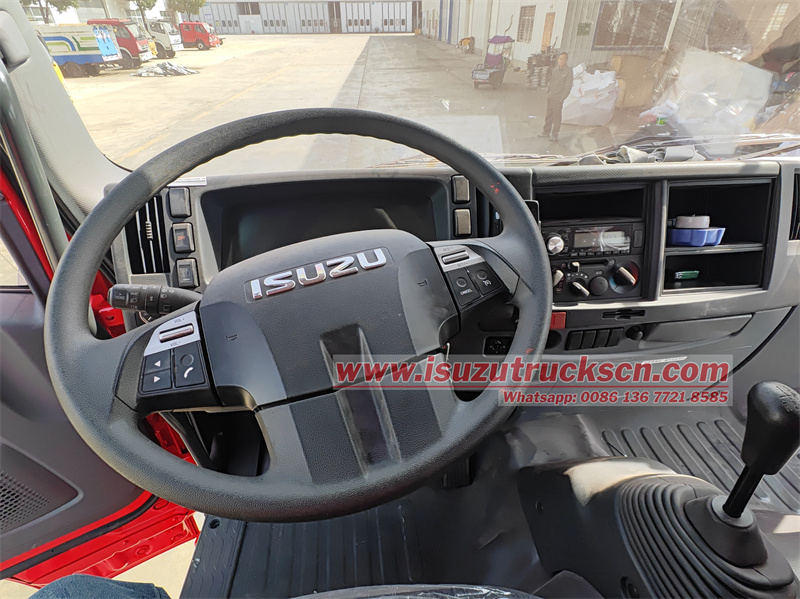

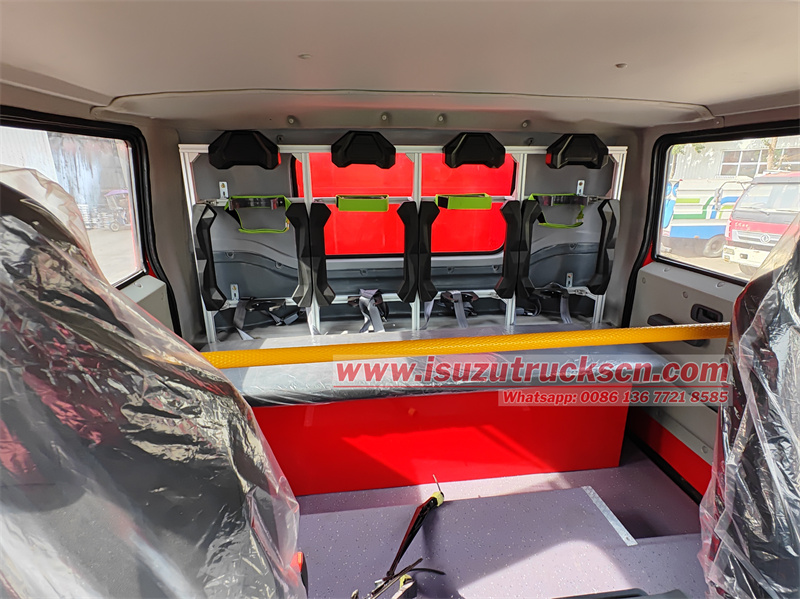

Isuzu new FTR GIGA 4X chassis, 2+4 seats,with A/C,USB,direction assistance |
|
|

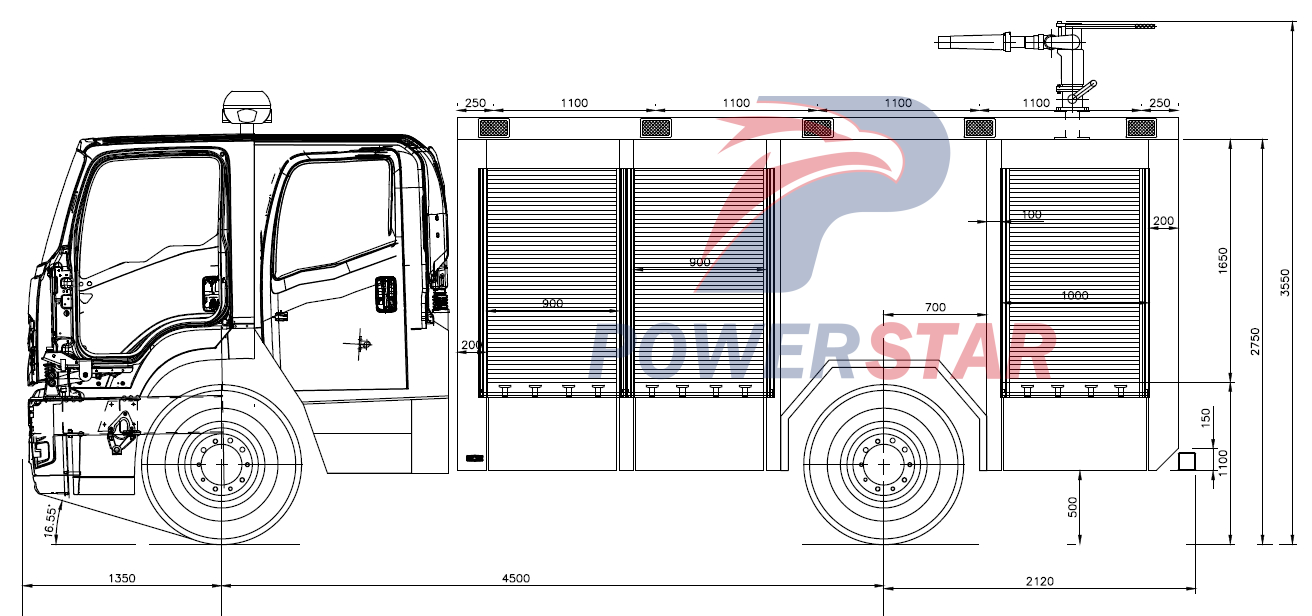

Overall dimension(L*W*H) |
7970*2540*3550mm |
|
|
GVW |
18000kg |
|
|
Rated Loading capacity |
6tons |
|
|
Wheel Base |
4500mm |
|
|
Front / rear overhang |
1350/2120mm |
|
|
Front / rear wheel track |
1960/1855mm |
|
|
Tyre No. |
6, (front 2, rear 4) |
|
|
Type & Size of Tyre |
295/80R22.5 |
|
|
Axle No. |
2 |
|
|
Gear box |
Isuzu MLD,6 speed, manual |
|
|
Max speed |
105km/h |
|
|
Engine |
Engine model |
4HK1-TCG60 |
|
Engine brand |
ISUZU |
|
|
Engine type |
4 cylinders in line, 4-stroke, turbocharged, intercooled, water-cooled |
|
|
Maximum power |
205HP/ 151Kw |
|
|
Fuel type |
diesel |
|
|
Displacement |
5193ml |
|
|
Rated speed |
2600rpm |
|
|
Max torque |
647N.m |
|
|
Max torque speed |
1600rpm |
|
|
Emission Standard |
Euro VI |
|
|
Tanker |
Water tanker |
5000Liters,carbon steel |
|
Foam tanker |
1000L stainless steel |
|
|
Fire pump |
Model |
CB10/40 |
|
Pressure |
≥1.0MPa |
|
|
Max suction height |
7m |
|
|
Flux |
40L/s |
|
|
Rated speed |
2825r/min |
|
|
Time of drawing water |
≤35 s |
|
|
Input diameter |
125mm |
|
|
Outlet diameter |
2xΦ75mm |
|
|
Fire monitor |
Model |
PL8/32 |
|
Flux |
32L/s |
|
|
Rated Working pressure |
0.8MPa |
|
|
Pitch rotation |
-45°～+70° |
|
|
Horizontal rotation |
0～360° |
|

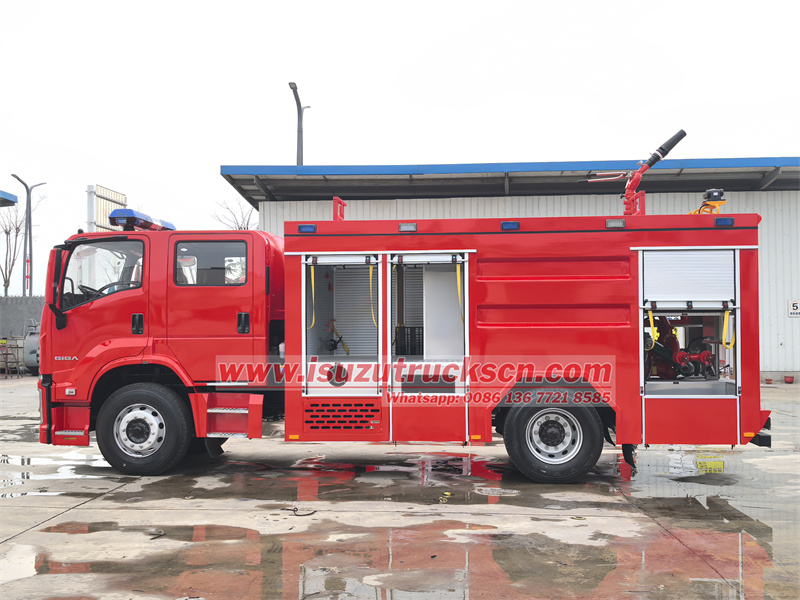

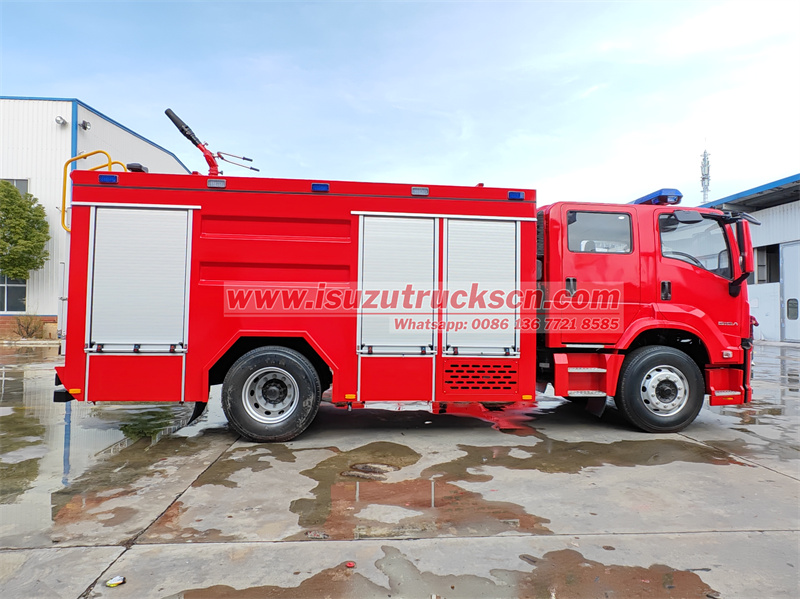

Isuzu FTR 6 cubic foam water tank fire truck is a professional fire truck carefully modified based on the chassis of Isuzu's new FTR GIGA 4X fire truck. It combines advanced design concepts and excellent performance configurations to provide efficient and reliable solutions for dealing with various fire scenarios.
Chassis and power system:
• The fire truck adopts Isuzu's new FTR GIGA 4X chassis, which is known for its excellent stability and passability, ensuring that the vehicle can drive steadily under various complex road conditions.
• The wheelbase reaches 4500mm, providing sufficient space layout, which not only ensures the vehicle's control flexibility, but also ensures the reasonable installation and stable operation of the on-board equipment.
• In terms of power, it is equipped with a 4HK1-TCG60 205HP engine. This engine is widely praised for its strong power output, low fuel consumption and good environmental performance, providing continuous and stable power support for fire trucks.
• Matching Isuzu MLD 6-speed gearbox, smooth shifting and easy operation, allowing drivers to easily cope with driving needs under different road conditions.
Upper configuration:

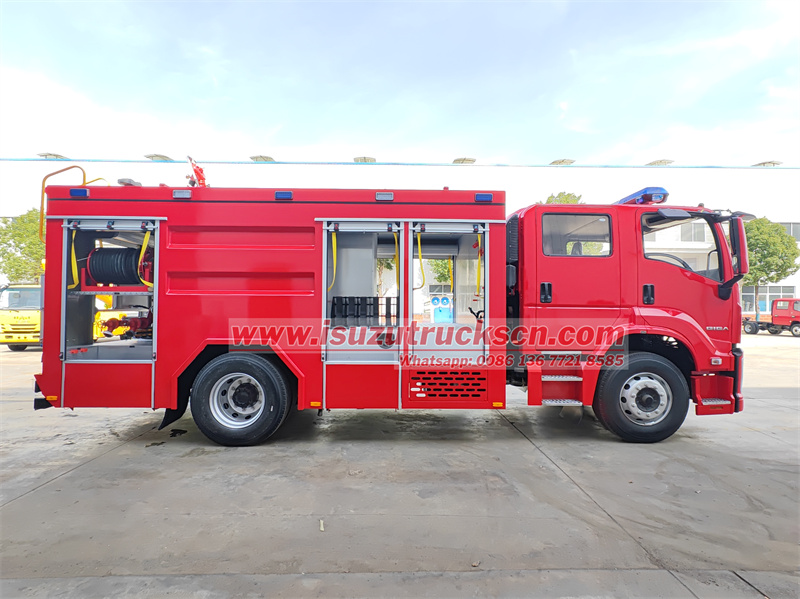

• The equipment box is carefully equipped behind the cab to store various firefighting tools and personal protective equipment to ensure that they can be quickly accessed in an emergency. The outer frame of the equipment compartment is made of high-quality carbon steel plates, the inner frame is made of high-strength aluminum alloy profiles, and the built-in lap joint structure is designed and manufactured. The interior trim is made of patterned aluminum plates, and the surface is anodized, which is sturdy and durable. In terms of structure, the equipment compartment is reasonably arranged, the equipment is more convenient to access, and the special clamp fixing device makes the equipment storage more secure.
• 5 cubic water tanks and 1 cubic foam tank are set in the middle of the car. The water tank has sufficient capacity to meet the firefighting needs of most fire scenes; the foam tank is used to store foam fire extinguishing agents to enhance the firefighting effect, especially suitable for special scenes such as oil fires.

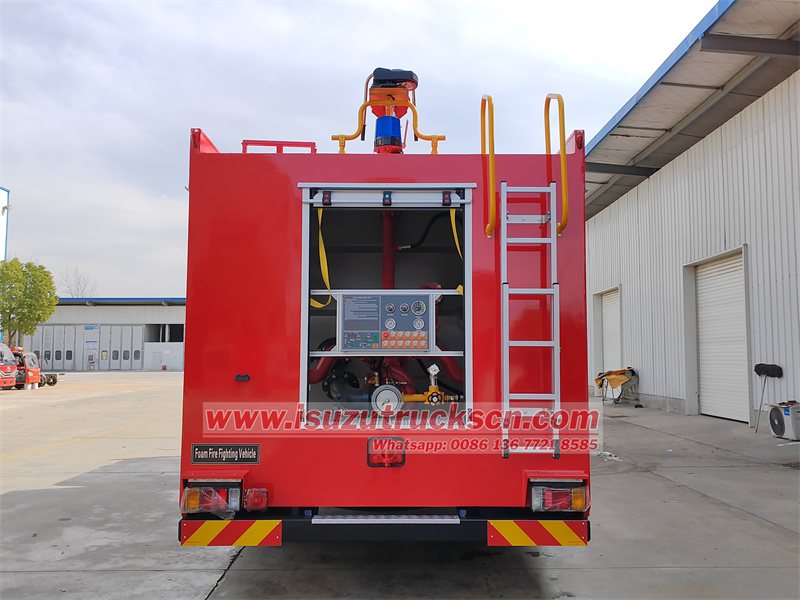

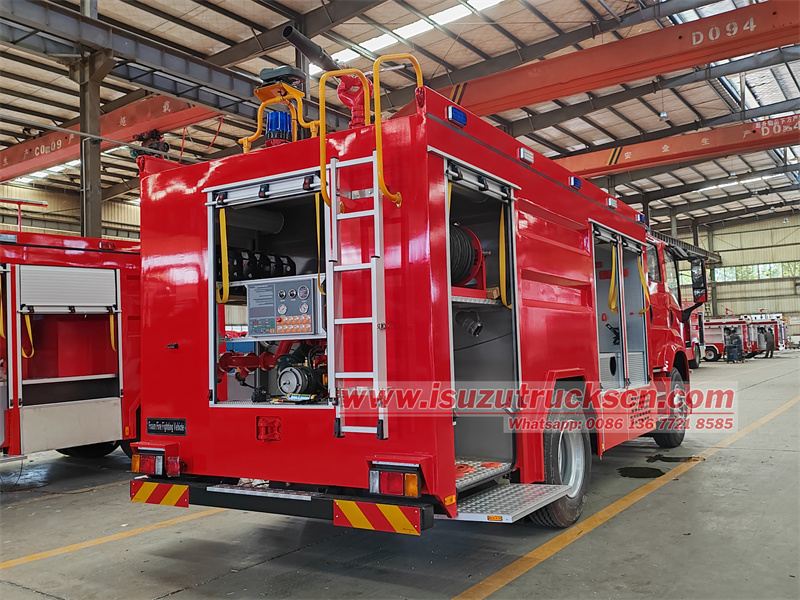

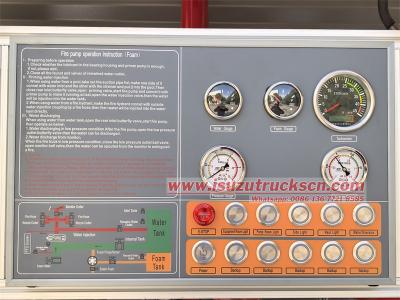

• There is a pump room at the rear of the car, with a built-in high-efficiency fire pump, which can quickly transport water or foam fire extinguishing agents to the fire monitor to ensure the rapid development of firefighting operations.
• Equipped with a CB10/40 fire pump, the gun is efficient and stable, and can quickly deliver water or foam fire extinguishing agent to the fire gun to ensure the rapid development of fire fighting operations.
• In addition, a PL8/32 fixed water-foam dual-purpose fire gun is installed on the top of the vehicle, providing the vehicle with an additional means of fire fighting, especially at high altitudes or inaccessible fire sources, which can play an important role.
• The carriage is made of high-quality steel, high-strength aluminum alloy profiles, and the inner and outer skins are made of corrugated aluminum plates. The rolling door is designed and made of high-quality aluminum alloy, which is flexible to open and close, low noise, good sealing, and beautiful appearance.

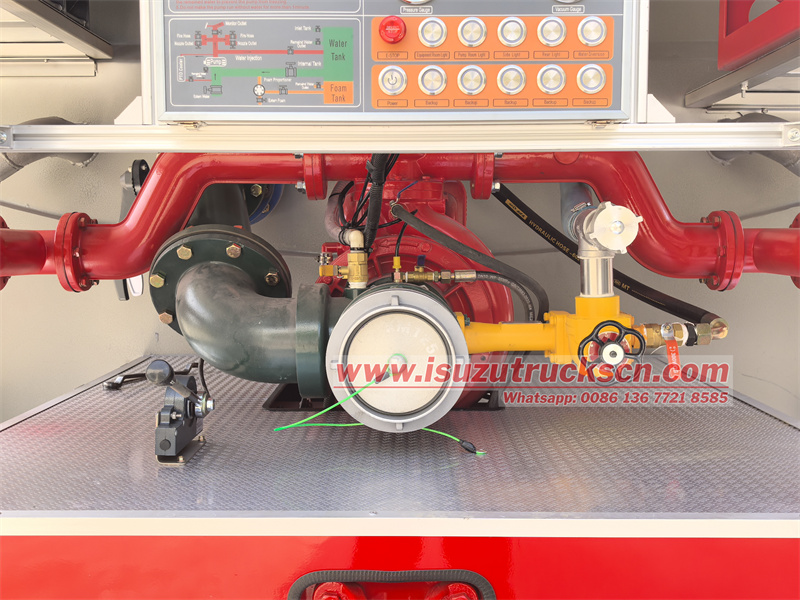

CB10/40-RS fire pump:
The fire pump equipped on this fire truck is the "heart" of its fire extinguishing system. With a flow rate of 40L/s and a pressure of 1.0MPa, this pump is carefully designed to be efficient, stable and durable. It can quickly extract and pressurize the fire extinguishing agent in the water tank or foam tank, and then transport it to the fire monitor through the pipeline to ensure that the fire extinguishing agent can be quickly and accurately sprayed to the fire source. The flow rate and pressure of the fire pump can be adjusted according to actual needs to adapt to fire scenes of different sizes and types. Whether in urban blocks, industrial parks or outdoor environments, this fire pump can maintain excellent performance and provide strong support for fire fighting operations.

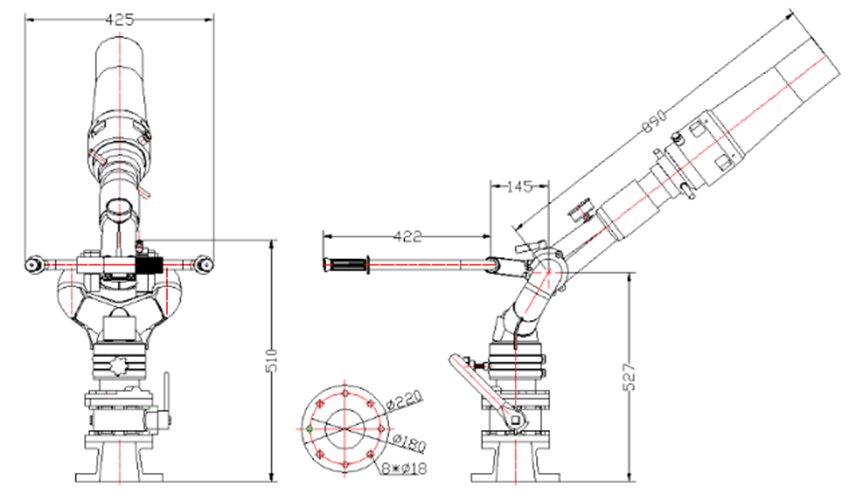

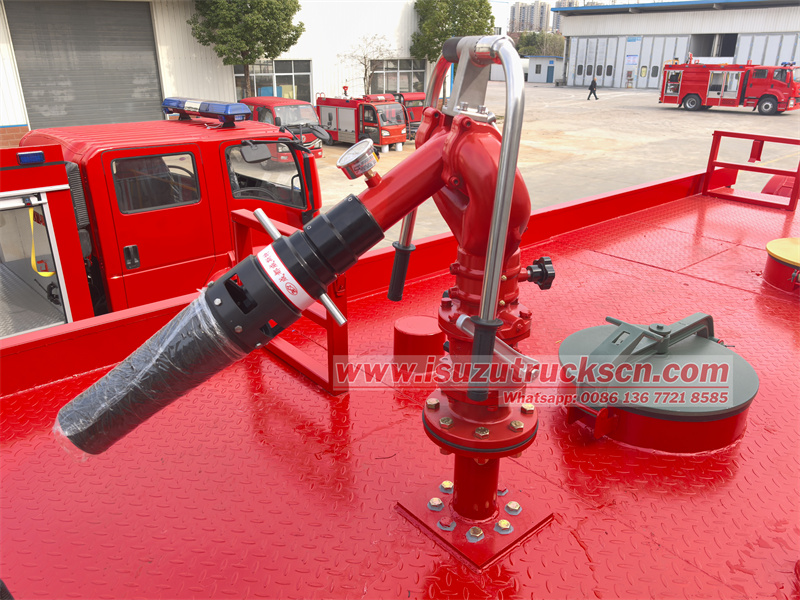

PL8/32 Fire monitor
Chengdu Wester PL8/32 fire monitor is another powerful weapon of this fire truck. With a flow rate of 32L/s, this fire cannon integrates water cannon and foam cannon, which can spray water as well as foam fire extinguishing agent, and is suitable for various types of fire scenes.
* Complete functions, simple and novel structure;
* Stable performance and convenient maintenance;
* Low inlet pressure;
* Can spray water or foam liquid, and can be used as a water cannon after removing the foaming tube, and has flowering and direct current functions;
* Light weight, precision cast aluminum material;
* Equipped with automatic drain valve;
* The operating handle can be adjusted in angle; With horizontal and pitch locking functions;
* Long range (water ≥60m, foam ≥48m), concentrated jet, high foaming multiple, and large protection area
* Flexible and convenient operation, the cannon body can be rotated horizontally and in elevation
