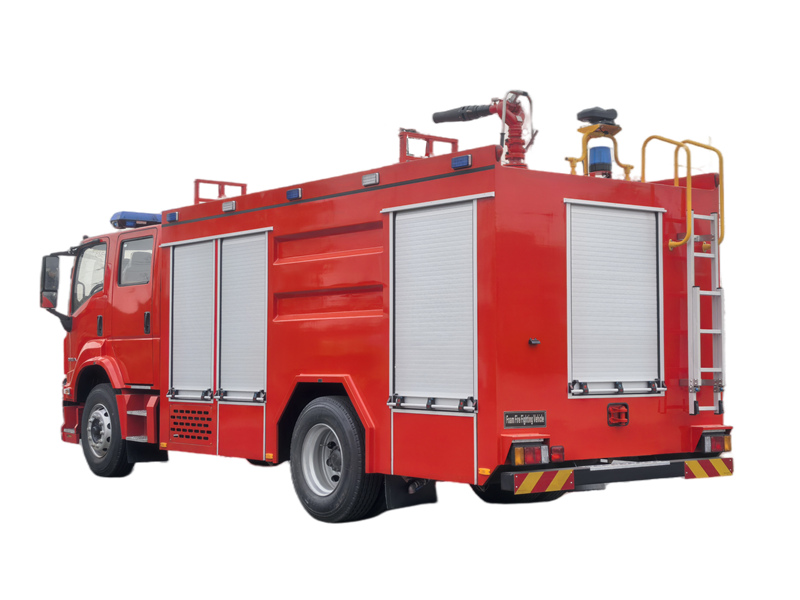

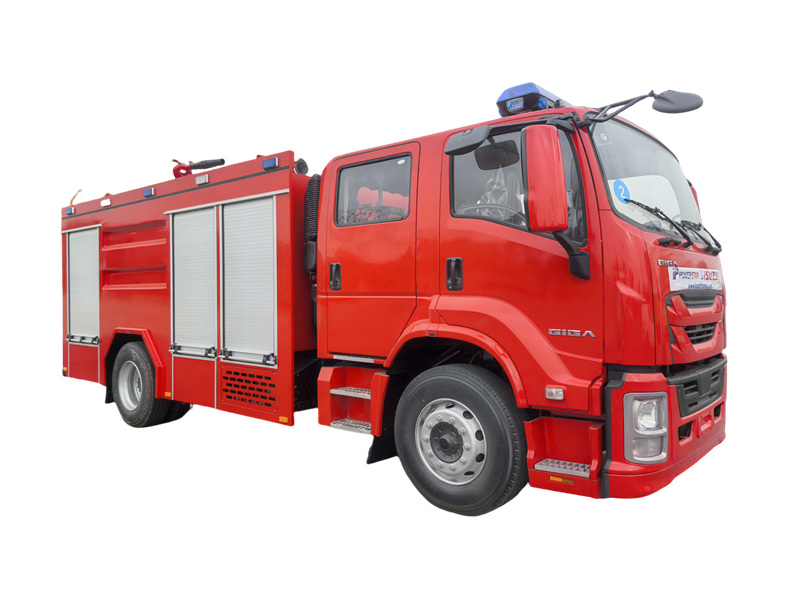

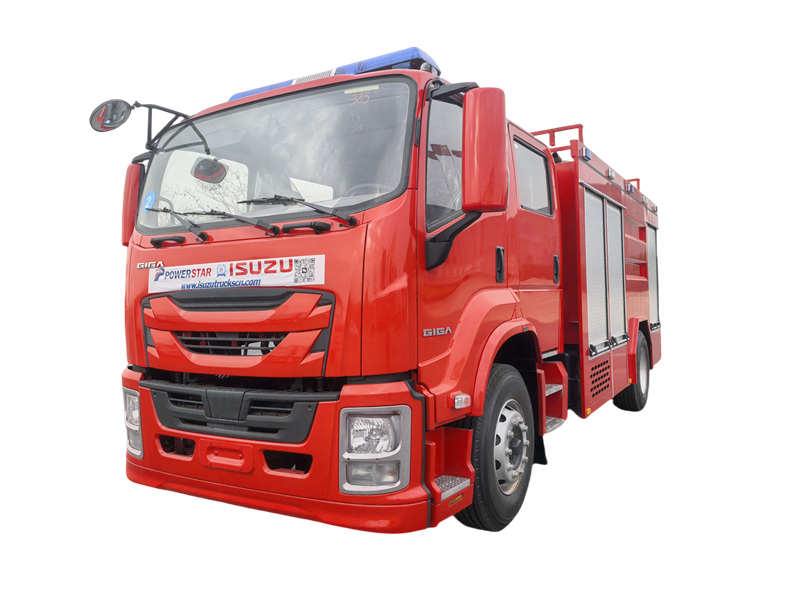

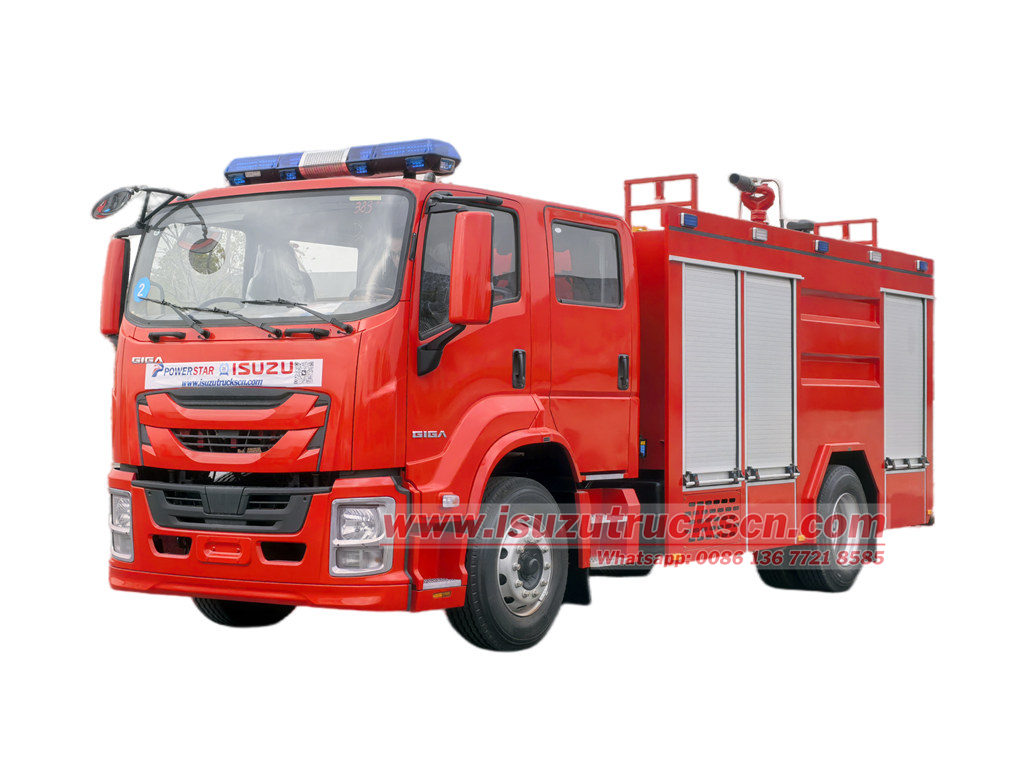

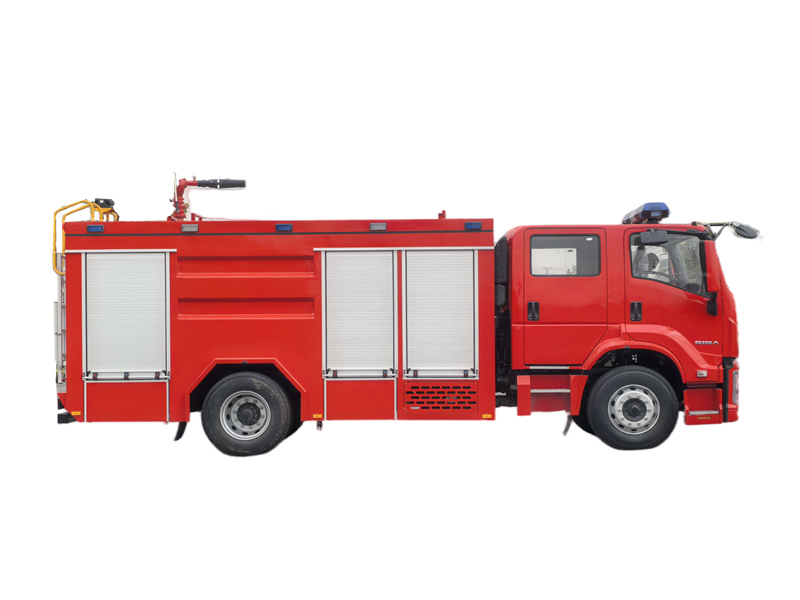

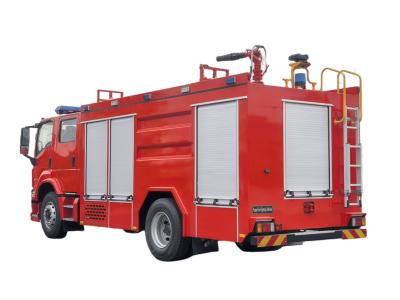

The ISUZU foam fire truck, built on the FTR chassis, is equipped with a 205 HP 4HK1-TCG60 engine and a professional fire suppression system featuring a 5m³ carbon steel water tank and a 1m³ stainless steel foam tank. It utilizes a CB10/40 high-pressure pump (40L/S flow rate) and a PL8/32 fire monitor (60m water range/55m foam range), paired with a PH48 intelligent foam proportioning system (3-6% adjustable ratio), making it specifically designed for oil and chemical fires.
Manufacturer:
Powerstar TrucksWork capacity:
5000L water and 1000L foamDimension:
8360 x 2510 x 3550mmCabin type:

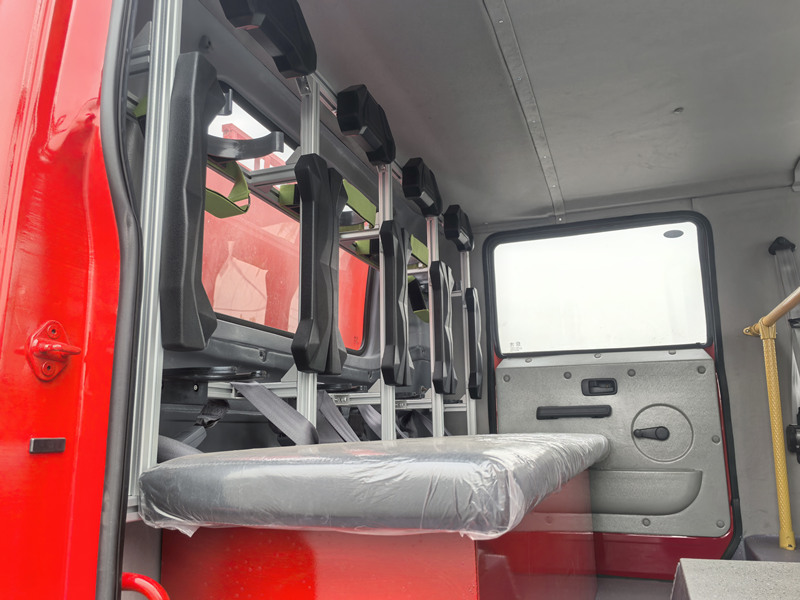

Double row, 2+4 seats with ACWheelbase:
4500mmEngine power:
205 HPEngine type:
4HK1-TCG60Axle drive:
4×2Gear box:
MLD 6-speed,manualRemarks:
Equipped with high pressure hose reelIn fire rescue operations, a fire truck that combines powerful performance, stable load-bearing capacity, and an efficient fire suppression system often becomes a critical asset in firefighting missions. The ISUZU FTR foam fire truck is a professional vehicle tailored to modern firefighting needs. Built on ISUZU's high-performance FTR chassis, it features large-capacity water and foam tanks, a high-pressure fire pump, and an intelligent foam proportioning system. It is widely applicable in urban firefighting, industrial parks, airports, and chemical plants, meeting the demands of various fire scenarios.
As the core component of ISUZU firefighting trucks, the FTR chassis is renowned in the industry for its exceptional load-bearing capacity and dynamic performance. The vehicle adopts a 4×2 drive configuration, powered by a 4HK1-TCG60 engine with a 5.2L displacement, delivering 205 HP (151 KW) of robust power and a maximum torque of 647 N·m, ensuring rapid response even in complex road conditions. The 4500mm wheelbase design balances stability and maneuverability, while the front axle capacity of 6500 kg and rear axle capacity of 11500 kg, combined with 295/80R22.5 large-size tires (6+1 spare tire configuration), maintain outstanding driving performance even under full load.
The key advantage of this ISUZU fire engine lies in its professional fire suppression system. The vehicle is equipped with a 5m³ carbon steel water tank and a 1m³ stainless steel foam tank, enabling simultaneous water and foam firefighting. The CB10/40 normal-pressure fire pump delivers a high flow rate of 40L/S with an outlet pressure of 1.0 MPa, along with a 7-meter suction depth, allowing quick water intake from various sources. The PL8/32 fire monitor achieves a range of over 60 meters (water) and 55 meters (foam), with a flexible rotation angle of 360° horizontally and -35° to 70° vertically, ensuring full coverage of the fire scene. Notably, the PH48 negative-pressure foam proportioner features a cast aluminum shell and stainless steel flow channels, with an adjustable mixing ratio of 3%–6%, enabling precise foam solution preparation for different fire conditions—particularly effective for oil and chemical fires.
● China leading Isuzu fire engine truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● We have strong professional design team
● OEM customized service, print your company logo
● Build strict QC team to guarantee the quality
Product Specifications
|
Vehicle specifications |
||
|
Overall dimension |
8360*2510*3550mm |
|
|
GVW |
18000kg |
|
|
Curb weight |
10550kg |
|
|
Chassis brand |
ISUZU |
|
|
Traction type |
4×2, left hand drive |
|
|
Chassis specifications |
||
|
Chassis model |
ISUZU FTR |
|
|
Cab |
Double row, 2+4 seats with AC |
|
|
Wheelbase |
4500mm |
|
|
Tire specification |
295/80R22.5 |
|
|
Tire quantity |
6+1 units |
|
|
Engine |
Model |
4HK1-TCG60 |
|
Emission standard |
Euro 6 |
|
|
Displacement |
5193 |
|
|
Output |
205HP(151KW) |
|
|
Rated speed |
2600rpm |
|
|
Max. torque |
647 N.m |
|
|
Brake system |
Full air brake, power steering, spring brake, exhaust brake |
|
|
Axle |
Front |
6500 kg |
|
Rear |
11500 kg |
|
|
Suspension |
Front |
Leaf spring |
|
Rear |
Leaf spring |
|
|
Upper body specifications |
||
|
Tanker capacity |
Water tanker |
5 CBM (carbon steel) |
|
Foam tanker |
1 CBM (stainless steel) |
|
|
Fire pump |
Model |
CB10/40, normal pressure pump |
|
Flow |
40L/S |
|
|
Pressure |
1.0Mpa |
|
|
Suction depth |
7m |
|
|
Fire monitor |
Model |
PL8/32 |
|
Pressure |
0.8Mpa |
|
|
Range |
Water≥60m; Foam ≥ 55m |
|
|
Rotation angle |
Horizontal 360° |
|
|
Foam Proportioner |
Model |
PH48 |
|
Material |
The shell is cast aluminum and the flow section is stainless steel |
|
|
Type |
Negative pressure around-the-pump proportioner |
|
|
Mixing Ratio |
3~6% |
|
Product Features

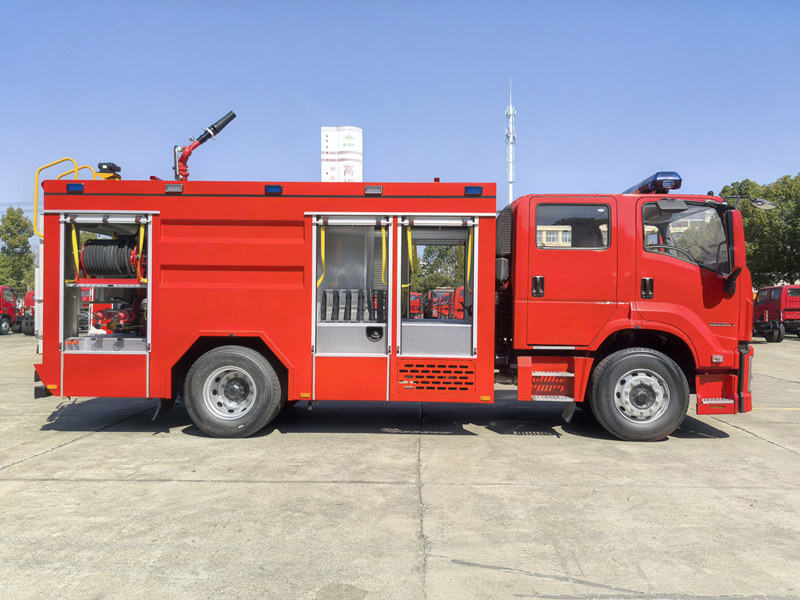

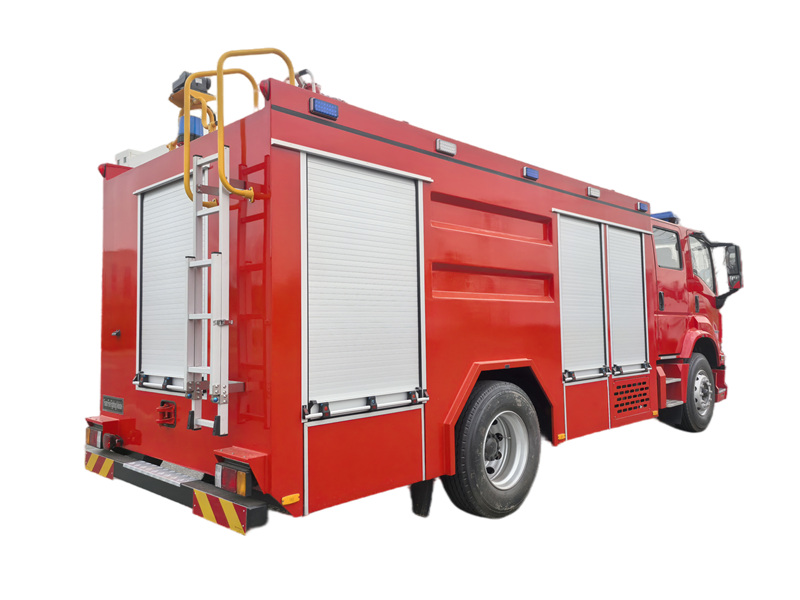

1. The main frame structure of the ISUZU FTR fire truck is constructed with high-quality square tube welding, with exterior cladding made of carbon steel plate welding. The roof features anti-slip design for walkability, and both sides are equipped with flip-down anti-slip steps.

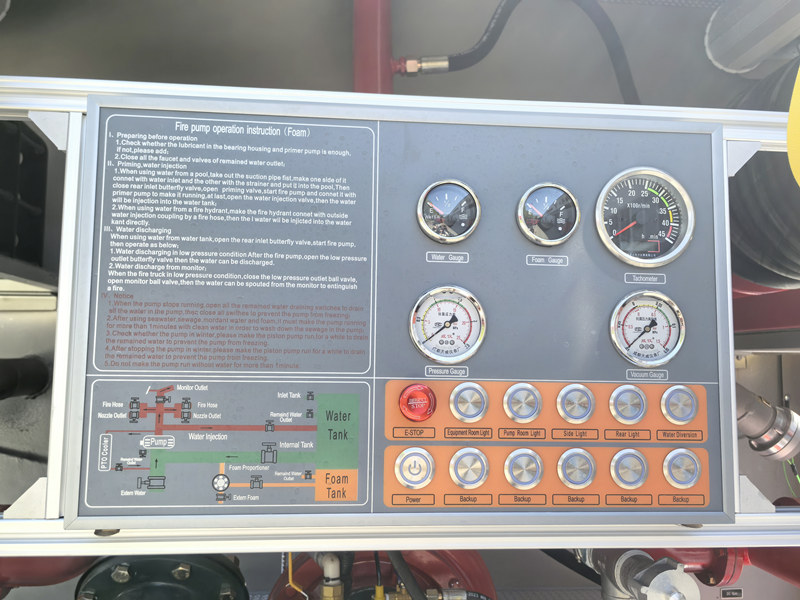

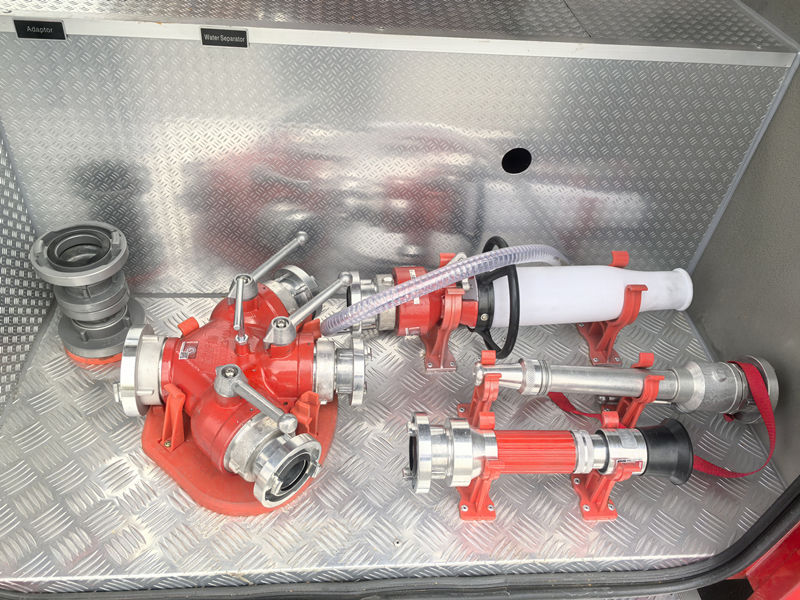

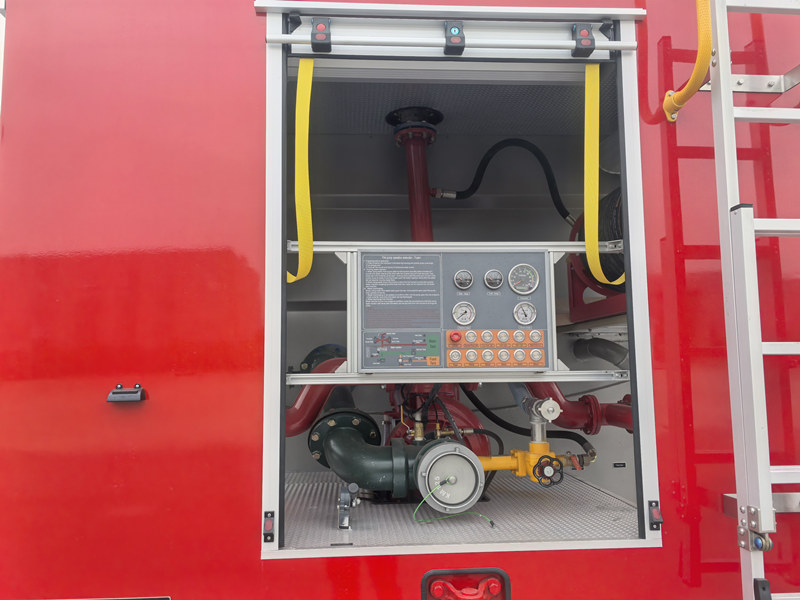

2. The pump room is located at the rear of the vehicle, with aluminum rolling shutters on both sides and the rear. It includes interior lighting and space on both sides of the pump compartment for storing commonly used equipment.

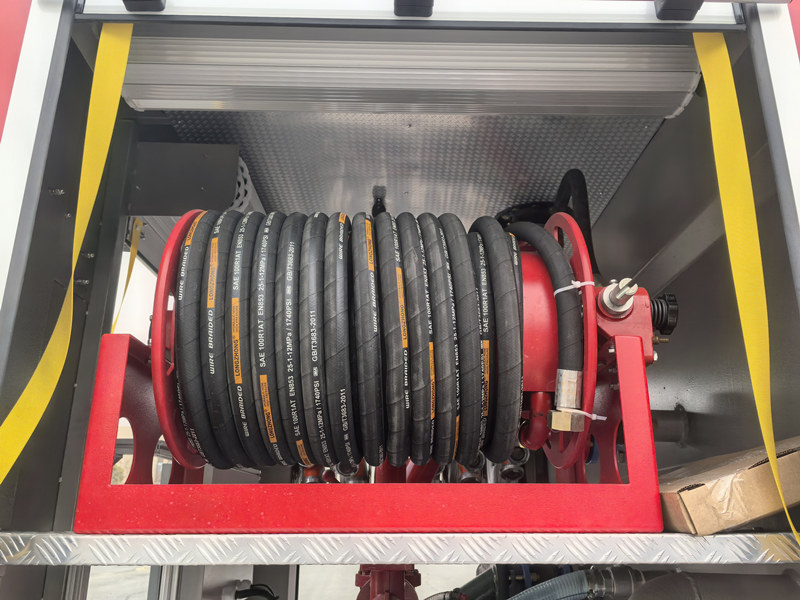

3. The ISUZU FTR fire engine truck is equipped with a 30-meter high-pressure fire hose reel with a working pressure of 1.0MPa, featuring quick-connect couplings and an auto-locking mechanism. The reel allows rapid deployment and retrieval, working in conjunction with a handheld nozzle for precise close-range firefighting, making it particularly suitable for confined space fire suppression with efficient and user-friendly operation.

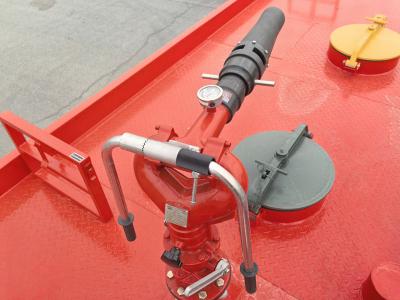

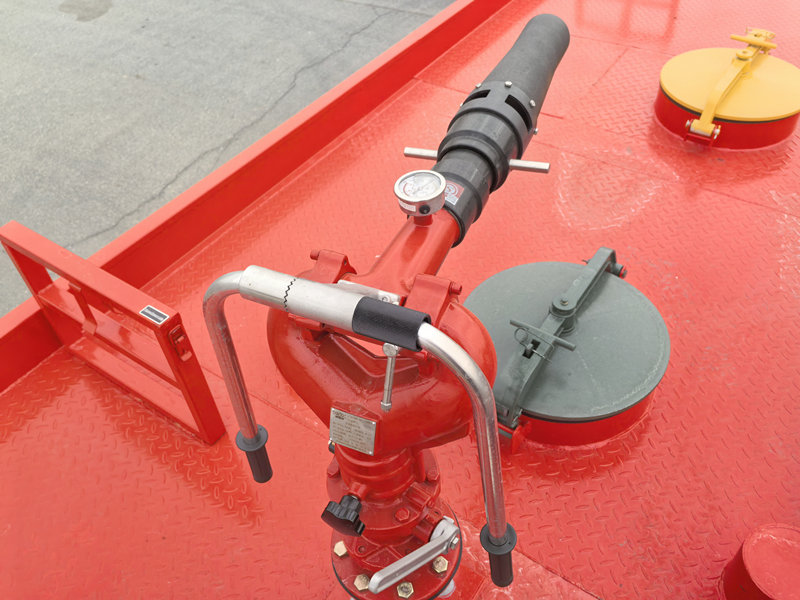

4. The vehicle comes with a PL8/32 multi-functional fire monitor capable of 360° horizontal rotation and -35° to +70° elevation/depression for complete coverage. It delivers a water jet range ≥60 meters and foam ≥55 meters.
