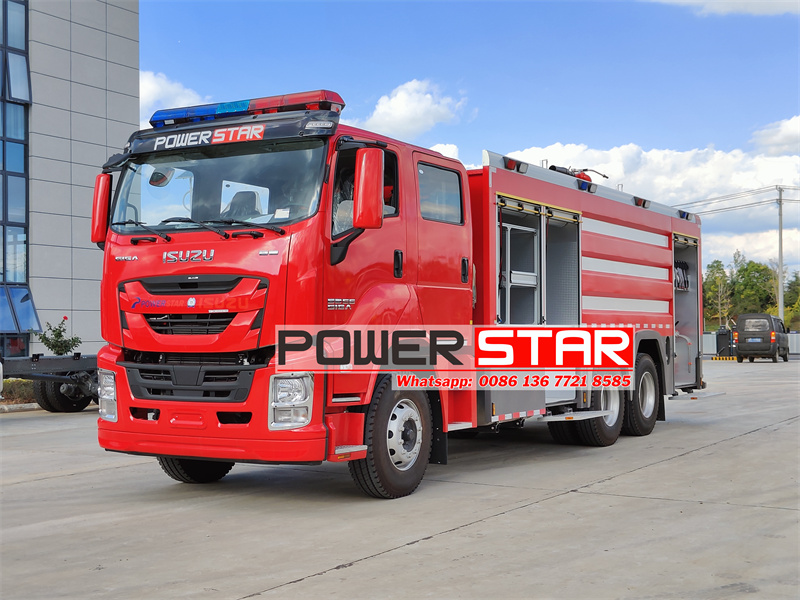

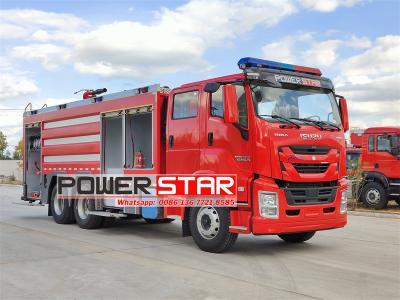

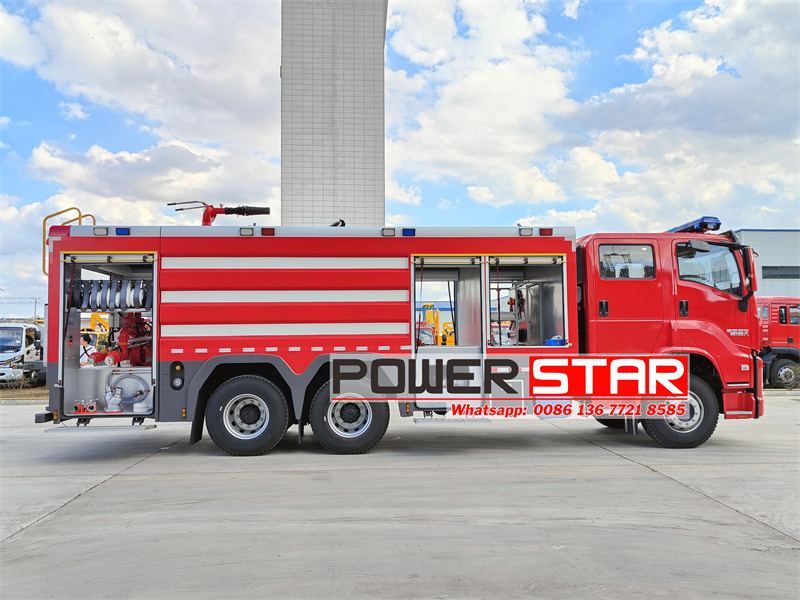

Isuzu GIGA 6X4 foam fire truck adopts Isuzu VC61 6x4 chassis, equipped with 4600+1370mm wheelbase, 6UZ1-TCG61 380HP engine, Fast 12-speed gearbox, and the upper is equipped with an 8-cubic carbon steel water tank and a 2-cubic stainless steel foam tank. It uses CB10/60 fire pump and PL8/48 water-foam dual-purpose fire monitor. The control panel at the rear of the vehicle can monitor the pressure gauge, tachometer, vacuum gauge, water level gauge, foam level gauge, etc. in real time. The vehicle is also equipped with a series of firefighting equipment for firefighting support.
Manufacturer:
Powerstar TrucksWork capacity:
8cbm water tank，2cbm foam tankDimension:

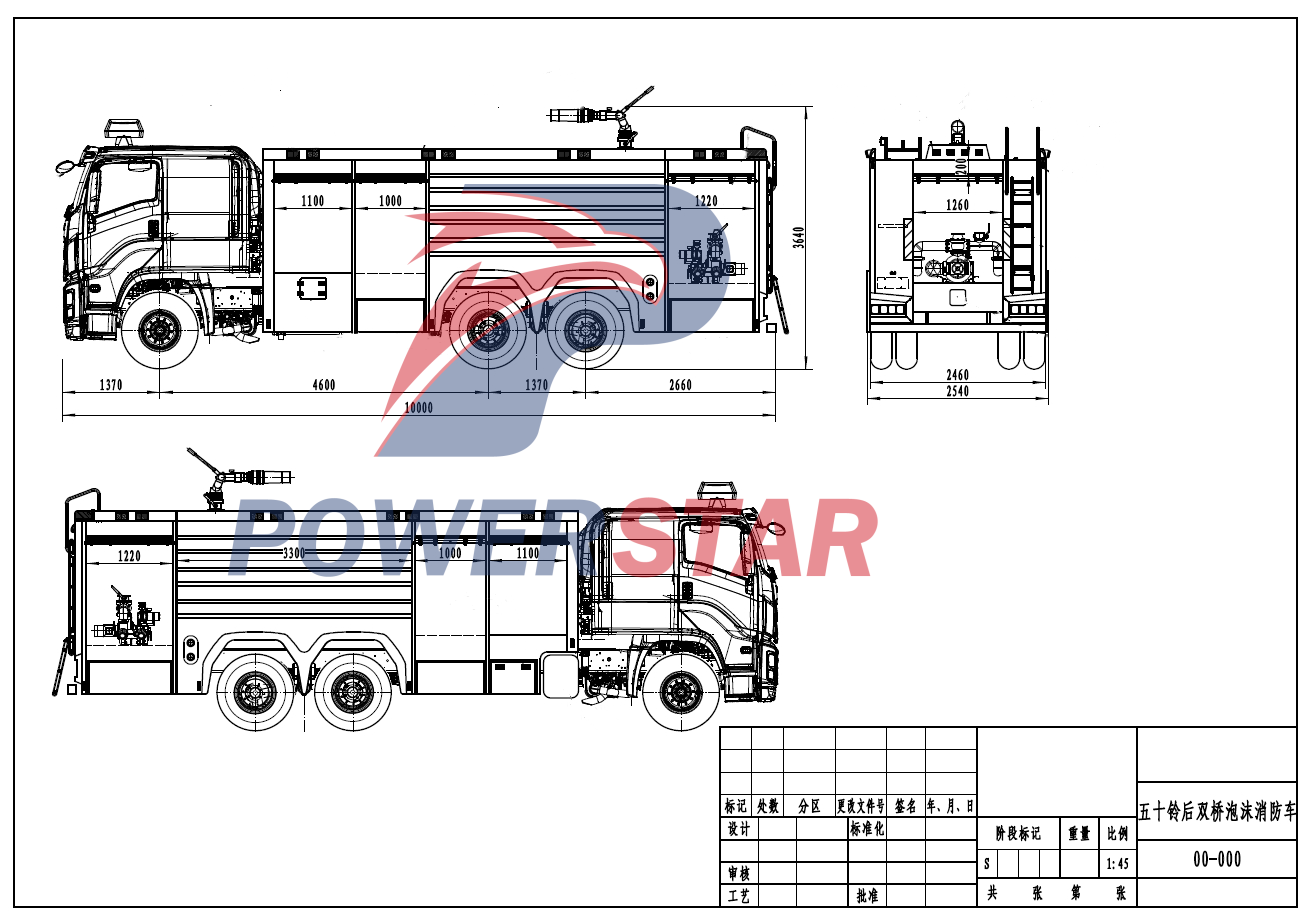

10000 x 2540 x 3640mmCabin type:

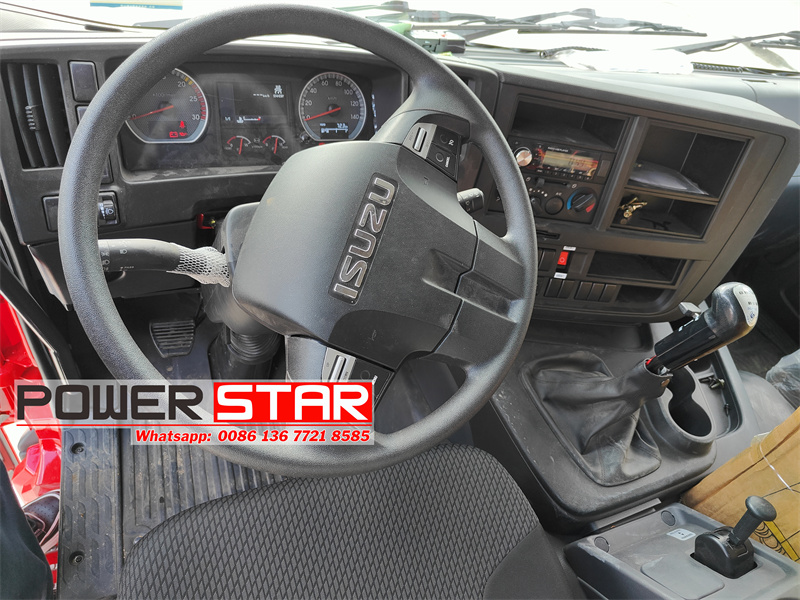

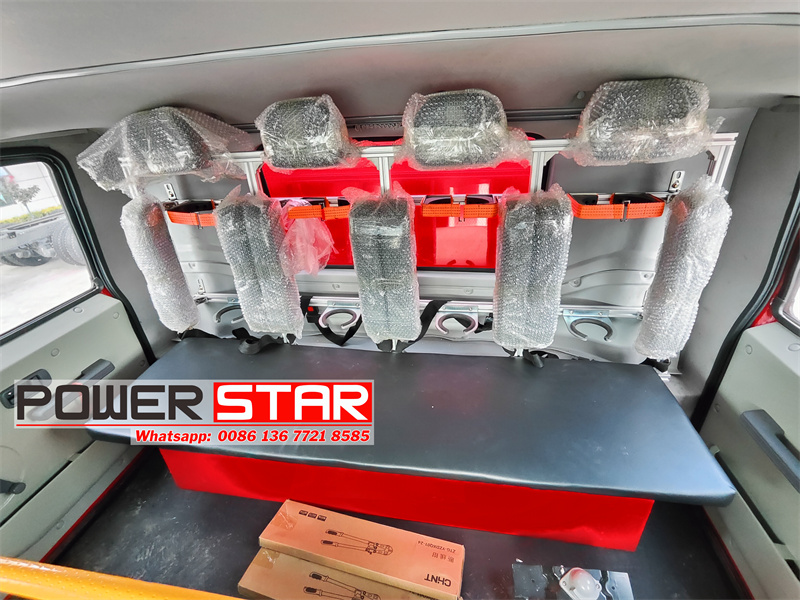

Isuzu VC61 cab, double row，2+4 seatsWheelbase:
4600+1370mmEngine power:
380HPEngine type:
Isuzu 6UZ1-TCG61Axle drive:
6x4Gear box:
FAST gearbox, manual, 12 gears forwards with 2 reverseRemarks:

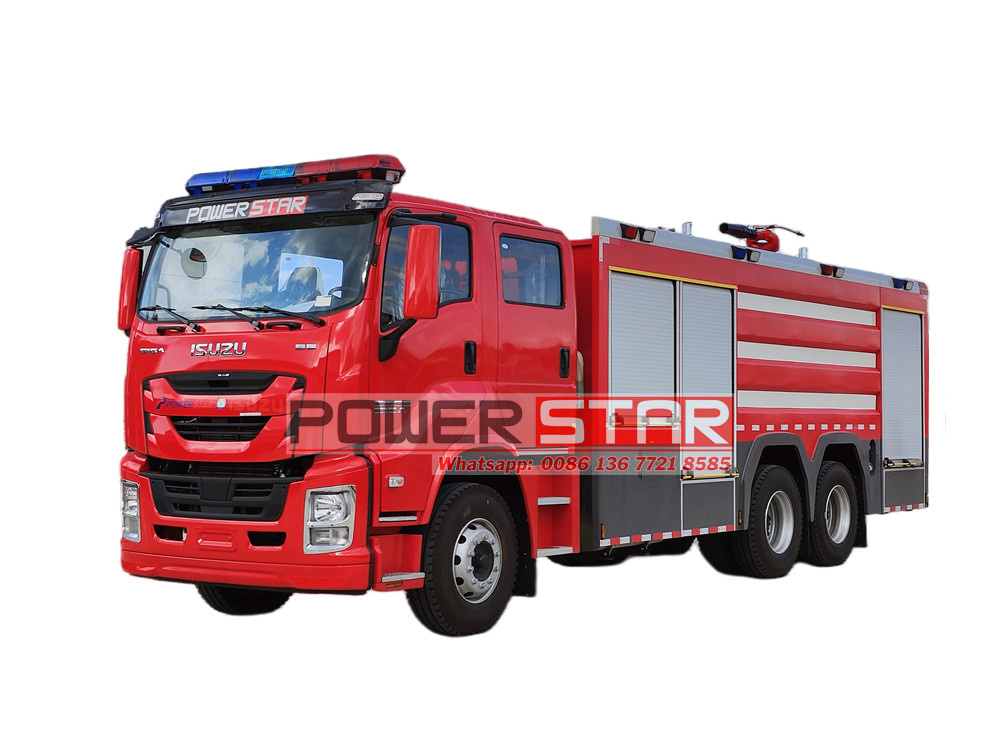

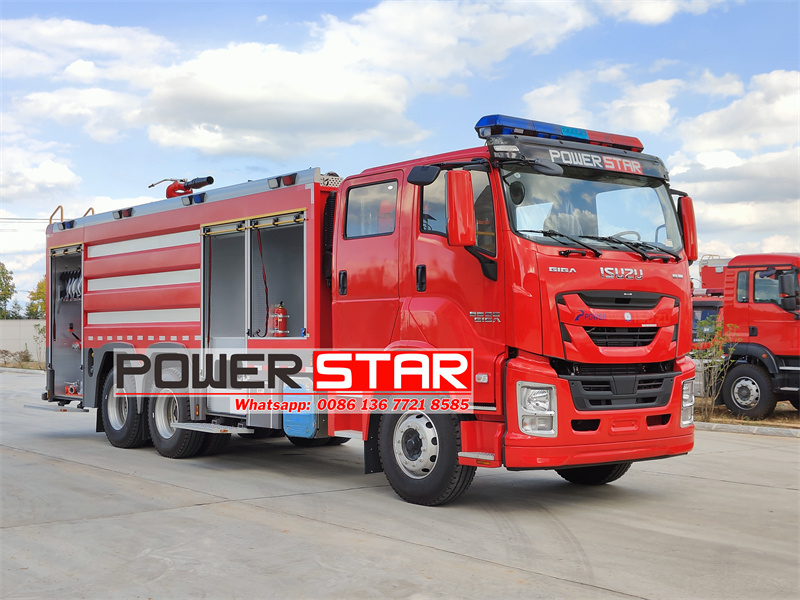

Equipped with CB10/60 fire pump and PL8/48 fire monitorThe Isuzu GIGA 10cbm foam fire fighting truck is a professional rescue vehicle that integrates the Isuzu GIGA series chassis with a highly efficient fire suppression system. It features a 6x4 drive configuration, powered by a robust 6UZ1-TCG61 380HP engine paired with a Fast 12-speed transmission, delivering exceptional power and flexible driving control to ensure rapid arrival at fire scenes. The vehicle is equipped with an 8-cubic-meter carbon steel water tank and a 2-cubic-meter stainless steel foam tank, along with a PL8/48 dual-purpose water/foam fire monitor, meeting the fire suppression needs for various types of fires. The spacious and comfortable cab is designed with advanced driver assistance systems, enhancing driving safety and comfort. The vehicle's robust structure, rigorously tested, ensures stability and reliability during firefighting operations.
● China best Isuzu foam fire truck factory
● 30 years experience on foam water truck designing
● Professional sales team which will help you to choose suitable truck.
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
Key Features:
---ISUZU GIGA chassis, perfect performance
---lSUZU engine & gearbox, super powerful, no overhaul within 100.000 km
---Water tank and Foam tank capacity can be optional.Tank material can be Carbon steel, Stainless steel or Aluminum alloy
---Easy operation and easy maintenance
---Various types of fire equipment are available
---Extended model: water fre truck, Foam fre truck, Dry powder fire truck...
|
Isuzu GIGA 6x4 foam water fire truck |
|||
|
Main specification |
Truck brand |
POWERSTAR |
|
|
Overall dimension(L*W*H) |
10000*2540*3640mm |
||
|
Cabin |
Isuzu VC61 cab, double row, with air conditioner, electronic windows, USB |
||
|
GVW/Curb weight |
25000/10200kg |
||
|
Chassis |
Chassis model |
Isuzu VC61/GIGA |
|
|
Drive model |
6X4,left hand drive |
||
|
Front/rear axle loading |
7,000/18000kg |
||
|
Wheel Base |
4600+1370mm |
||
|
Tyre size & number |
315/80R22.5,10+1wheel |
||
|
Transmission |
FAST gearbox, manual, 12 gears forwards with 2 reverse |
||
|
Color |
Red and white including tanker, standard. |
||
|
Max speed |
90km/h |
||
|
Engine |
Engine model |
Isuzu 6UZ1-TCG61 |
|
|
Horse power |
380HP/279Kw |
||
|
Displacement |
9839ml |
||
|
Max torque |
1800N.m |
||
|
Emission |
EURO 6 |
||
|
WATER TANK AND FOAM TANK SPECIFICATION |
|||
|
Tank |
Capacity |
8,000L water tank and 2000L foam tank |
|
|
Material |
Water tank carbon steel,foam tank stainless steel |
||
|
Fire pump |
Model |
CB10/60 |
|
|
Pressure |
1MPa |
||
|
Max working pressure |
1.232MPa |
||
|
Flux |
60L/s |
||
|
Max suction height |
7m |
||
|
Rated speed |
3286±50r/min |
||
|
Speed Ratio |
1:1.44 |
||
|
Fire monitor |
Model |
PL8/48 |
|
|
Flow |
48L/s |
||
|
Rated working pressure |
0.8MPa |
||
|
Max working pressure |
1.0MPa |
||
|
Range |
Water |
≥70m |
|
|
Foam |
≥60m |
||
|
Standard configuration |
An alarm rotating light installed on the top of the cab , have ladder , have manhole |
||
The firefighting equipment configuration of the Isuzu GIGA 6X4 foam water fire truck is the core support of its highly efficient fire suppression capabilities. Each piece of equipment is meticulously designed and selected, playing an irreplaceable role in firefighting and rescue operations. The collaborative operation of these components forms a complete fire suppression system, significantly enhancing the efficiency and safety of firefighting operations.
I. Core Firefighting Equipment
●. 8cbm carbon steel water tank and 2cbm stainless steel foam tank
- Function: Stores large quantities of water and foam extinguishing agents, providing an ample water supply for firefighting. The water tank is used to extinguish general fires, while the foam tank is specifically designed for special types of fires, such as oil fires, by generating fire-suppressing foam to enhance effectiveness.

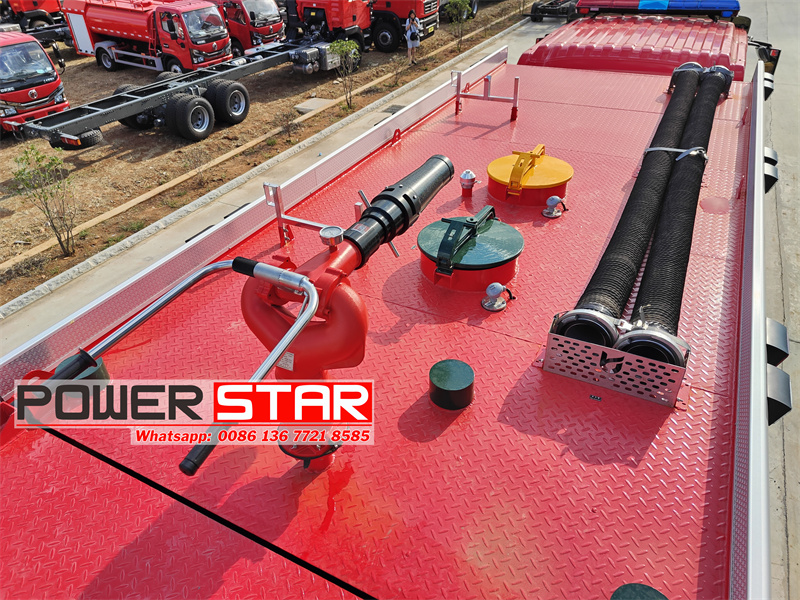

●. PL8/48 dual-purpose water/foam fire monitor
- Function: Adjusts the spray pattern and range as needed, accurately delivering water or foam extinguishing agents to the fire source for precise targeting and effective fire control.
II. Auxiliary Firefighting Equipment

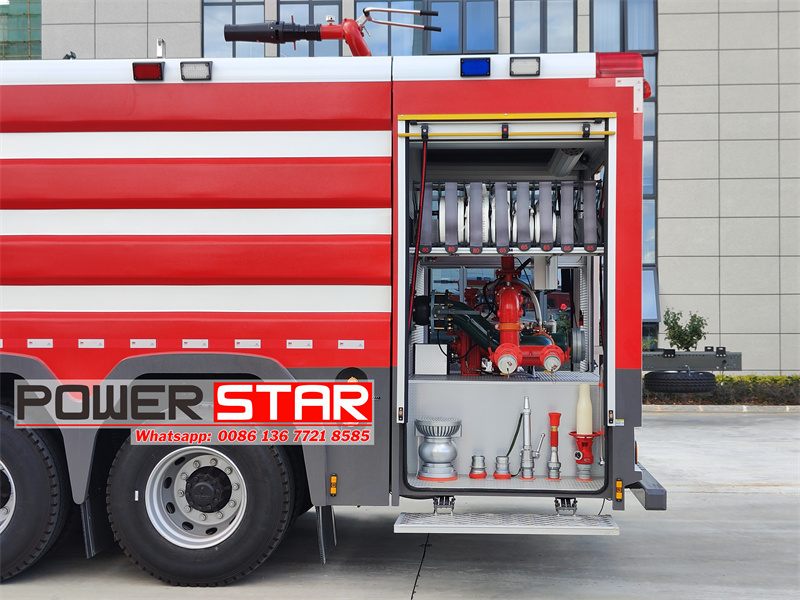

●. High-pressure water pump
- Function: Pressurizes water from the tank, ejecting it at high speed through fire hoses to create powerful water jets, enhancing fire suppression effectiveness.
●. Foam mixing system
- Function: Mixes water and foam extinguishing agents in the required proportions to produce fire-suppressing foam for extinguishing special types of fires.
●. Concentrated jet nozzle (high-pressure water gun)
- Function: Focuses water flow into a concentrated point, delivering it with greater force directly to the fire source for effective fire control.

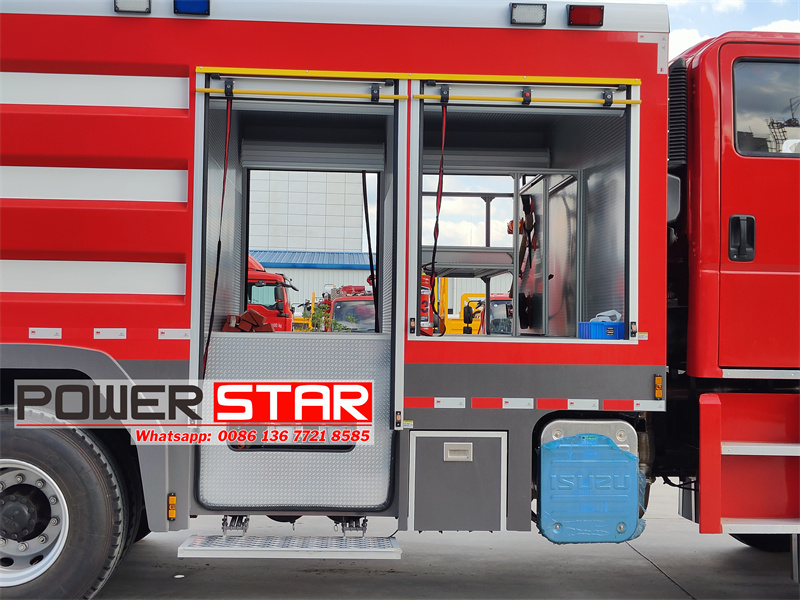

III. Rescue and Support Equipment
●. Fire extinguishers and fire hoses
- Function: Used by firefighters for rapid suppression during the initial stages of a fire or localized fires, preventing the spread of flames.

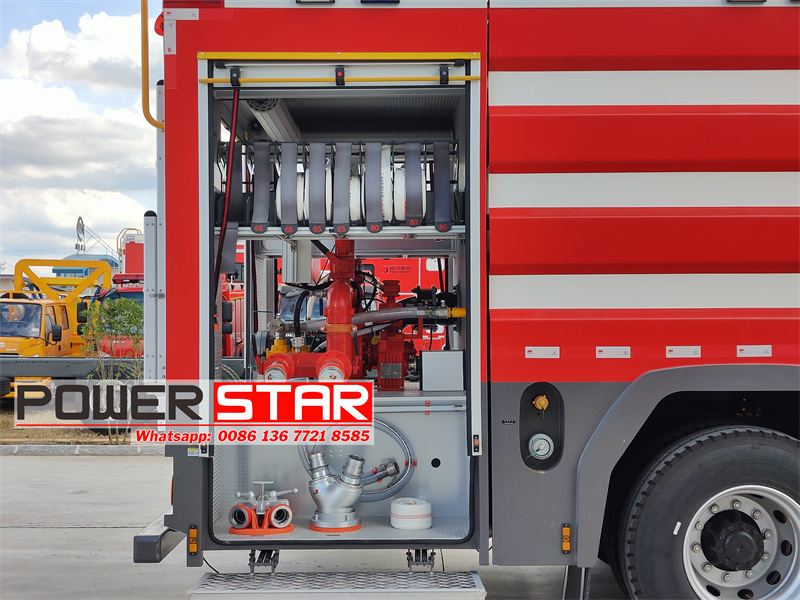

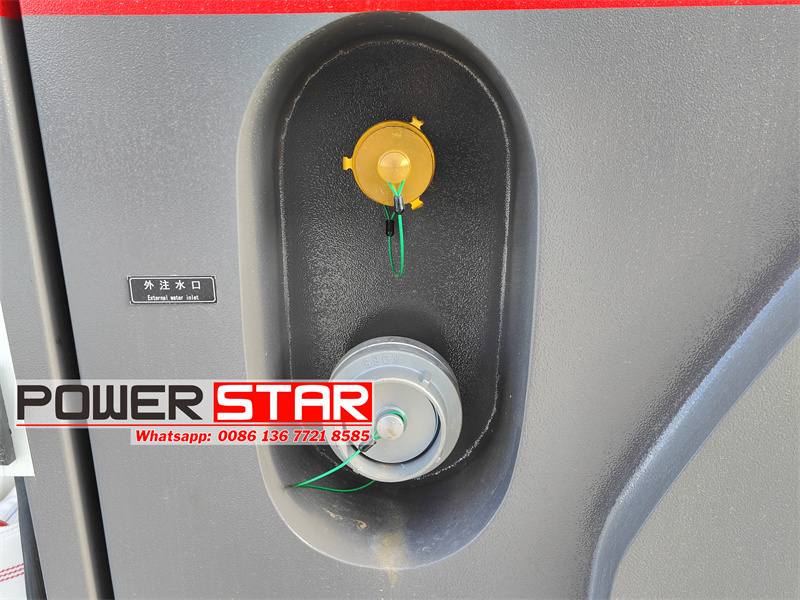

●. Water collector, water distributor, and water filter
- Function: Water collector gather water from natural sources or fire hydrants, water distributor distribute water flow to different firefighting equipment, and water filter remove impurities to ensure clean water for firefighting.

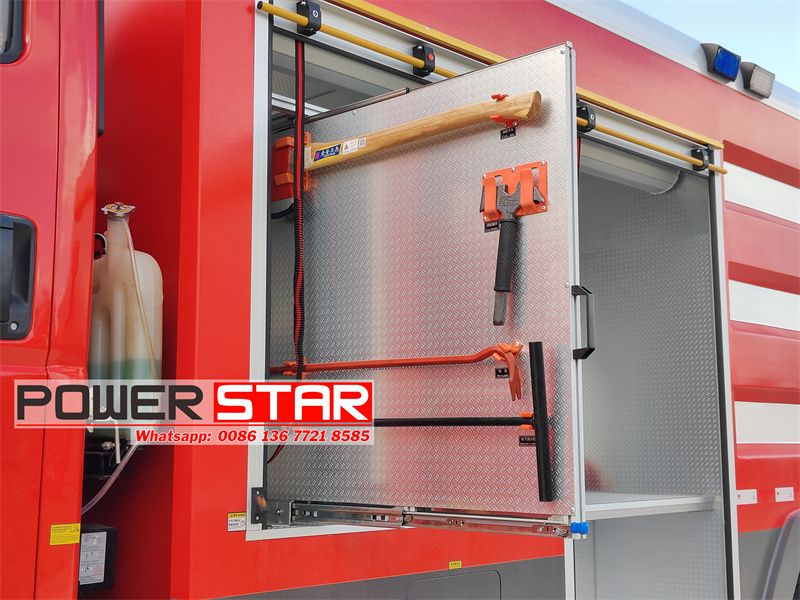

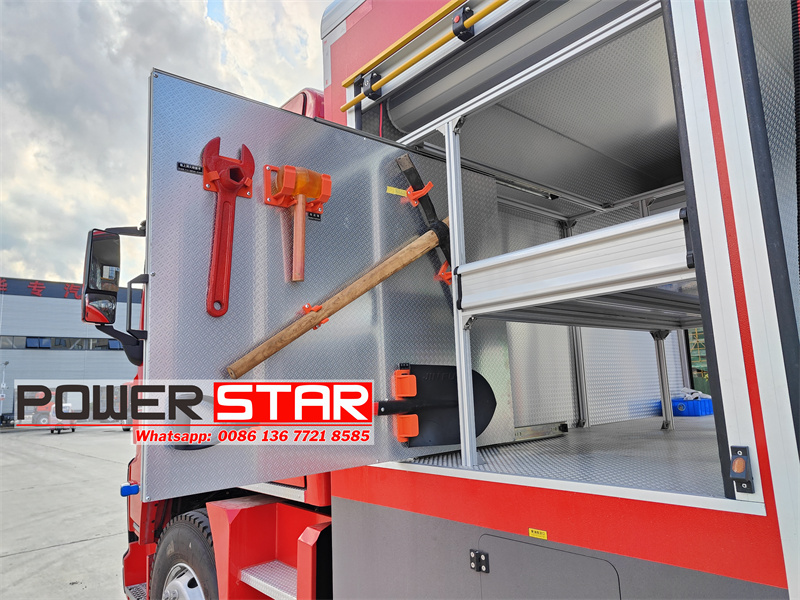

●. Tools such as Fire axe, shovel, pickaxe, wrench and fire hammer
- Function: Used for breaking through obstacles, creating rescue pathways, and clearing debris at the fire scene, facilitating access to the fire source and the rescue of trapped individuals.
●. Personal protective equipment such as fire suits, rescue suits, smoke masks, fire gloves, and fire blankets
- Function: Protects firefighters from high temperatures, smoke, flames, and other hazards, ensuring their safety in the fire zone.
IV. Monitoring and Control Equipment

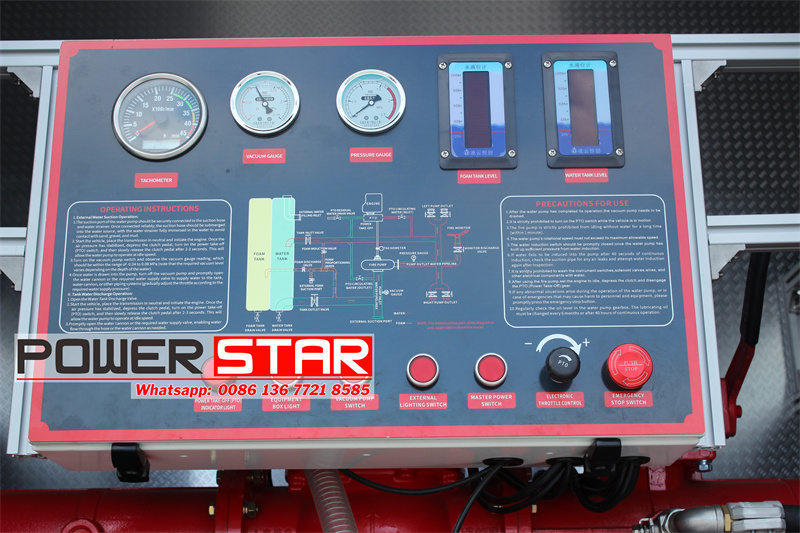

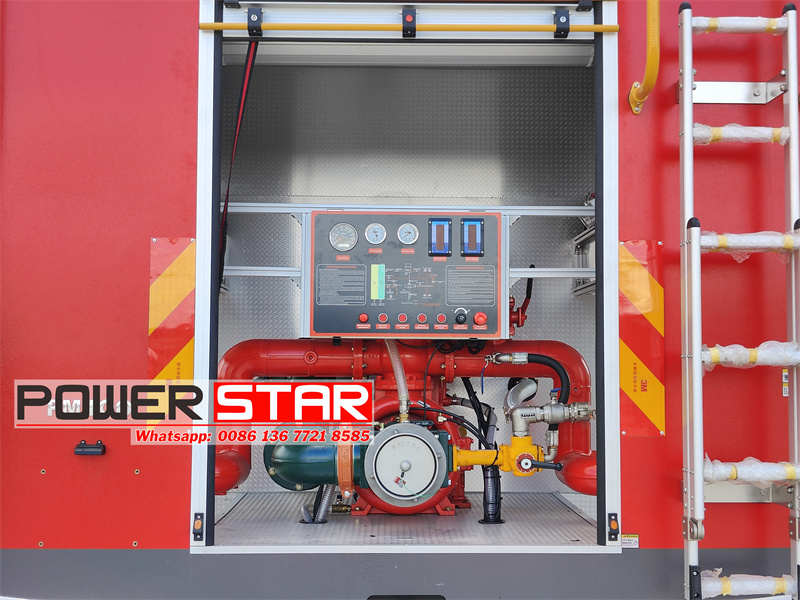

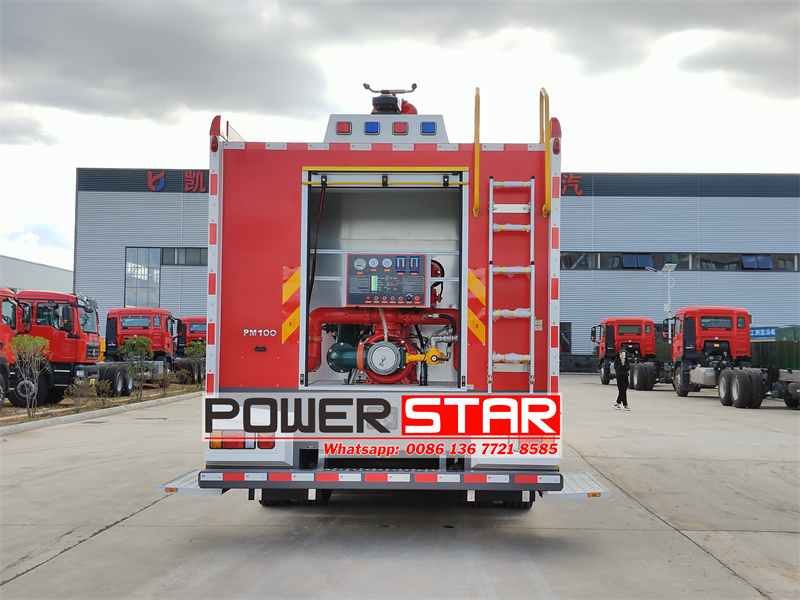

●. Control panel at the rear of the vehicle
- Function：Monitors key parameters such as pressure gauges, tachometers, vacuum gauges, water level indicators, and foam level indicators in real time, providing comprehensive vehicle status information to firefighters. This helps them promptly identify and resolve issues, ensuring the safe execution of firefighting tasks.

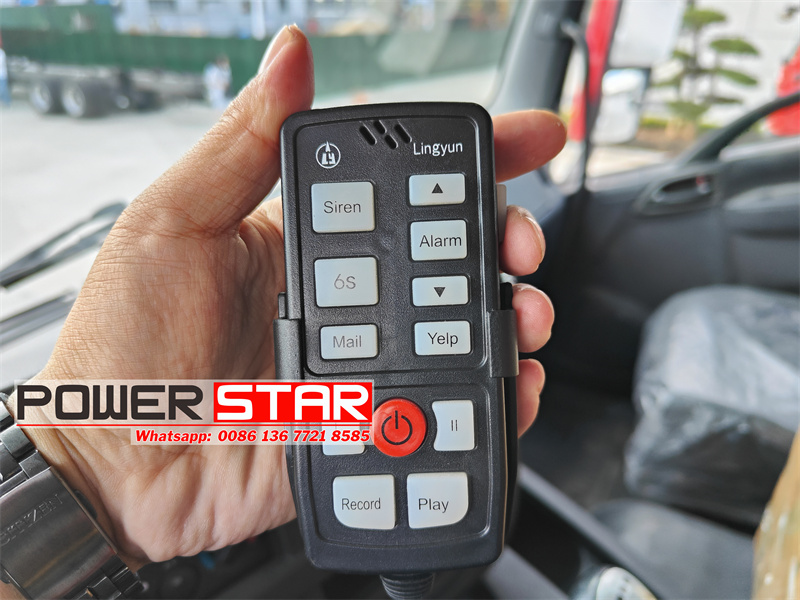

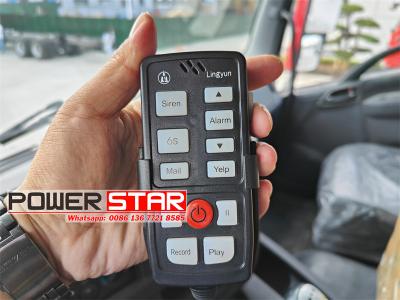

●. Advanced communication devices
- Function: Ensures real-time communication between the scene and the command center, coordinating rescue operations and improving firefighting efficiency.
