Product Detail

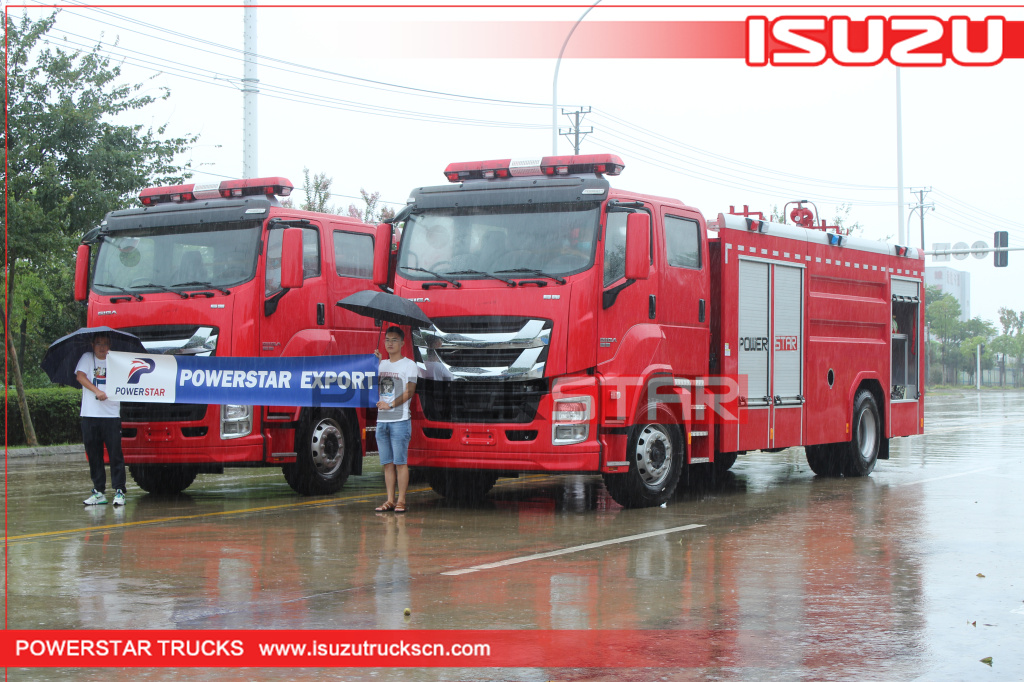

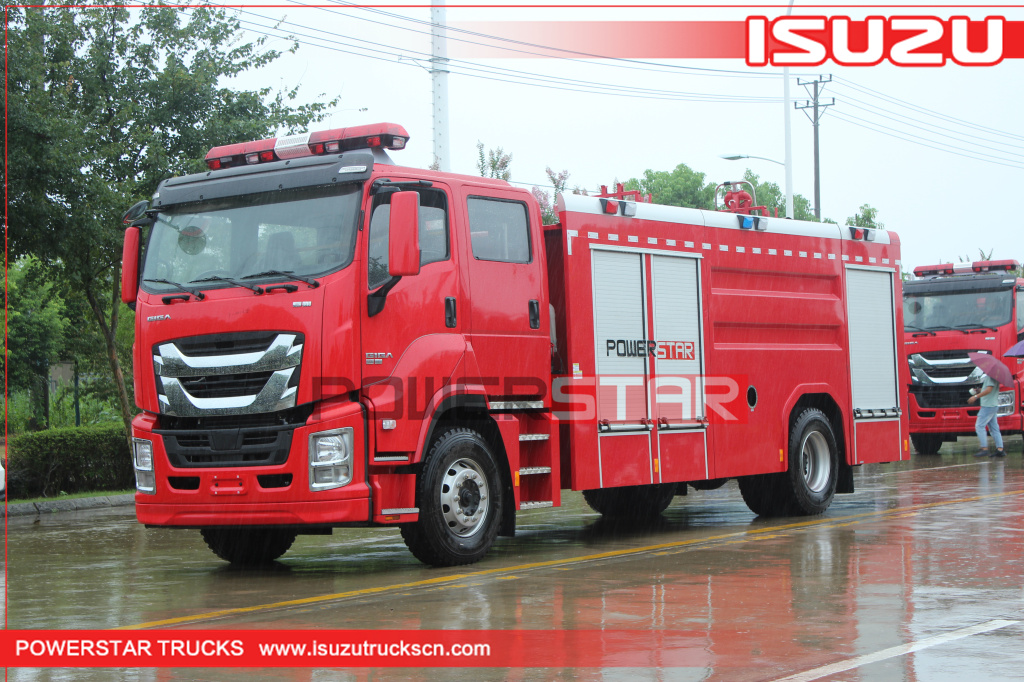

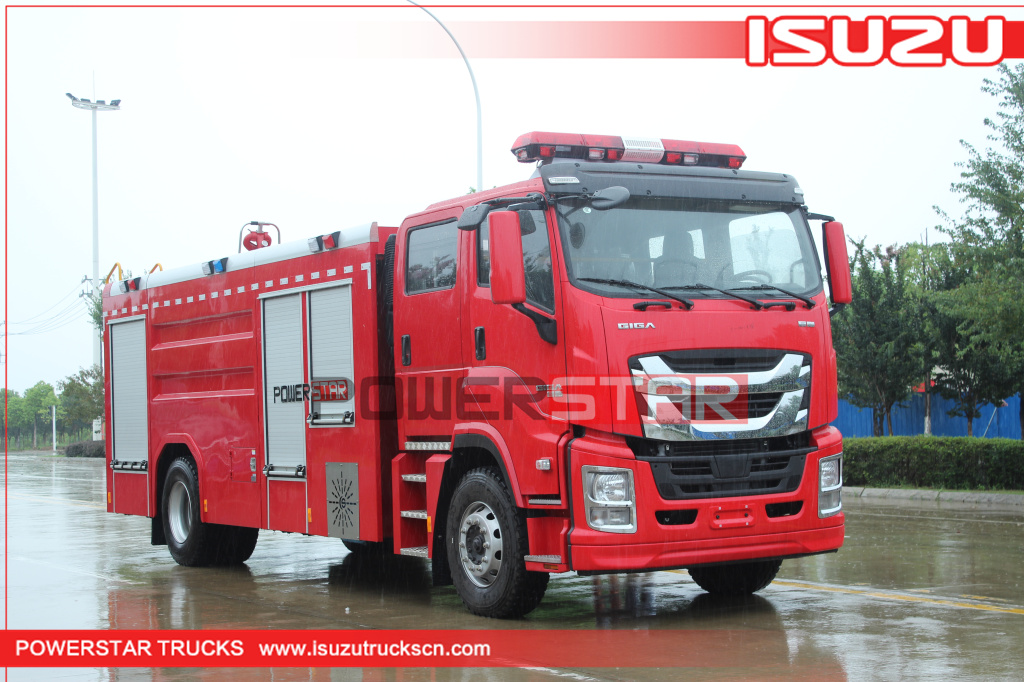

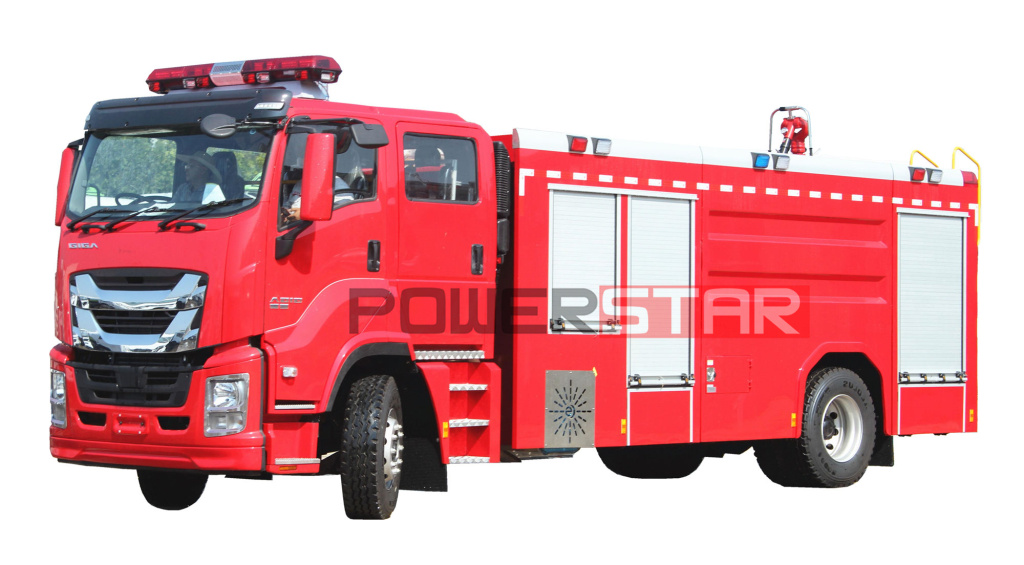

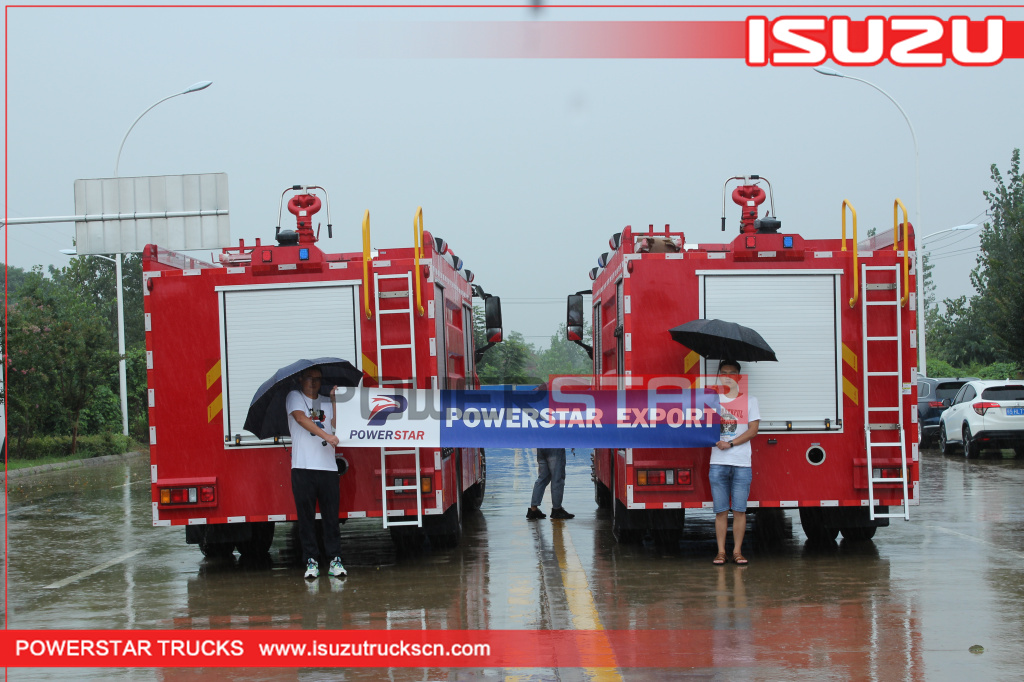

ISUZU GIGA 4X2 Rescue Water Fire Engine Fire fighting Vehilce
Details
New ISUZU GIGA 4*2 Fire Fighting Vehicle 8 Tons Water Fire Engine
GIGA ISUZU 8tons Rescue Water Fire Engine (also called as ISUZU GIGA Fire pumper, ISUZU GIGA Fire service vehicle ) This Isuzu Fire fighting trucks are designed with stand the prevailing humen conditutions, much as ambient temperature, maximum relative humidity, the sand, the dust and the influence of high salinity condtions.
 |
100% custom-made
|
|
3 cbm to 22 cbm available
|
|
Short delivery time 7~30 days
|
|
Easy operation & Easy maintenance
|
|
15 years spare parts & Technical support
|
Manufacturer |
POWERSTAR TRUCKS INDUSTRY CO., LIMITED |
||
Product Name |
Dry powder water foam Fire Truck ISUZU (8,000 L water) |
||
Vehicle Brand Series |
ISUZU |
||
Vehicle Model |
PT5350GXFPM60 |
||
Chassis parameters |
Overall dimensions |
mm |
13500*2500*3460 |
Gross weight |
kg |
35000 |
|
Curb weight |
12630 |
||
Wheel base |
mm |
1850+4575+1370 |
|
Driving type |
8X4 |
||
Number of axles |
4 |
||
Tire specification |
12.00-20 |
||
Number of Tires |
10+1 |
||
Passengers in cab |
2+4 |
||
Engine |
Engine model |
6UZ1-TCG50 |
|
Type of fuel |
Diesel |
||
Power/Displacement |
ml |
380HP /9839 |
|
Max speed |
Km/h |
110 |
|
Emission standard(TAS) |
EURO 5 |
||
Fire performance |
Tank capacity |
Water tank capacity: 8000 L |
|
Foam tank capacity: NIL |
|||

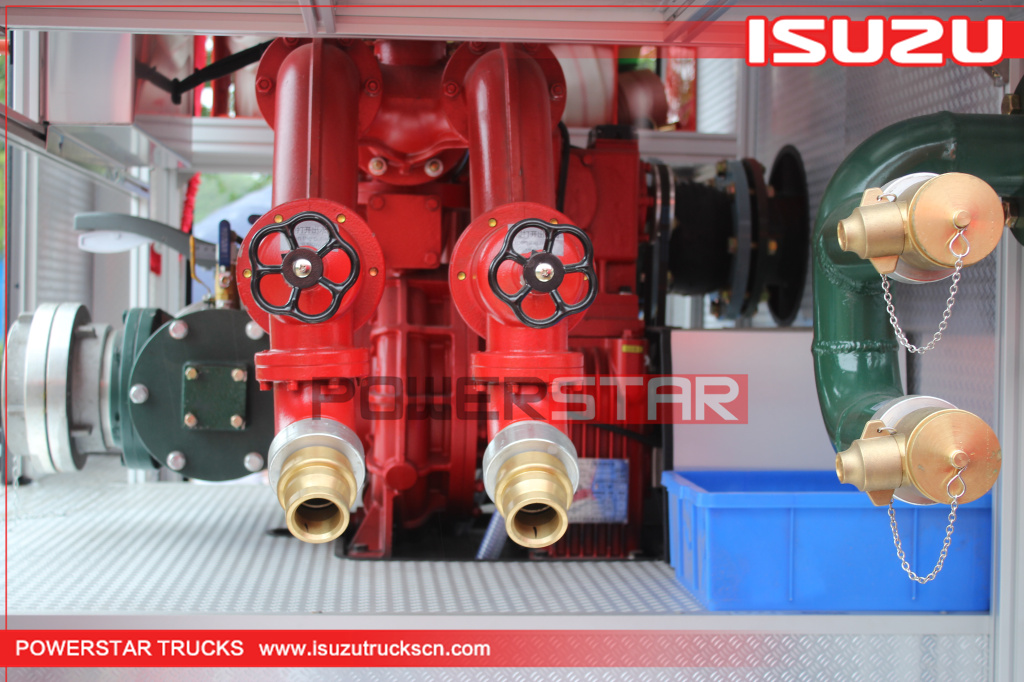

Fire pump |
Model: CB10/60 |
||
Pressure (Mpa): 1.0 |
|||
Rate (L/S): 60 |
|||
Fire monitor |
Model:Ps60 |
||
Flow:60L/S |
|||
Water jet distance:≥65m |
|||
Foam jet distance: ≥60m |
|||
Electronic alarm |
LY CJB-100-C24 |
||
Alarm lamp |
LY TBD-XF-168LED |
||

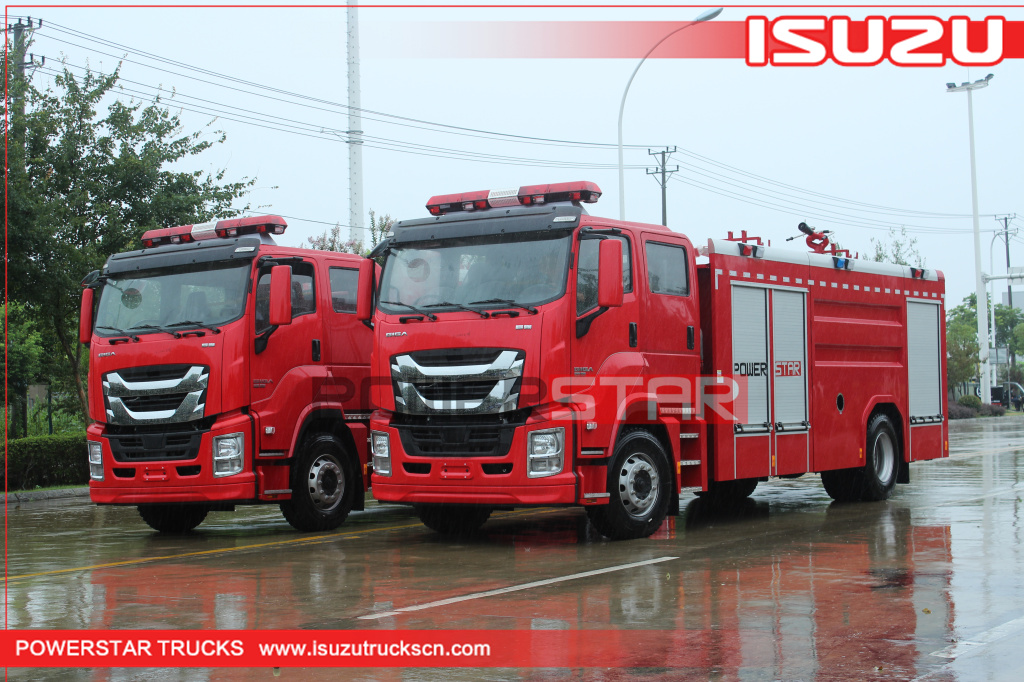

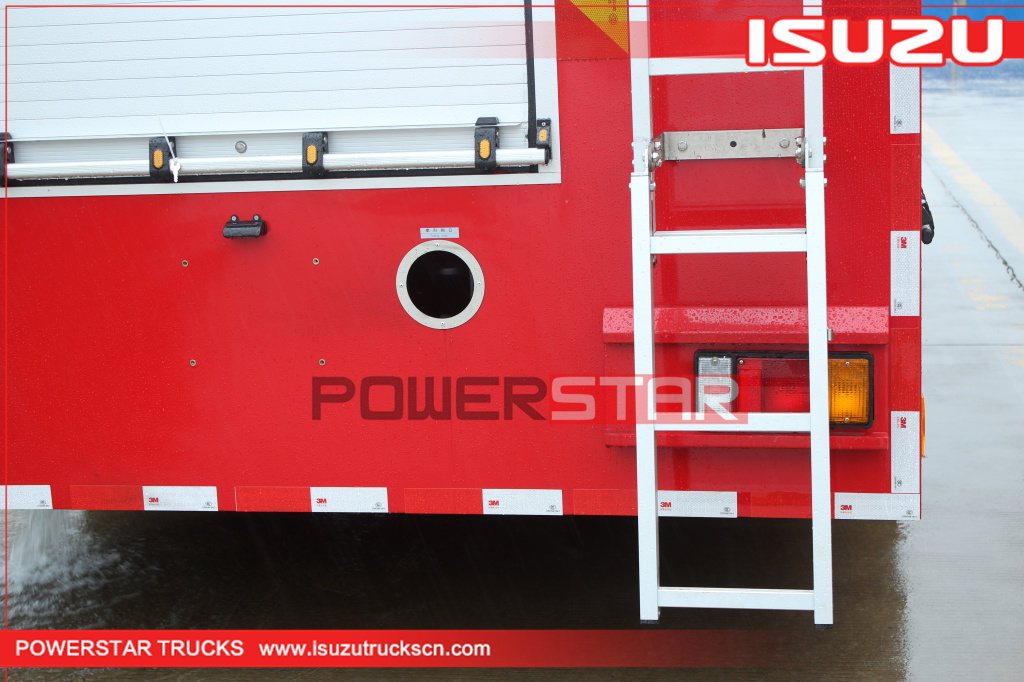

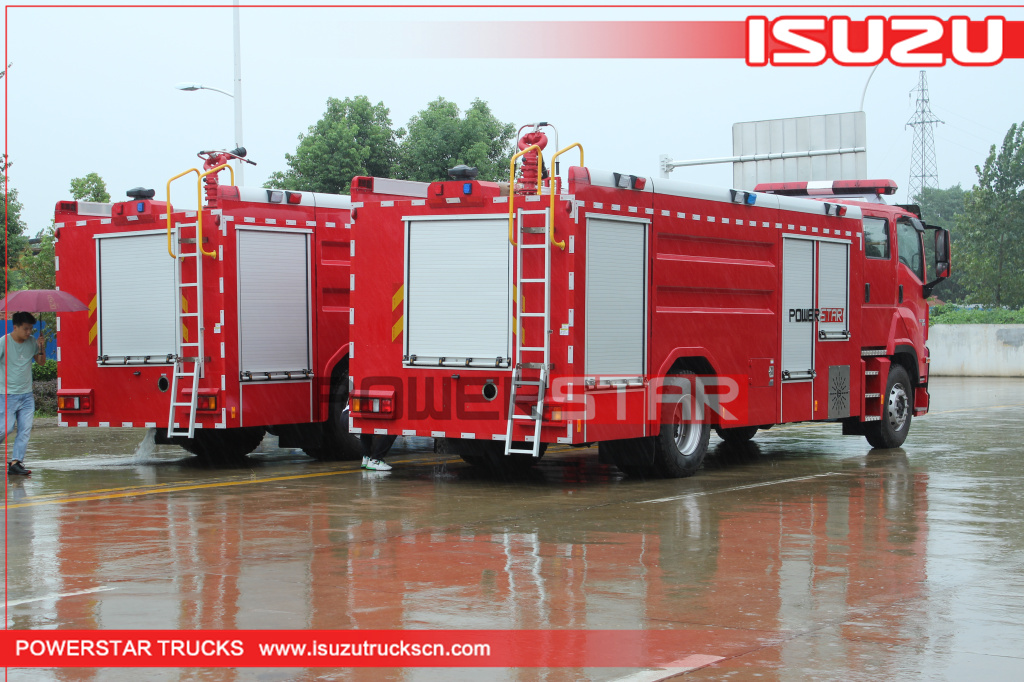

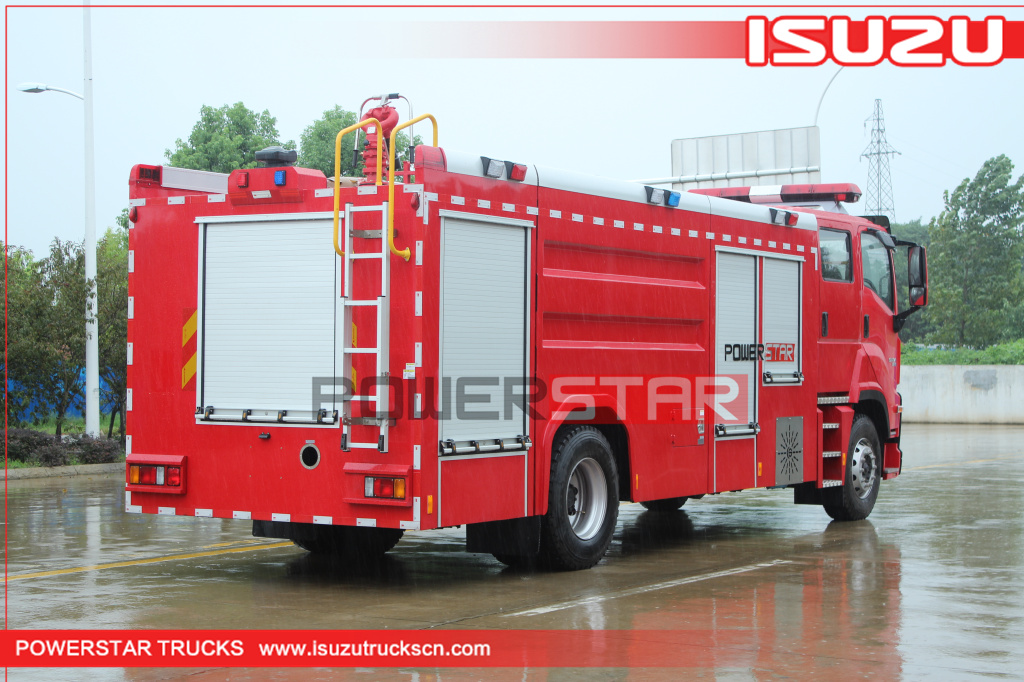

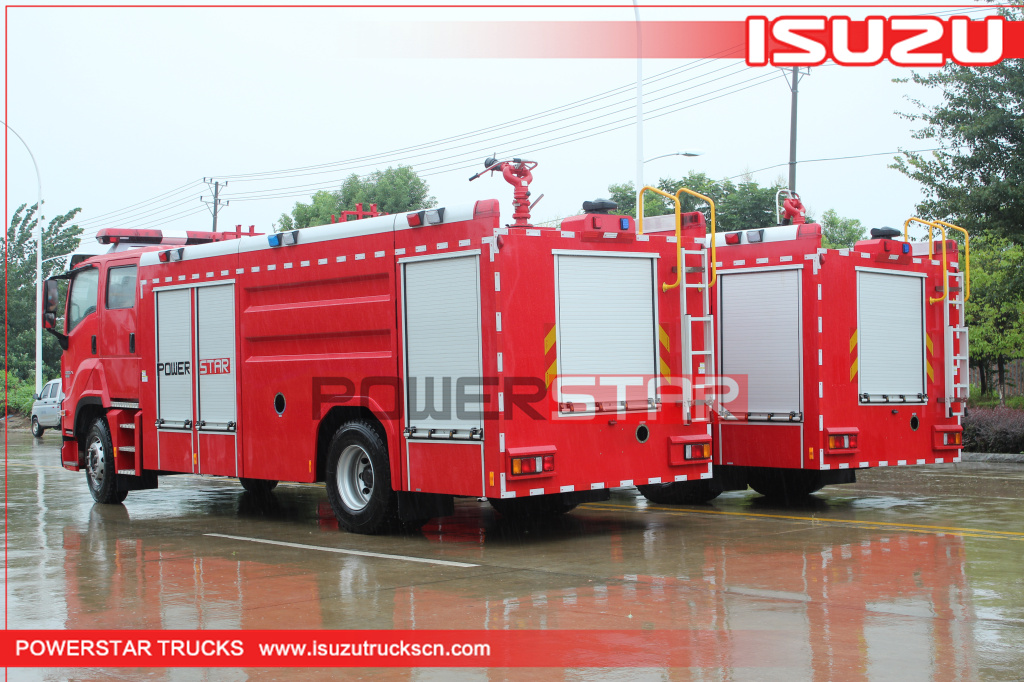

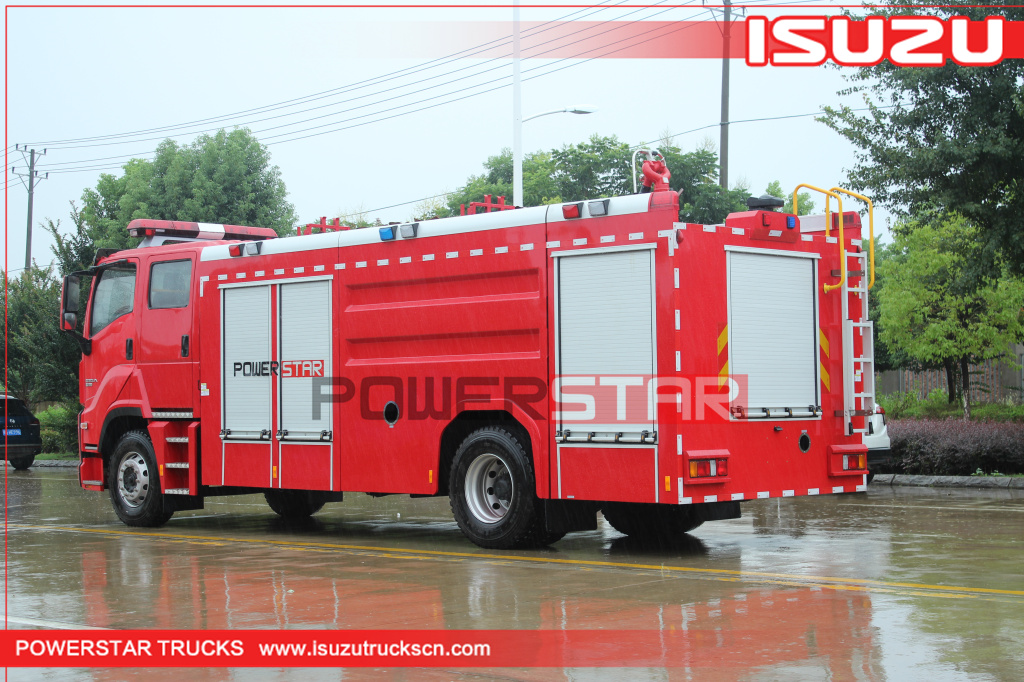

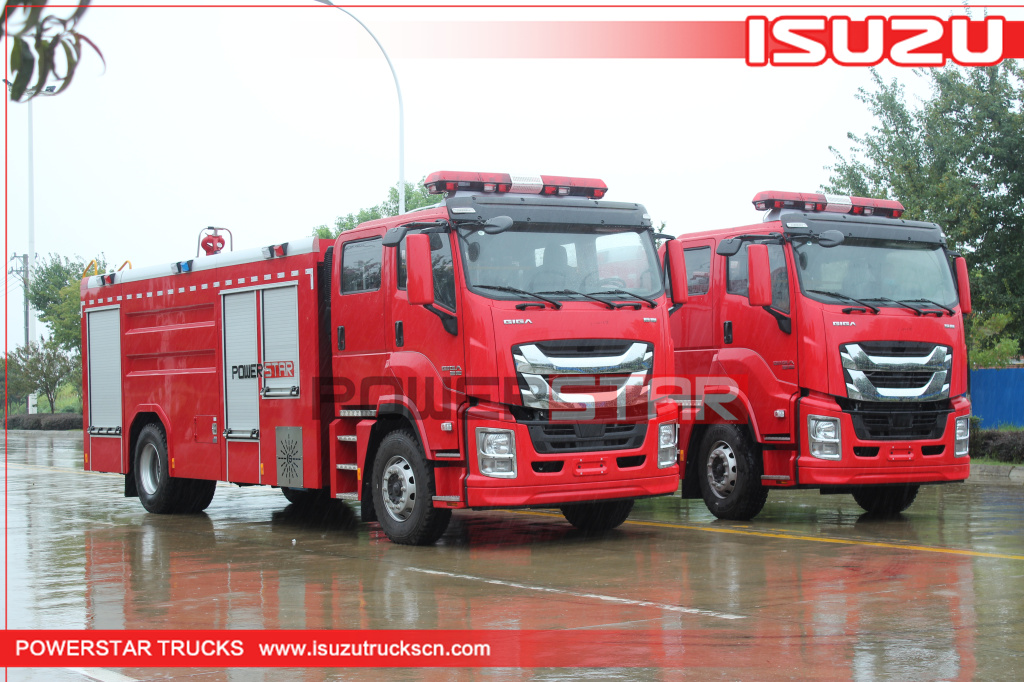

Detail Images

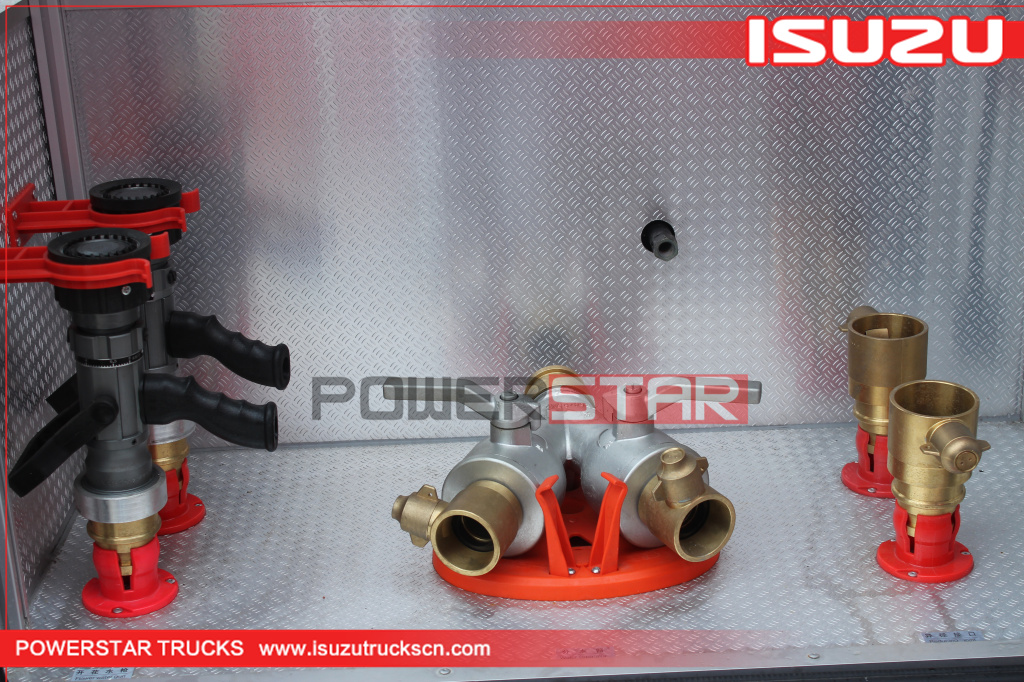

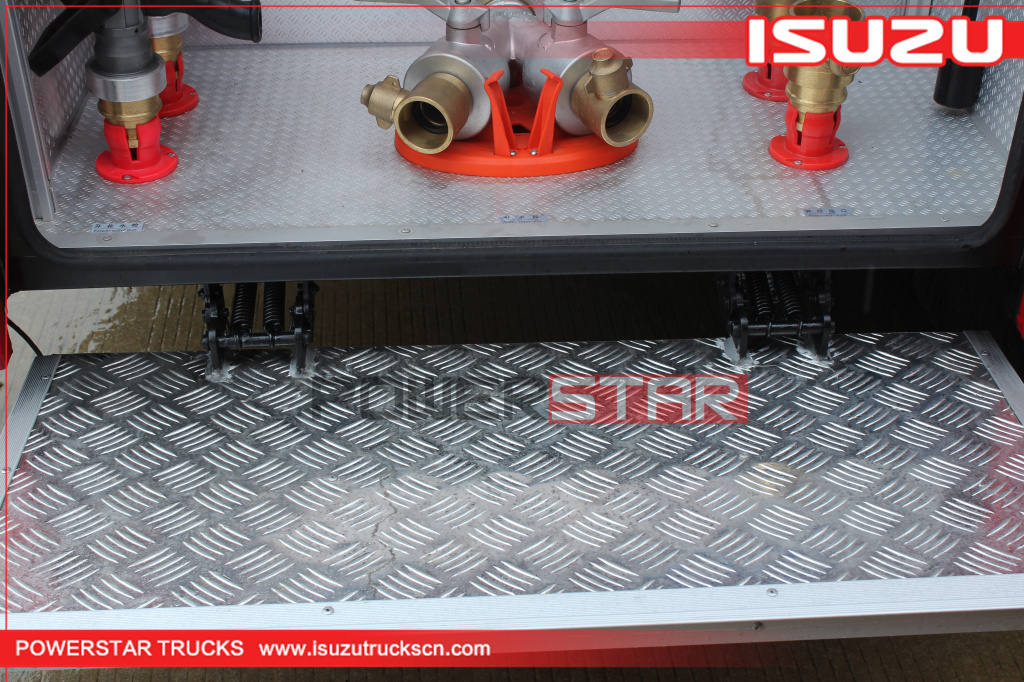

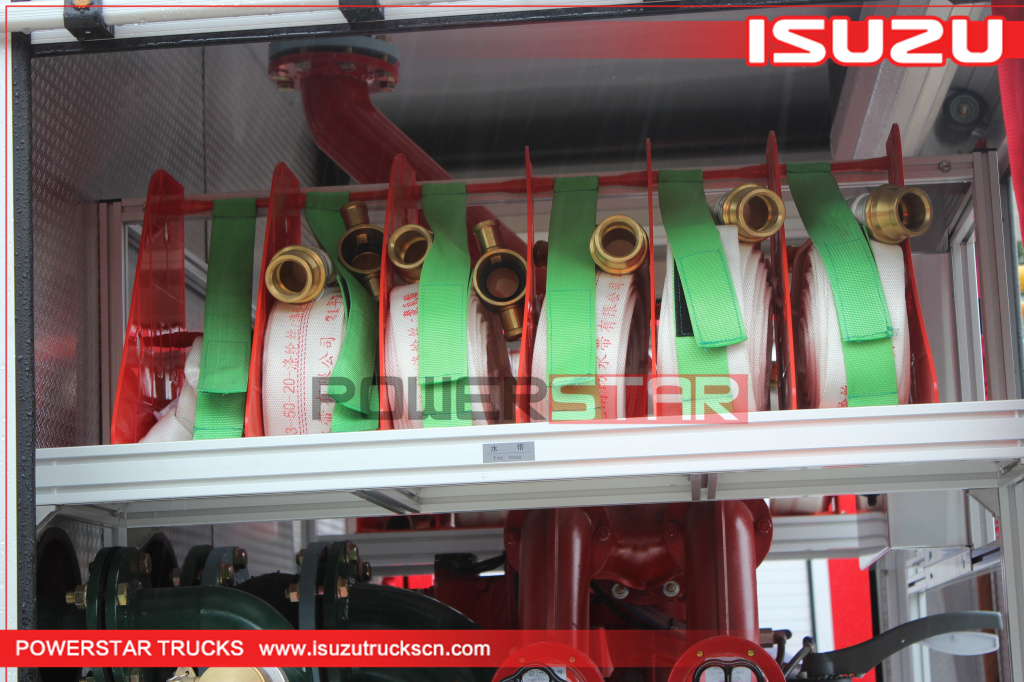

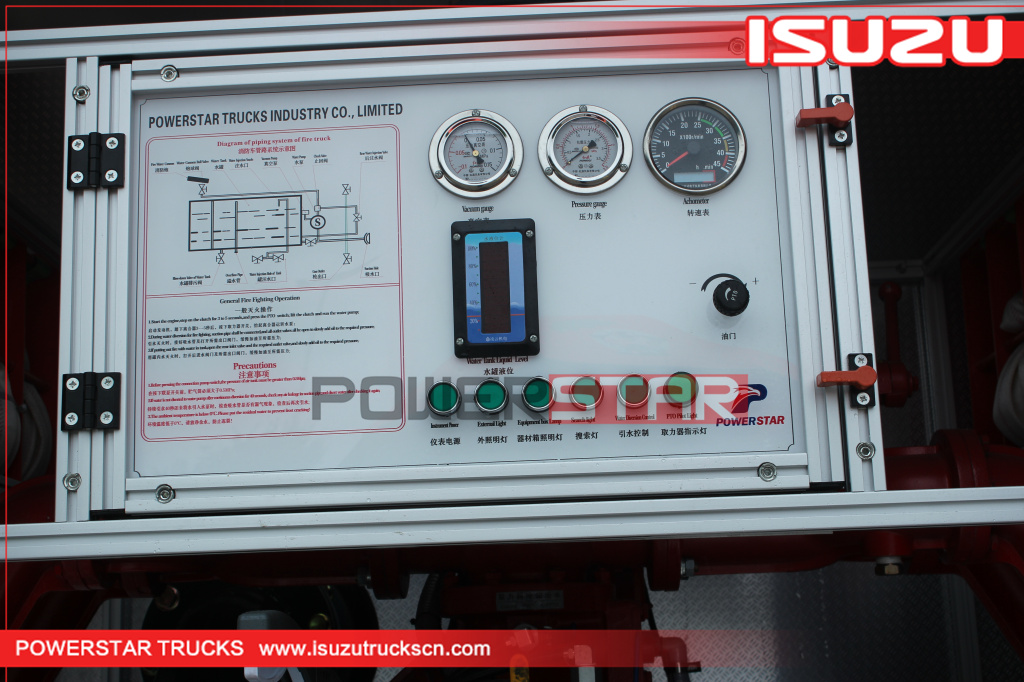

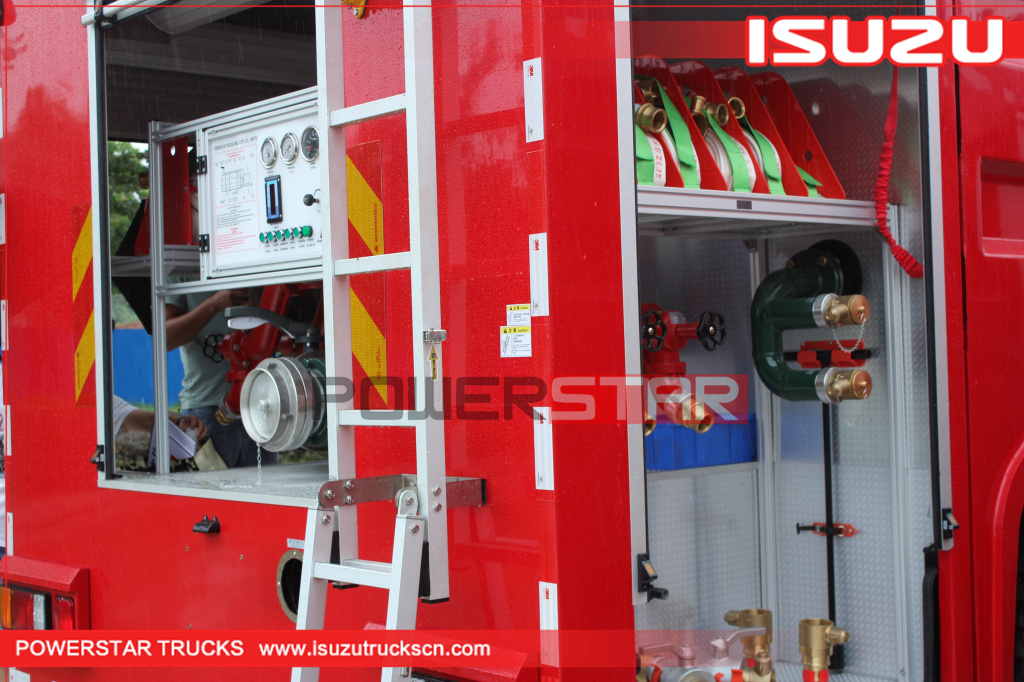

Fire Equipments:
 |
 |
|
 |
 |

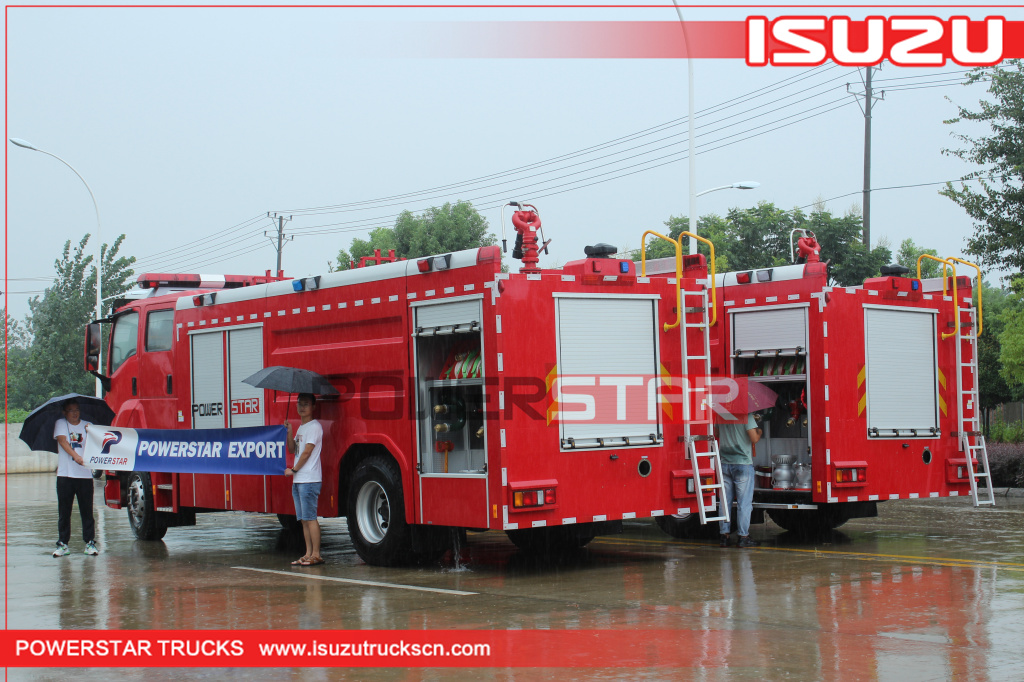

Performance Testing:
 |
 |
|
 |
 |
|
 |
 |
