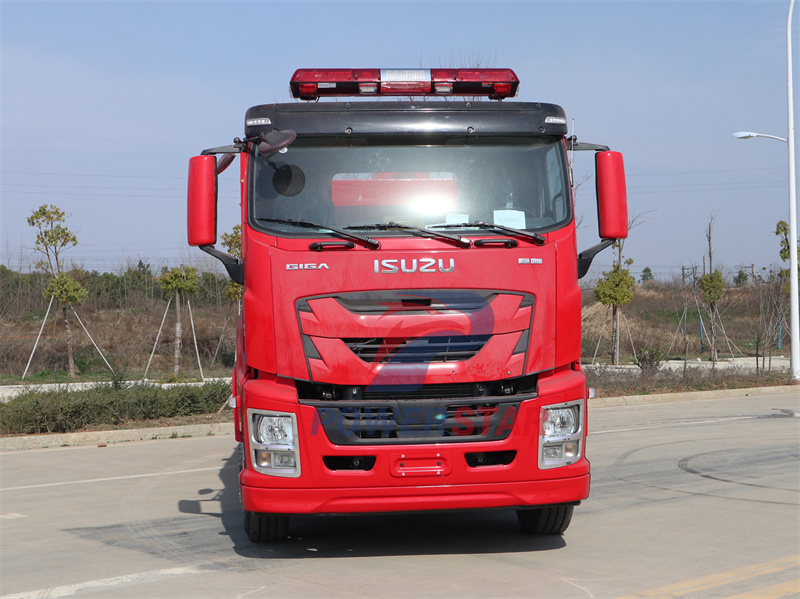

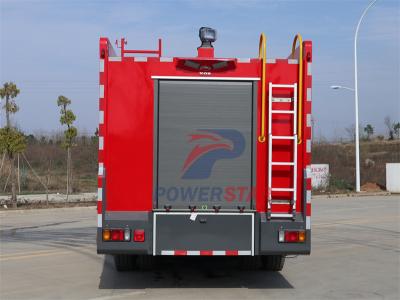

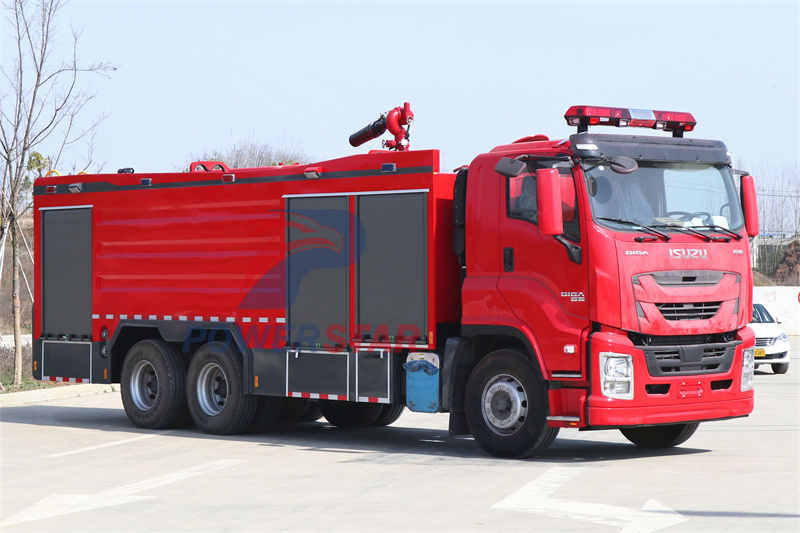

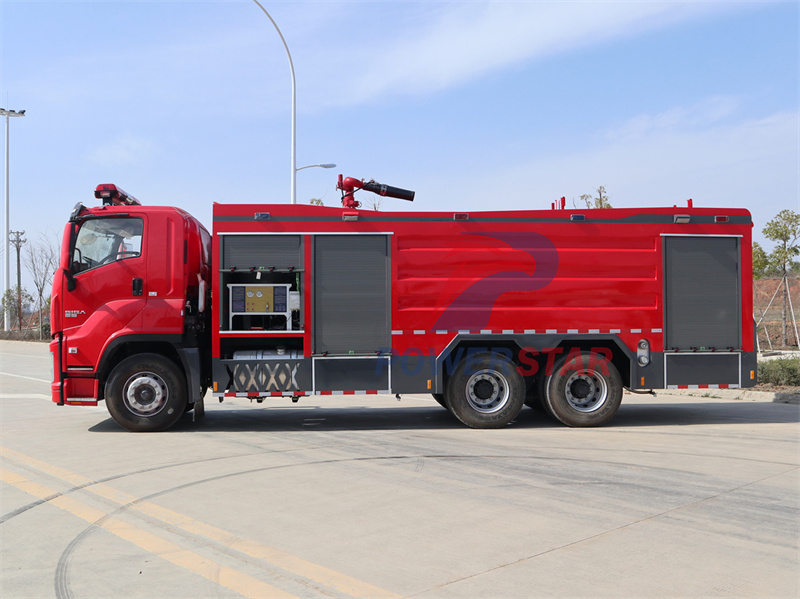

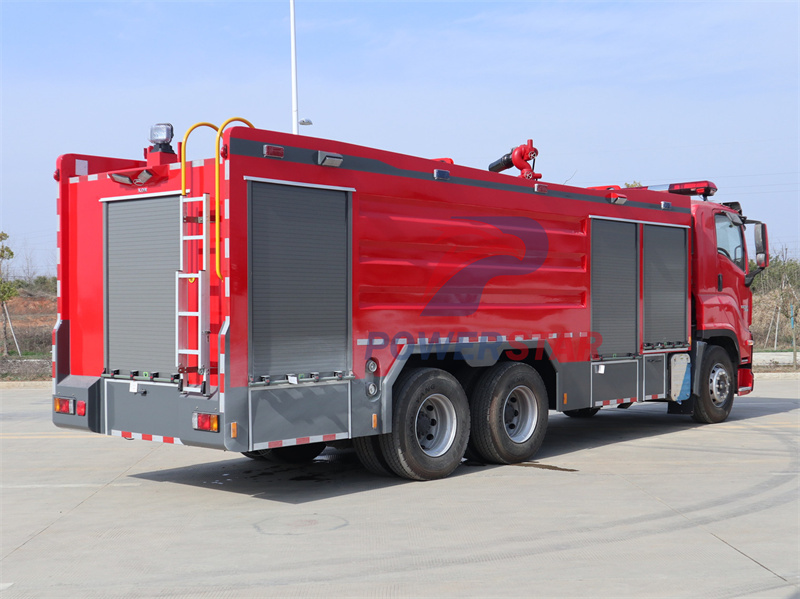

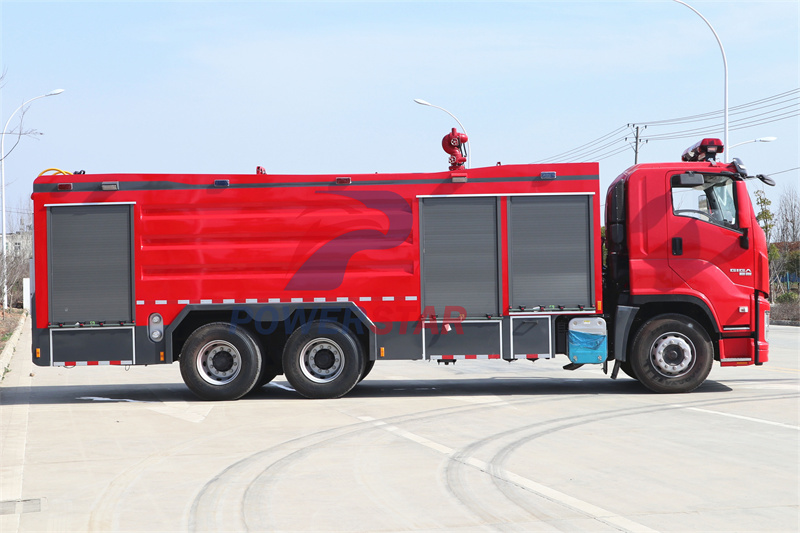

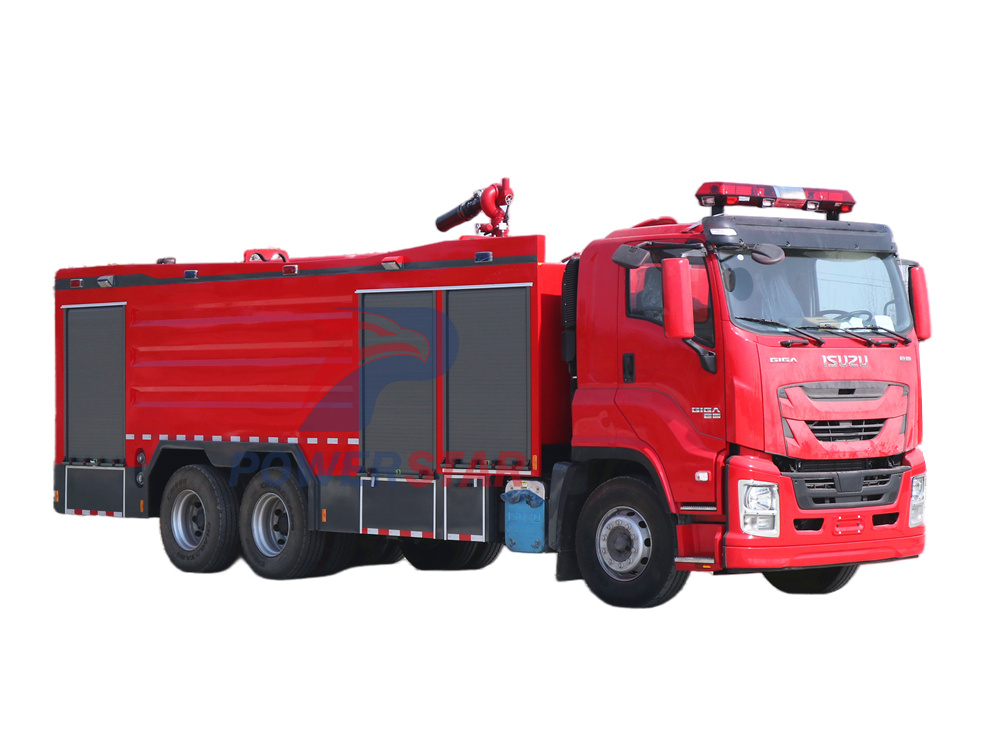

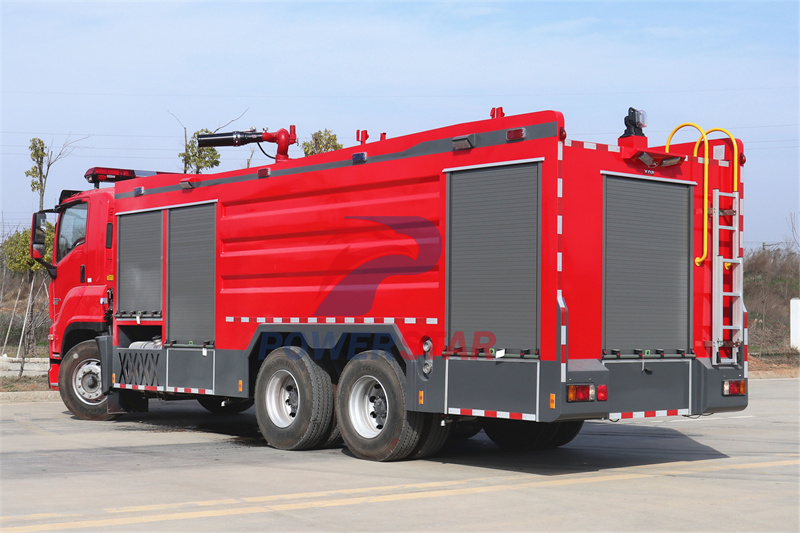

The Isuzu GIGA 15,000 liters dry powder water foam fire truck produced by POWERSTAR is a powerful addition to any firefighting fleet. It is based on the sturdy Isuzu GIGA 6x4 chassis and is powered by a powerful 6UZ1-TCG61 engine model that produces 380 horsepower, ensuring fast and efficient movement with a maximum travel speed of 100 km/h. The vehicle is equipped with an 8,000 liter water tanker, a 4000 liter foam tanker and a 3000 liter dry powder tanker, a CB10/100 fire pump, a PLKD80 fire monitor, and a QGH-5 dry powder gun, which can effectively respond to various fire situations.
Manufacturer:
Powerstar TrucksWork capacity:
8000L water tank,4000L foam tank,3000L dry powder tankDimension:
10200 x 2500 x 3560mmCabin type:
Isuzu GIGA one and half row,3 seatsWheelbase:
4565+1370mmEngine power:
380HP/278KWEngine type:
Isuzu 6UZ1-TCG61Axle drive:
6X4Gear box:
FAST 12-speed,manualRemarks:

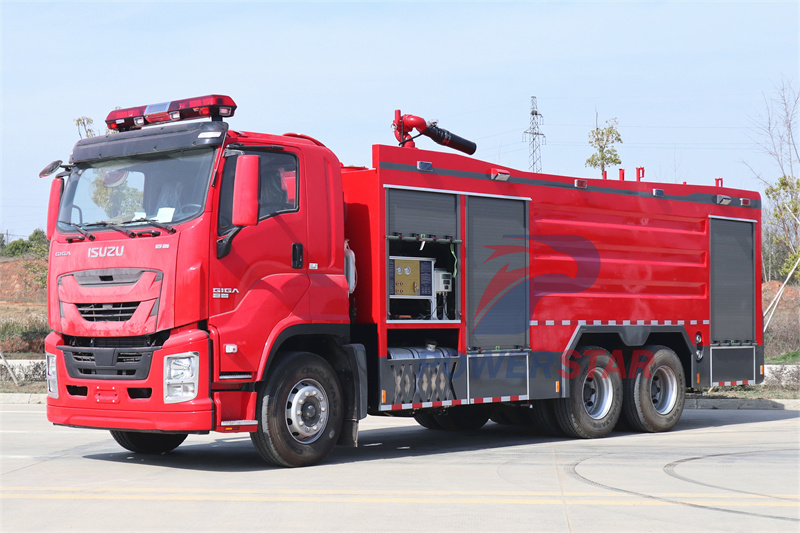

CB10/100 fire pump,PLKD80 fire monitor,QGH-5 dry powder gunIsuzu Giga heavy duty foam fire truck is a professional firefighting equipment with comprehensive functions and excellent performance. Equipped with a 380HP 6UZ1-TCG61 engine and a Fast 12-speed gearbox, it has strong power and can adapt to complex road conditions. The vehicle is equipped with an 8,000-liter water tank, a 4,000-liter foam tank and a 3,000-liter dry powder tank, which integrates three fire extinguishing agents: water, foam and dry powder, and is suitable for a variety of fire scenarios. Equipped with advanced CB10/100 fire pump, PLKD80 fire monitor and QGH-5 dry powder guns, the vehicle can achieve remote and precise firefighting and effectively respond to various fire challenges. Its strong power and stable chassis ensure rapid arrival at the fire scene. The vehicle design focuses on efficiency, safety and ease of operation. It is widely used in petrochemical, airports, warehouses, urban firefighting and other fields, and is a reliable weapon to protect people's lives and property.
● China best Isuzu dry powder water foam fire truck factory
● More than 500 workers, large and advanced production
● Be designed according to your requirements
● Promptly delivery. any order is welcome
● 24 month quality guarantee term
|
Product Name |
Isuzu GIGA 15cbm dry powder fire fighting truck |
||
|
Chassis parameters |
Chassis Brand |
Isuzu |
|
|
Overall dimensions |
10200*2500*3560mm |
||
|
Gross weight |
34000kg |
||
|
Curb weight |
13500kg |
||
|
Passengers in cab |
2+3 |
||
|
Wheelbase |
4565+1370mm |
||
|
Engine model |
Isuzu 6UZ1-TCG61 |
||
|
Engine power |
380HP/278KW |
||
|
Emission standard |
EURO 6 |
||
|
Displacement |
9839ml |
||
|
Tire |
315/80R22.5，10+1 |
||
|
Max speed |
100km/h |
||
|
Fire performance |
Tank capacity |
Water |
8000L |
|
Foam |
4000L |
||
|
Dry Powder |
3000L |
||
|
Fire pump |
Model |
CB10/100-RS |
|
|
Rated flow |
100L/s@1MPa |
||
|
Max pressure |
1.275MPa |
||
|
Max allowed inlet pressure |
0.4MPa |
||
|
Suction depth |
7m |
||
|
Fire monitor |
Model |
PLKD80 |
|
|
Rated flow |
80L/s |
||
|
Rated pressure |
1.02MPa |
||
|
Range |
Water: ≥85m,Foam:≥80m |
||
|
Dry Powder Gun
|
Model |
QGH-5 |
|
|
Rated flow |
5kg/s@10bar |
||
|
Range |
16m |
||
|

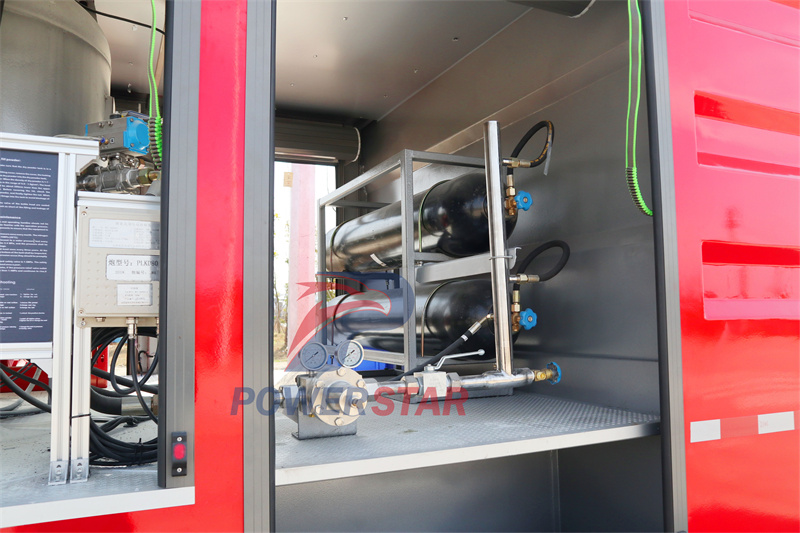

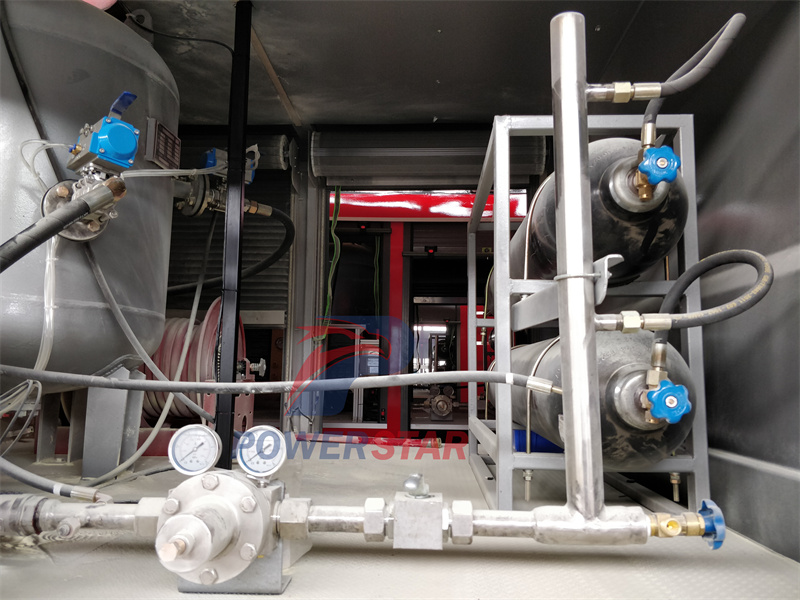

Quantity of Nitrogen gas cylinder |
2 |
||
|
Quantity of cylinders |
1 |
||
The Isuzu GIGA 6x4 dry powder water foam fire truck is equipped with three large-capacity tanks: an 8,000-liter water tank, a 4,000-liter foam tank, and a 3,000-liter dry powder tank. The capacity design of these tanks fully considers the needs of different types of fire extinguishing, ensuring that firefighters can quickly deploy the most suitable fire extinguishing medium in an emergency.
• Water tank: The 8,000-liter water tank has a huge capacity, which is enough to deal with most water and fire disasters. As one of the most commonly used fire extinguishing media, water has the advantages of rapid fire extinguishing and low cost. At the fire scene, the water in the water tank can be quickly transported to the fire monitor or water gun through a high-pressure fire pump, and the fire source is directly sprayed to effectively reduce the fire.
• Foam tank: The 4,000-liter foam tank provides strong support for handling flammable liquid fires. The foam fire extinguishing agent can quickly cover the surface of the burning object, isolate oxygen, and cool the burning object at the same time to reduce the fire. The foam fire extinguishing agent in the foam tank is usually mixed with water in a certain proportion before use, which not only improves the fire extinguishing efficiency but also saves water resources.

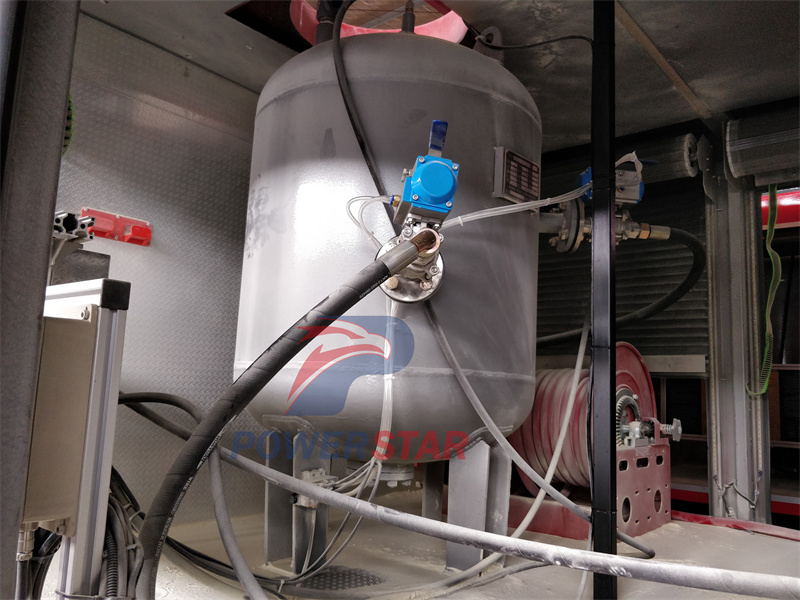

• Dry powder tank: The 3,000-liter dry powder tank is a powerful assistant for dealing with electrical and chemical fires. Dry powder fire extinguishing agents can quickly extinguish flames while suppressing the combustion chain reaction and preventing the fire from spreading. The dry powder fire extinguishing agent in the dry powder tank is usually sprayed through a dry powder gun, which has the advantages of fast fire extinguishing speed and wide coverage.
Isuzu GIGA 6x4 dry powder water foam fire truck is equipped with a variety of advanced firefighting equipment and equipment, which play a vital role in the firefighting process.

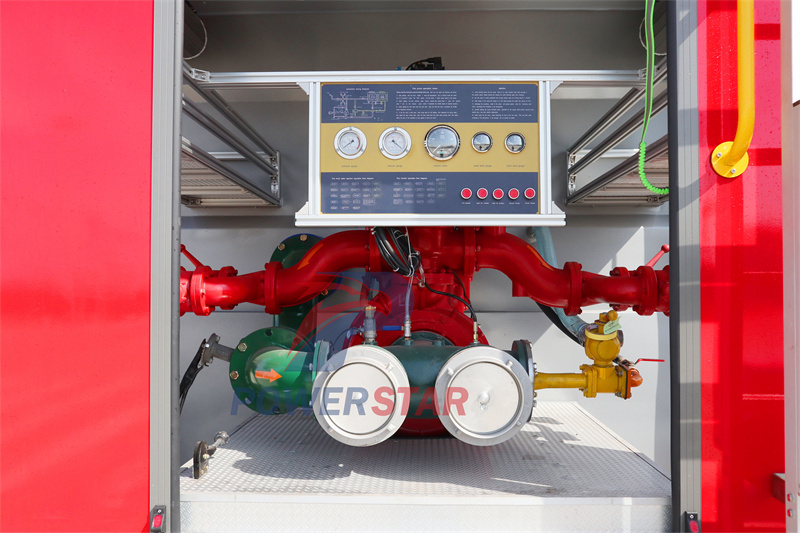

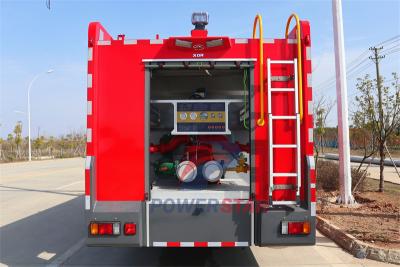

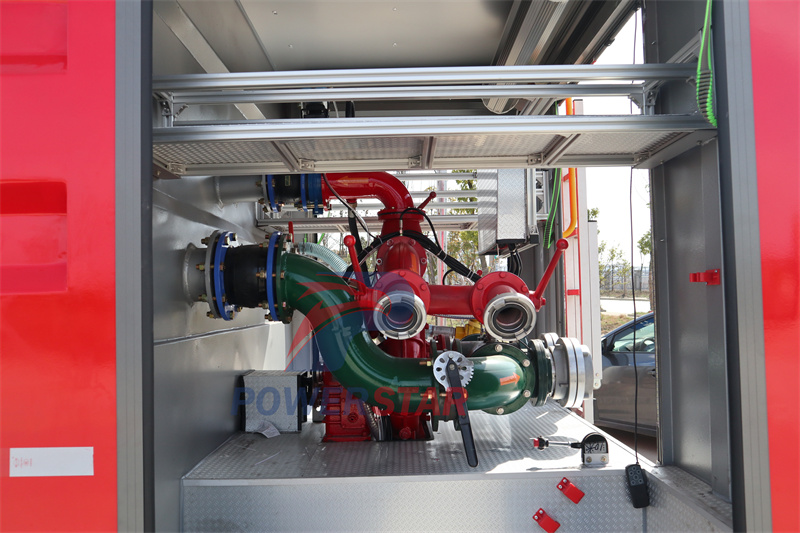

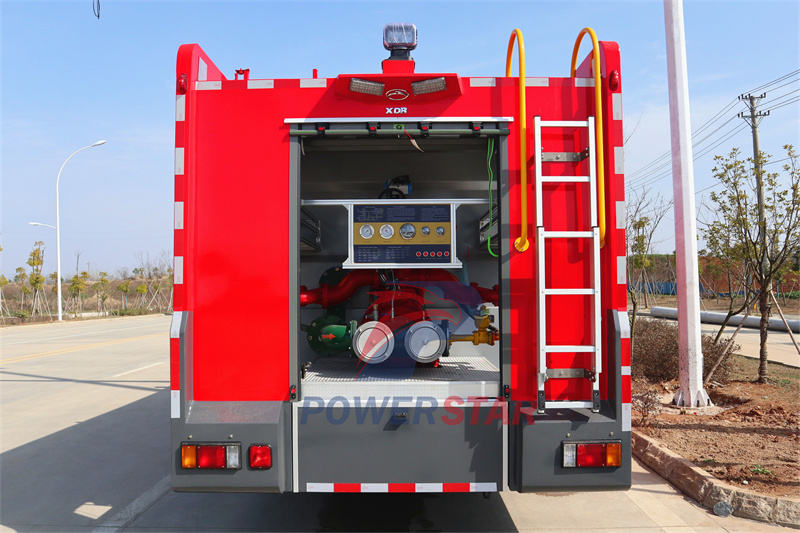

• CB10/100 fire pump: As one of the core components of the fire truck, the CB10/100 fire pump is efficient and stable. It can provide a flow rate of up to 100 liters/second, ensuring that the fire extinguishing medium can be quickly delivered to the fire monitor or water gun in an emergency. The fire pump uses an advanced lubrication and cooling system inside to reduce the occurrence of wear and overheating and extend its service life.

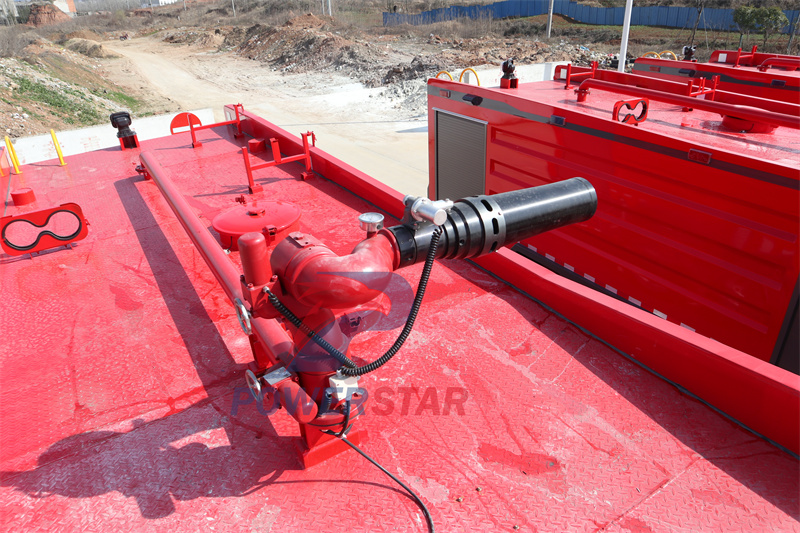

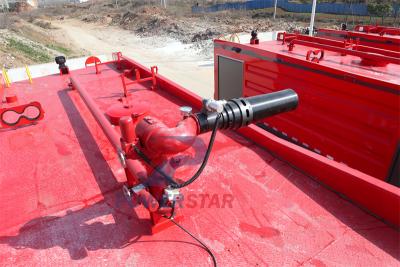

• PLKD80 fire monitor: PLKD80 fire monitor can spray water or foam liquid, with a flow rate of 80L/s and a range of more than 80 meters. It can rotate horizontally 340 degrees and pitch from -30 degrees to +70 degrees. It has the advantages of long range, large rotation angle and wide pitch range. The remote control screen jump processing does not interfere with each other, and the remote control distance is ≥150 meters; it can be accurately adjusted according to the location and shape of the fire source to ensure effective coverage of the fire extinguishing medium. The spray angle and range of the fire monitor can be accurately adjusted through the remote control system, which improves the fire extinguishing efficiency. At the same time, the material of the fire monitor is made of high-strength alloy material, which ensures the reliability and durability of long-term use.

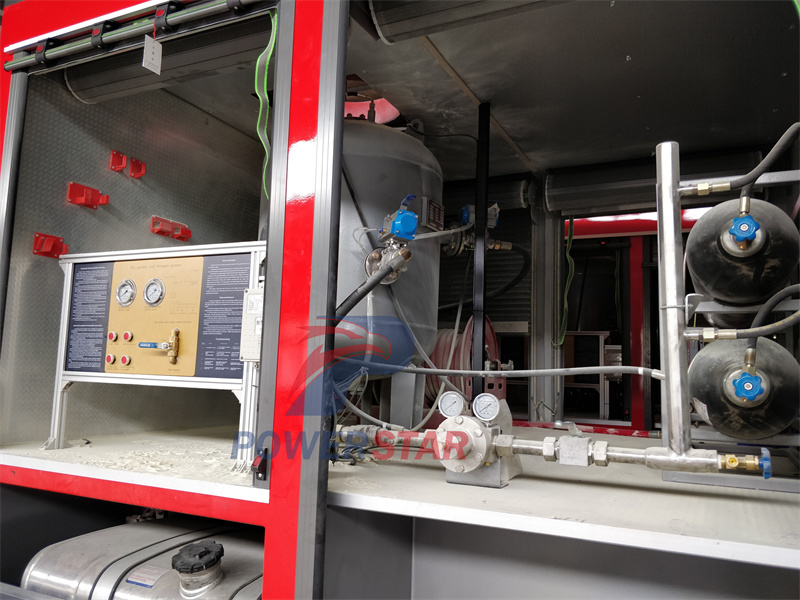

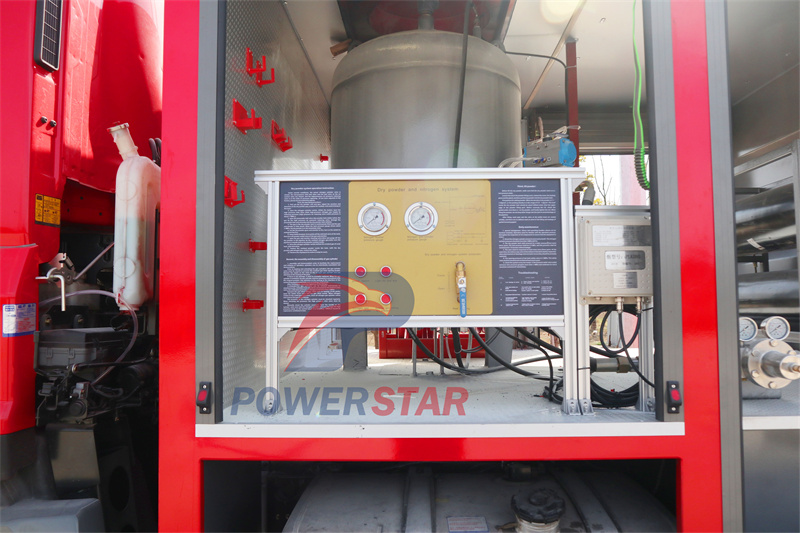

• QGH-5 dry powder gun: QGH-5 dry powder gun sprays dry powder fire extinguishing agent, which is suitable for extinguishing fires of flammable liquids, gases and electrical equipment. It uses nitrogen or compressed air as a power source and can quickly spray dry powder fire extinguishing agent to the fire source. The design of the dry powder gun is simple and clear, easy to operate, and can respond quickly in an emergency. At the same time, the dry powder gun is made of corrosion-resistant materials to ensure safety in long-term use.
Application of Isuzu GIGA 6x4 dry powder water foam fire truck
The Isuzu GIGA 6x4 dry powder water foam fire truck plays an important role in multiple fields and scenarios with its excellent performance and versatility.
I. Urban firefighting
• High-rise building fire: With its powerful fire pump and fire cannon, the Isuzu GIGA 6x4 fire truck can quickly supply water or foam to high-rise buildings and effectively extinguish fires.
• Commercial block fire: In commercial blocks, fires often involve multiple shops and crowded areas. The vehicle can quickly reach the scene and use fire cannons for remote firefighting. At the same time, firefighters can carry dry powder guns into the fire scene for close-range firefighting.
• Residential area fire: In residential areas, fires may occur in residential buildings, garages or warehouses. The Isuzu GIGA 6x4 fire truck can flexibly shuttle through narrow streets, quickly reach the fire scene, and use its various fire extinguishing media to extinguish fires.
II. Industrial firefighting
• Chemical plant fire: Chemical plants usually store a large amount of flammable and explosive substances, and the risk of fire is high. Isuzu GIGA 6x4 fire trucks can quickly reach the scene and use dry powder guns to extinguish initial fires and prevent the fire from spreading.
• Oil depot fires: Oil depot fires are often characterized by fast burning speed and fierce fire. The vehicle can quickly spray foam into the oil tank to form an isolation layer to prevent the fire from spreading.
• Warehouse fires: Various goods may be stored in the warehouse, and the fire is likely to spread rapidly after the fire occurs. Isuzu GIGA 6x4 fire trucks can use fire cannons to extinguish fires remotely, and firefighters can carry dry powder guns into the warehouse for close-range fire fighting.
• Fighting gas fires: Dry powder fire extinguishing systems can quickly extinguish gas fires such as natural gas and liquefied petroleum gas to ensure the safety of petrochemical equipment and personnel.
III. Forest firefighting
• Forest fires: Forest fires often involve large areas and spread rapidly. Isuzu GIGA 6x4 fire trucks can quickly cross forest terrain and use fire cannons and dry powder guns to extinguish fires, effectively curbing the spread of fires.
IV. Firefighting in special occasions
• Chemical leakage: In the event of a chemical leakage accident, the Isuzu GIGA 6x4 fire truck can quickly arrive at the scene and use dry powder guns or foam guns to extinguish and isolate the fire to prevent the leaked materials from causing fire or explosion.
• Vehicle fire fighting: In traffic accidents, vehicles often cause fires due to collisions or oil leaks. The vehicle can respond quickly and use fire pumps and fire cannons to efficiently extinguish fires to protect the safety of people and property at the accident site.
