Isuzu Fire trucks play a crucial role in firefighting and disaster management by carrying water to combat fires. Understanding the water-carrying capacity of fire trucks is essential for effective operation. There are three main types of isuzu fire trucks based on their water capacity: isuzu pumper trucks,isuzu tanker trucks, and isuzu pumper-tankers.
isuzu Pumper Trucks: Also known as isuzu fire engines, isuzu pumper trucks are equipped with pumps to draw water from hydrants. isuzu water tank capacity typically ranges from 500 to 1,000 gallons, ensuring a continuous and pressurized water supply for firefighting operations.
isuzu Tanker Trucks: isuzu Tanker trucks, also called isuzu water tenders,isuzu are designed to transport and supply large volumes of water, with capacities often exceeding 3,000 gallons. isuzu trucks are particularly valuable in rural firefighting scenarios where access to municipal water sources may be limited.
isuzu Pumper-Tankers: isuzu pumper-tanker combines the functionalities of both pumper trucks and tanker trucks. These versatile vehicles can hold large volumes of water, sometimes over 3,000 gallons, while also being equipped with pumps to deliver water effectively to the fire scene.
Several factors influence the water-holding capacity of fire trucks:
Type of Truck: Specialized isuzu trucks like aerial ladder trucks or wildland firefighting vehicles may have smaller water tanks ranging from 200 to 500 gallons due to their specific operational requirements.
Setting: Urban isuzu fire trucks often rely on hydrants for water supply, whereas rural areas may require tanker trucks with larger water tanks to combat fires in areas with limited water access.
Budget: The budget of the fire department plays a significant role in determining the type and size of fire trucks purchased. Budget constraints can impact the water-carrying capacity of the trucks available for firefighting operations.

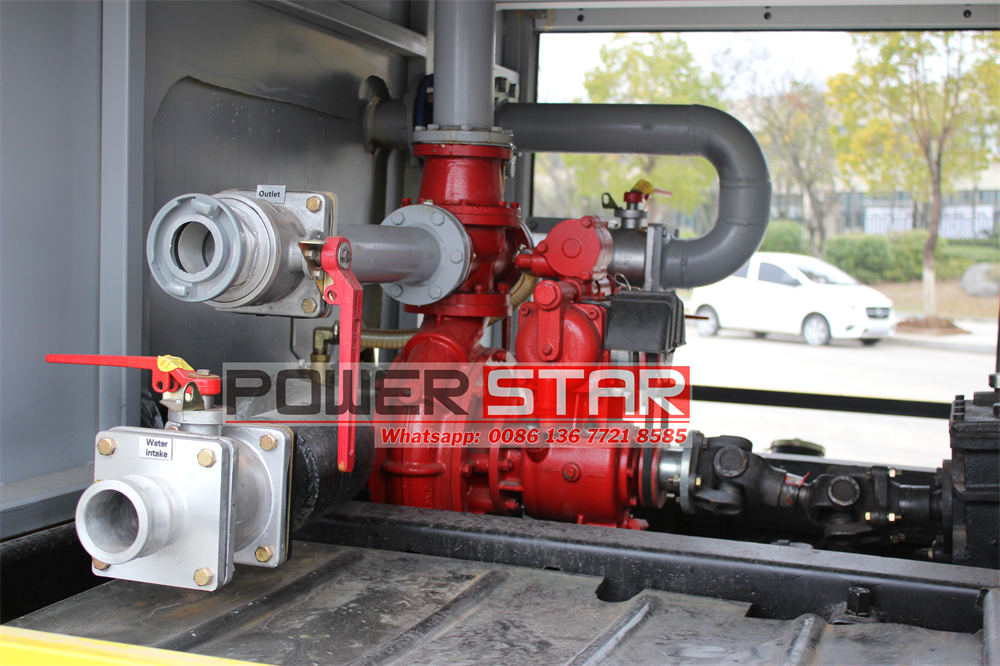

ISUZU ftr 6ton 7ton Fire Fighting platform Truck is a water tank fire truck modified by Qingling SUZU FTR series chassis. The whole vehicle is composed of two parts: firefighter cabin and body. The cabin is changed from single row to double row. 3+3 people, the car has a built-in tank structure, the front of the body is the equipment box, the middle is the water tank, and the rear is the pump room.

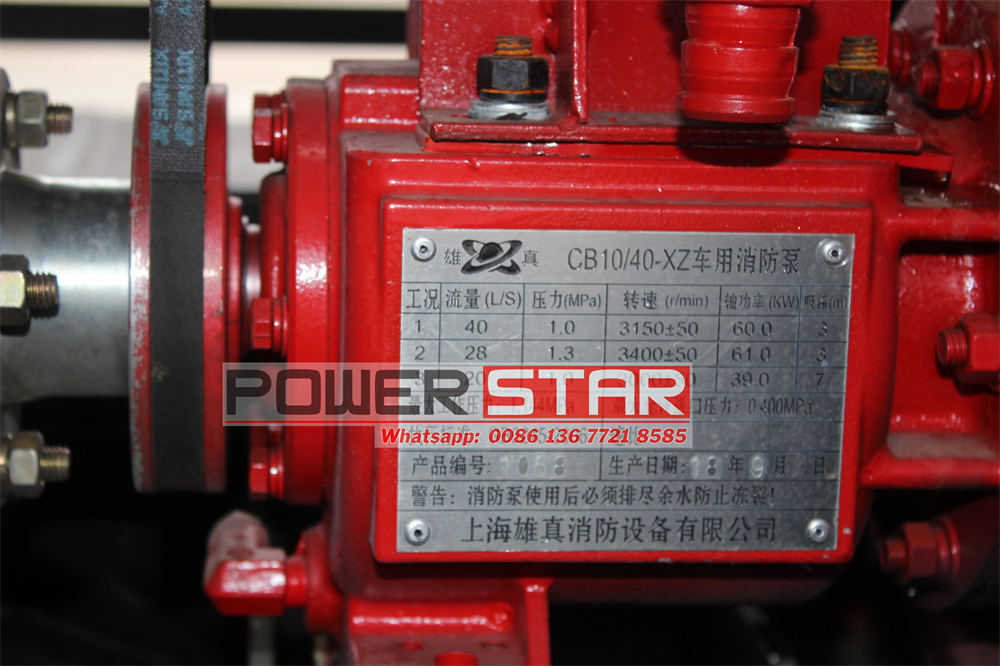

The liquid-carrying tank is made of high-quality carbon steel, and is elastically connected to the chassis. It carries 5860kg of water. It is equipped with CB10/40 low-pressure fire pump produced by Shanghai Rongshen Fire Equipment Co., Ltd., with a rated flow of 40L/S. The roof is installed on Chengdu West PS40W vehicle fire monitor produced by Fire Fighting Machinery Co., Ltd. The biggest feature of this car is its large liquid carrying capacity, good handling and easy maintenance. It can be widely used in public security fire brigade, factories and mines, communities, docks and other places to fight large-scale general material fires.
| POWERSTAR Brand I suzu FTR Water Foam Fire Truck | |||
| Vehicle Parameters | |||
| General | Vehicle Model | PT5170GXFPM70 | |
| Vehicle Brand | Powerstar | ||
| Chassis Brand | ISUZU | ||
| Overall Dimension(mm) | 8080×2500×3470mm | ||
| GVW/Crub/Rated Weight(kg) | 16800/9750/6600 | ||
| Chassis Parameters | |||
| Cab | Cab Seat | 6 | |
| Air Conditioner | Optional | ||
| Engine | Fuel Type | diesel | |
| Engine Model | 6HK1-TCL | ||
| Engine Power | 177KW/240HP | ||
| Engine Brand | I SUZU | ||
| Emmission Standard | Euro 3 | ||
| Chassis | Drive Type | 4*2 | |
| Wheelbase(mm) | 4500 | ||
| Tyre Specification | 295/80R22.5 16PR,11.00R20 16PR | ||
| Tyre No.(pcs) | 6 | ||
| Max Speed(km/h) | 90 | ||
| Fire Truck Water Tank Structure Parameters | |||
| Tank Volume | 6000L | Tank Material | Q235 |
| Tank Thickness | 4/3/3mm | Fire pump | CB10/50 |
| Fire monitor | PS50 | Color | Optional |
To rightly use Isuzu FVZ water fire truck, there are several key points to keep in mind:
Proper Maintenance: Regularly inspect and maintain the water fire truck to ensure that it is in good working condition. This includes checking the water pump, hoses, valves, and other components for any signs of wear or damage. Performing routine maintenance will help ensure that the truck is always ready to respond to emergencies.
Training: Ensure that all operators are properly trained on how to use the Isuzu FVZ water fire truck. This includes training on how to operate the water pump, control the water flow, and properly position the truck at the scene of a fire. Proper training will help ensure that the truck is used effectively and safely during firefighting operations.
Efficient Water Usage: Use water efficiently when operating the Isuzu FVZ water fire truck. This includes properly calculating the amount of water needed to extinguish a fire and adjusting the water flow accordingly. By using water efficiently, you can help conserve water resources and ensure that the truck's water supply lasts for the duration of the firefighting operation.
Communication: Effective communication is key when using the Isuzu FVZ water fire truck. Make sure that all personnel involved in the firefighting operation are in communication with each other to coordinate their efforts. This includes communicating with other firefighters on the ground, as well as with incident commanders and other emergency responders. Good communication will help ensure that the firefighting operation is carried out safely and effectively.
