Isuzu fire fighting truck

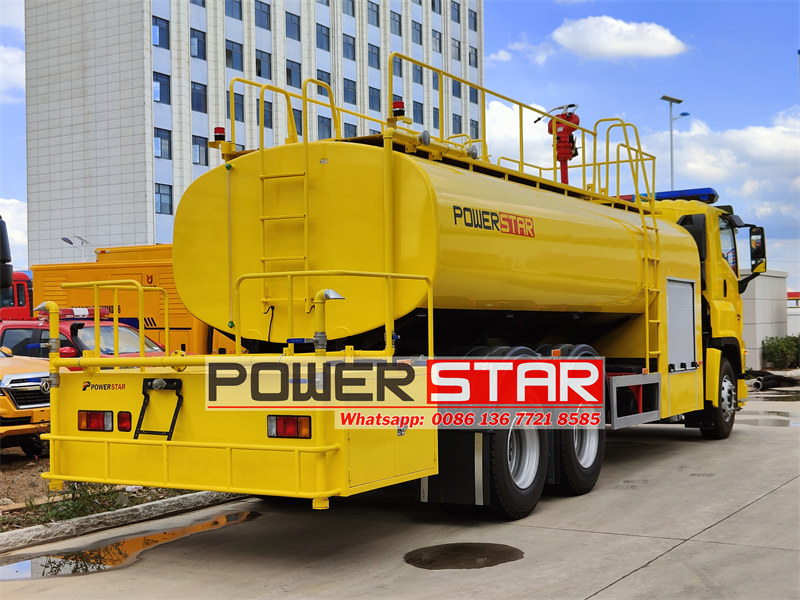

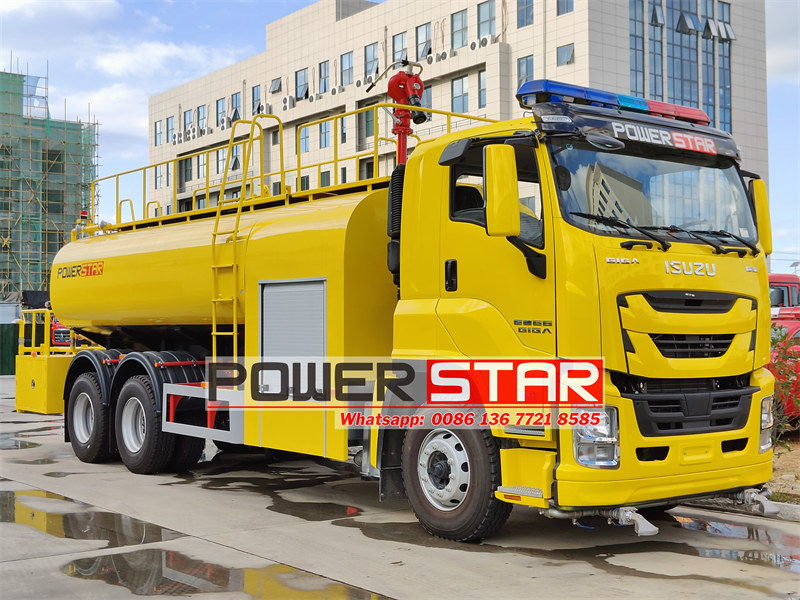

ISUZU GIGA water spraying fire truck is a special vehicle based on the ISUZU GIGA truck chassis, which has both firefighting and water sprinkling functions. The ISUZU GIGA fire engine is a special vehicle that has strong power, reliability and durability, as well as flexible spraying methods and a wide range of applications. It is widely used in urban public security fire brigade, petrochemical industry, Factories, mining enterprises, communities, forests, ports, docks and other departments can quickly approach the fire scene to start fire fighting and put out various fires. It is an ideal fire fighting equipment. As for usage, this article detailed showing and introduce the Isuzu water tank fire truck, which is also known as fire truck and fire truck, ISUZU fire pumper,ISUZU water fire truck ,ISUZU water fire agent ,ISUZU water fire tanker engine,ISUZU water fire vehicle. It is refitted from a second-class Isuzu truck chassis. The special part is composed of liquid tank, pump room, equipment box, power output and transmission system, pipeline system, electrical system, etc.

ISUZU GIGA series truck chassis, with strong power, reliability and durability, provides a stable driving and operating basis for fire sprinkler trucks. Isuzu GIGA fire fighting truck integrates firefighting and water sprinkling functions, which can be used for fire fighting, landscaping, road cleaning and other water sprinkling operations. The Isuzu fire tender mainly have below assembly and equipment:

Fire pump: Equipped with a special fire pump for fire trucks, it can provide sufficient pressure and flow to meet the needs of firefighting.
Fire cannon: Usually equipped with a fire cannon or water gun, it can spray water or foam from a long distance to effectively extinguish the fire.
Fire interface: It has a fire interface, which can be fed through a fire hydrant, making it convenient to quickly connect to the water source at the fire scene.

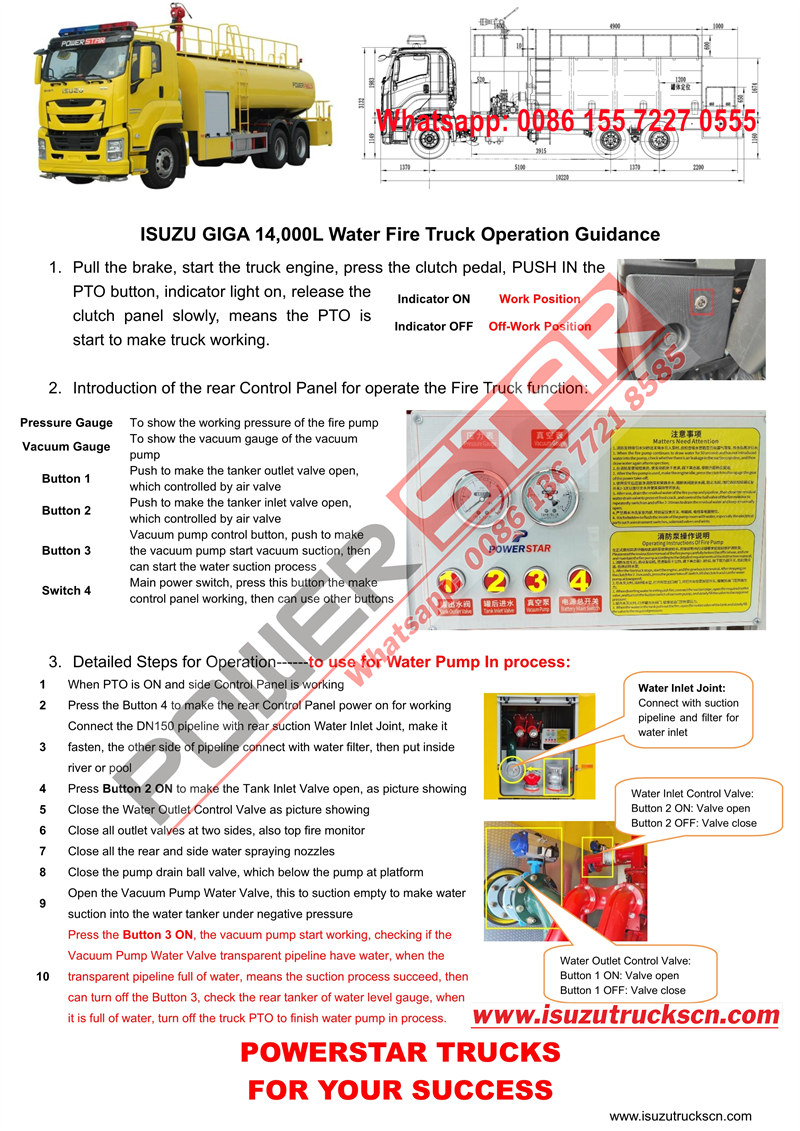

Detailed Steps for Operation for ISUZU GIGA 380HP water fire fightingtruck------to use for Water Pump In process:
1    When PTO is ON and side Control Panel is working
2    Press the Button 4 to make the rear Control Panel power on for working
3    Connect the DN150 pipeline with rear suction Water Inlet Joint, make it fasten, the other side of pipeline connect with water filter, then put inside river or pool
4    Press Button 2 ON to make the Tank Inlet Valve open, as picture showing
5    Close the Water Outlet Control Valve as picture showing
6    Close all outlet valves at two sides, also top fire monitor
7    Close all the rear and side water spraying nozzles
8    Close the pump drain ball valve, which below the pump at platform
9    Open the Vacuum Pump Water Valve, this to suction empty to make water suction into the water tanker under negative pressure
10    Press the Button 3 ON, the vacuum pump start working, checking if the Vacuum Pump Water Valve transparent pipeline have water, when the transparent pipeline full of water, means the suction process succeed, then can turn off the Button 3, check the rear tanker of water level gauge, when it is full of water, turn off the truck PTO to finish water pump in process.

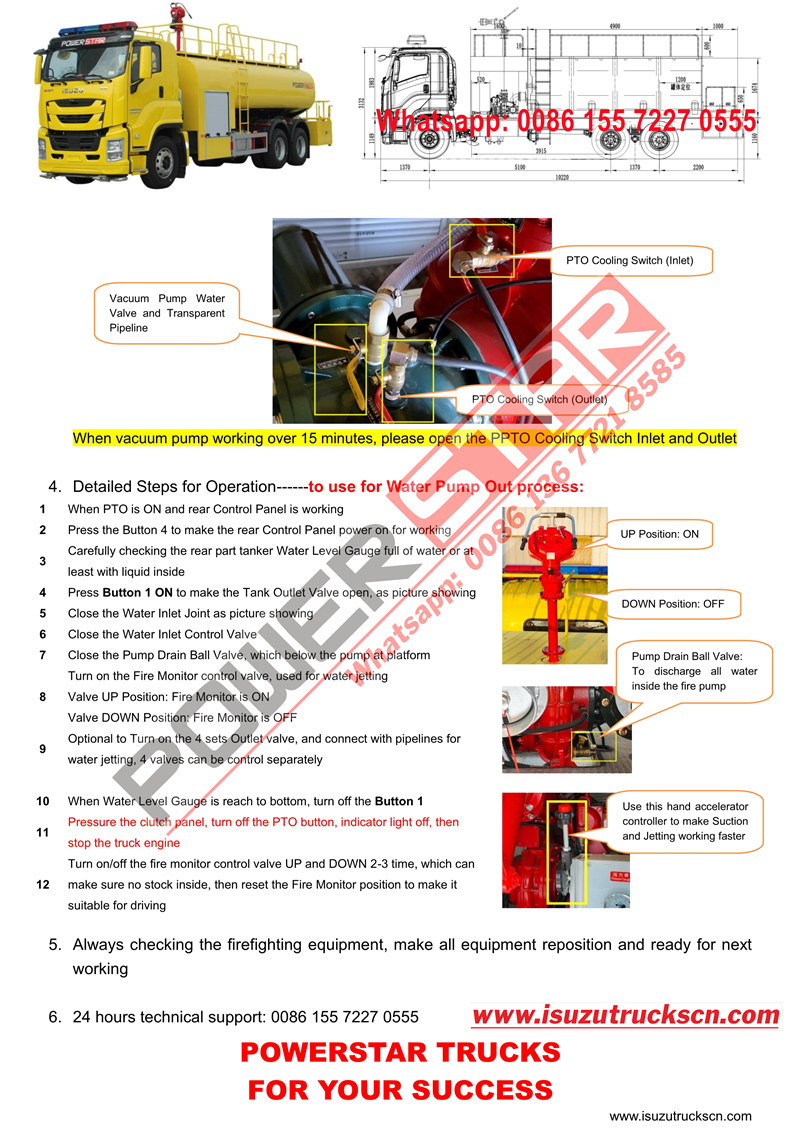

Detailed Steps for Operation for Isuzu fire engine water tanker------to use for Water Pump Out process:
1    When PTO is ON and rear Control Panel is working
2    Press the Button 4 to make the rear Control Panel power on for working
3    Carefully checking the rear part tanker Water Level Gauge full of water or at least with liquid inside
4    Press Button 1 ON to make the Tank Outlet Valve open, as picture showing
5    Close the Water Inlet Joint as picture showing
6    Close the Water Inlet Control Valve
7    Close the Pump Drain Ball Valve, which below the pump at platform
8    Turn on the Fire Monitor control valve, used for water jetting
Valve UP Position: Fire Monitor is ON
Valve DOWN Position: Fire Monitor is OFF
9    Optional to Turn on the 4 sets Outlet valve, and connect with pipelines for water jetting, 4 valves can be control separately
10    When Water Level Gauge is reach to bottom, turn off the Button 1
11    Pressure the clutch panel, turn off the PTO button, indicator light off, then stop the truck engine
12    Turn on/off the fire monitor control valve UP and DOWN 2-3 time, which can make sure no stock inside, then reset the Fire Monitor position to make it suitable for driving

Tank design: The tank body is made of high-quality stainless steel SS304 materials, which is sturdy and durable, and has anti-corrosion treatment to keep the interior clean. Other fire-fighting equipment, such as fire-fighting water cannon, may also be installed on the top of the tank body.
Scope of application: ISUZU GIGA water sprinkler fire truck is suitable for urban firefighting, forest fire prevention, earthquake rescue, water supply in drought and water-deficient areas, and other fields. It is an important force in the fire department and government emergency rescue system.
Water Sprinkler: The tank body is equipped with a working platform at rear, on which a greening sprinkler is usually installed. The sprinkler can rotate in all directions and has multiple spraying modes such as forward flushing, rear spraying, and side spraying to meet the needs of watering operations such as landscaping and road cleaning.
Adjustment function: The spraying mode of the sprinkler cannon can be continuously adjusted to direct current, mist, heavy rain, light rain, drizzle, etc. to adapt to different working environments and needs.
