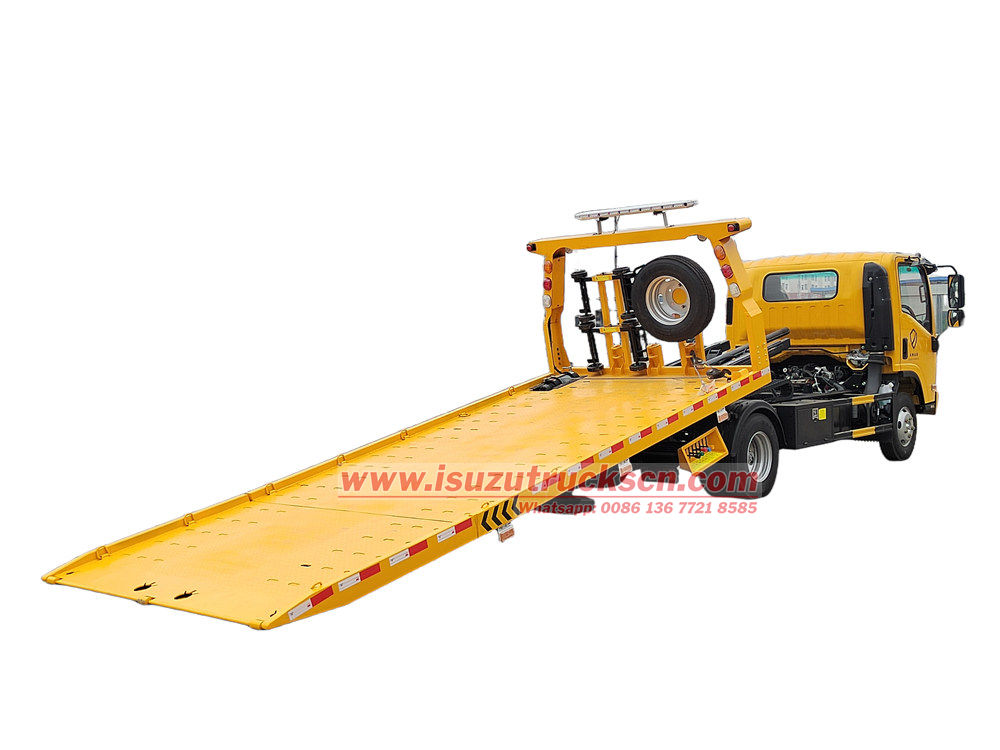

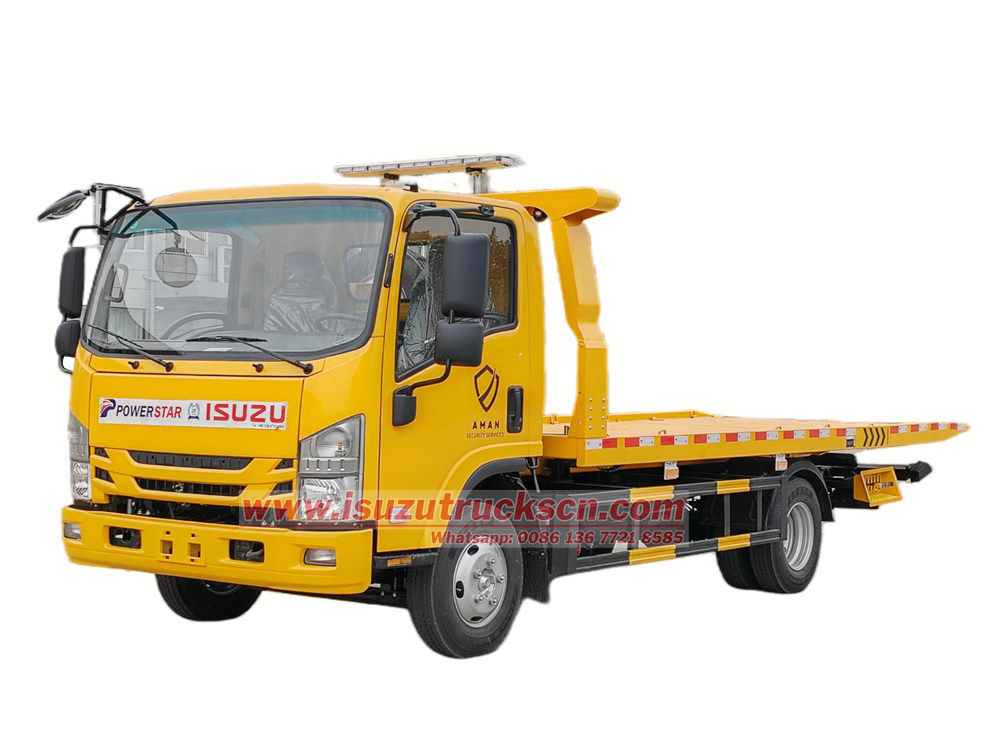

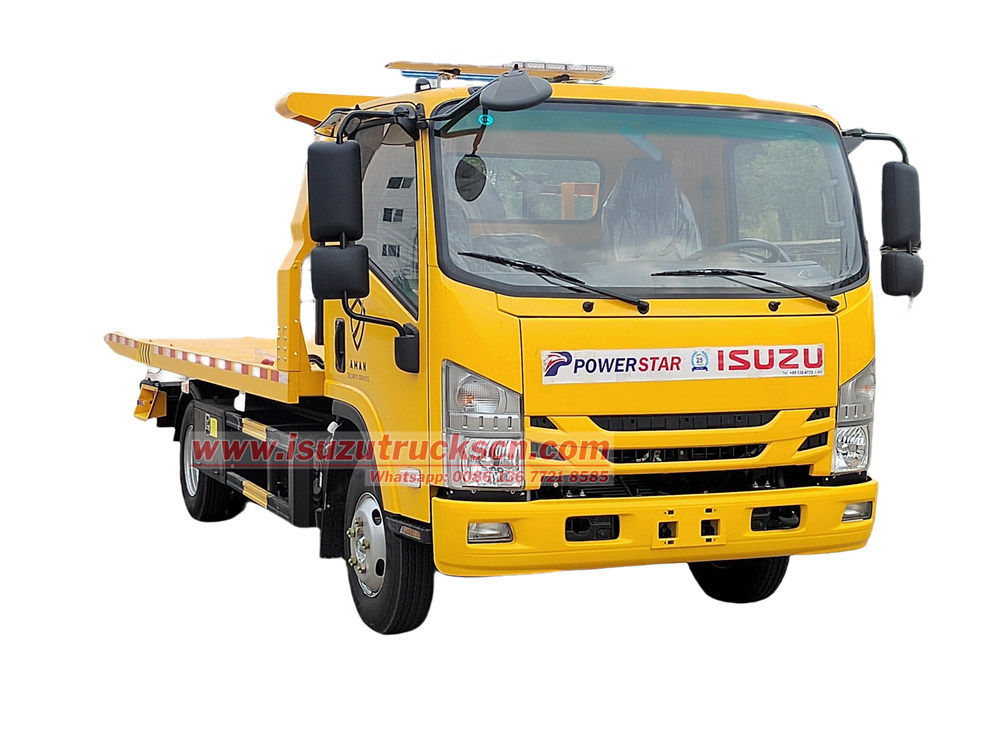

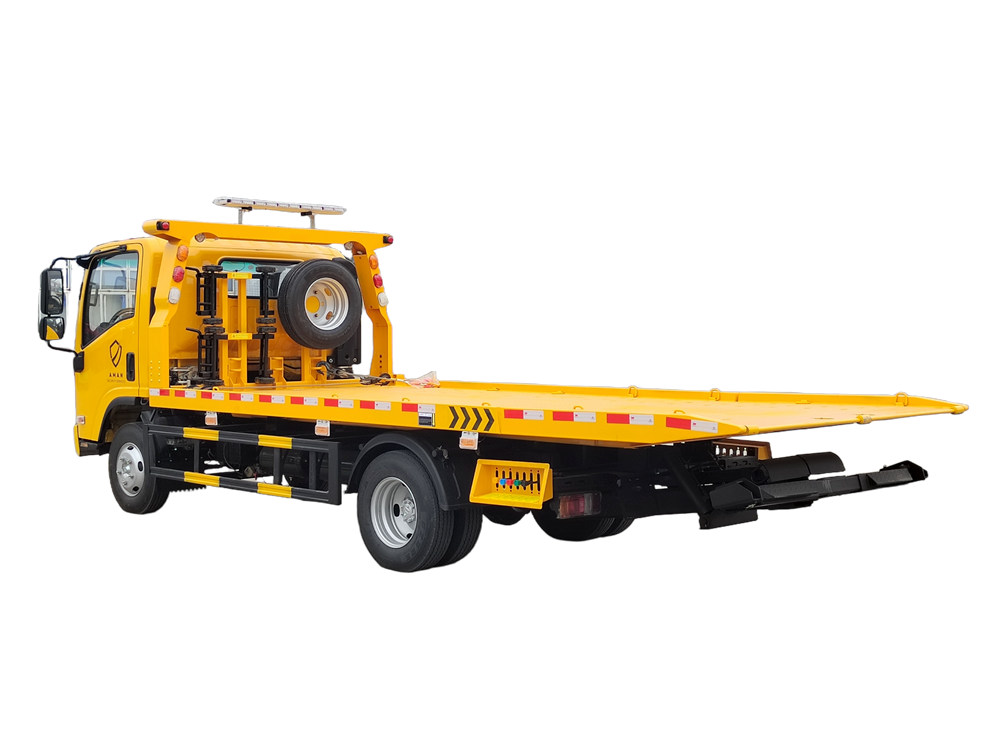

Isuzu ELF 5T flatbed road rescue tow truck is a special engineering vehicle designed to quickly respond to traffic accidents or vehicle breakdowns. It is mainly responsible for towing the broken-down vehicle, cleaning the accident scene, and ensuring smooth roads.

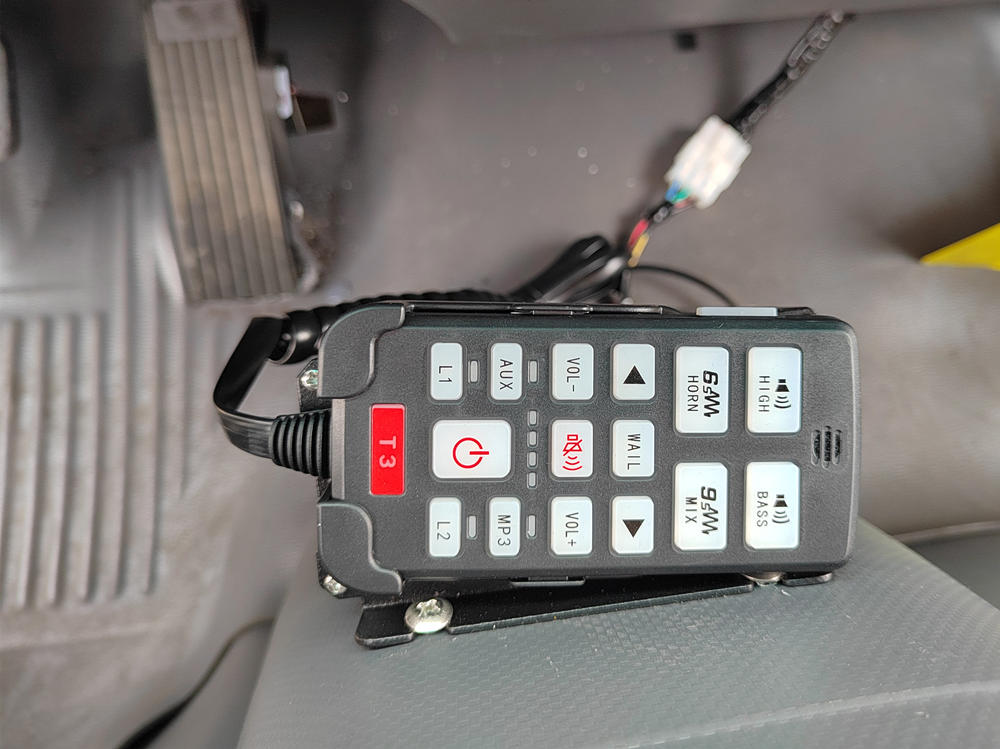

The vehicle is equipped with a hydraulic lifting system, a traction winch, and a flatbed mechanism, which can safely tow different models such as cars, SUVs, and trucks. Isuzu flatbed road rescue tow truc also has auxiliary lighting, warning lights, etc. to ensure safe operation at night or in bad weather.
The Isuzu flatbed road rescue tow truck is also called road wrecker truck, tow truck wrecker, wrecker towing truck, road block removal truck, etc.
It has multiple functions such as lifting, pulling, and lifting. The tow truck is mainly used for vehicles with road breakdowns and urban illegal vehicles. and emergency rescue, etc.
Isuzu wreckers are mainly divided according to categories: tow-and-hook connected type, tow-and-hook separate type, one-to-one type, flat-bed one-to-two type, multi-function tow truck, and hydraulic automatic clamping type.
Features of Isuzu tow truck wrecker:
1.Winch: the cable of winch, mounted at the front of the flatbed platform, is used to load and unload the breakdown cars, or forklift or some other goods on the deck.
2. Flatbed/platform: The rollback body will either be made of steel or aluminum. The deck can be hydraulically inclined and lowered to ground level. This allows a car or vehicle to be loaded on its own power or pulled on by a winch.
Specific types of Isuzu tow truck wrecker:
● According to vehicle loading capacity, there are small light duty tow truck, medium duty tow truck, heavy duty tow truck.
● According to chassis drive type, there are 4X2 tow truck, 6X4 tow truckk, 8X4 tow truck. The heavy duty tow truck has a rotate crane or boom, lifting capacity reaches up to 30tons. The wheel lift organ on the heavy duty tow truck could be more than 20 tons and the total towing capacity is more than 40 tons.
|
Isuzu ELF flatbed road rescue tow truck |
||||
|
Chassis |
Brand |
ISUZU |
||
|
Curb weight(kg) |
4300 |
|||
|
Wheelbase(mm) |
3360 |
|||
|
Dimension(mm) |
7100x2200x2530 |
|||
|
Approach/departure angle(°) |
16/14 |
|||
|
Tire |
Quantity |
6+1 |
||
|
Specification |
235/75R17.5 |
|||
|
Engine |
Brand |
ISUZU 4HK1-TCG61 |
||
|
Fuel type |
diesel |
|||
|
Displacement(ml) |
2800 |
|||
|
Power(kw) |
139 |
|||
|
Horsepower(hp) |
190 |
|||
|
Cylinder number |
4 |
|||
|
Maximum torque |
507N.m |
|||
|
Emission standard |
EURO 6 |
|||
|
Superstructure |
||||
|
Material |
Q235A carbon steel |
|||
|
Lifting weight(kg) |
1500 |
|||
|
Winch |
5 tons |
|||
|
Steel Rope Length |
25m |
|||
|
Tool box quantity |
1 |
|||
|
Logo |
according to the customer's design |
|||
1. Plate material: Combination of high strength and light weight
●The core structural parts of Isuzu wrecker truck are made of high-strength manganese steel plates, which are welded by bending and carbon dioxide shielded welding process to ensure weld strength, small deformation and high precision.
●Key components such as support arms and booms are tested by ultrasonic welds, and Q345B alloy steel is used in load-bearing parts to balance strength and toughness.
●The flat plate is made of stamped steel plate or 4mm thick patterned plate, and the surface is stamped by mold to form an anti-slip texture.
●All steel components are treated with electrophoretic paint to form a dense anti-rust layer to adapt to all-weather working environment.
2. Wide range of uses of Isuzu flatbed road rescue tow truck
Isuzu flatbed road rescue tow truck is widely used in the following scenarios due to its reliability and versatility:
◆Traffic accident rescue: quickly towing accident vehicles, clearing roads, and reducing the risk of secondary accidents.
◆Faulty vehicle transfer: providing safe and efficient towing services for stranded private cars, commercial vehicles, etc.
◆Illegal vehicle handling: cooperating with traffic police departments to tow illegally parked vehicles or vehicles involved in cases.
◆Special rescue missions: suitable for vehicle rescue in complex environments such as highways, mountain roads, and underground parking lots.
