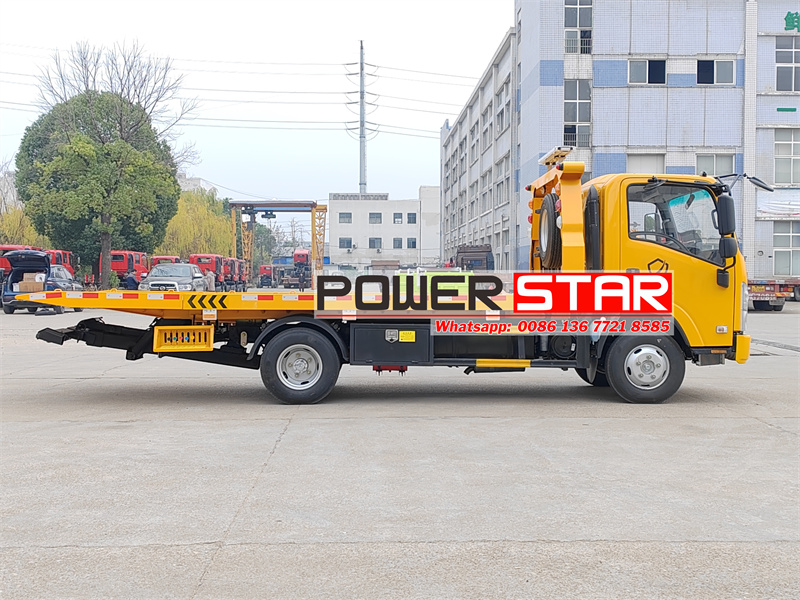

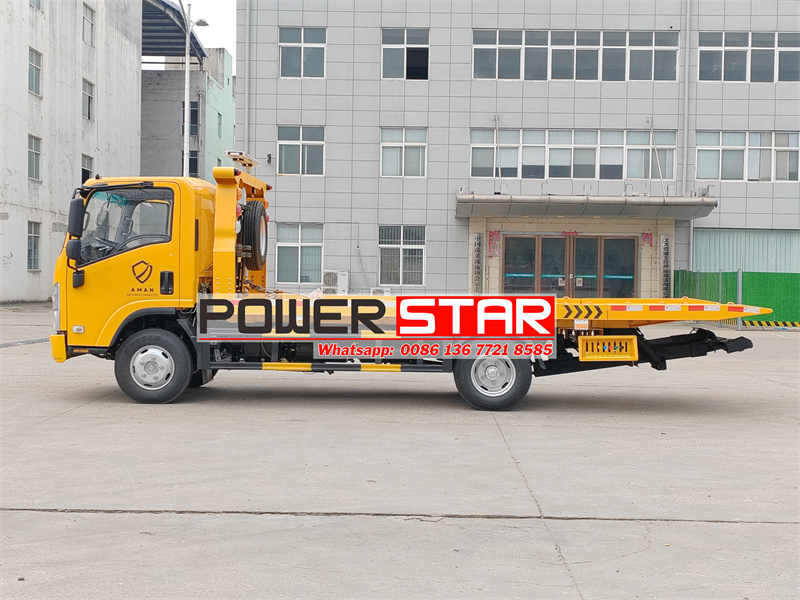

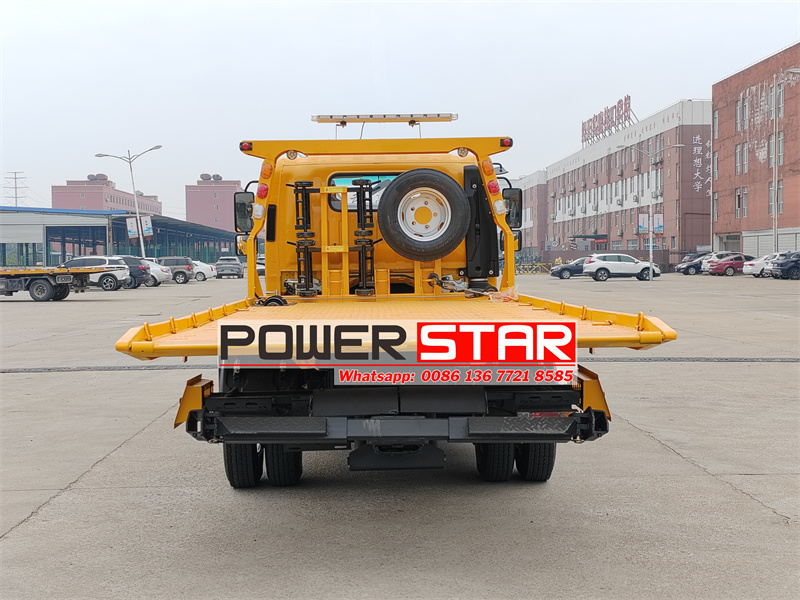

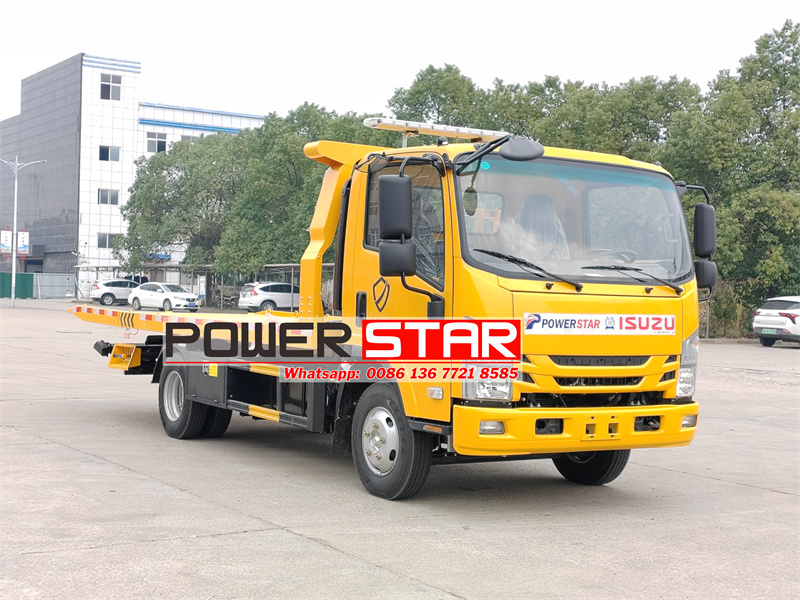

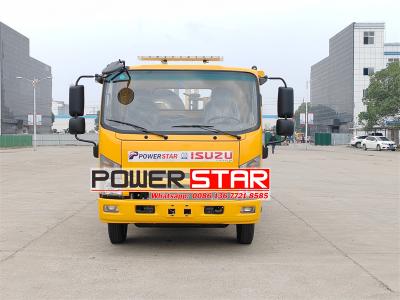

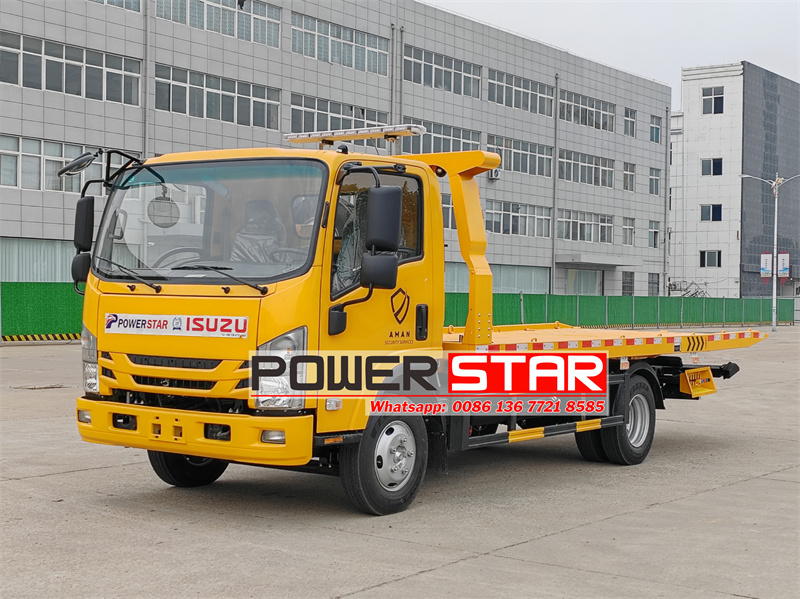

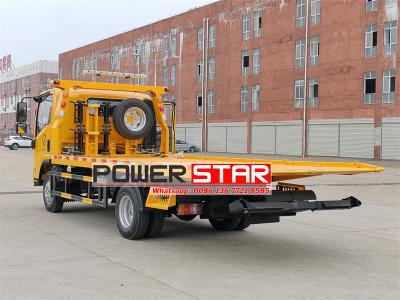

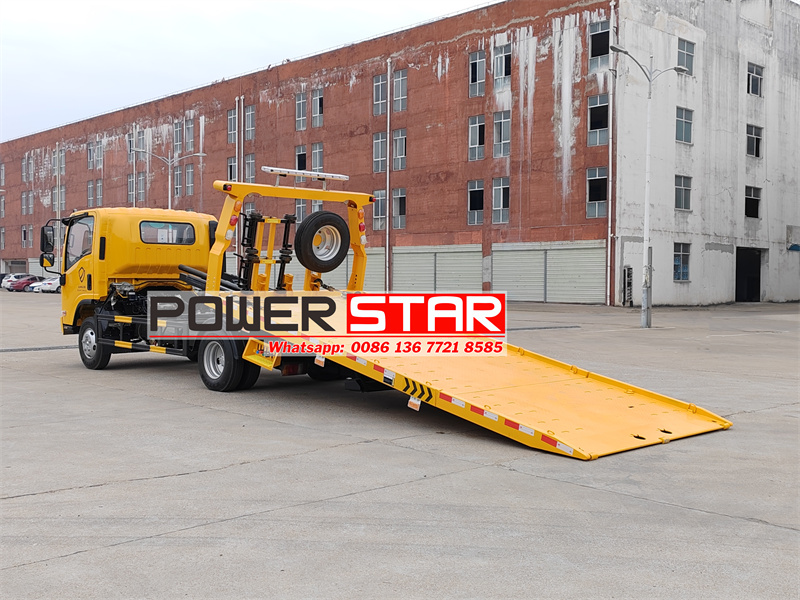

POWERSTAR 's Isuzu 700P 5ton road wrecker truck is a professional wrecker rescue vehicle which is modified on the Isuzu ELF 700P light chassis,3815mm wheelbase,A/C,USB,direction assistance.Equipped with Isuzu 4HK1 190HP diesel engine,4 cylinder inline,Euro 6 5193ml displacement. The truck has a 5ton loading capacity platform,with 21m winch, wheel bracket.
Work capacity:
5TEngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4X2,LHDGear box:
Isuzu MLD 6-speed,manualRemarks:

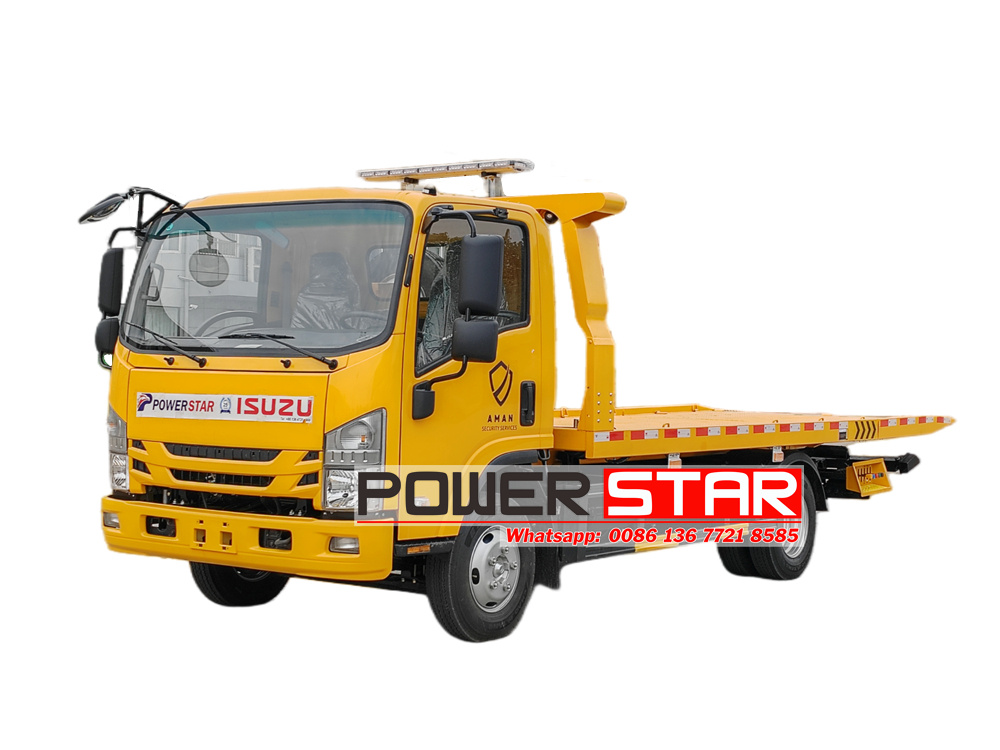

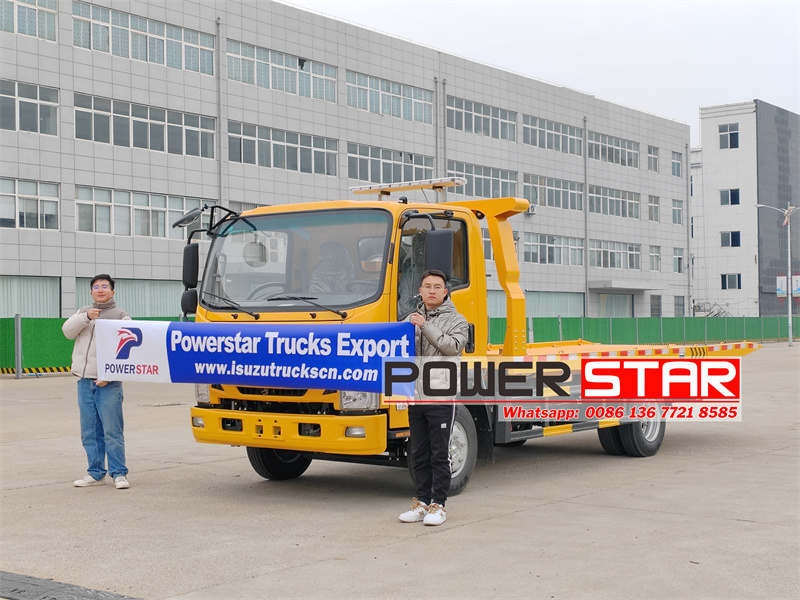

Large loading capacity platformThe Isuzu flatbed road rescue tow truck is a professional emergency rescue vehicle built on the Isuzu 700P chassis with stable performance and strong carrying capacity. Its flatbed design makes it easy to carry damaged vehicles or equipment, and is equipped with professional towing equipment such as winches and trailers, which can quickly and efficiently perform rescue and towing operations. Warning lights and signs ensure safety, the body structure is strong and durable, and the operating control system is simple and easy to use. The vehicle is not only suitable for road rescue and towing tasks, but also plays an important role in logistics transportation, road maintenance and other fields.
● 30 years experience on wrecker truck designing
● Be designed according to your requirements
● More than 500 workers, large and advanced production
● Build strict QC team to guarantee the quality
● Fast delivery time, Quick 10 days shipping time
Feature:
★ ISUZU chassis ensures perfect driving performance,
★ ISUZU engine, super powerful;, reliable performance, no overhaul within 100,000 km;
★ Professional and experienced technical team support to provide customized trucks with high quality & reasonable price
★ Huge auxiliary equipment can be optional;
★ High-performance hydraulic multi-valve and cylinder employeed
|
Isuzu flatbed road rescue tow truck |
||
|
General Technical Parameters |
||
|
Overall Dimension |
7450x2350x2440 (mm) |
|
|
Gross Vehicle Weight |
11000kg |
|
|
Curb Weight |
5850kg |
|
|
Chassis Specification |
||
|
Chassis |
Chassis Brand |
Isuzu |
|
Cabin |

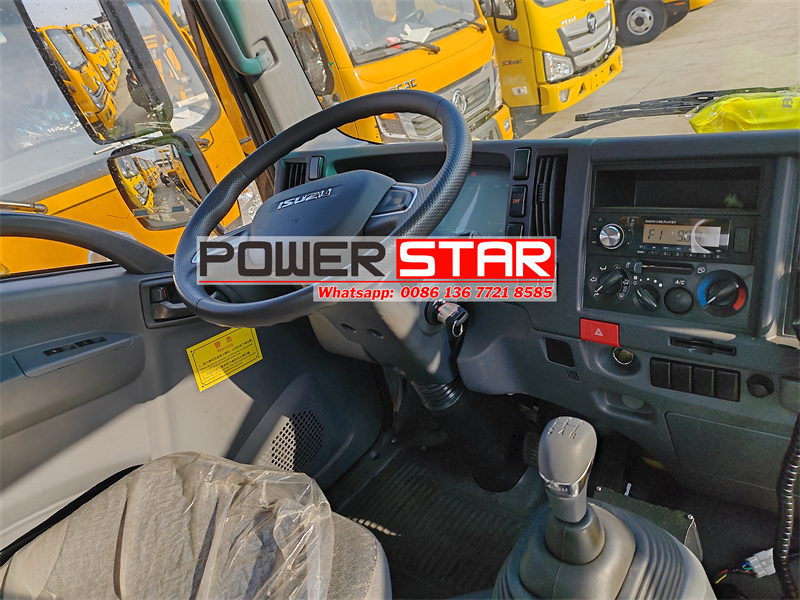

Single row,2 seats,with A/C,USB… |
|
|
Drive type |
4x2,Left Hand Driving |
|
|
Front and Rear Axle Load |
4T/7T |
|
|
Wheel Base |
3815(mm) |
|
|
Brake System |
Air Brake |
|
|
Steering Gear |
Power Assistant |
|
|
Tire |
235/75R17.5, 6 Pieces with 1 Spare Tire |
|
|
Maximum Speed |
105 (km/h) |
|
|
Engine |
Model |
4HK1-TCG61, 4 Cylinder inline |
|
Power |
139KW/190HP |
|
|
Emission Standard |
EURO 6 |
|
|
Displacement |
5193ml |
|
|
Fuel Type |
Diesel |
|
|
Gearbox |
Isuzu MLD,6 Forward & 1 Reverse Gear,manual |
|
|
Superstructure |
||
|
Winch |
Quantity |
1pc |
|
Winch Rating Pulling Capacity |
5000 (kg) |
|
|
Length of Steel Cable |
21 (m) |
|
|
Remarks |
1. Equipped with One Set of Auxiliary Wheels |
|
This tow truck is equipped with Isuzu's 4HK1 engine, which is famous for its excellent power performance and fuel economy. Its maximum horsepower reaches 190, ensuring the strong power of the tow truck during the rescue process. At the same time, the engine adopts high-pressure common rail technology, which makes fuel injection more precise, improves combustion efficiency and reduces emissions.
The engine is matched with the MLD 6-speed gearbox. This gearbox has smooth shifting and quick response, and can provide suitable gear selection according to different road conditions and rescue needs. This not only improves the driving comfort of the tow truck, but also makes the rescue process more efficient.

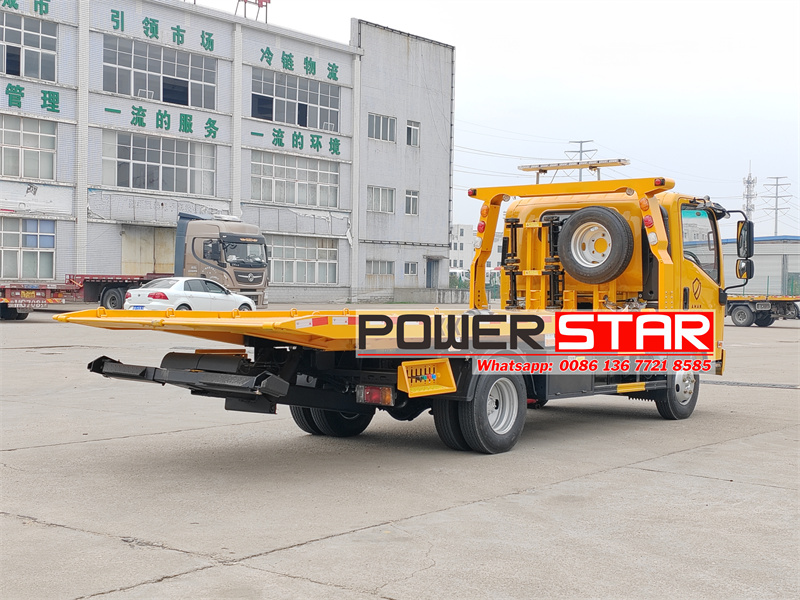

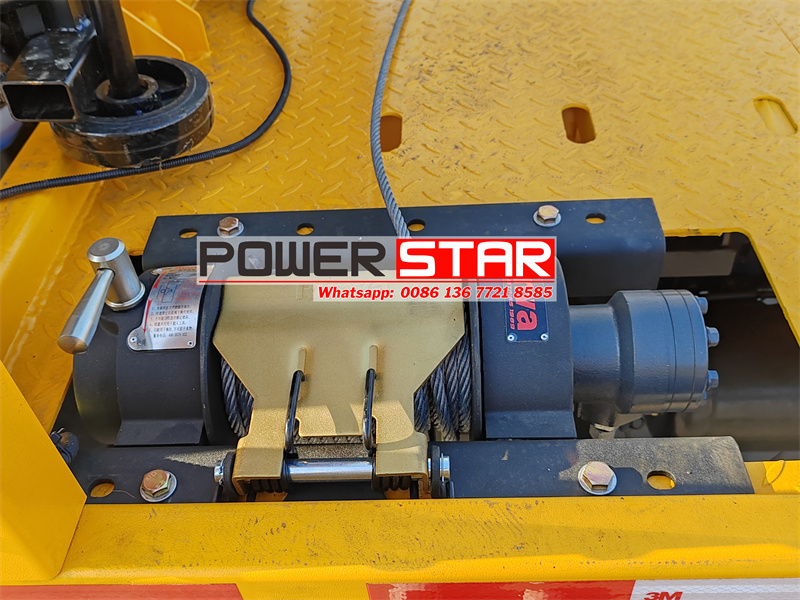

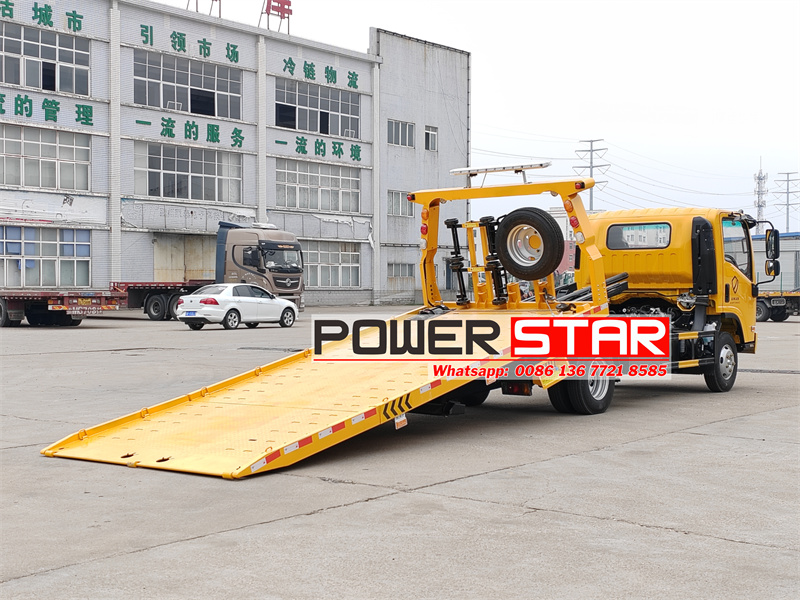

The flatbed is equipped with a 21-meter winch, which uses high-strength materials and precision manufacturing processes to ensure its durability and reliability in various harsh environments. Multiple fixing rings are installed on the edges of both sides of the flatbed. The driver can choose the appropriate fixing ring position for fixing according to the size and shape of the faulty vehicle.

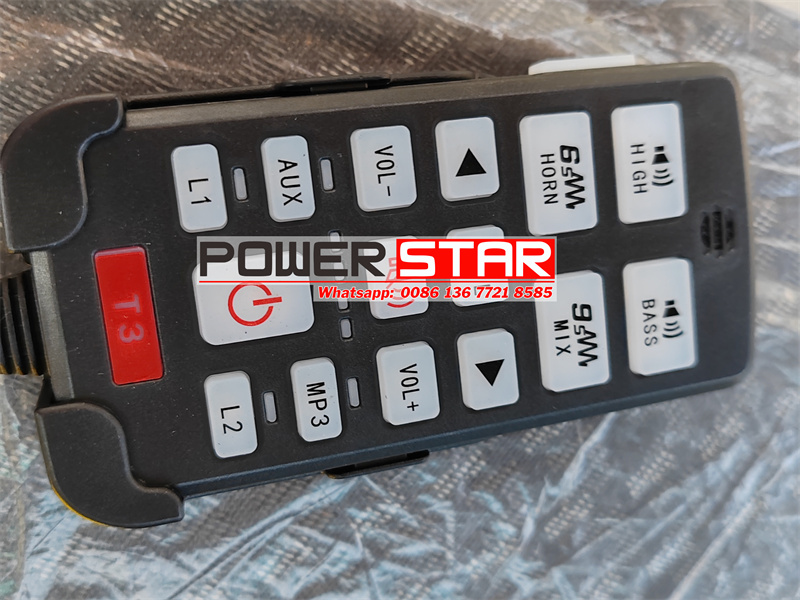

Through professional towing ropes or chains, the faulty vehicle is firmly connected to the flatbed, which can maintain the stability and safety of the vehicle even at high speeds or complex road conditions. The vehicle is also equipped with a warning light to remind surrounding vehicles and pedestrians to avoid during operation.

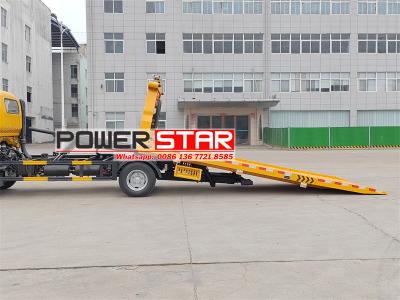

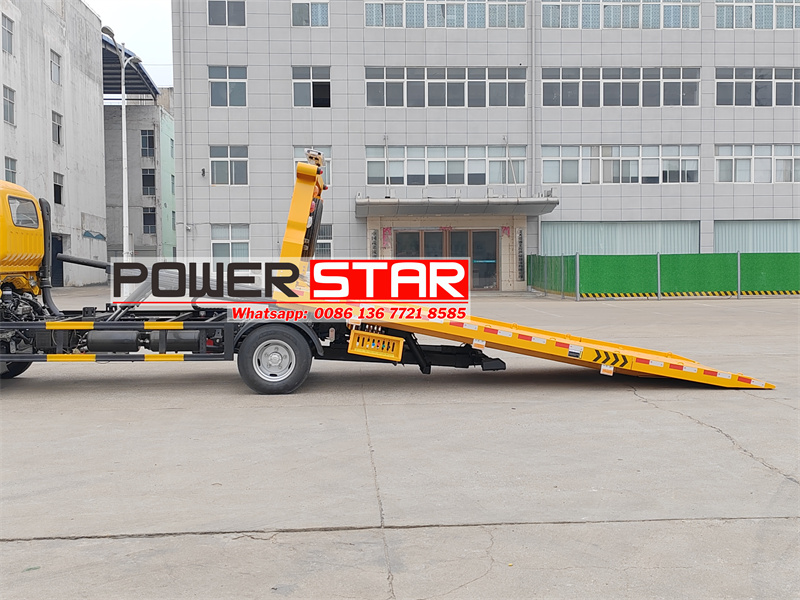

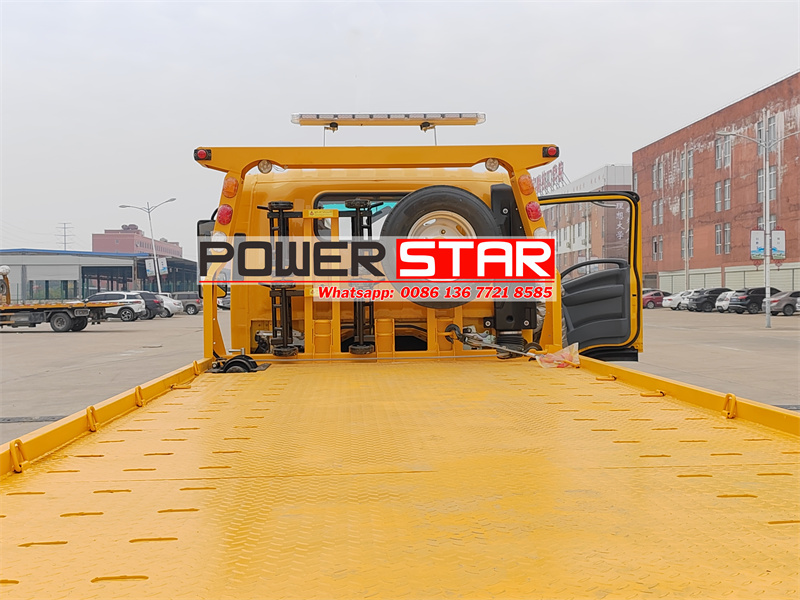

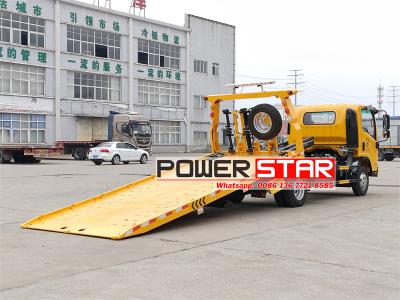

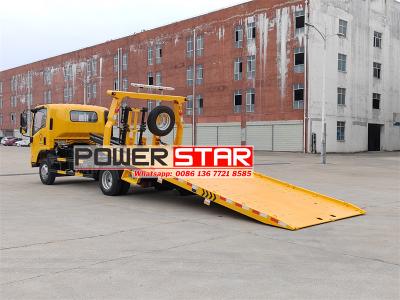

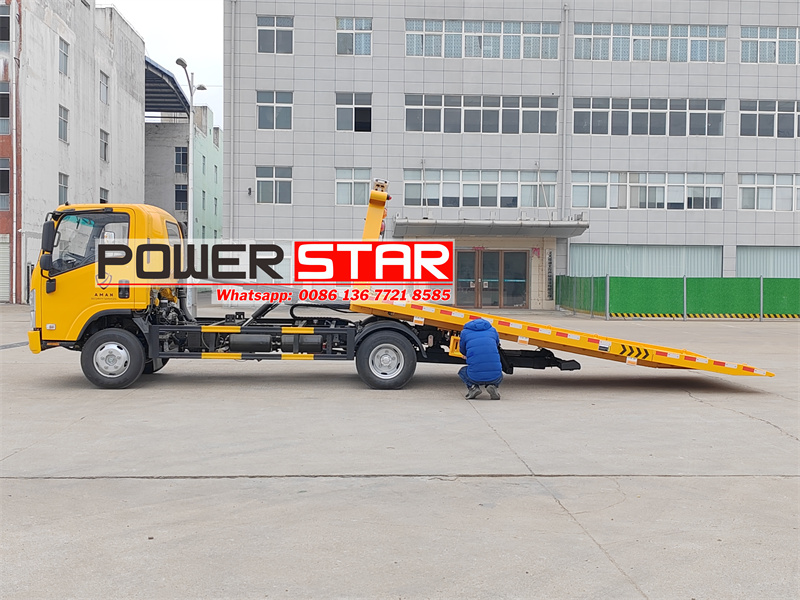

In terms of carrying capacity, this wrecker has a rated load capacity of 5 tons and can easily cope with various road rescue tasks. The flat surface is flat, non-slip and wear-resistant, and the length and width are carefully designed with telescopic functions. Through the advanced hydraulic control system, the driver can adjust the length of the flat plate according to actual needs to adapt to vehicles of different lengths, thereby improving the rescue efficiency. At the same time, the tow truck is also equipped with a powerful towing and lifting device, which can easily cope with various complex rescue scenarios.

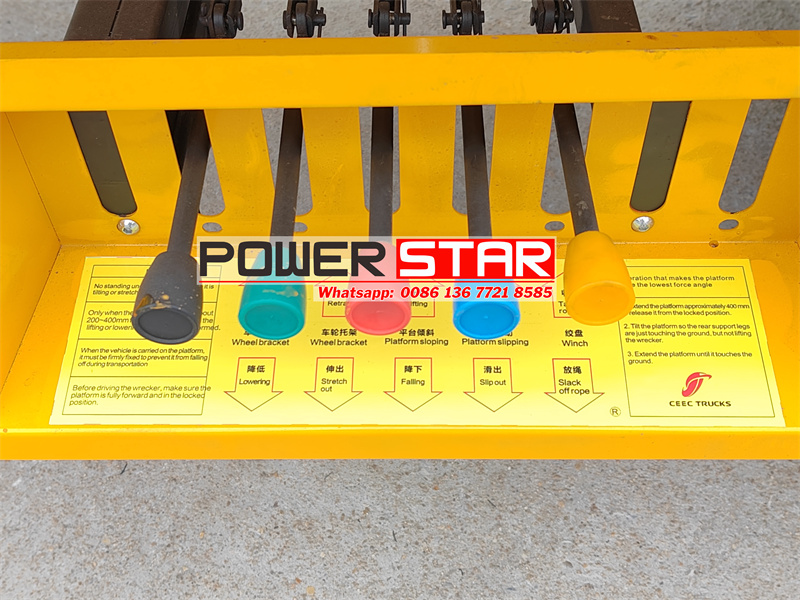

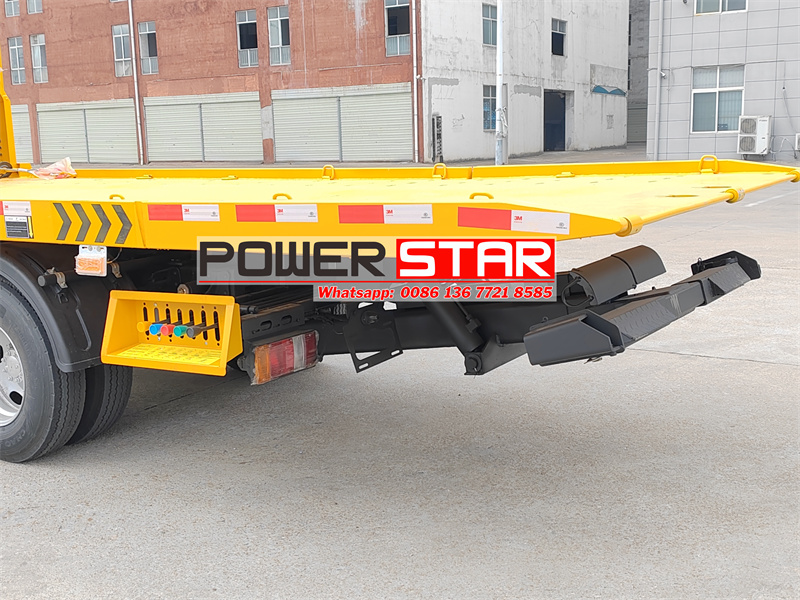

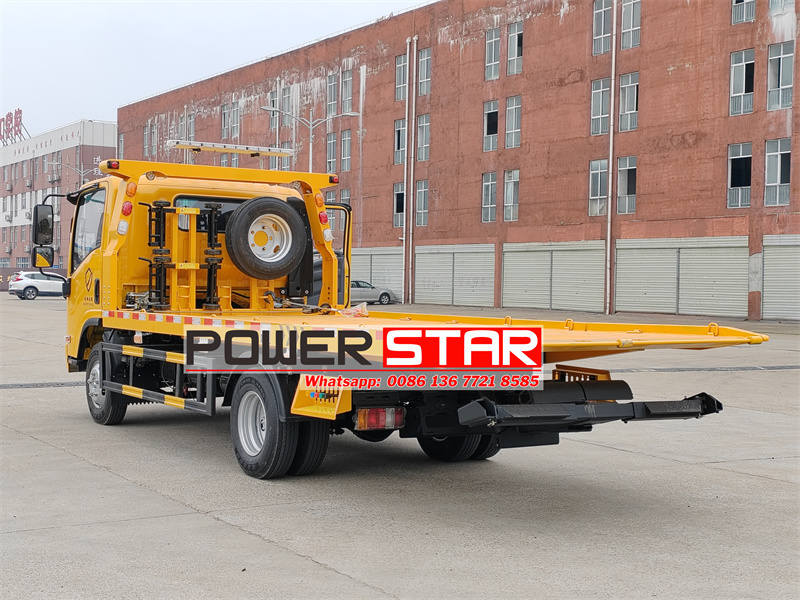

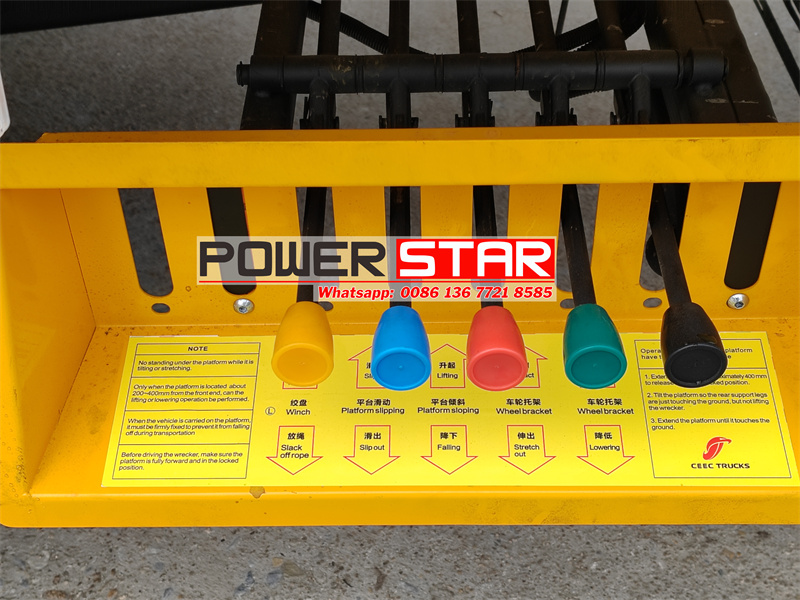

The vehicle is easy to operate, mainly through the operation joysticks on the left and right sides to achieve comprehensive control. Including the contraction and extension, rise and fall of the wheel bracket, flexible response to different road conditions. The sliding in and out, lifting and lowering of the platform meet the diverse loading needs.
In addition, there is the tightening and loosening of the capstan rope to meet the towing and lifting needs. The overall design is reasonable and the operation is efficient, ensuring the stability and safety of the vehicle in complex rescue environments.
