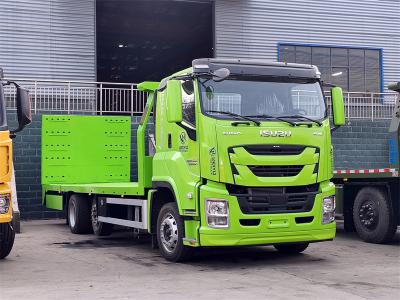

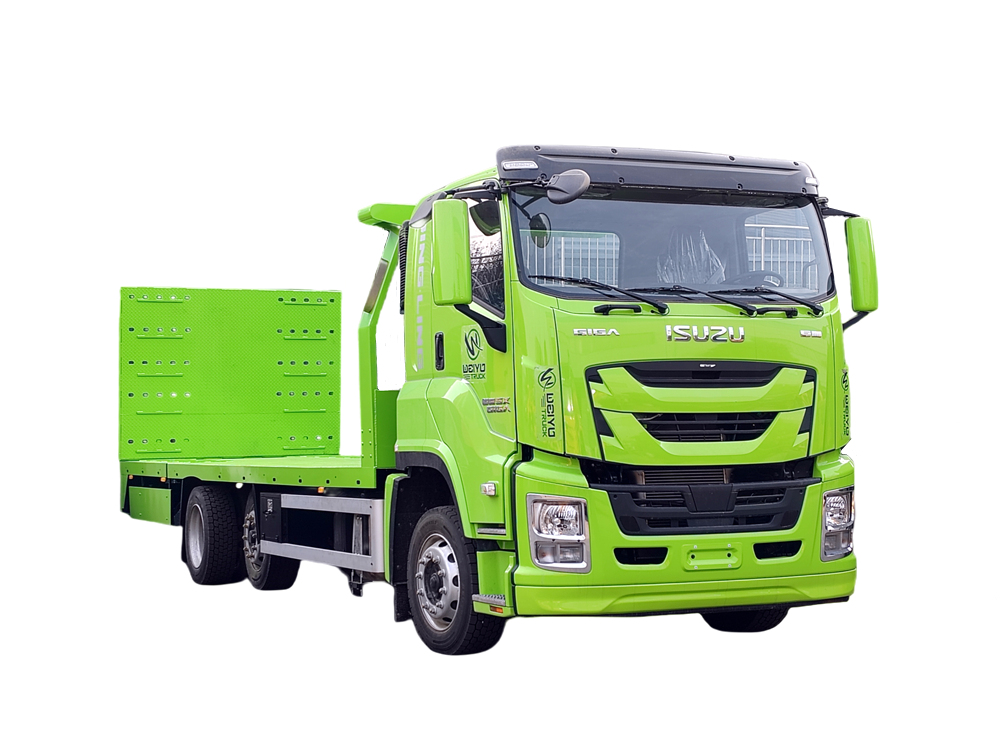

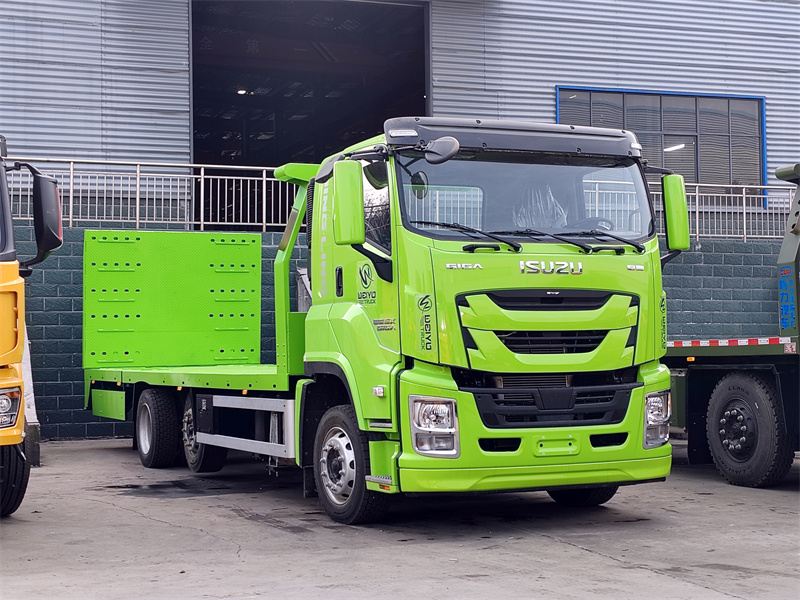

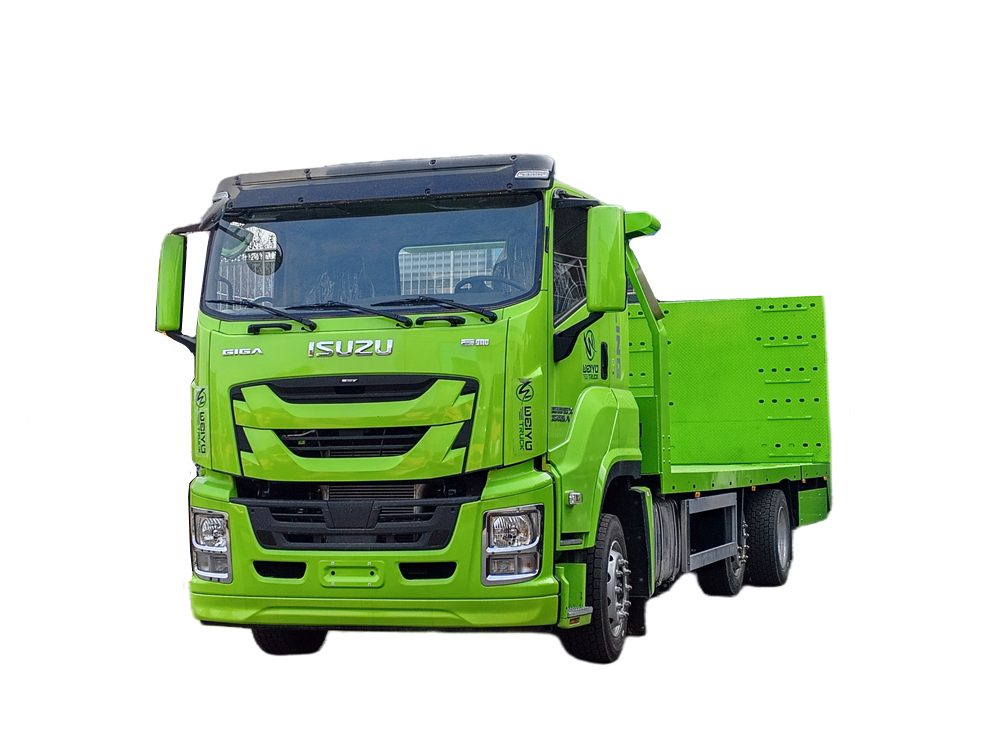

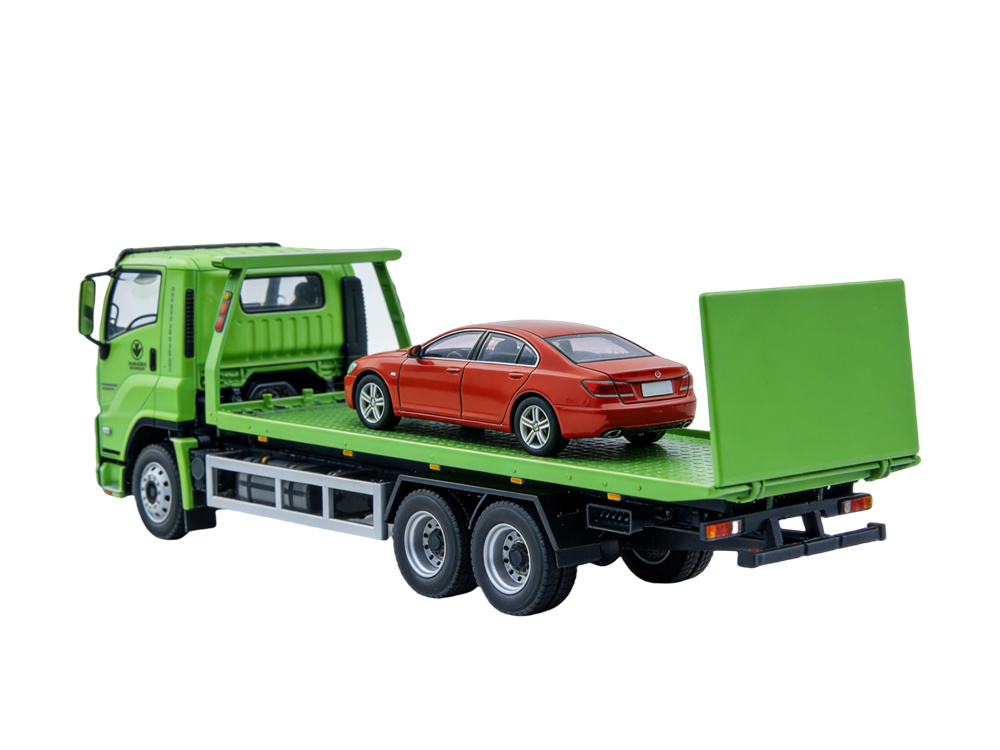

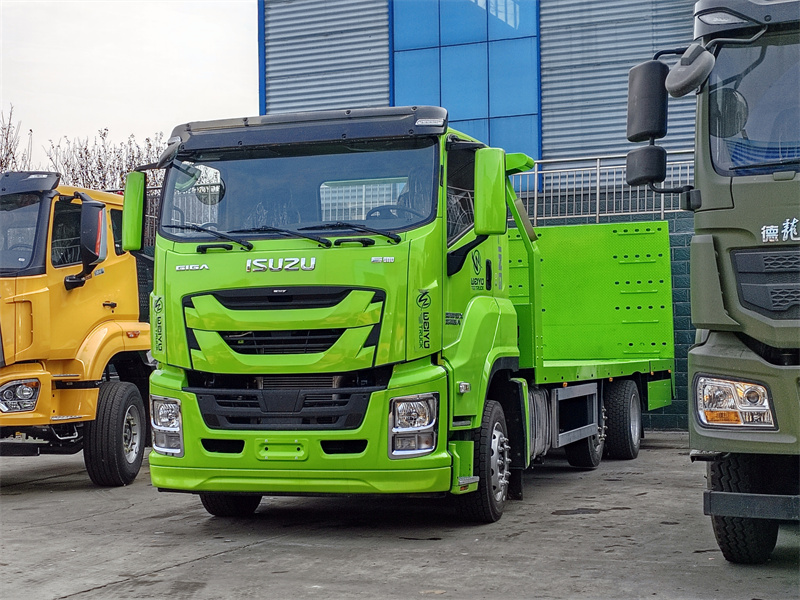

The Isuzu 6x4 30T wrecker truck adopts an Isuzu 6x4 GIGA chassis with a 4800+1370mm wheelbase and a gross vehicle weight of 35 tons. It is equipped with an Isuzu 6WG1-TCG61 460HP engine, a FAST 12-speed transmission, and features a 7.5m wrecker platform with 6mm thick anti-slip treaded plates, side bolt holes, a 45m 10-ton towing winch at the front, side toolboxes, a hydraulic tailgate, a rear tow rack, and an operating box on the right side.
MarketPrice:
$52300Manufacturer:
Powerstar TrucksWork capacity:
30 tonsDimension:
9790 x 2550 x 3050 mmCabin type:
Isuzu GIGA VC66Wheelbase:
4800+1370 mmEngine power:
338kW / 460 HPEngine type:
ISUZU 6WG1-TCG61Axle drive:
6x4Gear box:
FAST 12-speed,manual,12 F & 2 RThis is a 30-ton professional tow truck built on the Isuzu GIGA 6x4 heavy-duty chassis. The superstructure of this Isuzu 30 T flatbed recovery towing truck is equipped with a 7.5m heavy-duty anti-skid platform, a 10ton/45m front-mounted winch, hydraulic tow arms, and a hydraulic tailgate, integrating towing, lifting, and loading functions. The centralized hydraulic controls on the right side, along with two toolboxes and standardized fastening design, make it more practical and convenient, comprehensively meeting the rescue needs of large trucks, buses, and other roadside assistance missions.
▶ Features:
★ Isuzu GIGA 6x4 VC66 type,6WG1 460HP powerful engine
★ Can loading 30tons，6tons,8tons,10tons,20tons available
★ Stable and simple operation
★ Rotary wrecker type is available
▶ Product Parameters:
|
Isuzu 30 T flatbed recovery towing truck |
||
|
General Technical Parameters |
||
|
Overall Dimension |
9790x2550x3050 mm |
|
|
Gross Vehicle Weight |
35000kg |
|
|
Curb Weight |
10860kg |
|
|
Chassis Specification |
||
|
Chassis Brand |
Isuzu GIGA VC66 |
|
|
Cabin |
Row and half, left Hand Driving |
|
|
Wheel Base |
4800+1370mm |
|
|
Engine |
Model |
Isuzu 6WG1-TCG61 |
|
Type |
Inline six-cylinder, water-cooled, direct-injection, high-pressure common rail, turbocharged intercooled diesel engine with SCR+DPF |
|
|
|
Power |
338kW/ 460 HP |
|
Rated speed |
1500rpm |
|
|
Max torque |
2250N.m |
|
|
Max torque speed |
900-1300rpm |
|
|
Emission Standard |
EURO 6 |
|
|
Displacement |
15.681L |
|
|
Fuel Type |
Diesel,400L |
|
|
Gearbox |
FAST 12-speed,manual,12 Forward & 2 Reverse Gear |
|
|
Front and Rear Axle Load |
9T/26T(2 axles) |
|
|
Brake System |
Air Brake |
|
|
Steering Gear |
Power Assistant |
|
|
Tire |
Front 385/65R22.5,rear 315/80R22.5, 12 Pieces with 1 Spare Tire |
|
|
Maximum Speed |
90(km/h) |
|
|
Superstructure |
||
|
Platform dimensions |
7500x2500mm,6mm thickness, Anti-slip Treatment Deck |
|
|
Loading capacity |
30tons |
|
|
Material |
G70 high-strength steel perforated plate |
|
|
Winch |
Quantity |
1pc |
|
Winch Rating Pulling Capacity |
10000 (kg) |
|
|
Length of Steel Cable |
45 (m), 20 mm diameter |
|
|
Tool box |
2 pic |
|
|
Hydraulic Tilting Tailgate |
1.7m |
|
|
Remarks |
1. Fork 1 set 3. Right Side Hydraulic Operation 5. Rear-mounted trailing arm. 6. Tie-on straps 4 sets 7. One L-shaped tire holding device, one tire holding device 8. two tire baffles 9. one tow fork seat, and three tow forks. 10. Back-up Alarm Audible Safety |
|
▶ Chassis System:
• Brand/Model: Isuzu GIGA 6x4 Heavy Duty Truck Chassis
• Wheelbase: 4800mm + 1370mm
• Gross Vehicle Weight: 35,000 kg
• Engine: Original Isuzu 6WGA1-TCG61 inline six-cylinder diesel engine, 338kW (460hp), 15.681cc displacement, turbocharged, intercooled, high-pressure common rail fuel system
• Transmission: Fast 12-speed manual transmission
▶ Upper Platform System:

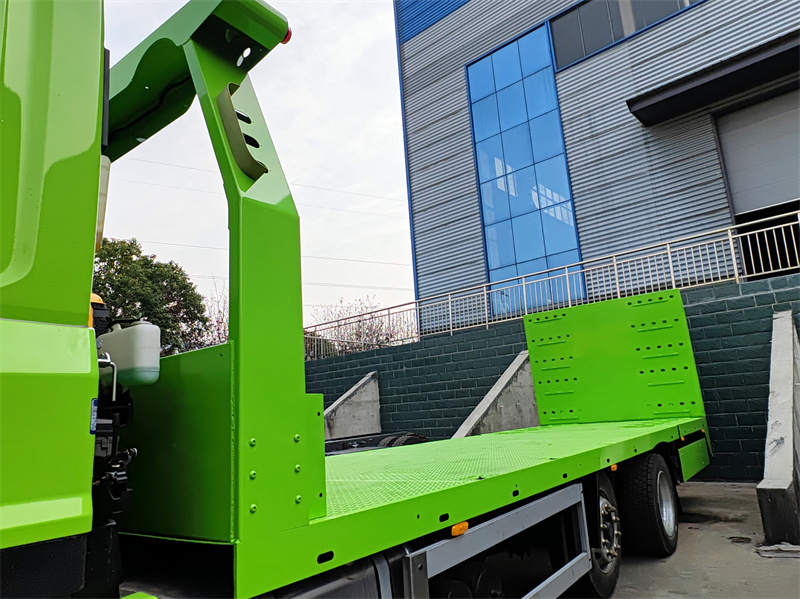

• Platform Dimensions: 7.5 x 2.5 m
• Loading capacity:30tons

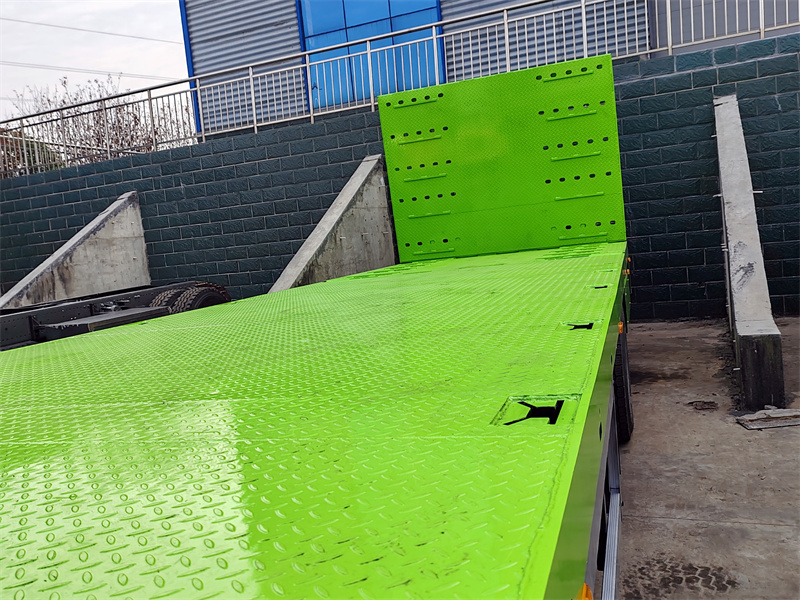

• Platform Plate: 6mm thick high-strength, anti-slip patterned steel plate, wear-resistant, anti-slip, and with strong load-bearing capacity, effectively protecting the lifted vehicle.
• Fastening Design: Multiple sets of fastening holes are scientifically arranged on both sides of the platform, which, together with fastening straps, can flexibly and securely fix disabled vehicles of different sizes.
▶ Towing and Rescue System:

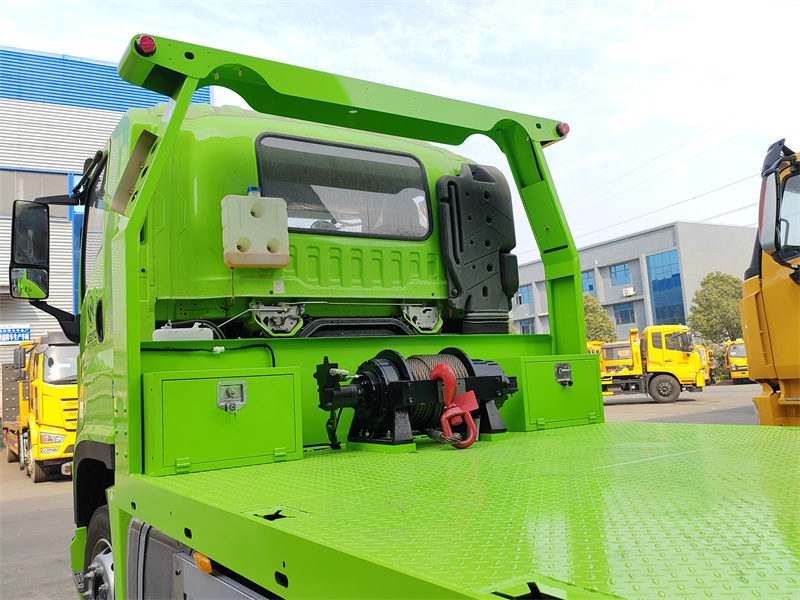

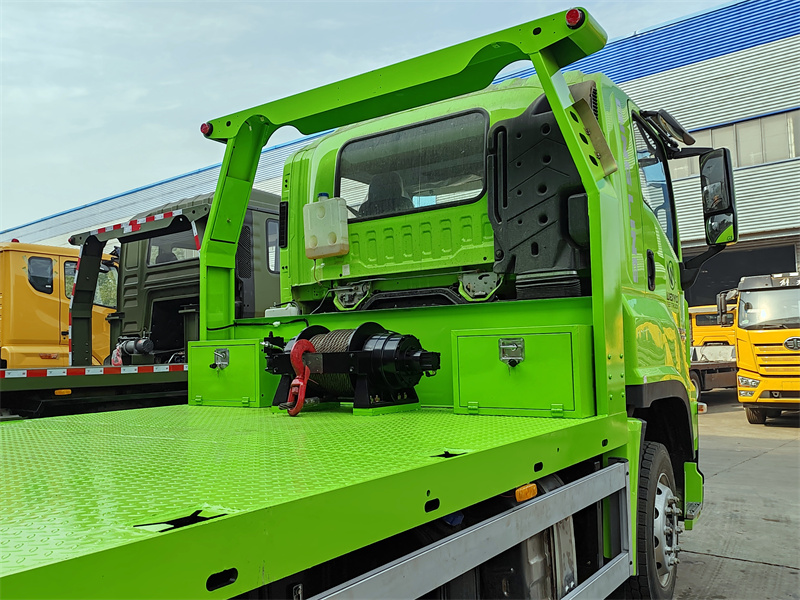

• Main Winch:
o Location: Foremost part of the platform
o Towing Capacity: 10-ton hydraulic winch
o Cable Length: Approximately 45 meters
o Function: Used to tow disabled vehicles to the platform or for straight-line towing rescue.

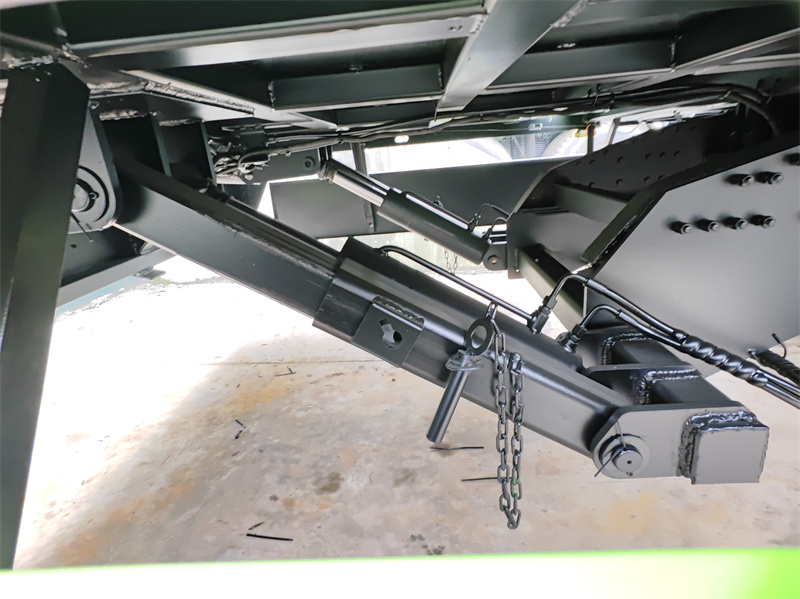

• Rear Lifting Mechanism: Hydraulically driven support arm (rear bracket) for easy platform support

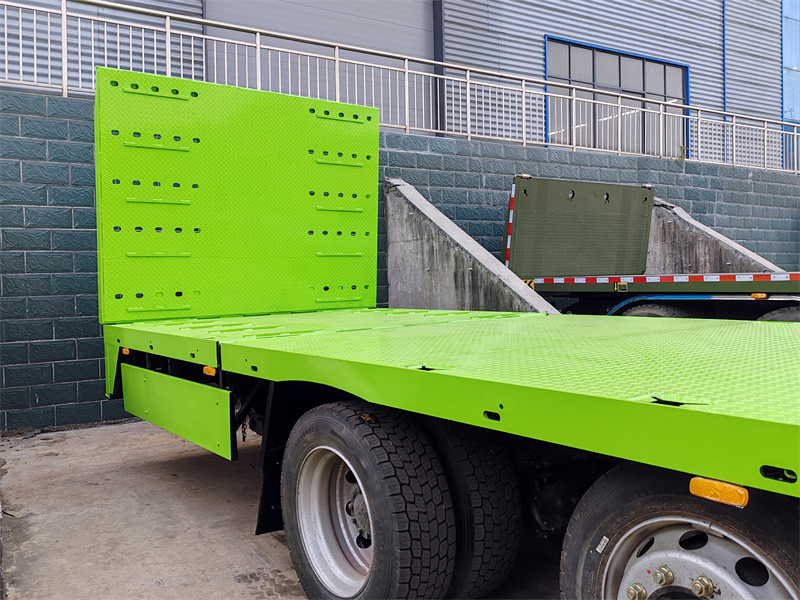

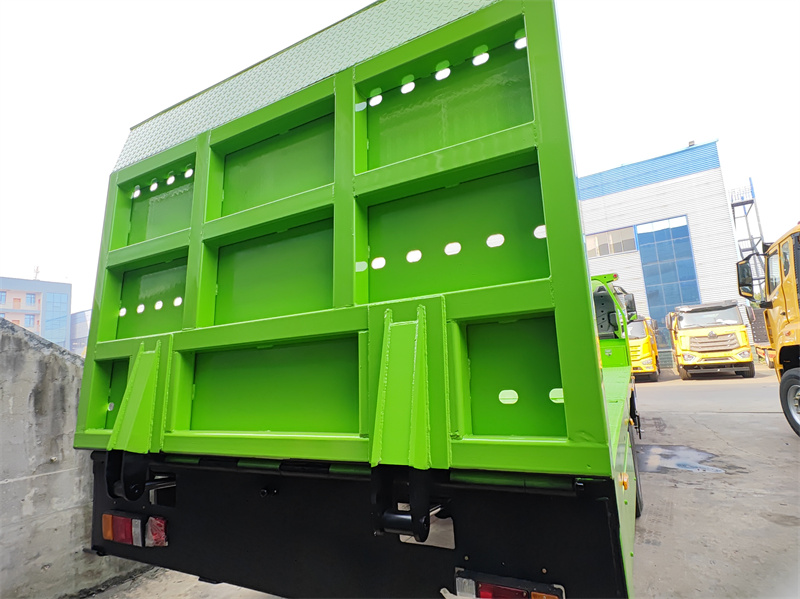

• Hydraulic Tailgate: Integrated into the rear of the platform, hydraulically liftable for quick loading and unloading of heavy objects.
▶ Auxiliary Equipment and Operation:

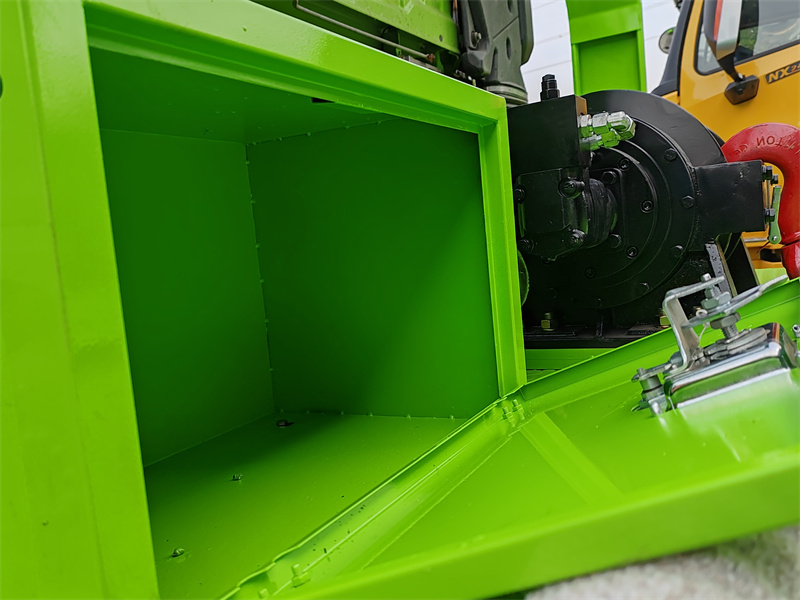

• Toolboxes: Large, enclosed toolboxes are located on both sides of the platform for storing rescue equipment such as straps, sleepers, tools, and warning signs.

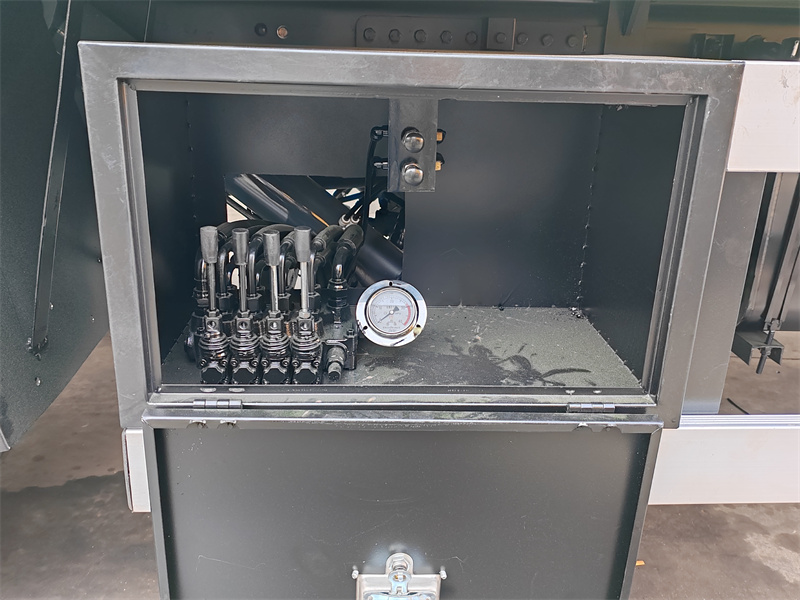

• Control Box: Located on the right side of the vehicle, it integrates a hydraulic control system (multi-way directional valve) for controlling platform movement, tilting, winch deployment and retrieval, and tailgate operation. Operation is centralized, simple, and safe.

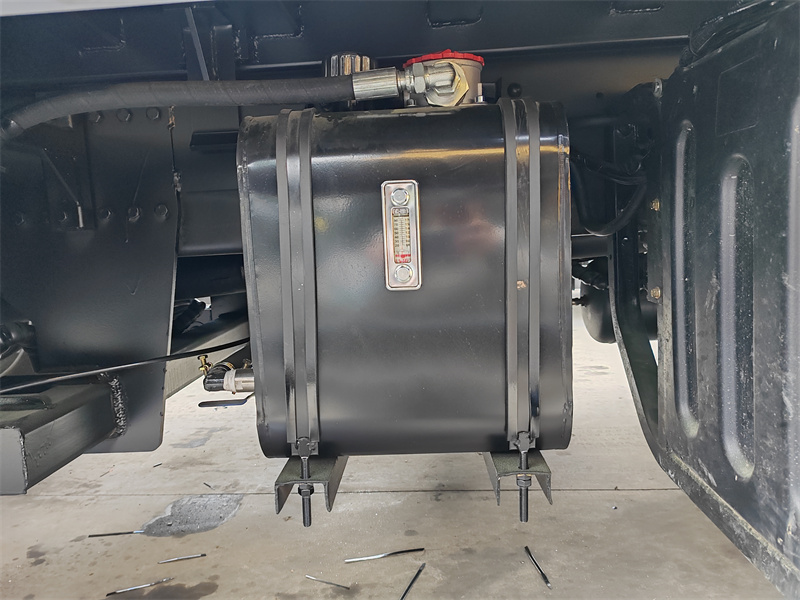

• Hydraulic System: Utilizes brand-name hydraulic pumps, multi-way valves, cylinders, and piping to provide stable and reliable power output.
• Warning System: Standard warning lights ensure operational safety.
