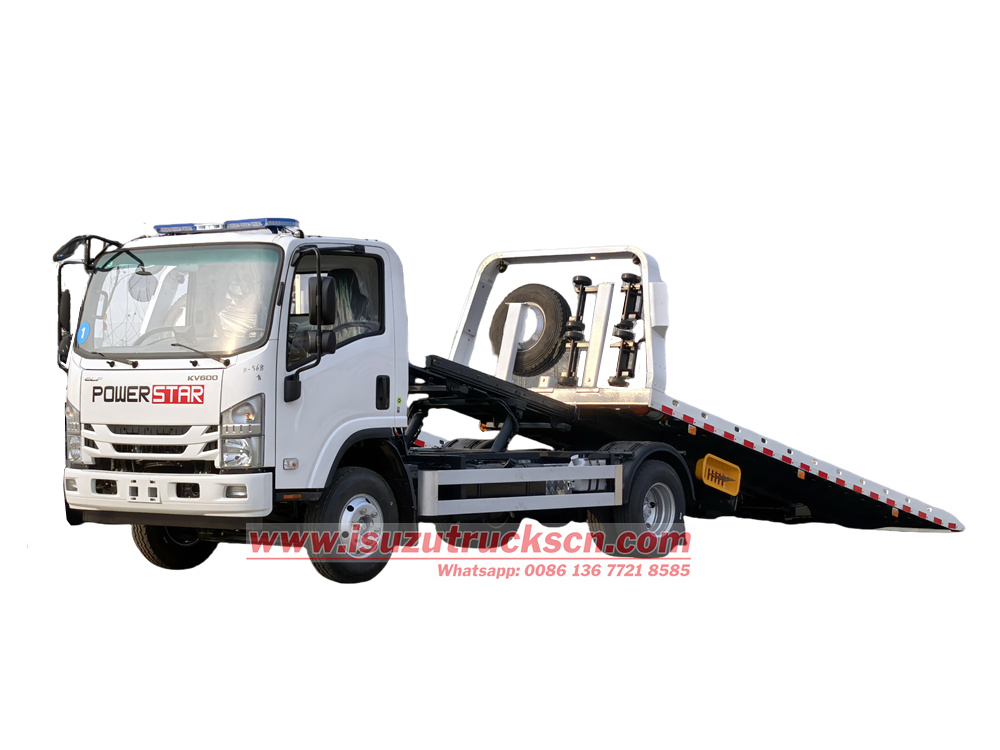

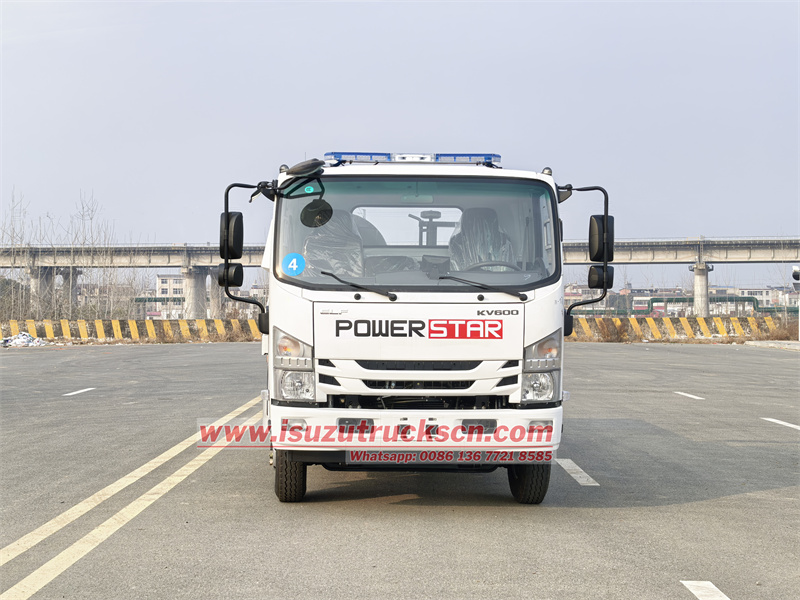

The Isuzu KV600 5-ton tow truck has a 8280kg gross vehicle weight, 3815mm wheelbase, and equipped with an Isuzu 4KK1N6HD engine and a MYY-6 transmission. The upper body features a 5.4x2.2m high-strength steel perforated plate with anti-slip patterns, 5mm thick, and a 5-ton load capacity. It includes a 5-ton winch at the front, 25 meters of steel cable, a 3.5-ton rear tow arm
MarketPrice:
$33570Manufacturer:
Powerstar TrucksWork capacity:
5 tonsDimension:
7450 x 2200 x 2400 mmCabin type:
Isuzu KV600 single cab,with A/CWheelbase:
3815 mmEngine power:
160HP / 118kWEngine type:
ISUZU 4KK1N6HDAxle drive:
4x2Gear box:
Isuzu MYY-6 ,6-speed,manualRemarks:

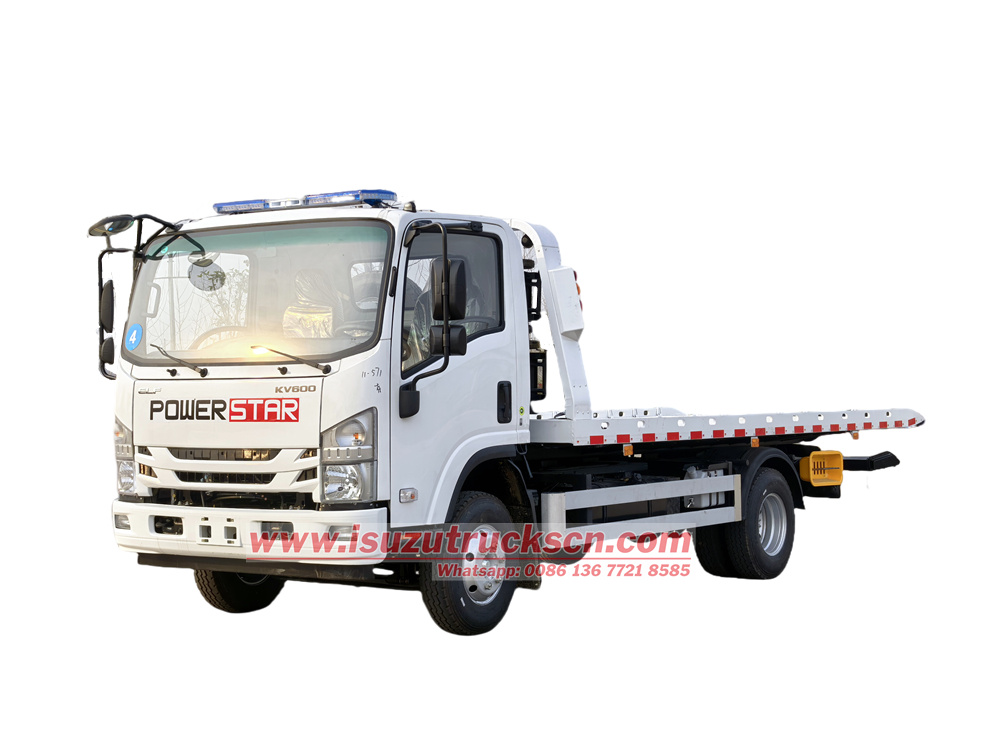

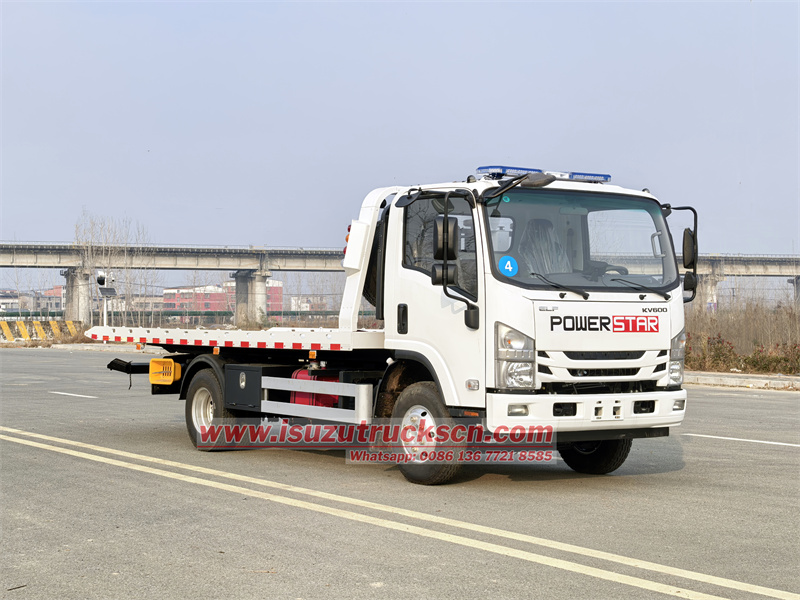

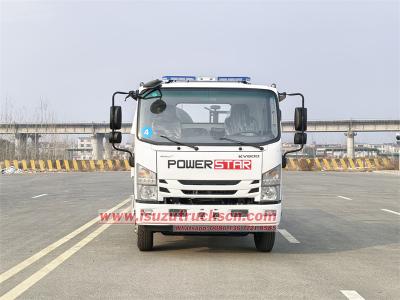

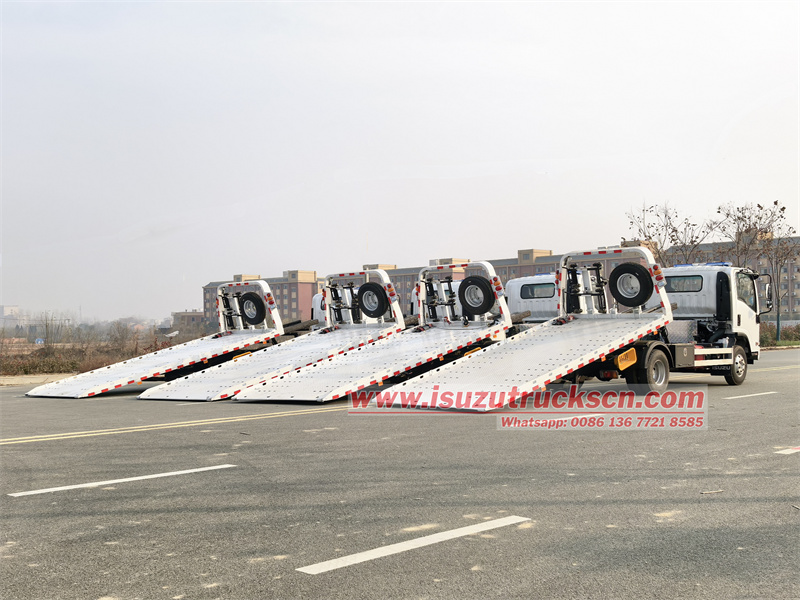

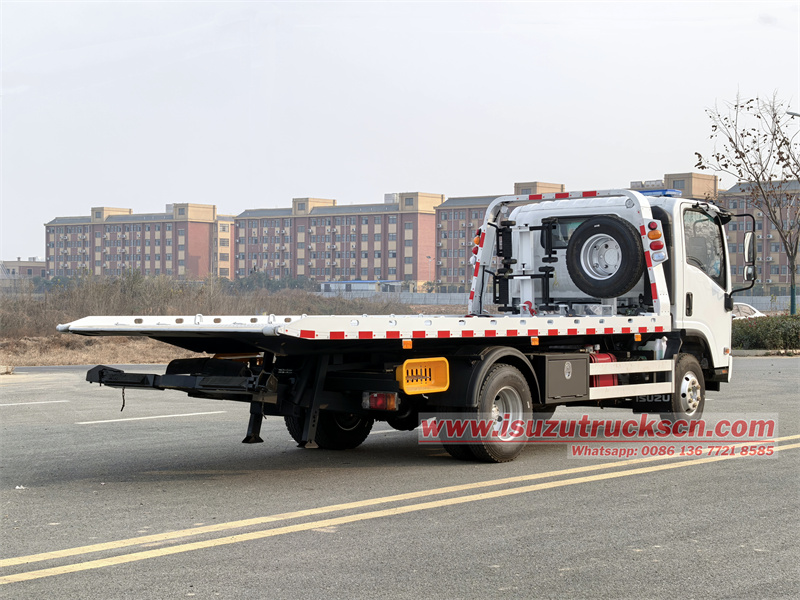

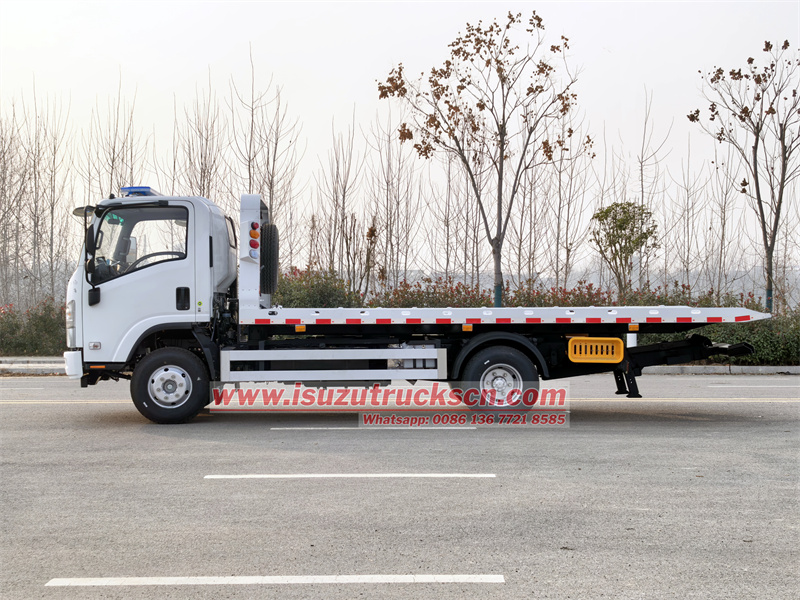

Different platform size availableThis Albania Isuzu KV600 flatbed tow wrecker truck is a medium-sized rapid rescue and recovery vehicle. Built on the reliable Isuzu KV600 chassis, it combines mobility and load-bearing capacity. Its fully equipped superstructure, featuring a 5-ton winch and a 3.5-ton rear tow arm, can cover most medium-sized vehicle rescue scenarios. Wireless remote control and dual-side linkage operation enhance operational flexibility. Standard auxiliary tools enable it to independently complete common towing, securing, and loading/unloading tasks, making it suitable for emergency rescue services on urban roads, expressways, and in county and rural areas.
▶ Features:
★ Isuzu KV600 type,4KK1 160HP powerful engine
★ Loading capacity 3tons,5tons,8tons,10tons,20tons available
★ Stable and simple operation
★ With fully floor-standing wireless remote control
★ Rotary wrecker type is available
▶ Product Parameters:
|

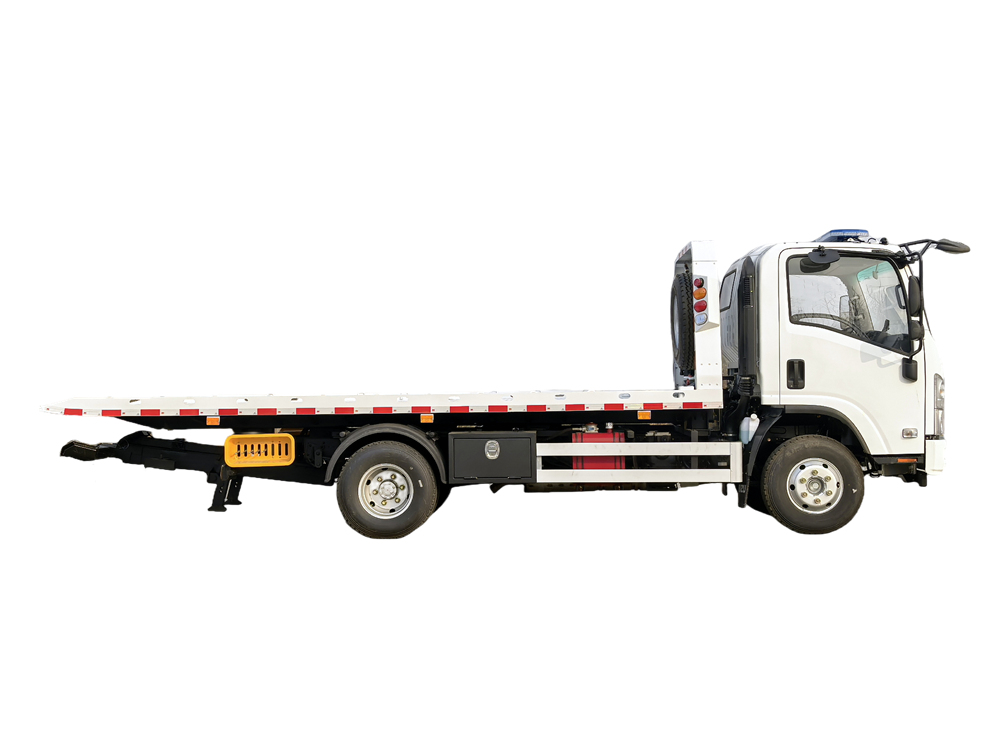

Isuzu KV600 5tons flatbed wrecker truck |
||
|
General Technical Parameters |
||
|
Overall Dimension |
7450x2200x2400 (mm) |
|
|
Gross Vehicle Weight |
8280kg |
|
|
Curb Weight |
4000kg |
|
|
Axle loading |
3000/5280kg |
|
|
Chassis Specification |
||
|
Chassis Brand |
Isuzu KV600 |
|
|
Cabin |
Single row, 3 seats,left Hand Driving |
|
|
Wheel Base |
3815mm |
|
|
Engine |
Model |
Isuzu 4KK1N6HD |
|
Type |
Inline 4-cylinder |
|
|
|
Power |
160HP/ 118kW |
|
Max torque |
435N·m |
|
|
Max torque speed |
1500-2200rpm |
|
|
Emission Standard |
EURO 6 |
|
|
Displacement |
2.499L |
|
|
Fuel Type |
Diesel,100L |
|
|
Gearbox |
Isuzu MYY-6 transmission,6-speed,manual |
|
|
Brake System |
Air Brake |
|
|
Steering Gear |
Power Assistant |
|
|
Tire |
7.50R16LT , 6+1 |
|
|
Maximum Speed |
115(km/h) |
|
|
Superstructure |
||
|
Platform dimensions |
5400x2200mm,5mm thickness, Anti-slip Treatment Deck |
|
|
Material |
high-strength steel perforated plate |
|
|
Loading capacity |
5tons |
|
|
Winch |
Quantity |
1pc |
|
Winch Rating Pulling Capacity |
5tons |
|
|
Length of Steel Cable |
25 m |
|
|
Equipment |
3.5tons rear support arm One long row of LED warning lights, Dual-side linkage operation device 1 toolbox 2 trolleys 1 pair of L-shaped tire holders 1 pair of tow forks, 1 pair of tow fork seats, 4 binding straps 1 chain hook fully ground-mounted wireless remote control. |
|
▶ Chassis System:
• Model: Isuzu KV600 Class II Chassis
• Gross Vehicle Weight: 8,280 kg
• Wheelbase: 3,815 mm
• Engine: Isuzu 4KK1N6HD 160 hp diesel engine (meets Euro VI emission standards)

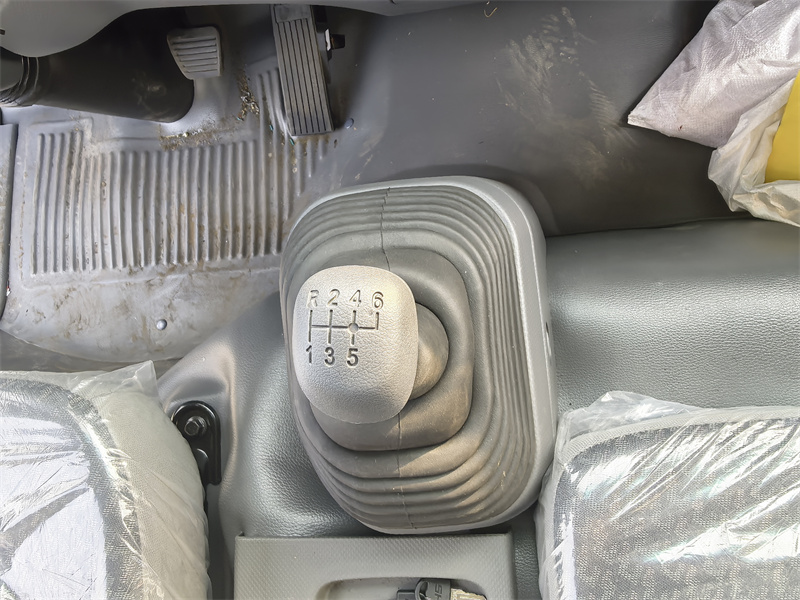

• Transmission: MYY-6-speed manual transmission, with clear shifting logic and smooth operation

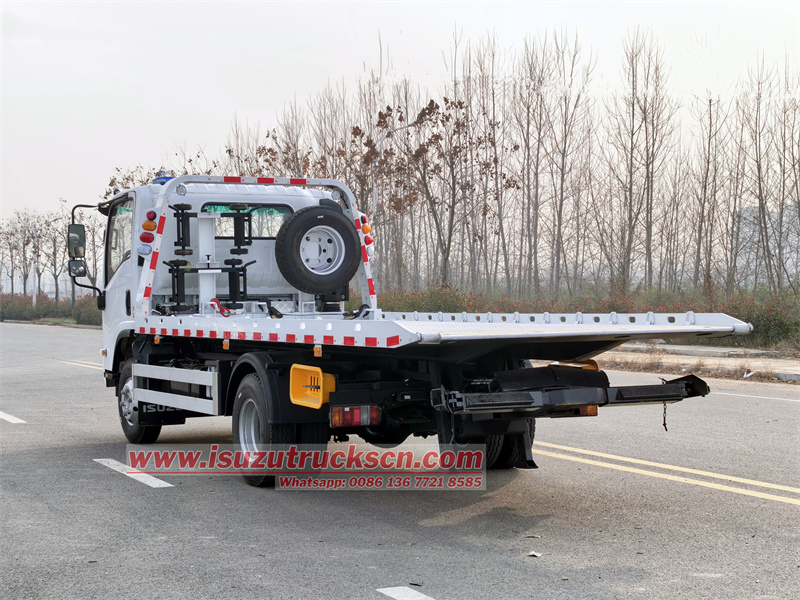

▶ Upper Platform System:

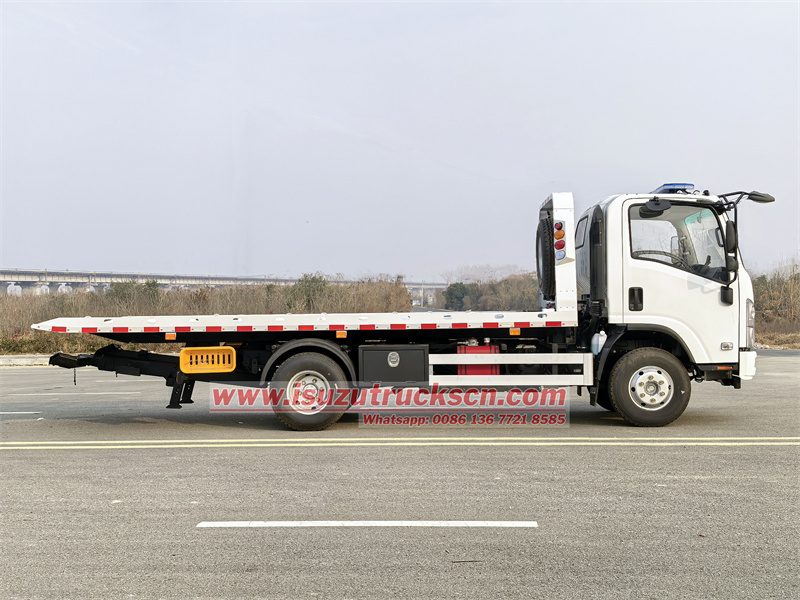

• Flatbed Dimensions: 5.4 x 2.2 meters, with guardrails along the edges
• Sheet Material: 5mm thick high-strength, non-slip patterned steel plate with perforated surface
• Rated Load Capacity: 5,000 kg
▶ Towing and Rescue System:
1. Towing System:

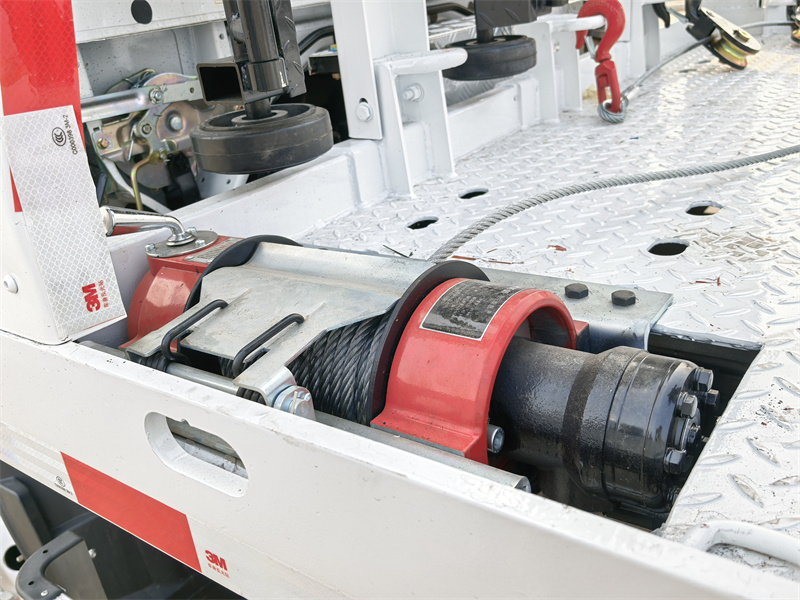

o Front-mounted hydraulic winch: rated pulling force 5 tons, equipped with 25-meter steel wire rope.

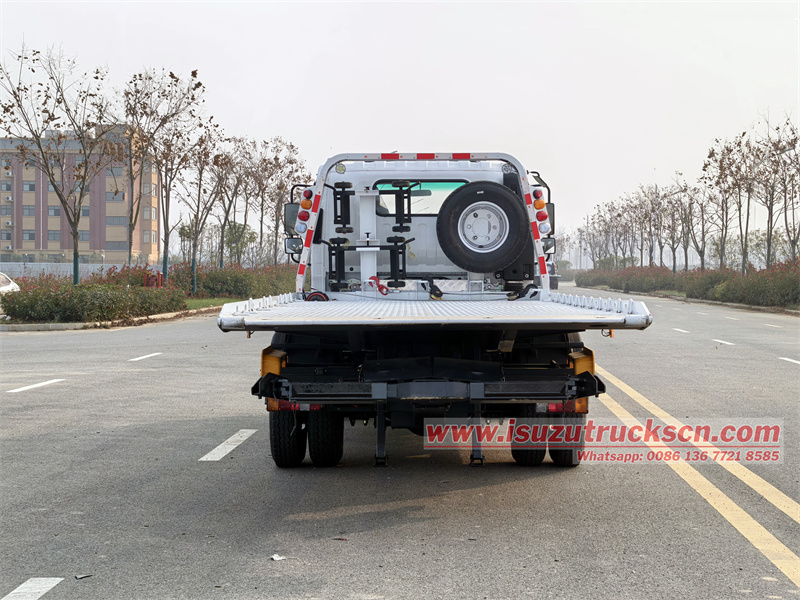

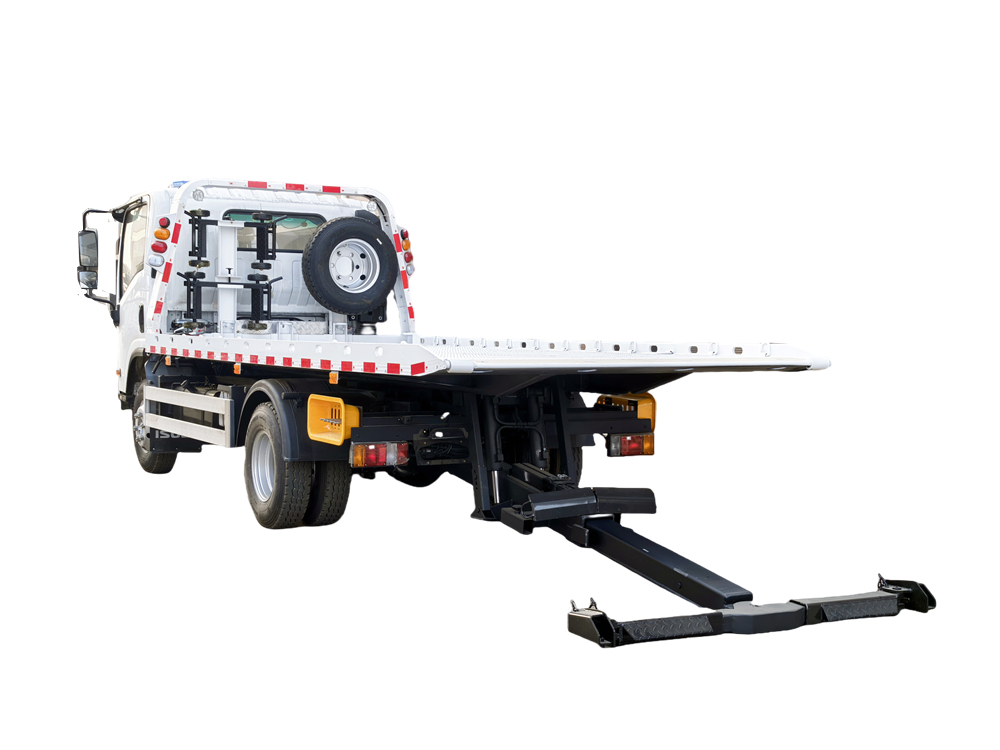

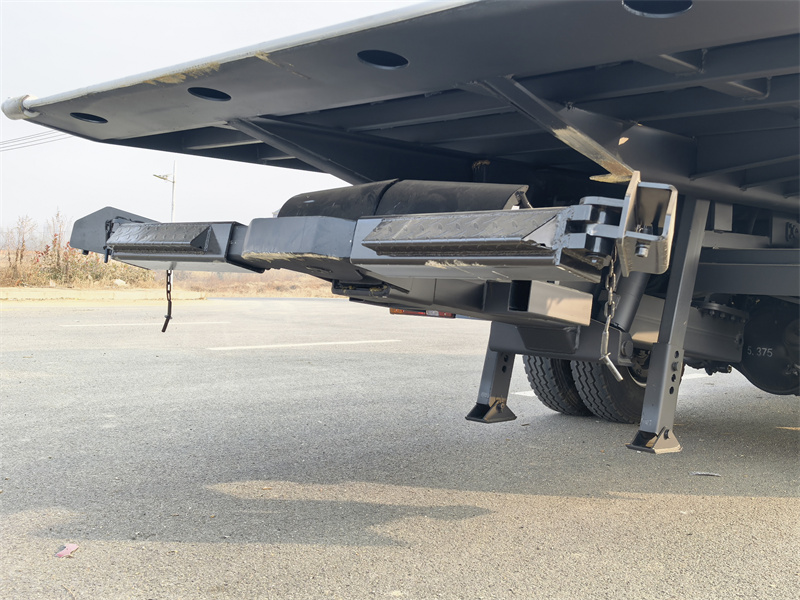

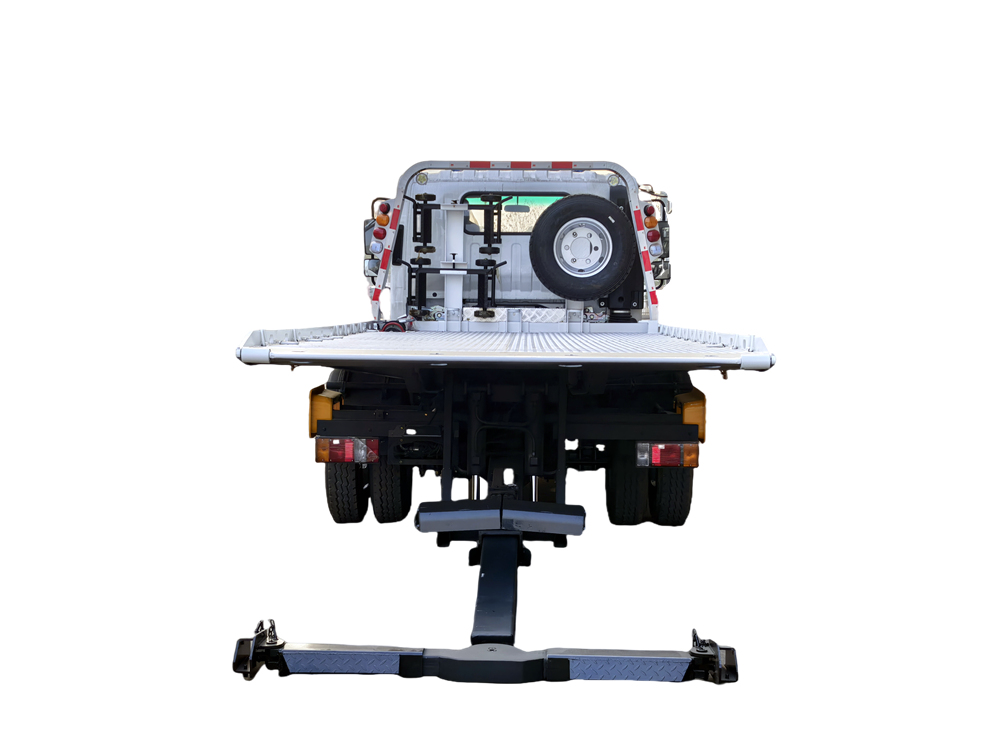

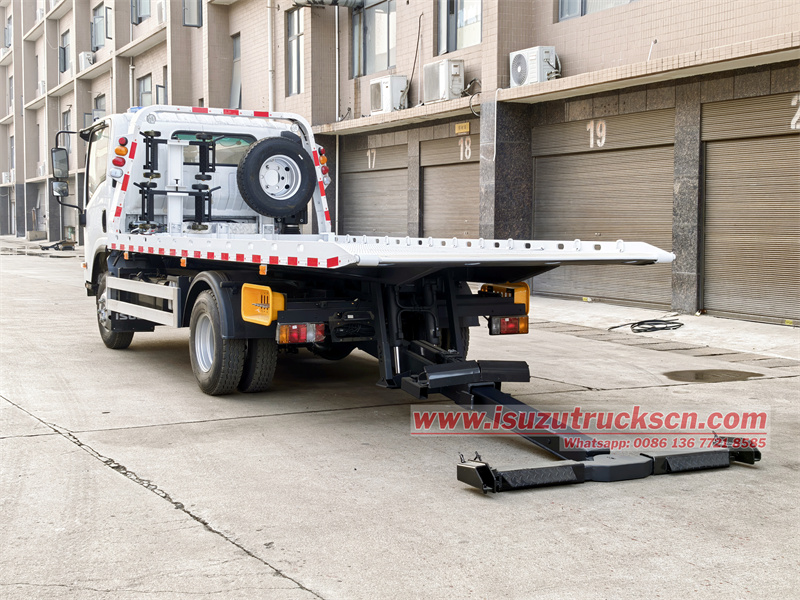

2. Hydraulic rear support arm: maximum lifting capacity 3.5 tons.
3. Auxiliary Equipment (Standard):

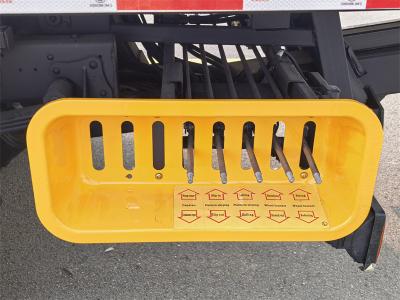

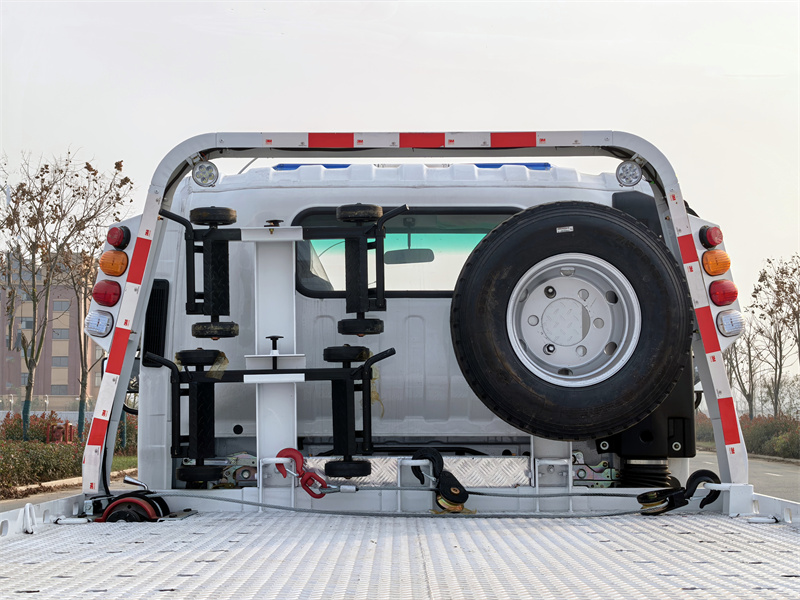

o 1 pair of L-shaped tire holders, 1 pair each of support forks and support fork seats, 1 chain hook.

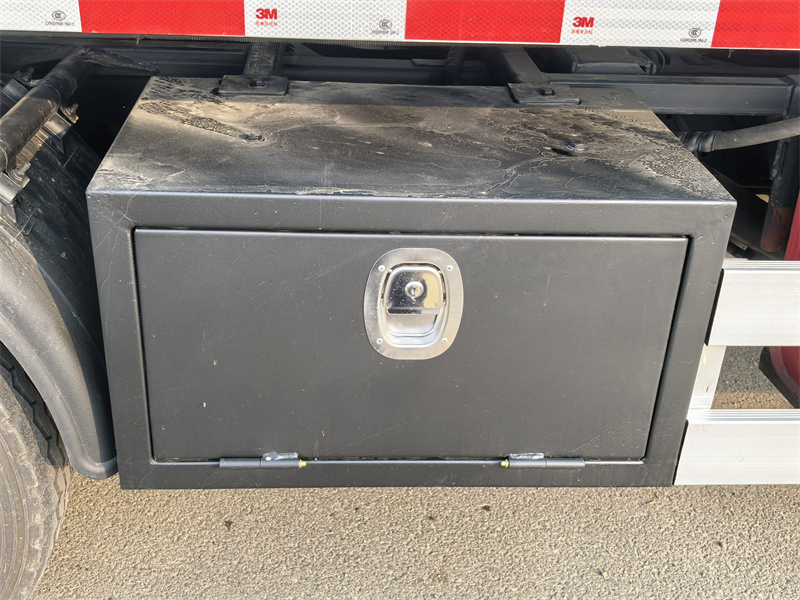

o 4 binding straps, 1 toolbox, 2 folding trolleys.

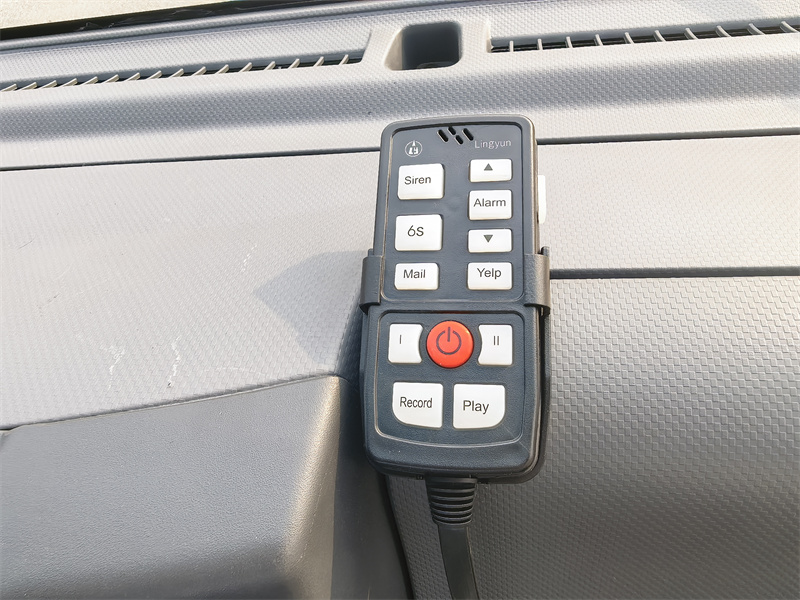

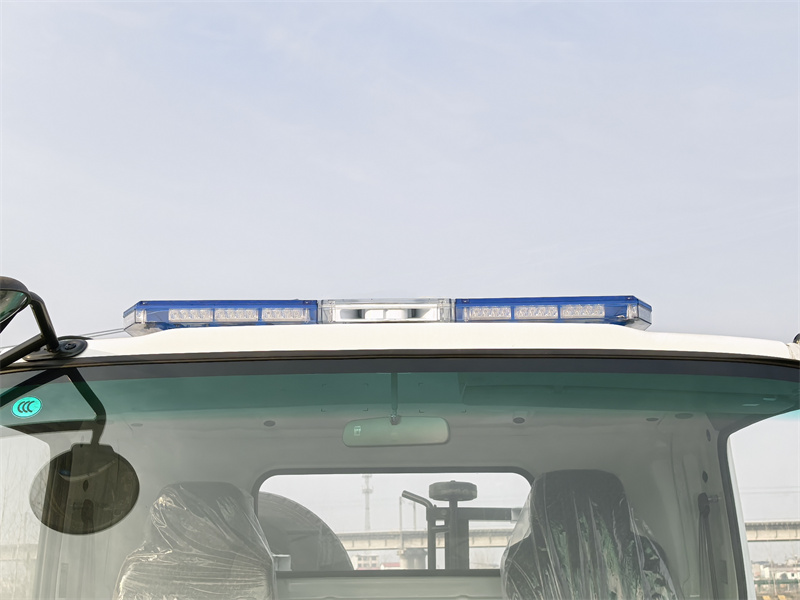

4. Warning System: Long row of LED warning lights (top-mounted for enhanced operational warning effect).

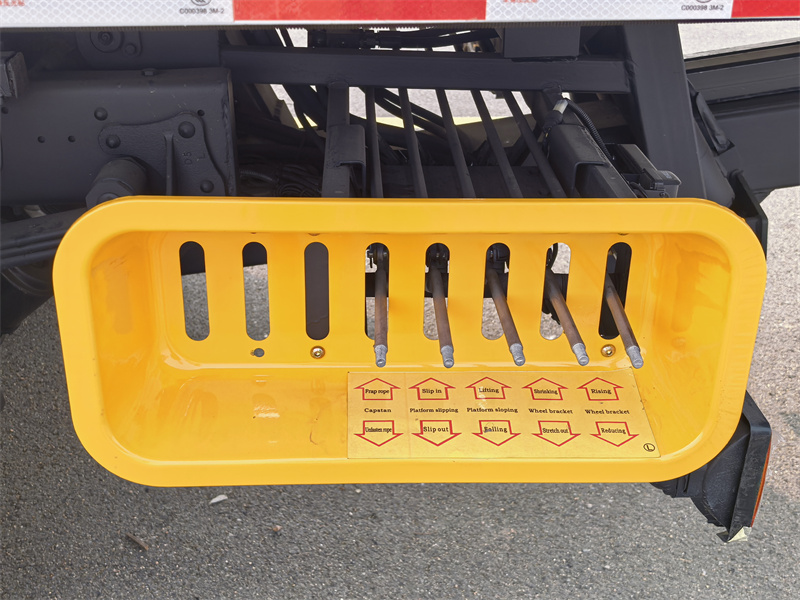

▶ Operating devices:

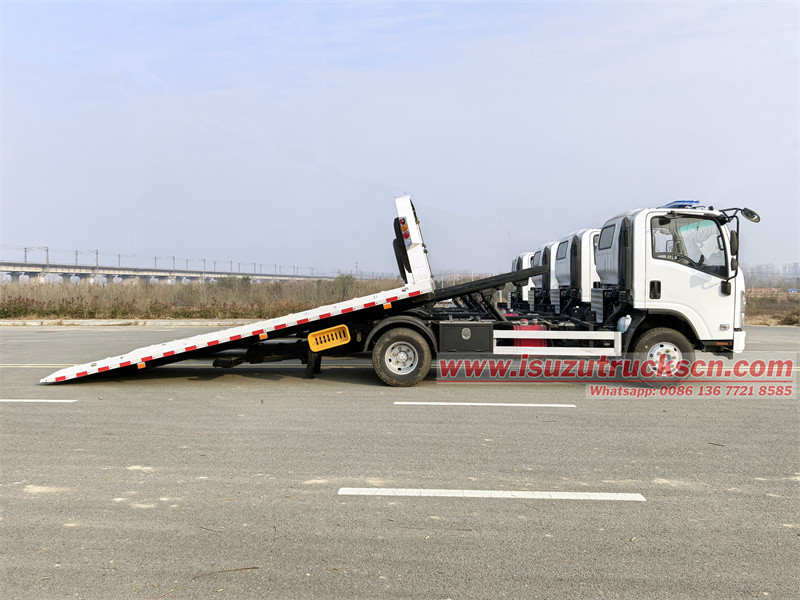

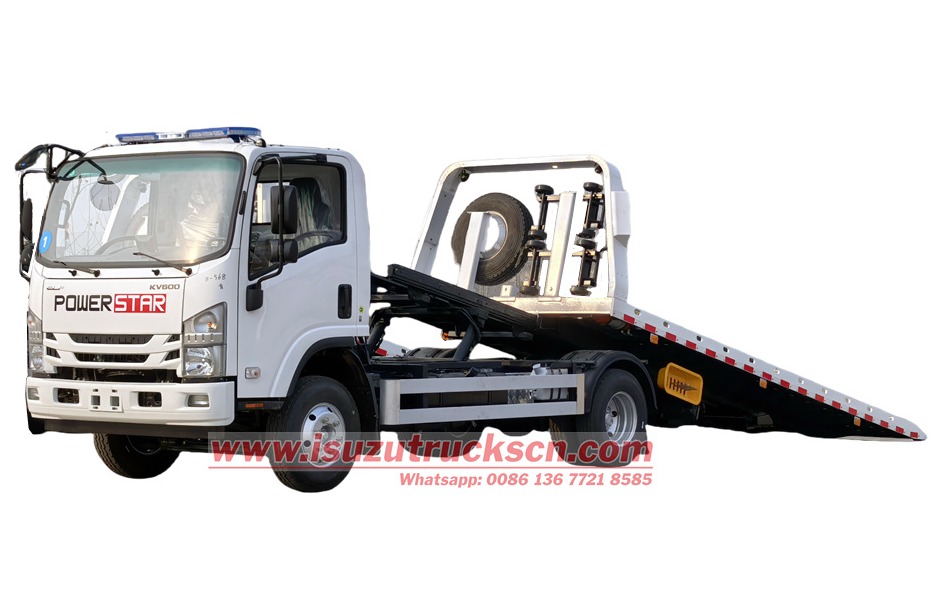

Dual-side linkage operating devices (controlling the raising and lowering of outriggers, the tilting and raising of the platform, the sliding in and out of the large platform, the sliding in and out of the small platform, the winch rope winding and unwinding, etc.), and a fully ground-mounted wireless remote control.

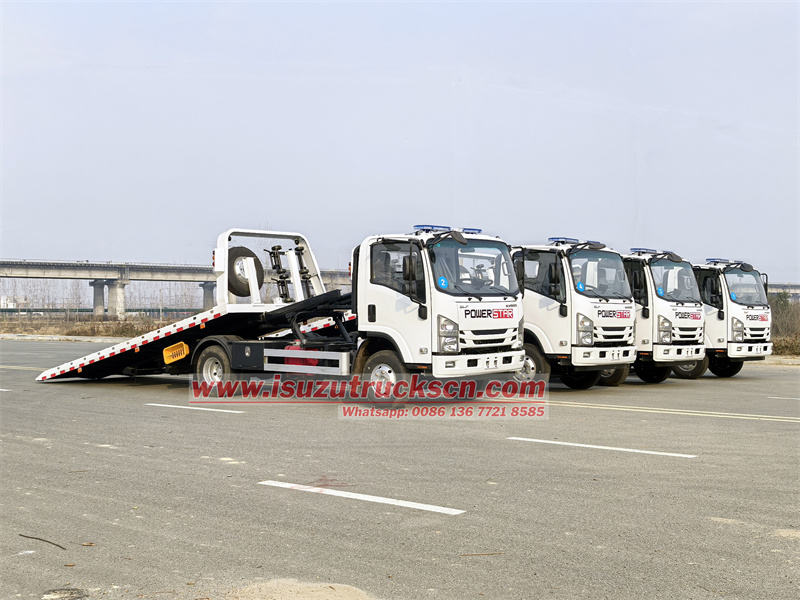

▶ Test:
Before shipping the vehicle, our factory tests its performance, including platform tilting and lifting, sliding, outrigger lifting, light operation, and loudspeaker operation. We also conduct repeated tests on the coordination of the control handles and the smoothness of control over related operations to ensure the quality of the vehicle.
▶ Applications:

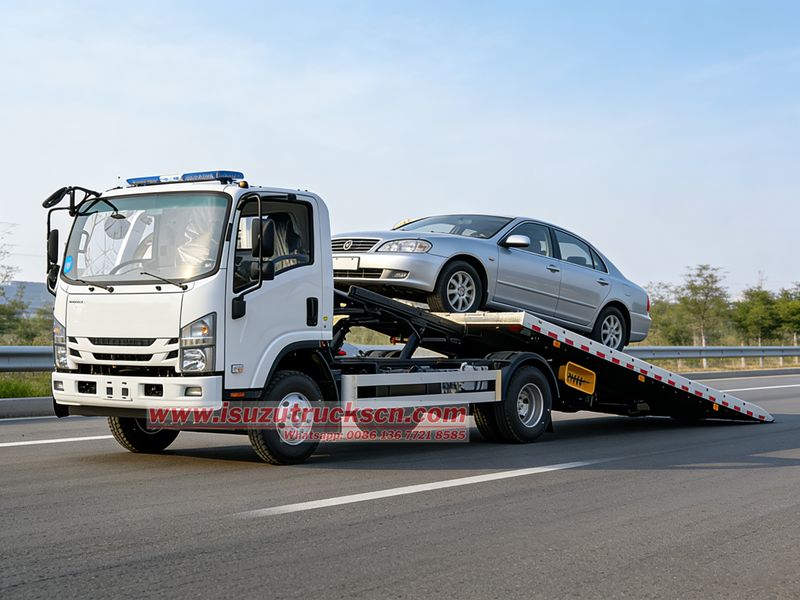

This Isuzu KV600 5-ton wrecker, with its compact body and 5-ton working capacity, is ideally suited for rapid rescue missions on Albanian city streets, mountain roads, and coastal roads. Equipped with a 5-ton winch and a 3.5-ton rear tow hook, it can efficiently handle breakdowns and accidents involving common cars and light trucks. A complete set of lashing tools and an L-shaped tire clamp ensure standardized rescue procedures, improving local traffic emergency efficiency and maintaining road safety.
