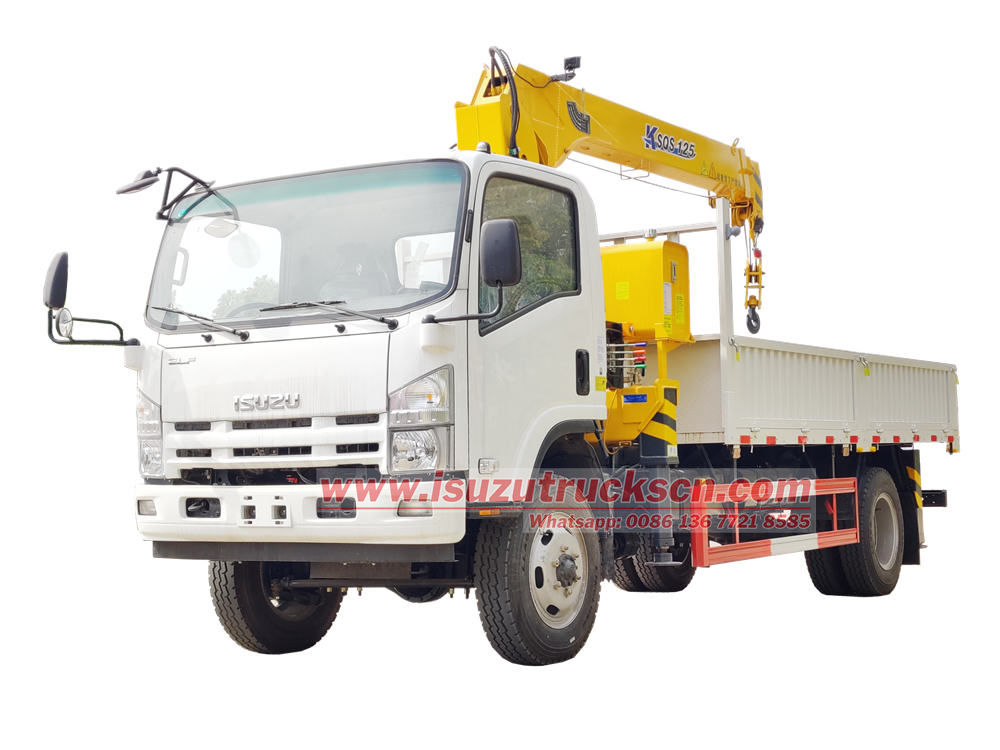

Isuzu ELF NPR 4x4 telescopic crane truck is a multifunctional engineering vehicle that integrates lifting and transportation functions. It is widely used in construction sites, logistics and transportation, municipal engineering and other fields. Its core features are the straight arm structure, retractable lifting arm, large working radius and flexible operation capacity, suitable for lifting needs at different heights.
Isuzu NPR telescopic crane truck is easy to operate, stable, and can quickly complete the loading, unloading, handling and installation of goods. In addition, it has vehicle mobility, can be flexibly transferred, and improves work efficiency. It is particularly suitable for use in working environments with limited space or complex terrain. It is an indispensable and important equipment in modern engineering operations.

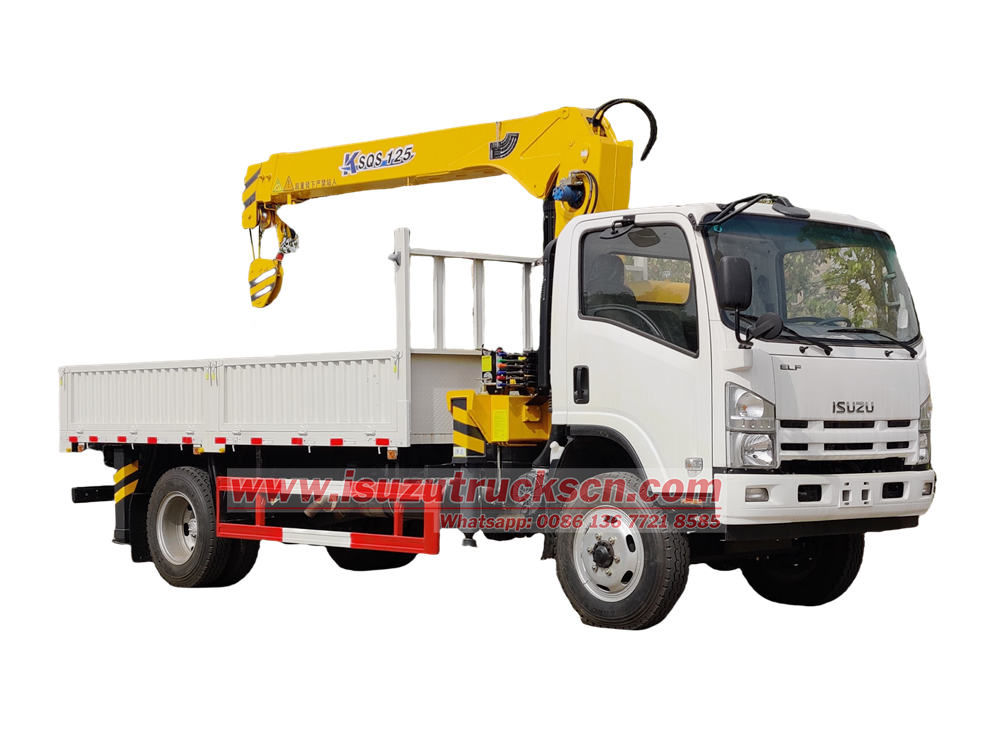

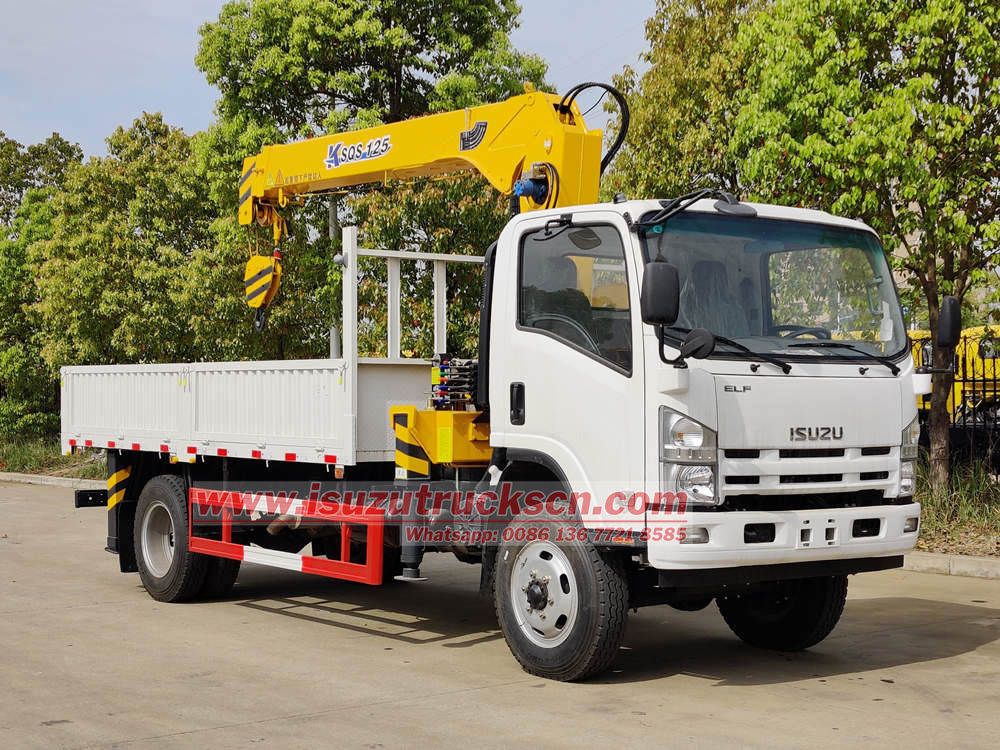

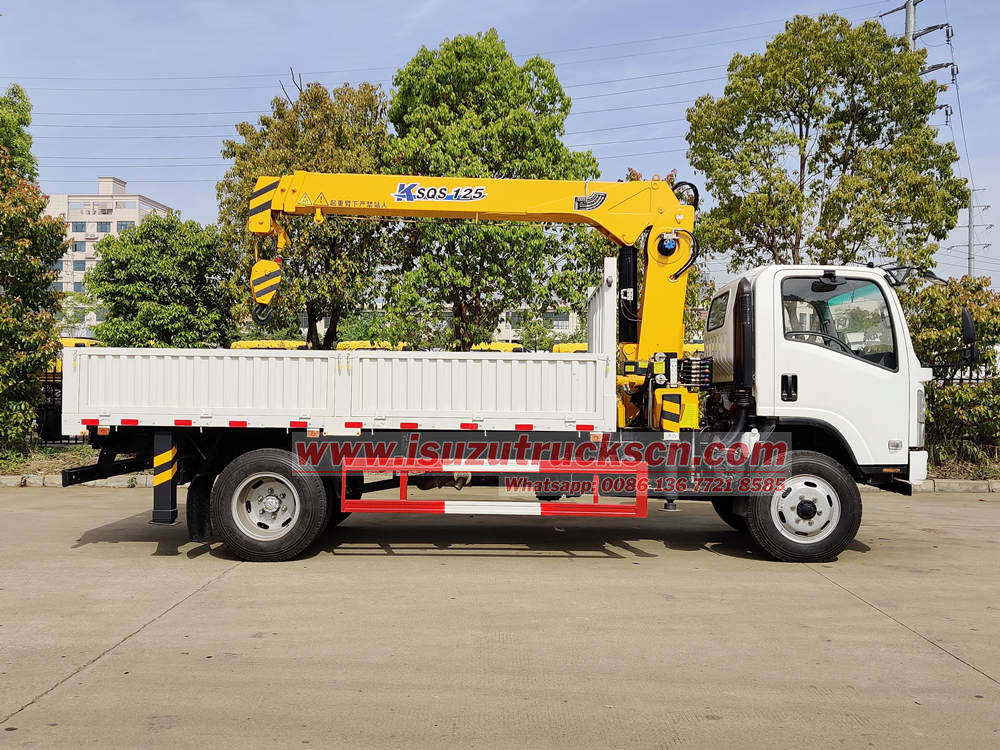

Isuzu NPR telescopic crane truck also called boom truck crane,mobile truck crane, truck with crane,hydraulic crane telescopic boom,telescopic boom truck mounted crane,etc. The vehicle is modified on the Isuzu 700P all-wheel drive chassis, equipped with an Isuzu 4HK1-TCG61 190HP engine, powerful, matched with an MLD 6-speed transmission, smooth shifting, and a POWERSTAR SQ125-4 crane at the rear of the vehicle body, with large lifting capacity and reach, and a 4500*2250*550mm cargo box below, which can easily carry heavy objects lifted by the crane hook.
The optional tonnage of Isuzu NPR telescopic crane truck is 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 18 tons, 20 tons, 25 tons, and 30 tons. The crane can For selection, you can choose a straight arm or a folding arm crane. The Isuzu boom crane truck is composed of a boom, turntable, frame, legs and other parts. The mechanical movements of the truck-mounted crane are realized through the movements of luffing, telescopic, rotating, winching and other mechanisms, and the lifting operation is realized through the combination of different movements.
|
Isuzu NPR 4x4 telescopic crane truck |
||
|
Vehicle Model: |
PT5100GXY |
|
|
Chassis Dimensions and Parameters |
Overall Dimension(L x W x H) |
7400×2350x3340mm |
|
Cargo box Dimension（L x W x H） |
4500*2250*550mm |
|
|
Wheelbase: |
4175mm |
|
|
Front/ Rear Wheel Distance: |
1680/1650mm |
|
|
Front/Rear Suspension |
1110/2115mm |
|
|
Rear Axle Ratio: |
4.1 |
|
|
Approach/Departure angle: |
17/15° |
|
|
Leaf Spring: |
8/10+6 |
|
|
Weights and Capacities |
Curb Weight: |
5500kg |
|
Payload: |
5tons |
|
|
GVW: |
10550kg |
|
|
Axle Loads: |
4000/7000kg |
|
|
Engine |
Engine Model: |
4HK1-TCG61 |
|
Max output: |
139Kw |
|
|
Displacement: |
5193ml |
|
|
Horsepower: |
190HP |
|
|
Max.Torque |
507N.m |
|
|
Maximum torque speed |
1600-2600rpm |
|
|
Exhaust Gas Treatment Technology： |
DPF |
|
|
Transmission |
Transmission: |
MLD-6Q |
|
Forward Gear: |
6 Speed Gear |
|
|
Backward Gear: |
1 Speed Gear |
|
|
Brake |
Air Brake |
|
|
Generator |
24V-80A |
|
|
Cab |
Number of Seats: |
3 |
|
|
Type |
Isuzu 700P single row,with A/C |
|
Chassis |
Drive Type: |
4x4,LHD |
|
Tires: |
6+1(Including Spare Tire) |
|
|
Tire Model: |
235/75R17.5 |
|
|
Fuel Tank |
Number: |
1 |
|
Type: |
Diesel |
|
|
Capacity: |
100L |
|
|
Configurations: |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
Retro-reflective Marking |
|
|
4 |
ABS |
|
|
5 |
Free Maintenance Battery |
|
|
Crane Parameter |
Brand |
POWERSTAR |
|
Model |
SQ125-3 |
|
|
Boom type |
4 sections telescoping boom |
|
|
Max. Lifting height |
13 m |
|
|
Max lifting moment |
30 t·m |
|
|
Max. Working radius |
11 m |
|
|
Max. lifting capacity |
5000 kg |
|
|
Crane weight |
2500Kg |
|
|
Rated hydraulic pressure |
22MPa |
|
|
Rotation of turntable |
360° continuous |
|
|
Rotation of turntable |
±90° |
|
|
Outrigger |
Front H type,5000mm |
|
|
Installation space |
780 mm |
|
|
Cargo Box Dimension |
4500x2250x550mm |
|
|
Basket material |
Stainless steel |
|
1.Materials used in Isuzu NPR telescopic crane truck
The manufacturing materials of Isuzu telescopic crane truck are high-strength steel to ensure its load-bearing capacity and durability. The boom part is made of high-strength low-alloy steel (such as Q345B), which has excellent tensile strength and fatigue resistance and can withstand large loads and complex stress environments.
The hydraulic system is the core component of the truck crane. Its cylinders, pump stations and pipelines are usually made of wear-resistant and corrosion-resistant alloy materials to ensure the stability and long life of the system. In addition, the chassis part of the truck crane is usually integrated with the truck chassis and uses high-rigidity steel to enhance the stability and torsion resistance of the overall structure.
2.Features of Isuzu hydraulic crane truck

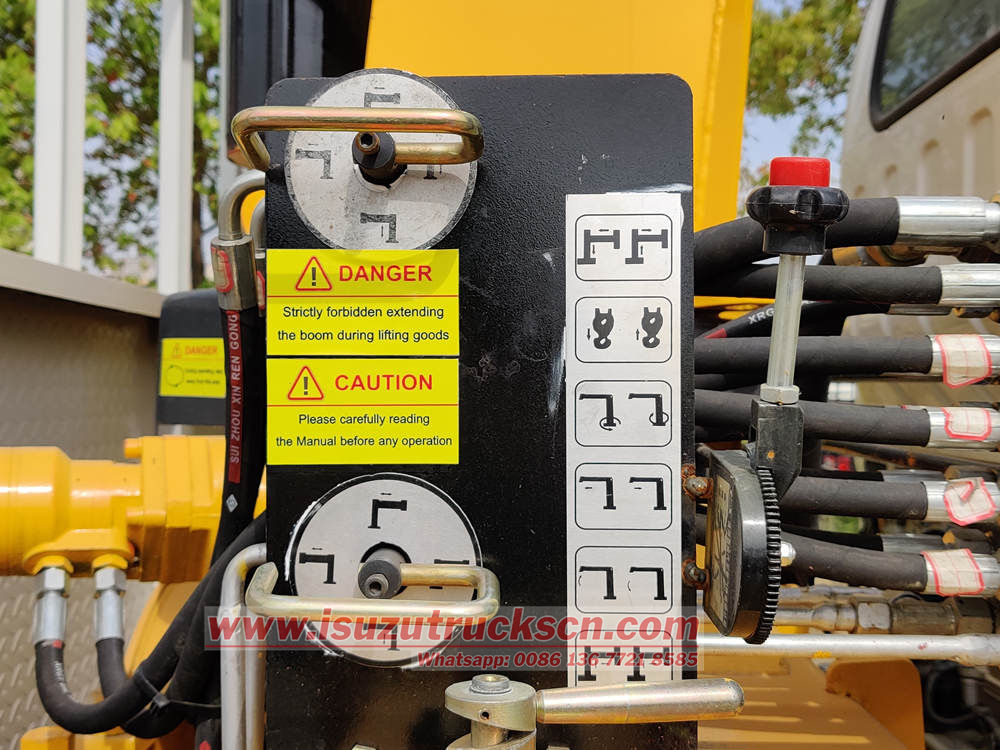

The core feature of Isuzu hydraulic crane truck is its straight arm structure. The boom adopts a multi-section telescopic design, which can flexibly adjust the length according to the operation requirements, thereby achieving a larger working radius and lifting height. Its hydraulic system drives the telescopic, rotating and lifting actions of the boom, which is easy and accurate to operate.
Versatility: It can be used for both lifting and transportation, and one machine can be used for multiple purposes to adapt to a variety of operating scenarios.
Flexibility: The boom can rotate 360 degrees, with a wide operating range, suitable for working in narrow or complex terrain.
Efficiency: Isuzu hydraulic crane truck has both mobility and can quickly transfer to other sites, reducing equipment scheduling time and improving work efficiency.
Stability: Equipped with hydraulic outriggers, it is deployed during operation to increase the support area to ensure the stability and safety of the lifting process.
3. Uses of Isuzu NPR telescopic crane truck
Construction engineering: used for hoisting construction materials (such as steel bars, prefabricated concrete parts), installing steel structures and equipment handling.
Logistics and transportation: loading and unloading goods in warehouses, docks and other places, especially suitable for the handling of heavy or large items.
Municipal engineering: used for installing street lights, billboards, traffic facilities, etc., and can also be used for tree transplantation in landscaping.
Power maintenance: used for hoisting transformers, poles and other equipment in the installation and maintenance of power lines.
Emergency rescue: in disaster relief, it can be used to clear obstacles, hoist rescue equipment, etc.
